Use of MTBE
Kia recommends avoiding fuels contain-
ing MTBE (Methyl Tertiary Butyl Ether)
over 15.0% vol. (Oxygen Content 2.7%
weight) in your vehicle.
Fuel containing MTBE over 15.0% vol.
(Oxygen Content 2.7% weight) may
reduce vehicle performance and produce
vapour lock or hard starting.
Do not use methanol
Fuels containing methanol (wood alco-
hol) should not be used in your vehicle.
This type of fuel can reduce vehicle per-
formance and damage components ofthe fuel system, engine control systemand emission control system.
Fuel Additives
Kia recommends that you use unleaded
petrol which has an octane rating of RON(Research Octane Number) 95 / AKI
(Anti Knock Index) 91 or higher (for
Europe) or Octane Rating of RON(Research Octane Number) 91 / AKI
(Anti- Knock Index) 87 or higher (exceptEurope).
For customers who do not use good
quality petrols including fuel additives
regularly, and have problems starting or
the engine does not run smoothly, one
bottle of additives added to the fuel tank
at every 15,000km (for Europe)/ 5,000km
(except Europe). Additives are available
from your authorised Kia dealer along
with information on how to use them. Do
not mix other additives.
Operation in foreign countries
If you are going to drive your vehicle in
another country, be sure to:
 Observe all regulations regarding reg-
istration and insurance.
 Determine that acceptable fuel is avail- able. Diesel engine
Diesel fuel
Diesel engine must be operated only on
commercially available diesel fuel that
complies with EN 590 or comparable
standard. (EN stands for "European
Norm"). Do not use marine diesel fuel,
heating oils, or non-approved fuel addi-
tives, as this will increase wear andcause damage to the engine and fuel
system. The use of non-approved fuels
and / or fuel additives will result in a limi-
tation of your warranty rights.
Diesel fuel of above cetane 51 is used in
your vehicle. If two types of diesel fuel
are available, use summer or winter fuel
properly according to the following tem-
perature conditions.
 Above -5°C (23°F) ... Summer type
diesel fuel.
 Below -5°C (23°F) ... Winter type diesel fuel.
Watch the fuel level in the tank very care-
fully : If the engine stops through fuel fail-
ure, the circuits must be completely
purged to permit restarting.
CAUTION
Your New Vehicle Limited Warranty may not cover damage to the fuelsystem and any performance prob-
lems that are caused by the use of fuels containing methanol or fuelscontaining MTBE (Methyl TertiaryButyl Ether) over 15.0% vol.
(Oxygen Content 2.7% weight.)
JD RHD 1.QXP 2/17/2015 10:25 AM Page 4

15
Introduction
Biodiesel
Commercially supplied Diesel blends of no more than 7% biodiesel, commonly
known as "B7 Diesel" may be used in
your vehicle if Biodiesel meets EN 14214
or equivalent specifications. (EN stands
for "European Norm"). The use of biofu-
els exceeding 7% made from rapeseed
methyl ester (RME), fatty acid methyl
ester (FAME), vegetable oil methyl ester
(VME) etc. or mixing diesel exceeding7% with biodiesel will cause increased
wear or damage to the engine and fuel
system. Repair or replacement of worn ordamaged components due to the use of
non approved fuels will not be covered by
the manufactures warranty.No special break-in period is needed. By
following a few simple precautions for the
first 1,000 km (600 miles) you may add to
the performance, economy and life of
your vehicle.
 Do not race the engine.
 Whilst driving, keep your engine speed
(rpm, or revolutions per minute)
between 2,000 rpm and 4,000 rpm.
 Do not maintain a single speed for long periods of time, either fast or slow.
Varying engine speed is needed to
properly break-in the engine.
 Avoid hard stops, except in emergen-
cies, to allow the brakes to seat prop-
erly.
 Don't tow a trailer during the first 2,000 km (1,200 miles) of operation.CAUTION
Do not let any petrol or water enter
the tank. This would make it neces-
sary to drain it out and to bleed thelines to avoid jamming the injectionpump and damaging the engine.
CAUTION - Diesel Fuel
(if equipped with DPF)
It is recommended to use the regu- lated automotive diesel fuel fordiesel vehicle equipped with theDPF system.
If you use diesel fuel including highsulfur (more than 50 ppm sulfur) and
unspecified additives, it can causethe DPF system to be damaged andwhite smoke can be emitted.
CAUTION
 Never use any fuel, whether diesel, B7 biodiesel or otherwise,that fails to meet the latest petro-leum industry specification.
 Never use any fuel additives or treatments that are not recom-mended or approved by the vehi- cle manufacturer.
VEHICLE BREAK-IN PROCESS
JD RHD 1.QXP 2/17/2015 10:25 AM Page 5

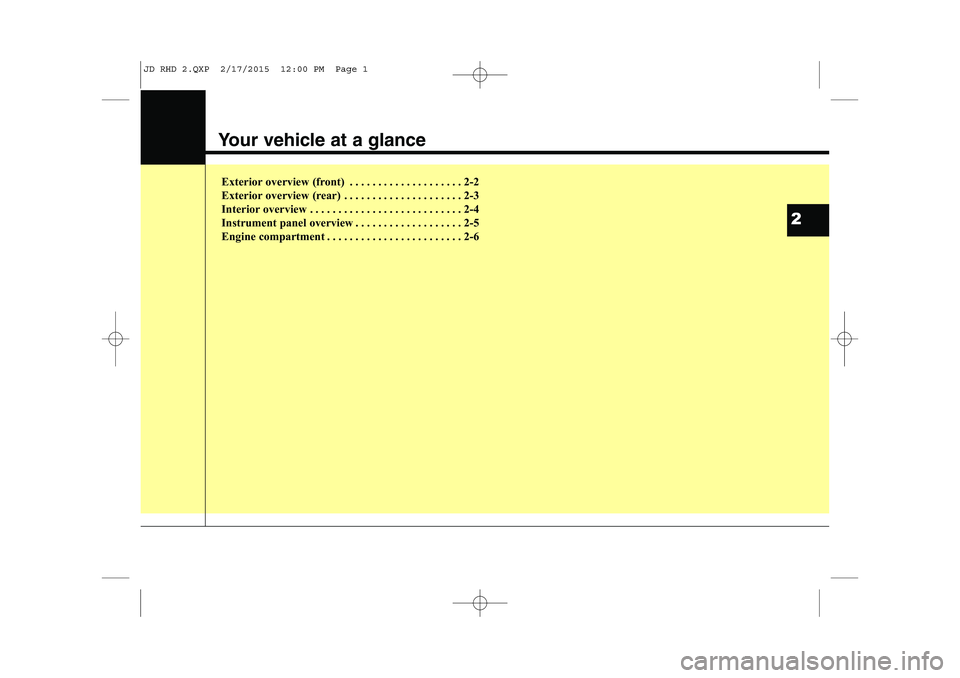

Your vehicle at a glance
Exterior overview (front) . . . . . . . . . . . . . . . . . . . . 2-2
Exterior overview (rear) . . . . . . . . . . . . . . . . . . . . . 2-3
Interior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Instrument panel overview . . . . . . . . . . . . . . . . . . . 2-5
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-6
2
JD RHD 2.QXP 2/17/2015 12:00 PM Page 1

Your vehicle at a glance
2
2
EXTERIOR OVERVIEW (FRONT)
1. Front removable towing hook .................6-30
2. Front windscreen wiper ........................4-119
3. Outside rearview mirror ..........................4-44
4. Door lock ................................................4-17
5. Head lamp ...................................4-111, 7-89
6. Front fog lamp.......................................4-116
7. Bonnet ...................................................4-28
8. Tyre and wheel .......................................7-56
OJD012001R
❈ The actual shape may differ from the illustration.
JD RHD 2.QXP 2/17/2015 12:00 PM Page 2

23
Your vehicle at a glance
EXTERIOR OVERVIEW (REAR)
1. Roof antenna ........................................4-172
2. Rear window defroster..........................4-127
3. Rear wiper ............................................4-122
4. Rear parking assist system ....................4-92
5. Child-protector rear door lock .................4-21
6. Fuel filler .................................................4-30
7. Rear towing hook....................................6-30
8. Rear combination lamp ........................7-105
9. Tailgate handle switch ...........................4-22
10. High mounted stop lamp ....................7-110
11. Rearview camera................................4-110OJD012002
❈ The actual shape may differ from the illustration.
JD RHD 2.QXP 2/17/2015 12:00 PM Page 3

Your vehicle at a glance
4
2
INTERIOR OVERVIEW
1. Seat..........................................................3-2
2. Inside door handle ................................4-18
3. Power window switch ............................4-24
4. Power window lock switch......................4-26
5. Bonnet release lever ..............................4-28
6. Outside rearview mirror folding ..............4-45
7. Outside rearview mirror control..............4-44
8. Headlight levelling device ....................4-117
9. Instrument panel illumination control
system ..........................................4-47, 4-61
10. Idle Stop and Go (ISG) OFF button ....5-15
11. Active ECO button ..............................5-32
12. Lane departure warning system button ..5-59
13. Heated steering wheel button ..............4-38
14. Light control/Turn signals ..................4-112
15. Steering wheel ....................................4-37
16. Wiper/Washer ....................................4-119
17. Transaxle shift lever ....................5-20, 5-23
18. Tilt and telescopic steering control lever..........................................4-38
19. Fuse box ..............................................7-68
OJD012003R
❈ The actual shape may differ from the illustration. ■
Type A
■ Type B
JD RHD 2.QXP 2/17/2015 12:00 PM Page 4

INSTRUMENT PANEL OVERVIEW
OJD012004R
25
Your vehicle at a glance
❈ The actual shape may differ from the illustration. 1. Instrument cluster .....................4-46, 4-59
2. Horn ...................................................4-39
3. Steering wheel audio control............4-173
4. Cruise control switch ..........................5-51
Speed limiter control switch ...............5-56
Cluster display mode conversion
switch .................................................4-61
5. Driver’s air bag ...................................3-50
6. Ignition switch or ENGINE START/STOP button ......5-5, 5-9
7. Hazard warning switch .....................4-110
8. Audio ................................................4-172
9. Seat warmer .......................................3-12
10. Central door lock switch ...................4-19
11. ESC OFF button...............................5-44
12. Climate control system .......4-128, 4-137
13. Cigar lighter ....................................4-155
14. Aux, USB and iPod port .................4-160
15. Power outlet ...................................4-159
16. Front passenger’s air bag ................3-50
17. Glove box .......................................4-153
JD RHD 2.QXP 2/17/2015 12:00 PM Page 5

Your vehicle at a glance
6
2
ENGINE COMPARTMENT
OJD072001R/OJD072002R
❈
The actual engine room in the vehicle may differ from the illustration. 1. Engine oil filler cap ............................7-38
2. Brake/clutch fluid reservoir ................7-43
3. Positive battery terminal ....................7-53
4. Negative battery terminal ..................7-53
5. Fuse box ............................................7-68
6. Air cleaner ........................................7-46
7. Radiator cap ......................................7-42
8. Engine coolant reservoir....................7-41
9. Engine oil dipstick..............................7-38
10. Windscreen washer fluid reservoir ..7-44
■■
Petrol engine (GDI)
■■Petrol engine (MPI)
JD RHD 2.QXP 2/17/2015 12:01 PM Page 6

27
Your vehicle at a glance

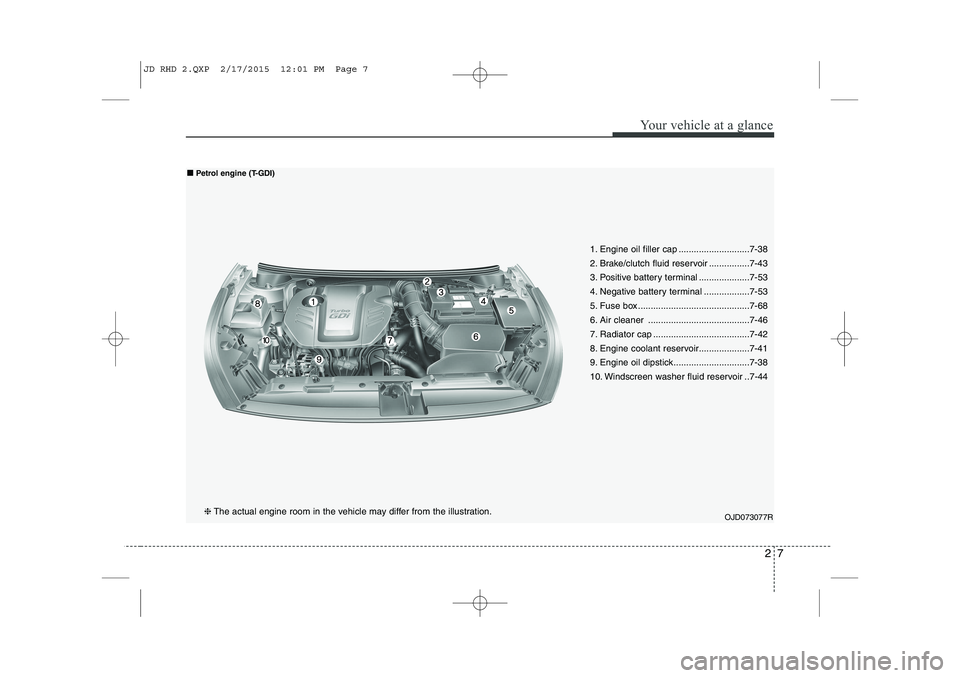

1. Engine oil filler cap ............................7-38
2. Brake/clutch fluid reservoir ................7-43
3. Positive battery terminal ....................7-53
4. Negative battery terminal ..................7-53
5. Fuse box ............................................7-68
6. Air cleaner ........................................7-46
7. Radiator cap ......................................7-42
8. Engine coolant reservoir....................7-41
9. Engine oil dipstick..............................7-38
10. Windscreen washer fluid reservoir ..7-44
OJD073077R❈The actual engine room in the vehicle may differ from the illustration.
■
■
Petrol engine (T-GDI)
JD RHD 2.QXP 2/17/2015 12:01 PM Page 7

OJD072003R
❈
The actual engine room in the vehicle may differ from the illustration. 1. Engine oil filler cap ............................7-38
2. Brake/clutch fluid reservoir ................7-43
3. Positive battery terminal ....................7-53
4. Negative battery terminal ..................7-53
5. Fuse box ............................................7-68
6. Air cleaner ........................................7-46
7. Radiator cap ......................................7-42
8. Engine coolant reservoir....................7-41
9. Engine oil dipstick..............................7-38
10. Windscreen washer fluid reservoir ..7-44
11. Fuel filter ........................................7-45
■■
Diesel engine
28
Your vehicle at a glance
JD RHD 2.QXP 2/17/2015 12:01 PM Page 8
