KIA CEED 2015 Owners Manual

83
Specifications & Consumer information
ENGINEItem Gasoline 1.4 Gasoline 1.6 Diesel 1.4
Diesel 1.6
Displacement cc (cu. in) 1,396 (85.19) 1,591 (97.09) 1,396 (85.12)
1,582 (96.53)
Bore x Stroke mm (in.)77x74.99
(3.03x2.95) 77x85.44
(3.03x3.36) 75x79 (2.95x3.11)
77.2x84.5
(3.03x3.32)
Firing order 1-3-4-2 1-3-4-2 1-3-4-2
1-3-4-2
No. of cylinders 4, In-line 4, In-line 4, In-line
4, In-line
JD eng 8.QXP 3/4/2015 3:12 PM Page 3

Specifications & Consumer information
4
8

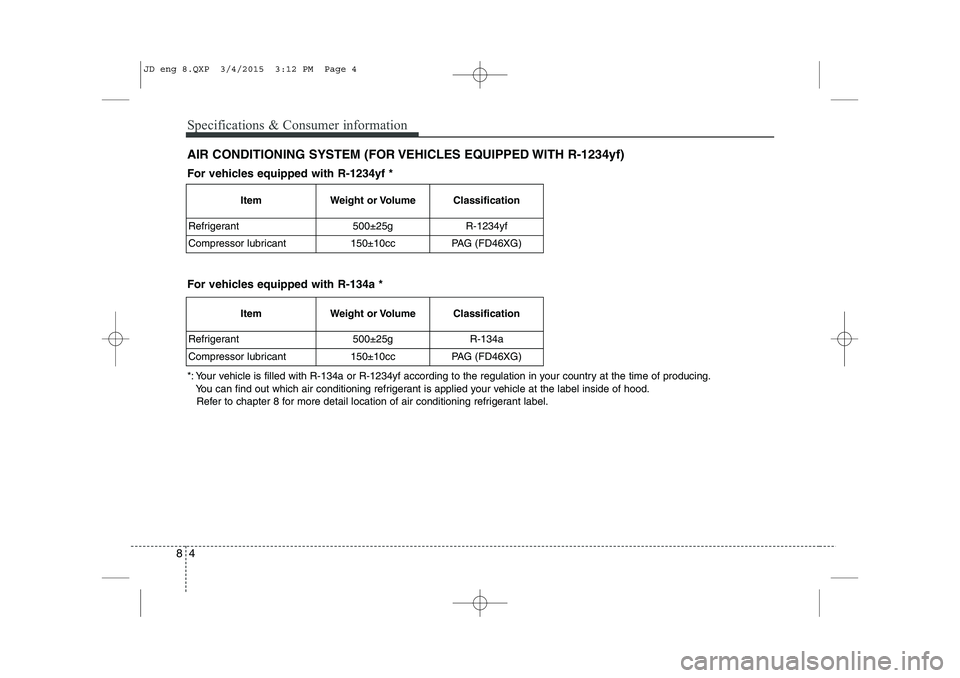

AIR CONDITIONING SYSTEM (FOR VEHICLES EQUIPPED WITH R-1234yf)
Item Weight or Volume Classification
Refrigerant 500±25g R-1234yf
Compressor lubricant 150±10cc PAG (FD46XG)
For vehicles equipped with R-1234yf *
For vehicles equipped with R-134a *
Item Weight or Volume Classification
Refrigerant 500±25g R-134a
Compressor lubricant 150±10cc PAG (FD46XG)
*: Your vehicle is filled with R-134a or R-1234yf according to the regulation in your country at the time of producing. You can find out which air conditioning refrigerant is applied your vehicle at the label inside of hood.Refer to chapter 8 for more detail location of air conditioning refrigerant label.
JD eng 8.QXP 3/4/2015 3:12 PM Page 4

85
Specifications & Consumer information

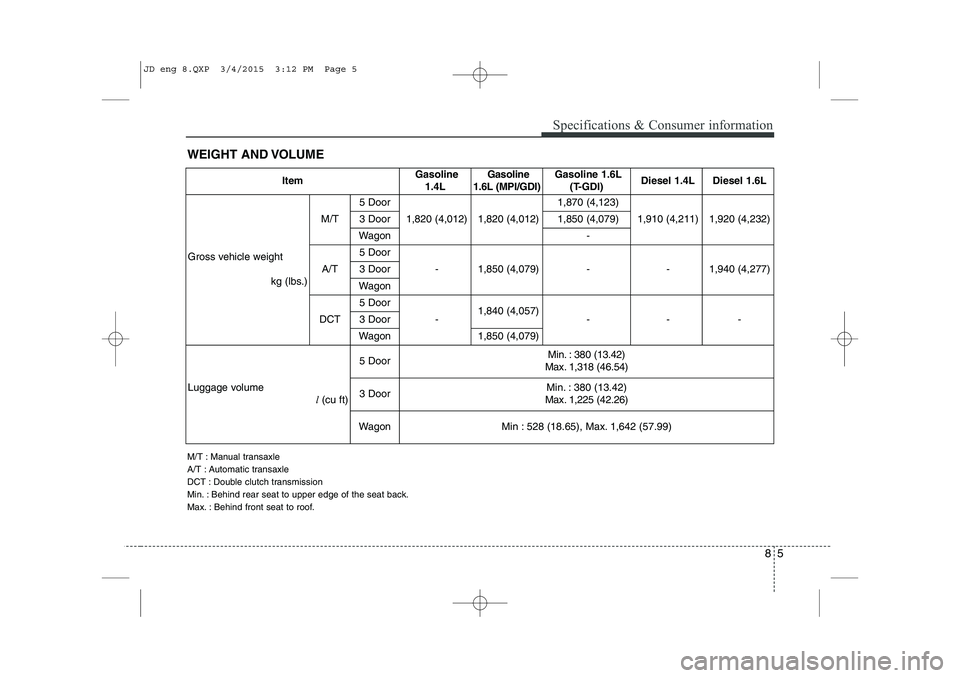

WEIGHT AND VOLUME
M/T : Manual transaxle
A/T : Automatic transaxle
DCT : Double clutch transmission
Min. : Behind rear seat to upper edge of the seat back.
Max. : Behind front seat to roof.Item
Gasoline
1.4L Gasoline
1.6L (MPI/GDI) Gasoline 1.6L
(T-GDI) Diesel 1.4L Diesel 1.6L
Gross vehicle weight kg (lbs.)M/T
5 Door
1,820 (4,012) 1,820 (4,012) 1,870 (4,123)
1,910 (4,211) 1,920 (4,232)
3 Door1,850 (4,079)
Wagon -
A/T 5 Door
- 1,850 (4,079) - - 1,940 (4,277)
3 Door
Wagon
DCT 5 Door
- 1,840 (4,057)
- - -
3 Door
Wagon 1,850 (4,079)
Luggage volume l(cu ft) 5 Door
Min. : 380 (13.42)
Max. 1,318 (46.54)
3 Door Min. : 380 (13.42)
Max. 1,225 (42.26)
Wagon Min : 528 (18.65), Max. 1,642 (57.99)
JD eng 8.QXP 3/4/2015 3:12 PM Page 5

Specifications & Consumer information
6
8

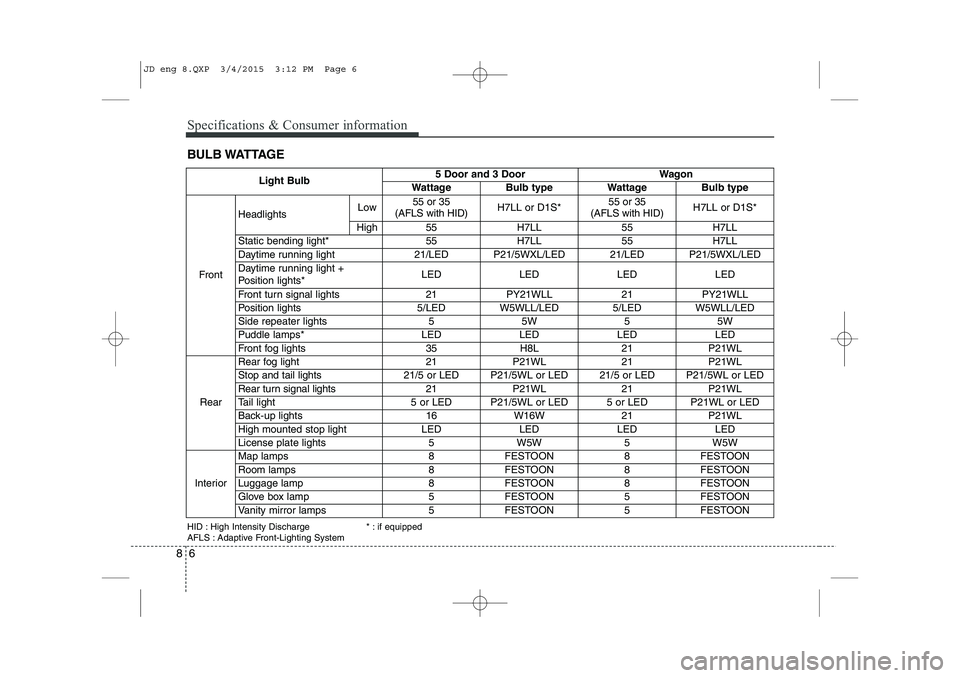

BULB WATTAGE
Light Bulb5 Door and 3 DoorWagon
WattageBulb typeWattageBulb type
Front
HeadlightsLow55 or 35
(AFLS with HID)H7LL or D1S*55 or 35
(AFLS with HID)H7LL or D1S*
High55H7LL55H7LL
Static bending light*55H7LL55H7LL
Daytime running light21/LEDP21/5WXL/LED21/LEDP21/5WXL/LED
Daytime running light +
Position lights*LEDLEDLEDLED
Front turn signal lights21PY21WLL21PY21WLL
Position lights5/LEDW5WLL/LED5/LEDW5WLL/LED
Side repeater lights55W55W
Puddle lamps*LEDLEDLEDLED
Front fog lights35H8L21P21WL
Rear
Rear fog light21P21WL21P21WL
Stop and tail lights 21/5 or LEDP21/5WL or LED21/5 or LEDP21/5WL or LED
Rear turn signal lights 21P21WL21P21WL
Tail light 5 or LEDP21/5WL or LED5 or LEDP21WL or LED
Back-up lights 16W16W21P21WL
High mounted stop lightLEDLEDLEDLED
License plate lights5W5W5W5W
Interior
Map lamps8FESTOON8FESTOON
Room lamps8FESTOON8FESTOON
Luggage lamp8FESTOON8FESTOON
Glove box lamp5FESTOON5FESTOON
Vanity mirror lamps5FESTOON5FESTOON
HID : High Intensity Discharge
AFLS : Adaptive Front-Lighting System * : if equipped
JD eng 8.QXP 3/4/2015 3:12 PM Page 6

87
Specifications & Consumer information

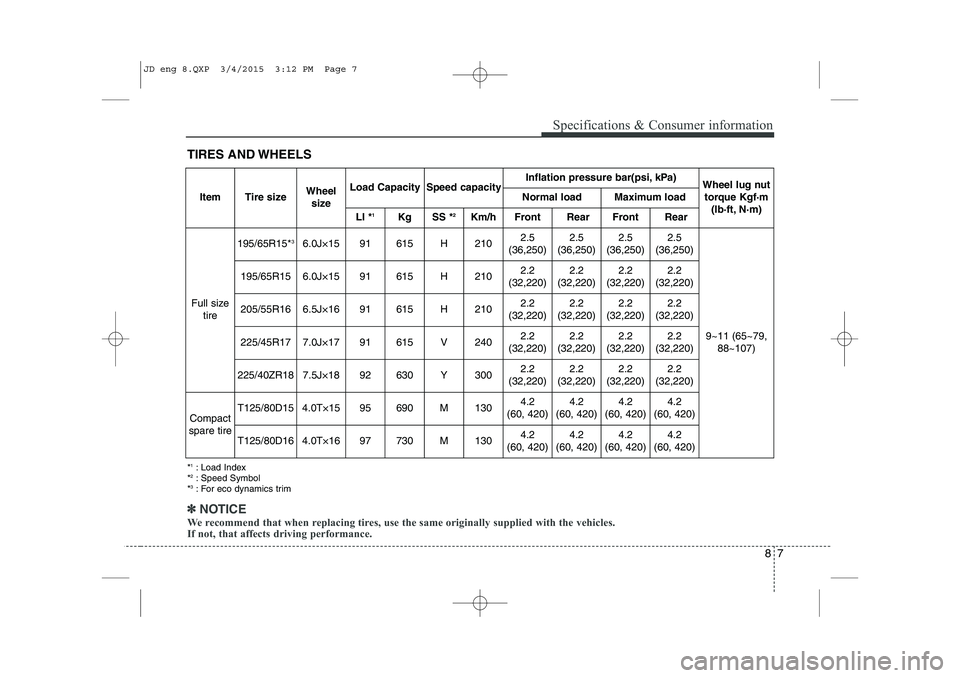

TIRES AND WHEELS *1
: Load Index
* 2
: Speed Symbol
* 3
: For eco dynamics trim
ItemTire sizeWheel
sizeLoad CapacitySpeed capacityInflation pressure bar(psi, kPa)Wheel lug nuttorque Kgf·m (lb·ft, N·m)
Normal loadMaximum load
LI * 1KgSS * 2Km/hFrontRear FrontRear
Full size
tire
195/65R15* 36.0J×15 91615H2102.5
(36,250)2.5
(36,250)2.5
(36,250)2.5
(36,250)
9~11 (65~79, 88~107)
195/65R156.0J×15 91615H2102.2
(32,220)2.2
(32,220)2.2
(32,220)2.2
(32,220)
205/55R166.5J×1691615H2102.2
(32,220)2.2
(32,220)2.2
(32,220)2.2
(32,220)
225/45R177.0J×1791615V2402.2
(32,220)2.2
(32,220)2.2
(32,220)2.2
(32,220)
225/40ZR187.5J×1892630Y3002.2
(32,220)2.2
(32,220)2.2
(32,220)2.2
(32,220)
Compact
spare tireT125/80D154.0T×1595690M1304.2
(60, 420)4.2
(60, 420)4.2
(60, 420)4.2
(60, 420)
T125/80D164.0T×1697730M1304.2
(60, 420)4.2
(60, 420)4.2
(60, 420)4.2
(60, 420)
✽✽ NOTICE
We recommend that when replacing tires, use the same originally supplied with the ve hicles.
If not, that affects driving performance.
JD eng 8.QXP 3/4/2015 3:12 PM Page 7

Specifications & Consumer information
8
8

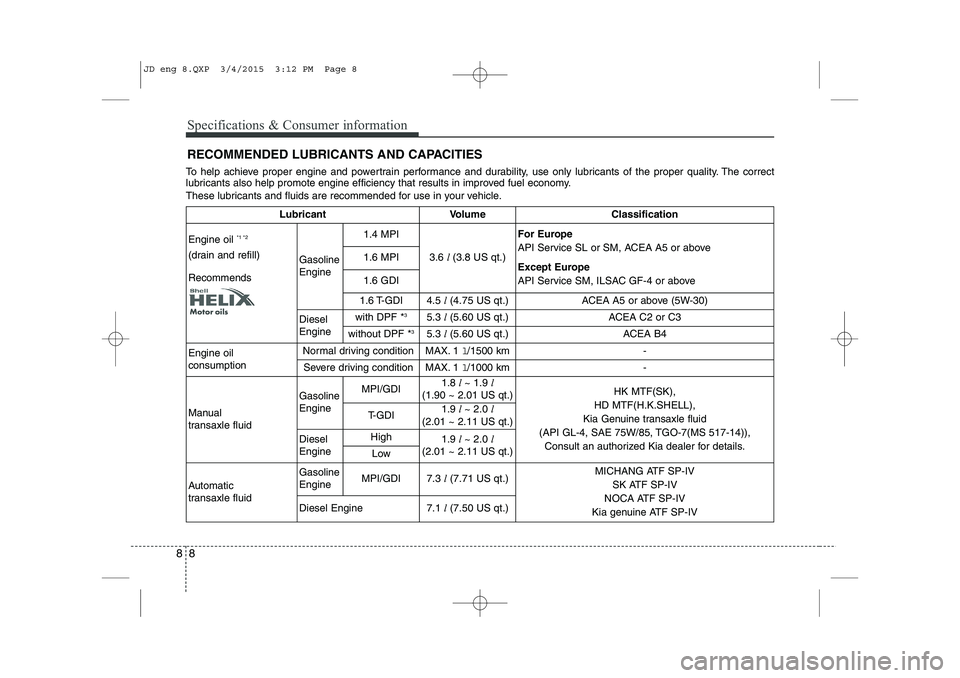

To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle. RECOMMENDED LUBRICANTS AND CAPACITIES
Lubricant Volume Classification
Engine oil *1 *2
(drain and refill) Recommends Gasoline Engine1.4 MPI
3.6 l(3.8 US qt.) For Europe
API Service SL or SM, ACEA A5 or above
Except Europe
API Service SM, ILSAC GF-4 or above
1.6 MPI 1.6 GDI
1.6 T-GDI 4.5
l(4.75 US qt.)
ACEA A5 or above (5W-30)
Diesel Engine with DPF *
3
5.3 l(5.60 US qt.)
ACEA C2 or C3
without DPF * 3
5.3 l(5.60 US qt.)
ACEA B4
Engine oil consumption Normal driving condition
MAX. 1 l /1500 km -
Severe driving condition MAX. 1 l /1000 km -
Manual
transaxle fluid GasolineEngine
MPI/GDI
1.8
l ~ 1.9 l
(1.90 ~ 2.01 US qt.) HK MTF(SK),
HD MTF(H.K.SHELL),
Kia Genuine transaxle fluid
(API GL-4, SAE 75W/85, TGO-7(MS 517-14)), Consult an authorized Kia dealer for details.
T-GDI
1.9
l ~ 2.0 l
(2.01 ~ 2.11 US qt.)
DieselEngine High
1.9 l ~ 2.0 l
(2.01 ~ 2.11 US qt.)
Low
Automatic
transaxle fluid GasolineEngine
MPI/GDI
7.3
l(7.71 US qt.) MICHANG ATF SP-IV
SK ATF SP-IV
NOCA ATF SP-IV
Kia genuine ATF SP-IV
Diesel Engine7.1 l(7.50 US qt.)
JD eng 8.QXP 3/4/2015 3:12 PM Page 8

89
Specifications & Consumer information

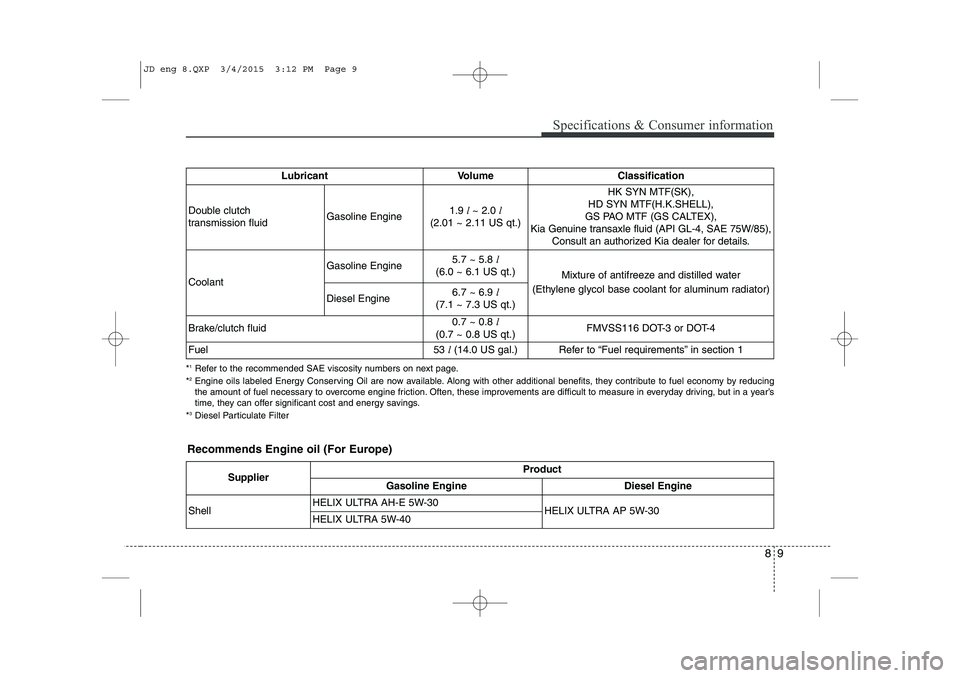

Lubricant Volume Classification
Double clutch
transmission fluidGasoline Engine1.9 l ~ 2.0 l
(2.01 ~ 2.11 US qt.)
HK SYN MTF(SK),
HD SYN MTF(H.K.SHELL),
GS PAO MTF (GS CALTEX),
Kia Genuine transaxle fluid (API GL-4, SAE 75W/85), Consult an authorized Kia dealer for details.
Coolant
Gasoline Engine5.7 ~ 5.8 l
(6.0 ~ 6.1 US qt.)
Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for aluminum radiator)
Diesel Engine6.7 ~ 6.9 l
(7.1 ~ 7.3 US qt.)
Brake/clutch fluid0.7 ~ 0.8 l
(0.7 ~ 0.8 US qt.)FMVSS116 DOT-3 or DOT-4
Fuel 53
l(14.0 US gal.)
Refer to “Fuel requirements” in section 1
Recommends Engine oil (For Europe)
*
1
Refer to the recommended SAE viscosity numbers on next page.
* 2
Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
* 3
Diesel Particulate Filter
Supplier Product
Gasoline Engine Diesel Engine
Shell HELIX ULTRA AH-E 5W-30
HELIX ULTRA AP 5W-30
HELIX ULTRA 5W-40
JD eng 8.QXP 3/4/2015 3:12 PM Page 9

Specifications & Consumer information
10
8
Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils can
provide better fuel economy and cold
weather performance, however, higher vis-
cosity engine oils are required for satisfac-
tory lubrication in hot weather. Using oils of
any viscosity other than those recom-
mended could result in engine damage.When choosing an oil, consider the
range of temperature your vehicle will be
operated in before the next oil change.Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or drain-ing any lubricant. This is especiallyimportant in dusty or sandy areas
and when the vehicle is used onunpaved roads. Cleaning the plugand dipstick areas will prevent dirtand grit from entering the engine
and other mechanisms that couldbe damaged.
* 1
: If you use the engine oil of a viscosity grade SAE 5W-20, replace engine oil and filter after
driving 15,000 km or 12 month with MPI engine (10,000 km or 6 month with GDI engine) in
normal condition and replace engine oil and engine oil filter after driving 7,500 km or 6 month
with MPI engine (5,000 km or 6 month with GDI engine) in severe condition.
* 2
: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
5W-20,5W-30 (API SM / ILSAC GF 4 or above). However, if the engine oil is not available in
your country, select the proper engine oil using the engine oil viscosity chart.
* 3
: In Middle East, do not use the engine oil of viscosity grade SAE 5W-20.
* 4
: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
5W-30 (ACEA A5 or above).
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline Engine Oil
(MPI/GDI - For Europe) °C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
0W-40, 5W-20 * 1
,5W-30, 5W-40
Gasoline
Engine Oil * 2
(MPI/GDI -
Except Europe)20W-50
10W-30
15W-40
5W-20* 3
, 5W-30
Diesel Engine Oil5W-30
15W-40
10W-30
0W-30
Gasoline Engine Oil * 4
(T-GDI)5W-30, 5W-40
JD eng 8.QXP 3/4/2015 3:12 PM Page 10

811
Specifications & Consumer information

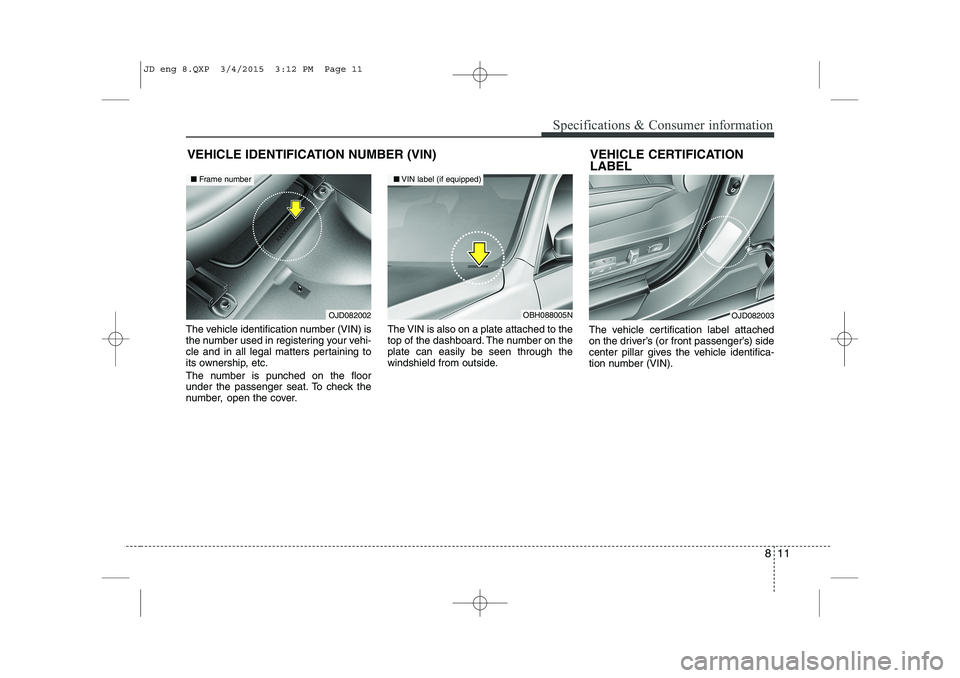

The vehicle identification number (VIN) is
the number used in registering your vehi-
cle and in all legal matters pertaining to
its ownership, etc.
The number is punched on the floor
under the passenger seat. To check the
number, open the cover.The VIN is also on a plate attached to the
top of the dashboard. The number on theplate can easily be seen through the
windshield from outside.
The vehicle certification label attached
on the driver’s (or front passenger’s) side
center pillar gives the vehicle identifica-
tion number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)
OJD082002
■
Frame number VEHICLE CERTIFICATION LABEL
OBH088005N
■
VIN label (if equipped)
OJD082003
JD eng 8.QXP 3/4/2015 3:12 PM Page 11

Specifications & Consumer information
12
8

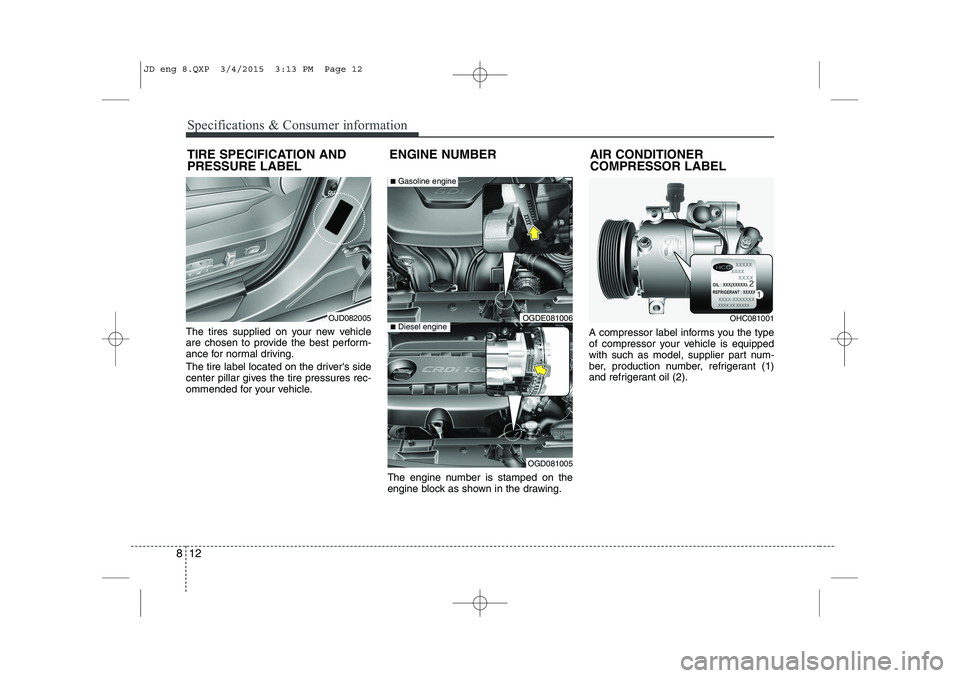

The tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your vehicle.
The engine number is stamped on the
engine block as shown in the drawing.A compressor label informs you the type
of compressor your vehicle is equipped
with such as model, supplier part num-
ber, production number, refrigerant (1)
and refrigerant oil (2).
TIRE SPECIFICATION AND PRESSURE LABEL
ENGINE NUMBER
OJD082005
■
Gasoline engine
■Diesel engineOGDE081006
OGD081005 AIR CONDITIONER COMPRESSOR LABEL
OHC081001
