KIA CEED 2015 Owners Manual

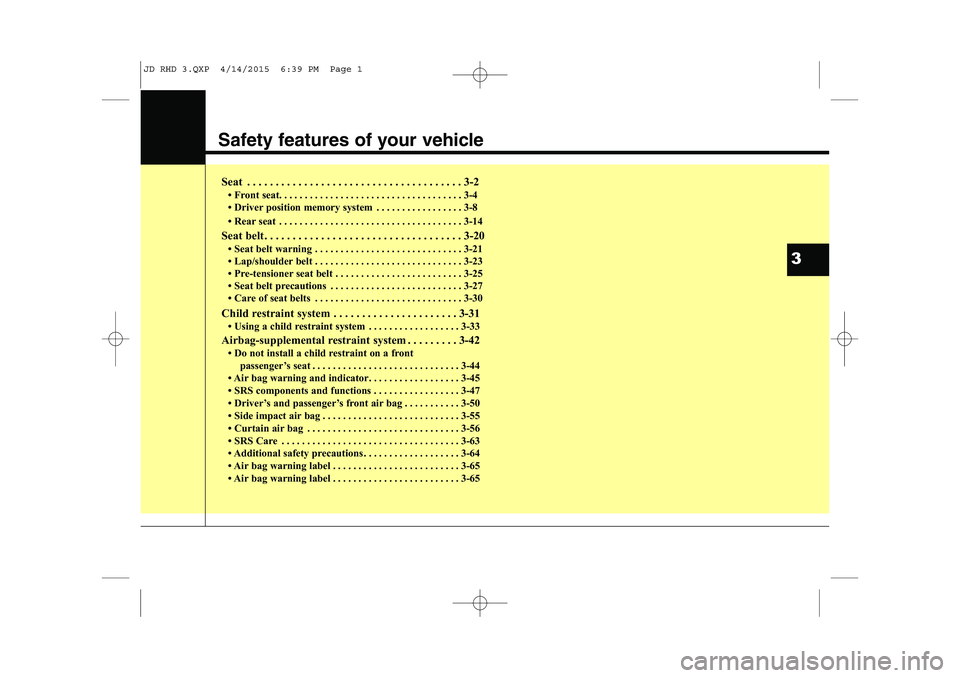

Safety features of your vehicle
Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 Front seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
 Driver position memory system . . . . . . . . . . . . . . . . . 3-8
 Rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Seat belt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20  Seat belt warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21
 Lap/shoulder belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-23
 Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . . . 3-25
 Seat belt precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27
 Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
Child restraint system . . . . . . . . . . . . . . . . . . . . . . 3-31  Using a child restraint system . . . . . . . . . . . . . . . . . . 3-33
Airbag-supplemental restraint system . . . . . . . . . 3-42  Do not install a child restraint on a front passenger’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-44
 Air bag warning and indicator. . . . . . . . . . . . . . . . . . 3-45
 SRS components and functions . . . . . . . . . . . . . . . . . 3-47
 Driver’s and passenger’s front air bag . . . . . . . . . . . 3-50
 Side impact air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-55
 Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-56
 SRS Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-63
 Additional safety precautions . . . . . . . . . . . . . . . . . . . 3-64
 Air bag warning label . . . . . . . . . . . . . . . . . . . . . . . . . 3-65
 Air bag warning label . . . . . . . . . . . . . . . . . . . . . . . . . 3-65
3
JD RHD 3.QXP 4/14/2015 6:39 PM Page 1

Safety features of your vehicle
2
3
Driver’s seat
(1) Seat adjustment, forward/backward
(2) Seatback recliner
(3) Seat adjustment, height
(4) Lumbar support*
(5) Seat warmer*
(6) Headrest adjustment
(7) Walk-in seat
(for 3 door vehicle only)
Front passenger seat
(8) Seat adjustment, forward/backward
(9) Seatback recliner(10) Seat adjustment, height*
(11) Lumbar support*
(12) Seat warmer*
(13) Walk-in seat (for 3 door vehicle only)
(14) Headrest adjustment Rear seat
(15) Armrest*
(16) Headrest adjustment
(17) Split folding rear seat
* : if equipped
SEAT
OJD033001R
■ Type A
■Type B
JD RHD 3.QXP 4/14/2015 6:39 PM Page 2

33
Safety features of your vehicle
✽✽NOTICE
If you have a collision accident, the front
seat may be damaged.
In this case we recommend that you
have a seat system checked by an autho-
rised Kia dealer.
WARNING - Driver’s seat
 Never attempt to adjust seat whilst the vehicle is moving. This
could result in loss of control,and an accident causing death,
serious injury, or property dam-
age.
 Do not allow anything to interfere with the normal position of the
seatback. Storing items against a
seatback or in any other way
interfering with proper locking of
a seatback could result in serious
or fatal injury in a sudden stop orcollision.
 Always drive and ride with your seatback upright and the lap por-
tion of the seat belt snug and low
across the hips. This is the best
position to protect you in case ofan accident.
 In order to avoid unnecessary and perhaps severe air bag
injuries, always sit as far back as
possible from the steering wheel
whilst maintaining comfortable
control of the vehicle. It is recom-
mended that your chest is at least
250 mm (10 inches) away fromthe steering wheel.WARNING - Loose objects
Loose objects in the driver’s foot
area could interfere with the opera-
tion of the foot pedals, possibly
causing an accident. Do not place
anything under the front seats.WARNING - Driver respon-
sibility for front seat pas-
senger
Riding in a vehicle with a front seat-
back reclined could lead to serious
or fatal injury in an accident. If a
front seat is reclined during an
accident, the occupant’s hips may
slide under the lap portion of the
seat belt applying great force to the
unprotected abdomen. Serious orfatal internal injuries could result.
The driver must advise the front
passenger to keep the seatback in
an upright position whenever the
vehicle is in motion.
WARNING
Do not use a sitting cushion that reduces friction between the seat
and passenger. The passenger's
hips may slide under the lap por-tion of the seat belt during an acci-
dent or a sudden stop. Serious orfatal internal injuries could resultbecause the seat belt can't operate
normally.
JD RHD 3.QXP 4/14/2015 6:39 PM Page 3

Safety features of your vehicle
4
3

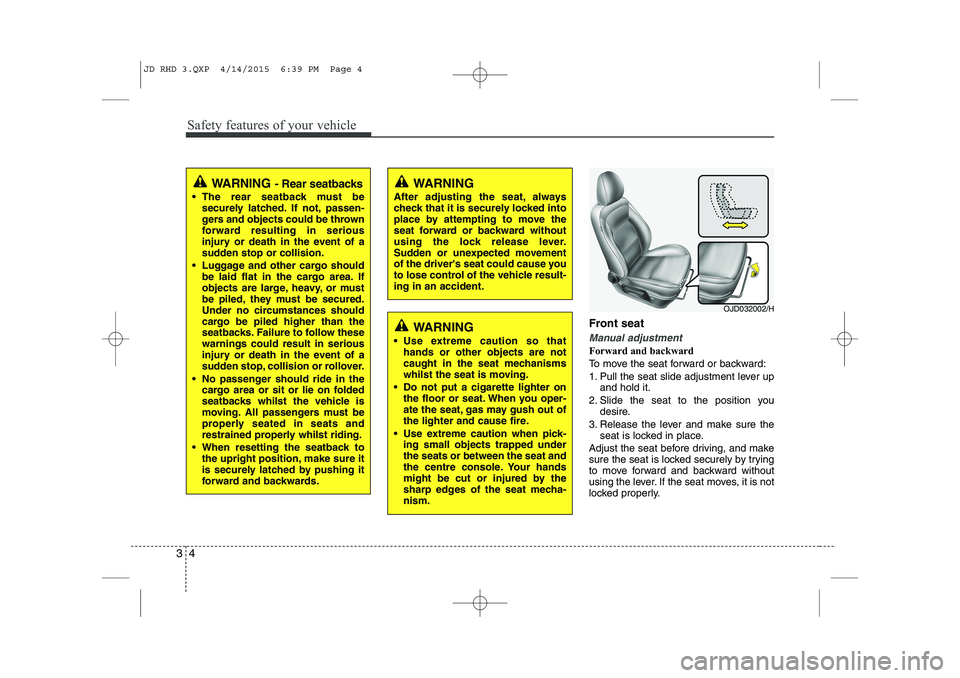

Front seat
Manual adjustment
Forward and backward
To move the seat forward or backward:
1. Pull the seat slide adjustment lever up
and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
Adjust the seat before driving, and make
sure the seat is locked securely by trying
to move forward and backward without
using the lever. If the seat moves, it is not
locked properly.
WARNING - Rear seatbacks
 The rear seatback must be securely latched. If not, passen-
gers and objects could be thrown
forward resulting in serious
injury or death in the event of a
sudden stop or collision.
 Luggage and other cargo should be laid flat in the cargo area. If
objects are large, heavy, or must
be piled, they must be secured.
Under no circumstances should
cargo be piled higher than the
seatbacks. Failure to follow thesewarnings could result in serious
injury or death in the event of a
sudden stop, collision or rollover.
 No passenger should ride in the cargo area or sit or lie on folded
seatbacks whilst the vehicle is
moving. All passengers must be
properly seated in seats and
restrained properly whilst riding.
 When resetting the seatback to the upright position, make sure it
is securely latched by pushing it
forward and backwards.WARNING
After adjusting the seat, always
check that it is securely locked into
place by attempting to move the
seat forward or backward without
using the lock release lever.
Sudden or unexpected movement
of the driver's seat could cause you
to lose control of the vehicle result-ing in an accident.
WARNING
 Use extreme caution so that hands or other objects are not
caught in the seat mechanisms
whilst the seat is moving.
 Do not put a cigarette lighter on the floor or seat. When you oper-
ate the seat, gas may gush out of
the lighter and cause fire.
 Use extreme caution when pick- ing small objects trapped underthe seats or between the seat and
the centre console. Your hands
might be cut or injured by the
sharp edges of the seat mecha-nism.
OJD032002/H
JD RHD 3.QXP 4/14/2015 6:39 PM Page 4

35
Safety features of your vehicle

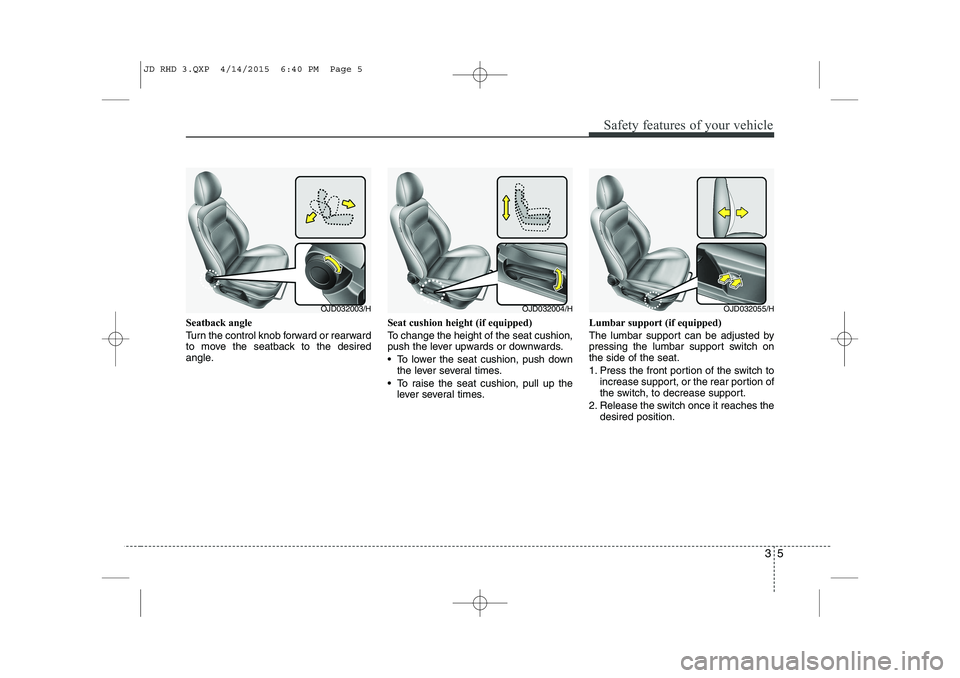

Seatback angle
Turn the control knob forward or rearward
to move the seatback to the desired
angle.Seat cushion height (if equipped)
To change the height of the seat cushion,
push the lever upwards or downwards.
• To lower the seat cushion, push down
the lever several times.
 To raise the seat cushion, pull up the lever several times. Lumbar support (if equipped)
The lumbar support can be adjusted by
pressing the lumbar support switch onthe side of the seat.
1. Press the front portion of the switch to
increase support, or the rear portion of
the switch, to decrease support.
2. Release the switch once it reaches the desired position.
OJD032003/HOJD032004/HOJD032055/H
JD RHD 3.QXP 4/14/2015 6:40 PM Page 5

Safety features of your vehicle
6
3

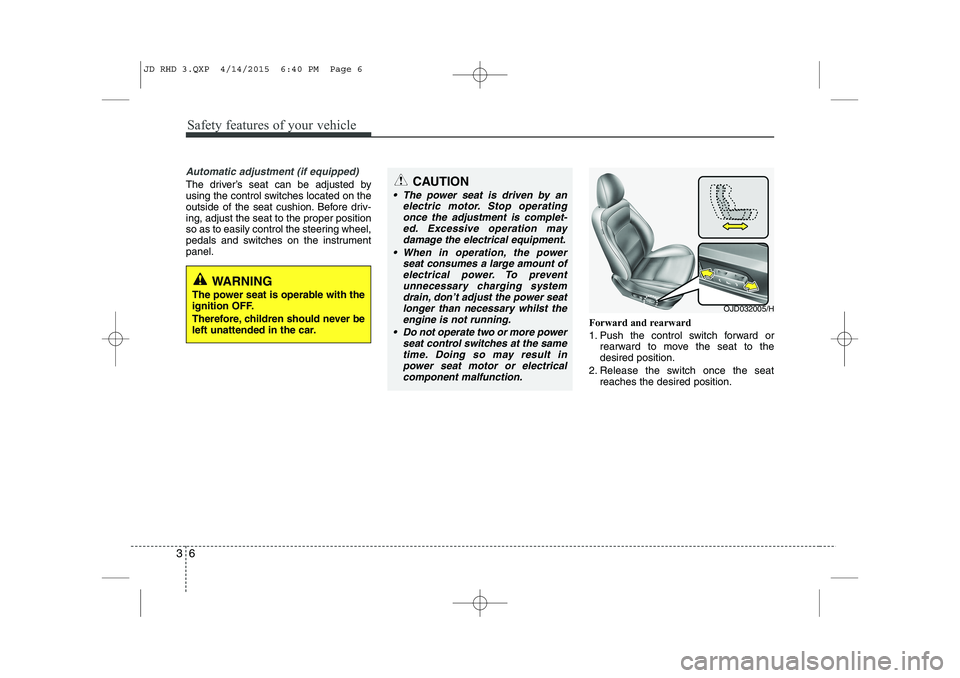

Automatic adjustment (if equipped)
The driver’s seat can be adjusted by
using the control switches located on the
outside of the seat cushion. Before driv-ing, adjust the seat to the proper position
so as to easily control the steering wheel,
pedals and switches on the instrumentpanel.
Forward and rearward
1. Push the control switch forward orrearward to move the seat to the desired position.
2. Release the switch once the seat reaches the desired position.
WARNING
The power seat is operable with the
ignition OFF.
Therefore, children should never be
left unattended in the car.
CAUTION
 The power seat is driven by an electric motor. Stop operating
once the adjustment is complet- ed. Excessive operation maydamage the electrical equipment.
 When in operation, the power seat consumes a large amount ofelectrical power. To preventunnecessary charging system drain, don’t adjust the power seat
longer than necessary whilst the engine is not running.
 Do not operate two or more power seat control switches at the same
time. Doing so may result inpower seat motor or electrical component malfunction.
OJD032005/H
JD RHD 3.QXP 4/14/2015 6:40 PM Page 6

37
Safety features of your vehicle

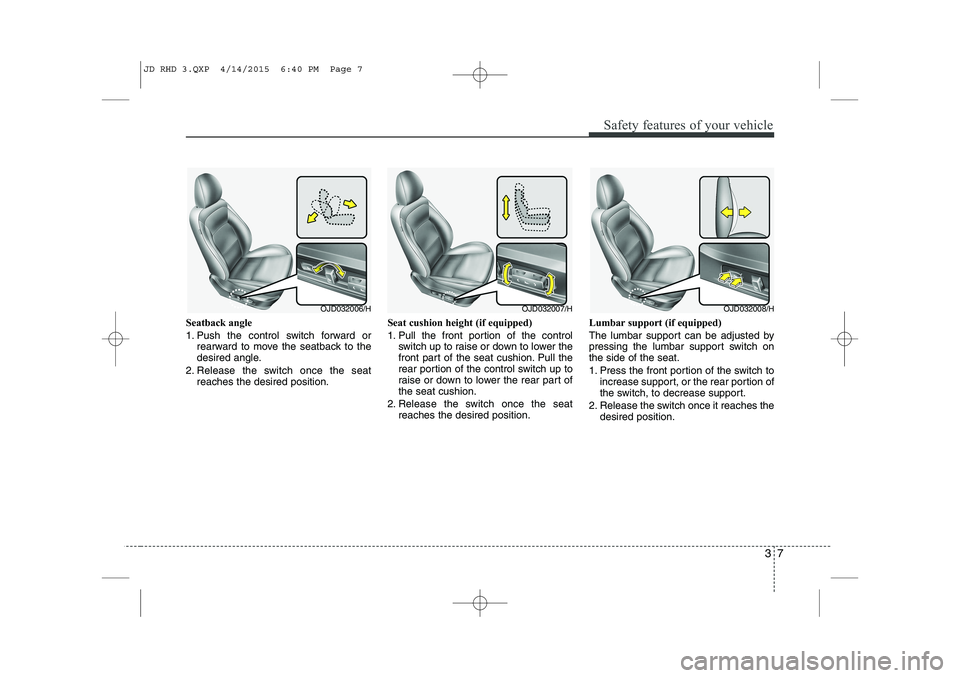

Seatback angle
1. Push the control switch forward orrearward to move the seatback to the
desired angle.
2. Release the switch once the seat reaches the desired position. Seat cushion height (if equipped)
1. Pull the front portion of the control
switch up to raise or down to lower the
front part of the seat cushion. Pull the
rear portion of the control switch up to
raise or down to lower the rear part ofthe seat cushion.
2. Release the switch once the seat reaches the desired position. Lumbar support (if equipped)
The lumbar support can be adjusted by
pressing the lumbar support switch onthe side of the seat.
1. Press the front portion of the switch to
increase support, or the rear portion of
the switch, to decrease support.
2. Release the switch once it reaches the desired position.
OJD032006/HOJD032007/HOJD032008/H
JD RHD 3.QXP 4/14/2015 6:40 PM Page 7

Safety features of your vehicle
8
3
Driver position memory system
(if equipped, for automatic seat)
A driver position memory system is pro-
vided to store and recall the driver seat
position with a simple button operation.
By saving the desired position into the
system memory, different drivers can
reposition the driver seat based upon
their driving preference. If the battery is
disconnected, the position memory will
be erased and the driving position shouldbe restored in the system.
Storing positions into memory using
the buttons on the door
Storing driver’s seat positions
1. Shift the shift lever into P or N (for Automatic transaxle) or Neutral (for
manual transaxle) whilst the engine
start/stop button is ON or ignition
switch ON.
2. Adjust the driver’s seat comfortable for the driver.
3. Press SET button on the control panel. The system will beep once.
4. Press one of the memory buttons (1 or 2) within 5 seconds after pressing the
SET button. The system will beep
twice when memory has been suc-cessfully stored.
WARNING
Never attempt to operate the driver
position memory system whilst the
vehicle is moving.
This could result in loss of control, and an accident causing death,
serious injury, or property damage.
OJD032054R
JD RHD 3.QXP 4/14/2015 6:40 PM Page 8

39
Safety features of your vehicle
Recalling positions from memory
1. Shift the shift lever into P or N (forAutomatic transaxle) or Neutral (for
manual transaxle) whilst the engine
start/stop button is ON or ignition
switch ON.
2. To recall the position in the memory, press the desired memory button (1 or
2). The system will beep once, then the
driver’s seat will automatically adjust tothe stored position.
Adjusting the control switch for the dri-
ver’s seat whilst the system is recalling
the stored position will cause the move-
ment to stop and move in the direction
that the control switch is moved.Easy access function (if equipped)
The system will move the driver's seat
automatically as follows:
 Without smart key system - It will move the driver’s seat rearwardwhen the ignition key is removed and
front driver’s door is opened.
- It will move the driver’s seat forward when the ignition key is inserted.
 With smart key system - It will move the driver’s seat rearwardwhen the engine start/stop button ischanged to the OFF position and front
driver’s door is opened.
- It will move the driver’s seat forward when the engine start/stop button is
changed to the ACC or START posi-tion.
You can activate or deactivate this feature.
Refer to "User settings" in section 4.
Headrest
The driver's and front passenger's seats
are equipped with a headrest for the
occupant's safety and comfort.
The headrest not only provides comfort
for the driver and front passenger, but
also helps protect the head and neck in
the event of a collision.
WARNING
Use caution when recalling the
adjustment memory whilst sitting
in the vehicle. Push the seat posi-
tion control switch to the desired
position immediately if the seat
moves too far in any direction.
OPA039052
JD RHD 3.QXP 4/14/2015 6:40 PM Page 9

Safety features of your vehicle
10
3
Forward and rearward adjustment
(if equipped)
The headrest may be adjusted forward to
4 different positions by pulling the head-
rest forward to the desired detent. To
adjust the headrest to it’s furthest rear-
wards position, pull it fully forward to the
farthest position and release it. Adjust the
headrest so that it properly supports the
head and neck. Adjusting the height up and down
To raise the headrest, pull it up to the
desired position (1). To lower the head-
rest, push and hold the release button (2)
on the headrest support and lower theheadrest to the desired position (3).
WARNING
 For maximum effectiveness in case of an accident, the headrest
should be adjusted so the middleof the headrest is at the same
height of the centre of gravity of
an occupant's head. Generally,
the centre of gravity of most peo-ple's head is similar with the
height of the top of their eyes.
Also, adjust the headrest as close
to your head as possible. For this
reason, the use of a cushion that
holds the body away from the
seatback is not recommended.
 Do not operate the vehicle with the headrests removed as severe
injury to the occupants may
occur in the event of an accident.
Headrests may provide protec-
tion against neck injuries when
properly adjusted.
 Do not adjust the headrest posi- tion of the driver's seat whilst the
vehicle is in motion.
OJD032009OJD032010
JD RHD 3.QXP 4/14/2015 6:40 PM Page 10
