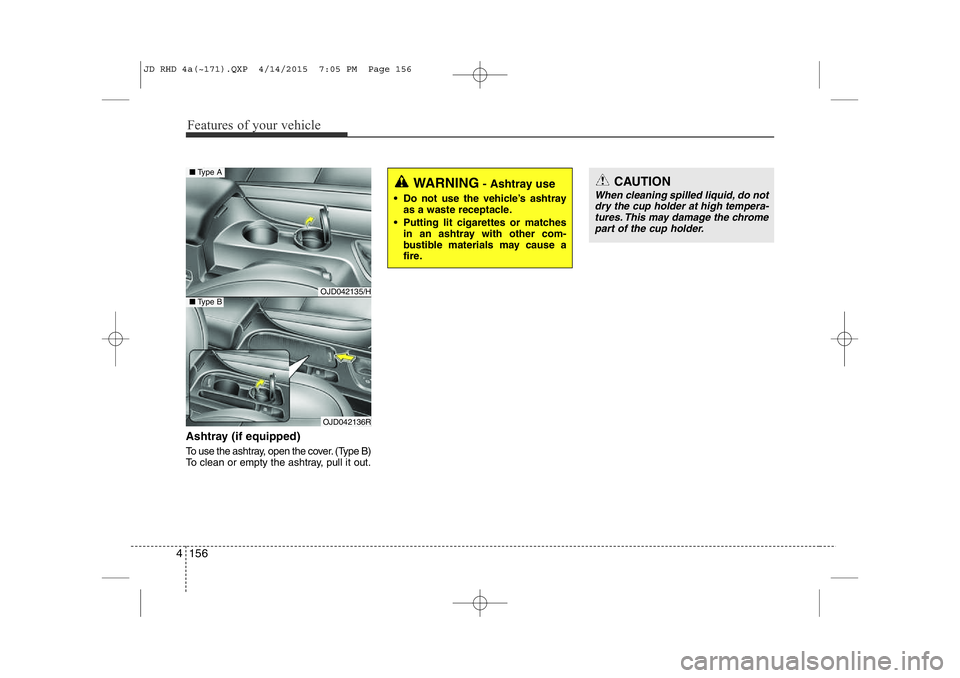

Features of your vehicle
156
4
WARNING - Ashtray use
• Do not use the vehicle’s ashtray as a waste receptacle.
• Putting lit cigarettes or matches in an ashtray with other com-
bustible materials may cause a
fire.CAUTION
When cleaning spilled liquid, do not
dry the cup holder at high tempera-tures. This may damage the chromepart of the cup holder.
Ashtray (if equipped)
To use the ashtray, open the cover. (Type B)
To clean or empty the ashtray, pull it out.
OJD042135/H
OJD042136R
■ Type A
■Type B
JD RHD 4a(~171).QXP 4/14/2015 7:05 PM Page 156

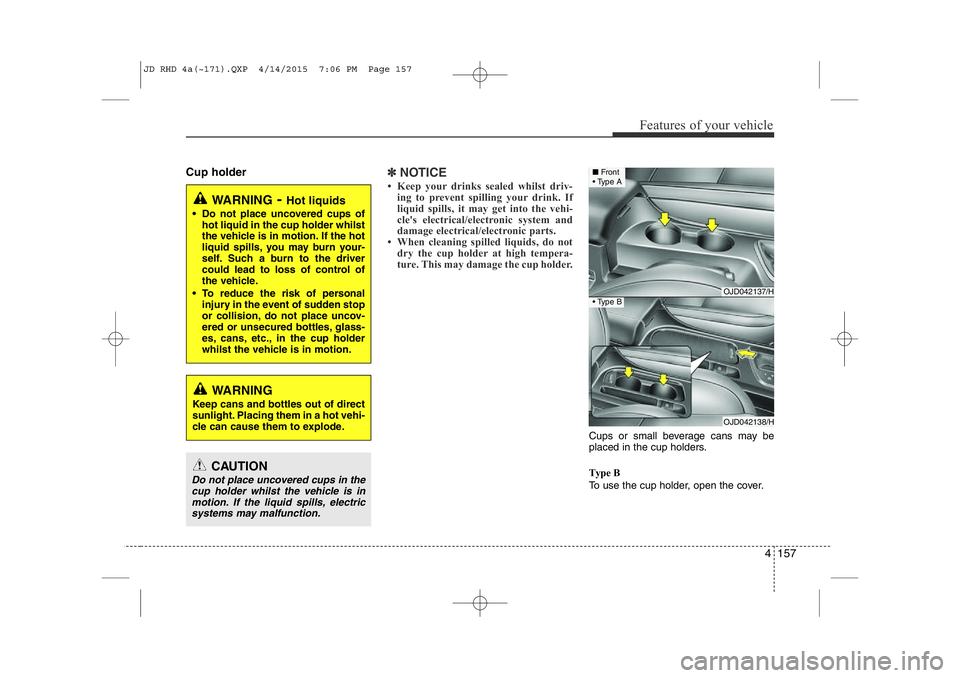

4 157
Features of your vehicle
Cup holder✽NOTICE
• Keep your drinks sealed whilst driv- ing to prevent spilling your drink. If
liquid spills, it may get into the vehi-
cle's electrical/electronic system and
damage electrical/electronic parts.
• When cleaning spilled liquids, do not dry the cup holder at high tempera-
ture. This may damage the cup holder.
Cups or small beverage cans may be
placed in the cup holders.
Type B
To use the cup holder, open the cover.
WARNING - Hot liquids
• Do not place uncovered cups of hot liquid in the cup holder whilst
the vehicle is in motion. If the hot
liquid spills, you may burn your-
self. Such a burn to the driver
could lead to loss of control of
the vehicle.
• To reduce the risk of personal injury in the event of sudden stop
or collision, do not place uncov-
ered or unsecured bottles, glass-
es, cans, etc., in the cup holder
whilst the vehicle is in motion.
WARNING
Keep cans and bottles out of direct
sunlight. Placing them in a hot vehi-
cle can cause them to explode.
OJD042137/H
OJD042138/H
■ Front
• Type A
• Type B
CAUTION
Do not place uncovered cups in the
cup holder whilst the vehicle is in
motion. If the liquid spills, electric systems may malfunction.
JD RHD 4a(~171).QXP 4/14/2015 7:06 PM Page 157

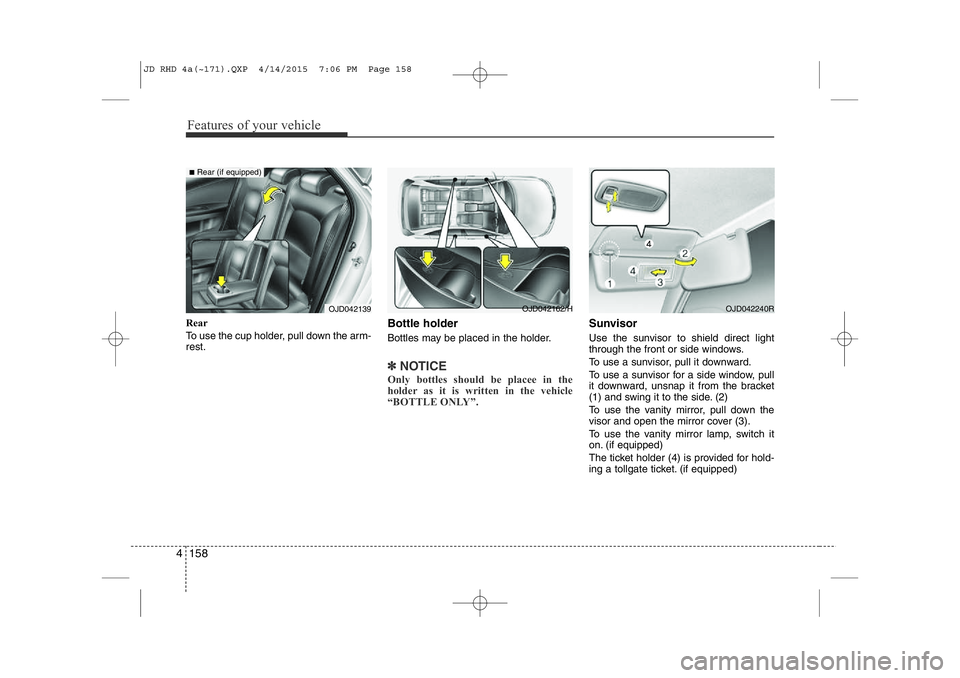

Features of your vehicle
158
4
Rear
To use the cup holder, pull down the arm- rest. Bottle holder
Bottles may be placed in the holder.
✽NOTICE
Only bottles should be placee in the
holder as it is written in the vehicle
“BOTTLE ONLY”.
Sunvisor
Use the sunvisor to shield direct light
through the front or side windows.
To use a sunvisor, pull it downward.
To use a sunvisor for a side window, pull
it downward, unsnap it from the bracket
(1) and swing it to the side. (2)
To use the vanity mirror, pull down the
visor and open the mirror cover (3).
To use the vanity mirror lamp, switch it
on. (if equipped)
The ticket holder (4) is provided for hold-
ing a tollgate ticket. (if equipped)
OJD042240ROJD042139
■ Rear (if equipped)
OJD042162/H
JD RHD 4a(~171).QXP 4/14/2015 7:06 PM Page 158

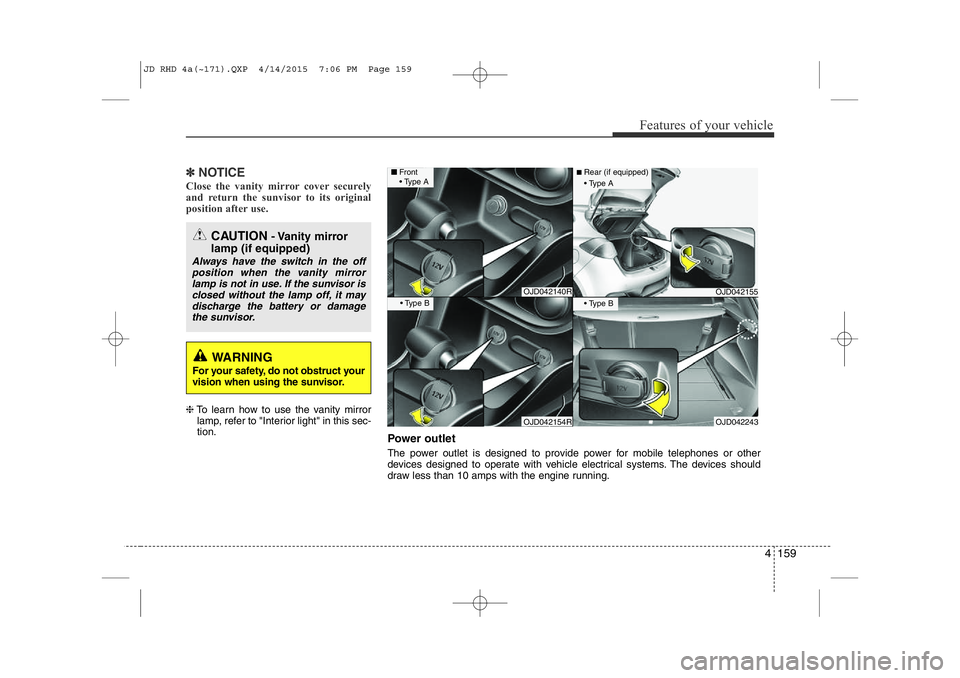

4 159
Features of your vehicle
✽NOTICE
Close the vanity mirror cover securely
and return the sunvisor to its original
position after use.
❈ To learn how to use the vanity mirror
lamp, refer to "Interior light" in this sec- tion.
CAUTION - Vanity mirror
lamp (if equipped)
Always have the switch in the off position when the vanity mirror lamp is not in use. If the sunvisor is
closed without the lamp off, it may discharge the battery or damagethe sunvisor.
WARNING
For your safety, do not obstruct your
vision when using the sunvisor.
Power outlet
The power outlet is designed to provide power for mobile telephones or other
devices designed to operate with vehicle electrical systems. The devices should
draw less than 10 amps with the engine running.
OJD042140R
OJD042154R
■ Front
• Type A
• Type B
OJD042155
OJD042243
■Rear (if equipped)
• Type A
• Type B
JD RHD 4a(~171).QXP 4/14/2015 7:06 PM Page 159

Features of your vehicle
160
4
Aux, USB and iPod

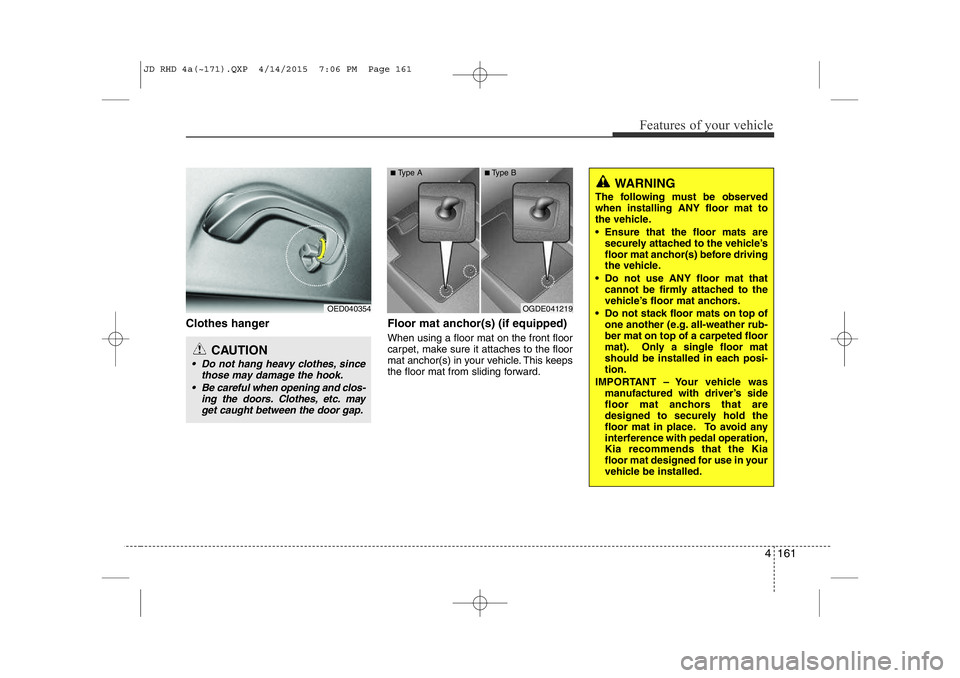

4 161
Features of your vehicle
Clothes hanger Floor mat anchor(s) (if equipped)When using a floor mat on the front floor
carpet, make sure it attaches to the floor
mat anchor(s) in your vehicle. This keeps
the floor mat from sliding forward.
OED040354
CAUTION
• Do not hang heavy clothes, sincethose may damage the hook.
• Be careful when opening and clos- ing the doors. Clothes, etc. mayget caught between the door gap.
WARNING
The following must be observed when installing ANY floor mat to
the vehicle.
• Ensure that the floor mats are securely attached to the vehicle’s
floor mat anchor(s) before driving
the vehicle.
• Do not use ANY floor mat that cannot be firmly attached to the
vehicle’s floor mat anchors.
• Do not stack floor mats on top of one another (e.g. all-weather rub- ber mat on top of a carpeted floor
mat). Only a single floor mat
should be installed in each posi-tion.
IMPORTANT – Your vehicle was manufactured with driver’s side
floor mat anchors that are
designed to securely hold the
floor mat in place. To avoid any
interference with pedal operation,Kia recommends that the Kia
floor mat designed for use in your
vehicle be installed.
OGDE041219
■
Type A ■Type B
JD RHD 4a(~171).QXP 4/14/2015 7:06 PM Page 161

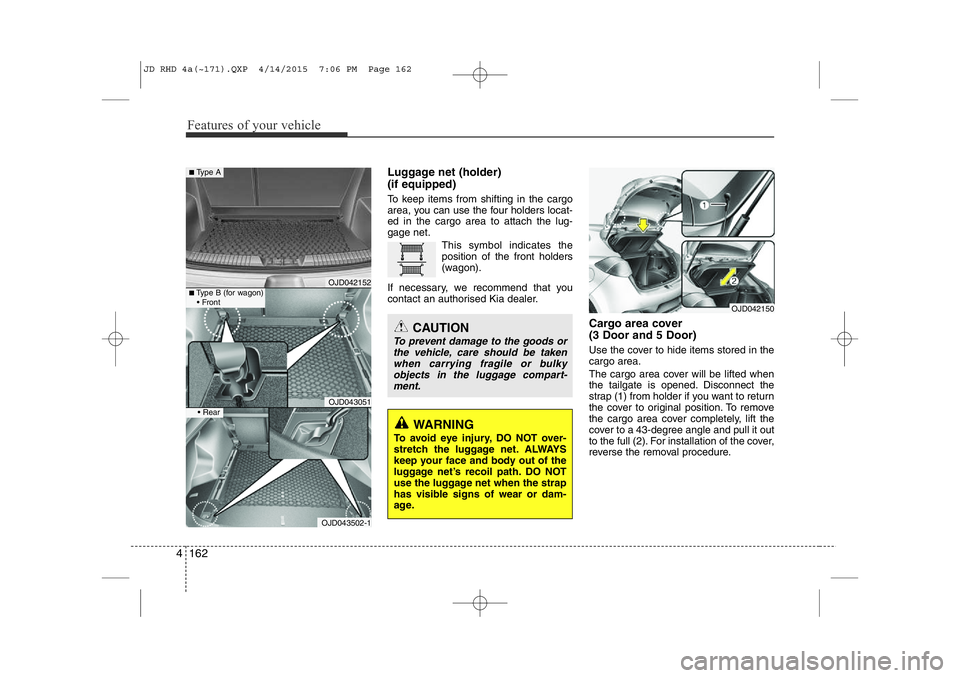

Features of your vehicle
162
4
Luggage net (holder) (if equipped)
To keep items from shifting in the cargo
area, you can use the four holders locat-ed in the cargo area to attach the lug-gage net.
This symbol indicates theposition of the front holders
(wagon).
If necessary, we recommend that you
contact an authorised Kia dealer.
Cargo area cover (3 Door and 5 Door)
Use the cover to hide items stored in the cargo area.
The cargo area cover will be lifted when
the tailgate is opened. Disconnect the
strap (1) from holder if you want to return
the cover to original position. To remove
the cargo area cover completely, lift the
cover to a 43-degree angle and pull it out
to the full (2). For installation of the cover,
reverse the removal procedure.
OJD042150
CAUTION
To prevent damage to the goods orthe vehicle, care should be taken when carrying fragile or bulky
objects in the luggage compart-ment.
WARNING
To avoid eye injury, DO NOT over-
stretch the luggage net. ALWAYS
keep your face and body out of the
luggage net’s recoil path. DO NOT
use the luggage net when the strap
has visible signs of wear or dam-
age.
OJD042152
OJD043051
■ Type A
■Type B (for wagon)
• Front
OJD043502-1
• Rear
JD RHD 4a(~171).QXP 4/14/2015 7:06 PM Page 162

4 163
Features of your vehicle
Barrier net (wagon) (if equipped)
Your vehicle is equipped with a barrier net.
When you load some cargoes on the rear
seat or rear cargo area, you must install
the barrier net behind front seatback or
rear seatback. It is designed to help protect the heads of
the occupants by obstructing objects fly-
ing forward in frontal collisions. There are eight hook holders on both
side of the headliner over the headrests
for upper side fixation and on the floor
behind the front seats or rear seats for
lower side fixation.
CAUTION
• When you return the cargo areacover to its original position, holdthe cover and lower it.
• Do not operate the vehicle with the cover removed. It may dam-
age to the cover.
• The cargo area cover may be lift- ed when the tailgate is opened.Ensure that the luggage on the cover is moved to a safe place.
• Since the cargo area cover may be damaged or malformed, do not
apply excessive force to the cover or do not put the heavy loads on it.WARNING
• Do not place objects on the cargo area cover whilst driving. Such
objects may be thrown about
inside the vehicle and possibly
injure vehicle occupants duringan accident or when braking.
• Never allow anyone to ride in the luggage compartment. It is
designed for luggage only.
• Maintain the balance of the vehi- cle and locate the weight as far
forward as possible.
OGDE042299
JD RHD 4a(~171).QXP 4/14/2015 7:06 PM Page 163

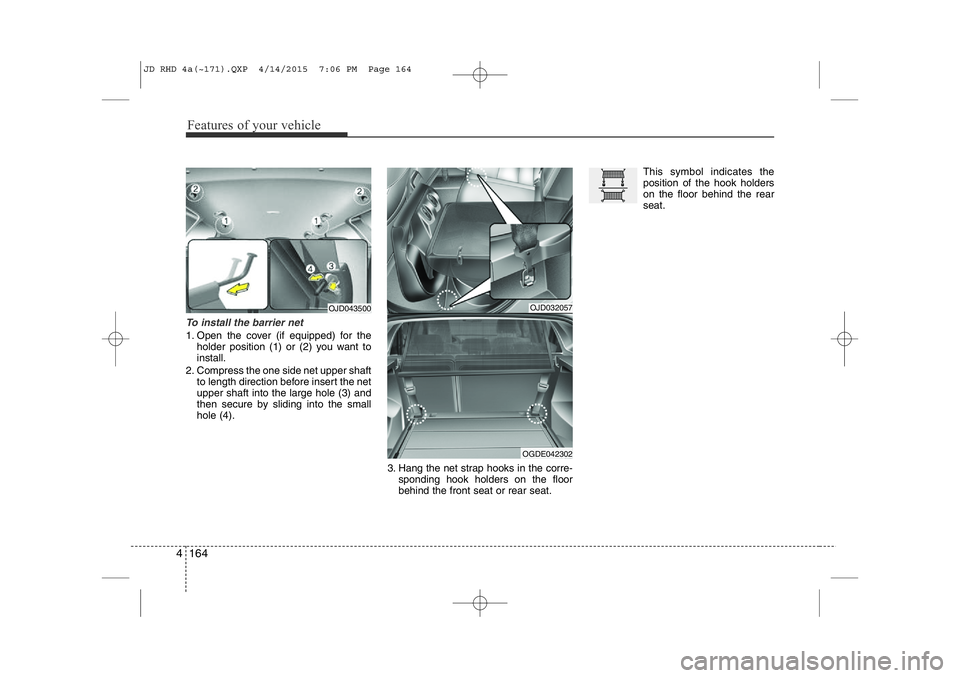

Features of your vehicle
164
4
To install the barrier net
1. Open the cover (if equipped) for the
holder position (1) or (2) you want to install.
2. Compress the one side net upper shaft to length direction before insert the net upper shaft into the large hole (3) and
then secure by sliding into the small hole (4).
3. Hang the net strap hooks in the corre-sponding hook holders on the floorbehind the front seat or rear seat. This symbol indicates theposition of the hook holderson the floor behind the rearseat.
OJD032057
OGDE042302
OJD043500
JD RHD 4a(~171).QXP 4/14/2015 7:06 PM Page 164

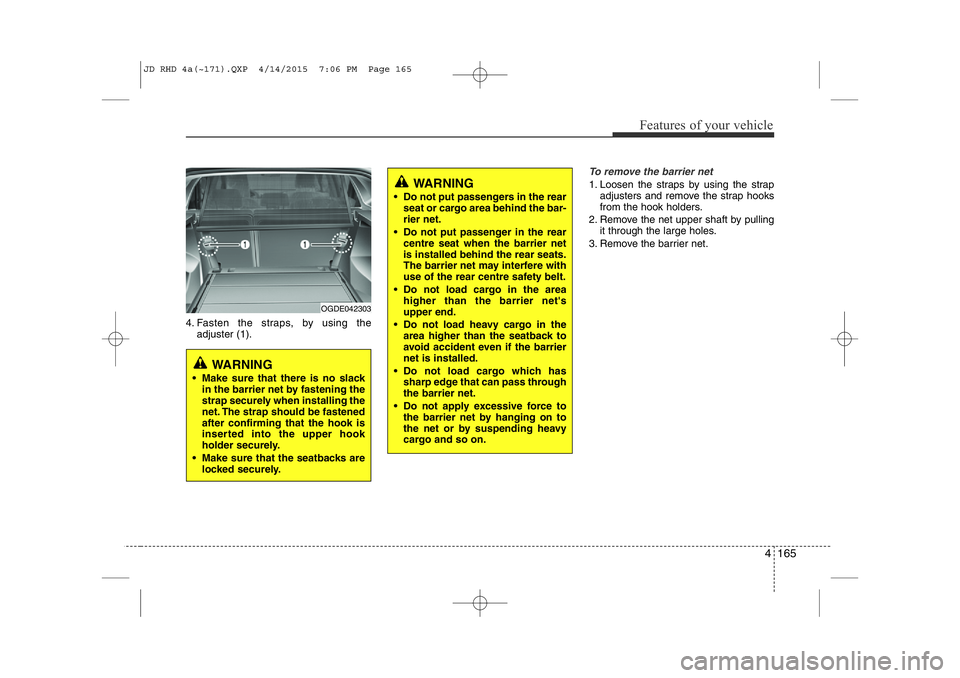

4 165
Features of your vehicle
4. Fasten the straps, by using theadjuster (1).
To remove the barrier net
1. Loosen the straps by using the strapadjusters and remove the strap hooks
from the hook holders.
2. Remove the net upper shaft by pulling it through the large holes.
3. Remove the barrier net.
OGDE042303
WARNING
• Make sure that there is no slack in the barrier net by fastening the
strap securely when installing the
net. The strap should be fastenedafter confirming that the hook is
inserted into the upper hook
holder securely.
• Make sure that the seatbacks are locked securely.
WARNING
• Do not put passengers in the rear seat or cargo area behind the bar- rier net.
• Do not put passenger in the rear centre seat when the barrier netis installed behind the rear seats.
The barrier net may interfere with
use of the rear centre safety belt.
• Do not load cargo in the area higher than the barrier net'supper end.
• Do not load heavy cargo in the area higher than the seatback to
avoid accident even if the barriernet is installed.
• Do not load cargo which has sharp edge that can pass through the barrier net.
• Do not apply excessive force to the barrier net by hanging on to
the net or by suspending heavy
cargo and so on.
