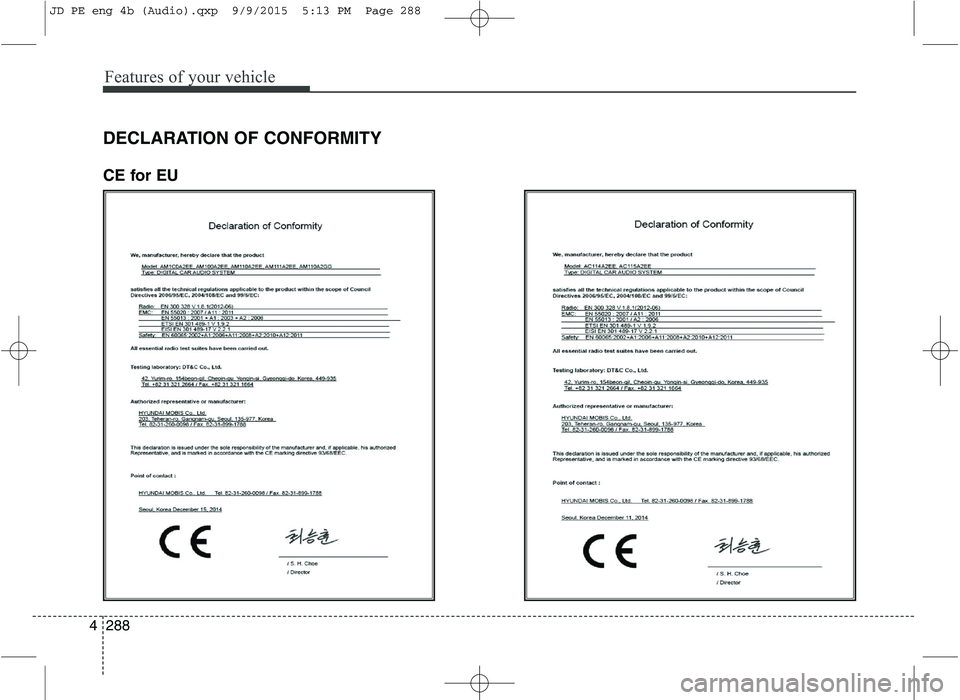

4 DECLARATION OF CONFORMITY
CE for EU
JD PE eng 4b (Audio).qxp 9/9/2015 5:13 PM Page 288

Features of your vehicle
4289

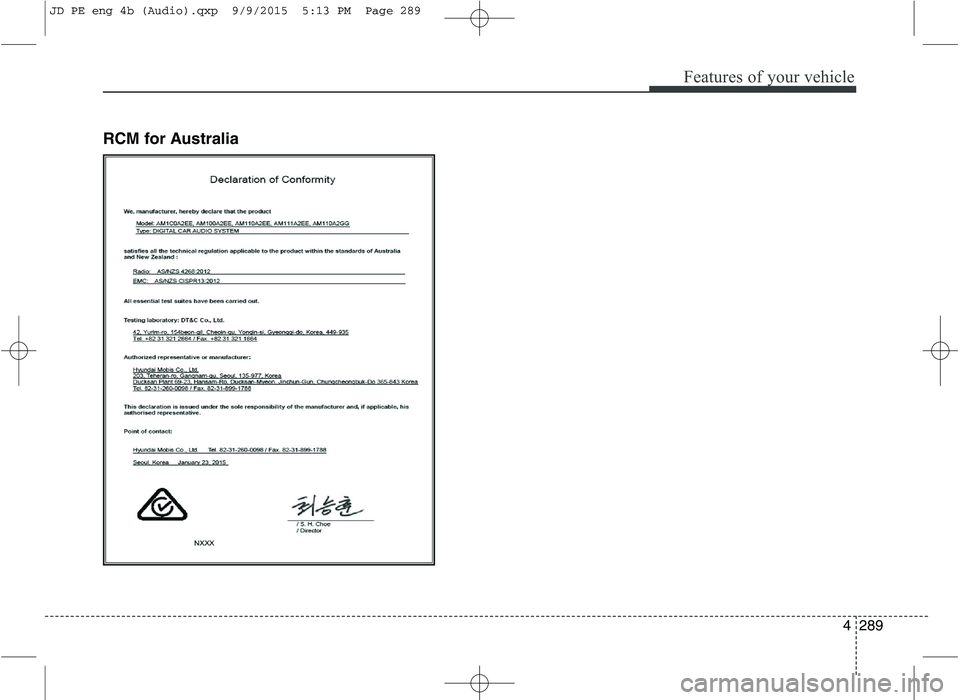

RCM for Australia
JD PE eng 4b (Audio).qxp 9/9/2015 5:13 PM Page 289

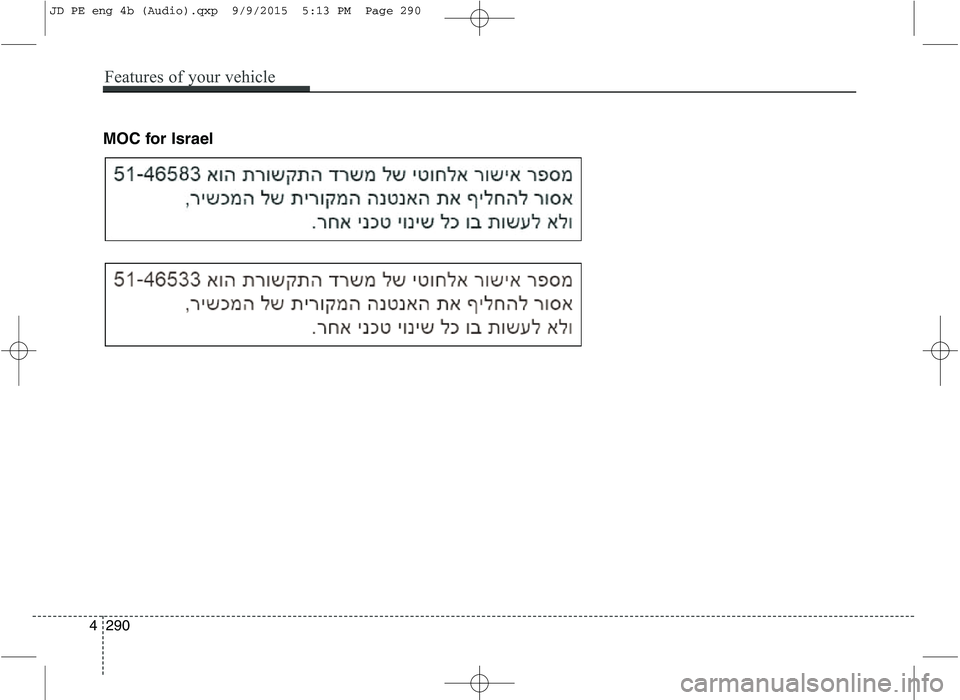

MOC for Israel
Features of your vehicle
290
4
JD PE eng 4b (Audio).qxp 9/9/2015 5:13 PM Page 290

Driving your vehicle
Before driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4 Before entering vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
 Necessary inspections . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
 Before starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Key positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5  Illuminated ignition switch . . . . . . . . . . . . . . . . . . . . . . 5-5
 Ignition switch position . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
 Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
Engine start/stop button . . . . . . . . . . . . . . . . . . . . . 5-9  Illuminated engine start/stop button . . . . . . . . . . . . . . 5-9
 Engine start/stop button position. . . . . . . . . . . . . . . . . 5-9
 Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
ISG (Idle Stop and Go) system . . . . . . . . . . . . . . . 5-15  Auto stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-15
 Auto Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-17
 Condition of ISG system operation . . . . . . . . . . . . . . 5-18
 ISG system deactivation . . . . . . . . . . . . . . . . . . . . . . . 5-18
 ISG system malfunction . . . . . . . . . . . . . . . . . . . . . . . 5-19
Manual Transaxle . . . . . . . . . . . . . . . . . . . . . . . . . . 5-20  Manual transaxle operation . . . . . . . . . . . . . . . . . . . . 5-20
 Good driving practices . . . . . . . . . . . . . . . . . . . . . . . . 5-22
Automatic transaxle . . . . . . . . . . . . . . . . . . . . . . . . 5-23  Automatic transaxle operation. . . . . . . . . . . . . . . . . . 5-23
 Good driving practices . . . . . . . . . . . . . . . . . . . . . . . . 5-28 Dual Clutch Transmission (DCT) . . . . . . . . . . . . . 5-30
 Dual clutch transmission operation . . . . . . . . . . . . . 5-30
 Good driving practices . . . . . . . . . . . . . . . . . . . . . . . . 5-37
Active ECOsystem . . . . . . . . . . . . . . . . . . . . . . . . . 5-39
 Active ECO operation . . . . . . . . . . . . . . . . . . . . . . . . . 5-39
 When Active ECO is activated . . . . . . . . . . . . . . . . . . 5-39
 Limitation of Active ECO operation . . . . . . . . . . . . . 5-39
Brake system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-40  Power brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-40
 Parking brake - Hand type. . . . . . . . . . . . . . . . . . . . . 5-42
 Electric parking brake (EPB) . . . . . . . . . . . . . . . . . . 5-44
 Anti-lock brake system (ABS) . . . . . . . . . . . . . . . . . . 5-48
 Electronic stability control (ESC) . . . . . . . . . . . . . . . 5-51
 Vehicle stability management (VSM) . . . . . . . . . . . . 5-54
 Hill-start assist control (HAC) . . . . . . . . . . . . . . . . . . 5-55
 Emergency Stop Signal (ESS) . . . . . . . . . . . . . . . . . . 5-56
 Good braking practices. . . . . . . . . . . . . . . . . . . . . . . . 5-56
Cruise Control system . . . . . . . . . . . . . . . . . . . . . . 5-58
Speed limit control system. . . . . . . . . . . . . . . . . . . 5-63
Lane departure warning system (LDWS) . . . . . . 5-66
Speed Limit Information Function (SLIF) . . . . . 5-69  SLIF activation / deactivation . . . . . . . . . . . . . . . . . . 5-69
 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-70
 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-70
 Warning message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-72
5
JD PE eng 5.QXP 9/30/2015 5:30 PM Page 1

 Driver's attention. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-73
Blind Spot Detection system (BSD) . . . . . . . . . . . 5-74  BSD (Blind Spot Detection) / LCA (Lane Change Assist) . . . . . . . . . . . . . . . . . . . . 5-74
 RCTA (Rear cross traffic alert) . . . . . . . . . . . . . . . . . 5-78
 Driver's Attention . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-80
Economical operation . . . . . . . . . . . . . . . . . . . . . . 5-81
Special driving conditions . . . . . . . . . . . . . . . . . . 5-83  Hazardous driving conditions . . . . . . . . . . . . . . . . . 5-83
 Rocking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . 5-83
 Smooth cornering . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-84
 Driving at night . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-84
 Driving in the rain . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-84
 Driving in flooded areas . . . . . . . . . . . . . . . . . . . . . . 5-85
 Driving off-road . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-85
 Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-85
Winter driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-86  Snowy or Icy conditions . . . . . . . . . . . . . . . . . . . . . . . 5-86
 Use high quality ethylene glycol coolant . . . . . . . . . . 5-88
 Check battery and cables . . . . . . . . . . . . . . . . . . . . . . 5-88
 Change to "winter weight" oil if necessary . . . . . . . 5-88
 Check spark plugs and ignition system. . . . . . . . . . . 5-88
 To keep locks from freezing . . . . . . . . . . . . . . . . . . . . 5-89
 Use approved window washer anti-freeze in system . . . . . . . . . . . . . . . . . . . . . . . . . 5-89  Don't let your parking brake freeze . . . . . . . . . . . . . 5-89
 Don't let ice and snow accumulate underneath . . . . 5-89
 Carry emergency equipment . . . . . . . . . . . . . . . . . . . 5-89
Trailer Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-90  Hitches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-91
 Safety chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-92
 Trailer brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-92
 Driving with a trailer . . . . . . . . . . . . . . . . . . . . . . . . 5-92
 Maintenance when trailer towing . . . . . . . . . . . . . . 5-96
 If you do decide to pull a trailer . . . . . . . . . . . . . . . 5-97
Vehicle weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-100  Base curb weight . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-100
 Vehicle curb weight . . . . . . . . . . . . . . . . . . . . . . . . . . 5-100
 Cargo weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-100
 GAW (Gross axle weight) . . . . . . . . . . . . . . . . . . . . . 5-100
 GAWR (Gross axle weight rating) . . . . . . . . . . . . . . 5-100
 GVW (Gross vehicle weight) . . . . . . . . . . . . . . . . . . 5-100
 GVWR (Gross vehicle weight rating) . . . . . . . . . . . 5-100
 Overloading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-100
5
JD PE eng 5.QXP 9/30/2015 5:30 PM Page 2

53
Driving your vehicle
WARNING- ENGINE EXHAUST CAN BE DANGEROUS!
Engine exhaust fumes can be extremely dangerous. If, at any time, you smell exhaust fumes inside the vehicle, open the win-
dows immediately.
• Do not inhale exhaust fumes.
Exhaust fumes contain carbon monoxide, a colorless, odorless gas that can cause unconsciousness and death by asphyxia- tion.
The exhaust system should be checked whenever the vehicle is raised to change the oil or for any other purpose. If you hear
a change in the sound of the exhaust or if you drive over something that strikes the underneath side of the vehicle, we rec-
ommend that the system be checked by an authorized Kia dealer.
Letting the engine idle in your garage, even with the garage door open, is a hazardous practice. Never run the engine in your
garage any longer than it takes to start the engine and back the vehicle out.
If it is necessary to idle the engine for a prolonged period with people inside the vehicle, be sure to do so only in an open a rea
with the air intake set at "Fresh" and fan operating at one of the higher speeds so fresh air is drawn into the interior.
If you must drive with the tailgate/trunk open because you are carrying objects that make this necessary:
1. Close all windows.
2. Open side vents.
3. Set the air intake control at "Fresh", the air flow control at "Floor" or "Face" and the fan at one of the higher speeds.
To assure proper operation of the ventilation system, be sure the ventilation air intakes located just in front of the windshie ld are
kept clear of snow, ice, leaves or other obstructions.
JD PE eng 5.QXP 9/30/2015 5:22 PM Page 3

Driving your vehicle
4
5
Before entering vehicle
• Be sure that all windows, outside mir-
ror(s), and outside lights are clean.
Check the condition of the tires.
Check under the vehicle for any sign of leaks.
Be sure there are no obstacles behind you if you intend to back up. Necessary inspections
Fluid levels, such as engine oil, engine
coolant, brake fluid, and washer fluid
should be checked on a regular basis,
with the exact interval depending on the
fluid. Further details are provided in
chapter 7, “Maintenance”.
Before starting
Close and lock all doors.
Position the seat so that all controls are
easily reached.
Adjust the inside and outside rearview mirrors.
Be sure that all lights work.
Check all gauges.
Check the operation of warning lights when the ignition switch is turned to the ON position.
Release the parking brake and make sure the brake warning light goes out.
For safe operation, be sure you are famil-
iar with your vehicle and its equipment.
BEFORE DRIVING
WARNING
All passengers must be properly
belted whenever the vehicle is mov-
ing. Refer to “Seat belts” in chapter
3 for more information on their
proper use.
WARNING
Always check the surrounding areas
near your vehicle for people, espe-
cially children, before putting a vehi-
cle into “D (Drive)” or “R (Reverse)”.
WARNING
Driving while distracted can result
in a loss of vehicle control, that
may lead to an accident, severe
personal injury, and death. The dri-
ver’s primary responsibility is in
the safe and legal operation of a
vehicle, and use of any handheld
devices, other equipment, or vehi-
cle systems which take the driver’s
eyes, attention and focus away
from the safe operation of a vehicle
or which are not permissible by law
should never be used during oper-
ation of the vehicle.
JD PE eng 5.QXP 9/30/2015 5:22 PM Page 4

55
Driving your vehicle
Illuminated ignition switch
Whenever a front door is opened, the
ignition switch will be illuminated for your
convenience, provided the ignition switch
is not in the ON position. The light will go
off immediately when the ignition switch
is turned on or go off after about 30 sec-onds when the door is closed.KEY POSITIONS
WARNING
- Driving under
the influence of alcohol or drugs
Drinking and driving is dangerous.
Drunk driving is the number one
contributor to the highway death
toll each year. Even a small amount
of alcohol will affect your reflexes,
perceptions and judgement.Driving while under the influence of
drugs is as dangerous or more dan-
gerous than driving drunk.
You are much more likely to have a
serious accident if you drink or
take drugs and drive.
If you are drinking or taking drugs,
don’t drive. Do not ride with a driv-er who has been drinking or taking
drugs. Choose a designated driveror call a cab.WARNING
When you intend to park or stop the vehicle with the engine on, be careful not to depress the accel-
erator pedal for a long period of
time. It may overheat the engine
or exhaust system and cause fire.
When you make a sudden stop or turn the steering wheel rapidly,
loose objects may drop on the
floor and it could interfere with
the operation of the foot pedals,
possibly causing an accident.
Keep all things in the vehicle
safely stored.
If you do not focus on driving, it may cause an accident. Be care-
ful when operating what may dis-
turb driving such as audio or
heater. It is the responsibility of
the driver to always drive safely.
OGDE051055
ACC
ON
START
LOCK
JD PE eng 5.QXP 9/30/2015 5:22 PM Page 5

Driving your vehicle
6
5
Ignition switch position
LOCK
The steering wheel locks to protect
against theft. The ignition key can be
removed only in the LOCK position.
When turning the ignition switch to the
LOCK position, push the key inward at
the ACC position and turn the key towardthe LOCK position.
ACC (Accessory)
The steering wheel is unlocked and elec-
trical accessories are operative.
✽✽
NOTICE
If difficulty is experienced turning the
ignition switch to the ACC position, turn
the key while turning the steering wheel
right and left to release the tension.
ON
The warning lights can be checked
before the engine is started. This is the
normal running position after the engine
is started.
Do not leave the ignition switch ON if the engine is not running to prevent batterydischarge.
START
Turn the ignition key to the START posi-
tion to start the engine. The engine will
crank until you release the key; then it
returns to the ON position. The brake
warning lamp can be checked in thisposition.
WARNING - Ignition key
Never turn the ignition switch to LOCK or ACC while the vehicle is
moving. This would result in loss of
directional control and braking func-
tion, which could cause an accident.
The anti-theft steering column lock (if equipped) is not a substitute for
the parking brake. Before leaving
the driver’s seat, always make sure
the shift lever is engaged in 1 st
gear
for the manual transaxle or P (Park)
for the automatic transaxle, set the
parking brake fully and shut the
engine off. Unexpected and sud-
den vehicle movement may occur ifthese precautions are not taken.
Never reach for the ignition switch, or any other controls through the
steering wheel while the vehicle is in
motion. The presence of your handor arm in this area could cause a
loss of vehicle control, an accident
and serious bodily injury or death.
Do not place any movable objects around the driver’s seat as they
may move while driving, interferewith the driver and lead to an acci-dent.
JD PE eng 5.QXP 9/30/2015 5:22 PM Page 6

57
Driving your vehicle

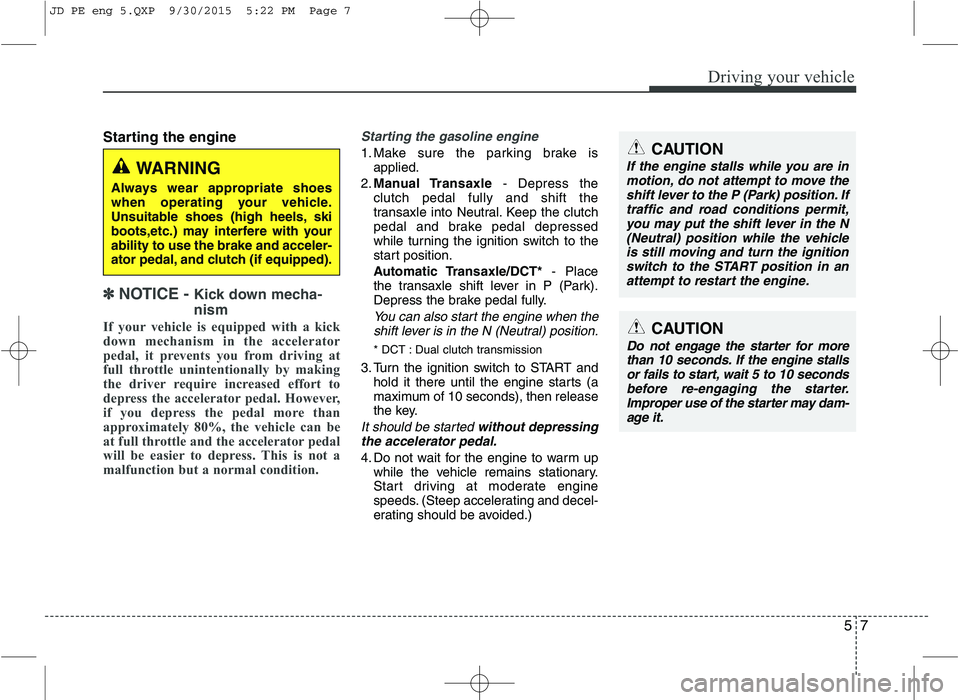

Starting the engine
✽✽
NOTICE - Kick down mecha- nism
If your vehicle is equipped with a kick
down mechanism in the accelerator
pedal, it prevents you from driving at
full throttle unintentionally by making
the driver require increased effort to
depress the accelerator pedal. However,
if you depress the pedal more than
approximately 80%, the vehicle can be
at full throttle and the accelerator pedal
will be easier to depress. This is not a
malfunction but a normal condition.
Starting the gasoline engine
1. Make sure the parking brake is applied.
2. Manual Transaxle - Depress the
clutch pedal fully and shift the
transaxle into Neutral. Keep the clutch
pedal and brake pedal depressed
while turning the ignition switch to the
start position.
Automatic Transaxle/DCT* - Place
the transaxle shift lever in P (Park).
Depress the brake pedal fully.
You can also start the engine when the
shift lever is in the N (Neutral) position.
* DCT : Dual clutch transmission
3. Turn the ignition switch to START and hold it there until the engine starts (a
maximum of 10 seconds), then release
the key.
It should be started without depressing
the accelerator pedal.
4. Do not wait for the engine to warm up while the vehicle remains stationary.
Start driving at moderate engine
speeds. (Steep accelerating and decel-
erating should be avoided.)
CAUTION
If the engine stalls while you are in
motion, do not attempt to move theshift lever to the P (Park) position. If traffic and road conditions permit,
you may put the shift lever in the N(Neutral) position while the vehicle is still moving and turn the ignitionswitch to the START position in an
attempt to restart the engine.
CAUTION
Do not engage the starter for more than 10 seconds. If the engine stallsor fails to start, wait 5 to 10 seconds
before re-engaging the starter.Improper use of the starter may dam- age it.
WARNING
Always wear appropriate shoes
when operating your vehicle.
Unsuitable shoes (high heels, ski
boots,etc.) may interfere with yourability to use the brake and acceler-
ator pedal, and clutch (if equipped).
JD PE eng 5.QXP 9/30/2015 5:22 PM Page 7
