Features of your vehicle
96
4
✽✽
NOTICE
This system can only sense objects with-
in the range and location of the sensors;
it can not detect objects in other areas
where sensors are not installed. Also,
small or slim objects, such as poles or
objects located between sensors may not
be detected by the sensors.
Always visually check behind the vehi-
cle when backing up.
Be sure to inform any drivers of the
vehicle that may be unfamiliar with the
system regarding the systems capabili-
ties and limitations.Self-diagnosis
When you shift the gear to the R
(Reverse) position and if one or more of
the below occurs you may have a mal-
function in the rear parking assist sys-tem.
You don't hear an audible warning sound or if the buzzer sounds intermit-
tently.
If this occurs, we recommend that the
system be checked by an authorized Kia
dealer.
WARNING
Pay close attention when the vehi-
cle is driven close to objects on the
road, particularly pedestrians, and
especially children. Be aware that
some objects may not be detected
by the sensors, due to the object’s
distance, size or material, all of
which can limit the effectiveness of
the sensor. Always perform a visu-al inspection to make sure the vehi-
cle is clear of all obstructions
before moving the vehicle in anydirection.
WARNING
Your new vehicle warranty does not
cover any accidents or damage to
the vehicle or injuries to its occu-pants due to a rear parking assist
system malfunction. Always drive
safely and cautiously.
(blinks)
is displayed. (if equipped)
JD PE eng 4.QXP 1/28/2016 5:18 PM Page 96

497
Features of your vehicle
PARKING ASSIST SYSTEM (IF EQUIPPED)
WARNING
The parking assist system should
only be considered as a supple-
mentary function. The driver must
check the front and rear view. Theoperational function of the parking
assist system can be affected by
many factors and conditions of the
surroundings, so the responsibility
rests always with the driver.
OJD045243L
■ Rear (3 Door)
■ Front
OJD045085L
OJD045242L
■Rear (Wagon)
■Rear (5 Door)
OJD045084L
The parking assist system assists the driver during movement of the vehicle by chim-
ing or displaying the area an obstacle is detected on the instrument cluster if anyobject is sensed within the distance of 100 cm (39.4 in.) in front and 120 cm (47 in.)
behind the vehicle. This system is a supplemental system and it is not intended to nor does it replace the
need for extreme care and attention of the driver.
The sensing range and objects detectable by the sensors are limited.
Whenever moving pay as much attention to what is in front and behind of you as you
would in a vehicle without a parking assist system.SSSSeeeennnnssssoooorrrrssssSSSSeeeennnnssssoooorrrrssss
SSSSeeeennnnssssoooorrrrssssSSSSeeeennnnssssoooorrrrssss
JD PE eng 4.QXP 1/28/2016 5:18 PM Page 97

499
Features of your vehicle
✽✽NOTICE
 The actual warning sound and indicator may differ from the illustration accord- ing to objects or sensor status.
 Do not wash the vehicle's sensor with high pressure water.
 When driving rearward(at “R’ shift), Side sensor operates and if detecting some object at the side, warning indicator displays at front corner.
Type of warning indicator and sound: with Warning sound
Distance from object
Warning indicator
Warning soundWhen driving forwardWhen driving rearward
100cm~61cmFront-Buzzer beeps intermittently
120cm~61cmRear-Buzzer beeps intermittently
60cm~31cm
FrontBuzzer beeps frequently
Rear-Buzzer beeps frequently
30cm
FrontBuzzer sounds continuously
Rear-Buzzer sounds continuously
CAUTION
This system can only sense
objects within the range and loca-tion of the sensors;
It can not detect objects in otherareas where sensors are not
installed. Also, small or slim objects, such as poles or objectslocated between sensors may not be detected by the sensors.
Always visually check behind thevehicle when backing up.
Be sure to inform any drivers of the vehicle that may be unfamiliarwith the system regarding the sys- tems capabilities and limitations.
JD PE eng 4.QXP 1/28/2016 5:18 PM Page 99

4101
Features of your vehicle
✽✽NOTICE
This system can only sense objects with-
in the range and location of the sensors,
it can not detect objects in other areas
where sensors are not installed. Also,
small or slim objects, or objects located
between sensors may not be detected.
Always visually check in front and
behind the vehicle when driving.
Be sure to inform any drivers in the
vehicle that may be unfamiliar with the
system regarding the systems capabili-
ties and limitations.Self-diagnosis
When you shift the gear to the R
(Reverse) position and if one or more of
the below occurs you may have a mal-
function in the parking assist system.
You don't hear an audible warning sound or if the buzzer sounds intermit-
tently.
If this occurs, we recommend that the
system be checked by an authorized Kia
dealer.
WARNING
Your new vehicle warranty does not
cover any accidents or damage to
the vehicle or injuries to its occu-pants related to a parking assist
system. Always drive safely and
cautiously.
WARNING
Pay close attention when the vehi-
cle is driven close to objects on the
road, particularly pedestrians, and
especially children. Be aware that
some objects may not be detected
by the sensors, due to the objects
distance, size or material, all of
which can limit the effectiveness of
the sensor. Always perform a visual
inspection to make sure the vehicle
is clear of all obstructions before
moving the vehicle in any direction.
(blinks)
is displayed. (if equipped)
JD PE eng 4.QXP 1/28/2016 5:18 PM Page 101

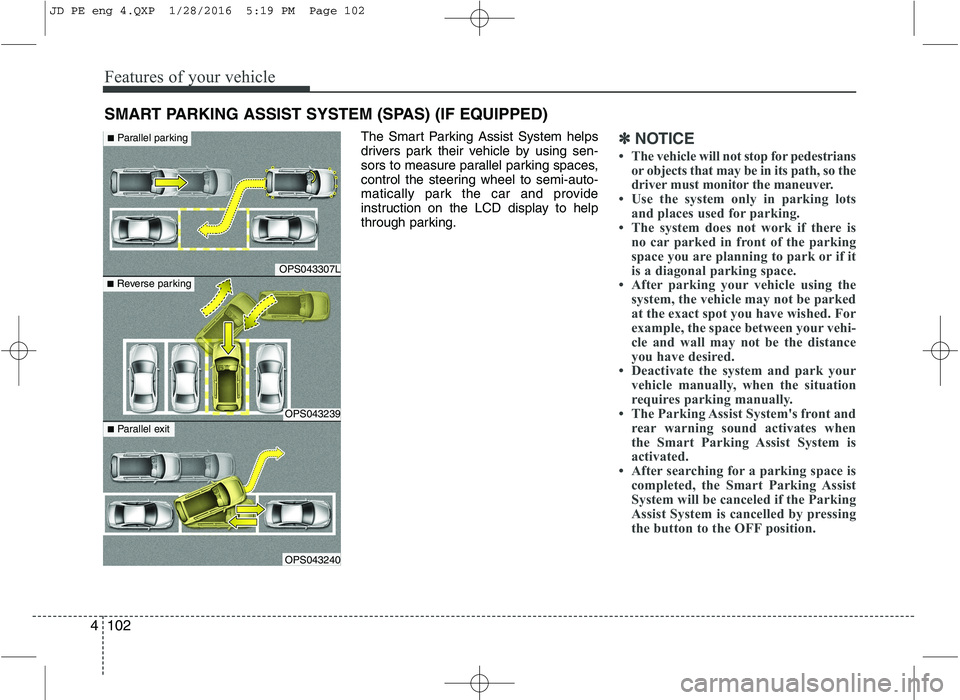

Features of your vehicle
102
4
The Smart Parking Assist System helps
drivers park their vehicle by using sen-
sors to measure parallel parking spaces,
control the steering wheel to semi-auto-
matically park the car and provide
instruction on the LCD display to help
through parking.✽✽
NOTICE
 The vehicle will not stop for pedestrians or objects that may be in its path, so the
driver must monitor the maneuver.
 Use the system only in parking lots
and places used for parking.
 The system does not work if there is
no car parked in front of the parking
space you are planning to park or if it
is a diagonal parking space.
 After parking your vehicle using the
system, the vehicle may not be parked
at the exact spot you have wished. For
example, the space between your vehi-
cle and wall may not be the distance
you have desired.
 Deactivate the system and park your
vehicle manually, when the situation
requires parking manually.
 The Parking Assist System's front and rear warning sound activates when
the Smart Parking Assist System is
activated.
 After searching for a parking space is
completed, the Smart Parking Assist
System will be canceled if the Parking
Assist System is cancelled by pressing
the button to the OFF position.
SMART PARKING ASSIST SYSTEM (SPAS) (IF EQUIPPED)
OPS043307L
OPS043239
OPS043240
■Parallel parking
■ Reverse parking
■Parallel exit
JD PE eng 4.QXP 1/28/2016 5:19 PM Page 102

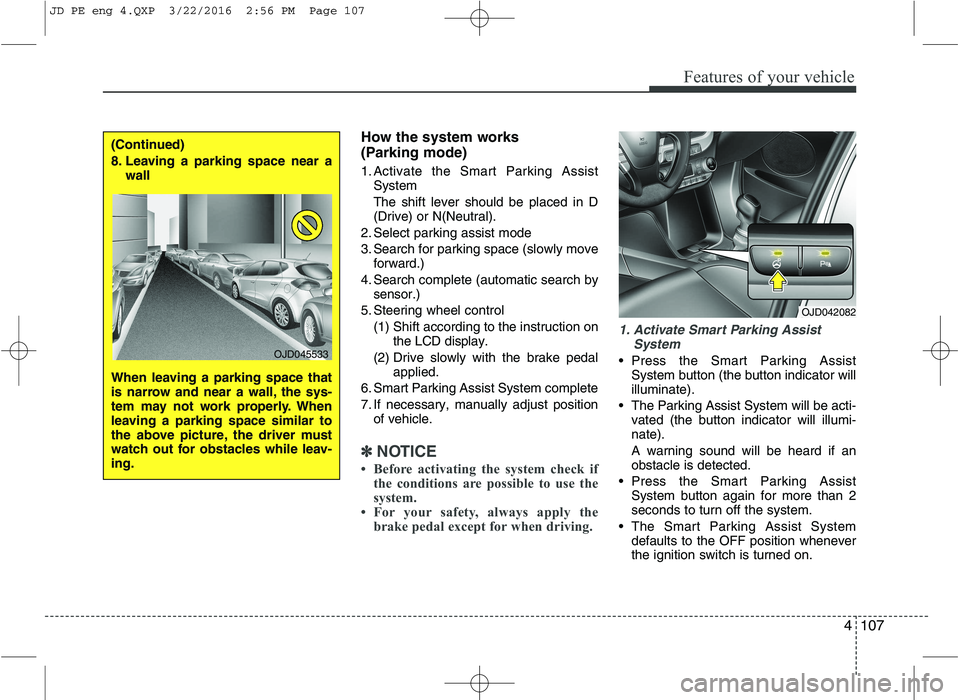

4107
Features of your vehicle
How the system works
(Parking mode)
1. Activate the Smart Parking AssistSystem The shift lever should be placed in D (Drive) or N(Neutral).
2. Select parking assist mode
3. Search for parking space (slowly move forward.)
4. Search complete (automatic search by sensor.)
5. Steering wheel control
(1) Shift according to the instruction on the LCD display.
(2) Drive slowly with the brake pedal applied.
6. Smart Parking Assist System complete
7. If necessary, manually adjust position of vehicle.
✽✽ NOTICE
 Before activating the system check if the conditions are possible to use the
system.
 For your safety, always apply the brake pedal except for when driving.
1. Activate Smart Parking Assist
System
• Press the Smart Parking AssistSystem button (the button indicator will illuminate).
The Parking Assist System will be acti- vated (the button indicator will illumi-nate). A warning sound will be heard if an obstacle is detected.
Press the Smart Parking Assist System button again for more than 2seconds to turn off the system.
The Smart Parking Assist System defaults to the OFF position wheneverthe ignition switch is turned on.
OJD042082
(Continued)
8. Leaving a parking space near a wall
When leaving a parking space that
is narrow and near a wall, the sys-
tem may not work properly. When
leaving a parking space similar to
the above picture, the driver must
watch out for obstacles while leav-ing.
OJD045533
JD PE eng 4.QXP 3/22/2016 2:56 PM Page 107

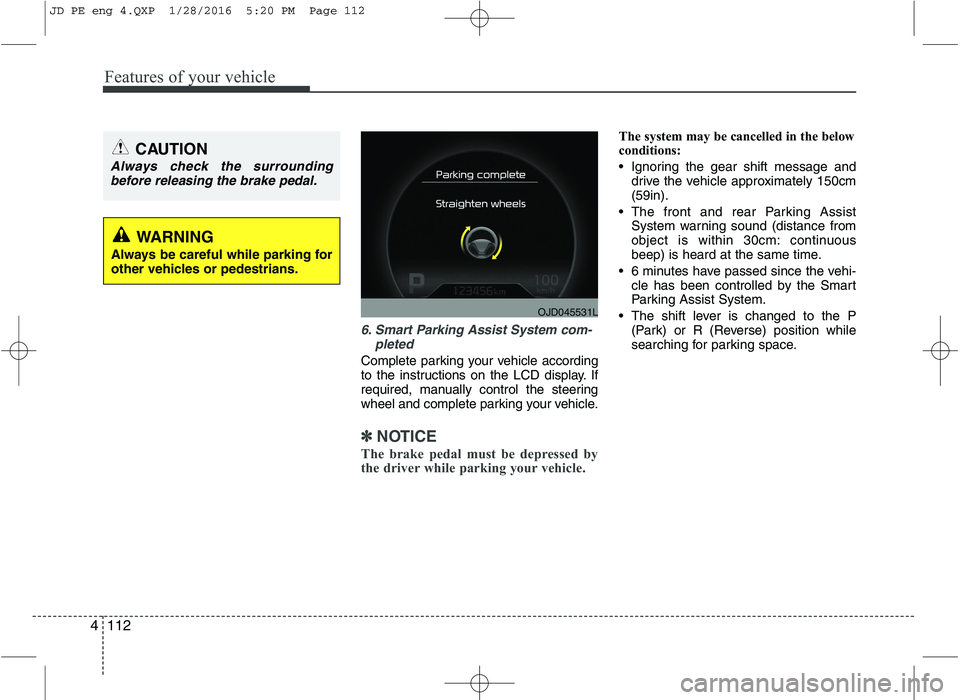

Features of your vehicle
112
4
6. Smart Parking Assist System com-
pleted
Complete parking your vehicle according
to the instructions on the LCD display. If
required, manually control the steering
wheel and complete parking your vehicle.
✽✽NOTICE
The brake pedal must be depressed by
the driver while parking your vehicle.
The system may be cancelled in the below
conditions:
Ignoring the gear shift message and drive the vehicle approximately 150cm (59in).
The front and rear Parking Assist System warning sound (distance from
object is within 30cm: continuous
beep) is heard at the same time.
6 minutes have passed since the vehi- cle has been controlled by the Smart
Parking Assist System.
The shift lever is changed to the P (Park) or R (Reverse) position while
searching for parking space.
OJD045531L
WARNING
Always be careful while parking for
other vehicles or pedestrians.
CAUTION
Always check the surrounding before releasing the brake pedal.
JD PE eng 4.QXP 1/28/2016 5:20 PM Page 112

4113
Features of your vehicle
How the system works (Exit mode)
The Exit Mode operates in the below condition:
When vehicle speed is below 5 km/hthe first time after the engine has been
started.
After parallel parking is completed with the Smart Parking Assist System.
1. Activate the Smart Parking Assist System
The shift lever should be placed in P (Park) or N (Neutral).
2. Select Exit Mode
3. Check surroundings
4. Steering wheel control (1) Shift according to the instruction on the LCD display.
(2) Drive slowly with the brake pedal applied.
5. Exiting complete If necessary, manually adjust position
of vehicle.✽✽NOTICE
 Before activating the system check if the conditions are possible to use the
system.
 For your safety, always apply the
brake pedal except for when driving.
1. Activate Smart Parking Assist
System
Press the Smart Parking Assist
System button (the button indicator will illuminate).
The Parking Assist System will be acti- vated (the button indicator will illumi- nate).
A warning sound will be heard if an obstacle is detected.
Press the Smart Parking Assist System button again for more than 2
seconds to turn off the system.
The Smart Parking Assist System defaults to the OFF position whenever
the ignition switch is turned on.
OJD042082
JD PE eng 4.QXP 1/28/2016 5:20 PM Page 113

4145
Features of your vehicle
AUTOMATIC CLIMATE CONTROL SYSTEM (IF EQUIPPED)
OJD042109
1. Driver's temperature control knob
2. AUTO (automatic control) button
3. Fan speed control button (Higher speed)
4. Fan speed control button (Lower speed)
5. Climate control display
6. Air conditioning button
7. Air intake control button8. Passenger's temperature control knob
9. Dual temperature control selection button
10. OFF button
11. Front windshield defroster button
12. Mode selection button
13. Rear window defroster button
JD PE eng 4.QXP 1/28/2016 5:23 PM Page 145

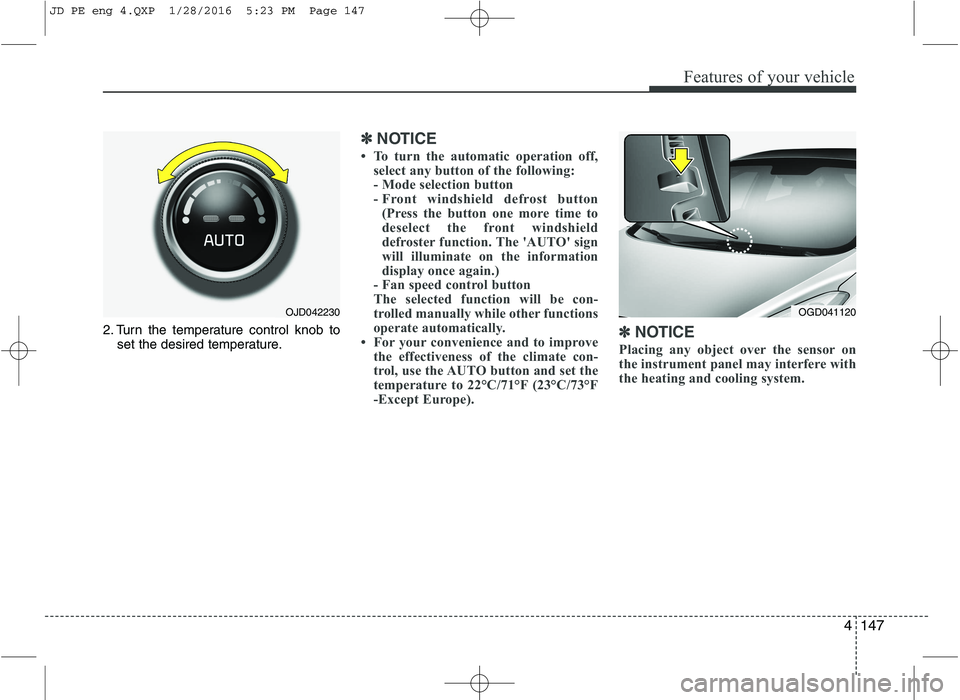

4147
Features of your vehicle
2. Turn the temperature control knob toset the desired temperature.
✽✽ NOTICE
 To turn the automatic operation off, select any button of the following:
- Mode selection button
- Front windshield defrost button
(Press the button one more time to
deselect the front windshield
defroster function. The 'AUTO' sign
will illuminate on the information
display once again.)
- Fan speed control button
The selected function will be con-
trolled manually while other functions
operate automatically.
 For your convenience and to improve
the effectiveness of the climate con-
trol, use the AUTO button and set the
temperature to 22°C/71°F (23°C/73°F
-Except Europe). ✽
✽
NOTICE
Placing any object over the sensor on
the instrument panel may interfere with
the heating and cooling system.
OGD041120OJD042230
JD PE eng 4.QXP 1/28/2016 5:23 PM Page 147
