Features of your vehicle
240
4

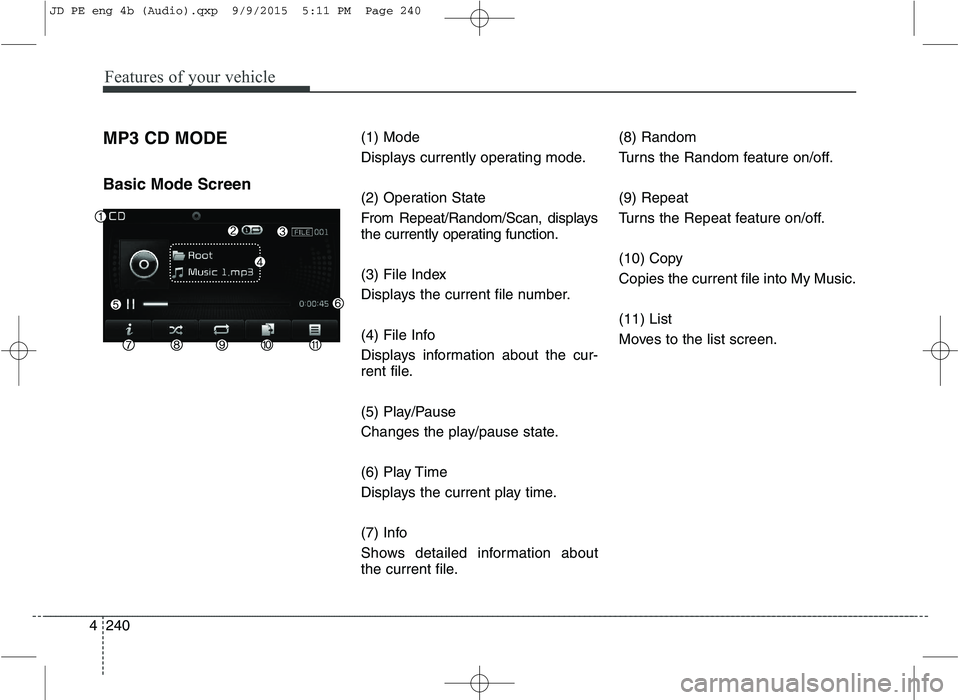

MP3 CD MODE Basic Mode Screen (1) Mode
Displays currently operating mode.
(2) Operation State
From Repeat/Random/Scan, displays
the currently operating function.
(3) File Index
Displays the current file number.
(4) File Info
Displays information about the cur-
rent file.
(5) Play/Pause
Changes the play/pause state.
(6) Play Time
Displays the current play time.
(7) Info
Shows detailed information about
the current file.(8) Random
Turns the Random feature on/off. (9) Repeat
Turns the Repeat feature on/off.
(10) Copy Copies the current file into My Music. (11) List
Moves to the list screen.
JD PE eng 4b (Audio).qxp 9/9/2015 5:11 PM Page 240

Features of your vehicle
4241

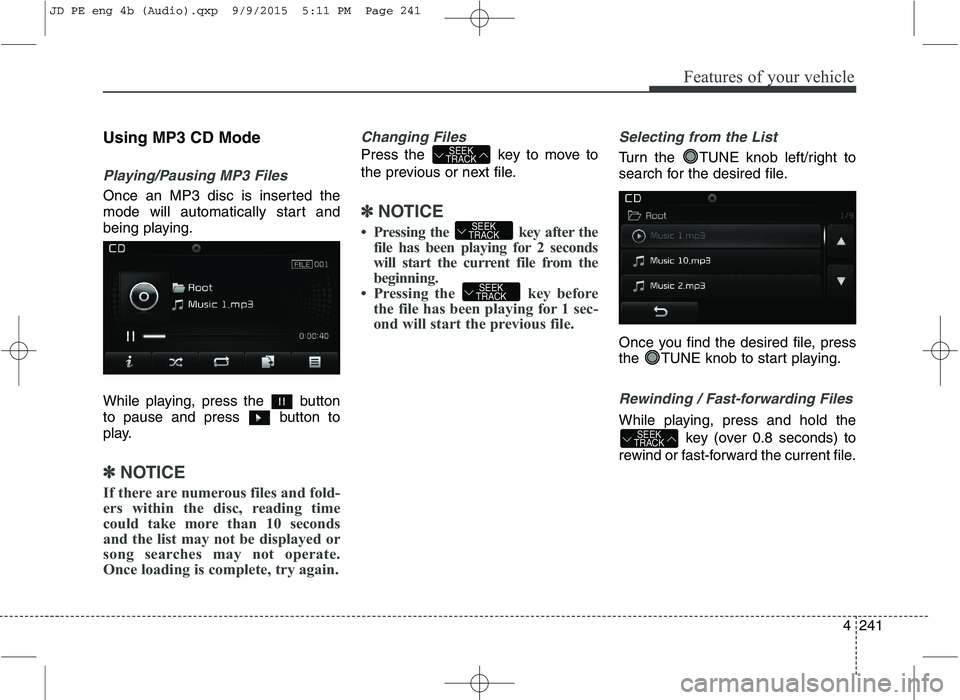

Using MP3 CD Mode
Playing/Pausing MP3 Files
Once an MP3 disc is inserted the
mode will automatically start and
being playing.
While playing, press the button
to pause and press button to
play.
✽✽
NOTICE
If there are numerous files and fold-
ers within the disc, reading time
could take more than 10 seconds
and the list may not be displayed or
song searches may not operate.
Once loading is complete, try again.
Changing Files
Press the key to move to
the previous or next file.
✽✽ NOTICE
 Pressing the key after the file has been playing for 2 seconds
will start the current file from the
beginning.
 Pressing the key before the file has been playing for 1 sec-
ond will start the previous file.
Selecting from the List
Turn the TUNE knob left/right to
search for the desired file.
Once you find the desired file, press
the TUNE knob to start playing.
Rewinding / Fast-forwarding Files
While playing, press and hold the
key (over 0.8 seconds) to
rewind or fast-forward the current file.SEEK
TRACK
SEEK
TRACK
SEEK
TRACK
SEEK
TRACK
JD PE eng 4b (Audio).qxp 9/9/2015 5:11 PM Page 241

Features of your vehicle
242
4

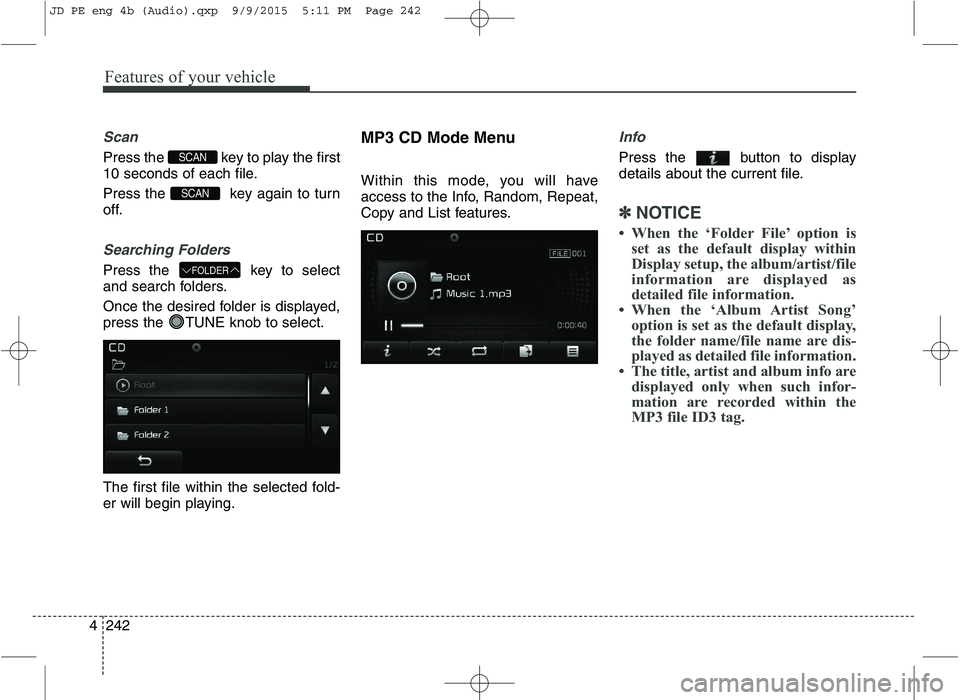

Scan
Press the key to play the first
10 seconds of each file.
Press the key again to turn
off.
Searching Folders
Press the key to select
and search folders.
Once the desired folder is displayed,
press the TUNE knob to select.
The first file within the selected fold-
er will begin playing. MP3 CD Mode Menu
Within this mode, you will have
access to the Info, Random, Repeat,
Copy and List features.
Info
Press the button to display
details about the current file.
✽✽
NOTICE
 When the ‘Folder File’ option is set as the default display within
Display setup, the album/artist/file
information are displayed as
detailed file information.
 When the ‘Album Artist Song’ option is set as the default display,
the folder name/file name are dis-
played as detailed file information.
 The title, artist and album info are displayed only when such infor-
mation are recorded within the
MP3 file ID3 tag.
FOLDER
SCAN
SCAN
JD PE eng 4b (Audio).qxp 9/9/2015 5:11 PM Page 242

Features of your vehicle
4243

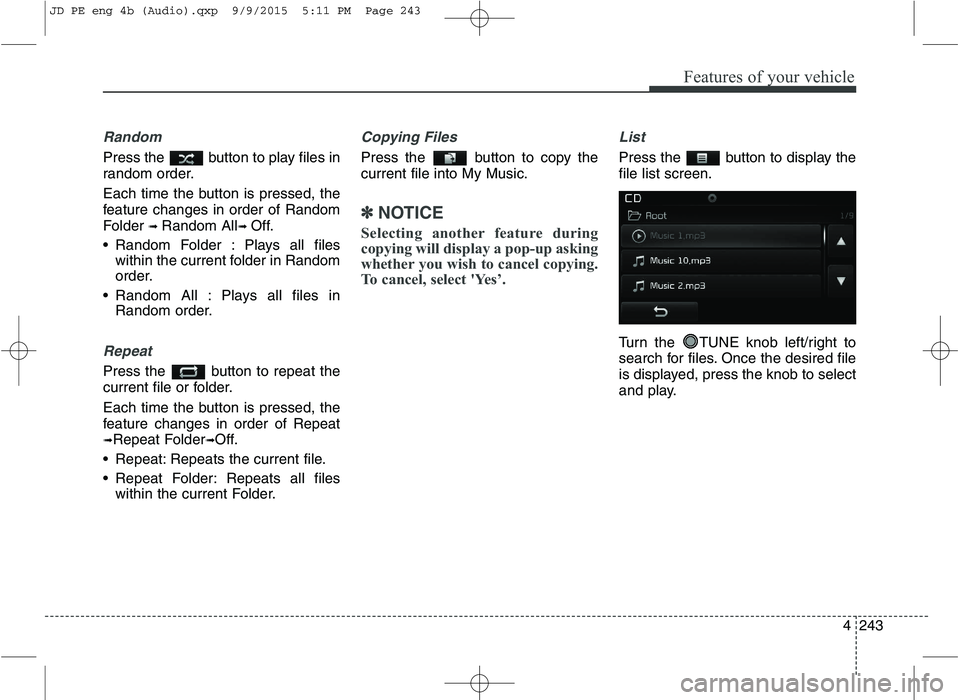

Random
Press the button to play files in
random order.
Each time the button is pressed, the
feature changes in order of Random
Folder ➟ Random All ➟ Off.
Random Folder : Plays all files within the current folder in Random
order.
Random All : Plays all files in Random order.
Repeat
Press the button to repeat the
current file or folder.
Each time the button is pressed, the
feature changes in order of Repeat➟Repeat Folder ➟Off.
Repeat: Repeats the current file.
Repeat Folder: Repeats all files within the current Folder.
Copying Files
Press the button to copy the current file into My Music.
✽✽ NOTICE
Selecting another feature during
copying will display a pop-up asking
whether you wish to cancel copying.
To cancel, select 'Yes’.
List
Press the button to display the file list screen.
Turn the TUNE knob left/right to
search for files. Once the desired file
is displayed, press the knob to select
and play.
JD PE eng 4b (Audio).qxp 9/9/2015 5:11 PM Page 243

Features of your vehicle
246

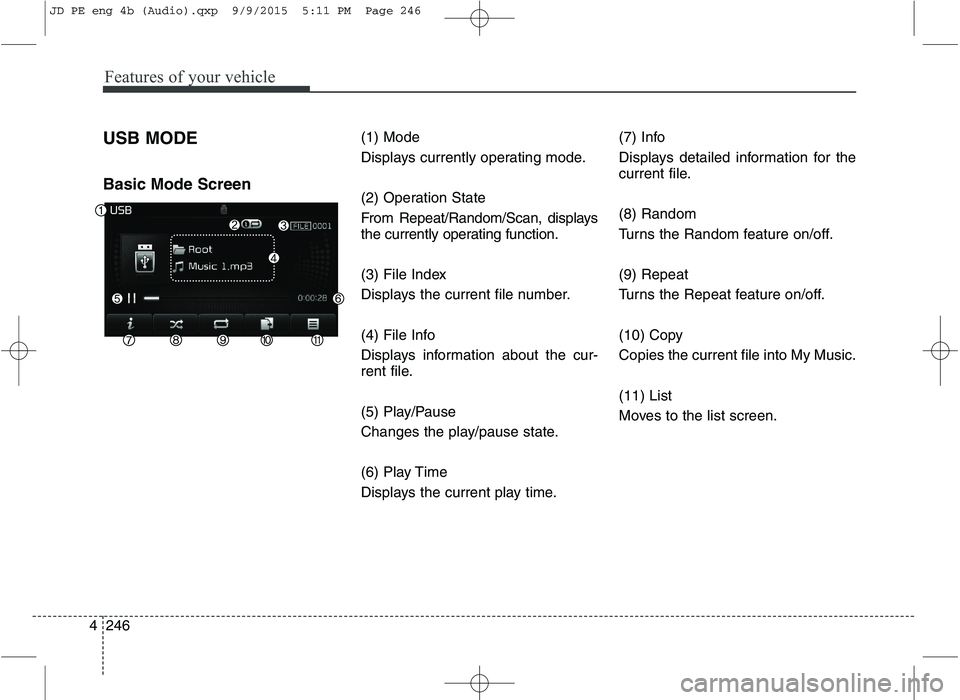

4 USB MODE Basic Mode Screen
(1) Mode
Displays currently operating mode.
(2) Operation State
From Repeat/Random/Scan, displays
the currently operating function.
(3) File Index
Displays the current file number.
(4) File Info
Displays information about the cur-
rent file.
(5) Play/Pause
Changes the play/pause state.
(6) Play Time
Displays the current play time.(7) Info
Displays detailed information for the
current file. (8) Random
Turns the Random feature on/off. (9) Repeat
Turns the Repeat feature on/off.
(10) Copy Copies the current file into My Music. (11) List
Moves to the list screen.
JD PE eng 4b (Audio).qxp 9/9/2015 5:11 PM Page 246

Features of your vehicle
4247

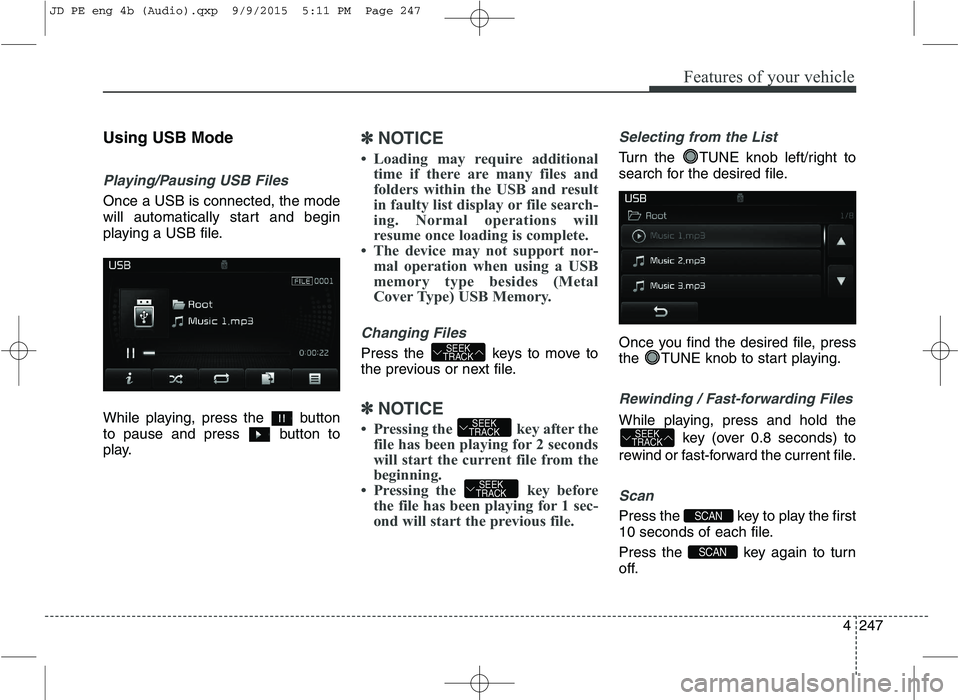

Using USB Mode
Playing/Pausing USB Files
Once a USB is connected, the mode
will automatically start and begin
playing a USB file.
While playing, press the button
to pause and press button to
play.
✽✽
NOTICE
 Loading may require additional time if there are many files and
folders within the USB and result
in faulty list display or file search-
ing. Normal operations will
resume once loading is complete.
 The device may not support nor- mal operation when using a USB
memory type besides (Metal
Cover Type) USB Memory.
Changing Files
Press the keys to move to
the previous or next file.
✽✽ NOTICE
 Pressing the key after the file has been playing for 2 seconds
will start the current file from the
beginning.
 Pressing the key before the file has been playing for 1 sec-
ond will start the previous file.
Selecting from the List
Turn the TUNE knob left/right to
search for the desired file.
Once you find the desired file, press
the TUNE knob to start playing.
Rewinding / Fast-forwarding Files
While playing, press and hold the
key (over 0.8 seconds) to
rewind or fast-forward the current file.
Scan
Press the key to play the first
10 seconds of each file.
Press the key again to turn
off.
SCAN
SCAN
SEEK
TRACK
SEEK
TRACK
SEEK
TRACK
SEEK
TRACK
JD PE eng 4b (Audio).qxp 9/9/2015 5:11 PM Page 247

Features of your vehicle
248
4

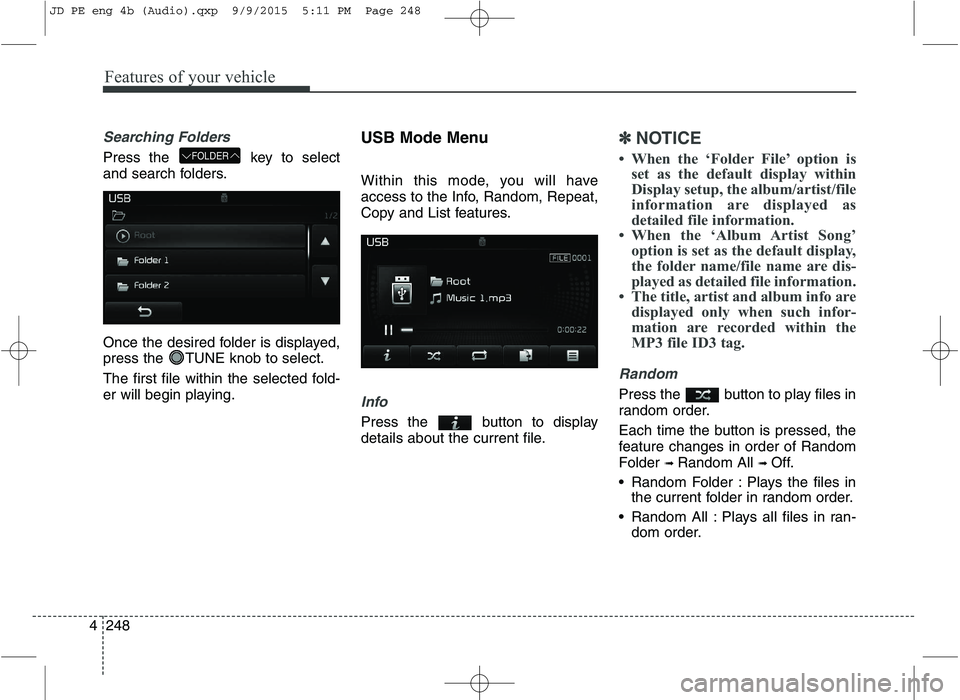

Searching Folders
Press the key to select
and search folders.
Once the desired folder is displayed,
press the TUNE knob to select.
The first file within the selected fold-
er will begin playing. USB Mode Menu
Within this mode, you will have
access to the Info, Random, Repeat,
Copy and List features.
Info
Press the button to display
details about the current file.
✽✽
NOTICE
 When the ‘Folder File’ option is set as the default display within
Display setup, the album/artist/file
information are displayed as
detailed file information.
 When the ‘Album Artist Song’ option is set as the default display,
the folder name/file name are dis-
played as detailed file information.
 The title, artist and album info are displayed only when such infor-
mation are recorded within the
MP3 file ID3 tag.
Random
Press the button to play files in
random order.
Each time the button is pressed, the
feature changes in order of Random
Folder ➟ Random All ➟ Off.
Random Folder : Plays the files in the current folder in random order.
Random All : Plays all files in ran- dom order.
FOLDER
JD PE eng 4b (Audio).qxp 9/9/2015 5:11 PM Page 248

Features of your vehicle
4249

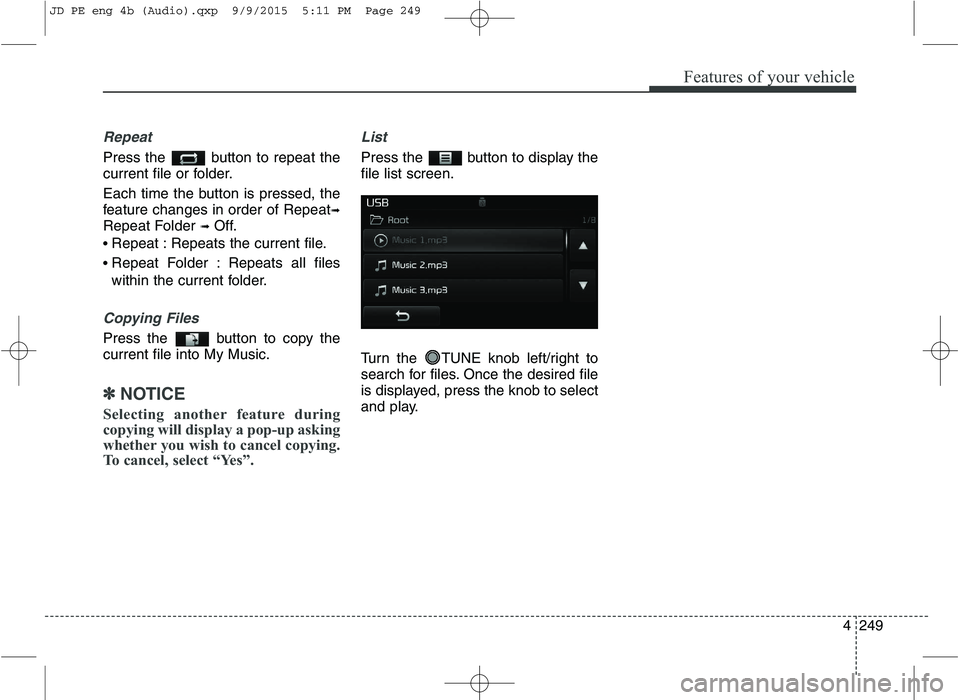

Repeat
Press the button to repeat the
current file or folder.
Each time the button is pressed, the
feature changes in order of Repeat➟
Repeat Folder ➟Off.
Repeat : Repeats the current file.
Repeat Folder : Repeats all files
within the current folder.
Copying Files
Press the button to copy the current file into My Music.
✽✽
NOTICE
Selecting another feature during
copying will display a pop-up asking
whether you wish to cancel copying.
To cancel, select “Yes”.
List
Press the button to display the file list screen.
Turn the TUNE knob left/right to
search for files. Once the desired file
is displayed, press the knob to select
and play.
JD PE eng 4b (Audio).qxp 9/9/2015 5:11 PM Page 249

Features of your vehicle
4251

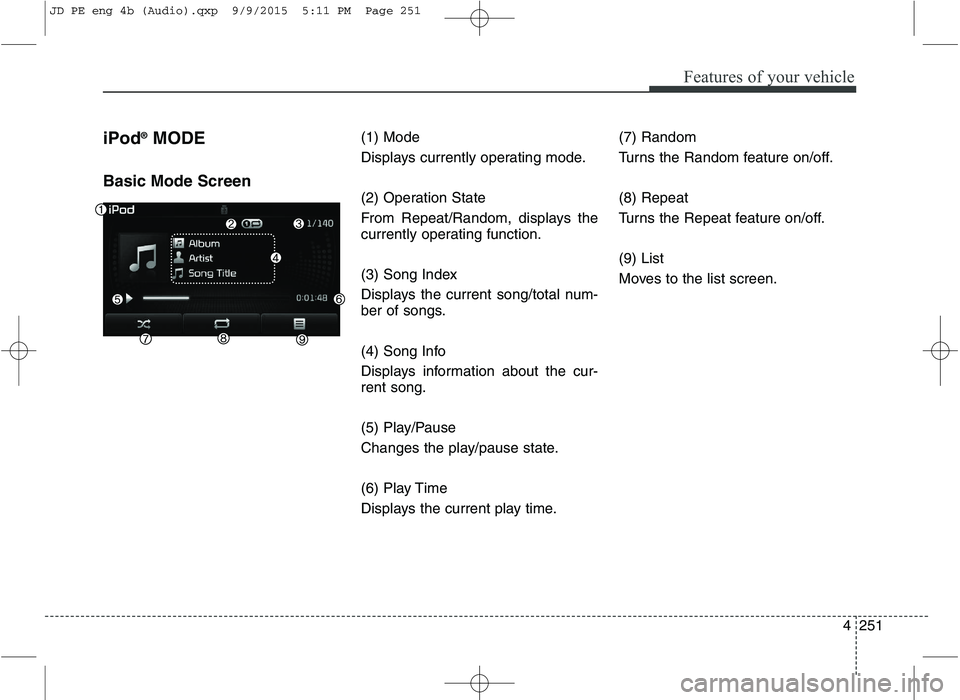

iPod
®
MODE
Basic Mode Screen (1) Mode
Displays currently operating mode.
(2) Operation State
From Repeat/Random, displays the
currently operating function.
(3) Song Index
Displays the current song/total num-
ber of songs.
(4) Song Info
Displays information about the cur- rent song.
(5) Play/Pause
Changes the play/pause state.
(6) Play Time
Displays the current play time.(7) Random
Turns the Random feature on/off. (8) Repeat
Turns the Repeat feature on/off. (9) List
Moves to the list screen.
JD PE eng 4b (Audio).qxp 9/9/2015 5:11 PM Page 251

Features of your vehicle
4253
Category Menu
Within the iPod
®
Category menu, you
will have access to the , ,
and features.
(1) : Displays the play screen
(2) : Moves to the iPod ®
root cat-
egory screen
(3) : Moves to the previous cat- egory
✽✽NOTICE
 If the search mode is accessed while playing a song, the most
recently searched category is dis-
played.
 Search steps upon initial connec- tion may differ depending on the
type of iPod
®device.
iPod ®
Mode Menu
Within this mode, you will have access to the Random, Repeat and
List features.
Random
Press the button to play songs
in random order.
Random All : Plays all songs in Random order.
Repeat
Press the button to repeat the
current song. Press the button again
to turn the repeat feature off.
Repeats the current song
JD PE eng 4b (Audio).qxp 9/9/2015 5:11 PM Page 253
