Page 31 of 318
Knowing your vehicle
20
3
1 23456789

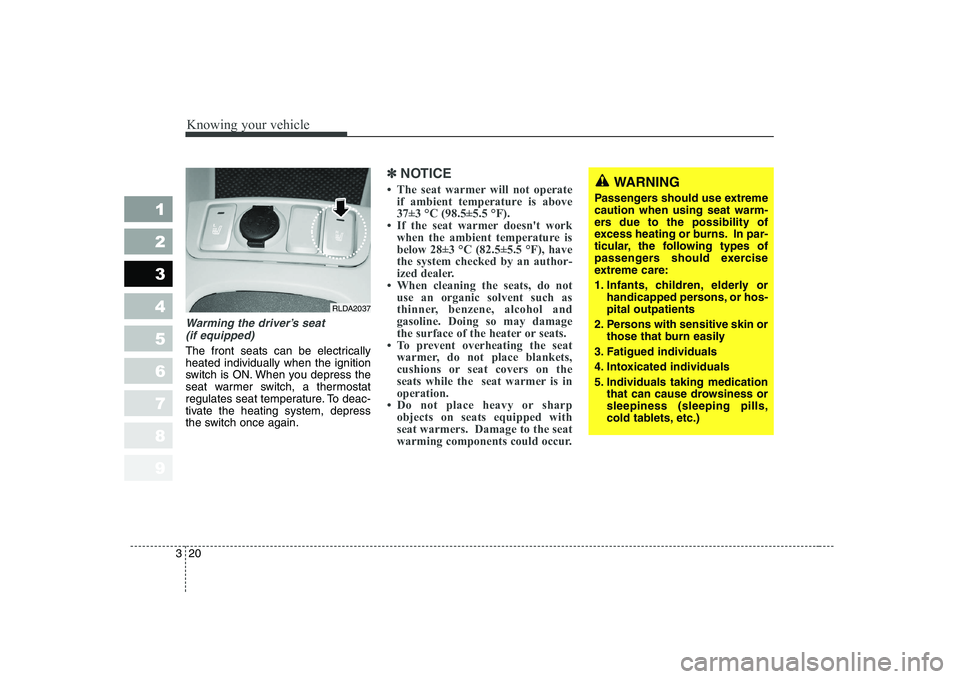

Warming the driver’s seat
(if equipped)
The front seats can be electrically heated individually when the ignition
switch is ON. When you depress the
seat warmer switch, a thermostat
regulates seat temperature. To deac-
tivate the heating system, depress
the switch once again.
✽✽ NOTICE
Page 32 of 318
321
1 23456789
Knowing your vehicle
WARNING
To reduce the risk of head and
neck injuries, do not drive the
vehicle with the headrest
removed or improperly posi-tioned.
Do not adjust the driver’s head- rest while driving.

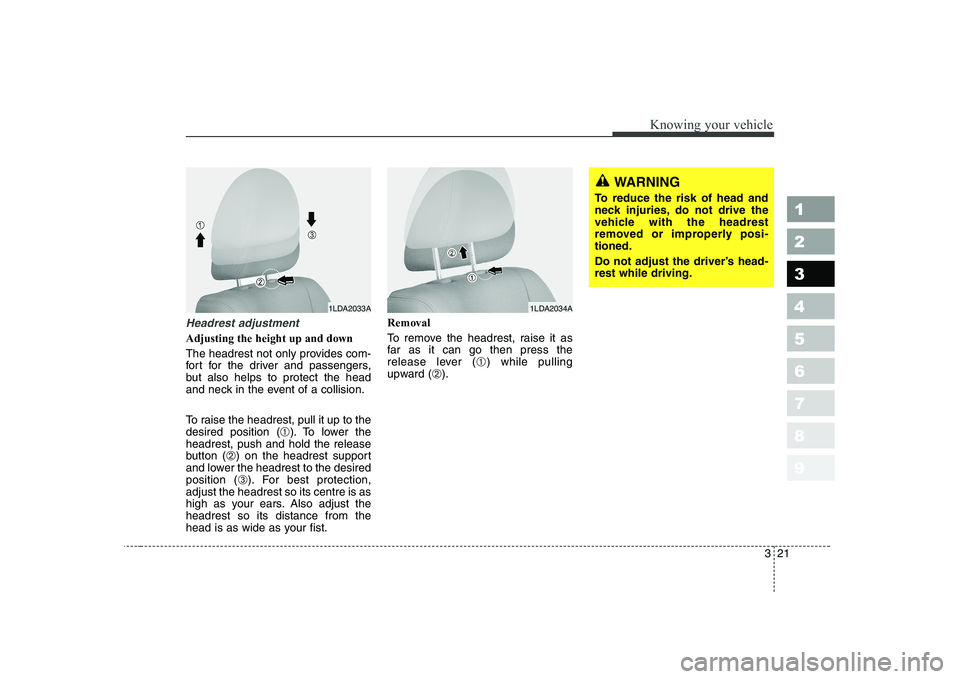

Headrest adjustment
Adjusting the height up and down
The headrest not only provides com-
fort for the driver and passengers,
but also helps to protect the head
and neck in the event of a collision.
To raise the headrest, pull it up to the desired position ( ➀). To lower the
headrest, push and hold the release
button ( ➁) on the headrest support
and lower the headrest to the desiredposition ( ➂). For best protection,
adjust the headrest so its centre is as
high as your ears. Also adjust theheadrest so its distance from the
head is as wide as your fist. Removal
To remove the headrest, raise it as
far as it can go then press the
release lever (
➀) while pulling
upward ( ➁).
1LDA2033A1LDA2034A
Page 33 of 318
Knowing your vehicle
22
3
1 23456789
Adjusting the front passenger seat
Forward/backward position
adjustment
To move the seat forward or back-
ward:
1. Pull the seat slide adjustment
lever (under the front edge of the seat cushion) up and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place. Adjust the seat before driving, and
make sure the seat is locked secure-
ly by trying to move forward and
backward without using the control
knob. If the seat moves, it is not
locked properly.
RLDA2035
WARNING
In order to avoid unnecessary
airbag injuries including the
possibility of severe injury or
death, always sit as far back as
possible by moving the seat far
back, while still maintaining
good vehicle control. Serious
injury or death may be caused
due to the deployment of the
passenger’s airbag.
Page 34 of 318
323
1 23456789
Knowing your vehicle

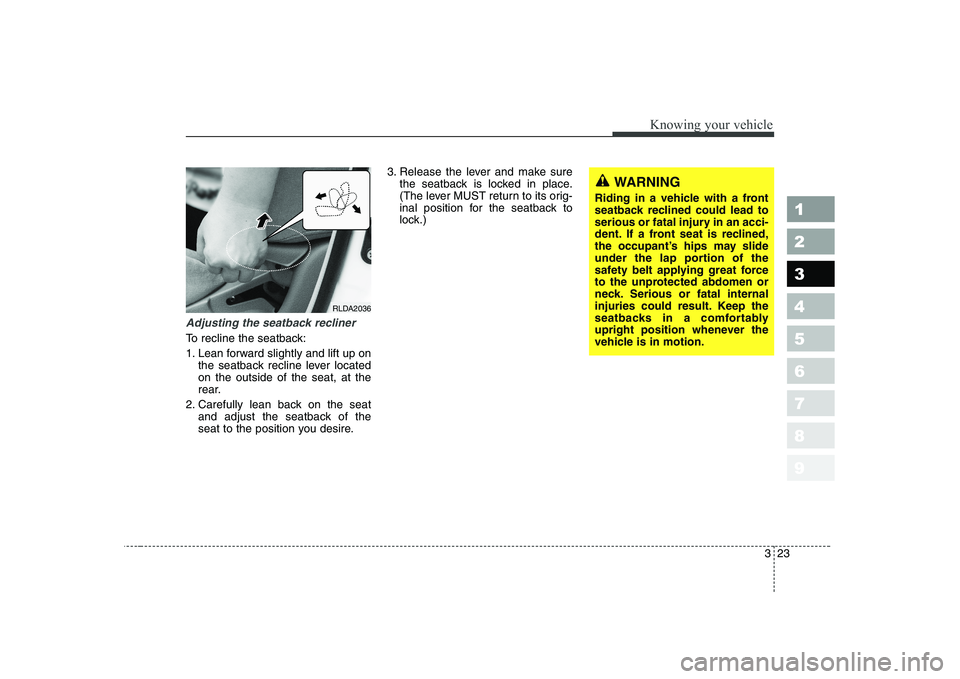

Adjusting the seatback recliner
To recline the seatback:
1. Lean forward slightly and lift up onthe seatback recline lever located on the outside of the seat, at the
rear.
2. Carefully lean back on the seat and adjust the seatback of the
seat to the position you desire. 3. Release the lever and make sure
the seatback is locked in place.
(The lever MUST return to its orig-
inal position for the seatback to
lock.)
WARNING
Riding in a vehicle with a front
seatback reclined could lead to
serious or fatal injury in an acci-
dent. If a front seat is reclined,
the occupant’s hips may slide
under the lap portion of the
safety belt applying great force
to the unprotected abdomen or
neck. Serious or fatal internal
injuries could result. Keep the
seatbacks in a comfortably
upright position whenever the
vehicle is in motion.
RLDA2036
Page 35 of 318
Knowing your vehicle
24
3
1 23456789
Warming the front passenger
seats (if equipped)
The front seats can be electrically heated individually when the ignition
switch is ON.
When you depress the seat warmer
switch, a thermostat regulates seat
temperature. To deactivate the heat-
ing system, depress the switch onceagain.
✽✽ NOTICE
Page 36 of 318
325
1 23456789
Knowing your vehicle

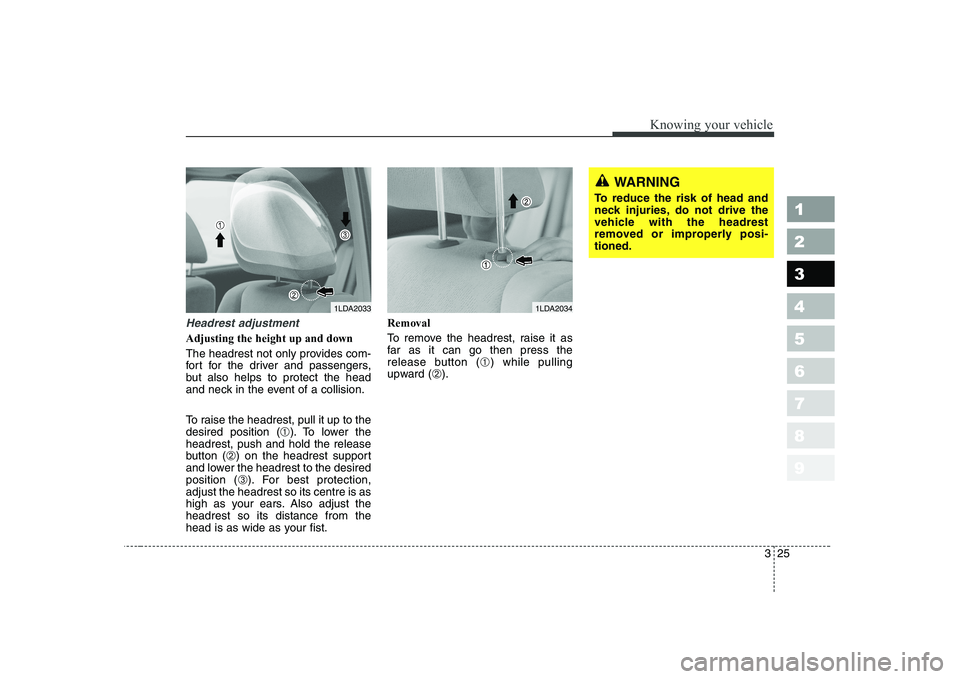

Headrest adjustment
Adjusting the height up and down
The headrest not only provides com-
fort for the driver and passengers,
but also helps to protect the head
and neck in the event of a collision.
To raise the headrest, pull it up to the desired position (➀). To lower the
headrest, push and hold the release
button ( ➁) on the headrest support
and lower the headrest to the desiredposition ( ➂). For best protection,
adjust the headrest so its centre is as
high as your ears. Also adjust theheadrest so its distance from the
head is as wide as your fist. Removal
To remove the headrest, raise it as
far as it can go then press the
release button (
➀) while pulling
upward ( ➁).
WARNING
To reduce the risk of head and
neck injuries, do not drive the
vehicle with the headrest
removed or improperly posi-tioned.
1LDA20331LDA2034
Page 37 of 318
Knowing your vehicle
26
3
1 23456789

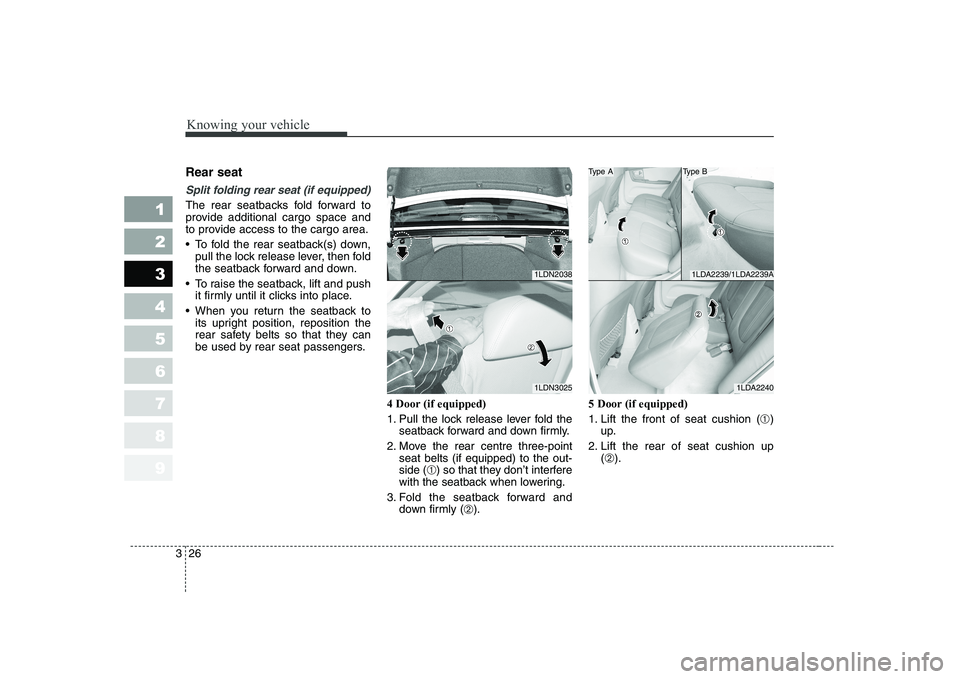

Rear seat
Split folding rear seat (if equipped)
The rear seatbacks fold forward to
provide additional cargo space and
to provide access to the cargo area.
To fold the rear seatback(s) down,
pull the lock release lever, then fold
the seatback forward and down.
To raise the seatback, lift and push it firmly until it clicks into place.
When you return the seatback to its upright position, reposition the
rear safety belts so that they can
be used by rear seat passengers.
4 Door (if equipped)
1. Pull the lock release lever fold theseatback forward and down firmly.
2. Move the rear centre three-point seat belts (if equipped) to the out- side ( ➀) so that they don’t interfere
with the seatback when lowering.
3. Fold the seatback forward and down firmly ( ➁). 5 Door (if equipped)
1. Lift the front of seat cushion (
➀)
up.
2. Lift the rear of seat cushion up (➁ ).
1LDN2038
1LDN3025
1LDA2239/1LDA2239A
1LDA2240
Type AType B
Page 38 of 318
327
1 23456789
Knowing your vehicle
3. Move the seat cushion firmly untilit clicks ( ➂).
4. Remove the headrest and put the headrest poles into the holes on the rear of the seat cushion ( ➃). 5. Pull the lock release lever (
➄).
6. Fold the seatback forward and down firmly ( ➅).✽✽
NOTICE
When you fold the rear seatback or
put luggage on the rear seat cushion,insert the buckle in the pocket
between the rear seatback and cush-
ion. Doing so can prevent the buckle
from being damaged by the rear
seatback or luggage.
1LDA2243
1LDA2244
1LDA2241
1LDA2242
1LDN3026B
1LDA2046
Lap/shoulder belt type
Lap belt type
Page 39 of 318
Knowing your vehicle
28
3
1 23456789

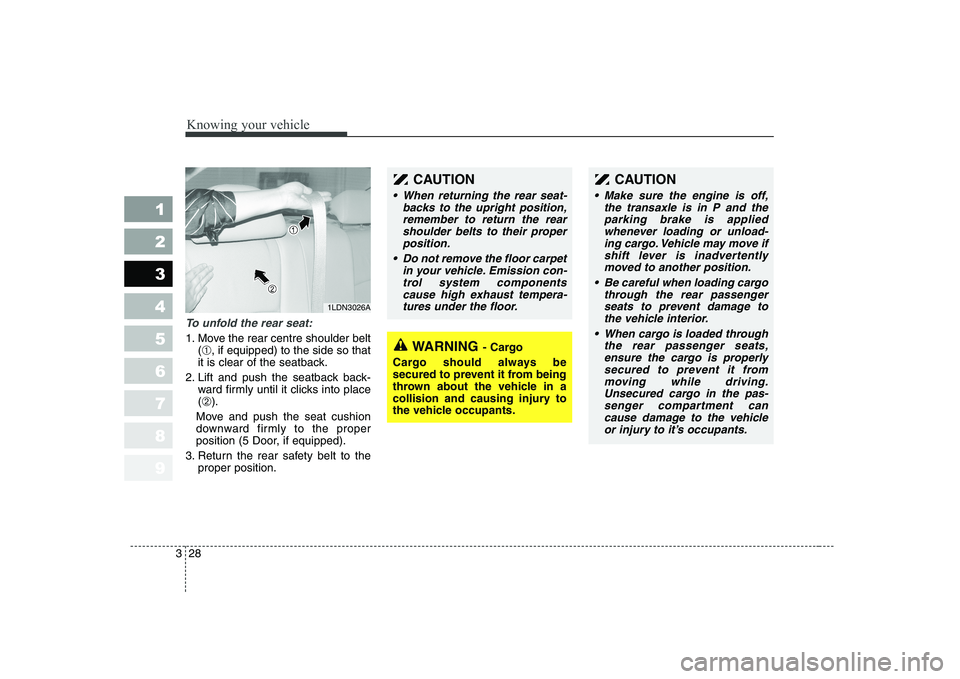

To unfold the rear seat:
1. Move the rear centre shoulder belt
(➀ , if equipped) to the side so that
it is clear of the seatback.
2. Lift and push the seatback back- ward firmly until it clicks into place (➁ ).
Move and push the seat cushion
downward firmly to the proper
position (5 Door, if equipped).
3. Return the rear safety belt to the proper position.
CAUTION
When returning the rear seat-
backs to the upright position,remember to return the rear shoulder belts to their properposition.
Do not remove the floor carpet in your vehicle. Emission con-trol system components cause high exhaust tempera-tures under the floor.
WARNING - Cargo
Cargo should always be
secured to prevent it from being
thrown about the vehicle in a
collision and causing injury to
the vehicle occupants.
CAUTION
Make sure the engine is off, the transaxle is in P and theparking brake is appliedwhenever loading or unload- ing cargo. Vehicle may move ifshift lever is inadvertentlymoved to another position.
Be careful when loading cargo through the rear passengerseats to prevent damage tothe vehicle interior.
When cargo is loaded through the rear passenger seats,ensure the cargo is properly secured to prevent it frommoving while driving.Unsecured cargo in the pas- senger compartment cancause damage to the vehicleor injury to it’s occupants.
1LDN3026A
Page 40 of 318
329
1 23456789
Knowing your vehicle

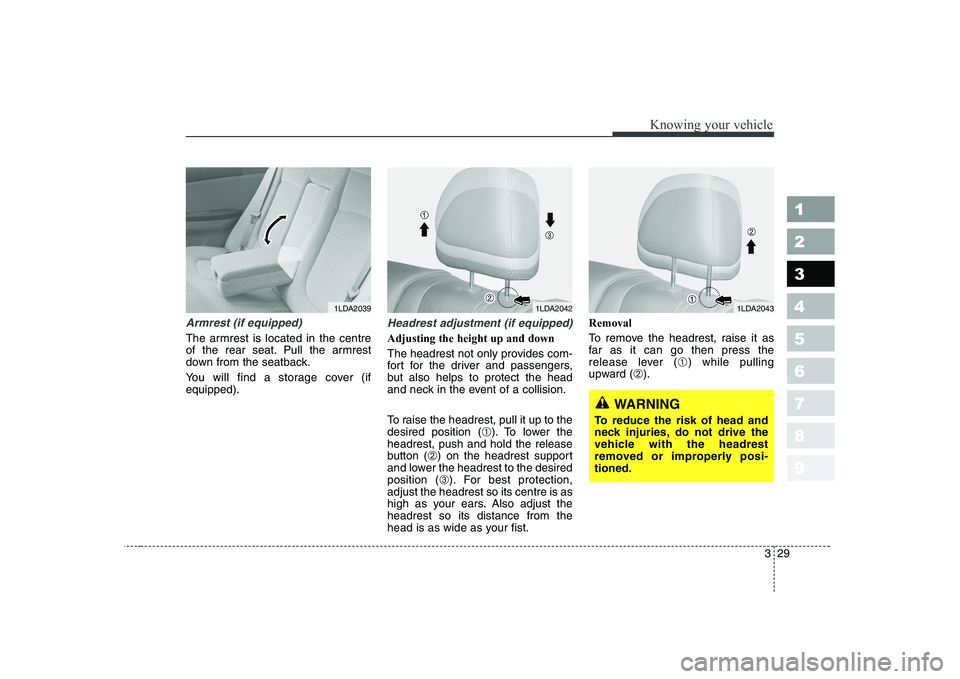

Armrest (if equipped)
The armrest is located in the centre
of the rear seat. Pull the armrest
down from the seatback.
You will find a storage cover (if equipped).
Headrest adjustment (if equipped)
Adjusting the height up and down
The headrest not only provides com-
fort for the driver and passengers,
but also helps to protect the head
and neck in the event of a collision.
To raise the headrest, pull it up to the desired position (➀). To lower the
headrest, push and hold the release
button ( ➁) on the headrest support
and lower the headrest to the desiredposition ( ➂). For best protection,
adjust the headrest so its centre is as
high as your ears. Also adjust theheadrest so its distance from the
head is as wide as your fist. Removal
To remove the headrest, raise it as
far as it can go then press the
release lever (
➀) while pulling
upward ( ➁).
1LDA2042
WARNING
To reduce the risk of head and
neck injuries, do not drive the
vehicle with the headrest
removed or improperly posi-tioned.
1LDA20431LDA2039
