Knowing your vehicle
40
3
1 23456789

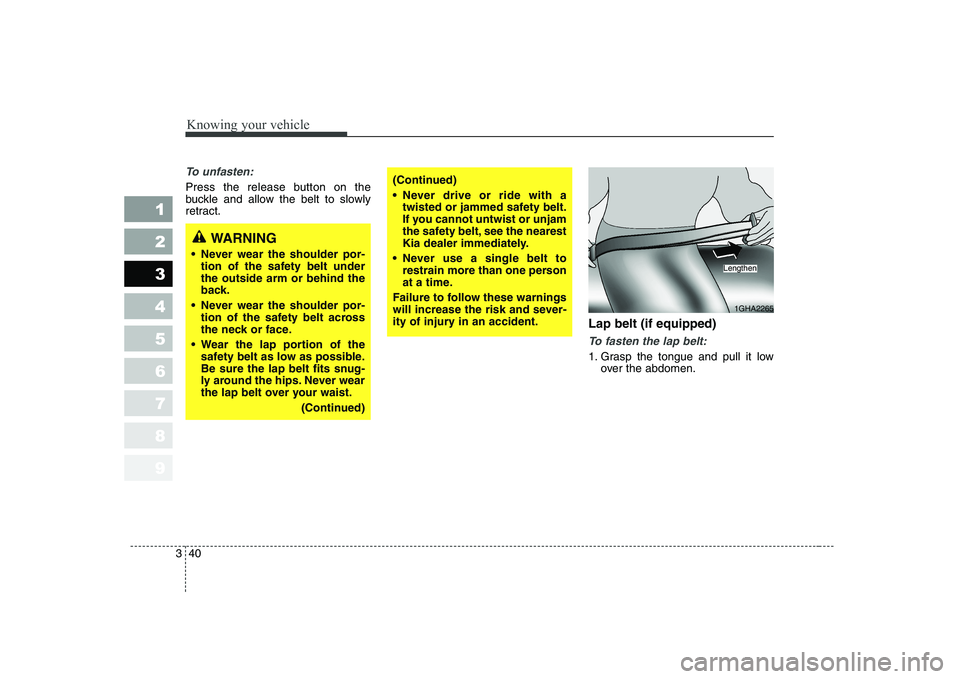

To unfasten:
Press the release button on the
buckle and allow the belt to slowly
retract.
Lap belt (if equipped)
To fasten the lap belt:
1. Grasp the tongue and pull it lowover the abdomen.
(Continued)
Never drive or ride with atwisted or jammed safety belt.
If you cannot untwist or unjam
the safety belt, see the nearest
Kia dealer immediately.
Never use a single belt to restrain more than one person
at a time.
Failure to follow these warnings
will increase the risk and sever-
ity of injury in an accident.
WARNING
Never wear the shoulder por- tion of the safety belt under the outside arm or behind the
back.
Never wear the shoulder por- tion of the safety belt across
the neck or face.
Wear the lap portion of the safety belt as low as possible.
Be sure the lap belt fits snug-
ly around the hips. Never wear
the lap belt over your waist.
(Continued)
1GHA2265
Lengthen

341
1 23456789
Knowing your vehicle

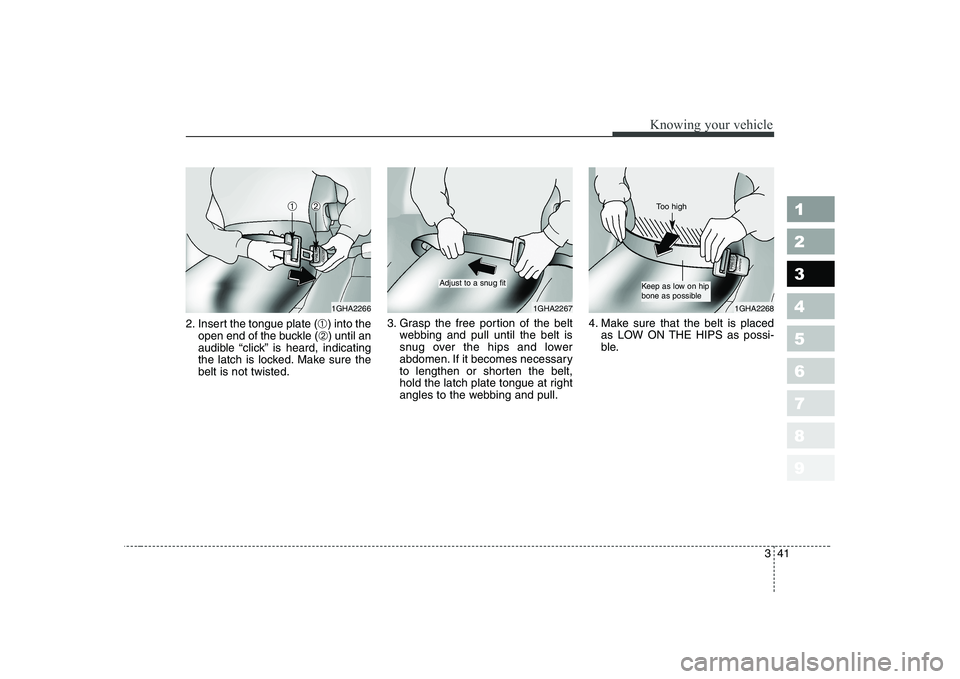

2. Insert the tongue plate (➀) into the
open end of the buckle ( ➁) until an
audible “click” is heard, indicating
the latch is locked. Make sure thebelt is not twisted. 3. Grasp the free portion of the belt
webbing and pull until the belt is
snug over the hips and lower
abdomen. If it becomes necessary
to lengthen or shorten the belt,
hold the latch plate tongue at right
angles to the webbing and pull. 4. Make sure that the belt is placed
as LOW ON THE HIPS as possi-
ble.
1GHA22661GHA22671GHA2268
➀➁
Adjust to a snug fitKeep as low on hip
bone as possible Too high

Knowing your vehicle
42
3
1 23456789

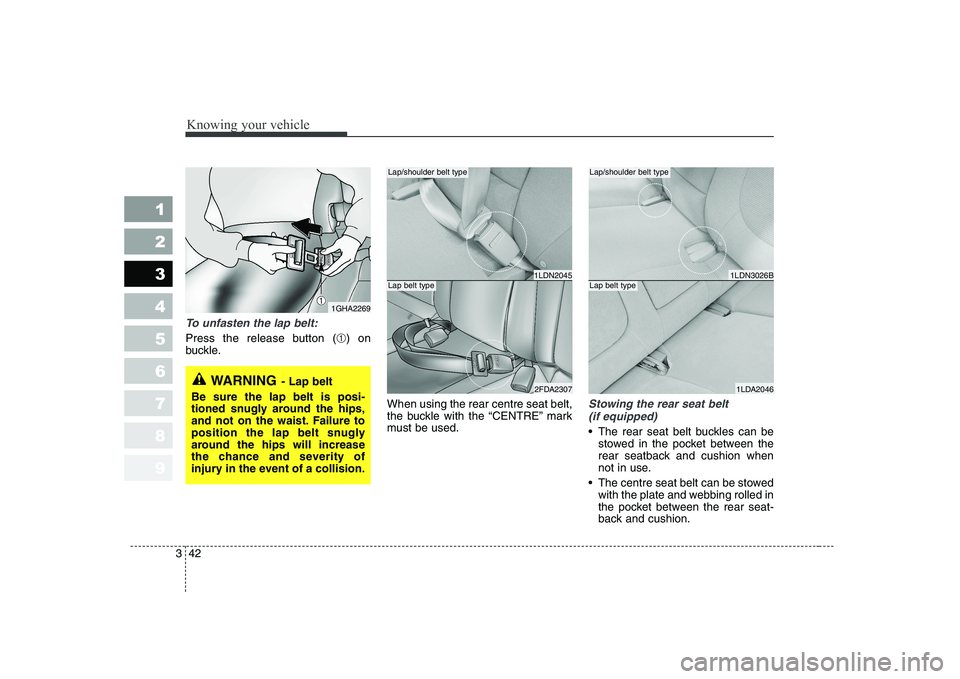

To unfasten the lap belt:
Press the release button (
➀) on
buckle.
When using the rear centre seat belt,
the buckle with the “CENTRE” mark
must be used.
Stowing the rear seat belt (if equipped)
The rear seat belt buckles can be stowed in the pocket between the
rear seatback and cushion when
not in use.
The centre seat belt can be stowed with the plate and webbing rolled in
the pocket between the rear seat-
back and cushion.
1LDN2045
1GHA2269
WARNING - Lap belt
Be sure the lap belt is posi-
tioned snugly around the hips,
and not on the waist. Failure to
position the lap belt snugly
around the hips will increase
the chance and severity of
injury in the event of a collision.
➀
2FDA2307
1LDN3026B
1LDA2046
Lap/shoulder belt type
Lap belt type
Lap/shoulder belt type
Lap belt type

343
1 23456789
Knowing your vehicle

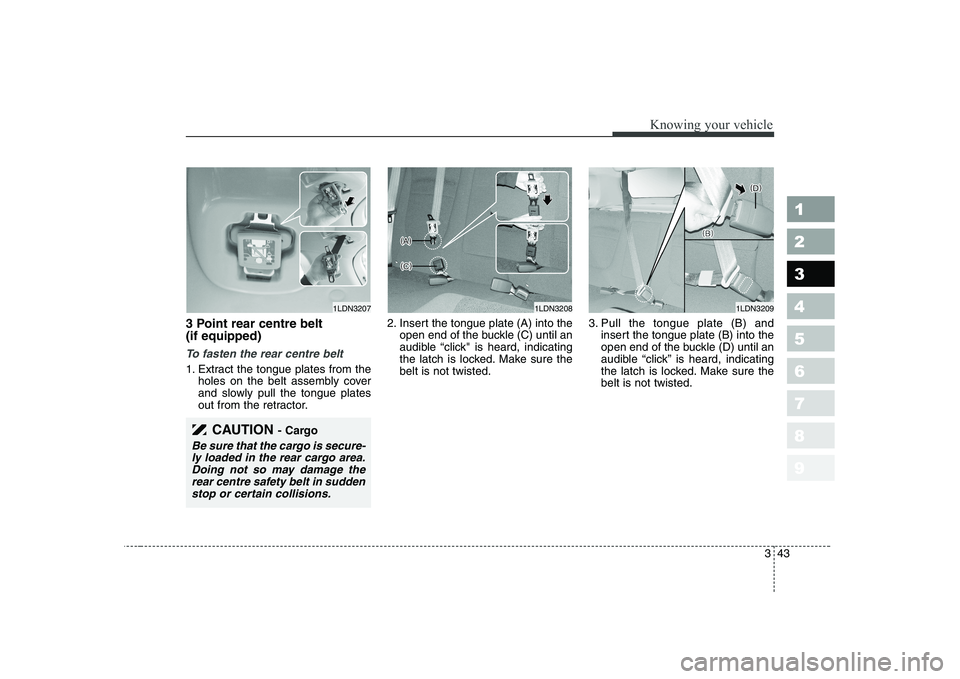

3 Point rear centre belt (if equipped)
To fasten the rear centre belt
1. Extract the tongue plates from theholes on the belt assembly cover
and slowly pull the tongue plates
out from the retractor. 2. Insert the tongue plate (A) into the
open end of the buckle (C) until an
audible “click" is heard, indicating
the latch is locked. Make sure thebelt is not twisted. 3. Pull the tongue plate (B) and
insert the tongue plate (B) into the
open end of the buckle (D) until an
audible “click” is heard, indicating
the latch is locked. Make sure thebelt is not twisted.
1LDN32071LDN32081LDN3209
CAUTION - Cargo
Be sure that the cargo is secure-
ly loaded in the rear cargo area. Doing not so may damage therear centre safety belt in suddenstop or certain collisions.

Knowing your vehicle
44
3
1 23456789

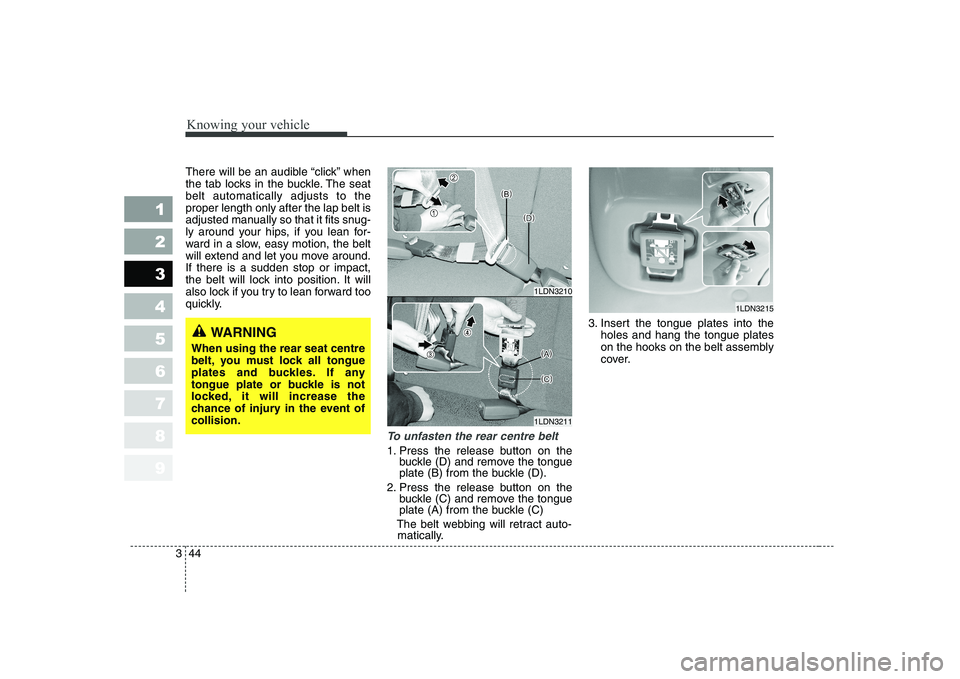

There will be an audible “click” when
the tab locks in the buckle. The seatbelt automatically adjusts to theproper length only after the lap belt is
adjusted manually so that it fits snug-
ly around your hips, if you lean for-
ward in a slow, easy motion, the belt
will extend and let you move around.If there is a sudden stop or impact,
the belt will lock into position. It will
also lock if you try to lean forward too
quickly.
To unfasten the rear centre belt
1. Press the release button on the
buckle (D) and remove the tongue
plate (B) from the buckle (D).
2. Press the release button on the buckle (C) and remove the tongue
plate (A) from the buckle (C)
The belt webbing will retract auto- matically. 3. Insert the tongue plates into the
holes and hang the tongue plates
on the hooks on the belt assembly
cover.
WARNING
When using the rear seat centre
belt, you must lock all tongue
plates and buckles. If any
tongue plate or buckle is not
locked, it will increase the
chance of injury in the event ofcollision.
1LDN3210
1LDN3211
1LDN3215

345
1 23456789
Knowing your vehicle

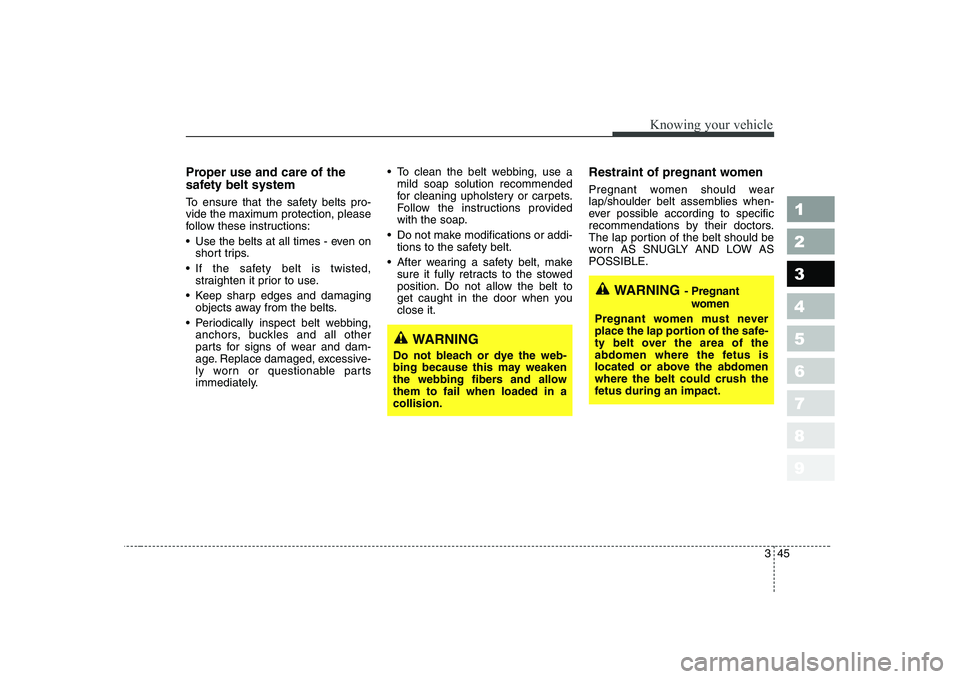

Proper use and care of the
safety belt system
To ensure that the safety belts pro-
vide the maximum protection, please
follow these instructions:
Use the belts at all times - even onshort trips.
If the safety belt is twisted, straighten it prior to use.
Keep sharp edges and damaging objects away from the belts.
Periodically inspect belt webbing, anchors, buckles and all other
parts for signs of wear and dam-
age. Replace damaged, excessive-
ly worn or questionable parts
immediately. To clean the belt webbing, use a
mild soap solution recommended
for cleaning upholstery or carpets.
Follow the instructions provided
with the soap.
Do not make modifications or addi- tions to the safety belt.
After wearing a safety belt, make sure it fully retracts to the stowed
position. Do not allow the belt to
get caught in the door when youclose it. Restraint of pregnant women
Pregnant women should wear
lap/shoulder belt assemblies when-
ever possible according to specific
recommendations by their doctors.
The lap portion of the belt should be
worn AS SNUGLY AND LOW ASPOSSIBLE.
WARNING
- Pregnant
women
Pregnant women must never
place the lap portion of the safe-
ty belt over the area of the
abdomen where the fetus is
located or above the abdomenwhere the belt could crush the
fetus during an impact.
WARNING
Do not bleach or dye the web-
bing because this may weaken
the webbing fibers and allowthem to fail when loaded in acollision.

Knowing your vehicle
46
3
1 23456789

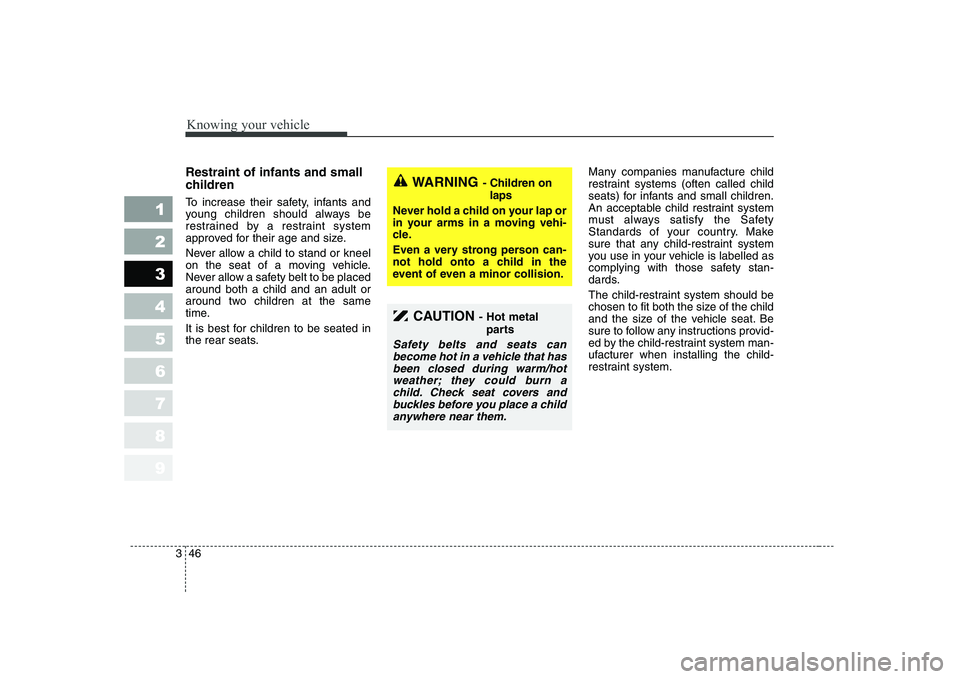

Restraint of infants and small
children
To increase their safety, infants and
young children should always be
restrained by a restraint system
approved for their age and size.
Never allow a child to stand or kneel
on the seat of a moving vehicle.
Never allow a safety belt to be placedaround both a child and an adult or
around two children at the same
time.
It is best for children to be seated in
the rear seats. Many companies manufacture child
restraint systems (often called child
seats) for infants and small children.
An acceptable child restraint system
must always satisfy the Safety
Standards of your country. Make
sure that any child-restraint system
you use in your vehicle is labelled as
complying with those safety stan-
dards.
The child-restraint system should be
chosen to fit both the size of the child
and the size of the vehicle seat. Be
sure to follow any instructions provid-
ed by the child-restraint system man-
ufacturer when installing the child-
restraint system.WARNING
- Children on
laps
Never hold a child on your lap or
in your arms in a moving vehi-
cle.
Even a very strong person can-
not hold onto a child in the
event of even a minor collision.
CAUTION - Hot metal
parts
Safety belts and seats canbecome hot in a vehicle that hasbeen closed during warm/hotweather; they could burn a child. Check seat covers andbuckles before you place a childanywhere near them.

347
1 23456789
Knowing your vehicle

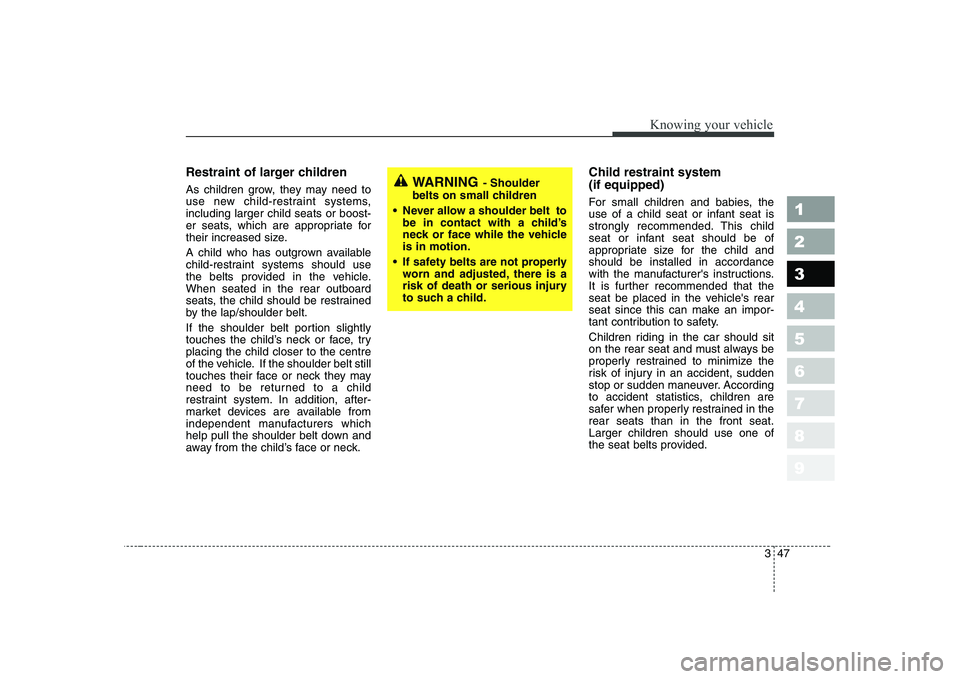

Restraint of larger children
As children grow, they may need to
use new child-restraint systems,including larger child seats or boost-
er seats, which are appropriate for
their increased size.
A child who has outgrown available
child-restraint systems should use
the belts provided in the vehicle.When seated in the rear outboard
seats, the child should be restrained
by the lap/shoulder belt.
If the shoulder belt portion slightly
touches the child’s neck or face, tryplacing the child closer to the centre
of the vehicle. If the shoulder belt still
touches their face or neck they may
need to be returned to a child
restraint system. In addition, after-
market devices are available from
independent manufacturers which
help pull the shoulder belt down and
away from the child’s face or neck.Child restraint system (if equipped)
For small children and babies, the
use of a child seat or infant seat is
strongly recommended. This child
seat or infant seat should be of
appropriate size for the child andshould be installed in accordance
with the manufacturer's instructions.
It is further recommended that the
seat be placed in the vehicle's rear
seat since this can make an impor-
tant contribution to safety.
Children riding in the car should sit
on the rear seat and must always be
properly restrained to minimize the
risk of injury in an accident, sudden
stop or sudden maneuver. According
to accident statistics, children are
safer when properly restrained in therear seats than in the front seat.Larger children should use one of
the seat belts provided.WARNING
- Shoulder
belts on small children
Never allow a shoulder belt to be in contact with a child’s
neck or face while the vehicleis in motion.
If safety belts are not properly worn and adjusted, there is a
risk of death or serious injury
to such a child.

Knowing your vehicle
48
3
1 23456789
(Continued)
Since a safety belt or child
restraint system can become
very hot if it is left in a closed
vehicle, be sure to check the
seat cover and buckles before
placing a child there.
When the child restraint sys- tem is not in use, store it in the
trunk or fasten it with a safetybelt so that it will not be
thrown forward in the case of
a sudden stop or an accident.
Children who are too large to be in a child restraint shouldsit in the rear seat and be
restrained with the available
lap/shoulder belts. Never
allow children to ride in the
front passenger seat.
(Continued)

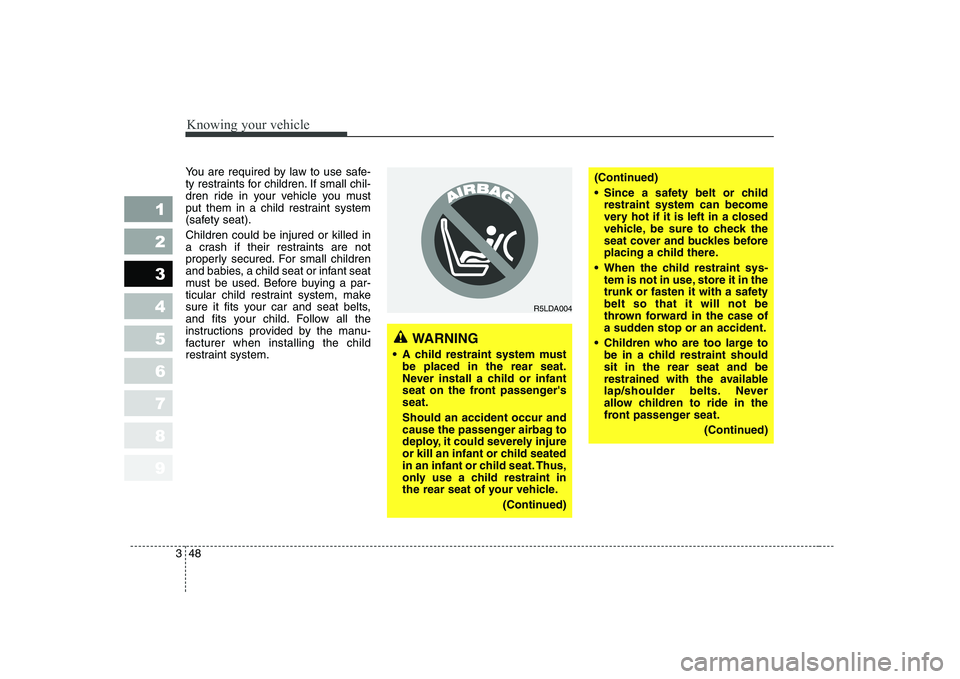

You are required by law to use safe-
ty restraints for children. If small chil-
dren ride in your vehicle you must
put them in a child restraint system
(safety seat). Children could be injured or killed in
a crash if their restraints are not
properly secured. For small children
and babies, a child seat or infant seat
must be used. Before buying a par-
ticular child restraint system, make
sure it fits your car and seat belts,
and fits your child. Follow all the
instructions provided by the manu-
facturer when installing the child
restraint system.
R5LDA004
WARNING
A child restraint system must be placed in the rear seat.
Never install a child or infant
seat on the front passenger'sseat. Should an accident occur and
cause the passenger airbag to
deploy, it could severely injure
or kill an infant or child seated
in an infant or child seat. Thus,
only use a child restraint in
the rear seat of your vehicle.
(Continued)

349
1 23456789
Knowing your vehicle

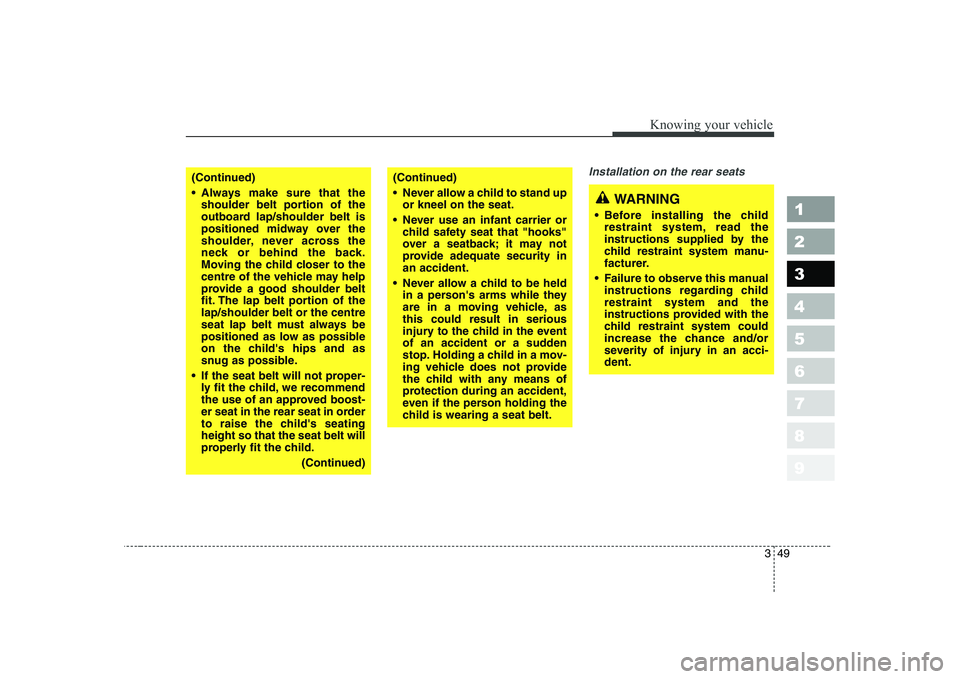

Installation on the rear seats(Continued)
Always make sure that theshoulder belt portion of the
outboard lap/shoulder belt is
positioned midway over the
shoulder, never across the
neck or behind the back.
Moving the child closer to the
centre of the vehicle may help
provide a good shoulder belt
fit. The lap belt portion of thelap/shoulder belt or the centre
seat lap belt must always be
positioned as low as possible
on the child's hips and as
snug as possible.
If the seat belt will not proper- ly fit the child, we recommend
the use of an approved boost-
er seat in the rear seat in order
to raise the child's seatingheight so that the seat belt will
properly fit the child.
(Continued)(Continued)
Never allow a child to stand upor kneel on the seat.
Never use an infant carrier or child safety seat that "hooks"
over a seatback; it may not
provide adequate security inan accident.
Never allow a child to be held in a person's arms while they
are in a moving vehicle, asthis could result in serious
injury to the child in the event
of an accident or a sudden
stop. Holding a child in a mov-
ing vehicle does not provide
the child with any means of
protection during an accident,
even if the person holding the
child is wearing a seat belt.
WARNING
Before installing the child restraint system, read the
instructions supplied by the
child restraint system manu-
facturer.
Failure to observe this manual instructions regarding childrestraint system and the
instructions provided with the
child restraint system could
increase the chance and/or
severity of injury in an acci-dent.
