Page 71 of 522
3-54
Seat and safety features of your vehicle
For best protection from the side air
bag system and to avoid being
injured by the deploying side air bag,
both front seat occupants should sit
in an upright position with the seat
belt properly fastened. The driver's
hands should be placed on the steer-
ing wheel at the 9:00 and 3:00 posi-
tions. The passenger's arms and
hands should be placed on their laps.If seat or seat cover is damaged, have
the vehicle checked and repaired by
an authorized Kia Premium dealer.
Inform that your vehicle is equipped
with side air bags and an occupant
detection system.
Unexpected deployment
Avoid impact to the side air bag
sensor when the Engine Start/
Stop button is ON to prevent
unexpected deployment of the
side air bag.
WARNING
Deployment
Do not install any accessories
including seat covers, on the
side or near the side air bag as
this may affect the deployment
of the side air bags.
WARNING
Flying objects
Do not place any objects (an
umbrella, bag, etc.) between the
front door and the front seat.
Such objects may become dan-
gerous projectiles if the side air
bag inflates.
WARNING
KH CAN (ENG) 3:2015 3/26/2015 6:09 AM Page 54
Page 72 of 522
Seat and safety features of your vehicle
3
3-55
Curtain air bag
❈The actual air bags in the vehicle may differ
from the illustration.
Curtain air bags are located along
both sides of the roof rails above the
front and rear doors. They are designed to help protect
the heads of the front seat occupants
and the rear outboard seat occu-
pants in certain side impact colli-
sions.
The curtain air bags are designed to
deploy only during certain side
impact collisions, depending on the
crash severity, angle, speed and
impact.
For vehicles equipped with a rollover
sensor the side and curtain air bags
on both sides of the vehicle may
deploy if a rollover or possible
rollover is detected.
The curtain air bags are not
designed to deploy in all side impact
or rollover situations.
Do not allow the passengers to lean
their heads or bodies onto doors, put
their arms on the doors, stretch their
arms out of the window, or place
objects between the doors and pas-
sengers when they are seated on
seats equipped with side and/or cur-
tain air bags.
✽
NOTICE
Never try to open or repair any com-
ponents of the side curtain air bag
system. This should only be done by
an authorized Kia Premium dealer.
OKH033082N
OKH033090N
KH CAN (ENG) 3:2015 3/26/2015 6:09 AM Page 55
Page 73 of 522
3-56
Seat and safety features of your vehicle
Why didn’t my air bag go off in
a collision? (Inflation and non-
inflation conditions of the air
bag)
There are many types of accidents
in which the air bag would not be
expected to provide additional
protection.
These include rear impacts, sec-
ond or third collisions in multiple
impact accidents, as well as low
speed impacts.
Air bag collision sensors
(1) SRS control module
(2) Front impact sensor(3) Side impact sensor (front)
(4) Side impact sensor (rear)
OKH035063N/OKH033064N/OKH033065N/OKH033074N/OKH033066N
KH CAN (ENG) 3:2015 3/26/2015 6:09 AM Page 56
Page 74 of 522
Seat and safety features of your vehicle
3
3-57
Problems may arise if the sensor
installation angles are changed due to
the deformation of the front bumper,
body, front door or C Pillar where the
collision sensors are installed. Have
the vehicle checked and repaired by
an authorized Kia Premium dealer.
Installing aftermarket bumper guards
or replacing a bumper with non-gen-
uine parts may adversely affect your
vehicle’s collision and air bag deploy-
ment performance.Air bag inflation conditions
Front air bags
Front air bags are designed to inflate
in a frontal collision depending on
the intensity, speed or angles of
impact of the front collision.
OKH033084N
Air bag sensors
Do not hit or allow any objectsto impact the locations where
air bag or sensors are
installed.
This may cause unexpected
air bag deployment, which
could result in serious per-
sonal injury or death.
If the installation location or angle of the sensors is altered
in any way, the air bags may
deploy when they should not
or they may not deploy when
they should.
Therefore, do not try to per-
form maintenance on or
around the air bag sensors.
Have the vehicle checked and
repaired by an authorized Kia
Premium dealer.
WARNING
KH CAN (ENG) 3:2015 3/26/2015 6:09 AM Page 57
Page 75 of 522
3-58
Seat and safety features of your vehicle
❈ The actual air bags in the v ehicle ma
y
differ from the illustration.
Side air bags
Side air bags (side and/or curtain air
bags) are designed to inflate when
an impact is detected by side colli-
sion sensors depending on the
strength, speed or angles of impact
resulting from a side impact collision.
Although the front air bags (driver’s
and front passenger’s air bags) are
designed to inflate in frontal colli-
sions, they also may inflate in other
types of collisions if the front impact
sensors detect a sufficient frontal
force in another type of impact. Side
and curtain air bags are designed to
inflate only in side impact collisions
or rollover situations, but they may
inflate in other collisions if the side
impact sensors detect a sufficient
impact.
If the vehicle chassis is impacted by
bumps or objects on unimproved
roads or sidewalks, air bags may
deploy. Drive carefully on unim-
proved roads or on surfaces not
designed for vehicle traffic to prevent
unintended air bag deployment.Air bag non-inflation conditions
In certain low-speed collisions the air bags may not deploy. The air
bags are designed not to deploy in
such cases because they may not
provide benefits beyond the pro-
tection of the seat belts in such col-
lisions.
OKH033068N
OKH033091N
OKH033084N
KH CAN (ENG) 3:2015 3/26/2015 6:09 AM Page 58
Page 76 of 522
Seat and safety features of your vehicle
3
3-59
Air bags are not designed to inflatein rear collisions, because occu-
pants are moved backward by the
force of the impact. In this case,
inflated air bags would not be able
to provide any additional benefit. Front air bags may not inflate in
side impact collisions, because
occupants move to the direction of
the collision, and thus in side
impacts, front air bag deployment
would not provide additional occu-
pant protection.
However, side and curtain air bags
may inflate depending on the
severity, vehicle speed and angles
of impact. In a slant or angled collision, the
force of impact may direct the
occupants in a direction where the
air bags would not be able to pro-
vide any additional benefit, and
thus the sensors may not deploy
any air bags.
OKH033085NOKH033122NOKH033068N
KH CAN (ENG) 3:2015 3/26/2015 6:09 AM Page 59
Page 77 of 522
3-60
Seat and safety features of your vehicle
Just before impact, drivers oftenbrake heavily. Such heavy braking
lowers the front portion of the vehi-
cle causing it to “ride” under a vehi-
cle with a higher ground clearance.
Air bags may not inflate in this
"under-ride" situation because
deceleration forces that are detect-
ed by sensors may be significantly
replaced by such “under-ride” colli-
sions. Front air bags may not inflate in
rollover accidents because air bag
deployment could not provide pro-
tection to the occupants.
However, side and curtain air bags
may inflate when the vehicle is
rolled over by a side impact colli-
sion. Air bags may not inflate if the vehi-
cle collides with objects such as
utility poles or trees, where the
point of impact is concentrated to
one area and the full force of the
impact is not delivered to the sen-
sors.
OKH033086NOKH033120NOKH033069N
KH CAN (ENG) 3:2015 3/26/2015 6:09 AM Page 60
Page 78 of 522
Seat and safety features of your vehicle
3
3-61
SRS Care
The SRS is virtually maintenance-
free and there are no parts you can
safely service by yourself. If the SRS
air bag warning light does not illumi-
nate, or continuously remains on,
have your vehicle immediately
inspected by an authorized Kia
Premium dealer.
Any work on the SRS system, such
as removing, installing, repairing, or
any work on the steering wheel must
be performed by an authorized Kia
Premium dealer. Improper handling
of the SRS system may result in seri-
ous personal injury.
For cleaning the air bag pad covers,
use only a soft, dry cloth or one
which has been moistened with plain
water. Solvents or cleaners could
adversely affect the air bag covers
and proper deployment of the sys-
tem.If components of the air bag system
must be discarded, or if the vehicle
must be scrapped, certain safety
precautions must be observed. An
authorized Kia Premium dealer
knows these precautions and can
give you the necessary information.
Failure to follow these precautions
and procedures could increase the
risk of personal injury.
Adding equipment to or modi-
fying your air bag-equipped
vehicle
If you modify your vehicle by changing
your vehicle's frame, bumper system,
front end or side sheet metal or ride
height, this may affect the operation of
your vehicle's air bag system.Tampering with SRS
Do not tamper with or discon-
nect SRS wiring, or other compo-
nents of the SRS system. Doing
so could result in the accidental
inflation of the air bags or by ren-
dering the SRS inoperative.
WARNING
KH CAN (ENG) 3:2015 3/26/2015 6:09 AM Page 61
Page 79 of 522
3-62
Seat and safety features of your vehicle

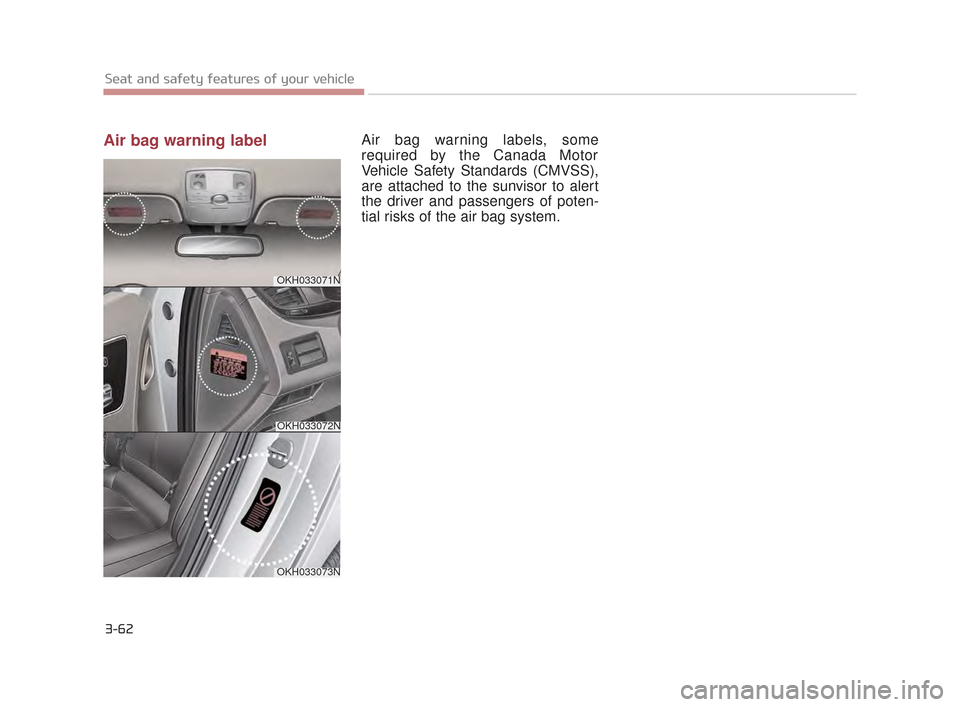

Air bag warning labelAir bag warning labels, some
required by the Canada Motor
Vehicle Safety Standards (CMVSS),
are attached to the sunvisor to alert
the driver and passengers of poten-
tial risks of the air bag system.
OKH033071N
OKH033073N
OKH033072N
KH CAN (ENG) 3:2015 3/26/2015 6:09 AM Page 62

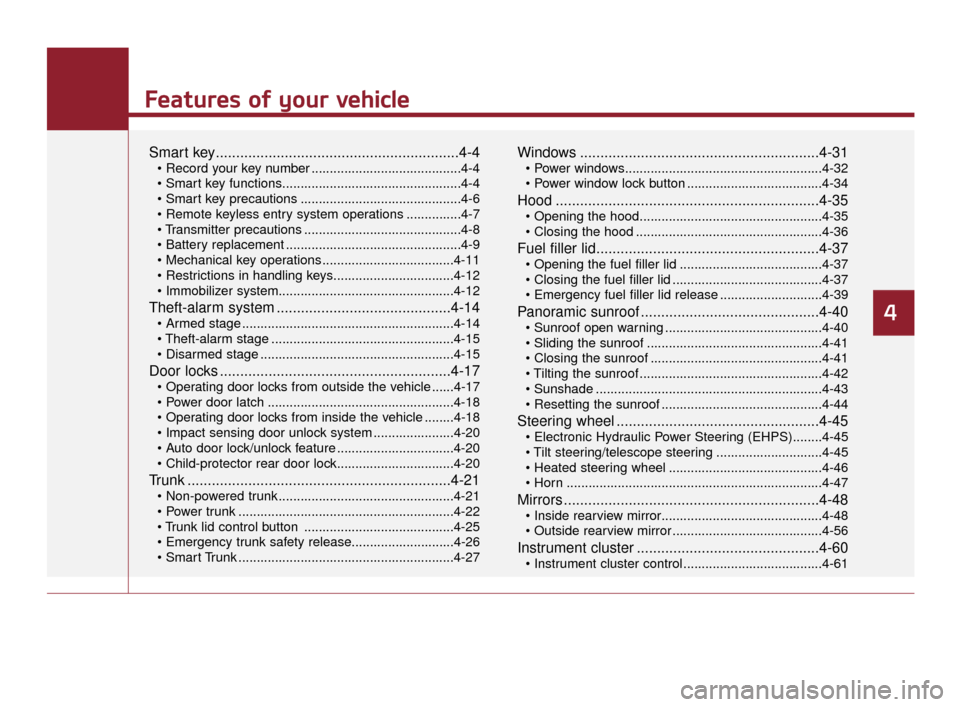

Page 80 of 522
Features of your vehicle
4
Features of your vehicle
Smart key............................................................4-4
.........................................4-4
............................................4-6
...............4-7
...........................................4-8
................................................4-9
....................................4-11
Theft-alarm system ...........................................4-14
..........................................................4-14
..................................................4-15
.....................................................4-15
Door locks .........................................................4-17
......4-17
...................................................4-18
........4-18
......................4-20
................................4-20
Trunk .................................................................4-21
................................................4-21
...........................................................4-22
.........................................4-25
...........................................................4-27
Windows ...........................................................4-31
.....................................4-34
Hood .................................................................4-35
...................................................4-36
Fuel filler lid.......................................................4-37
.......................................4-37
.........................................4-37
............................4-39
Panoramic sunroof ............................................4-40
...........................................4-40
................................................4-41
...............................................4-41
..................................................4-42
..............................................................4-43
............................................4-44
Steering wheel ..................................................4-45
.............................4-45
..........................................4-46
......................................................................4-\
47
Mirrors ...............................................................4-48
.........................................4-56
Instrument cluster .............................................4-60
......................................4-61
4
KH CAN (ENG) 4:2015 3/26/2015 10:36 AM Page 1
