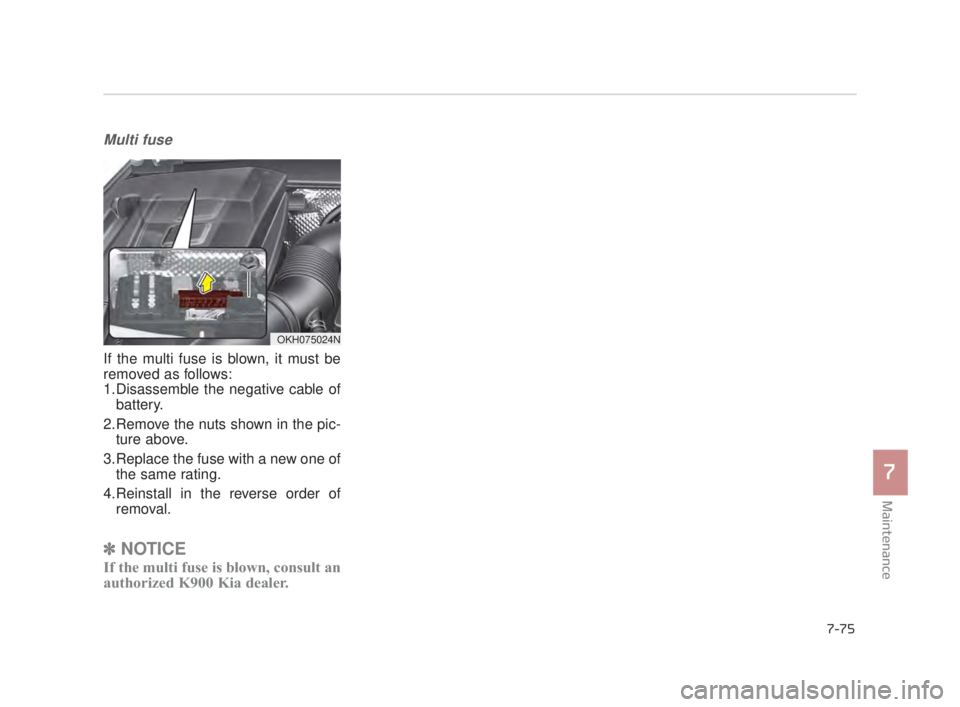

Multi fuse
If the multi fuse is blown, it must be
removed as follows:
1.Disassemble the negative cable ofbattery.
2.Remove the nuts shown in the pic- ture above.
3.Replace the fuse with a new one of the same rating.
4.Reinstall in the reverse order of removal.
✽ NOTICE
If the multi fuse is blown, consult an
authorized K900 Kia dealer.
OKH075024N
KH USA 7:2015 3/25/2015 11:36 AM Page 75

7-76
Maintenance

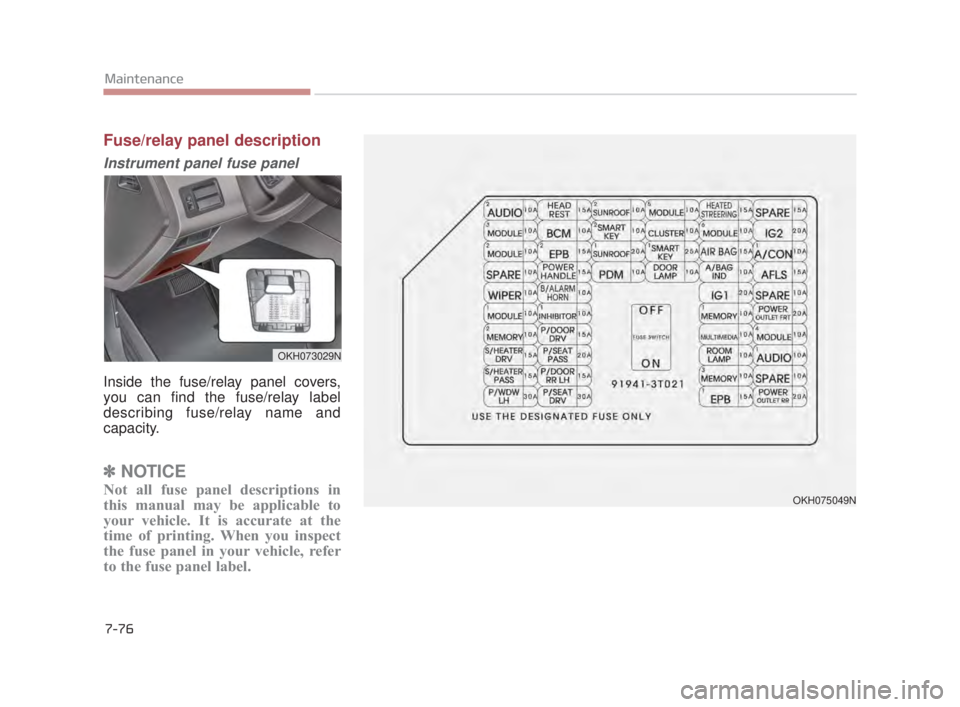

Fuse/relay panel description
Instrument panel fuse panel
Inside the fuse/relay panel covers,
you can find the fuse/relay label
describing fuse/relay name and
capacity.
✽NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.OKH075049N
OKH073029N
KH USA 7:2015 3/25/2015 11:36 AM Page 76

Maintenance
7
7-77

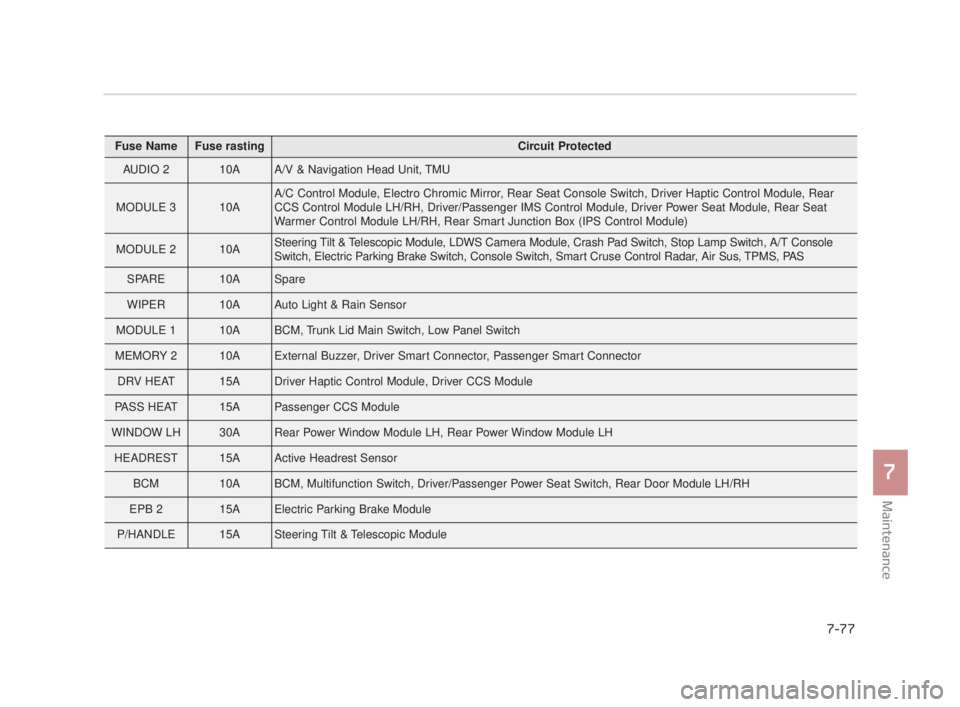

Fuse NameFuse rastingCircuit Protected
AUDIO 210AA/V & Navigation Head Unit, TMU
MODULE 310AA/C Control Module, Electro Chromic Mirror, Rear Seat Console Switch, Driver Haptic Control Module, Rear
CCS Control Module LH/RH, Driver/Passenger IMS Control Module, Driver Power Seat Module, Rear Seat
Warmer Control Module LH/RH, Rear Smart Junction Box (IPS Control Module)
MODULE 210ASteering Tilt & Telescopic Module, LDWS Camera Module, Crash Pad Switch, Stop Lamp Switch, A/T Console
Switch, Electric Parking Brake Switch, Console Switch, Smart Cruse Control Radar, Air Sus, TPMS, PAS
SPARE10ASpare
WIPER10AAuto Light & Rain Sensor
MODULE 110ABCM, Trunk Lid Main Switch, Low Panel Switch
MEMORY 210AExternal Buzzer, Driver Smart Connector, Passenger Smart Connector
DRV HEAT15ADriver Haptic Control Module, Driver CCS Module
PASS HEAT15APassenger CCS Module
WINDOW LH30ARear Power Window Module LH, Rear Power Window Module LH
HEADREST15AActive Headrest Sensor
BCM10ABCM, Multifunction Switch, Driver/Passenger Power Seat Switch, Rear Door Module LH/RH
EPB 215AElectric Parking Brake Module
P/HANDLE15ASteering Tilt & Telescopic Module
KH USA 7:2015 3/25/2015 11:36 AM Page 77

7-78
Maintenance

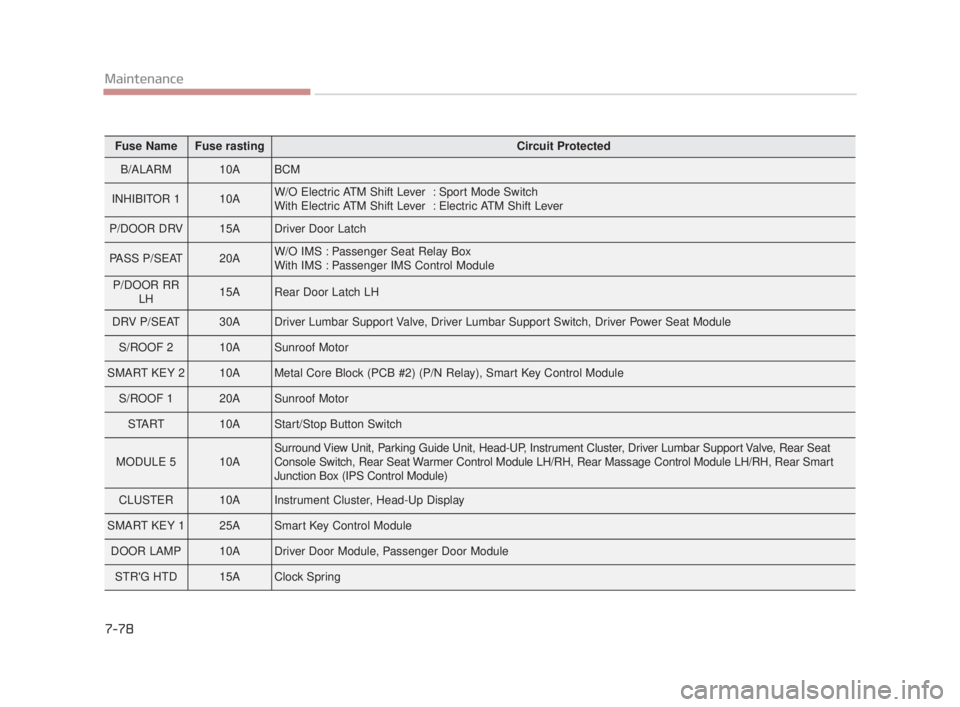

Fuse NameFuse rastingCircuit Protected
B/ALARM10ABCM
INHIBITOR 110AW/O Electric ATM Shift Lever : Sport Mode Switch
With Electric ATM Shift Lever : Electric ATM Shift Lever
P/DOOR DRV15ADriver Door Latch
PASS P/SEAT20AW/O IMS : Passenger Seat Relay Box
With IMS : Passenger IMS Control Module
P/DOOR RRLH15ARear Door Latch LH
DRV P/SEAT30ADriver Lumbar Support Valve, Driver Lumbar Support Switch, Driver Power Seat Module
S/ROOF 210ASunroof Motor
SMART KEY 210AMetal Core Block (PCB #2) (P/N Relay), Smart Key Control Module
S/ROOF 120ASunroof Motor
START10AStart/Stop Button Switch
MODULE 510ASurround View Unit, Parking Guide Unit, Head-UP, Instrument Cluster, Driver Lumbar Support Valve, Rear Seat
Console Switch, Rear Seat Warmer Control Module LH/RH, Rear Massage Control Module LH/RH, Rear Smart
Junction Box (IPS Control Module)
CLUSTER10AInstrument Cluster, Head-Up Display
SMART KEY 125ASmart Key Control Module
DOOR LAMP10ADriver Door Module, Passenger Door Module
STR'G HTD15AClock Spring
KH USA 7:2015 3/25/2015 11:36 AM Page 78

Maintenance
7
7-79

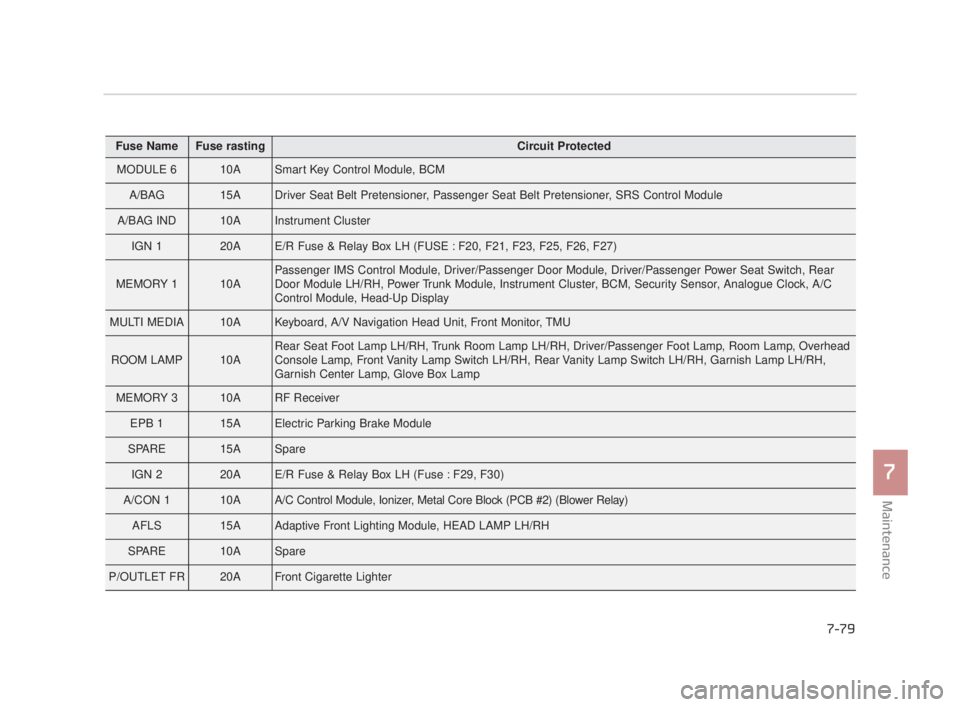

Fuse NameFuse rastingCircuit Protected
MODULE 610ASmart Key Control Module, BCM
A/BAG15ADriver Seat Belt Pretensioner, Passenger Seat Belt Pretensioner, SRS Control Module
A/BAG IND10AInstrument Cluster
IGN 120AE/R Fuse & Relay Box LH (FUSE : F20, F21, F23, F25, F26, F27)
MEMORY 110APassenger IMS Control Module, Driver/Passenger Door Module, Driver/Passenger Power Seat Switch, Rear
Door Module LH/RH, Power Trunk Module, Instrument Cluster, BCM, Security Sensor, Analogue Clock, A/C
Control Module, Head-Up Display
MULTI MEDIA10AKeyboard, A/V Navigation Head Unit, Front Monitor, TMU
ROOM LAMP10ARear Seat Foot Lamp LH/RH, Trunk Room Lamp LH/RH, Driver/Passenger Foot Lamp, Room Lamp, Overhead
Console Lamp, Front Vanity Lamp Switch LH/RH, Rear Vanity Lamp Switch LH/RH, Garnish Lamp LH/RH,
Garnish Center Lamp, Glove Box Lamp
MEMORY 310ARF Receiver
EPB 115AElectric Parking Brake Module
SPARE15ASpare
IGN 220AE/R Fuse & Relay Box LH (Fuse : F29, F30)
A/CON 110AA/C Control Module, Ionizer, Metal Core Block (PCB #2) (Blower Relay)
AFLS15AAdaptive Front Lighting Module, HEAD LAMP LH/RH
SPARE10ASpare
P/OUTLET FR20AFront Cigarette Lighter
KH USA 7:2015 3/25/2015 11:36 AM Page 79

7-80
Maintenance

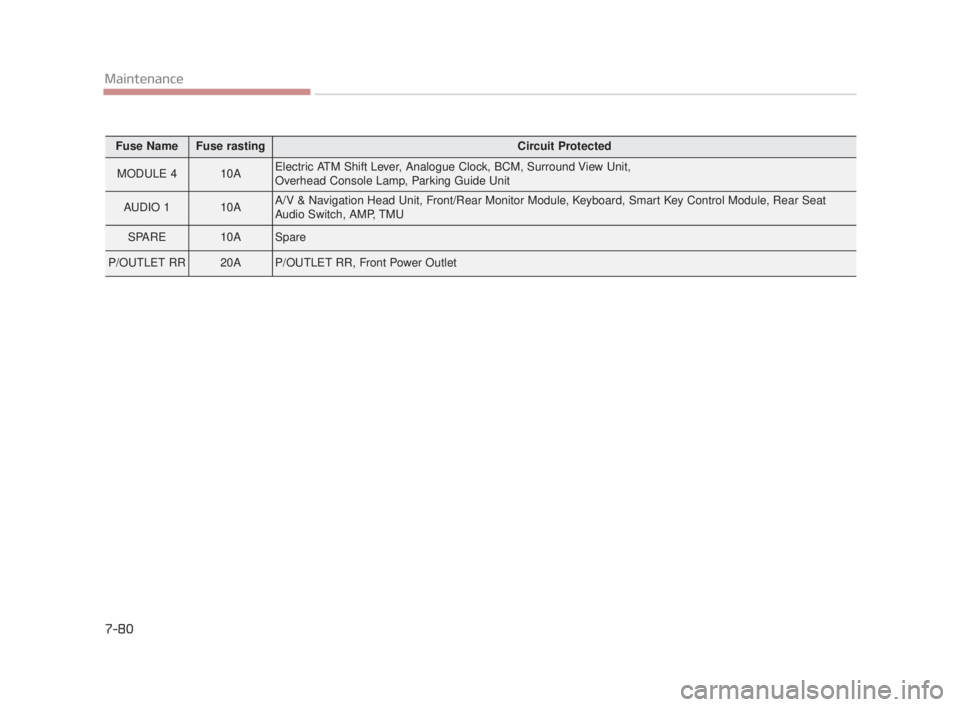

Fuse NameFuse rastingCircuit Protected
MODULE 410AElectric ATM Shift Lever, Analogue Clock, BCM, Surround View Unit,
Overhead Console Lamp, Parking Guide Unit
AUDIO 110AA/V & Navigation Head Unit, Front/Rear Monitor Module, Keyboard, Smart Key Control Module, Rear Seat
Audio Switch, AMP, TMU
SPARE10ASpare
P/OUTLET RR20AP/OUTLET RR, Front Power Outlet
KH USA 7:2015 3/25/2015 11:36 AM Page 80

Maintenance
7
7-81

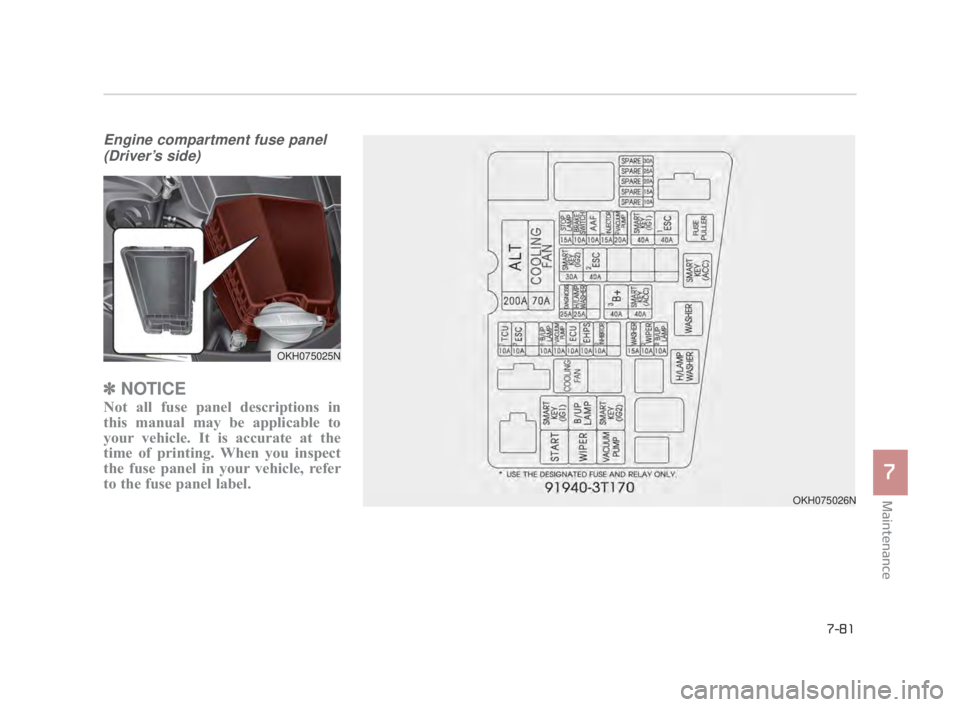

Engine compartment fuse panel(Driver’s side)
✽ NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
OKH075025N
OKH075026N
KH USA 7:2015 3/25/2015 11:36 AM Page 81

7-82
Maintenance

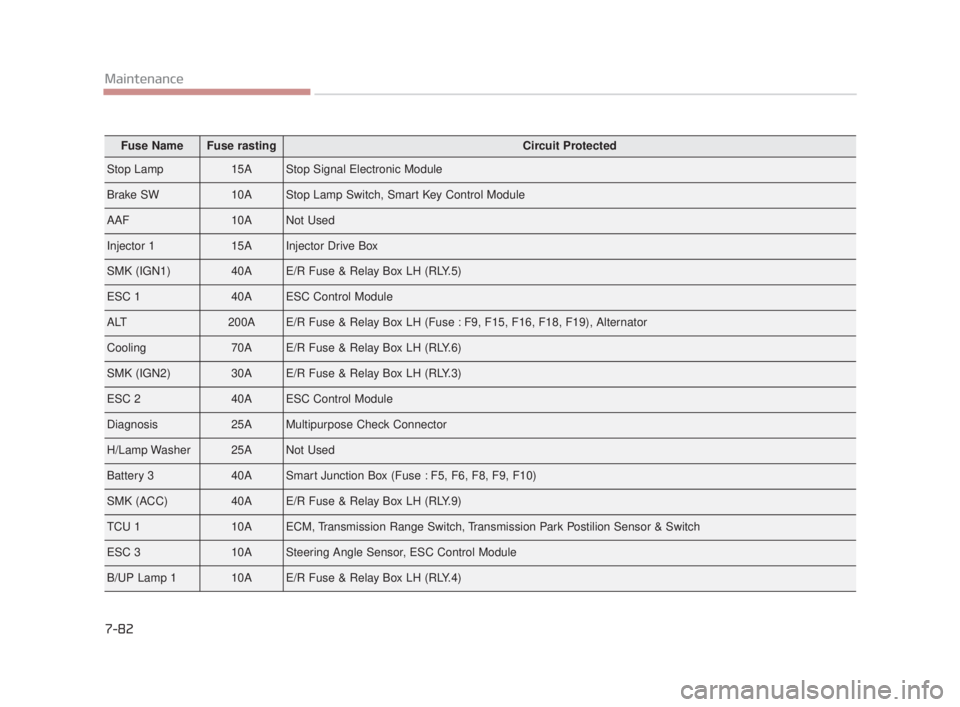

Fuse NameFuse rastingCircuit Protected
Stop Lamp15AStop Signal Electronic Module
Brake SW10AStop Lamp Switch, Smart Key Control Module
AAF10ANot Used
Injector 115AInjector Drive Box
SMK (IGN1)40AE/R Fuse & Relay Box LH (RLY.5)
ESC 140AESC Control Module
ALT200AE/R Fuse & Relay Box LH (Fuse : F9, F15, F16, F18, F19), Alternator
Cooling70AE/R Fuse & Relay Box LH (RLY.6)
SMK (IGN2)30AE/R Fuse & Relay Box LH (RLY.3)
ESC 240AESC Control Module
Diagnosis25AMultipurpose Check Connector
H/Lamp Washer25ANot Used
Battery 340ASmart Junction Box (Fuse : F5, F6, F8, F9, F10)
SMK (ACC)40AE/R Fuse & Relay Box LH (RLY.9)
TCU 110AECM, Transmission Range Switch, Transmission Park Postilion Sensor & Switch
ESC 310ASteering Angle Sensor, ESC Control Module
B/UP Lamp 110AE/R Fuse & Relay Box LH (RLY.4)
KH USA 7:2015 3/25/2015 11:36 AM Page 82

Maintenance
7
7-83

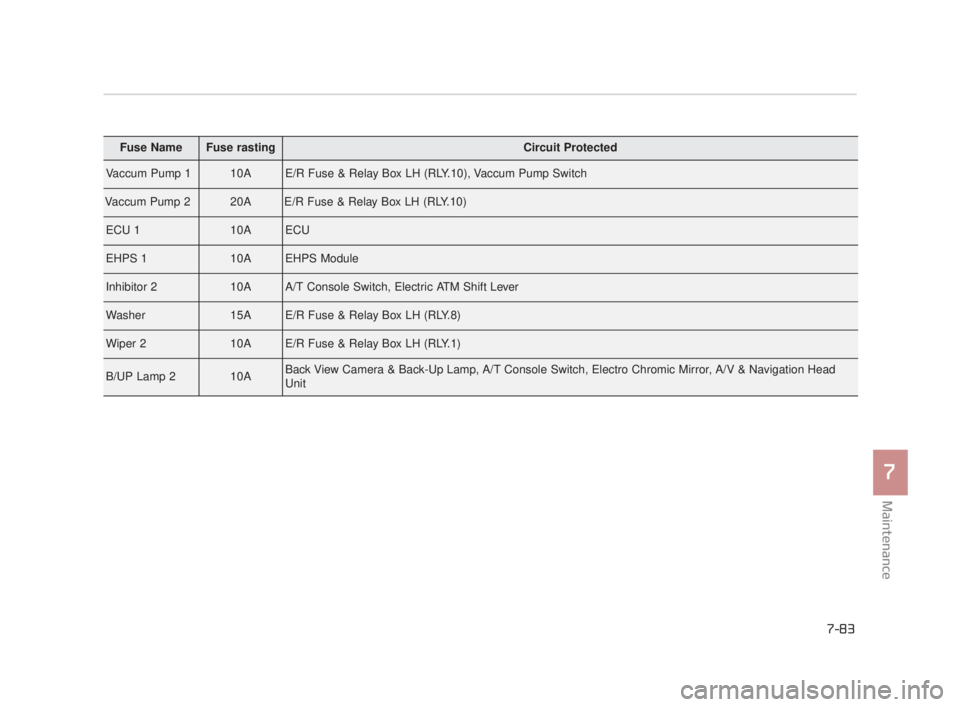

Fuse NameFuse rastingCircuit Protected
Vaccum Pump 110AE/R Fuse & Relay Box LH (RLY.10), Vaccum Pump Switch
Vaccum Pump 220AE/R Fuse & Relay Box LH (RLY.10)
ECU 110AECU
EHPS 110AEHPS Module
Inhibitor 210AA/T Console Switch, Electric ATM Shift Lever
Washer15AE/R Fuse & Relay Box LH (RLY.8)
Wiper 210AE/R Fuse & Relay Box LH (RLY.1)
B/UP Lamp 210ABack View Camera & Back-Up Lamp, A/T Console Switch, Electro Chromic Mirror, A/V & Navigation Head
Unit
KH USA 7:2015 3/25/2015 11:36 AM Page 83

7-84
Maintenance
Engine compartment fuse panel(Passenger’s side)
✽ NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
OKH075027N
OKH073028N
KH USA 7:2015 3/25/2015 11:37 AM Page 84
