KIA K900 2016 Features and Functions Guide

K900 CUSTOMER DELIVERY CHECKLIST
Confirm “Good Battery” with Kia GR8-1299 battery tester
Verify all tire pressures are to spec (see driver’s door label) LF LR RF RR
Verify proper operation of Smart Key* lock /unlock
Ensure floormats are snapped into place (if applicable)
Verify vehicle is clean (interior and exterior), in good condition, free of chips and scratches
Ensure all key documents are in the vehicle (Owner’s Manual, Warranty and Consumer Information booklet, Tire Warranty booklet,
Features & Functions Guide and any supplemental audio/video/navigation user’s guides)
Driver Information System (DIS) Control – pages 22-23 Automatic Transmission (Shift by Wire)
and Sport Mode – page 28
Automatic Climate Control – pages 26-27 Demonstrate Air Flow Modes, Defog and Defrosting Windshield Fan Speed.
UVO Luxury Services with Premium Navigation
System – page 24 For further system operation, refer to the Car Navigation System Owner’s Manual.
Before Delivery
Key Feature Walkthrough
Owner’s Name: ____________________________________ VIN:
_______________________ Mileage: _
_________________
Dealership Name:
______________________Sales Consultant:
_________________________________
Date:
__________
© 2015 Kia Motors America, Inc. All rights reserved. Part Number: UK160-PS-004 29319_COVER_r1.indd 1-3 11/12/15 10:18 AM

Congratulations on Your New Kia Purchase!
Your new Kia vehicle has been designed, engineered and manufactured to provide you with years of comfortable
and dependable driving. Kia is committed to quality, innovation, safety and — above all — your satisfaction.
Using This Guide
The information contained in this guide is a brief overview that will help you become familiar with the operation
and features of your new Kia vehicle. The flipbook format facilitates information access, while the detailed
illustrations ensure the instructions are easy to follow.
This Features & Functions Guide and the specific operational and safety information it provides are not a
substitute for your Owner’s Manual. In the interest of your safety and that of your family, and to help you avoid
risks that may result in death or serious injury, Kia reminds you to carefully read your Owner’s Manual in order
to fully familiarize yourself with the important information it contains.
While the information contained in this guide is accurate at the time of printing, Kia may change vehicle
specifications without notice in advance of or after the fact, and assumes no liability in connection with
such changes.
www.kia.com Consumer Affairs - Roadside Assistance: 1-855-4KIAVIP (855-454-2847) or 1-800-333-4KIA (800-333-4542) See Back Cover for Vehicle Maintenance Schedule. Always check the Owner’s Manual for complete operating information and safety warnings.
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
GETTING TO KNOW YOUR K900
Sales Consultant:
Sales Manager:
Customer:
Date:
Date:
Date:
K900 CUSTOMER DELIVERY CHECKLIST
Surround View Monitoring
(SVM) System* – page 31
Advanced Smart Cruise Control
(ASCC)* – page 18 Demonstrate operation
Key Feature Walkthrough
During Delivery
Auto-Dimming Rearview Mirror with HomeLink® – page 44
Aux/USB/iPod® Port – page 25
Blind Spot Detection (BSD)* – page 9
Clock Setup – page 25
Electric Parking Brake (EPB) / Auto Hold* - pages 29
Engine S tar t / S top Button – page 14
Head-Up Display (HUD)* – page 7
Panoramic Sunroof Operation – page 43
Parking Guide System (PGS)* – page 12
Passenger Air Bag Off Indicator – page 49
Power Front Seat Headrest Adjustment* – page 35
Rear Passenger’s Control System – page 37
Seat Warmers/ Ventilated Seats – page 34
Smart Key – page 40
Sunvisor – page 46
Tire Pressure Monitoring System ( TPMS) – page 5
Explain first service process and schedule first service appointment
Tour Parts & Service departments, introduce staff and explain value of Kia Parts and Service
Review recommended maintenance schedule and maintenance requirements to validate warranty
Review business hours and Customer 360° Care
Review the Kia 10-year/100,000-mile warranty program
Ensure 100% satisfaction with sales and delivery process and no problems with the vehicle
Confirm time and best contact number for initial dealer follow-up
65mphCRUISE
Bluetooth® Wireless
Technology – pages 20-21 Demonstrate operation
Windshield Wipers &
Washers – page 17
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering- wheel-mounted controls while driving.
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive responsibly.
Advanced Smart Cruise Control (ASCC): The Advanced Smart Cruise Control system is not a substitute for safe driving and cruise-control procedures. This is not an auto-pilot feature. Always drive safely and use caution. The Advanced Smart Cruise Control system may not detect every object in front of the vehicle.
Airbag: For maximum protection, always wear your seat belt. Please refer to your vehicle’s Owner’s Manual for additional important safety information regarding airbags, including additional cautions and warnings.
Android™: Android™ is a registered trademark of Google Inc.
Autonomous Emergency Braking System (AEB): No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive responsibly.
Blind Spot Detection System (BSD) / Rear Cross Traffic Alert (RCTA): Blind Spot Detection and Rear Cross Traf fic Alert are not substitutes for safe driving, and may not detect all objects around or behind vehicle. Always drive safely and use caution.
Bluetooth® Wireless Technology: The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG Inc., and any use of such marks by Kia is pursuant to license. A Bluetooth® enabled cell phone is required to use Bluetooth® wireless technology.
Electronic Stability Control (ESC)/ Traction Control System ( TCS)/Hill-start Assist Control (HAC): No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive responsibly.
Engine Start/Stop Button with Smart Key: Always come to a complete stop before turning the engine on or off. However, if you have an emergency while the vehicle is in motion and must turn the engine off, you can turn the engine off to the ACC position by pressing the Start /Stop button for more than 3 seconds or 3 times in succession. If the vehicle is still moving, you can restart the engine by pressing the Start /Stop button with the shift lever in Neutral (N). With the engine off, hydraulic power assist for steering and braking will be disabled and the vehicle will be more dif ficult to control.
Google®: Google® is a registered trademark of Google, Inc.
Head-Up Display (HUD): Failure to pay attention to travel conditions and vehicle operation could result in loss of vehicle control. Always drive safely and use caution.
HomeLink®: Homelink® is a registered trademark of Gentex Corporation
iPhone®/iPod®: iPhone® and iPod® are registered trademarks of Apple, Inc.
Lane Departure Warning System (LDWS): The Lane Departure Warning System (LDWS) is not a substitute for safe and proper driving. Always drive safely and use caution. LDWS may not always alert the driver if the vehicle is driven outside of its lane. Refer to the Owner’s Manual for more information.
Navigation: Distracted driving can result in a loss of vehicle control. When operating a vehicle, never use a vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.
Occupant Detection System (ODS): Kia vehicles use a number of different ODS types that vary by model. Children age 12 and under should always be seated in the RE AR seats.
Pandora® internet radio: Pandora® is a registered trademark of Pandora Media, Inc.
Parking Assist System: The Parking Assist System is not a substitute for proper and safe backing-up procedures. The Parking Assist System may not detect every object behind the vehicle. Always drive safely and use caution when backing up.
Parking Guide System / Rear-Camera Display: The Parking Guide System / Rear-Camera Display are not substitutes for proper and safe backing-up procedures. The Parking Guide System / Rear-Camera Display may not display every object behind the vehicle. Always drive safely and use caution when backing up.
Roadside Assist: 24-hour Enhanced Roadside Assistance is a service plan provided by Kia Motors America, Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and Consumer Information Manual. For access to Enhanced Roadside Assistance, a connected mobile phone via Bluetooth® within the cellular service coverage area is required.
Seat adjustments: Reclining the passenger seats can reduce the effectiveness of the safety restraint system and may lead to additional injury in an accident.
Seat belts: For maximum protection, always wear your seatbelt.
Seat warmers: Use extreme caution when using the seat warmers to avoid burns. Refer to the Owner’s Manual for more information.
Siri®: Siri® is a registered trademark of Apple, Inc.
SiriusXM®: SiriusXM®: SiriusXM service requires a subscription, sold separately, after 3-month trial included with vehicle purchase. If you decide to continue your SiriusXM service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call Sirius XM at 1-866-635-2349 to cancel. See our Customer Agreement for complete terms at www.siriusxm.com. Programming subject to change. Sirius satellite service is available only to those at least 18 and older in the 48 contiguous USA, D.C., and PR (with coverage limitations). Traf fic information not available in all markets. See siriusxm.com/traf fic for details. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc.
Smart Trunk /Smart Power Trunk: Driving with the trunk open may be unlawful and can draw dangerous exhaust fumes into your vehicle; if you choose to do so, keep air vents and all windows open for proper ventilation.
Steering-wheel-mounted controls: Driving while distracted is dangerous and should be avoided. Remain attentive to driving and be cautious when using steering-wheel-mounted controls while driving.
Sunvisors: Sunvisor may not shield all direct light. Do not operate the vehicle if sunvisor is impairing your visibility.
Surround View Monitor (SVM): Surround View Monitor is not a substitute for safe driving, and may not detect all objects around vehicle. Always drive safely and use caution.
Tire Pressure Monitoring System (TPMS): Even with Tire Pressure Monitoring System, check tire pressure on regular basis.
UVO Luxury Services: Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation.
Vehicle Diagnostics: Vehicle Diagnostics checks powertrain, chassis and air bag systems, and is not a substitute for maintenance. See UVO Luxury Services Maintenance Feature or Owner’s Manual for maintenance schedule.
LEGAL DISCLAIMERS 29319_COVER.indd 4-6 11/6/15 3:49 PM

1*IF EQUIPPED
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLE TE OPER ATING INFORMATION AND SAFE T Y WARNINGS.
TABLE OF CONTENTS
Videos & QR Codes ..................\u........ 02

Instru\fent Cluster ..................\u..... 03-0\b
Instrument Cluster Overview / Indicators & Warning Lights ...03
Active ECO System ............................... 04
Fuel Economy .................................. 04
Tire Pressure Monitoring System (TPMS) ...............05
LCD Instrument Cluster Modes ....................... 06
Trip Computer / Tripmeter .......................... 06

Driver’s Panel ..................\u......... 0 7-14
Head-Up Display (HUD)* ........................... 07
Instrument Panel Dimmer .......................... 08
Electronic Stability Control (ESC) / Traction Control System ( TCS) ..08
Hill-Start Assist Control (HAC) ....................... 08
Blind Spot Detection (BSD) System* ...................09
Lane Departure Warning System (LDWS)* ...............10
Fuel Door Release Button .......................... 10
Power Trunk Main Control Lever .....................10
Reverse Parking Aid Function ....................... 11
Parking Assist System ............................. 12
Parking Guide System (PGS) / Rear-Camera Display* .......12
Power Windows, Window Lock & Central Door Lock ........13
Power Folding Outside Mirrors ....................... 13
Heated Outside Mirrors ............................ 13
Auto Door Lock /Unlock ............................ 13
Engine Start /Stop Button .......................... 14

Steering Wheel Controls ..................\u15 -21
Power Tilt/ Telescoping Steering Wheel .................15
Heated Steering Wheel* ........................... 15
Headlights & High Beams .......................... 16
Turn Signals & Fog Lights .......................... 16
Windshield Wipers & Washers ....................... 17
LCD Controls and Modes ........................... 17
Advanced Smart Cruise Control (ASCC)* ................18
Audio Controls .................................. 19
Bluetooth
® Wireless Technology ...................... 20
Center Panel ..................\u.......... 22-33
Driver Information System (DIS) Controls ................ 22
UVO Luxury Services with Premium Navigation ............24
Clock ........................................ 25
Aux/USB/iPod
® Port & Power Outlets .................. 25Center Panel (Continued)
.................22-33
Automatic Climate Control System ....................26
Automatic Transmission (Shift by Wire) and Sport Mode .....28
Electric Parking Brake (EPB) ........................ 29
Auto Hold ..................................... 29
Drive Mode Integrated Control System .................30
Surround View Monitoring (SVM) System* ..............31
Front Blind Spot Monitoring System* ................... 32
Power Rear Curtain .............................. 33

Seating ..................\u............... 34-37
Seat Warmers / Ventilated Seats .....................34
Power Adjustable Driver’s Seat ......................35
Power Front Seat Headrest Adjustment* ................35
Driver Position Memory System ......................36
Power Reclining Rear Seats* ........................ 36
Rear Passenger’s Control System ..................... 37

Other Key Features ..................\u.... 38 - 47
Smart Power Trunk ............................... 38
Smart Key ..................................... 40
Map/Room Lamps ............................... 42
Panoramic Sunroof Operation ....................... 43
Auto-Dimming Rearview Mirror with HomeLink
® .......... 44
Sunvisor ...................................... 46
Hood Release Lever and Latch ....................... 46
Fuel Cap/Malfunction Indicator (Check Engine Light) .......47
Child Safety Locks ............................... 47

Safety Features ..................\u....... 48-49
Seat Belts ..................................... 48
Pre-Safe Seat Belt (PSB)* ........................... 48
Occupant Detection System (ODS) /
Passenger Airbag Off Indicator ....................... 49

Nor\fal Maintenance Schedule ................5 0
L ega l D i sc la i\fe r s (See Inside Back Cover)

Driving while distracted can result in a loss of vehicle control that may
lead to an accident, severe personal injury and death. The driver’s primary
responsibility is in the safe and legal operation of a vehicle, and use of any
handheld devices, other equipment or vehicle systems which take the driver’s
eyes, attention and focus away from the safe operation of a vehicle or that are
not permissible by law should never be used during operation of the vehicle.
Aux/USB/iPod® Port & Power Outlets ..................... 25
Advanced Smart Cruise Control (ASCC)* ...................18
Automatic Transmission (Shift by Wire) and Sport Mode ........ 28
UVO Luxury Services with Premium Navigation System ........24
Bluetooth
® Wireless Technology ......................... 20
Climate Control ...................................... 26
Driver Information System (DIS) Controls ..................22
Power Front Seat Headrest Adjustment* ...................35Head-Up Display (HUD)*
............................... 07
Smart Trunk ......................................... 38
Rear Passenger’s Control System ........................37
Surround View Monitoring (SVM) System* ................... 31
Steering Wheel Adjustment .............................. 15
Smart Key .......................................... 40
Tire Pressure Monitoring System (TPMS) .................. 05
Windshield Wipers and Washers .......................... 17
Essential Features
29319_Text.indd 111/6/15 11:40 AM

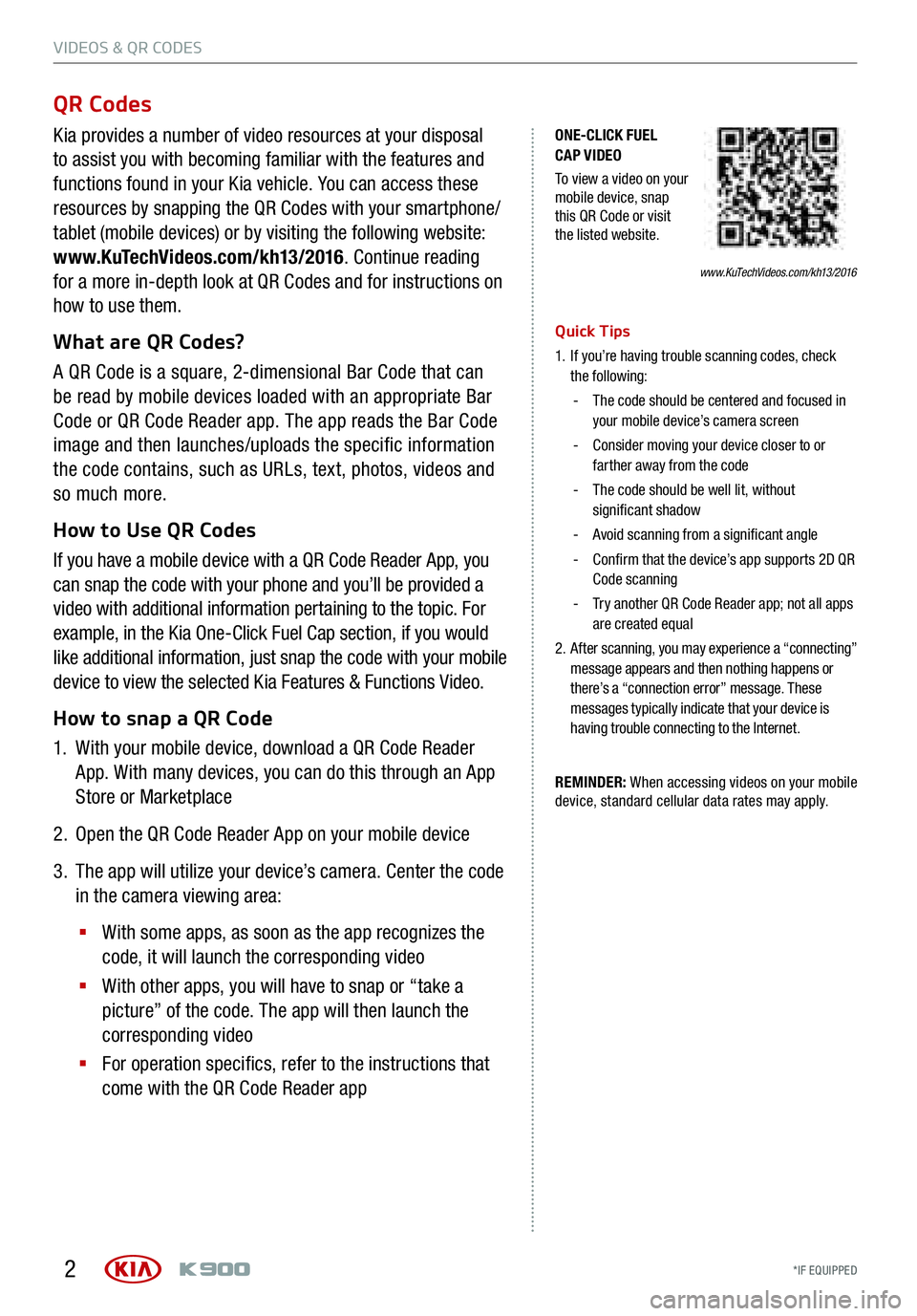

VIDEOS & QR CODES
*IF EQUIPPED 2
Kia provides a number of video resources at your disposal
to assist you with becoming familiar with the features and
functions found in your Kia vehicle. You can access these
resources by snapping the QR Codes with your smartphone/
tablet (mobile devices) or by visiting the following website:
www.KuTechVideos.com/kh13/2016 . Continue reading
for a more in-depth look at QR Codes and for instructions on
how to use them.
What are QR Codes?
A QR Code is a square, 2-dimensional Bar Code that can
be read by mobile devices loaded with an appropriate Bar
Code or QR Code Reader app. The app reads the Bar Code
image and then launches/uploads the specic information
the code contains, such as URLs, text, photos, videos and
so much more.
How to Use QR Codes
If you have a mobile device with a QR Code Reader App, you
can snap the code with your phone and you’ll be provided a
video with additional information pertaining to the topic. For
example, in the Kia One-Click Fuel Cap section, if you would
like additional information, just snap the code with your mobile
device to view the selected Kia Features & Functions Video.
How to snap a QR Code
1. With your mobile device, download a QR Code Reader
App. With many devices, you can do this through an App
Store or Marketplace
2. Open the QR Code Reader App on your mobile device
3. The app will utilize your device’s camera. Center the code
in the camera viewing area:

§
With some apps, as soon as the app recognizes the
code, it will launch the corresponding video

§
With other apps, you will have to snap or “take a
picture” of the code. The app will then launch the
corresponding video

§
For operation specics, refer to the instructions that
come with the QR Code Reader app
www.KuTechVideos.com/kh13/2016
ONE-CLICK FUEL
CAP VIDEO
To view a video on your
mobile device, snap
this QR Code or visit
the listed website.
Q\fick \bips
1. If you’re having trouble scanning codes, check
the following:
- The code should be centered and focused in
your mobile device’s camera screen
- Consider moving your device closer to or
farther away from the code
- The code should be well lit, without
signicant shadow
- Avoid scanning from a signicant angle
- Conrm that the device’s app supports 2D QR
Code scanning
- Tr y another QR Code Reader app; not all apps
are created equal
2. After scanning, you may experience a “connecting”
message appears and then nothing happens or
there’s a “connection error” message. These
messages typically indicate that your device is
having trouble connecting to the Internet.
QR Codes
REMINDER: When accessing videos on your mobile
device, standard cellular data rates may apply.
29319_Text.indd 211/6/15 10:20 AM

INSTRUMENT CLUSTER
3*IF EQUIPPED
A LWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS.
AFLSAdaptive Front Lighting
System Warning Light
Light ON Indicator
Advanced Smart Cruise
Control Warning Indicator*
Advanced Smart Cruise
Control Radar Warning Light*
Lane Departure Warning
System (LDWS) Indicator*
EPBElectric Parking Brake
Immobilizer Indicator
High Beam Indicator
LED Headlamp Warning Light*
Electronic Stability Control
(ESC) Warning Indicator
Electronic Stability Control
(ESC) OFF Indicator

Low Tire Pressure Light / Tire
Pressure Monitoring System
(TPMS) Malfunction Indicator
Advanced Vehicle Safety
Management (AVSM) OFF
Indicator Light*
Malfunction Indicator
Trunk Open Warning Light
Front Fog Light Indicator
Seat Belt Warning Light
Parking Brake & Brake Fluid
Warning Light
Door Ajar Warning Light
Airbag Warning Light
Low Windshield Washer Fluid
Tu r n Signal Indicators
Anti-Lock Braking System
(ABS) Warning Light
Auto Hold Indicator
REMINDER: Your vehicle’s instrument cluster & indicator light locations may
differ from those in the images. See your Owner’s Manual for more details.
Instrument Cluster Overview
Indicators \f Warning Lig\bts
A Tachometer
B Tu r n Signal Indicators
C Speedometer
D Indicator & Warning Lights
E Gear Shift Position Indicator
F Odometer
G Tr ip Computer
H Fuel Gauge
A
BB
C
D
E
H
G
F
Charging System Warning
Light
Cruise SET Indicator
Cruise Indicator
Engine Oil Pressure Warning
Light
Engine Coolant Temp e r a t u r e
Warning Light
Low Fuel Level Warning Light
Electronic Brake Force
Distribution (EBD)
System Warning Light
Autonomous Emergency
Braking (AEB) Warning Light*
ECO/SPORT/SNOW/SMART
Mode Indicator
PSB Pre-Safe Seat Belt
Warning Light*
( Type B Instrument Cluster)
For more information on the function of all indicator and warning lights, please refer to the Owner’s Manual.
29319_Text.indd 311/6/15 10:20 AM

INSTRUMENT CLUSTER
*IF EQUIPPED 4
Fuel Economy
Several factors contribute to your vehicle’s fuel economy,
including maintenance of your vehicle, driving style,
environmental conditions, vehicle weight and vehicle
aerodynamics. Below are tips on how to help improve
fuel economy:
§ Keep your vehicle in good condition with regular maintenance
§ Don’t let the engine idle longer than necessary
§ Drive at a moderate speed, accelerating smoothly
§ Keep tires inated to the recommended pressure
§ Tr avel lightly, without carrying unnecessary weight in
your vehicle
§ Avoid placing large or heavy items on roof racks
§ Avoid hilly, winding or poorly maintained roads
REMINDER: Driving range varies depending on a
vehicle’s fuel tank size, e.g., 12- gal. vs. 24-gal.. Even
though two vehicles’ MPG may be the same, the
vehicle with the larger tank will have greater range.
www.KuTechVideos.com/kh13/2016
FUEL ECONOMY
VIDEO
To view a video on
your mobile device,
snap this QR Code or
visit the listed website.
Refer to page 2 for
more information.
Active ECO System
When activated, the Active ECO system optimizes drivetrain
operations such as engine power and transmission to help
improve fuel economy.
To turn ON, press the DRIVE MODE button
A, scroll through
the modes then select ECO.
A green ECO indicator will illuminate on the instrument cluster
(indicating that you are getting optimal fuel economy).
www.KuTechVideos.com/kh13/2016
ECO MODE VIDEO
To view a video on
your mobile device,
snap this QR Code or
visit the listed website.
Refer to page 2 for
more information.
A
(Button located on center panel below the gear shift)
REMINDER: When the Active ECO system is turned ON and ignition is cycled,
the system remains ON.
29319_Text.indd 411/6/15 10:20 AM

INSTRUMENT CLUSTER
5*IF EQUIPPED
A LWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS.
REMINDER: Consult your dealer for service if
Low Tire Pressure Light remains illuminated after
inating your tire(s).
Quick
Tips
- Even with TPMS, tire pressure should be checked
manually at least once a month. Only adjust tire
pressure on “cold tires”
- For proper maintenance, safety and optimal fuel
economy, maintain recommended tire ination
pressure and stay within the load limits and
weight distribution recommended for your vehicle
- In winter or cold weather, the TPMS light may
illuminate if the tire pressure was adjusted to
the recommended tire ination pressure during
warm weather
The TPMS indicator functions as both Low Tire Pressure
Light and TPMS Malfunction Indicator.
The TPMS indicator
will illuminate if one or more tires
is signicantly underinated, the vehicle has a spare tire
installed without TPMS or the outside temperature becomes
signicantly colder.
The LCD screen in the instrument cluster will display the
Low Tire Pressure indicator
A showing which tire(s) are
underinated.
§ Inate tire(s) to specications using an accurate digital
tire pressure gauge. See front driver’s door jamb for
PSI specication
§ When there is a problem with the TPMS, the TPMS
Malfunction Indicator will blink for approximately one
minute then illuminate. See dealer for service
Tire Pressure Monitoring Syste\f (TPMS)
www.KuTechVideos.com/kh13/2016
TPMS VIDEO
To view a video on your
mobile device, snap
this QR Code or visit the
listed website. Refer
to page 2 for more
information.
A
( Type B Instrument Cluster)
29319_Text.indd 511/6/15 10:20 AM

INSTRUMENT CLUSTER
*IF EQUIPPED 6
A
B
LCD Instrument Cluster Modes
The LCD Instrument Cluster modes can be
changed by using the control buttons A on the
right side of the steering wheel.
Press Mode buttons
/ to change LCD mode.
Press Move buttons
/ to select item.
Press Select/Reset button
in center to
set/reset the item.
REMINDERS:
- Appearance of Tripmeter display may differ as equipped
- All stored driving information (except Odometer and Range) is
reset if the battery is disconnected
Tr i p Computer \f Tripmeter
The Tr ip Computer is a driver information system
that displays information related to driving when the
ENGINE START/STOP button is in the ON position.
To cycle through the LCD Instrument Cluster
modes, press the Mode buttons
/ on the right
side of the steering wheel.
When in the Tr ip Computer mode
, press the
Move buttons
/ to cycle through the screens.
When displaying TRIP A or TRIP B screens, press
and hold the
button to reset the Tripmeter
to zero.LCD Screen Modes B :
Tr ip Computer Mode: Displays driving
information for t r ipme ter, fuel economy, etc.
Tu r n By Tu r n (TBT) Mode*: Displays the
state of the navigation system
Advanced Smart Cruise Control (ASCC) /
Lane Departure Warning System (LDWS)
Mode*: Displays the state of ASCC
and LDWS
A/V Mode: Displays the state of the
A/V System
Information Mode: Provides service
intervals and pressure status of each tire
User Settings Mode: Change settings of the
doors, lamps and other features
FUEL ECONOMY
• RANGE
• Average MPG
• Instant MPG
TRIP A
• Tripmeter A
• Average MPH
• Elapsed Time (E/T)
TRIP B
• Tripmeter B
• Average MPH
• Elapsed Time (E/T)
( Type B Instrument Cluster)
29319_Text.indd 611/6/15 10:20 AM

INSTRUMENT CLUSTER
7*IF EQUIPPED
A LWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFETY WARNINGS.
REMINDERS:
- The HUD image on the windshield glass
may not be visible when:
- The driver has poor sitting posture

- The driver is wearing polarized sunglasses
- There is an object covering the HUD

- Driving on a wet road

- Excessive lighting inside or outside the vehicle
- Modications made to the windshield, such
as tinting or other aftermarket treatments,
could affect the HUD. When replacing the front
windshield glass of vehicles equipped with the
HUD, owners must replace it with windshield
glass designed for HUD operation. Otherwise,
duplicated images may be displayed on the
windshield glass.
**If Tu rn By Tu rn (TBT) navigation information is
selected as HUD content, TBT information will not
be displayed on the LC D.
Head-Up Display (HUD) User Settings
Drivers can adjust the HUD settings from the LCD Instrument
Cluster modes in User Settings. HUD settings include:
§ Display Height: Adjust the height of the HUD image on the
windshield glass
§ Rotation: Adjust the degree of HUD rotation
§ Brightness: Adjust the intensity of the HUD brightness
§ Contents Select: Activate or deactivate HUD content
( T BT * *, ASCC, LDWS, BSD)
§ Speedometer Size: Choose the size of the HUD
speedometer (Small, Medium, Large)
§ Speedometer Color: Choose the color of the HUD
speedometer ( White, A mb er, Green)
Head-Up Display (HUD)*
The Head-Up Display (HUD) is a transparent display that
projects a snippet of information from the instrument cluster
and navigation system onto the windshield glass.
Press the HUD button
A to turn the display ON/OFF.
The HUD displays:
§ Tu r n By Tu r n (TBT)
navigation information
§ Road signs
§ Speedometer
§ Cruise setting speed
§ Advanced Smart
Cruise Control (ASCC) information*
§ Lane Departure Warning
System (LDWS) information*
§ Blind Spot Detection
(BSD) system information*
§ Warning lights (low fuel)
A
(Buttons located on driver’s panel,
left of the steering wheel)
www.KuTechVideos.com/kh13/2016
HEAD-UP DISPLAY
(HUD) VIDEO
To view a video on
your mobile device,
snap this QR Code or
visit the listed website.
Refer to page 2 for
more information.
29319_Text_r1.indd 711/12/15 10:28 AM

DRIVER’S PA NEL
*IF EQUIPPED 8
Electronic Stability Control (ESC) is designed to help stabilize the vehicle during cornering maneuvers.
Tr a c t i o n Control System (TCS) helps improve traction while accelerating on slippery surfaces. It is a good
idea to keep both ESC and TCS turned on for daily driving whenever possible.
Press the ESC button
B to turn Electronic Stability Control and Tr a c t i o n Control System OFF/ON.
To turn Electronic Stability Control and Tr a c t i o n Control System O F F, press and hold the ESC button for more
than 3 seconds. Press again to turn ON.
Electronic Stability Control (ESC) / Traction Control Sy\ftem (TCS)
REMINDERS:
- ESC is active by default at vehicle start-up. When ignition is cycled, ESC will turn ON again
- The ESC indicator light in the instrument cluster will be lit momentarily whenever ESC is active
For more information on Electronic Stability Control (ESC) and its specic features and operations, please refer to your Owner’s Manual.
Hill-\ftart \b\f\fi\ft Control (H\bC)
Hill-start Assist Control (HAC) helps prevent the vehicle from
rolling backwards when accelerating from a stop while on a
steep incline.
HAC automatically activates whether ESC is OFF or ON but
does NOT activate when ESC has malfunctioned.Quick Tip

When HAC is active (e.g., during initial acceleration
from a stop on an incline), you may notice that the
brakes will momentarily remain engaged after you
depress the accelerator.
REMINDER: HAC does not operate when the gear shift is in P (Park) or N (Neutral) position.
With parking lights/headlights ON, press A (+) or (-) to adjust the brightness of the instrument
panel illumination.
In\ftrument Panel Dimmer
REMINDER: The Instrument Panel Dimmer does not adjust brightness on the navigation system screen.
Use navigation setup to adjust brightness on the navigation system.
A
B
(Buttons located on driver’s panel, left of the steering wheel)
29319_Text.indd 811/6/15 10:20 AM
