Maintenance
7
7-85

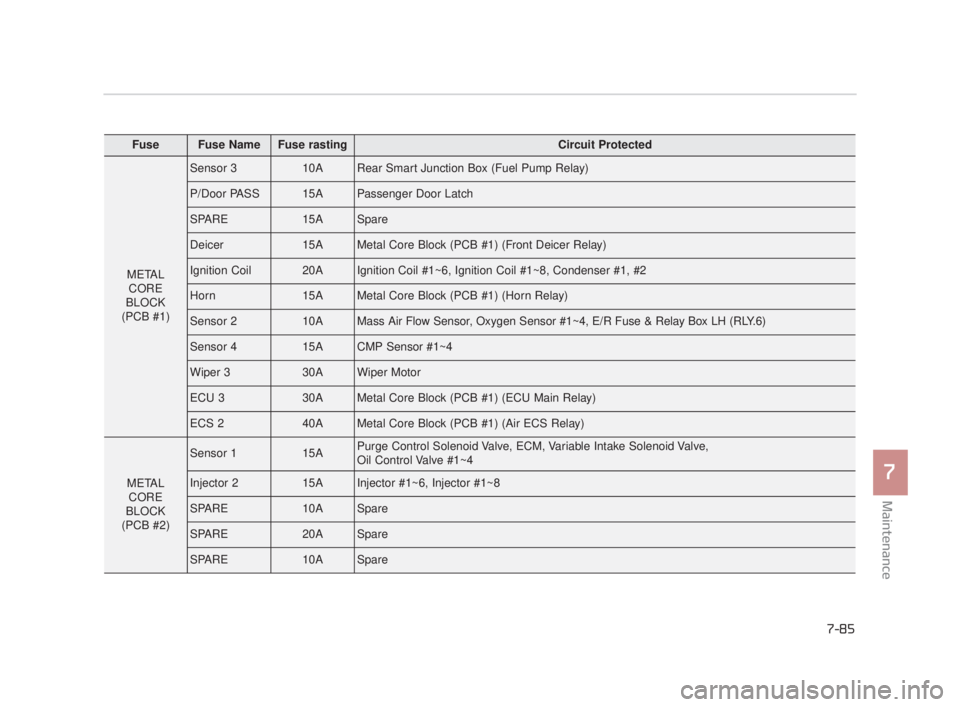

FuseFuse NameFuse rastingCircuit Protected
METALCORE
BLOCK
(PCB #1)
Sensor 310ARear Smart Junction Box (Fuel Pump Relay)
P/Door PASS15APassenger Door Latch
SPARE15ASpare
Deicer15AMetal Core Block (PCB #1) (Front Deicer Relay)
Ignition Coil20AIgnition Coil #1~6, Ignition Coil #1~8, Condenser #1, #2
Horn15AMetal Core Block (PCB #1) (Horn Relay)
Sensor 210AMass Air Flow Sensor, Oxygen Sensor #1~4, E/R Fuse & Relay Box LH (RLY.6)
Sensor 415ACMP Sensor #1~4
Wiper 330AWiper Motor
ECU 330AMetal Core Block (PCB #1) (ECU Main Relay)
ECS 240AMetal Core Block (PCB #1) (Air ECS Relay)
METAL CORE
BLOCK
(PCB #2)
Sensor 115APurge Control Solenoid Valve, ECM, Variable Intake Solenoid Valve,
Oil Control Valve #1~4
Injector 215AInjector #1~6, Injector #1~8
SPARE10ASpare
SPARE20ASpare
SPARE10ASpare
KH USA 7:2015 3/25/2015 11:37 AM Page 85

7-86
Maintenance
FuseFuse NameFuse rastingCircuit Protected
METALCORE
BLOCK
(PCB #2)
A/CON 210AA/C Control Module
Cruise10ASmart Cruise Control Radar
TCU 215ATCM
ECU 210AECM
Blower40AMetal Core Block(PCB) (Blower Relay)
Start 130AE/R Fuse Relay Box LH (RLY.2)
MULTI FUSE
Presafety Seat
Belt DRV40ADriver Seat Belt Pretensioner
Presafety Seat
Belt PASS40APassenger Seat Belt Pretensioner
Battery 260ASmart Junction Box (Fuse : F13~20, F23, F24, F27, F28, IPS5~8, Arisu-LT2)
Battery 160ASmart Junction Box (Fuse : F38, IPS1, 3, Arisu-LT1, Leak Current Autocut Device)
EHPS 280AEHPS Module
FUSEBattery 460AMetal Core Block (PCB #1) (Fuse : F2, F4, F6, F10, F11, F12)
Battery 560AMetal Core Block (PCB #2) (Fuse : F7, F11)
KH USA 7:2015 3/25/2015 11:37 AM Page 86

Maintenance
7
7-87
Trunk fuse panel
✽NOTICE
Not all fuse panel descriptions in this manual may be applicable to your\
vehicle. It is accurate at the time of print-
ing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
OKH073043N
• Battery box fuse panel
OKH075042NOKH075041N
KH USA 7:2015 3/25/2015 11:37 AM Page 87

7-88
Maintenance
Fuse NameFuse rastingCircuit Protected

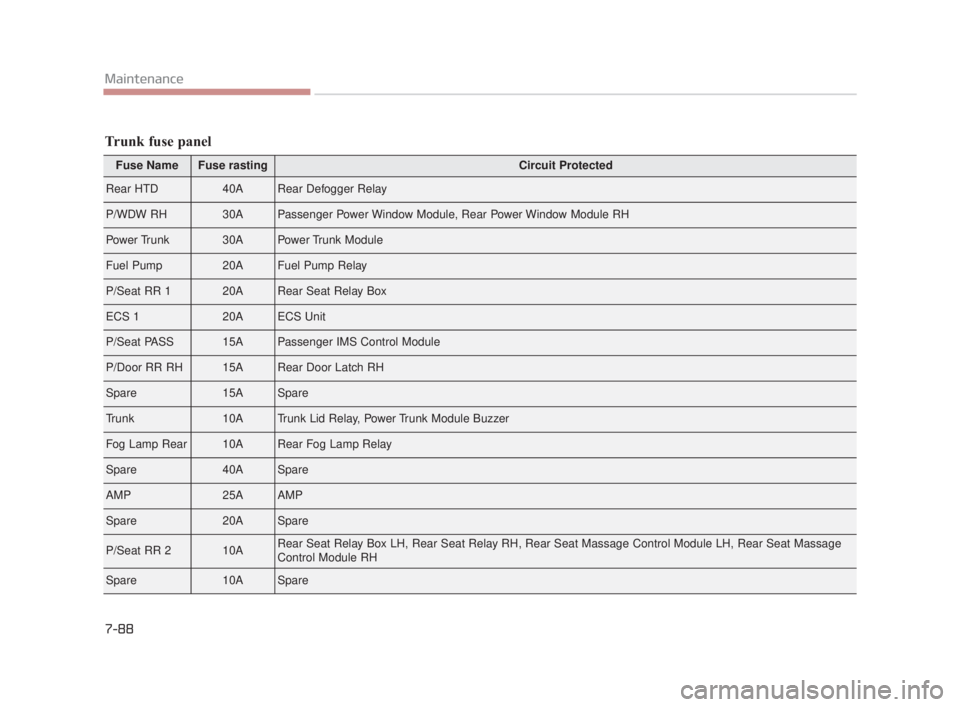

Rear HTD40ARear Defogger Relay
P/WDW RH30APassenger Power Window Module, Rear Power Window Module RH
Power Trunk30APower Trunk Module
Fuel Pump20AFuel Pump Relay
P/Seat RR 120ARear Seat Relay Box
ECS 120AECS Unit
P/Seat PASS 15APassenger IMS Control Module
P/Door RR RH15ARear Door Latch RH
Spare15ASpare
Trunk10ATrunk Lid Relay, Power Trunk Module Buzzer
Fog Lamp Rear10ARear Fog Lamp Relay
Spare40ASpare
AMP25AAMP
Spare20ASpare
P/Seat RR 210ARear Seat Relay Box LH, Rear Seat Relay RH, Rear Seat Massage Control Module LH, Rear Seat Massage
Control Module RH
Spare10ASpare
Trunk fuse panel
KH USA 7:2015 3/25/2015 11:37 AM Page 88

Maintenance
7
7-89

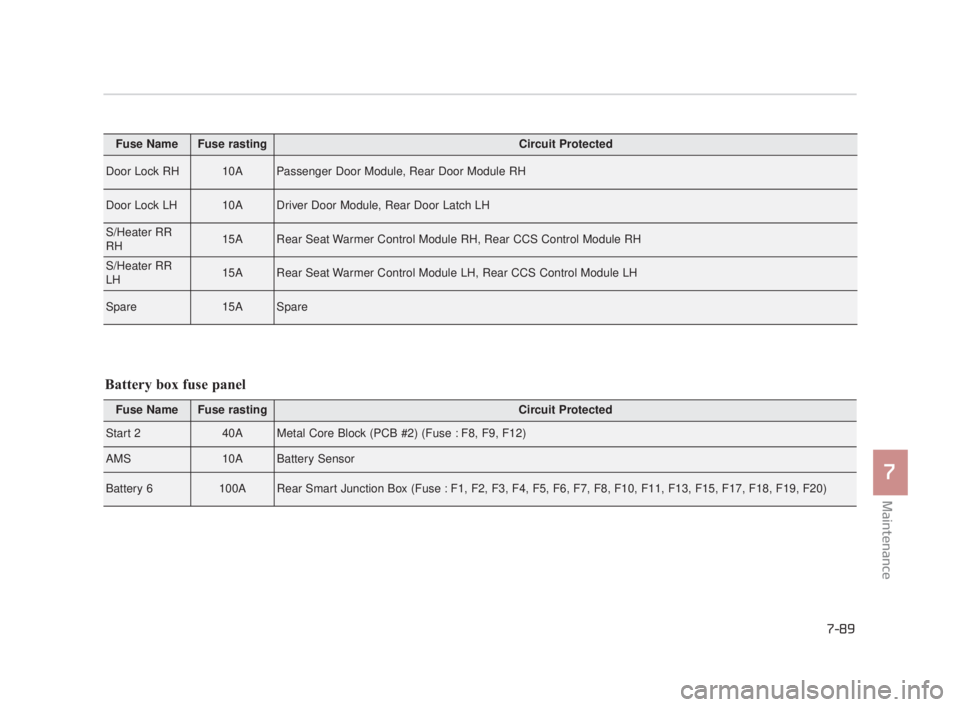

Fuse NameFuse rastingCircuit Protected
Door Lock RH10APassenger Door Module, Rear Door Module RH
Door Lock LH10ADriver Door Module, Rear Door Latch LH
S/Heater RR
RH15ARear Seat Warmer Control Module RH, Rear CCS Control Module RH
S/Heater RR
LH15ARear Seat Warmer Control Module LH, Rear CCS Control Module LH
Spare15ASpare
Fuse NameFuse rastingCircuit Protected
Start 240AMetal Core Block (PCB #2) (Fuse : F8, F9, F12)
AMS10ABattery Sensor
Battery 6100ARear Smart Junction Box (Fuse : F1, F2, F3, F4, F5, F6, F7, F8, F10, F11, F13, F15, F17, F18, F19, F20)\
Battery box fuse panel
KH USA 7:2015 3/25/2015 11:37 AM Page 89

7-90
Maintenance

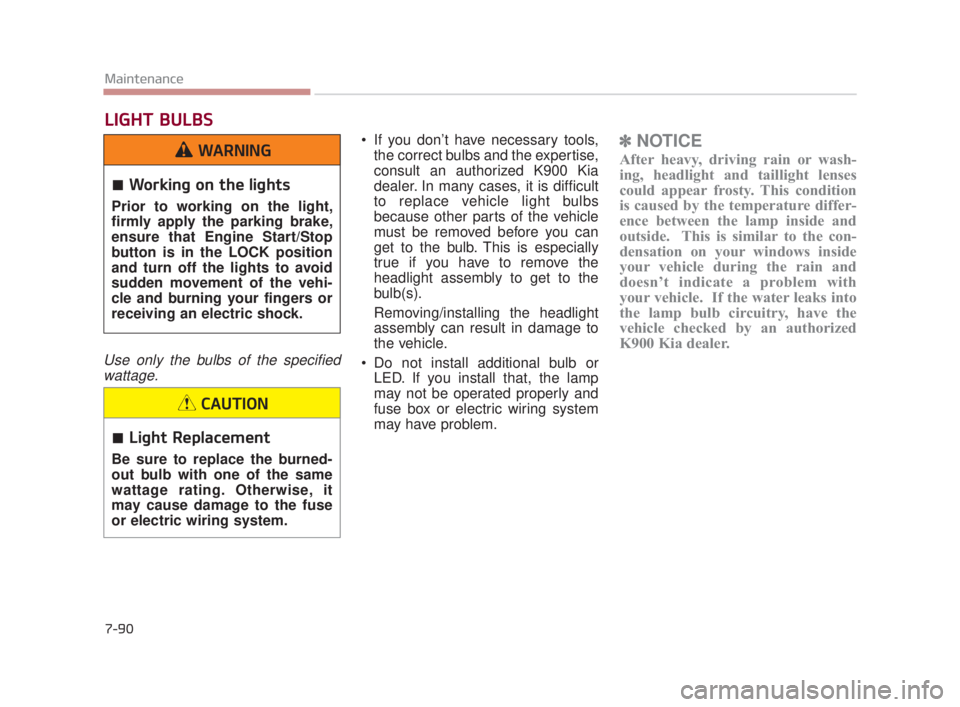

LIGHT BULBS
Use only the bulbs of the specifiedwattage.
If you don’t have necessary tools, the correct bulbs and the expertise,
consult an authorized K900 Kia
dealer. In many cases, it is difficult
to replace vehicle light bulbs
because other parts of the vehicle
must be removed before you can
get to the bulb. This is especially
true if you have to remove the
headlight assembly to get to the
bulb(s).
Removing/installing the headlight
assembly can result in damage to
the vehicle.
Do not install additional bulb or LED. If you install that, the lamp
may not be operated properly and
fuse box or electric wiring system
may have problem.✽ NOTICE
After heavy, driving rain or wash-
ing, headlight and taillight lenses
could appear frosty. This condition
is caused by the temperature differ-
ence between the lamp inside and
outside. This is similar to the con-
densation on your windows inside
your vehicle during the rain and
doesn’t indicate a problem with
your vehicle. If the water leaks into
the lamp bulb circuitry, have the
vehicle checked by an authorized
K900 Kia dealer.
Working on the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that Engine Start/Stop
button is in the LOCK position
and turn off the lights to avoid
sudden movement of the vehi-
cle and burning your fingers or
receiving an electric shock.
WARNING
Light Replacement
Be sure to replace the burned-
out bulb with one of the same
wattage rating. Otherwise, it
may cause damage to the fuse
or electric wiring system.
CAUTION
KH USA 7:2015 3/25/2015 11:37 AM Page 90

Maintenance
7
7-91

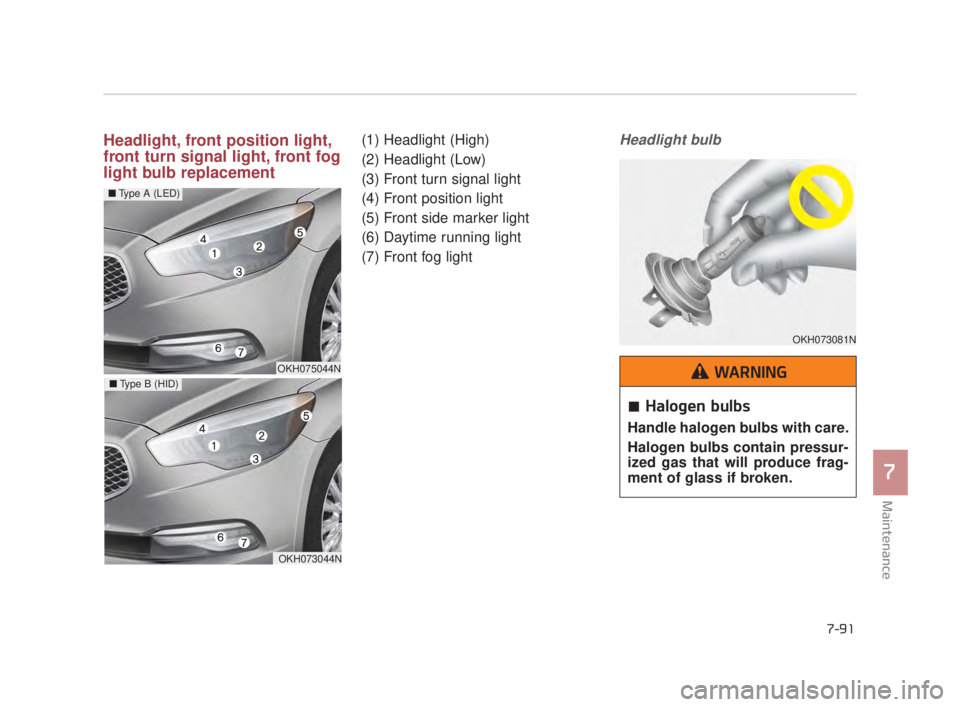

Headlight, front position light,
front turn signal light, front fog
light bulb replacement(1) Headlight (High)
(2) Headlight (Low)
(3) Front turn signal light
(4) Front position light
(5) Front side marker light
(6) Daytime running light
(7) Front fog light Headlight bulb
OKH075044N
■Type A (LED)
OKH073044N
■Type B (HID)
OKH073081N
Halogen bulbs
Handle halogen bulbs with care.
Halogen bulbs contain pressur-
ized gas that will produce frag-
ment of glass if broken.
WARNING
KH USA 7:2015 3/25/2015 11:37 AM Page 91

7-92
Maintenance

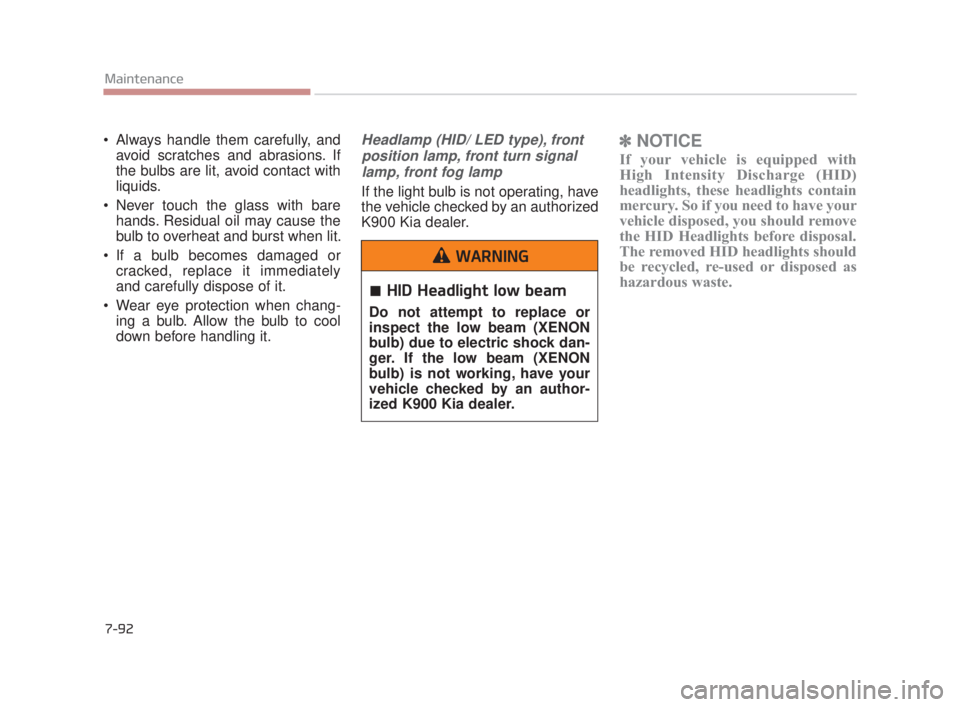

Always handle them carefully, andavoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.
Never touch the glass with bare hands. Residual oil may cause the
bulb to overheat and burst when lit.
If a bulb becomes damaged or cracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang- ing a bulb. Allow the bulb to cool
down before handling it.Headlamp (HID/ LED type), front
position lamp, front turn signallamp, front fog lamp
If the light bulb is not operating, have
the vehicle checked by an authorized
K900 Kia dealer.
✽ NOTICE
If your vehicle is equipped with
High Intensity Discharge (HID)
headlights, these headlights contain
mercury. So if you need to have your
vehicle disposed, you should remove
the HID Headlights before disposal.
The removed HID headlights should
be recycled, re-used or disposed as
hazardous waste.
HID Headlight low beam
Do not attempt to replace or
inspect the low beam (XENON
bulb) due to electric shock dan-
ger. If the low beam (XENON
bulb) is not working, have your
vehicle checked by an author-
ized K900 Kia dealer.
WARNING
KH USA 7:2015 3/25/2015 11:37 AM Page 92

Maintenance
7
7-93
✽NOTICE
HID lamps have superior perform-
ance vs. halogen bulbs. HID lamps
are estimated by the manufacturer
to last twice as long or longer than
halogen bulbs depending on their
frequency of use. They will probably
require replacement at some point
in the life of the vehicle. Cycling the
headlamps on and off more than
typical use will shorten HID lamps
life. HID lamps do not fail in the
same manner as halogen incandes-
cent lamps. If a headlamp goes out
after a period of operation but will
immediately relight when the head-
lamp switch is cycled it is likely the
HID lamp needs to be replaced. HID
lighting components are more com-
plex than conventional halogen
bulbs thus have higher replacement
cost.

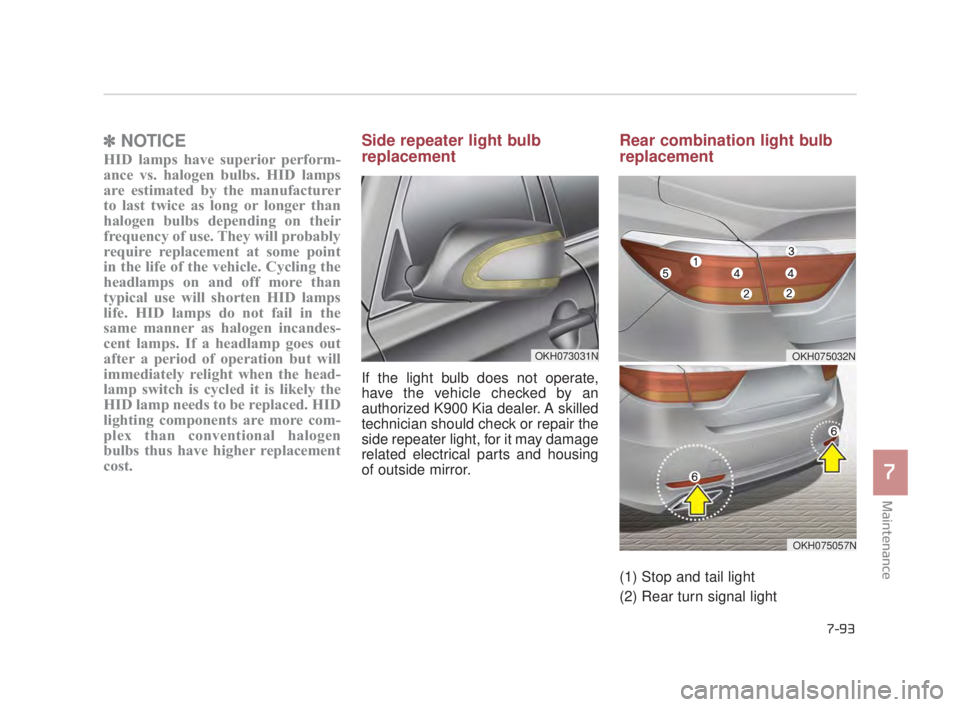

Side repeater light bulb
replacement
If the light bulb does not operate,
have the vehicle checked by an
authorized K900 Kia dealer. A skilled
technician should check or repair the
side repeater light, for it may damage
related electrical parts and housing
of outside mirror.
Rear combination light bulb
replacement
(1) Stop and tail light
(2) Rear turn signal light
OKH073031NOKH075032N
OKH075057N
KH USA 7:2015 3/25/2015 11:37 AM Page 93

7-94
Maintenance
(3) Back-up light
(4) Stop light
(5) Rear side marker light
(6) Reflex reflector
Stop and tail light, Turn signallight, Back-up light, Rear sidemarker light
If the light does not operate, have the
vehicle checked by an authorized
K900 Kia dealer.

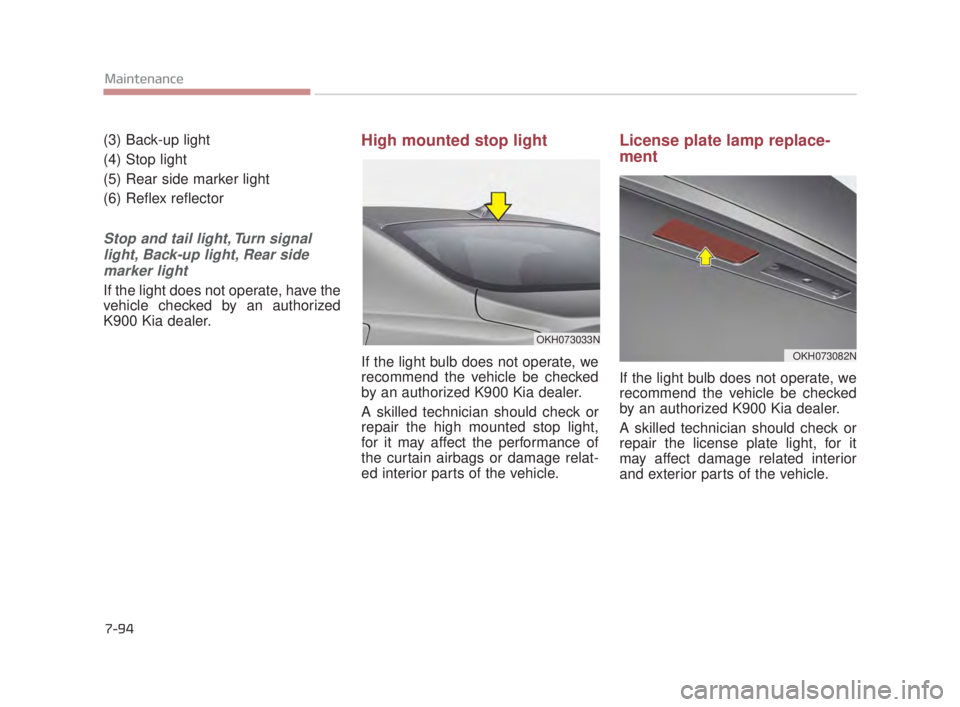

High mounted stop light
If the light bulb does not operate, we
recommend the vehicle be checked
by an authorized K900 Kia dealer.
A skilled technician should check or
repair the high mounted stop light,
for it may affect the performance of
the curtain airbags or damage relat-
ed interior parts of the vehicle.
License plate lamp replace-
ment
If the light bulb does not operate, we
recommend the vehicle be checked
by an authorized K900 Kia dealer.
A skilled technician should check or
repair the license plate light, for it
may affect damage related interior
and exterior parts of the vehicle.
OKH073033N
OKH073082N
