KIA K900 2017 Owners Manual

Maintenance
7
7-45
3.Remove the climate control air fil-ter cover while pressing the lock on
the left side of the cover. 4.Replace the climate control air fil-
ter.
5.Reassemble in the reverse order of disassembly.
✽ NOTICE
When replacing the climate control
air filter install it properly.
Otherwise, the system may produce
noise and the effectiveness of the fil-
ter may be reduced.
OKH073017NOBH078017
KH USA 7:2016 12/1/2016 11:20 PM Page 45

7-46
Maintenance

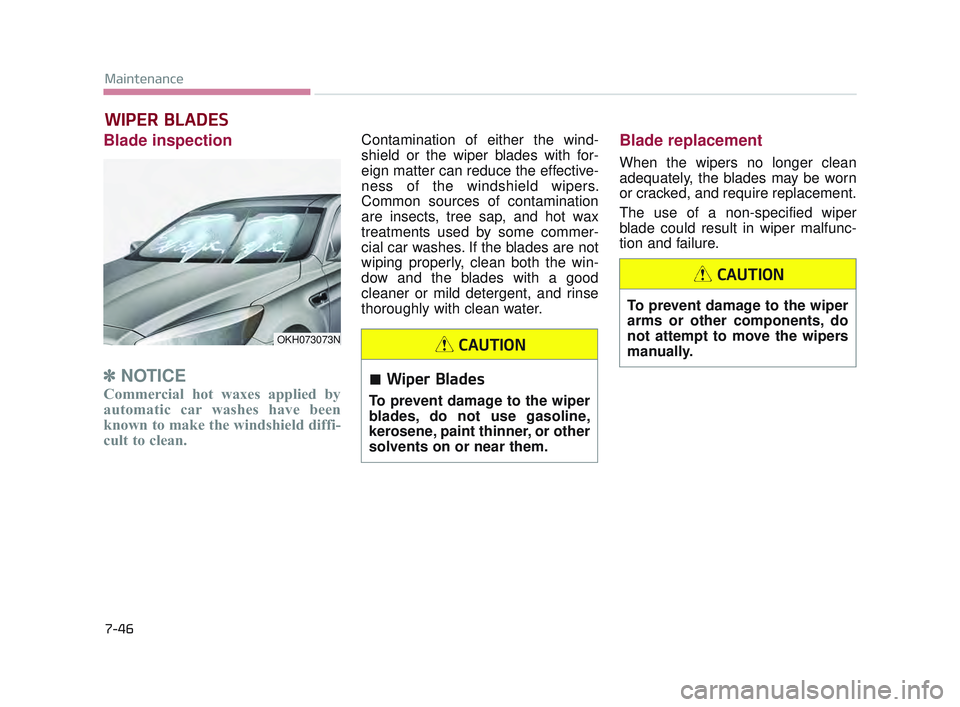

WIPER BLADES
Blade inspection
✽NOTICE
Commercial hot waxes applied by
automatic car washes have been
known to make the windshield diffi-
cult to clean.
Contamination of either the wind-
shield or the wiper blades with for-
eign matter can reduce the effective-
ness of the windshield wipers.
Common sources of contamination
are insects, tree sap, and hot wax
treatments used by some commer-
cial car washes. If the blades are not
wiping properly, clean both the win-
dow and the blades with a good
cleaner or mild detergent, and rinse
thoroughly with clean water. Blade replacement
When the wipers no longer clean
adequately, the blades may be worn
or cracked, and require replacement.
The use of a non-specified wiper
blade could result in wiper malfunc-
tion and failure.
OKH073073N
Wiper Blades
To prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or other
solvents on or near them.
CAUTION
To prevent damage to the wiper
arms or other components, do
not attempt to move the wipers
manually.
CAUTION
KH USA 7:2016 12/1/2016 11:20 PM Page 46

Maintenance
7
7-47

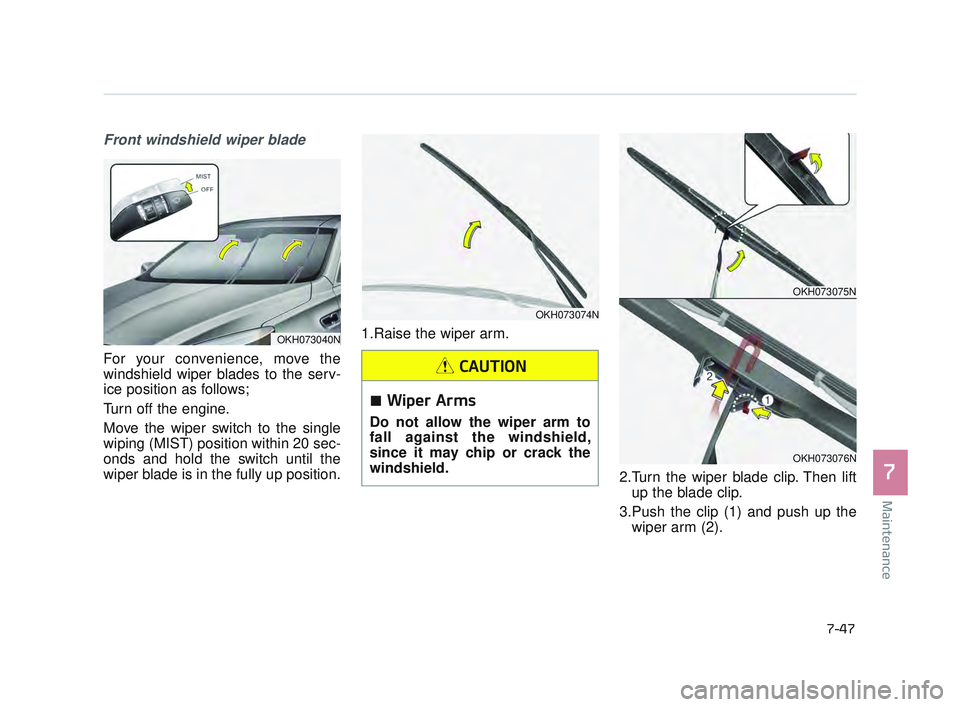

Front windshield wiper blade
For your convenience, move the
windshield wiper blades to the serv-
ice position as follows;
Turn off the engine.
Move the wiper switch to the single
wiping (MIST) position within 20 sec-
onds and hold the switch until the
wiper blade is in the fully up position.1.Raise the wiper arm.
2.Turn the wiper blade clip. Then liftup the blade clip.
3.Push the clip (1) and push up the wiper arm (2).
OKH073040N
OKH073074N
OKH073075N
OKH073076N
Wiper Arms
Do not allow the wiper arm to
fall against the windshield,
since it may chip or crack the
windshield.
CAUTION
KH USA 7:2016 12/1/2016 11:20 PM Page 47

7-48
Maintenance

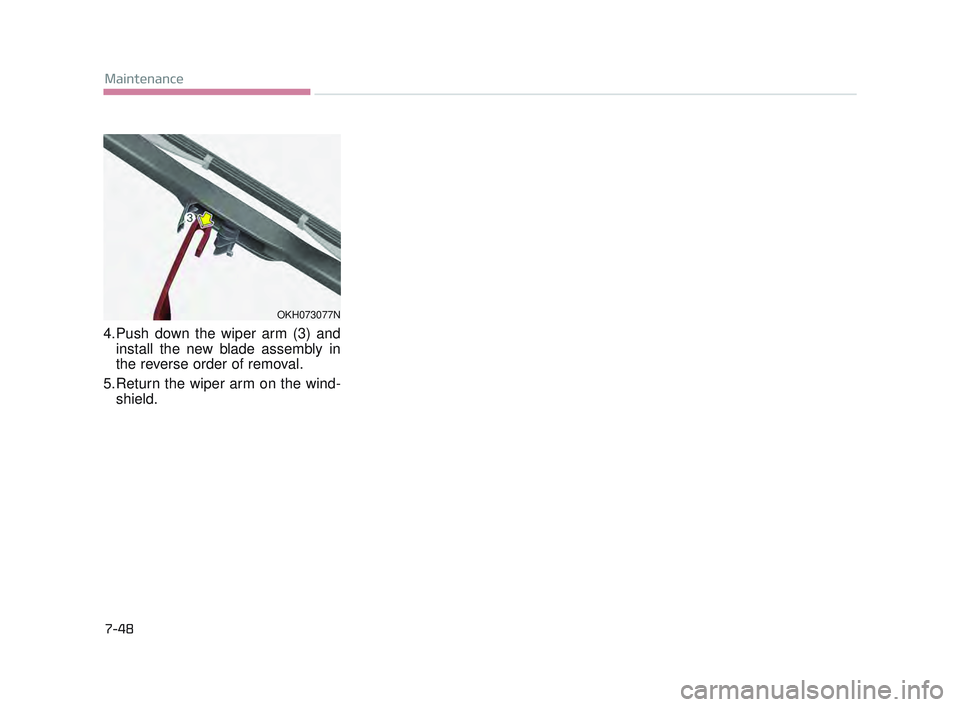

4.Push down the wiper arm (3) andinstall the new blade assembly in
the reverse order of removal.
5.Return the wiper arm on the wind- shield.
OKH073077N
KH USA 7:2016 12/1/2016 11:20 PM Page 48

Maintenance
7
7-49

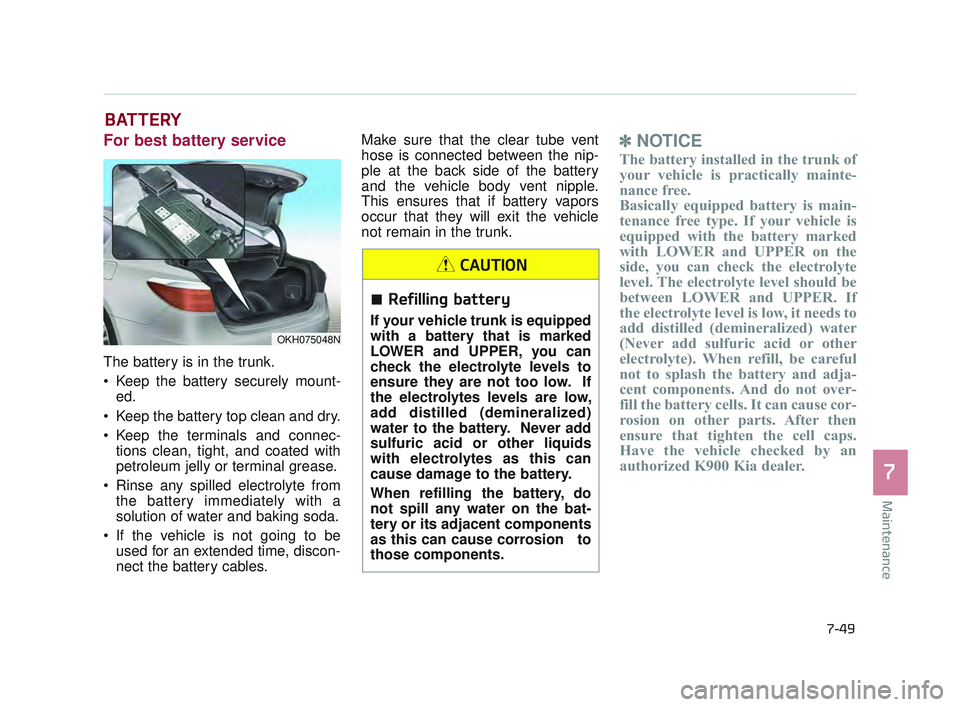

BATTERY
For best battery service
The battery is in the trunk.
Keep the battery securely mount-ed.
Keep the battery top clean and dry.
Keep the terminals and connec- tions clean, tight, and coated with
petroleum jelly or terminal grease.
Rinse any spilled electrolyte from the battery immediately with a
solution of water and baking soda.
If the vehicle is not going to be used for an extended time, discon-
nect the battery cables. Make sure that the clear tube vent
hose is connected between the nip-
ple at the back side of the battery
and the vehicle body vent nipple.
This ensures that if battery vapors
occur that they will exit the vehicle
not remain in the trunk.
✽
NOTICE
The battery installed in the trunk of
your vehicle is practically mainte-
nance free.
Basically equipped battery is main-
tenance free type. If your vehicle is
equipped with the battery marked
with LOWER and UPPER on the
side, you can check the electrolyte
level. The electrolyte level should be
between LOWER and UPPER. If
the electrolyte level is low, it needs to
add distilled (demineralized) water
(Never add sulfuric acid or other
electrolyte). When refill, be careful
not to splash the battery and adja-
cent components. And do not over-
fill the battery cells. It can cause cor-
rosion on other parts. After then
ensure that tighten the cell caps.
Have the vehicle checked by an
authorized K900 Kia dealer.
OKH075048N
Refilling battery
If your vehicle trunk is equipped
with a battery that is marked
LOWER and UPPER, you can
check the electrolyte levels to
ensure they are not too low. If
the electrolytes levels are low,
add distilled (demineralized)
water to the battery. Never add
sulfuric acid or other liquids
with electrolytes as this can
cause damage to the battery.
When refilling the battery, do
not spill any water on the bat-
tery or its adjacent components
as this can cause corrosion to
those components.
CAUTION
KH USA 7:2016 12/1/2016 11:20 PM Page 49

7-50
Maintenance

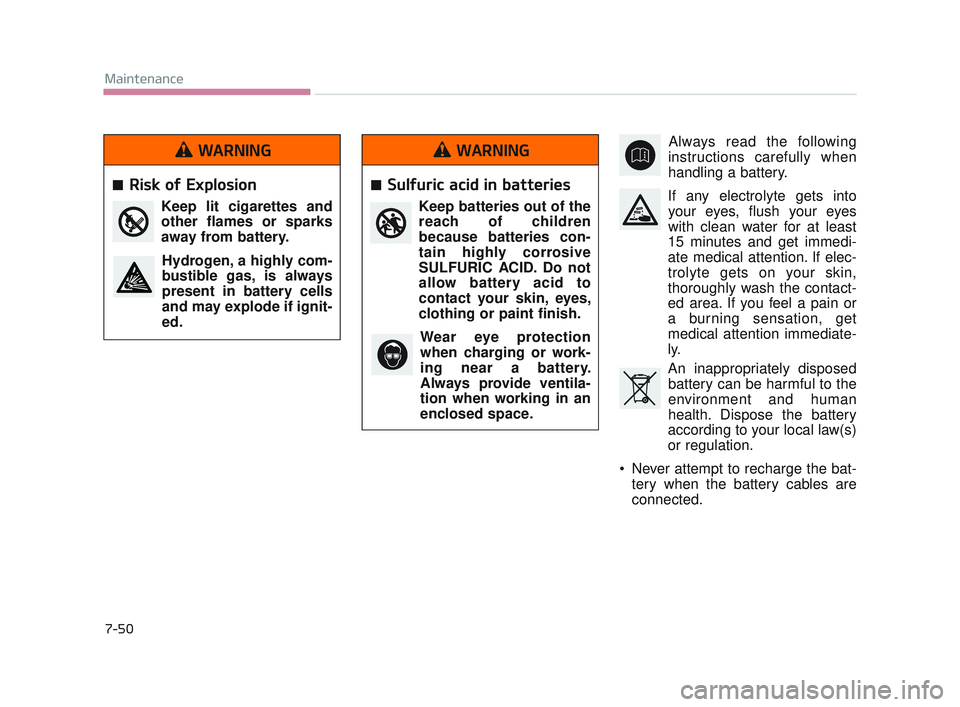

Always read the following
instructions carefully when
handling a battery.
If any electrolyte gets into your eyes, flush your eyes
with clean water for at least
15 minutes and get immedi-
ate medical attention. If elec-
trolyte gets on your skin,
thoroughly wash the contact-
ed area. If you feel a pain or
a burning sensation, get
medical attention immediate-
ly.
An inappropriately disposed battery can be harmful to the
environment and human
health. Dispose the battery
according to your local law(s)
or regulation.
Never attempt to recharge the bat- tery when the battery cables are
connected.
Risk of Explosion
Keep lit cigarettes and
other flames or sparks
away from battery.
Hydrogen, a highly com-
bustible gas, is always
present in battery cells
and may explode if ignit-
ed.
WARNING
Sulfuric acid in batteries
Keep batteries out of the
reach of children
because batteries con-
tain highly corrosive
SULFURIC ACID. Do not
allow battery acid to
contact your skin, eyes,
clothing or paint finish. Wear eye protection
when charging or work-
ing near a battery.
Always provide ventila-
tion when working in an
enclosed space.
WARNING
KH USA 7:2016 12/1/2016 11:20 PM Page 50

Maintenance
7
7-51

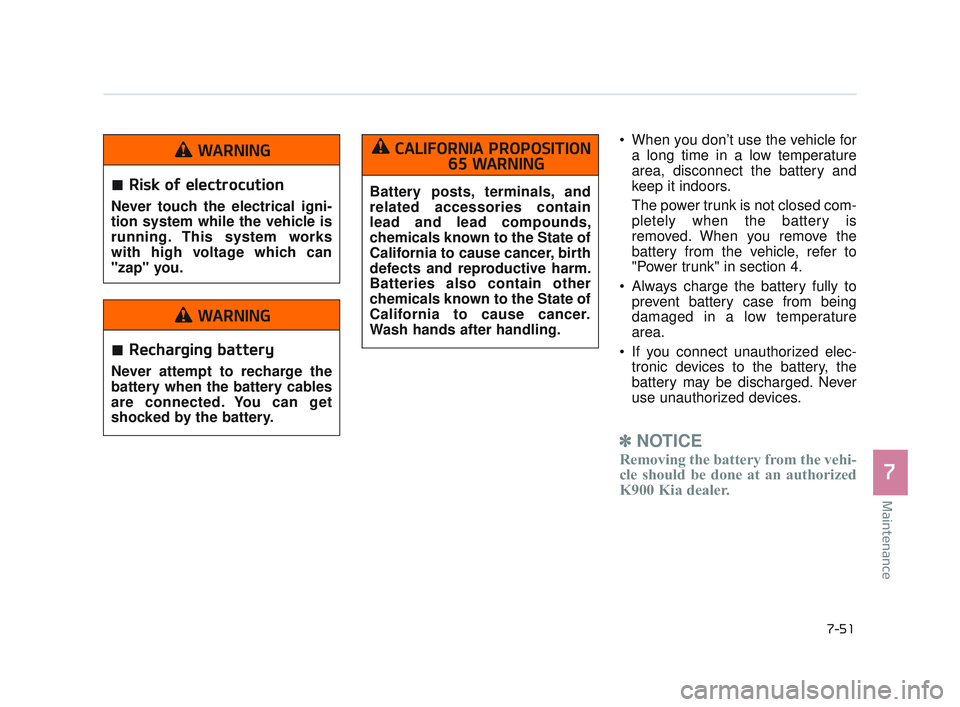

When you don’t use the vehicle fora long time in a low temperature
area, disconnect the battery and
keep it indoors.
The power trunk is not closed com-
pletely when the battery is
removed. When you remove the
battery from the vehicle, refer to
"Power trunk" in section 4.
Always charge the battery fully to prevent battery case from being
damaged in a low temperature
area.
If you connect unauthorized elec- tronic devices to the battery, the
battery may be discharged. Never
use unauthorized devices.
✽ NOTICE
Removing the battery from the vehi-
cle should be done at an authorized
K900 Kia dealer.
Battery posts, terminals, and
related accessories contain
lead and lead compounds,
chemicals known to the State of
California to cause cancer, birth
defects and reproductive harm.
Batteries also contain other
chemicals known to the State of
California to cause cancer.
Wash hands after handling.
CALIFORNIA PROPOSITION
65 WARNING
Risk of electrocution
Never touch the electrical igni-
tion system while the vehicle is
running. This system works
with high voltage which can
"zap" you.
WARNING
Recharging battery
Never attempt to recharge the
battery when the battery cables
are connected. You can get
shocked by the battery.
WARNING
KH USA 7:2016 12/1/2016 11:20 PM Page 51

7-52
Maintenance

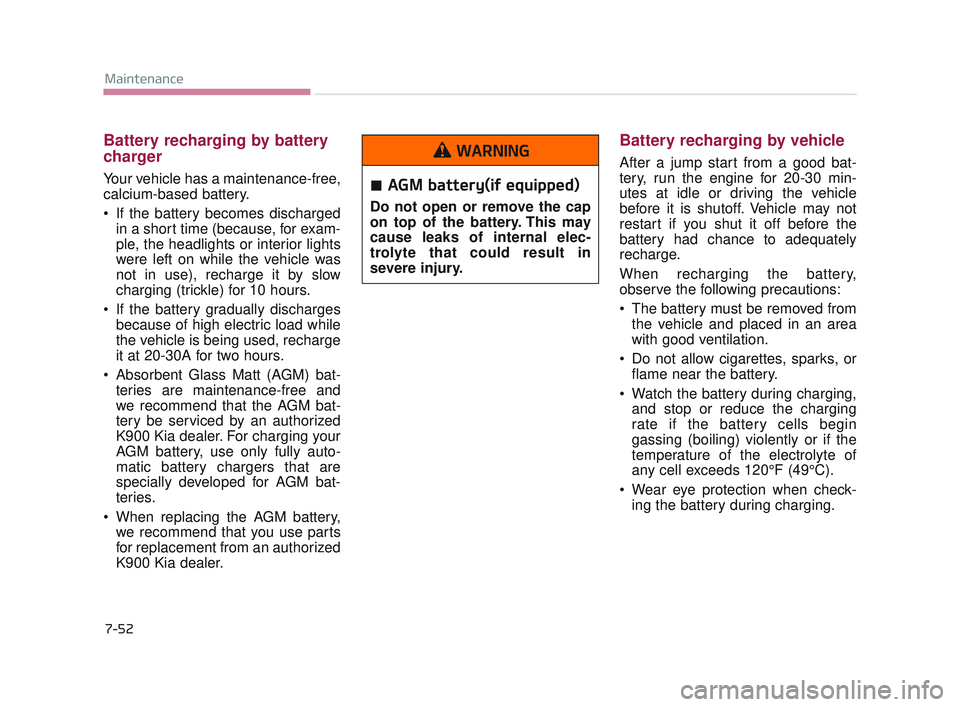

Battery recharging by battery
charger
Your vehicle has a maintenance-free,
calcium-based battery.
If the battery becomes dischargedin a short time (because, for exam-
ple, the headlights or interior lights
were left on while the vehicle was
not in use), recharge it by slow
charging (trickle) for 10 hours.
If the battery gradually discharges because of high electric load while
the vehicle is being used, recharge
it at 20-30A for two hours.
Absorbent Glass Matt (AGM) bat- teries are maintenance-free and
we recommend that the AGM bat-
tery be serviced by an authorized
K900 Kia dealer. For charging your
AGM battery, use only fully auto-
matic battery chargers that are
specially developed for AGM bat-
teries.
When replacing the AGM battery, we recommend that you use parts
for replacement from an authorized
K900 Kia dealer.
Battery recharging by vehicle
After a jump start from a good bat-
tery, run the engine for 20-30 min-
utes at idle or driving the vehicle
before it is shutoff. Vehicle may not
restart if you shut it off before the
battery had chance to adequately
recharge.
When recharging the battery,
observe the following precautions:
The battery must be removed fromthe vehicle and placed in an area
with good ventilation.
Do not allow cigarettes, sparks, or flame near the battery.
Watch the battery during charging, and stop or reduce the charging
rate if the battery cells begin
gassing (boiling) violently or if the
temperature of the electrolyte of
any cell exceeds 120°F (49°C).
Wear eye protection when check- ing the battery during charging.
AGM battery(if equipped)
Do not open or remove the cap
on top of the battery. This may
cause leaks of internal elec-
trolyte that could result in
severe injury.
WARNING
KH USA 7:2016 12/1/2016 11:20 PM Page 52

Maintenance
7
7-53
Disconnect the battery charger inthe following order.
1.Turn off the battery charger main switch.
2.Unhook the negative clamp from the negative battery terminal.
3.Unhook the positive clamp from the positive battery terminal.
Before performing maintenance or recharging the battery, turn off all
accessories and stop the engine.
The negative battery cable must be removed first and installed last
when the battery is disconnected.
Operation related to the battery should be done at an authorized
K900 Kia dealer.Reset items
Items should be reset after the bat-
tery has been discharged or the bat-
tery has been disconnected.
Auto up/down window (See section 4)
Sunroof (See section 4)
Driver position memory system (See section 4)
Trip computer (See section 4)
Climate control system (See section 4)
Clock (See section 4)
Audio (See section 4)
Power trunk (See section 4)
Battery in trunk
Your vehicle is equipped with a
battery in the trunk. For your
safety, avoid storing containers
with liquid in the trunk of the
vehicle. If the liquid leaks, this
could contact the battery and
create a risk of electrocution.
WARNING
KH USA 7:2016 12/1/2016 11:20 PM Page 53

7-54
Maintenance

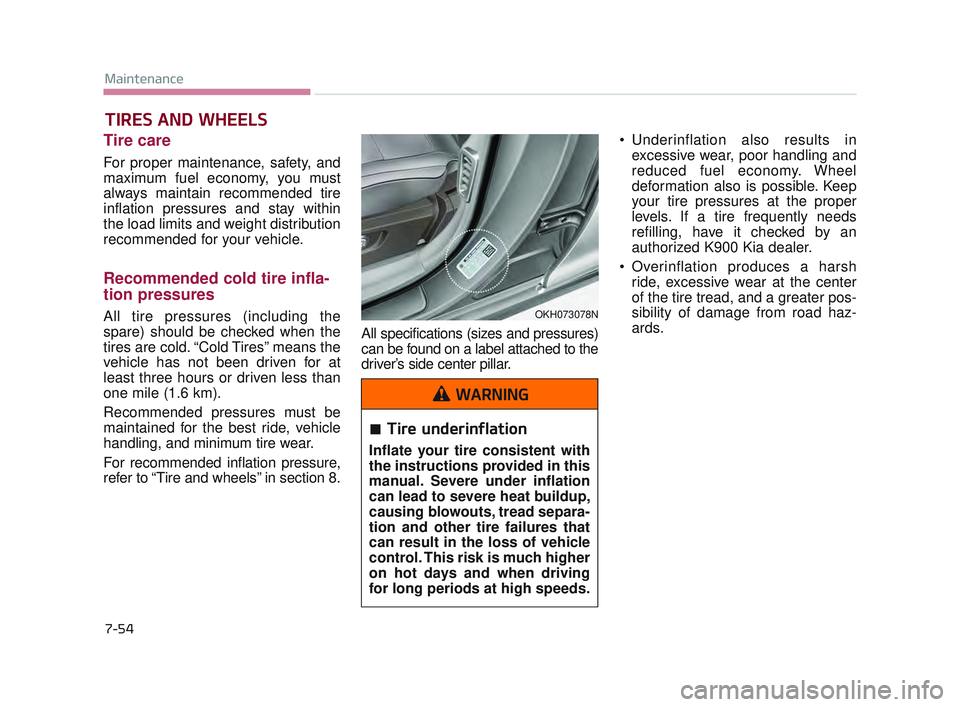

TIRES AND WHEELS
Tire care
For proper maintenance, safety, and
maximum fuel economy, you must
always maintain recommended tire
inflation pressures and stay within
the load limits and weight distribution
recommended for your vehicle.
Recommended cold tire infla-
tion pressures
All tire pressures (including the
spare) should be checked when the
tires are cold. “Cold Tires” means the
vehicle has not been driven for at
least three hours or driven less than
one mile (1.6 km).
Recommended pressures must be
maintained for the best ride, vehicle
handling, and minimum tire wear.
For recommended inflation pressure,
refer to “Tire and wheels” in section 8.All specifications (sizes and pressures)
can be found on a label attached to the
driver’s side center pillar. Underinflation also results in
excessive wear, poor handling and
reduced fuel economy. Wheel
deformation also is possible. Keep
your tire pressures at the proper
levels. If a tire frequently needs
refilling, have it checked by an
authorized K900 Kia dealer.
Overinflation produces a harsh ride, excessive wear at the center
of the tire tread, and a greater pos-
sibility of damage from road haz-
ards. OKH073078N
Tire underinflation
Inflate your tire consistent with
the instructions provided in this
manual. Severe under inflation
can lead to severe heat buildup,
causing blowouts, tread separa-
tion and other tire failures that
can result in the loss of vehicle
control. This risk is much higher
on hot days and when driving
for long periods at high speeds.
WARNING
KH USA 7:2016 12/1/2016 11:20 PM Page 54
