KIA NIRO 2017 Navigation System Quick Reference Guide
Manufacturer: KIA, Model Year: 2017, Model line: NIRO, Model: KIA NIRO 2017Pages: 92, PDF Size: 2.77 MB
Page 21 of 92
18
FeaturesDescription
Scan
Plays all receivable channels for 10 seconds each.
Direct Tune Used to search for channels by entering channel numbers.
CategoryIf you press Category, when search channels through SEEK,
Tune and Scan, search it in the current category.
Category
Selection
Buttons Used to select the previous/next category.
Weak Signal
Displays the weak radio reception.
Play LivePlays live broadcast mode.
Skip BackwardRepeats the previously broadcasted program.
• Holding for less than 0.8 seconds: Moves to the previous
segment
• Holding for more than 0.8 seconds: Moves to the previous 5 seconds
Play/Pause Pauses/plays the current broadcasting program.
Skip ForwardMoves to the next segment.
ListDisplays SiriusXM™ Radio Categories/Channel Lists
MenuWhat’s on My Preset?
The program schedule saved in my preset. (For more details,
see Section 2.5. Viewing Menu.)
• Featured Favorite
Theme channels recommended by SiriusXM™. (For more
details, see Section 2.5. Viewing Menu.)
• Preset Scan
Plays preset frequencies for 5 seconds each.
SiriusXM™
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 22 of 92
19
FeaturesDescription
SEEK/TRACK• When pressed quickly (less than 0.8 seconds),
Plays the previous/next channel
• When pressed and held down (more than 0.8 seconds),
Continuously changes the channel until the key is released and
plays the current channel
TUNE
Changes the channel
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 23 of 92
20
USB
USB Music Mode Display Controls
FeaturesDescription
Mode
Displays the current operating mode
File IndexShows the current file/total files within the USB
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the currently operating
function
Play Time
Displays the current play time/total play time
Song InfoDisplays the information of the current track
• When a track in the file tab on the list screen is selected:
Displays folder, file, title, artist, album info
• When a track in the other tabs on the list screen is selected: Displays artist, title, album info
List Moves to the list screen
Previous File If button is pressed (less than 0.8 seconds): Moves to the previous file
or play the current file from the beginning (Depends on the play time)
• If play time is less than 3 seconds, moves to previous file
• If play time is more than 3 seconds, play the current file from
the beginning
If button is pressed (more than 0.8 seconds): It rewinds the track
Play/Pause Plays/pauses the current file
Next File• If button is pressed (less than 0.8 seconds): Moves to the next file
• If button is pressed (more than 0.8 seconds): It fast-forwards
the track
Repeat Repeats the current file
• Select the song in the file tab on the list screen: Select the
Repeat button to switch between repeating one song ,
repeating folder , and turning repeat off
• Select the song in the other tabs (Playlist, Artist, Song, Album, Genre) on the list screen: Select the
Repeat button to switch
between repeating one song and turning repeat off
Back Button Converts to basic mode screen
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 24 of 92
21
FeaturesDescription
ShufflePlays files in random order
• Select the song in the file tab on the list screen: Select the
Shuffle button to switch between Shuffle Folder , Shuffle
All , and turning shuffle off
• Select the song in the other tabs (Playlist, Artist, Song, Album, Genre) on the list screen: Select the
Shuffle but-
ton to switch between Shuffle Category and turning shuffle
off
Scan Scans the beginning parts of USB files (approx. 10 seconds per file)
• Select the song in the file tab on the list screen: Select the
Scan button to switch between Scan Folder , Scan All , and turning scan off
• Select the song in the other tabs (Playlist, Artist, Song, Album, Genre) on the list screen: Select the
Scan button to switch
between Scan category and turning scan off
Menu • Add to Playlist: Add the current track to the Playlist: Playlist is
placed on the left tab in the list
• Save to My Music: You can save the current track to My Music. You can play saved track from My Music without USB. Access to
My Music in the Media mode.
TUNE Turn the
TUNE
knob to search a desired track. If the desired
track is displayed, press the
TUNE knob to play the track.
If the TUNE
knob is not pressed within 5 seconds of search-
ing tracks, the track info for the current track is restored.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 25 of 92
22
USB
USB Image Mode Display Controls
FeaturesDescription
Mode
Displays the current operating mode
Folder/File
Name Displays folder name where image is located
File Index
Shows the current file/total files within the USB
Slideshow Images as slideshow in 5, 10, 20, 30 second intervals
Rotate Rotate image in clockwise direction
InfoShows the file name, resolution and file type of current image
Adjust Image
Size Enlarge/reduce (zoom-in/zoom-out) image size
List
Moves to the list screen
Previous/
Next Image Swipe image left or right to see previous/next image
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 26 of 92
23

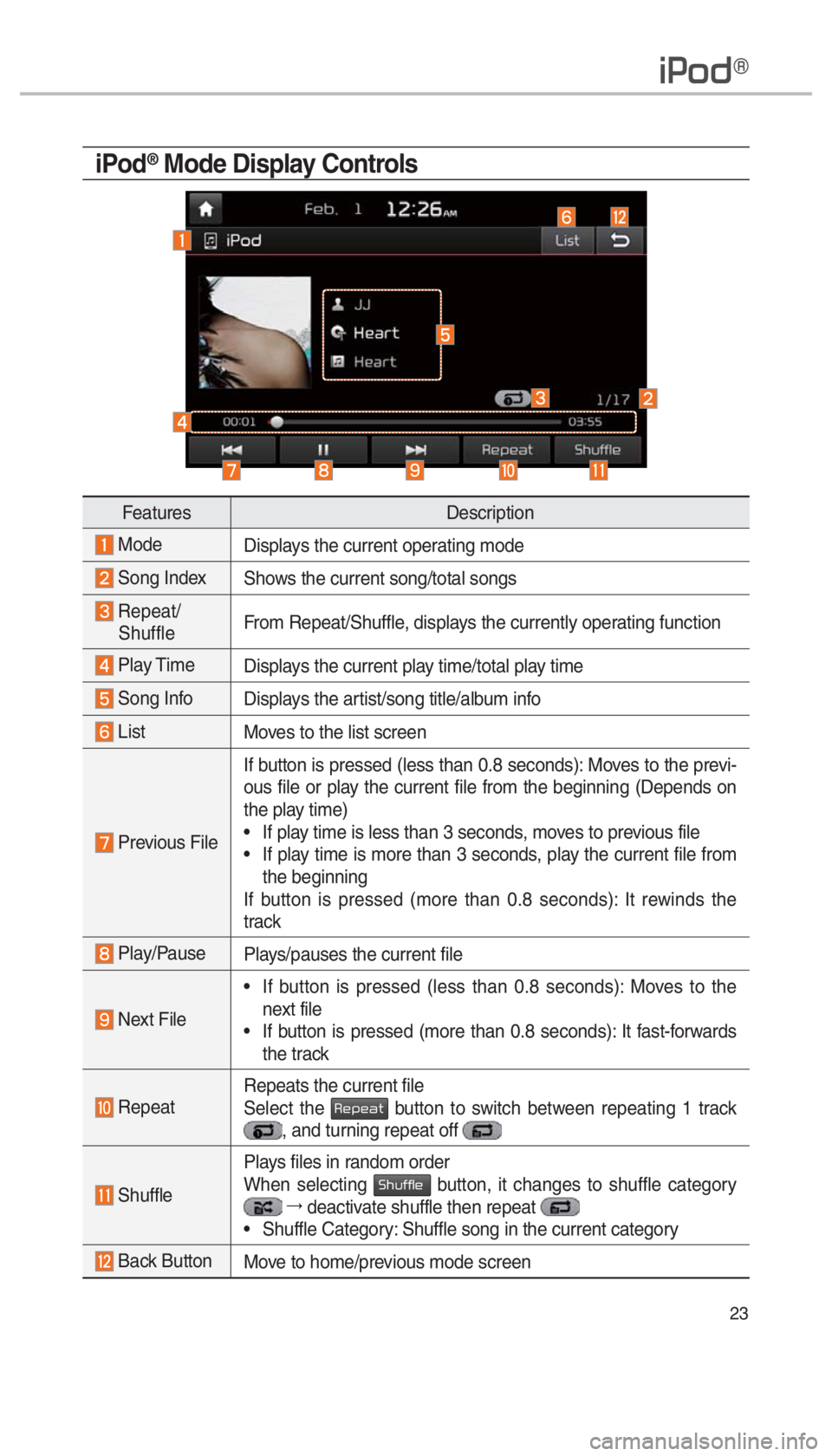

iPod® Mode Display Controls
FeaturesDescription
Mode
Displays the current operating mode
Song IndexShows the current song/total songs
Repeat/
Shuffle From Repeat/Shuffle, displays the currently operating function
Play Time
Displays the current play time/total play time
Song InfoDisplays the artist/song title/album info
ListMoves to the list screen
Previous File If button is pressed (less than 0.8 seconds): Moves to the previ-
ous file or play the current file from the beginning (Depends on
the play time)
• If play time is less than 3 seconds, moves to previous file
• If play time is more than 3 seconds, play the current file from
the beginning
If button is pressed (more than 0.8 seconds): It rewinds the
track
Play/Pause Plays/pauses the current file
Next File• If button is pressed (less than 0.8 seconds): Moves to the
next file
• If button is pressed (more than 0.8 seconds): It fast-forwards the track
Repeat Repeats the current file
Select the Repeat button to switch between repeating 1 track , and turning repeat off
ShufflePlays files in random order
When selecting Shuffle button, it changes to shuffle category
→
deactivate shuffle then repeat • Shuffle Category: Shuffle song in the current category
Back Button Move to home/previous mode screen
iPod®
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 27 of 92
24
FeaturesDescription
TUNETurn the
TUNE
knob to search a desired track. If the
desired track is displayed, press the TUNE
knob to play the
track.
If the TUNE
knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is
restored.
NOTICE
• For USB media or iPod music, the USB/iPod cable must be plugged in to the USB port
in the front m
ultibox. The USB port in the center storage console is for charging only.
iPod®
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 28 of 92
25
Features Description
Back Button Move to home/previous
mode screen
i
Information
• SEEK TRACK key, TUNE
is not
supported.
NOTICE
• If only cable connected to the AUX
without an e
xternal device, the mode
changed to AUX, but noise may occur.
When an external device is not being
used, remove the connector jack.
• When the external device power is
connected to the po
wer jack, playing
the external device may output noise.
In such cases, disconnect the power
connection before use.
※ The actual feature in the vehicle
may differ from the illustration.
AUX
Connecting an
External Device
If an external device connector is
connected with the AUX terminal,
then AUX mode will automatically
operate. Once the connector is dis-
connected, the previous mode will
be restored.
• AUX mode can be used only when an external audio player has been
connected.
• The AUX volume can also be controlled separately through the
connected device.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 29 of 92
26
Bluetooth® Audio Mode Display Controls
i Information
• Artist info and Title may not be supported by mobile phone.
Bluetooth® Audio
Features Description
Mode
Displays the current operating mode
Phone Name Displays name of connected phone
Artist InfoName of current artist
TitleName of current song
Previous File• If play time is less than 3 seconds, moves to the previous file
• If play time is more than 3 seconds, plays the current file
from the beginning
This function may differ depending on the model of mobile phone.
Play/Pause Plays/Pauses Bluetooth Audio
Next FileMoves to the next file
RepeatRepeats the current file This function may differ depending on the model of mobile
phone.
Shuffle Plays files in random order This function may differ depending on the model of mobile
phone.
Connections Moves to the Bluetooth Settings screen. You can pair a new
device or change/delete paired device(s)
SEEK/TRACK Plays the previous/next file
TUNE
TUNE
is not supported.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 30 of 92
27
My Music
My Music Mode Display Controls
FeaturesDescription
Mode
Displays the current operating mode
File IndexShows the current file/total files
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the currently operating
function
Play Time
Displays the current play time/total play time
Song InfoDisplays the information about the current track
• When a track in the file tab on the list screen is selected:
Displays file, artist, title, album info
• When a track in the other tab on the list screen is selected: Displays artist, title, album info
List Moves to the list screen
Previous File If button is pressed (less than 0.8 seconds): Moves to the previ-
ous file or play the current file from the beginning (Depends on
the play time)
• If play time is less than 3 seconds, moves to previous file
• If play time is more than 3 seconds, play the current file from
the beginning
If button is pressed (more than 0.8 seconds): It rewinds the track
Play/Pause Plays/pauses the current file
Next File • If button is pressed (less than 0.8 seconds): Moves to the next file
• If button is pressed (more than 0.8 seconds): It fast-forwards
the track
Repeat Repeats the current file
• If select the song in the file tab on the list screen: Select the
Repeat button to switch between repeating one song
and turning repeat off.
• If select the song in the other tabs (Playlist, Artist, Song, Album, Genre) on the list screen: Select the
Repeat button to switch
between repeating one song and turning repeat off
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
