KIA NIRO 2017 Navigation System Quick Reference Guide
Manufacturer: KIA, Model Year: 2017, Model line: NIRO, Model: KIA NIRO 2017Pages: 92, PDF Size: 2.77 MB
Page 41 of 92
38
Voice Recognition
Voice Commands
Types of Commands
Voice recognition commands are classified as “Global Commands” and “Local
Commands”.
1. Global Commands (●
): Commands that can be used immediately after acti-
vating voice recognition.
2. Local Commands ( ○
): Commands that can be used when a multimedia,
navigation, or Bluetooth call is running, or displayed on the screen, after
activating voice recognition.
Call Commands
* Check the following before using call commands:
1. Voice commands related to phone calls can be used after connecting the
Bluetooth device.
2. To call a person, for example “Call
Contacts, you must first download the Contacts list. For details on down-
loading contacts, see “Part 4. Bluetooth
® > Chapter 3. Bluetooth® Phone >
4.10 Contacts”.
3. After downloading the Bluetooth contacts, it will take some time to convert
the Contacts into voice data during which time you cannot make a call by
name yet. The time takes to convert voice data may vary depending on the
number of Contacts downloaded.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 42 of 92
39
CommandOperation
●CallDisplays downloaded Contacts, after this you can make a
call by saying the name.
●Call
loaded Contacts.
●Call
on MobileYou can call a person directly
saved as "Mobile" in the downloaded Contacts.
e.g.) Call “John Smith” on Mobile
●Call
at WorkYou can call a person directly
saved as “Work” in the downloaded Contacts.
e.g.) Call “John Smith” at Work
●Call
at HomeYou can call a person directly
saved as “Home” in the downloaded Contacts.
e.g.) Call “John Smith” at Home
●Call
on OtherYou can call a person directly
saved as other than “Mobile, Home, or Office” in the down-
loaded Contacts.
e.g.) Call “John Smith” on Other
●Dial Number
Displays a screen where you can say a phone number to
dial.
●Dial
e.g.) Dial 111 555 1234
●Redial Directly calls at the number that you last dialed.
●Call History
Displays your Call History, where you can say the list num-
ber to make a call.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 43 of 92
40
Voice Recognition
Navigation Commands
* Check the following before you use navigation commands:
1. Search for and find addresses located in the state or province your car is currently in.
If you want to search in another state, say the name of state/province and then look it up.
Find Address is classified by states/provinces to provide you with faster service.
2. Some commands such as “Cancel Route” are available only when the des- tination is fixed.
Command Operation
●Find Address
in
tion.
e.g.) Find Address in California
• To find an address, you should say “House Number →
Street →
City”.
e.g.) 300 (Three Zero Zero) Main Street, Almond
●Find Address Finds the address and sets it as the destination.
●Find POI Find the points of interest. After this command, you can
find the name of a location step-by-step.
●Find
see “Find
e.g.) Find “Banks”
●Map
Moves to the current position on the navigation map
●Previous
PointsDisplays a list combining Previous Destinations, Previous
Searches, and Previous Starting Points all together.
You can then set a destination by saying the list number.
●Previous
Destinations
Displays a list of recent destinations that you can return to
by saying the number in the list.
●Previous
SearchesDisplays a list of recent searches, where you can set a
destination by saying the number in the list.
●Previous
Starting PointsDisplays a list of recent starting points that you can return
to by saying the number in the list.
●Traffic
Information
Moves to the Traffic Information menu screen.
●Go HomeSet the destination to your home.
Your home must first be set in the Navigation system.
●Go to OfficeSet the destination to your office/work.
Your office/work must first be set in the navigation system.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 44 of 92
41
CommandOperation
●Turn Guidance On Turns on the voice guidance system.
●Turn Guidance Off Turns off the voice guidance system.
●Zoom All the Way
OutZooms out from the navigation map to the fullest.
●Zoom All the Way In
Zooms in on the navigation map to the fullest.
●Cancel RouteCancels the route to the fixed destination and exits
guidance.
●Destination
InformationTells you the remaining distance and time to your des-
tination.
●Route Options
Restarts the route to your destination.You can then
select either “Faster Time” or “Shorter Distance”.
●Find Faster Time
RouteStarts a new route to your destination that will take the
least amount of time.
●Find Shorter
Distance RouteStarts a new route to your destination that will use the
shortest distance.
●Emergency
ServicesDisplays a list of nearest Police Station, Hospital,
Dealership, or Road Assistance.
You can then set a destination by saying the list number.
●Police Station
Displays a list of the nearest police stations.
You can then set a destination by saying the list number.
●HospitalDisplays a list of the nearest hospitals.
You can then set a destination by saying the list number.
●DealershipDisplays a list of the nearest car dealerships.
You can then set a destination by saying the list num-
ber.
●Road AssistanceDisplays a list of the nearest road assistance loca-
tions.
You can then set a destination by saying the list number.
●Show Route
Displays a map overview of the entire route to your
destination.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1

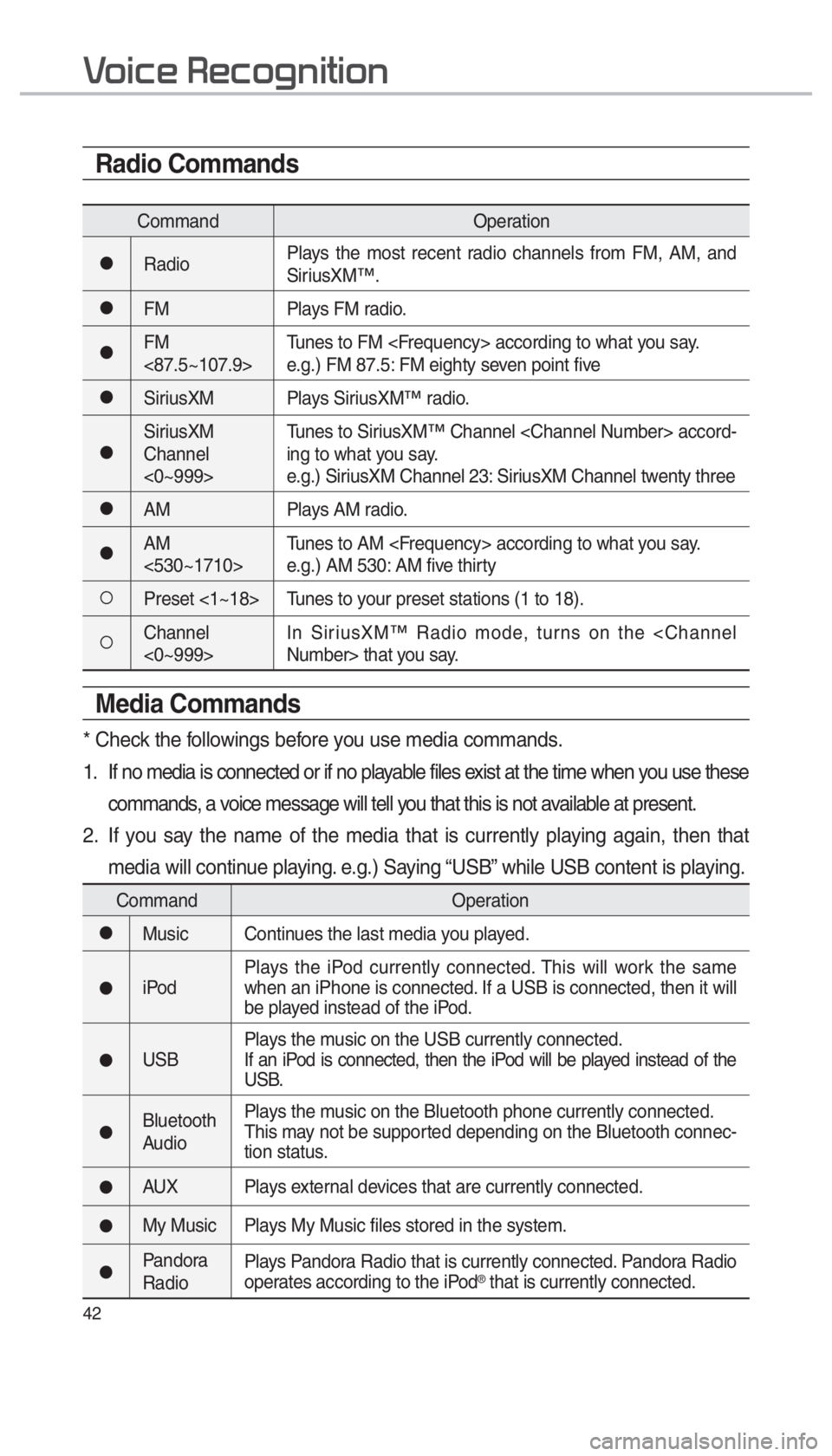

Page 45 of 92
42
Voice Recognition
Radio Commands
CommandOperation
●RadioPlays the most recent radio channels from FM, AM, and
SiriusXM™.
●FM
Plays FM radio.
●FM
<87.5~107.9>Tunes to FM
e.g.) FM 87.5: FM eighty seven point five
●SiriusXM Plays SiriusXM™ radio.
●SiriusXM
Channel
<0~999>Tunes to SiriusXM™ Channel
ing to what you say.
e.g.) SiriusXM Channel 23: SiriusXM Channel twenty three
●AM
Plays AM radio.
●AM
<530~1710>Tunes to AM
e.g.) AM 530: AM five thirty
○Preset <1~18> Tunes to your preset stations (1 to 18).
○Channel
<0~999>In SiriusXM™ Radio mode, turns on the
Media Commands
* Check the followings before you use media commands.
1. If no media is connected or if no playable files exist at the time when you use these
commands, a voice message will tell you that this is not available at present.
2. If you say the name of the media that is currently playing again, then that media will continue playing. e.g.) Saying “USB” while USB content is playing.
Command Operation
●Music Continues the last media you played.
●iPodPlays the iPod currently connected. This will work the same
when an iPhone is connected. If a USB is connected, then it will
be played instead of the iPod.
●USBPlays the music on the USB currently connected.
If an iPod is connected, then the iPod will be played instead of the
USB.
●Bluetooth
AudioPlays the music on the Bluetooth phone currently connected.
This may not be supported depending on the Bluetooth connec-
tion status.
●AUX Plays external devices that are currently connected.
●My Music Plays My Music files stored in the system.
●Pandora
Radio
Plays Pandora Radio that is currently connected. Pandora Radio
operates according to the iPod® that is currently connected.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 46 of 92
43
1. USB Music/iPod/My Music Command
CommandOperation
○PlayPlays a selected file.
Maintains the current settings during playback.
○PausePauses a file that is playing.
Maintains current settings while paused during playback.
○ShufflePlays files randomly.
Maintains current settings during shuffled playback.
○Shuffle OffCancels Shuffle and plays files sequentially.
Maintains current settings during sequential playback.
○RepeatPlays the current file repeatedly.
Maintains the current settings during repeat playback.
○Repeat OffCancels Repeat and plays multiple files.
Maintains current settings during multiple files playback.
2. Pandora Radio Command
Command
Operation
○SkipMoves to the next track.
○Thumbs upIf you like the genre of the music currently playing, say
“Thumbs up” so that more similar music will play.
○Thumbs downIf you don’t like the music currently playing, say “Thumbs
down” to minimize the number of playbacks of similar
genre music.
3. Bluetooth Audio/AUX Command
• Bluetooth Audio supports different functions according to connected devices,
therefore some commands are unavailable, including Play, Stop, Previous
Song, and Next Song.
• For external devices (AUX) and some commands are unavailable, including Play, Stop, Previous, and Next.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 47 of 92
44
Voice Recognition
UVO eServices Commands List
CommandOperation
●Roadside Assist Connect with a Roadside Assist agent.
●Vehicle
DiagnosticsInforms you if diagnostic issues are found in your vehicle
●My POIsDisplays Points of Interest list which were downloaded
from Google Maps and MyUVO
●eService Guide Provides guidance on how to use UVO eServices
Other Commands List (Commands used in List/Help)
Command
Operation
●HelpMoves to the voice recognition help screen.
All available commands can then be identified and used.
○Line 1~5
(One~Five)When you cannot select a certain name, such as in Call
History, you can select it using numbers.
Simple numbers can be recognized, such as “One” or
“Two”.
○Yes/No
When voice recognition is activated, this command is
used when an answer is requested for a confirmation
question.
○Previous Page/
Next PageWhen five or more searched items are listed, you can
move to the previous or next page using a voice com-
mand.
○Manual InputWhen Dial or POI Name search results are displayed,
this command is used to search manually, rather than to
search with a voice command.
Voice recognition stops after this command is used.
○Go Back
Moves to the previous screen.
●ExitEnds the voice recognition.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 48 of 92
45
Siri Eyes Free
How to start Siri
If you want to use Siri, you have to
connect your iOS device to multime-
dia system through Bluetooth.
(Please check whether your iOS
device supports Siri and turning Siri
On)
Then you can use Siri while pressing
and holding
key on the
steering wheel control.
How to use Siri
When you access the Siri screen
while pressing and holding
key on the steering wheel control,
you can press
Speak button and
then you can speak what you want.
Note that the Multimedia system
only supports “Phone” related func-
tions. Other functions will be per-
formed in your iOS device. If you
press voice key quickly, Siri would
re-start. If you hold down voice key,
Siri would be terminated and the
screen would go back to the previ-
ous screen. Eyes-Free mode would
be activated automatically while you
are driving. When shifting gears into
P or putting the Parking brake on,
Eyes-Free mode would be deacti-
vated automatically.
i Information
•
Functions and feedbacks from voice
commands via Sir
i are executed in
the iOS device. If the iOS version is
changed, the functions and response
may be different according to the iOS
device and the latest version.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 49 of 92
46
To listen to Pandora Radio by connecting a smartphone, app should be
installed on your phone.
From the Home screen, select All Menus then select Pandora button.
Pandora Radio Mode Screen Controls
Pandora Radio
NameDescription
Mode Displays the current operating mode.
Artist Info Shows the artist information current playing.
Track Info Shows the title information current playing.
Play Time Displays the current play time.
Thumb
Down If you don’t like the music currently playing, press this button to
move to the next song and to minimize the number of playbacks
of similar genremusic.
You can move to next song up to specific times which pandora
allows.
Thumb up If you like the genre of the music currently playing, press this
button to send a “Thumbs Up” signal to Pandora so that more
similar music will play.
Play/Pause Plays/pauses the current song
Skip Moves to the next track
You can move to next song up to specific times which pandora
allows.
Station Moves to the station list screen.
Menu • Bookmark Track
Adds the music currently playing to the bookmarks list.
• Bookmark Artist Adds the artist of the music current playing to the bookmarks list. You can view your bookmarked artists and songs from your
Pandora profile online. Go to pandora.com, then click on the
“Your Profile” button above the player. That will bring up a page
with your stations, bookmarked artists, and bookmarked songs.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 50 of 92
47
With Download Center, you can
install paid/free applications or check
for related information. Only UVO
center verified applications can be
installed.
You can use Download Center after
agreeing to the User Agreement and
Privacy Policy. (Only 1 time for initial
launch)
Apps List
Select All Menus or My Menu from Home
screen ▶
UVO Apps ▶
followed by
Download Center and then ▶
Apps List.
Download Center
Name Description
Application
Download
and Run
buttons Button state
changes according
to the application
state.
DownloadDownloads free
applications.
PurchaseDownloads paid
applications.
Re-download
Downloads deleted
applications after
previously installing
them.
Retry
Downloads the
applications that
failed to download
due to network or
system errors.
RunRuns installed
applications.
CancelCancels any down-
loads and updates.
Menu
Updates and
refreshes the menu.
Update
After installation, it
shows applications
requiring updates.
The update
screen shows the
Update All button
to update all appli-
cations that need
updates.
RefreshRefreshes the app
list status.
Detailed
Information When the appli-
cation list area is
pressed, it moves
to the Detailed
Information screen.
Preview
Displays applica-
tion images.
InformationDisplays applica-
tion information.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
