KIA NIRO 2017 Navigation System Quick Reference Guide
Manufacturer: KIA, Model Year: 2017, Model line: NIRO, Model: KIA NIRO 2017Pages: 92, PDF Size: 2.77 MB
Page 61 of 92

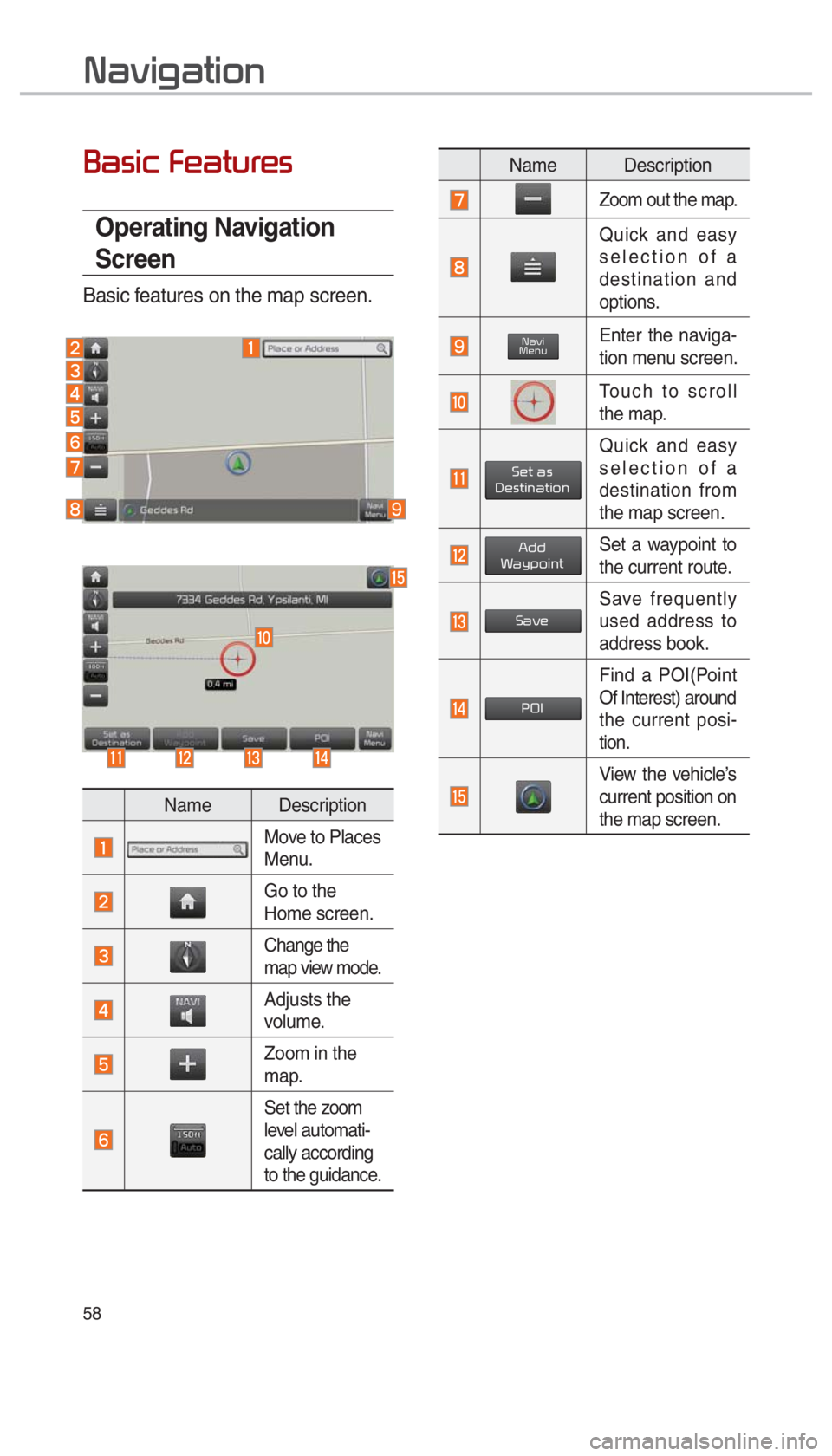

58
Basic Features
Operating Navigation
Screen
Basic features on the map screen.
Name Description
Move to Places
Menu.
Go to the
Home screen.
Change the
map view mode.
Adjusts the
volume.
Zoom in the
map.
Set the zoom
level automati-
cally according
to the guidance.
Name Description
Zoom out the map.
Quick and easy
selection of a
destination and
options.
NaviMenuEnter the naviga-
tion menu screen.
Touch to scroll
the map.
Set asDestination
Quick and easy
selection of a
destination from
the map screen.
AddWaypointSet a waypoint to
the current route.
SaveSave frequently
used address to
address book.
POI
Find a POI(Point
Of Interest) around
the current posi-
tion.
View the vehicle’s
current position on
the map screen.
Navigation
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 62 of 92
59
Places
You can use this menu when the
gear is in “Parking” mode and there
is no destination set. Press the
Search screen to move to “Places”.
Please refer to “Places” in “Destination
Search” for more details.
Changing Map View
Touch the compass arrow icon to
toggle between a map oriented to
the North, oriented parallel to the
vehicle’s heading and 3D View.
Navigation Volume
Press the button to adjust the
navigation volume.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 63 of 92
60
Name Description
Set the volume to mute.
Turn the volume down.
Turn the volume up.
Slide to set the volume.
Sets the volume of voice
guidance louder than that
of audio.
Zoom In /Zoom Out
Zoom the map view screen in and
out.
Press or to set the zoom
level.
Map Scale
Set the zoom level automatically
according to the type of road.
Name Description
Scale Fix Manually adjust
the map scale.
Auto Scale Change the map
scale automatically
depending on the
type of road.
Navigation
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 64 of 92
61
Menu
Map Display
Displays the direction of the map.
Press
, or .
Name Description
North
Up (2D) Displays always
has north at the
top of screen.
Heading
Up (2D) Displays always
shows the vehicle’s
direction as pro-
ceeding towards the
top of the screen.
3D
Shows the map in
3 dimentions.
3D BuildingsShows or hides
buildings on the map.
POI
Select the button on the bottom
left of the screen ▶
Select the
POI
button.
View Nearby POIs
Press On, Off button to set
whether to show nearby POIs or not.
When categories are selected, they
will appear on the map. (ex. Gas
Stations)
The lists of nearby gas stations are
displayed.
The list can be sorted to display in
order of distance or name.
Name Description
Call to the
selected location
(Phone needs to
be connected via
Bluetooth).
Set as DestinationSet the place as a
destination.
AddWaypointSet the location
as a waypoint.
SaveSave the location.
POISearch nearby
POIs.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 65 of 92
62
Destination Search
Places
You can enter POI Name, Address or
Coordinates that you wish to search by.
Press the MAP
VOICE head unit key. ▶
Select the NaviMenu in the bottom of right of
the screen. ▶
Select the
Destination tab.
▶ Select the
Search Bar.
Enter the POI Name, Address and
Coordinates of the location you
want in the input window above, and
press the
Done button.
If you select a location from the
search result list, it will bring you to
the point.
If you press the Filter by City button
on the search result screen, it will
bring you to the City search screen
where you can filter the search
results by city names.
If you press the Filter by Category but-
ton from the search result screen, it
will bring you to the POI Categories
screen where you can filter the
search results by POI Categories.
Once the destination has been identified
either by POI name, address, or coordi-
nates, the map screen will be displayed.
From this screen you can set the desti-
nation or add a waypoint, or add the dis-
played destination to your address book.
Navigation
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 66 of 92
63
Address
Set destination by address search.
Press the
MAP
VOICE head unit key. ▶
Select the NaviMenu in the bottom of
right of the screen. ▶
Select the
Destination tab. ▶
Select the Address
icon.
How to Search Address
Search criteria can be entered
in any order. Example:
State
then
City then Street then
House No..
Name Description
Select state to search
Enter the house number. If
you don’t know the house
number, press the Skip
button.
Enter a street name. If
same street names exist
in other cities, the list of
cities will be displayed.
Select a city before entering
the street name. Addresses
are searched only from the
selected city.
Enter the address to check the loca-
tion information on the map.
Name Description
Set asDestinationSet the location as
a destination.
AddWaypointSet the location as
a waypoint.
SaveSave the location.
POISearch nearby
POIs.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 67 of 92
64
Previous Destinations
Select from previously inputted
addresses and POIs.
Press the
MAP
VOICE head unit key. ▶
Select the NaviMenu in the bottom of right
of the screen. ▶
Select the
Destination
tab. ▶
Select the
Previous Destinations
icon.
Arrange by all, latest destinations,
latest searched places and latest
departing places.
Arrange in order of date and time.
Name Description
All
Display all desti-
nations, depart-
ing places, and
searched places.
DestinationsDisplay previous
destination places
for route guidance.
Start PointsDisplay previous
departing places
for route guidance.
Searches
Display previously
searched places
for route guidance.
But, not dis-
played when
the searched
places are set
as destination.
Navigation
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 68 of 92
65
If one or more results are found, the
search results are displayed. Select
one of the search result.
Press the Set as Destination button to
start guidance.
Local Search
Press the MAP
VOICE head unit key. ▶
Select the NaviMenu in the bottom of right
of the screen. ▶
Select the
Destination
tab. ▶
Select the
Local Search icon.
Runs Google Local Search.
Enter the desired keywords and
press the
Done button.
Searching is in progress.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 69 of 92
66
POI Categories
Press the MAP
VOICE head unit key. ▶
Select the NaviMenu in the bottom of right
of the screen. ▶
Select the
Destination
tab. ▶
Select the
POI Categories icon.
Select the desired item.
Select the desired item in the
sub-categories.
Name Description
Select the desired destina-
tion among the searched
items and add it as a way
point.
Arrange in order of Distance
and Name.
Arrange in order of Near
Current Position, Near
Destination, Along Route,
Near Scroll Mark and Near
City Center.
Gas Stations
Search for gas stations.
Press the MAP
VOICE head unit key. ▶
Select the NaviMenu in the bottom of right
of the screen. ▶
Select the
Destination
tab. ▶
Select the
Gas Stations icon.
Navigation
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 70 of 92
67
Select the desired destinations
among the search items.
Restaurants
Search restaurants.
Press the MAP
VOICE head unit key. ▶
Select the NaviMenu in the bottom of right
of the screen. ▶
Select the
Destination
tab. ▶
Select the
Restaurants icon.
Select the desired destination
among the searched items.
Emergency
Search emergency facilities.
Press the MAP
VOICE head unit key. ▶
Select the NaviMenu in the bottom of right
of the screen. ▶
Select the
Destination
tab. ▶
Select the
Emergency icon.
Check the current location informa-
tion and select the desired item in
the sub menu (ex. Police Stations)
Select the desired destination
among the searched items.
