KIA NIRO 2017 Navigation System Quick Reference Guide
Manufacturer: KIA, Model Year: 2017, Model line: NIRO, Model: KIA NIRO 2017Pages: 92, PDF Size: 2.77 MB
Page 31 of 92
28
FeaturesDescription
ShufflePlays files in random order
• Select the song in the file tab on the list screen: Select the
Shuffle button to switch between shuffle and turning
shuffle off
• Select the song in the other tabs (Playlist, Artist, Song, Album, Genre) on the list screen: Select the
Shuffle button
to switch between shuffle and turning shuffle off
Scan Scans the beginning parts of USB files (approx. 10 seconds
per file)
• Select the song in the file tab on the list screen: Select the Scan button to switch between scan and turning
scan off
• Select the song in the other tabs (Playlist, Artist, Song, Album, Genre) on the list screen: Select the
Scan button
to switch between scan and turning scan off
Menu • Add to Playlist: Adds the current song to the Playlist: Playlist
is placed on the left tab in the list
• Delete Current File: Deletes the current track from My Music.
TUNE Turn the
TUNE knob to search a desired track. If the desired
track is displayed, press the TUNE knob to play the track.
If the TUNE knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is restored.
My Music
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 32 of 92
29
Bluetooth®
Bluetooth®
Connection
Pairing a New Device
Before you can use the Bluetooth
feature, you must first pair/connect
your mobile phone to your car.
Up to 5 Bluetooth devices can be
paired.
Only one Bluetooth device can be
connected at a time.
Pairing a New Device by Selecting
Phone/Call
Press the PHONE key in the head
unit or
key in the steering
wheel control. ▶
Pair your car after
your mobile phone detects the
Bluetooth device. ▶
Enter the pass-
key or accept the authorization
popup. ▶
Connect Bluetooth.
Pairing a New Device Through the
Phone Settings
Press the SETUP key in the head
unit. ▶
Select
Bluetooth. ▶
Select
Bluetooth Connection. ▶
Select Add New.
▶ Pair your car after your mobile
phone detects the Bluetooth device.
▶ Enter the passkey or accept the
authorization popup. ▶
Connect
Bluetooth.
The default passkey is 0000.
The Vehicle Name above is an
example. Check the actual informa-
tion on the product.
Connecting
Bluetooth
® Devices
Connects the Bluetooth devices that
you add.
Connecting Devices by Selecting
Phone/Call
Press the PHONE key in the head
unit or
key in the steering
wheel control. ▶
Select the name of
the device to connect. ▶
Connect
Bluetooth.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 33 of 92
30
Bluetooth®

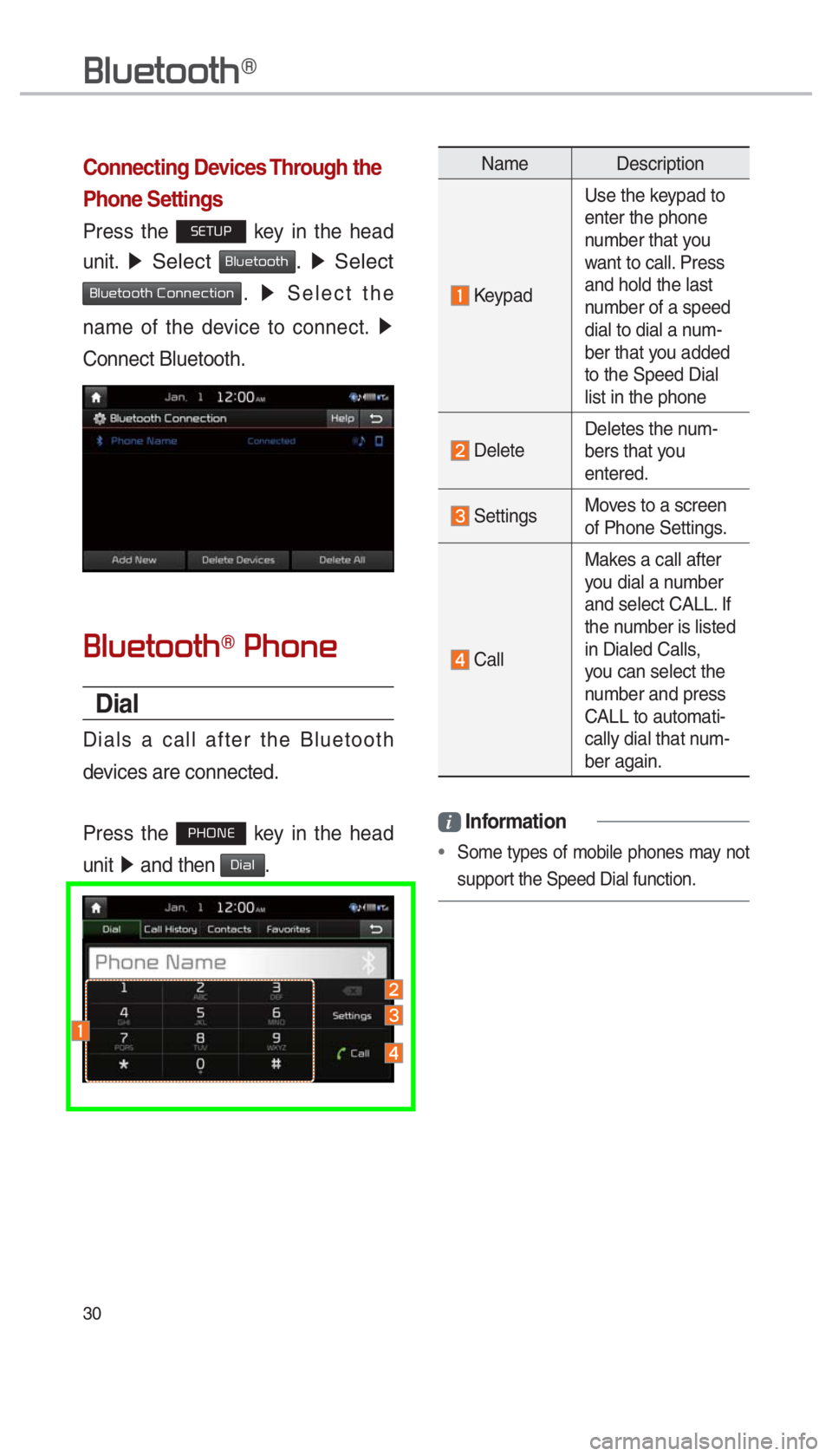

Connecting Devices Through the
Phone Settings
Press the SETUP key in the head
unit.
▶ Select Bluetooth. ▶
Select
Bluetooth Connection. ▶
Select the
name of the device to connect. ▶
Connect Bluetooth.
Bluetooth® Phone
Dial
Dials a call after the Bluetooth
devices are connected.
Press the
PHONE key in the head
unit ▶
and then
Dial.
Name Description
Keypad Use the keypad to
enter the phone
number that you
want to call. Press
and hold the last
number of a speed
dial to dial a num-
ber that you added
to the Speed Dial
list in the phone
Delete
Deletes the num-
bers that you
entered.
Settings
Moves to a screen
of Phone Settings.
CallMakes a call after
you dial a number
and select CALL. If
the number is listed
in Dialed Calls,
you can select the
number and press
CALL to automati-
cally dial that num-
ber again.
i
Information
•
Some types of mobile phones may not
suppor
t the Speed Dial function.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 34 of 92
31

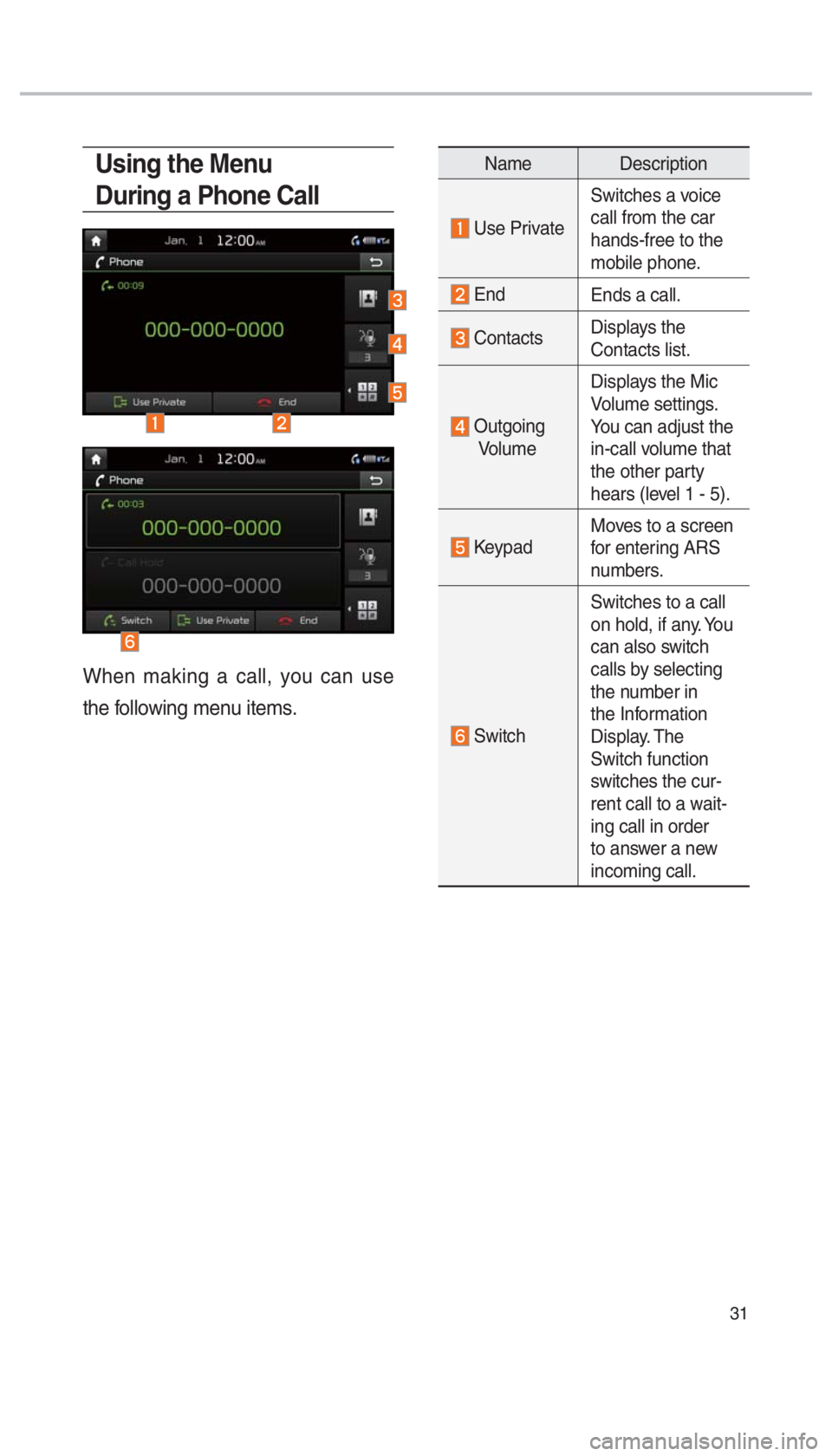

Using the Menu
During a Phone Call
When making a call, you can use
the following menu items.
Name Description
Use PrivateSwitches a voice
call from the car
hands-free to the
mobile phone.
End
Ends a call.
Contacts Displays the
Contacts list.
Outgoing
Volume Displays the Mic
Volume settings.
You can adjust the
in-call volume that
the other party
hears (level 1 - 5).
Keypad
Moves to a screen
for entering ARS
numbers.
SwitchSwitches to a call
on hold, if any. You
can also switch
calls by selecting
the number in
the Information
Display. The
Switch function
switches the cur-
rent call to a wait-
ing call in order
to answer a new
incoming call.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 35 of 92
32
Bluetooth®
Call History
Press the PHONE key in the head
unit ▶
and then
Call History.
Name Description
All Lists the all call his-
tory.
Dialed
Lists the calls that
you made.
ReceivedLists the calls that
you have received.
Missed Lists the calls you
missed.
Call
History Displays all of your
call history. Select
from the list to dial
the number.
Download
Downloads the call
history information
from your mobile
phone.
Contacts
Press the PHONE key in the head
unit ▶
and then
Contacts.
Name Description
Contacts
List The list of Contacts.
Select from the list
to dial the number.
Download
Downloads contacts
from your mobile
phone.
Search
Searches Contacts.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 36 of 92
33
Favorites
Press the PHONE key in the head
unit ▶
and then
Favorites.
Name Description
Favorites Lists the phone
numbers saved as
Favorites. Select
from the list to dial
the number.
Add New
Adds a new number
to Favorites.
Delete
Items Deletes numbers
that you select from
Favorites.
Delete All
Deletes all of the
numbers from
Favorites.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 37 of 92
34
Recommendations
Required for
Successful Voice
Recognition
1. Voice recognition supports only
the commands that are displayed
on the screen and written in the
User’s Guide.
2. To ensure the correct recognition
and execution of your command,
say your command when you hear
the beep after a voice prompt.
3. Voice recognition automatically
ends if: 1) A call is incoming or outgoing
2) A media device (USB or iPod,
etc.) is connected or discon-
nected
3) The front or rear view camera is
operated (optional)
4) The car engine starts or stops
5) A system key, such as
RADIO
or
MEDIA is selected
6) An emergency occurs, for
example re-searching for the
route after the navigation route
has been lost
4. The microphone used for the
voice recognition system is
located in the headliner directly
above the driver’s head. To make
your commands better under-
stood, keep your body straight in
the driver’s seat when speaking
the command. 5.
Speaking naturally and clearly will
ensure better recognition of your
voice commands.
6. In the following cases voice rec-
ognition will be affected by ambi-
ent noise.
1) The sound of the wind if any
window or the sun roof is open.
2) A strong wind blowing from the
air vents. Set climate control to
blow softer than level 3.
3) Vibrations from passing through
a tunnel.
4) Vibrations from driving on an
uneven road.
5) Storms and heavy rain.
Voice Recognition
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 38 of 92
35

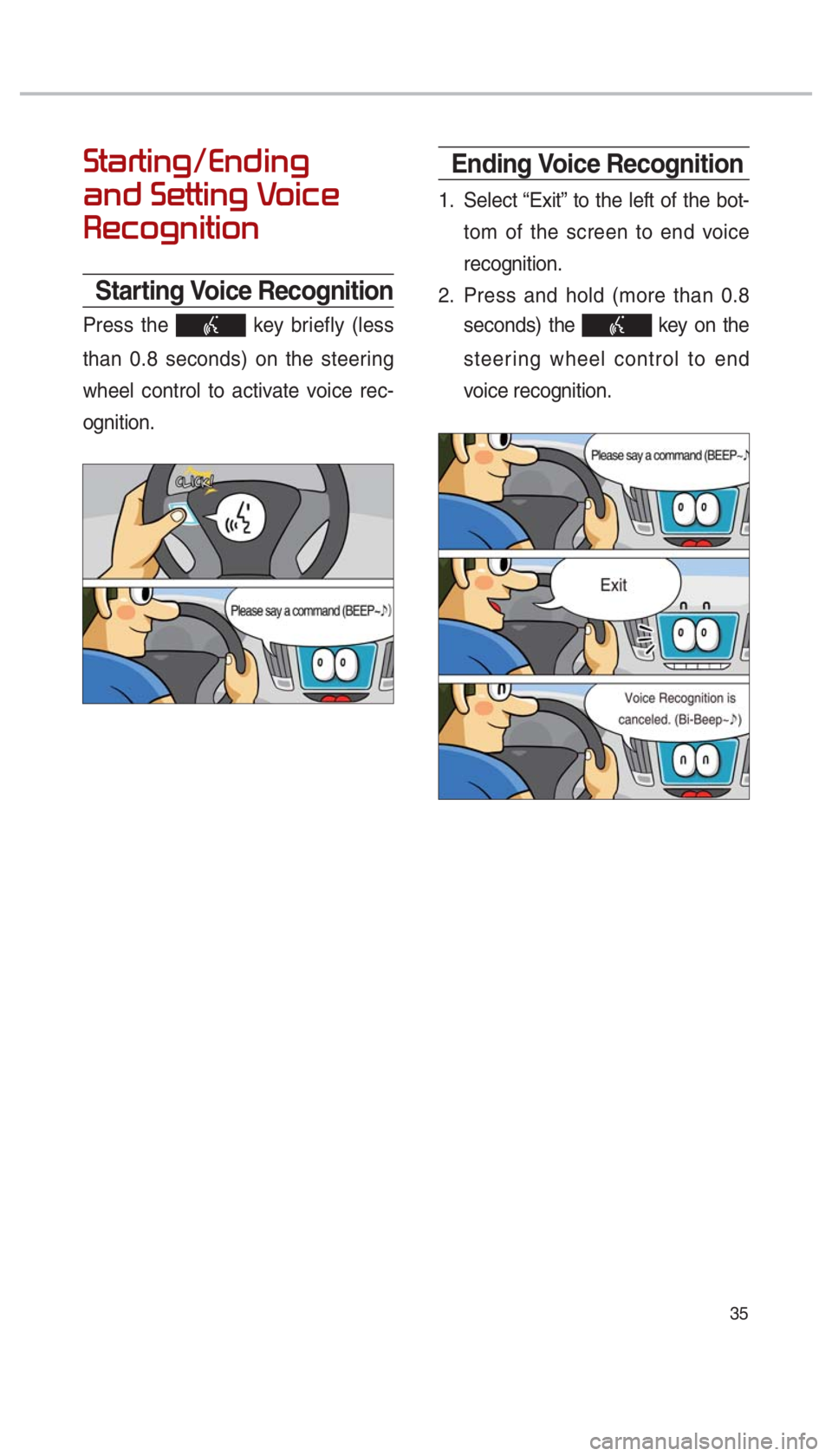

Starting/Ending
and Setting Voice
Recognition
Starting Voice Recognition
Press the key briefly (less
than 0.8 seconds) on the steering
wheel control to activate voice rec-
ognition.
Ending Voice Recognition
1. Select “Exit” to the left of the bot- tom of the screen to end voice
recognition.
2. Press and hold (more than 0.8 seconds) the
key on the
steering wheel control to end
voice recognition.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 39 of 92
36
Voice Recognition

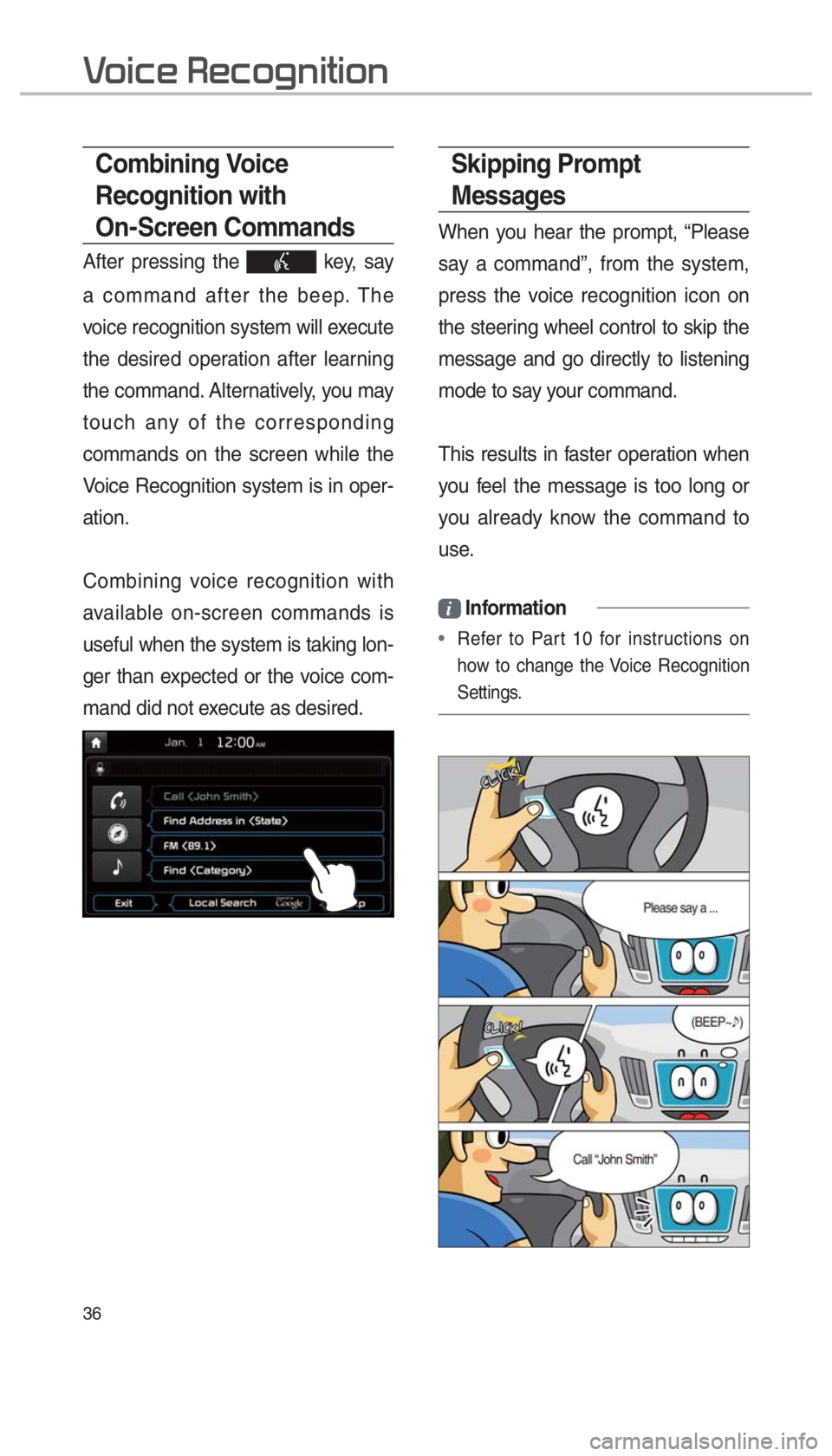

Skipping Prompt
Messages
When you hear the prompt, “Please
say a command”, from the system,
press the voice recognition icon on
the steering wheel control to skip the
message and go directly to listening
mode to say your command.
This results in faster operation when
you feel the message is too long or
you already know the command to
use.
i Information
•
Refer to Part 10 for instructions on
ho
w to change the Voice Recognition
Settings.
Combining Voice
Recognition with
On-Screen Commands
After pressing the key, say
a command after the beep. The
voice recognition system will execute
the desired operation after learning
the command. Alternatively, you may
touch any of the corresponding
commands on the screen while the
Voice Recognition system is in oper-
ation.
Combining voice recognition with
available on-screen commands is
useful when the system is taking lon-
ger than expected or the voice com-
mand did not execute as desired.
, @ % & @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 40 of 92
37

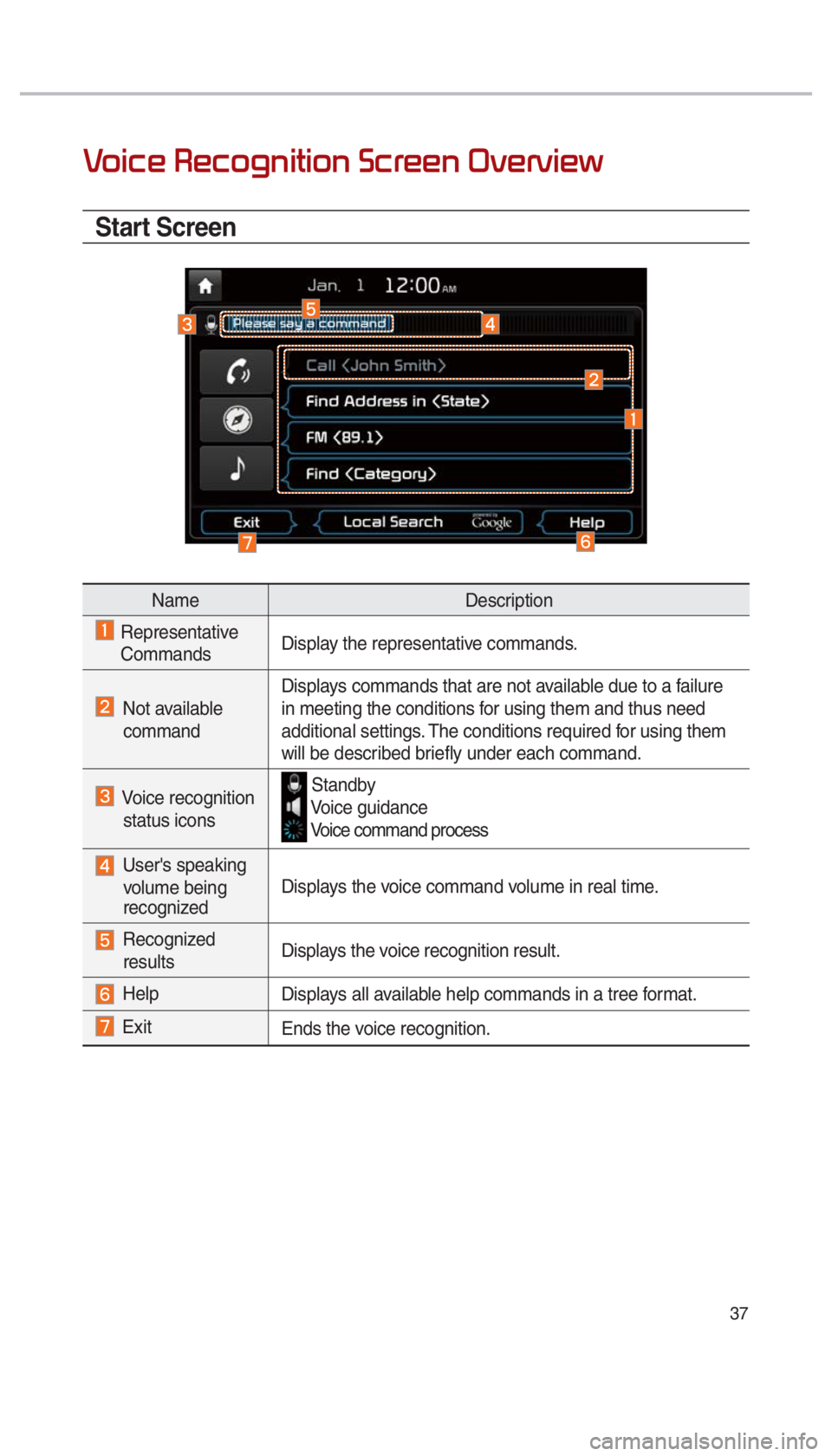

Voice Recognition Screen Overview
Start Screen
NameDescription
Representative
Commands Display the representative commands.
Not available
command Displays commands that are not available due to a failure
in meeting the conditions for using them and thus need
additional settings. The conditions required for using them
will be described briefly under each command.
Voice recognition
status icons Standby Voice guidance
Voice command process
User's speaking
volume being
recognized Displays the voice command volume in real time.
Recognized
results Displays the voice recognition result.
Help
Displays all available help commands in a tree format.
Exit
Ends the voice recognition.
