Driving your vehicle
TCS operation offTCS OFF state
 To cancel TCS operation,press the TCS button
(TCS OFF indicator light
illuminates).
 If the ignition switch is turned to LOCK position
when TCS is off, TCS
remains off. Upon restart-
ing the engine, the TCS will
automatically turn on
again.
Indicator lightWhen ignition switch is turned to ON,
the indicator light illuminates, then
goes off if TCS system is operating
normally.
The TCS indicator light blinks when-
ever TCS is operating.
TCS OFF indicator light comes on
when either the TCS is turned off
with the button, or TCS fails to oper-
ate when turned on.
TCS
OFF
TCS
TCS
OFF

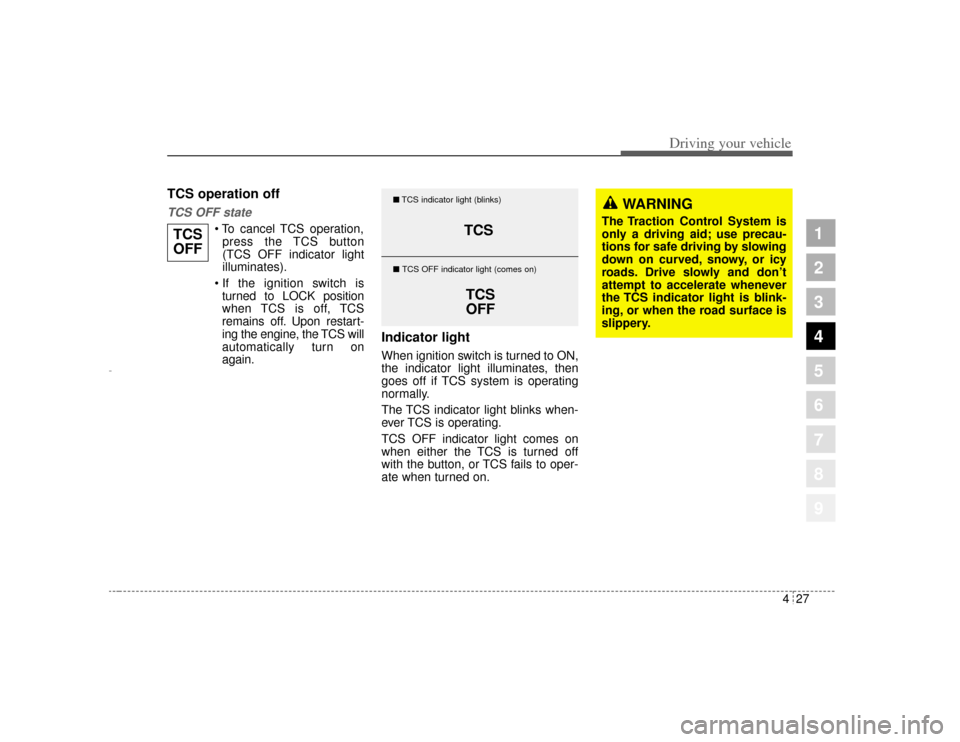

 TCS indicator light (blinks)
 TCS OFF indicator light (comes on)
WARNING
The Traction Control System is
only a driving aid; use precau-
tions for safe driving by slowing
down on curved, snowy, or icy
roads. Drive slowly and don ’t
attempt to accelerate whenever
the TCS indicator light is blink-
ing, or when the road surface is
slippery.
Opirus-ENG (CAN) 4.qxd 7/8/03 2:19 PM Page 27

Driving your vehicle28
4
1
2
3
4
5
6
7
8
9
TCS OFF usageWhen driving It’s a good idea to keep the TCS
turned on for daily driving whenev-
er possible.
 To turn TCS off while driving, press the TCS button while driving on a
flat road surface.
Never press TCS button while TCS is
operating (TCS indicator light blinks).
If TCS is turned off while TCS is
operating, the vehicle may slip out of
control.
✽ ✽

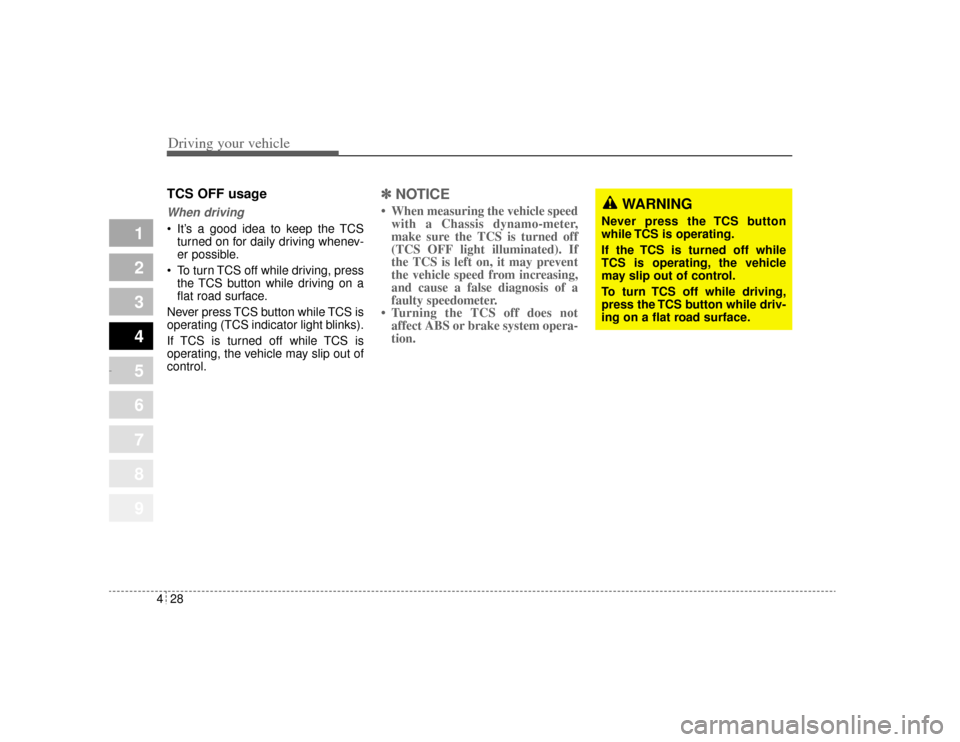

NOTICE• When measuring the vehicle speed
with a Chassis dynamo-meter,
make sure the TCS is turned off
(TCS OFF light illuminated). If
the TCS is left on, it may prevent
the vehicle speed from increasing,
and cause a false diagnosis of a
faulty speedometer.
• Turning the TCS off does not affect ABS or brake system opera-
tion.
WARNING
Never press the TCS button
while TCS is operating.
If the TCS is turned off while
TCS is operating, the vehicle
may slip out of control.
To turn TCS off while driving,
press the TCS button while driv-
ing on a flat road surface.
Opirus-ENG (CAN) 4.qxd 7/8/03 2:19 PM Page 28

429
1
2
3
4
5
6
7
8
9
Driving your vehicle
The Electronic Stability Program
(ESP) monitors information from var-
ious vehicle sensors and then com-
pares the driver's commands with
the actual behavior of the vehicle. If
an unstable condition occurs - a sud-
den evasive movement for example -
ESP intervenes within fractions of a
second via the engine computer and
brake system and attempts to stabi-
lize the vehicle.
ESP operationESP ON condition
 When the ignition is turnedON, ESP and ESP OFF
indicator lights illuminate
for approximately 3 sec-
onds, then ESP is turned
on.
 Press the ESP button to turn ESP off. (ESP OFF
indicator will illuminate). To
turn the ESP on, press the
ESP button (ESP OFF
indicator light will go off).
 When starting the engine, you may hear a slight tick-
ing sound. This is the ESP
performing an automatic
system self-check and
does not indicate a prob-
lem.
When operating
When the ESP is in opera-
tion, ESP indicator light
blinks.
 When the ElectronicStability Program is oper-
ating properly, you can feel
a slight pulsation in the
vehicle. This is only the
effect of brake control and
indicates nothing unusual.
 When moving out of the mud or slippery road,
pressing the accelerator
pedal may not cause the
engine rpm (revolutions
per minute) to increase.
ELECTRONIC STABILITY PROGRAM (IF EQUIPPED)
-
ESP
ESP
2GHN2051D
Opirus-ENG (CAN) 4.qxd 7/8/03 2:19 PM Page 29

Driving your vehicle30
4
1
2
3
4
5
6
7
8
9
ESP operation offESP OFF state
 To cancel ESP operation,
press the ESP button
(ESP OFF indicator light
illuminates).
 If the ignition switch is turned to LOCK position
when ESP is off, ESP
remains off. Upon restart-
ing the engine, the ESP will
automatically turn on
again.
Indicator lightWhen ignition switch is turned to ON,
the indicator light illuminates, then
goes off if ESP system is operating
normally.
The ESP indicator light blinks when-
ever ESP is operating.
ESP OFF indicator light comes on
when either the ESP is turned off
with the button, or ESP fails to oper-
ate when turned on.
ESPOFF
ESP
ESPOFF

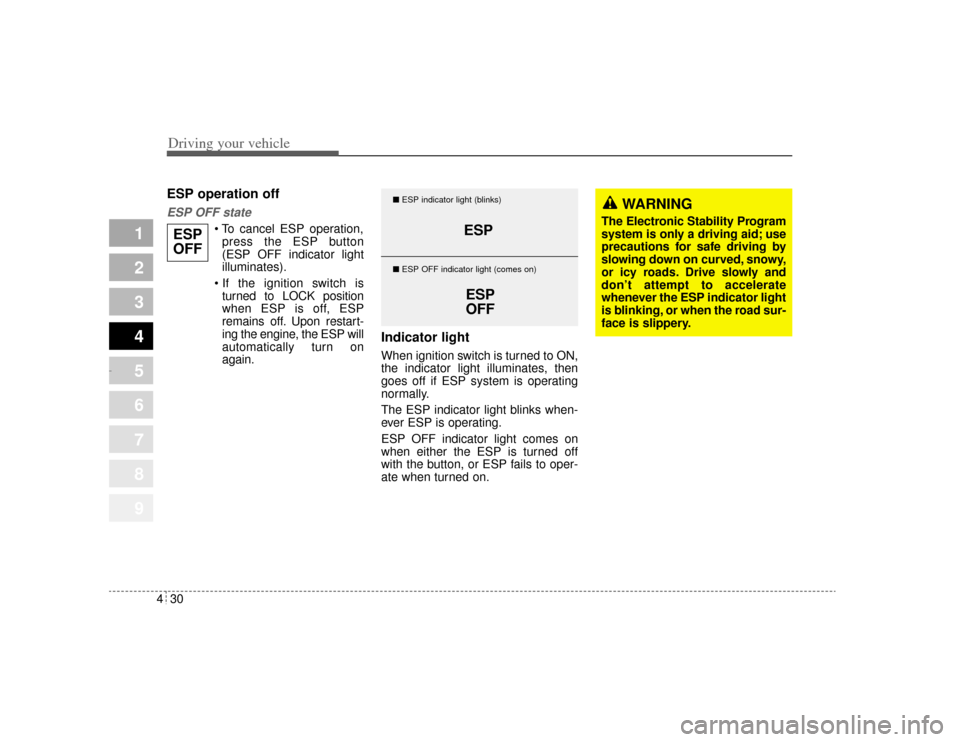

 ESP indicator light (blinks)
 ESP OFF indicator light (comes on)
WARNING
The Electronic Stability Program
system is only a driving aid; use
precautions for safe driving by
slowing down on curved, snowy,
or icy roads. Drive slowly and
don’ t attempt to accelerate
whenever the ESP indicator light
is blinking, or when the road sur-
face is slippery.
Opirus-ENG (CAN) 4.qxd 7/8/03 2:19 PM Page 30

431
1
2
3
4
5
6
7
8
9
Driving your vehicle

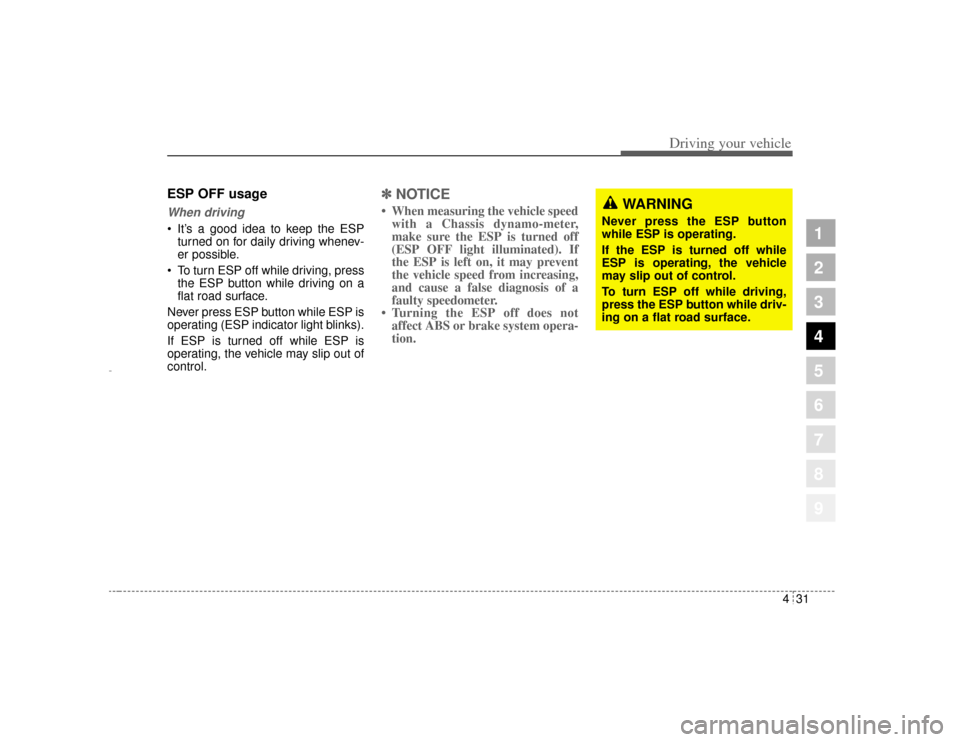

ESP OFF usageWhen driving It’s a good idea to keep the ESPturned on for daily driving whenev-
er possible.
 To turn ESP off while driving, press the ESP button while driving on a
flat road surface.
Never press ESP button while ESP is
operating (ESP indicator light blinks).
If ESP is turned off while ESP is
operating, the vehicle may slip out of
control.
✽ ✽
NOTICE• When measuring the vehicle speed
with a Chassis dynamo-meter,
make sure the ESP is turned off
(ESP OFF light illuminated). If
the ESP is left on, it may prevent
the vehicle speed from increasing,
and cause a false diagnosis of a
faulty speedometer.
• Turning the ESP off does not affect ABS or brake system opera-
tion.
WARNING
Never press the ESP button
while ESP is operating.
If the ESP is turned off while
ESP is operating, the vehicle
may slip out of control.
To turn ESP off while driving,
press the ESP button while driv-
ing on a flat road surface.
Opirus-ENG (CAN) 4.qxd 7/8/03 2:19 PM Page 31

Driving your vehicle32
4
1
2
3
4
5
6
7
8
9
INSTRUMENT CLUSTER (TYPE A)
mphmph
2GHN3360A
1. Tachometer
2. Turn signal indicators
3. Speedometer
4. Engine temperature gauge
5. Warning and indicator lights
6. Odometer / Tripmeter
7. Tripmeter mode/reset button
8. Shift position indicator
9. Fuel gauge
✶ will say if equipped with ESP
ESP ESP
OFF
✶
Opirus-ENG (CAN) 4.qxd 7/8/03 2:19 PM Page 32

433
1
2
3
4
5
6
7
8
9
Driving your vehicle
INSTRUMENT CLUSTER (TYPE B)
2GHN3370A
1. Tachometer
2. Turn signal indicators
3. Speedometer
4. Engine temperature gauge
5. Warning and indicator lights
6. Odometer / Tripmeter
7. Tripmeter mode/reset button
8. Shift position indicator
9. Fuel gauge
✶will say if equipped with ESP
ESP ESP
OFF
✶
Opirus-ENG (CAN) 4.qxd 7/8/03 2:19 PM Page 33

Driving your vehicle34
4
1
2
3
4
5
6
7
8
9
Speedometer The speedometer indicates the for-
ward speed of the vehicle.Odometer/TripmeterYou can choose the odometer, trip-
meter A and tripmeter B by pressing
the tripmeter mode button.OdometerThe odometer indicates the total dis-
tance the vehicle has been driven.TripmeterTRIP A: Tripmeter A
TRIP B: Tripmeter B
The tripmeter indicates the distance
of individual trips selected by the
driver. Tripmeter A and B can be
reset to 0 by pressing the reset but-
ton for 1 second or more, and then
releasing.
Tachometer The tachometer indicates the
approximate number of engine revo-
lutions per minute (rpm).
Use the tachometer to select the cor-
rect shift points and to prevent lug-
ging and/or over-revving the engine.
The tachometer pointer may move
slightly when the ignition switch is in
ACC or ON position with the engine
OFF. This movement is normal and
will not affect the accuracy of the
tachometer once the engine is run-
ning.✽ ✽
NOTICEDo not operate the engine within the
tachometer's RED ZONE.
This may cause severe engine dam-
age.
GAUGES
mphmph
2GHN3360A
Type AType B
2GHN3370A
Opirus-ENG (CAN) 4.qxd 7/8/03 2:19 PM Page 34

435
1
2
3
4
5
6
7
8
9
Driving your vehicle
Engine temperature gauge This gauge shows the temperature
of the engine coolant when the igni-
tion switch is ON.
Do not continue driving with an over-
heated engine. If your vehicle over-
heats, refer to “Overheating” in the
Index.✽ ✽
NOTICEIf the gauge pointer moves beyond
the normal range area toward the
“H” position, it indicates overheat-
ing that may damage the engine.
Fuel gaugeThe fuel gauge indicates the approx-
imate amount of fuel remaining in the
fuel tank.
Fuel tank capacity - 70 liters.
The fuel gauge is supplemented by a
low fuel warning light, which will illu-
minate when the fuel level has
dropped to about 9 liters.
Instrument panel illuminationWhen the vehicle’s parking lights or
headlights are on, rotate the illumina-
tion control knob to adjust the instru-
ment panel illumination intensity.
2GHN2052
Opirus-ENG (CAN) 4.qxd 7/8/03 2:19 PM Page 35

Driving your vehicle36
4
1
2
3
4
5
6
7
8
9
Warning lights / audible indi-
cators Checking operation All warning lights are checked by
turning the ignition switch ON (do not
start the engine). Any light that does
not illuminate should be checked by
an Authorized Kia Dealer.
After starting the engine, check to
make sure that all warning lights are
off. If any are still on, this indicates a
situation that needs attention. When
releasing the parking brake, the
brake system warning light should go
off. The fuel warning light will stay on
if the fuel level is low.
Anti-lock brake sys-
tem (ABS) warning
light (if equipped) This light illuminates if the key is
turned to ON and goes off in approx-
imately 3 seconds if the system is
operating normally.
If the light stays on, you may have a
problem with your ABS system.
Contact an authorized Kia dealer as
soon as possible.Electronic brake force
distribution (EBD)
system warning light
(if equipped)If two warning lights illumi-
nate at the same time
while driving, your vehicle
has a problem with ABS
and EBD system. In this case, your ABS system and
regular brake system may not work
normally. Have the vehicle checked
by an Authorized Kia Dealer as soon
as possible.
WARNINGS AND INDICATORS
ABSABS
WARNING
If the both ABS and Brake warn-
ing lights are ON and stay ON,
your vehicle’
s brake system will
not work normally. So you may
experience an unexpected and
dangerous situation when
abrupt braking. In this case,
avoid high speed driving and
abrupt braking. Have your vehi-
cle checked by Authorized Kia
Dealer as soon as possible.
Opirus-ENG (CAN) 4.qxd 7/8/03 2:19 PM Page 36
