Driving your vehicle
 Use the air conditioning systemevery month if only for a few min-
utes to ensure maximum system
performance.
 When using the air conditioning system, you may notice clear water
dripping (or even pudding) on the
ground under the passenger side
of the vehicle. This is a normal sys-
tem operation characteristics.
 The air conditioning system includes a function that automati-
cally turns the air conditioning
compressor off if engine coolant
temperature approaches an over
heating level. The air conditioning
compressor operation will resume
once engine coolant temperature
returns to the normal range. Also,
the air conditioning compressor is
automatically turned off for a few
seconds when the accelerator is
fully depressed (wide open throt-
tle).  When operating the air condition-
ing system use the outside (fresh)
air position.
 Operating the air conditioning sys- tem in the recirculated air position
does provide maximum cooling,
however, continual operation in this
mode may cause the air inside the
vehicle to become stale.
Checking the amount of air
conditioner refrigerant and
compressor lubricantWhen the amount of refrigerant is
low, the performance of the air con-
ditioning is reduced. Overfilling also
has a bad influence on the air condi-
tioning system.
Therefore, if abnormal operation is
found, have the system inspected by
an authorized Kia dealer.
Opirus-ENG (CAN) 4.qxd 7/8/03 2:19 PM Page 67

Driving your vehicle68
4
1
2
3
4
5
6
7
8
9
✽ ✽

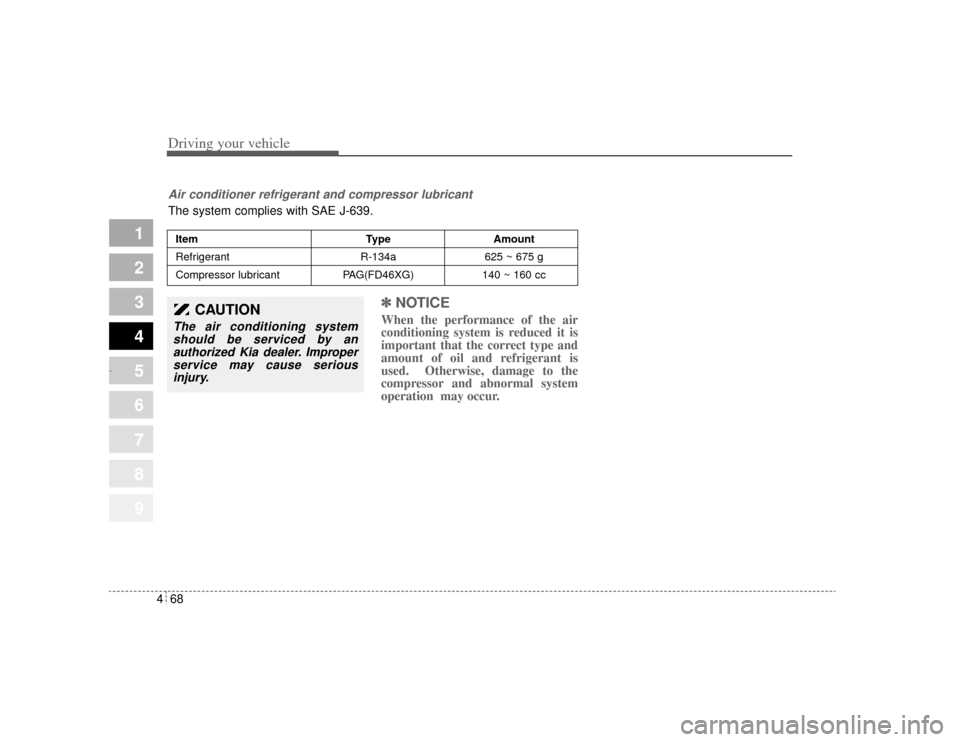

NOTICEWhen the performance of the air
conditioning system is reduced it is
important that the correct type and
amount of oil and refrigerant is
used. Otherwise, damage to the
compressor and abnormal system
operation may occur.
Item TypeAmount
Refrigerant R-134a625 ~ 675 g
Compressor lubricant PAG(FD46XG)140 ~ 160 cc
CAUTION
The air conditioning system
should be serviced by anauthorized Kia dealer. Improperservice may cause seriousinjury.Air conditioner refrigerant and compressor lubricantThe system complies with SAE J-639.
Opirus-ENG (CAN) 4.qxd 7/8/03 2:19 PM Page 68

469
1
2
3
4
5
6
7
8
9
Driving your vehicle
Rear climate control The rear climate control system
allows the rear passengers to adjust
the temperature and airflow distribu-
tion using the control panel located
on the back of the center console,
facing the rear passenger compart-
ment. The rear climate control sys-
tem only operates when the front cli-
mate control system is on and, sup-
plements the functions of the front
climate control system for increased
rear passenger comfort.
Operating the rear climate controlsystemTo operate the rear climate control
system, perform the following:
1. Press the rear climate control selection button in the front control
panel ( ) (the indicator light in
the button illuminates). 2. Turn the temperature control knob
located between the vents on the
rear control panel to adjust the
temperature. Turn the knob up
(RED mark) when warm air is
desired, or down (BLUE mark)
when cool air is desired.
2GHA2223A
2GHA2225
Opirus-ENG (CAN) 4.qxd 7/8/03 2:19 PM Page 69

Driving your vehicle70
4
1
2
3
4
5
6
7
8
9

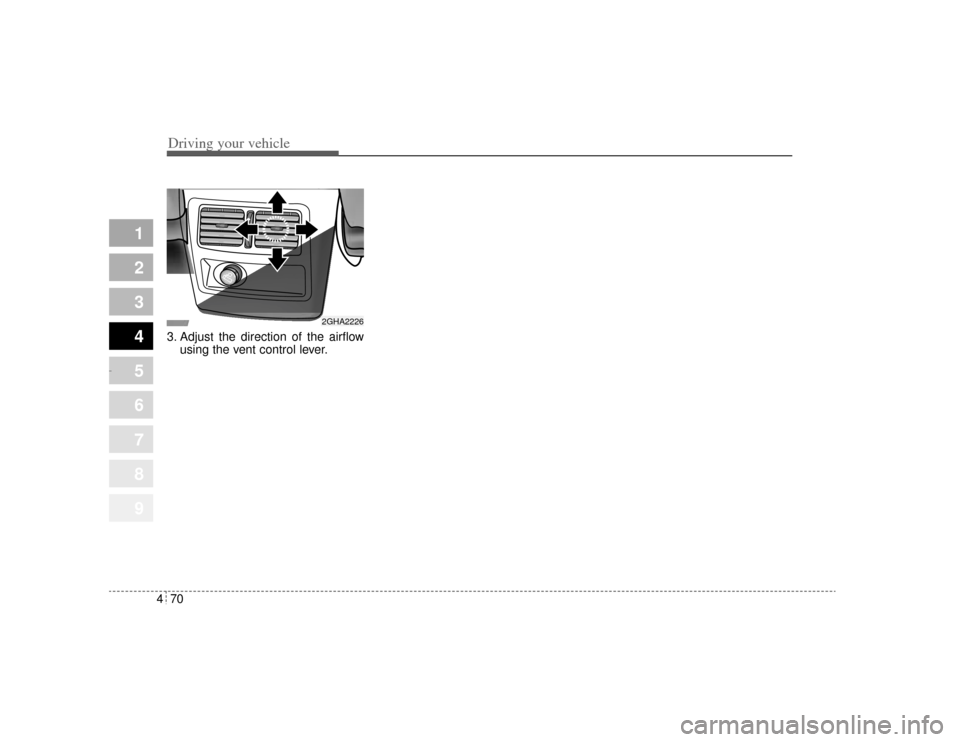

3. Adjust the direction of the airflow
using the vent control lever.
2GHA2226
Opirus-ENG (CAN) 4.qxd 7/8/03 2:19 PM Page 70

471
1
2
3
4
5
6
7
8
9
Driving your vehicle

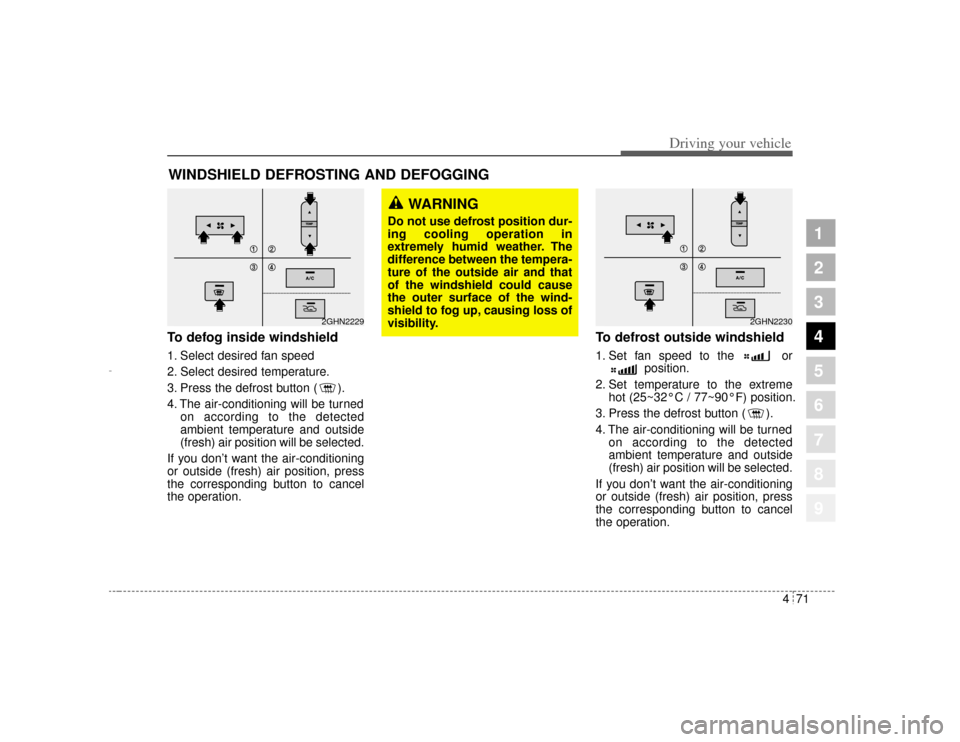

To defog inside windshield 1. Select desired fan speed
2. Select desired temperature.
3. Press the defrost button ( ).
4. The air-conditioning will be turnedon according to the detected
ambient temperature and outside
(fresh) air position will be selected.
If you don’t want the air-conditioning
or outside (fresh) air position, press
the corresponding button to cancel
the operation.
To defrost outside windshield 1. Set fan speed to the or position.
2. Set temperature to the extreme hot (25~32°C / 77~90°F) position.
3. Press the defrost button ( ).
4. The air-conditioning will be turned on according to the detected
ambient temperature and outside
(fresh) air position will be selected.
If you don’t want the air-conditioning
or outside (fresh) air position, press
the corresponding button to cancel
the operation.
WINDSHIELD DEFROSTING AND DEFOGGING
2GHN2229
2GHN2230
WARNING
Do not use defrost position dur-
ing cooling operation in
extremely humid weather. The
difference between the tempera-
ture of the outside air and that
of the windshield could cause
the outer surface of the wind-
shield to fog up, causing loss of
visibility.
Opirus-ENG (CAN) 4.qxd 7/8/03 2:19 PM Page 71

Driving your vehicle72
4
1
2
3
4
5
6
7
8
9
 For maximum defrosting, set the
temperature control button to the
hot position and the fan speed con-
trol button to the highest speed.
 If warm air to the floor is desired while defrosting or defogging, set
the mode selection button to the
floor- defrost position.
 Before driving, clear all snow and ice from the windshield, rear win-
dow, outside rear view mirrors, and
all side windows.
 Clear all snow and ice from the hood and air inlet in the cowl grill to
improve heater and defroster effi-
ciency and to reduce the probabili-
ty of fogging up inside of the wind-
shield.
Opirus-ENG (CAN) 4.qxd 7/8/03 2:19 PM Page 72

1
2
3
4
5
6
7
8
91
2
3
4
5
6
7
8
9

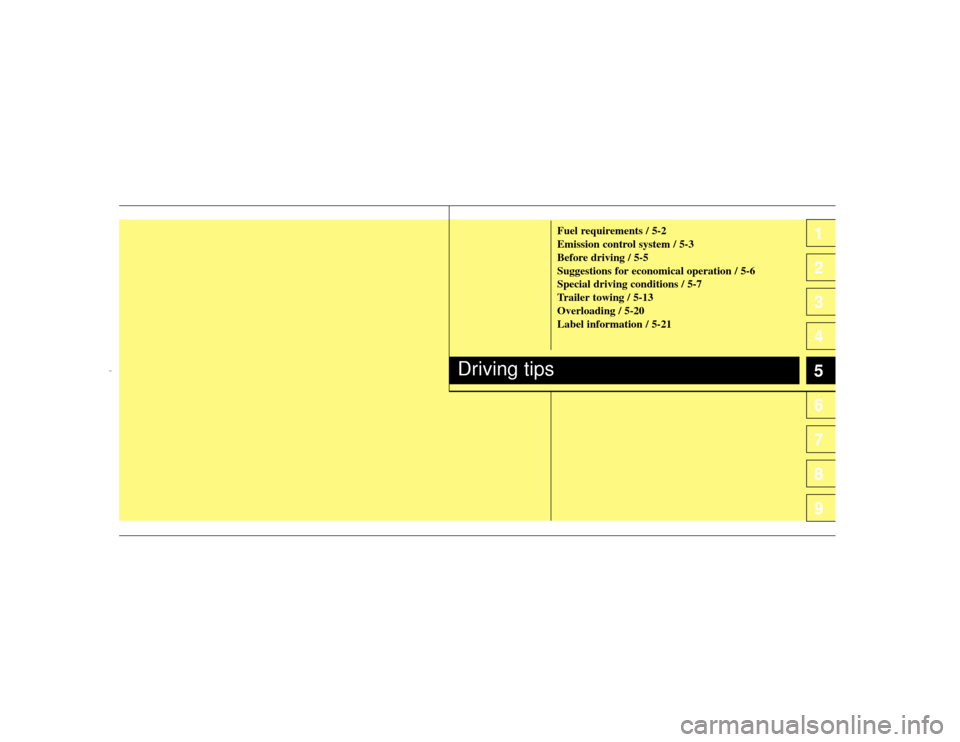

Fuel requirements / 5-2
Emission control system / 5-3
Before driving / 5-5
Suggestions for economical operation / 5-6
Special driving conditions / 5-7
Trailer towing / 5-13
Overloading / 5-20
Label information / 5-21
Driving tips
Opirus CAN 5-1.qxd 7/8/03 2:21 PM Page 1

Driving tips25FUEL REQUIREMENTSGasoline engine (unleaded)Your new Kia vehicle is designed to
use only unleaded fuel with a mini-
mum Octane Rating of 87 Anti-
Knock Index (AKI).✽ ✽NOTICENEVER USE LEADED FUEL. The
use of leaded fuel is detrimental to
the catalytic converter and will
damage the engine control system’s
oxygen sensor and affect emission
control.
Never add any fuel system cleaning
agents to the fuel tank other than
what Kia has specified. (Consult an
Authorized Kia Dealer for details.)
Gasoline containing alcohol
and methanolGasohol, a mixture of gasoline and
ethanol (also known as grain alco-
hol), and gasoline or gasohol con-
taining methanol (also known as
wood alcohol) are being marketed
along with or instead of leaded or
unleaded gasoline.
Do not use gasohol containing more
than 10% ethanol, and do not use
gasoline or gasohol containing any
methanol. Either of these fuels may
cause drivability problems and dam-
age to the fuel system.
Discontinue using gasohol of any
kind if drivability problems occur. Vehicle damage or driveability prob-
lems may not be covered by the
manufacturer’s warranty if they result
from the use of:
1. Gasohol containing more than
10% ethanol.
2. Gasoline or gasohol containing methanol.
3. Leaded fuel or leaded gasohol.
✽ ✽ NOTICENever use gasohol which contains
methanol. Discontinue use of any
gasohol product which impairs dri-
vability.
1
2
3
4
5
6
7
8
9Opirus CAN 5-1.qxd 7/8/03 2:21 PM Page 2

53
Driving tips
EMISSION CONTROL SYSTEMThe emissions control system of
your vehicle is covered by a written
limited warranty. Please see the war-
ranty information contained in the
Warranty & Maintenance book in
your vehicle.Vehicle modifications This vehicle should not be modified.
Modification of your Kia could affect
its performance, safety or durability
and may even violate governmental
safety and emissions regulations.
In addition, damage or performance
problems resulting from any modifi-
cation may not be covered under
warranty.
Engine exhaust gas precau-
tions (carbon monoxide)  Carbon monoxide can be presentwith other exhaust fumes.
Therefore, if you smell exhaust
fumes of any kind inside your vehi-
cle, have it inspected and repaired
immediately by an authorized Kia
dealer or other competent repair
shop. If you ever suspect exhaust
fumes are coming into your vehi-
cle, drive it only with all the win-
dows fully open. Have your vehicle
checked and repaired immediately.  Do not operate the engine in con-
fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
 When the vehicle is stopped in an open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
 Never sit in a parked or stopped vehicle for any extended time with
the engine running.
1
2
3
4
5
6
7
8
9
WARNING
Engine exhaust gases contain
carbon monoxide (CO). Though
colorless and odorless, it is
dangerous and could be lethal if
inhaled. Follow the instructions
following to avoid CO poison-
ing.
Opirus CAN 5-1.qxd 7/8/03 2:21 PM Page 3

Driving tips45Operating precautions for cat-
alytic converters Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
 Use only UNLEADED FUEL forgasoline engine (unleaded).
 Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
 Do not misuse or abuse the engine. Examples of misuse are
coasting with the ignition off and
descending steep grades in gear
with the ignition off.  Do not operate the engine at high
idle speed for extended periods (5
minutes or more).
 Do not modify or tamper with any part of the engine or emission con-
trol system. All inspections and
adjustments must be made by a
qualified technician.
Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.
1
2
3
4
5
6
7
8
9

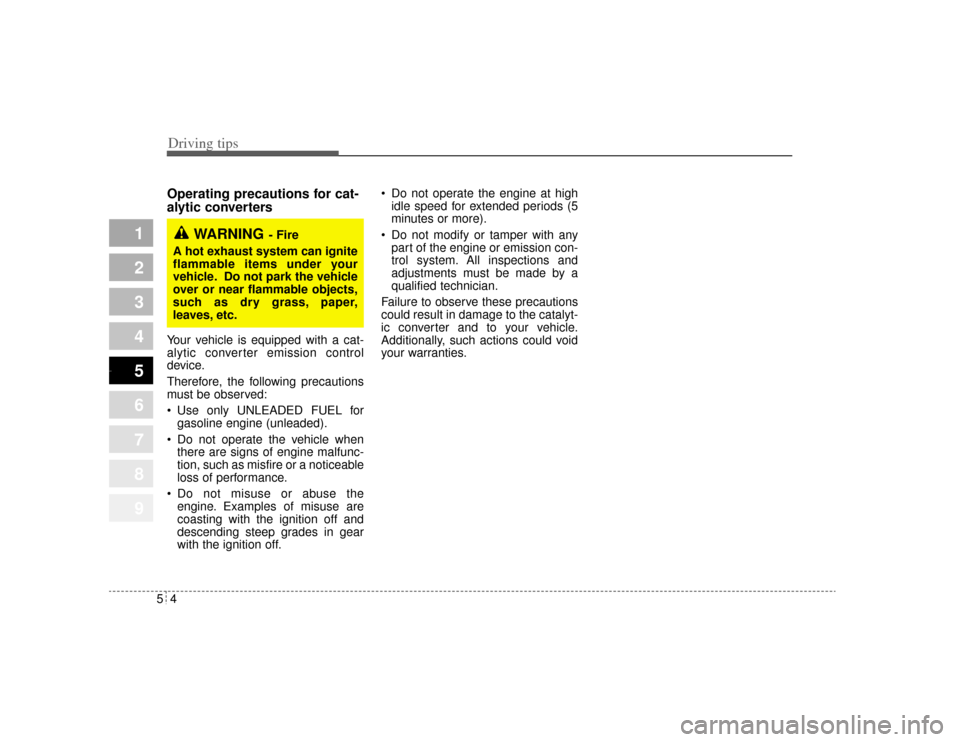

WARNING
- Fire
A hot exhaust system can ignite
flammable items under your
vehicle. Do not park the vehicle
over or near flammable objects,
such as dry grass, paper,
leaves, etc.
