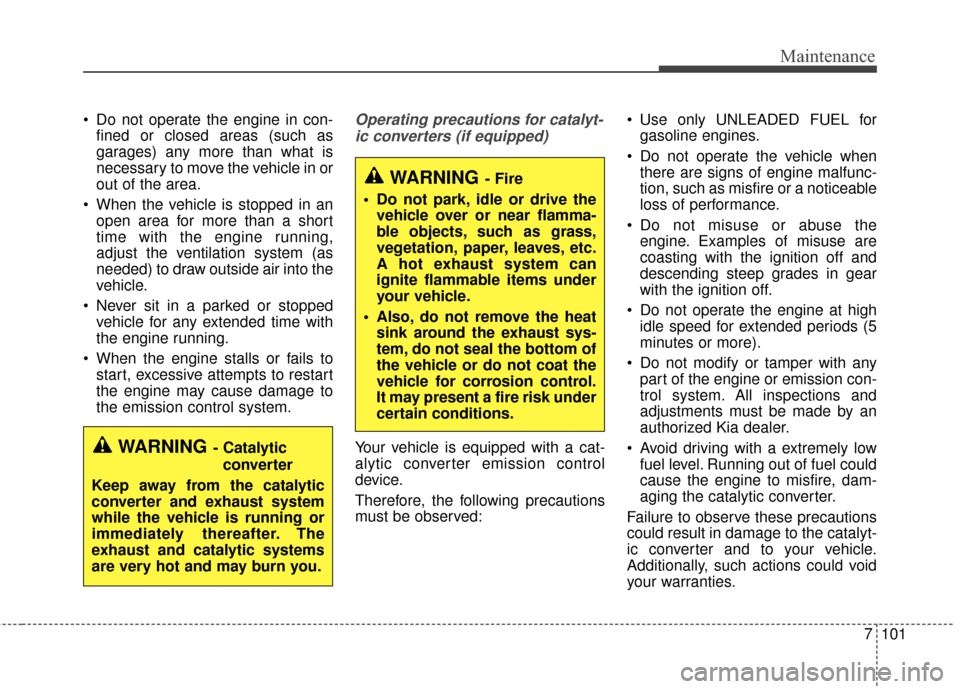

Maintenance
Do not operate the engine in con-fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
When the vehicle is stopped in an open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
Never sit in a parked or stopped vehicle for any extended time with
the engine running.
When the engine stalls or fails to start, excessive attempts to restart
the engine may cause damage to
the emission control system.Operating precautions for catalyt-
ic converters (if equipped)
Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed: Use only UNLEADED FUEL for
gasoline engines.
Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the engine. Examples of misuse are
coasting with the ignition off and
descending steep grades in gear
with the ignition off.
Do not operate the engine at high idle speed for extended periods (5
minutes or more).
Do not modify or tamper with any part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized Kia dealer.
Avoid driving with a extremely low fuel level. Running out of fuel could
cause the engine to misfire, dam-
aging the catalytic converter.
Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.
WARNING- Fire
Do not park, idle or drive the vehicle over or near flamma-
ble objects, such as grass,
vegetation, paper, leaves, etc.
A hot exhaust system can
ignite flammable items under
your vehicle.
Also, do not remove the heat sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle or do not coat the
vehicle for corrosion control.
It may present a fire risk under
certain conditions.
WARNING- Catalytic
converter
Keep away from the catalytic
converter and exhaust system
while the vehicle is running or
immediately thereafter. The
exhaust and catalytic systems
are very hot and may burn you.

Specifications & Consumer information
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-2
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Recommended lubricants and capacities . . . . . . . 8-6
• Recommended SAE viscosity number. . . . . . . . . . . . . 8-8
Vehicle identification number (VIN) . . . . . . . . . . . 8-9
Vehicle certification label. . . . . . . . . . . . . . . . . . . . . 8-9
Tire specification and pressure label . . . . . . . . . . 8-10
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
8

28
Specifications & Consumer information
DIMENSIONS
Item2.4 GDI 2.0 T-GDI
Displacement [cc(cu.in)] 2,359 (143.96) 1,998 (121.92)
Bore x Stroke [mm(in)] 88 x 97 mm
(3.46 x 3.82 in) 86 x 86 mm
(3.46 x 3.46 in)
Firing order 1
→ 3 → 4 → 21 → 3 → 4 → 2
No. of cylinders 4, In-line4, In-line
Item mm (in.)
Overall length 4,845 (190.7)
Overall width 1,830 (72.0)
Overall height 1,450 (57.1)
Front tread 1,601 (63.0)*
1/1,595 (62.8)*2/1,591 (62.6)*3
Rear tread1,601 (63.0)*1/1,595 (62.8)*2/1,591 (62.6)*3
Wheelbase 2,795 (110.0)
*1: with R16 tire
*2: with R17 tire
*3: with R18 tire
ENGINE

83
Specifications & Consumer information
GROSS VEHICLE WEIGHT
LUGGAGE VOLUME
ltem Gasoline 2.4L Gasoline 2.0LSAE 437l
(15.4 cu ft)
ITEM Gasoline 2.4L Gasoline 2.0L
Gross vehicle weight M/T 1,950 kg (4,299 lbs) -
A/T 1,980 kg (4,365 lbs) 2,040 kg (4,497 lbs)

48
Specifications & Consumer information
BULB WATTAGE
* : if equipped
Light BulbWattage Bulb type
Front Headlamps (Low)
55H118B
Headlamps (Low) - HID type* 35D1S
Headlamps (High) 55H1L/H7L
Front turn signal lamps 28P28/8W
Front position lamps 8/LED P28/8W/LED
Front fog lamps* 35/LEDH8L/LED
Side Repeater lamps* 5/LEDWY5W/LED
Smart cornering lamp* 5555
Side marker LEDLED
Rear Rear fog lamps*
21P21W
Bulb type Rear Stop/Tail lamps (outside) 28/8
P28/8W
Rear tail lamps (Inside) 27/8, 28/8 P27/8W, P28/8W
LED type Rear Stop/Tail lamps (outside) LED
LED
Rear tail lamps (Inside) LEDLED
Rear turn signal lamps 21/27P21W/P27W
Back-up lamps 16#921
High mounted stop lamp* LEDLED
License plate lamps 5W5W
Interior Map lamps
10W10W
Room lamps 10C10W
Vanity mirror lamps5C5W
Glove box lamp5C5W
Trunk lamp 5C5W

85
Specifications & Consumer information
TIRES AND WHEELS
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.Using tires of a different size can damage the related parts or make it work irregularly.
*1 : Normal load : Up to 3 persons
*2 : If your vehicle is not equipped with a compact spare tire, you will be equipped with a Tire Mobility Kit
Inflation pressure
kPa (psi)
Front Rear Front Rear
205/65R16 95H 6.5J×16 235 (34) 235 (34) 235 (34) 235 (34)
P215/55R17 93V 6.5J×17 235 (34) 235 (34) 235 (34) 235 (34) 225/45R18 95V 7.5J×18 240 (35) 240 (35) 240 (35) 240 (35)
T125/80D16 97M 4.0T×16 420 420 420 420
(60) (60) (60) (60)
T135/80D17 103M 4.0T×17 420 420 420 420
(60) (60) (60) (60)
Full size tire
Compact
spare tire
*2
Wheel lug nut torque
kg•m (lb N
9~11
(65~79, 88~107)
Item
Tire
size Wheel size
Normal load
*1Maximum load

68
Specifications & Consumer information
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil *1 *2 (drain and refill)
Recommends2.0 T-GDI4.8 l
(5.07 US qt.)ACEA A5 or above*3
2.4 GDIAPI Service SM*3, ILSAC GF-4 or above
ACEA A5 or above
Automatic transaxle fluid
2.0 T-GDI7.8 l(8.24 US qt.)MICHANG ATF SP-IV, SK ATF SP-IV
NOCA ATF SP-IV, Kia genuine ATF SP-IV
2.4 GDI7.1 l(7.50 US qt.)
Coolant
2.0 T-GDI6.5 ~ 6.6 l
(6.87 ~ 6.97 US qt.)
Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminum radiator)
2.4 GDI6.8 l(7.18 US qt.)
Brake fluid0.7~0.8 l
(0.7~0.8 US qt.)FMVSS116 DOT-3 or DOT-4
Fuel70 l(18.49 US gal.)Refer to “Fuel requirements” in chapter 1

87
Specifications & Consumer information
*1Refer to the recommended SAE viscosity numbers on the next page.
*
2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3API SL/ILSAC GF-3/ACEA A3 oil can be used if the recommended oil is not available.

88
Specifications & Consumer information
Recommended SAE viscosity
number
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or draining
any lubricant. This is especially
important in dusty or sandy areas
and when the vehicle is used on
unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt
and grit from entering the engine and
other mechanisms that could be
damaged.Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operation (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather.
Using oils of any viscosity other than
those recommended could result in
engine damage.
When choosing an oil, consider the
range of temperature your vehicle will
be operated in before the next oil
change. Proceed to select the recom-
mended oil viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature
Engine Oil
(2.4 GDI) *
1
Engine Oil
(2.0 T-GDI)
°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
10W-30
5W-20, 5W-30
*1. For better fuel economy, it is recommended to use the engine oil of
a viscosity grade SAE 5W-20 (API SM / ILSAC GF-4). However, if
the engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.
20W-50
10W-30
15W-40
5W-30, 5W-40

89
Specifications & Consumer information
VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
VIN label
The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.The vehicle certification label
attatched on the driver’s side center
pillar gives the vehicle identification
number (VIN).
VEHICLE CERTIFICATION
LABEL
OVQ076002N
VIN Label (if equipped)
OTF080001
OTF080002
