Page 581 of 623
Maintenance
82
8
Front turn signal lamp bulb
replacement
1. Open the hood.
2. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
3. Remove the bulb from the bulb- socket by pressing it in and rotat-
ing it counterclockwise until the
tabs on the bulb align with the
slots in the bulb-socket. Pull the
bulb out of the bulb-socket 4. Insert a new bulb by inserting it
into the bulb-socket and rotating it
until it locks into place.
5. Install the socket in the headlamp assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock-
et into the headlamp assembly
and turn the socket clockwise.
Position lamp + DRL (LED
type) bulb replacement
If the position lamp + DRL (1) does
not operate, have the vehicle
checked by an authorized Kia dealer.
OJFA075079OJFA075150
JF CAN (ENG) 8.qxp 11/5/2015 6:41 PM Page 82
Page 582 of 623
883
Maintenance

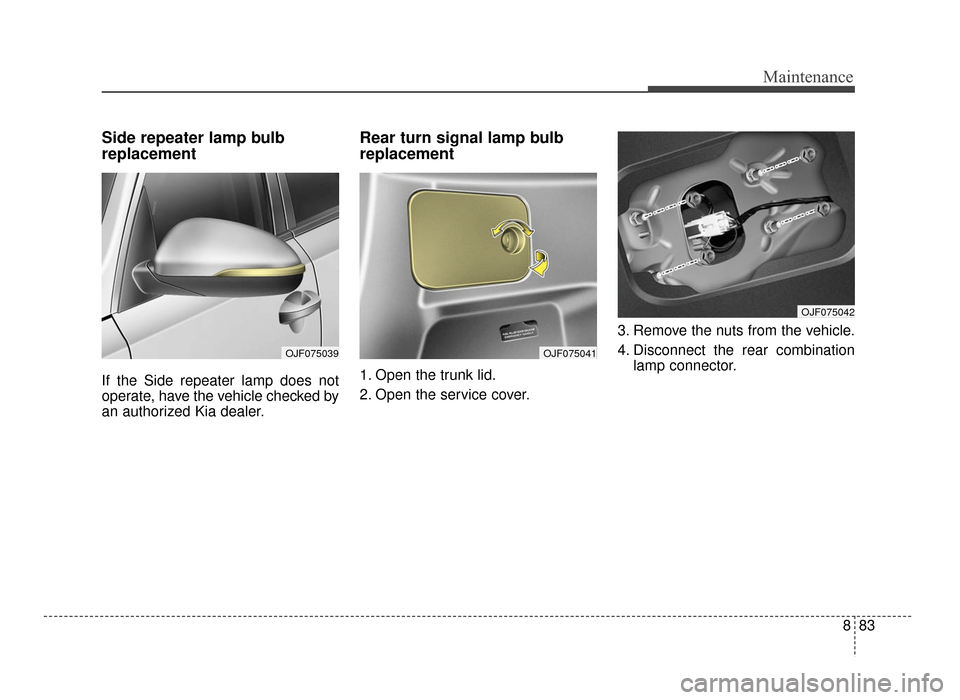

Side repeater lamp bulb
replacement
If the Side repeater lamp does not
operate, have the vehicle checked by
an authorized Kia dealer.
Rear turn signal lamp bulb
replacement
1. Open the trunk lid.
2. Open the service cover.3. Remove the nuts from the vehicle.
4. Disconnect the rear combination
lamp connector.
OJF075041OJF075039
OJF075042
JF CAN (ENG) 8.qxp 11/5/2015 6:41 PM Page 83
Page 583 of 623
Maintenance
84
8
5. Remove the rear combination
lamp assembly from the body of
the vehicle.
6. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly. 7. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
8. Insert a new bulb by inserting it into the socket and rotating it until
it locks into place.
9. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
10. Install the rear combination lamp assembly to the body of the vehi-
cle.
11. Install the service cover by put- ting it into the service hole.
Stop and tail lamp bulb
replacement
1. Open the trunk lid.
2. Open the service cover.
OJF075043
OJF075093
OJF075041
JF CAN (ENG) 8.qxp 11/5/2015 6:41 PM Page 84
Page 584 of 623
885
Maintenance
3. Remove the nuts from the vehicle.
4. Disconnect the rear combinationlamp connector.
5. Remove the rear combinationlamp assembly from the body of
the vehicle.
6. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly. 7. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
8. Insert a new bulb by inserting it into the socket and rotating it until
it locks into place.
9. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
10. Install the rear combination lamp assembly to the body of the vehi-
cle.
11. Install the service cover by put- ting it into the service hole.
OJF075042
OJF075043
OJF075080
JF CAN (ENG) 8.qxp 11/5/2015 6:41 PM Page 85
Page 585 of 623
Maintenance
86
8

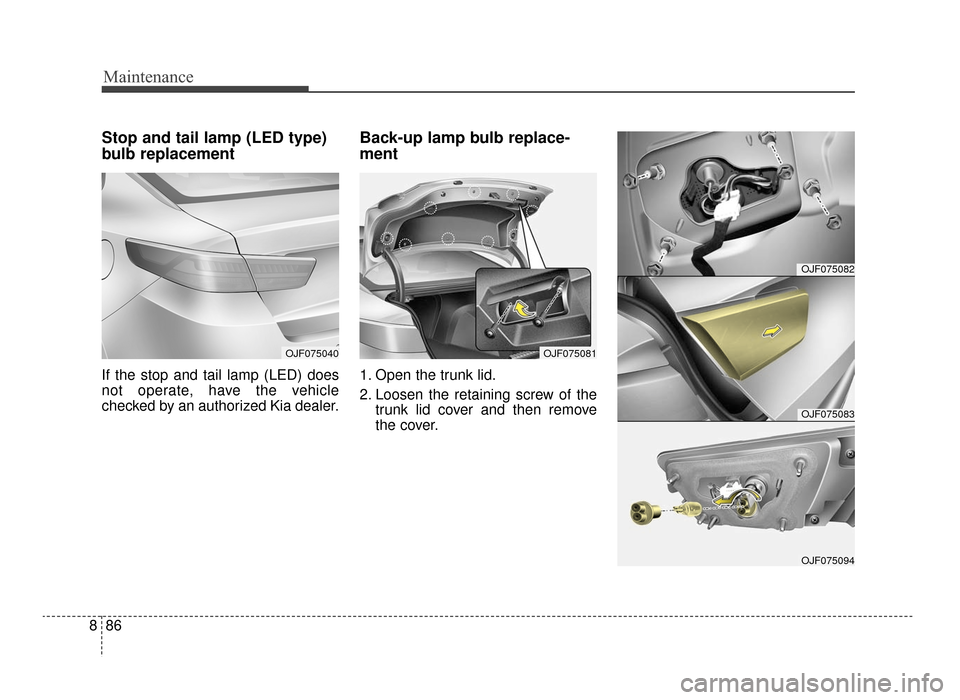

Stop and tail lamp (LED type)
bulb replacement
If the stop and tail lamp (LED) does
not operate, have the vehicle
checked by an authorized Kia dealer.
Back-up lamp bulb replace-
ment
1. Open the trunk lid.
2. Loosen the retaining screw of the
trunk lid cover and then remove
the cover.
OJF075040OJF075081
OJF075082
OJF075083
OJF075094
JF CAN (ENG) 8.qxp 11/5/2015 6:41 PM Page 86
Page 586 of 623
887
Maintenance
3. Remove the nuts from the vehicle.
4. Disconnect the rear combinationlamp (inside) connector.
5. Remove the rear combination lamp (inside) assembly from the
body of the vehicle.
6. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
7. Remove the bulb from bulb-socket by pulling it out.
8. Insert a new bulb by inserting it into the bulb-socket.
9. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
10. Install the rear combination lamp (inside) assembly to the body of
the vehicle.
11. Install the trunk lid cover.Tail lamp bulb replacement
1. Open the trunk lid.
2. Loosen the retaining screw of the trunk lid cover and then remove
the cover.
OJF075081
OJF075082
OJF075083
OJF075084
JF CAN (ENG) 8.qxp 11/5/2015 6:41 PM Page 87
Page 587 of 623
Maintenance
88
8
3. Remove the nuts from the vehicle.
4. Disconnect the rear combination
lamp (inside) connector.
5. Remove the rear combination lamp (inside) assembly from the
body of the vehicle.
6. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
7. Remove the bulb from bulb-socket by pulling it out.
8. Insert a new bulb by inserting it into the bulb-socket.
9. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
10. Install the rear combination lamp (inside) assembly to the body of
the vehicle.
11. Install the trunk lid cover.License plate lamp bulb
replacement
1. Open the trunk lid.
2. Loosen the retaining screw of the trunk lid cover and then remove
the cover. 3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from bulb-socket by pulling it out.
5. Insert a new bulb by inserting it into the bulb-socket.
6. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7. Install the trunk lid cover.
OJF075081
OJF075085
JF CAN (ENG) 8.qxp 11/5/2015 6:41 PM Page 88
Page 588 of 623
889
Maintenance

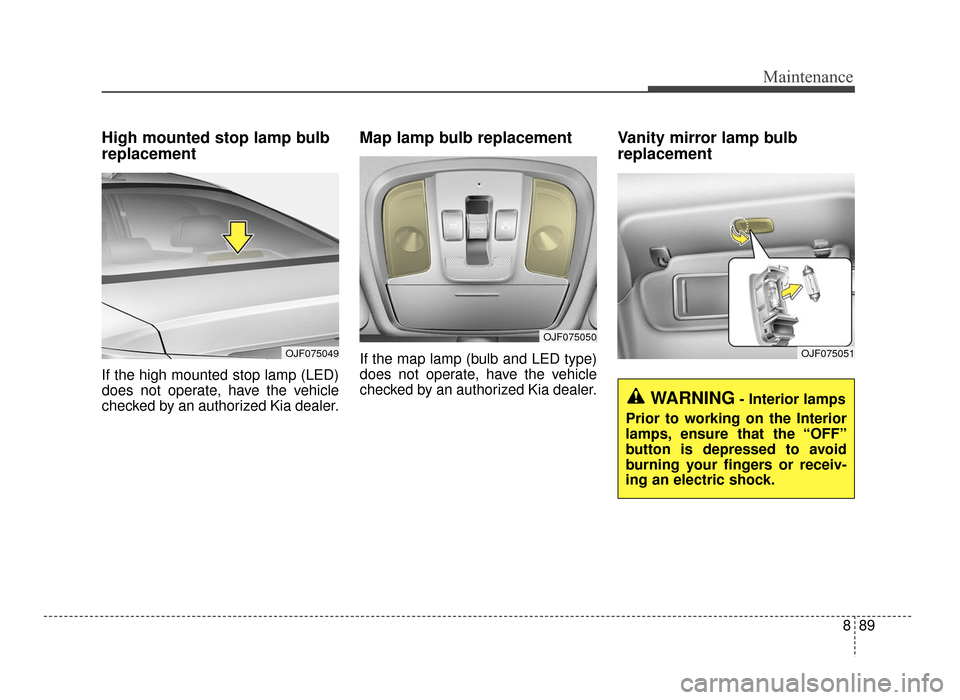

High mounted stop lamp bulb
replacement
If the high mounted stop lamp (LED)
does not operate, have the vehicle
checked by an authorized Kia dealer.
Map lamp bulb replacement
If the map lamp (bulb and LED type)
does not operate, have the vehicle
checked by an authorized Kia dealer.
Vanity mirror lamp bulb
replacement
OJF075049
WARNING- Interior lamps
Prior to working on the Interior
lamps, ensure that the “OFF”
button is depressed to avoid
burning your fingers or receiv-
ing an electric shock.
OJF075050
OJF075051
JF CAN (ENG) 8.qxp 11/5/2015 6:41 PM Page 89
Page 589 of 623
Maintenance
90
8
1. Using a flat-blade screwdriver,
gently pry the lamp assembly from
interior.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Install the lamp assembly to interior.Room lamp bulb replacement
1. Using a flat-blade screwdriver, gently pry the lens cover from
lamp housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens cover tabs with the lamp housing notches and snap
the lens into place.CAUTION
Be careful not to dirty or dam-age the lens, lens tab, and plas-tic housings.
WARNING- Interior lamps
Prior to working on the Interior
lamps, ensure that the “OFF”
button is depressed to avoid
burning your fingers or receiv-
ing an electric shock.
CAUTION
Be careful not to dirty or dam- age the lens, lens tab, and plas-tic housings.
OJF075087
OJF075133L
■ Type A
■Type B
JF CAN (ENG) 8.qxp 11/5/2015 6:41 PM Page 90
Page 590 of 623
891
Maintenance

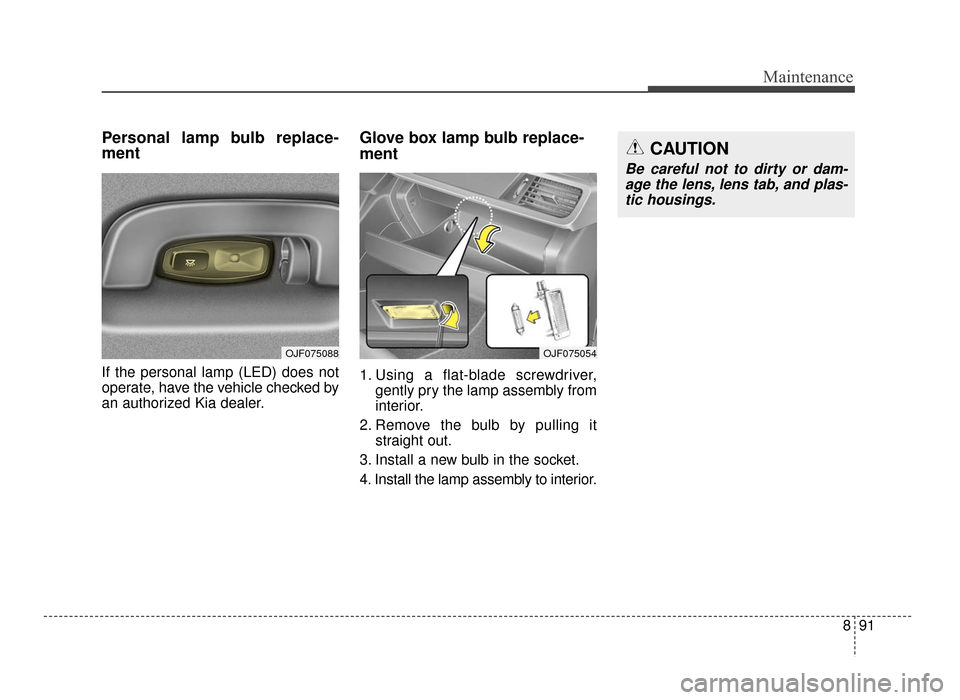

Personal lamp bulb replace-
ment
If the personal lamp (LED) does not
operate, have the vehicle checked by
an authorized Kia dealer.
Glove box lamp bulb replace-
ment
1. Using a flat-blade screwdriver,gently pry the lamp assembly from
interior.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Install the lamp assembly to interior.
OJF075088OJF075054
CAUTION
Be careful not to dirty or dam- age the lens, lens tab, and plas-tic housings.
