Your vehicle at a glance
22
EXTERIOR OVERVIEW

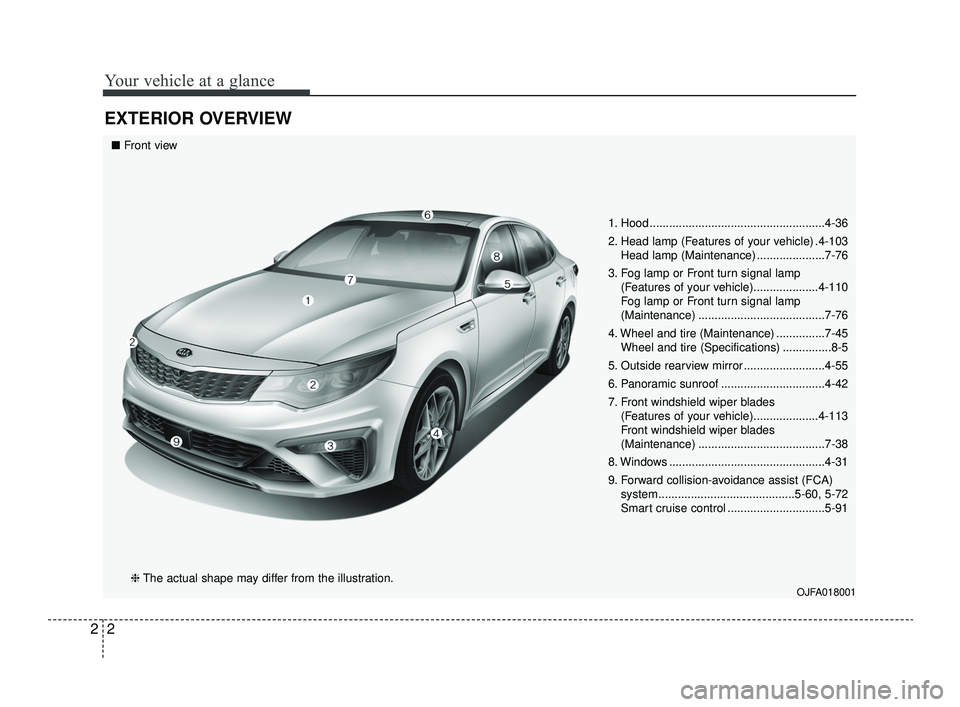

1. Hood ......................................................4-36
2. Head lamp (Features of your vehicle) .4-103Head lamp (Maintenance) .....................7-76
3. Fog lamp or Front turn signal lamp (Features of your vehicle)....................4-110
Fog lamp or Front turn signal lamp
(Maintenance) .......................................7-76
4. Wheel and tire (Maintenance) ...............7-45 Wheel and tire (Specifications) ...............8-5
5. Outside rearview mirror .........................4-55
6. Panoramic sunroof ................................4-42
7. Front windshield wiper blades (Features of your vehicle)....................4-113
Front windshield wiper blades
(Maintenance) .......................................7-38
8. Windows ................................................4-31
9. Forward collision-avoidance assist (FCA) system ..........................................5-60, 5-72
Smart cruise control ..............................5-91
OJFA018001
■Front view
❈ The actual shape may differ from the illustration.
JFa PE USA 2.QXP 5/17/2018 5:39 PM Page 2

Your vehicle at a glance
42
INTERIOR OVERVIEW

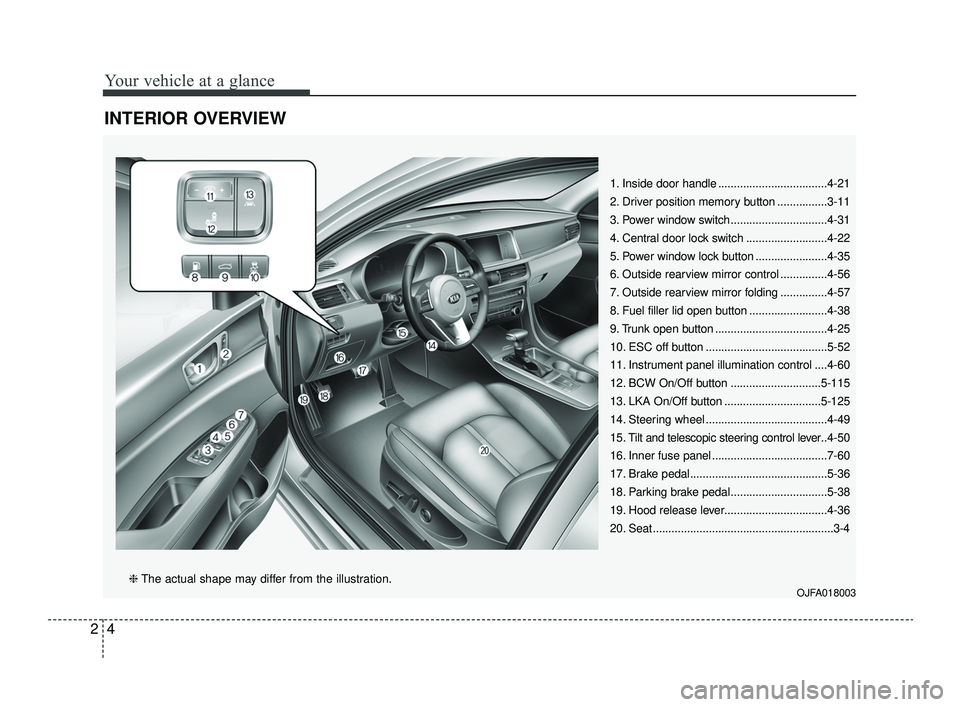

1. Inside door handle ...................................4-21
2. Driver position memory button ................3-11
3. Power window switch...............................4-31
4. Central door lock switch ..........................4-22
5. Power window lock button .......................4-35
6. Outside rearview mirror control ...............4-56
7. Outside rearview mirror folding ...............4-57
8. Fuel filler lid open button .........................4-38
9. Trunk open button ....................................4-25
10. ESC off button .......................................5-52
11. Instrument panel illumination control ....4-60
12. BCW On/Off button .............................5-115
13. LKA On/Off button ...............................5-125
14. Steering wheel .......................................4-49
15. Tilt and telescopic steering control lever..4-50
16. Inner fuse panel .....................................7-60
17. Brake pedal............................................5-36
18. Parking brake pedal...............................5-38
19. Hood release lever.................................4-36
20. Seat..........................................................3-4
OJFA018003❈ The actual shape may differ from the illustration.
JFa PE USA 2.QXP 5/17/2018 5:39 PM Page 4

311
Safety features of your vehicle
Type B
1. Press the front portion of theswitch (1) to increase support, or
the rear portion of the switch (2),
to decrease support.
2. Release the switch once it reach- es the desired position.
3. Press the upper portion (3) of the switch to move the support posi-
tion up, or press the lower portion
(4) of the switch, to move the sup-
port position down.
4. Release the switch once it reach- es the desired position.
Driver position memory system
(if equipped, for power seat)
A driver position memory system is
provided to store and recall the driv-
er seat and outside rearview mirror
position with a simple button opera-
tion. By saving the desired position
into the system memory, different
drivers can reposition the driver seat
based upon their driving preference.
If the battery is disconnected, the
desired seat position memory will
need to be re-saved.
WARNING - Driver
Position Memory System
Never attempt to operate the
driver position memory system
while the vehicle is moving.
This could result in loss of con-
trol, and an accident causing
death or serious injury.
OJF035075L
■
Type B
OJF035065L
JFa PE USA 3.QXP 5/18/2018 7:14 PM Page 11

Safety features of your vehicle
12
3
Storing positions into memory
using the buttons on the door
Storing driver’s seat positions
1. Shift the shift lever into P (for Automatic transaxle / Dual clutch
transmission) while the engine
start/stop button is ON or ignition
switch ON.
2. Adjust the driver’s seat and out- side rearview mirror comfortable
for the driver.
3. Press SET button on the control panel. The system will beep once.
4. Press one of the memory buttons (1 or 2) within 5 seconds after
pressing the SET button. The sys-
tem will beep twice when memory
has been successfully stored. When recalling an adjustment mem-
ory button while sitting in the vehicle,
you can be surprised by the setting
chosen if the memory has been
adjusted by someone else. If that
occurs, immediately push the seat
position control knob in the direction
of the desired position to stop further
undesired movement.
Recalling positions from memory
1. Shift the shift lever into P (for
Automatic transaxle / Dual clutch
transmission) while the engine
start/stop button is ON or ignition
switch ON.
2. To recall the position in the memo- ry, press the desired memory but-
ton (1 or 2). The system will beep
once, then the driver’s seat will
automatically adjust to the stored
position.
Adjusting the control switch for the
driver’s seat while the system is
recalling the stored position will
cause the movement to stop and
move in the direction that the control
switch is moved.
JFa PE USA 3.QXP 5/18/2018 7:14 PM Page 12

Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-49
• Electric Power Steering (EPS) . . . . . . . . . . . . . . . . . . 4-49
• Tilt and telescopic steering . . . . . . . . . . . . . . . . . . . . . 4-50
• Heated steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . 4-51
• Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-52
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-53\
• Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 4-53
• Outside rearview mirror. . . . . . . . . . . . . . . . . . . . . . . 4-55
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . 4-59
• Instrument cluster control . . . . . . . . . . . . . . . . . . . . . 4-60
• LCD display control . . . . . . . . . . . . . . . . . . . . . . . . . . 4-60
• Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-61
• Transmission shift indicator . . . . . . . . . . . . . . . . . . . . 4-64
LCD display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-65
• LCD modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-65\
• User settings mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-68
Trip modes (Trip computer) . . . . . . . . . . . . . . . . . 4-74
• Trip modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-74\
• Fuel economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-75
• Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-78
Warning and indicator lights . . . . . . . . . . . . . . . . 4-85
• Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-85
• Indicator lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-93
Parking distance warning-reverse . . . . . . . . . . . . 4-98
• Operation of the parking distance warning-reverse. 4-98
• Non-operational conditions of parking distance warning-reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-99
• Parking distance warning-reverse precautions . . . 4-100
• Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-100
Rear view monitor . . . . . . . . . . . . . . . . . . . . . . . . 4-101
Surround view monitoring system (SVM) . . . . . 4-102
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-103
• Battery saver function. . . . . . . . . . . . . . . . . . . . . . . . 4-103
• Daytime running light . . . . . . . . . . . . . . . . . . . . . . . . 4-103
• Lighting control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-103
• High beam operation. . . . . . . . . . . . . . . . . . . . . . . . . 4-105
• High beam assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-106
• Turn signals and lane change signals . . . . . . . . . . . 4-109
• Check headlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-110
• Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-110
• Headlight leveling device. . . . . . . . . . . . . . . . . . . . . . 4-111
• Dynamic Bending Light (DBL) . . . . . . . . . . . . . . . . 4-111
Wipers and washers . . . . . . . . . . . . . . . . . . . . . . . 4-113
• Windshield wiper/washer . . . . . . . . . . . . . . . . . . . . . 4-113
• Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-113
• Front windshield washers . . . . . . . . . . . . . . . . . . . . . 4-114
4
JFa PE USA 4.qxp 5/18/2018 7:18 PM Page 2

Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-116
• Automatic turn off function . . . . . . . . . . . . . . . . . . . 4-116
• Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-116
• Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-117
• Trunk room lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-118
• Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 4-118
• Glove box lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-118
Welcome system . . . . . . . . . . . . . . . . . . . . . . . . . . 4-119
• Headlight (Headlamp) escort function . . . . . . . . . . 4-119
• Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-119
• Pocket lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-119
Defroster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-120
• Rear window defroster . . . . . . . . . . . . . . . . . . . . . . . 4-120
Manual climate control system . . . . . . . . . . . . . . 4-121
• Heating and air conditioning . . . . . . . . . . . . . . . . . . 4-122
• System operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-127
• Climate control air filter . . . . . . . . . . . . . . . . . . . . . . 4-129
• Air conditioning refrigerant label . . . . . . . . . . . . . . 4-129
• Checking the amount of air conditionerrefrigerant and compressor lubricant . . . . . . . . . . 4-130
Automatic climate control system . . . . . . . . . . . 4-131
• Automatic heating and air conditioning . . . . . . . . . 4-132
• Manual heating and air conditioning . . . . . . . . . . . 4-133
• System operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-139
• Climate control air filter . . . . . . . . . . . . . . . . . . . . . . 4-141 • Checking the amount of air conditioner
refrigerant and compressor lubricant . . . . . . . . . . 4-141
• Air conditioning refrigerant label . . . . . . . . . . . . . . 4-142
Windshield defrosting and defogging . . . . . . . . . 4-143
• Manual climate control system . . . . . . . . . . . . . . . . 4-143
• Automatic climate control system . . . . . . . . . . . . . . 4-144
• Defogging logic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-145
Storage compartments . . . . . . . . . . . . . . . . . . . . . 4-148
• Center console storage . . . . . . . . . . . . . . . . . . . . . . . 4-148
• Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14\
8
• Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-149
Interior features . . . . . . . . . . . . . . . . . . . . . . . . . . 4-150
• Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-150
• Bottle holder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-150
• Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-151
• Air ventilation seat . . . . . . . . . . . . . . . . . . . . . . . . . . 4-152
• Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
152
• Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-153
• USB charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-154
• Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15\
5
• Floor mat anchor (s) . . . . . . . . . . . . . . . . . . . . . . . . . 4-155
• Side curtain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-156
4
JFa PE USA 4.qxp 5/18/2018 7:18 PM Page 3

Features of your vehicle
12
4

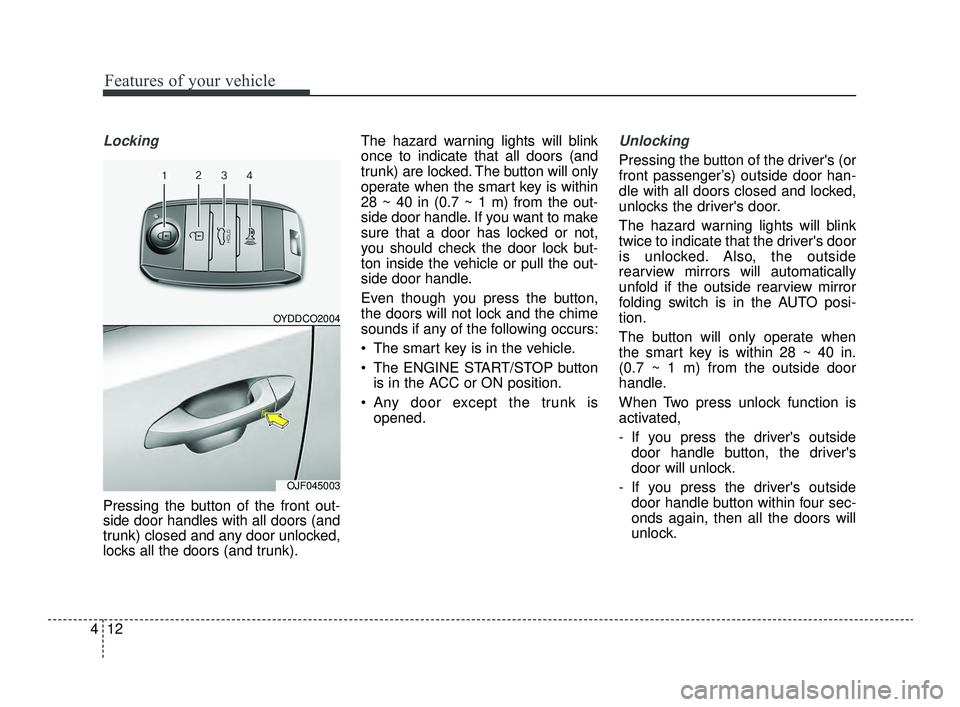

Locking
Pressing the button of the front out-
side door handles with all doors (and
trunk) closed and any door unlocked,
locks all the doors (and trunk). The hazard warning lights will blink
once to indicate that all doors (and
trunk) are locked. The button will only
operate when the smart key is within
28 ~ 40 in (0.7 ~ 1 m) from the out-
side door handle. If you want to make
sure that a door has locked or not,
you should check the door lock but-
ton inside the vehicle or pull the out-
side door handle.
Even though you press the button,
the doors will not lock and the chime
sounds if any of the following occurs:
The smart key is in the vehicle.
The ENGINE START/STOP button
is in the ACC or ON position.
Any door except the trunk is opened.
Unlocking
Pressing the button of the driver's (or
front passenger’s) outside door han-
dle with all doors closed and locked,
unlocks the driver's door.
The hazard warning lights will blink
twice to indicate that the driver's door
is unlocked. Also, the outside
rearview mirrors will automatically
unfold if the outside rearview mirror
folding switch is in the AUTO posi-
tion.
The button will only operate when
the smart key is within 28 ~ 40 in.
(0.7 ~ 1 m) from the outside door
handle.
When Two press unlock function is
activated,
- If you press the driver's outsidedoor handle button, the driver's
door will unlock.
- If you press the driver's outside door handle button within four sec-
onds again, then all the doors will
unlock.
OYDDCO2004
OJF045003
JFa PE USA 4.qxp 5/18/2018 7:19 PM Page 12

453
Features of your vehicle

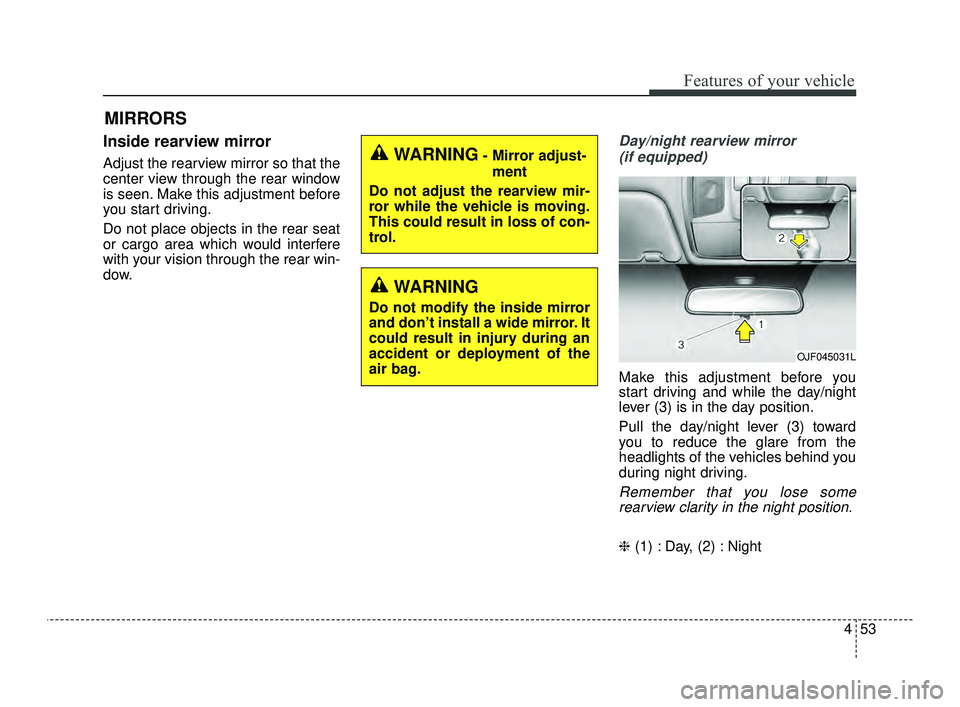

MIRRORS
Inside rearview mirror
Adjust the rearview mirror so that the
center view through the rear window
is seen. Make this adjustment before
you start driving.
Do not place objects in the rear seat
or cargo area which would interfere
with your vision through the rear win-
dow.
Day/night rearview mirror (if equipped)
Make this adjustment before you
start driving and while the day/night
lever (3) is in the day position.
Pull the day/night lever (3) toward
you to reduce the glare from the
headlights of the vehicles behind you
during night driving.
Remember that you lose somerearview clarity in the night position.
❈ (1) : Day, (2) : Night
WARNING- Mirror adjust-
ment
Do not adjust the rearview mir-
ror while the vehicle is moving.
This could result in loss of con-
trol.
WARNING
Do not modify the inside mirror
and don’t install a wide mirror. It
could result in injury during an
accident or deployment of the
air bag.
OJF045031L
JFa PE USA 4.qxp 5/18/2018 7:20 PM Page 53

Features of your vehicle
54
4
Electric chromatic mirror (ECM)
(if equipped)
The electric rearview mirror automat-
ically controls the glare from the
headlights of the vehicles behind you
in nighttime or low light driving condi-
tions. The sensor mounted in the mir-
ror senses the light level around the
vehicle and automatically controls
the headlight glare from the vehicles
behind you.
When the engine is running, the
glare is automatically controlled by
the sensor mounted in the rearview
mirror.
Whenever the shift lever is shifted
into reverse (R), the mirror will auto-
matically go to the brightest setting in
order to improve the driver’s view
behind the vehicle. To operate the electric rearview mirror:
The mirror defaults to the ON posi-
tion whenever the ignition switch is
turned on.
Press the ON/OFF button (1) to turn the automatic dimming func-
tion off. The mirror indicator light
(2) will turn off.
Press the ON/OFF button (1) to
turn the automatic dimming func-
tion on. The mirror indicator light
(2) will illuminate.
❈ (2) : Indicator, (3) : Sensor
CAUTION - Cleaning
mirror
When cleaning the mirror, use a
paper towel or similar materialdampened with glass cleaner.Do not spray glass cleanerdirectly on the mirror. It maycause the liquid cleaner to enterthe mirror housing.
OJF045227L
JFa PE USA 4.qxp 5/18/2018 7:20 PM Page 54

455
Features of your vehicle

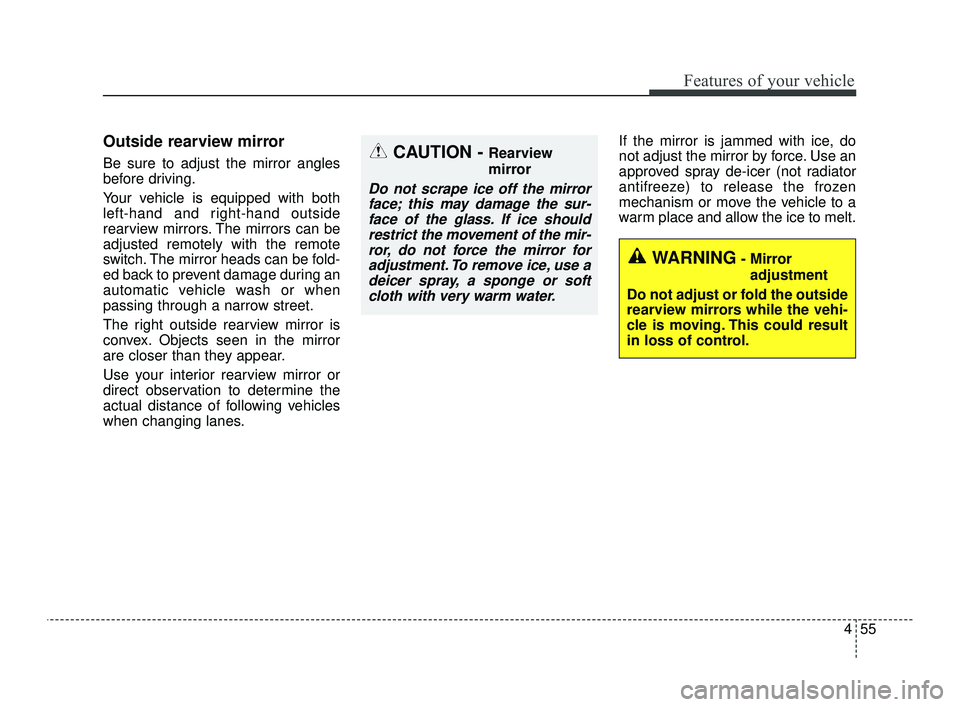

Outside rearview mirror
Be sure to adjust the mirror angles
before driving.
Your vehicle is equipped with both
left-hand and right-hand outside
rearview mirrors. The mirrors can be
adjusted remotely with the remote
switch. The mirror heads can be fold-
ed back to prevent damage during an
automatic vehicle wash or when
passing through a narrow street.
The right outside rearview mirror is
convex. Objects seen in the mirror
are closer than they appear.
Use your interior rearview mirror or
direct observation to determine the
actual distance of following vehicles
when changing lanes.If the mirror is jammed with ice, do
not adjust the mirror by force. Use an
approved spray de-icer (not radiator
antifreeze) to release the frozen
mechanism or move the vehicle to a
warm place and allow the ice to melt.
WARNING- Mirror
adjustment
Do not adjust or fold the outside
rearview mirrors while the vehi-
cle is moving. This could result
in loss of control.
CAUTION - Rearview
mirror
Do not scrape ice off the mirror face; this may damage the sur-face of the glass. If ice shouldrestrict the movement of the mir-ror, do not force the mirror foradjustment. To remove ice, use adeicer spray, a sponge or softcloth with very warm water.
JFa PE USA 4.qxp 5/18/2018 7:21 PM Page 55
