KIA OPTIMA 2020 Features and Functions Guide

Introduction
61
This vehicle is equipped with an
event data recorder (EDR). The
main purpose of an EDR is to
record, in certain crash or near
crash-like situations, such as an
air bag deployment or hitting a
road obstacle, data that will assist
in understanding how a vehicle's
systems performed. The EDR is
designed to record data related to
vehicle dynamics and safety sys-
tems for a short period of time,
typically 30 seconds or less. The
EDR in this vehicle is designed to
record such data as:
How various systems in yourvehicle were operating;
Whether or not the driver and passenger safety belts were
buckled/ fastened;
How far (if at all) the driver was depressing the accelerator
and/or brake pedal; and,
How fast the vehicle was travel- ing. These data can help provide a bet-
ter understanding of the circum-
stances in which crashes and
injuries occur. NOTE: EDR data
are recorded by your vehicle only
if a non-trivial crash situation
occurs; no data are recorded by
the EDR under normal driving
conditions and no personal data
(e.g., name, gender, age, and
crash location) are recorded.
However, other parties, such as
law enforcement, could combine
the EDR data with the type of per-
sonally identifying data routinely
acquired during a crash investiga-
tion.
To read data recorded by an EDR,
special equipment is required, and
access to the vehicle or the EDR is
needed. In addition to the vehicle
manufacturer, other parties, such
as law enforcement, that have the
special equipment, can read the
information if they have access to
the vehicle or the EDR.
VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS
JFa PE USA 1.qxp 5/17/2019 4:47 PM Page 6

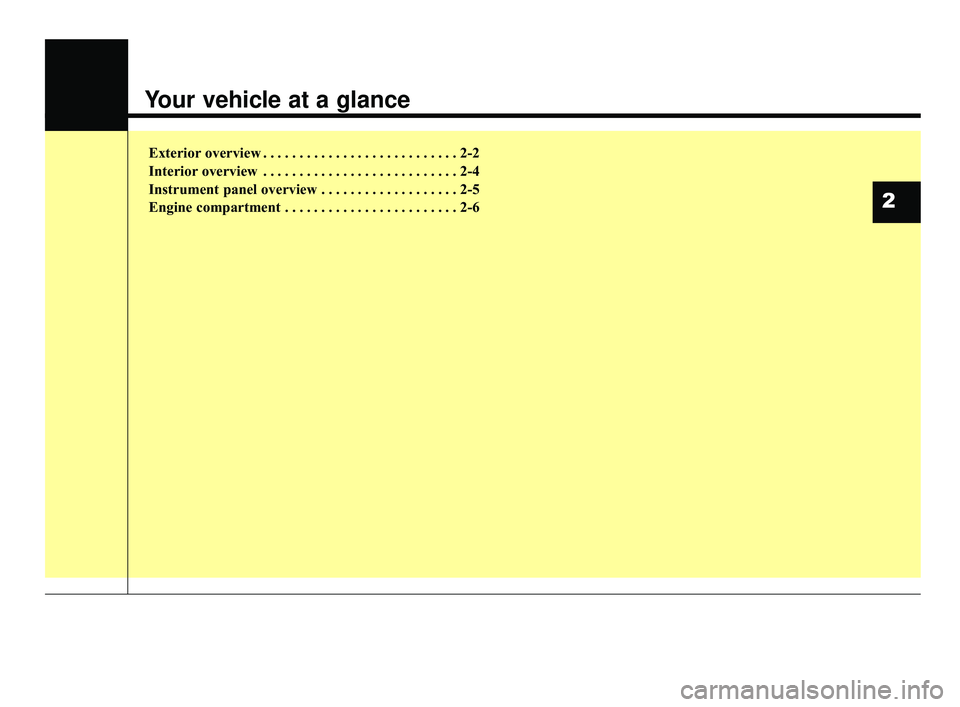

Your vehicle at a glance
Exterior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Interior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Instrument panel overview . . . . . . . . . . . . . . . . . . . 2-5
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-6
2
JFa PE USA 2.QXP 5/15/2019 3:07 PM Page 1

Your vehicle at a glance
22
EXTERIOR OVERVIEW
1. Hood (Features of your vehicle) ............4-36
2. Head lamp (Features of your vehicle) .4-103Head lamp (Maintenance) .....................7-76
3. Fog lamp or Front turn signal lamp (Features of your vehicle)....................4-103
Fog lamp or Front turn signal lamp
(Maintenance) .......................................7-76
4. Wheel and tire (Maintenance) ...............7-45 Wheel and tire (Specifications) ...............8-5
5. Outside rearview mirror .........................4-55
6. Panoramic sunroof ................................4-42
7. Front windshield wiper blades (Features of your vehicle)....................4-113
Front windshield wiper blades
(Maintenance/Service Mode
Replacement) ........................................7-38
8. Windows ................................................4-31
9. Forward collision-avoidance assist (FCA) system ..........................................5-61, 5-76
Smart cruise control ..............................5-95
OJFA018001
■Front view
❈ The actual shape may differ from the illustration.
JFa PE USA 2.QXP 5/15/2019 3:07 PM Page 2

23
Your vehicle at a glance
1. Door locks .............................................4-20
2. Fuel filler lid ...........................................4-38
3. Rear combination lamp(Maintenance) .......................................7-76
4. High mounted stop lamp (Maintenance) .......................................7-76
5. Trunk ............................................4-25, 4-27
6. Antenna ...............................................4-161
7. Rear view monitor ...............................4-101
8. Parking Distance Warning - Reverse ....4-98
OJFA018002

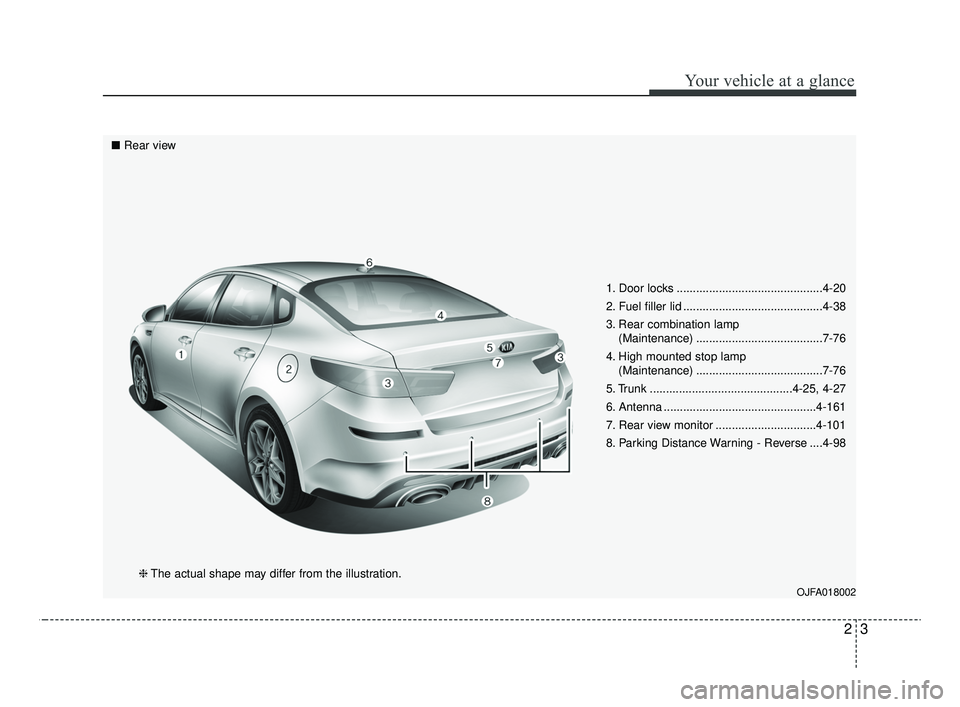

■ Rear view
❈The actual shape may differ from the illustration.
JFa PE USA 2.QXP 5/15/2019 3:07 PM Page 3

Your vehicle at a glance
42
INTERIOR OVERVIEW
1. Inside door handle ...................................4-21
2. Driver position memory button ................3-11
3. Power window switch...............................4-31
4. Central door lock switch ..........................4-22
5. Power window lock button .......................4-35
6. Outside rearview mirror control ...............4-56
7. Outside rearview mirror folding ...............4-57
8. Fuel filler lid open button .........................4-38
9. Trunk open button ....................................4-25
10. ESC off button .......................................5-53
11. Instrument panel illumination control ....4-60
12. BCW On/Off button .............................5-124
13. LKA On/Off button ...............................5-134
14. Steering wheel .......................................4-49
15. Tilt and telescopic steering control lever..4-50
16. Inner fuse panel .....................................7-60
17. Brake pedal............................................5-37
18. Parking brake pedal...............................5-39
19. Hood release lever.................................4-36
20. Seat..........................................................3-4
OJFA018003❈ The actual shape may differ from the illustration.
JFa PE USA 2.QXP 5/15/2019 3:07 PM Page 4

INSTRUMENT PANEL OVERVIEW
25
Your vehicle at a glance
1. Light control/Turn signals ..................4-103
2, Driver`s front air bag ...........................3-60
3. Horn.....................................................4-52
4. Instrument cluster ................................4-59
5. Wiper and washer control lever .........4-113
6. Ignition switch ........................................5-7Engine start/stop button ......................5-10
7. Cruise control ......................................5-91 Smart cruise control ............................5-95
8. Passenger’s front air bag ....................3-60
9. Hazard warning flasher .........................6-2
10. Manual climate control system ........4-121 Automatic climate control system ....4-131
11. Shift lever A/T ....................................5-14 Shift lever DCT ..................................5-22
12. Heated steering wheel button ...........4-51
13. Drive mode button ...........................5-116
14. Seat warmer ....................................4-151 Air ventilation seat ...........................4-152
15. Surround view monitor system On/Off button ...................................4-102
16. Electronic parking brake (EPB) switch.................................................5-40
17. Auto Hold On/Off button ....................5-47
18. Center console storage box ............4-148
19. Power outlet.....................................4-153
20. USB charger ....................................4-154
21. Glove box ........................................4-148
22. Smart phone wireless charger ........4-155
OJFA019004❈ The actual shape may differ from the illustration.
JFa PE USA 2.QXP 5/15/2019 3:07 PM Page 5

Your vehicle at a glance
62
ENGINE COMPARTMENT
OJFA078152/OJFA078150
■ ■THETA 2.4L - GDI
❈ The actual engine compartment in the vehicle may differ from the illustration.
■ ■THETA 2.0L T-GDI 1. Engine coolant reservoir ...................7-28
2. Engine oil filler cap ...........................7-26
3. Brake fluid reservoir ..........................7-31
4. Air cleaner.........................................7-34
5. Fuse box ...........................................7-60
6. Negative battery terminal..................7-42
7. Positive battery terminal ...................7-42
8. Engine oil dipstick .............................7-26
9. Radiator cap .....................................7-28
10.Windshield washer fluid reservoir ....7-32
JFa PE USA 2.QXP 5/15/2019 3:08 PM Page 6

27
Your vehicle at a glance
OJFA078151
■ ■GAMMA 1.6L T-GDI❈ The actual engine compartment in the vehicle may differ from the illustration. 1. Engine coolant reservoir ...................7-28
2. Engine oil filler cap ...........................7-26
3. Brake fluid reservoir ..........................7-31
4. Air cleaner.........................................7-34
5. Fuse box ...........................................7-60
6. Negative battery terminal..................7-42
7. Positive battery terminal ...................7-42
8. Engine oil dipstick .............................7-26
9. Radiator cap .....................................7-28
10.Windshield washer fluid reservoir ....7-32
JFa PE USA 2.QXP 5/15/2019 3:08 PM Page 7

Safety features of your vehicle
Important safety precautions . . . . . . . . . . . . . . . . . 3-2
• Always wear your seat belt. . . . . . . . . . . . . . . . . . . . . . 3-2
• Restrain all children . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
• Air bag hazards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
• Driver distraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
• Control your speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
• Keep your vehicle in safe condition . . . . . . . . . . . . . . . 3-3
Seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 3-4
• Front seat adjustment - manual. . . . . . . . . . . . . . . . . . 3-7
• Front seat adjustment - power . . . . . . . . . . . . . . . . . . . 3-9
• Driver position memory system (for power seat) . . . 3-11
• Headrest (for front seat) . . . . . . . . . . . . . . . . . . . . . . . 3-14
• Seatback pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17
• Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 3-17
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-22
• Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . . 3-22
• Pre-tensioner seat belt. . . . . . . . . . . . . . . . . . . . . . . . . 3-28
• Seat belt precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31
• Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-33
Child Restraint System (CRS) . . . . . . . . . . . . . . . 3-34
• Children always in the rear . . . . . . . . . . . . . . . . . . . . 3-34
• Selecting a Child Restraint System (CRS) . . . . . . . . 3-35
• Installing a Child Restraint System (CRS) . . . . . . . . 3-38
Air bag - advanced supplementalrestraint system . . . . . . . . . . . . . . . . . . . . . . . . . . 3-45
• How does the air bag system operate? . . . . . . . . . . . 3-46
• Air bag warning light . . . . . . . . . . . . . . . . . . . . . . . . . 3-48
• SRS components and functions . . . . . . . . . . . . . . . . . 3-49
• Occupant Detection System (ODS) . . . . . . . . . . . . . . 3-52
• Driver's and passenger's front air bag . . . . . . . . . . . 3-60
• Side air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-63
• Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-65
• Inflation and non-inflation conditions of the air bag . 3-66
• SRS Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-\
71
• Adding equipment to or modifying your air bag-equipped vehicle. . . . . . . . . . . . . . . . . . . . . . 3-72
• Air bag warning label . . . . . . . . . . . . . . . . . . . . . . . . . 3-723
JFa PE USA 3.QXP 5/17/2019 4:48 PM Page 1

Safety features of your vehicle
23
You will find many safety precautions
and recommendations throughout
this section, and throughout this man-
ual. The safety precautions in this sec-
tion are among the most important.
Always wear your seat belt
A seat belt is your best protection in
all types of accidents. Air bags are
designed to supplement seat belts,
not replace them. So even though
your vehicle is equipped with air
bags, ALWAYS make sure you and
your passengers wear your seat
belts, and wear them properly.
Restrain all children
All children under age 13 should ride
in your vehicle properly restrained in
a rear seat, not the front seat. Infants
and small children should be
restrained in an appropriate child
restraint. Larger children should use
a booster seat with the lap/shoulder
belt until they can use the seat belt
properly without a booster seat.
Air bag hazards
While air bags can save lives, they
can also cause serious or fatal
injuries to occupants who sit too
close to them, or who are not prop-
erly restrained. Infants, young chil-
dren, and shorter adults are at the
greatest risk of being injured by an
inflating air bag. Follow all instruc-
tions and warnings in this manual.
Driver distraction
Driver distraction presents a serious
and potentially deadly danger, espe-
cially for inexperienced drivers.
Safety should be the first concern
when behind the wheel and drivers
need to be aware of the wide array of
potential distractions, such as drowsi-
ness, reaching for objects, eating,
personal grooming, other passen-
gers, and using cellular phones.
Drivers can become distracted when
they take their eyes and attention off
the road or their hands off the wheel
to focus on activities other than driv-
ing. To reduce your risk of distraction
or getting into an accident:
• ALWAYS set up your mobiledevices (i.e., MP3 players, phones,
navigation units, etc.) when your
vehicle is parked or safely stopped.
IMPORTANT SAFETY PRECAUTIONS
JFa PE USA 3.QXP 5/17/2019 4:48 PM Page 2
