turn signal bulb KIA OPTIMA 2020 Features and Functions Guide

Features of your vehicle
110
4
If an indicator stays on and does not
flash or if it flashes abnormally, one of
the turn signal bulbs may be burned
out and will require replacement.
✽ ✽
NOTICE
If an indicator flash is abnormally
quick or slow, a bulb may be burned
out or have a poor electrical connec-
tion in the circuit.
Check headlight
This warning message illuminates if
there is a malfunction (burned-out
bulb except LED lamp or circuit mal-
function) with the headlamp. In this
case, have your vehicle inspected by
an authorized Kia dealer.
✽ ✽NOTICE
• When replacing the bulb, use the
same wattage bulb.
For more information, refer to
“BULB WATTAGE” in chapter 8.
• If a different wattage bulb is installed on the vehicle, this warn-
ing message is not displayed.
Front fog light (if equipped)
Fog lights are used to provide
improved visibility when visibility is
poor due to fog, rain or snow, etc. The
fog lights will turn on when the fog light
switch (1) is turned to the on position
after the headlights are turned on.
To turn off the fog lights, turn the
switch (1) to the off position.
When in operation, the fog lights
consume large amounts of vehicle
electrical power. Only use the fog
lights when visibility is poor.
OJF045058OJFA055274
JFa PE USA 4.qxp 5/15/2019 3:21 PM Page 110

Climate control air filter . . . . . . . . . . . . . . . . . . . . 7-36
• Filter inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-36
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-38
• Blade inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-38
• Blade replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-38
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-\
42
• For best battery service . . . . . . . . . . . . . . . . . . . . . . . 7-42
• Recharging the battery . . . . . . . . . . . . . . . . . . . . . . . . 7-43
• Reset items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-44\
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-45
• Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
7-45
• Recommended cold tire inflation pressures . . . . . . . 7-45
• Tire pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-46
• Checking tire inflation pressure. . . . . . . . . . . . . . . . . 7-46
• Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-47
• Wheel alignment and tire balance . . . . . . . . . . . . . . . 7-48
• Tire replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-49
• Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-50
• Tire traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-50
• Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-50
• Tire sidewall labeling . . . . . . . . . . . . . . . . . . . . . . . . . 7-50
• All season tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-57
• Summer tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-57
• Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-\
57
• Tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-58\
• Radial-ply tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-58
• Low aspect ratio tire . . . . . . . . . . . . . . . . . . . . . . . . . . 7-59
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
7-60
• Inner panel fuse replacement . . . . . . . . . . . . . . . . . . . 7-62
• Engine compartment fuse replacement. . . . . . . . . . . 7-64
• Fuse/relay panel description. . . . . . . . . . . . . . . . . . . . 7-66
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-76
• Bulb replacement precaution . . . . . . . . . . . . . . . . . . . 7-76
• Light bulb position (Front). . . . . . . . . . . . . . . . . . . . . 7-78
• Light bulb position (Rear) . . . . . . . . . . . . . . . . . . . . . 7-79
• Light bulb position (Side) . . . . . . . . . . . . . . . . . . . . . . 7-80
• Headlamp (Low beam) bulb replacement
(Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . . . 7-80
• Headlamp (High beam) bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . . . 7-81
• Front turn signal lamp bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . . . 7-82
• Headlamp (Low/High beam) (LED type) bulb replacement (Headlamp Type B) . . . . . . . . . . 7-82
• Position lamp / Day time running lamp (LED type) replacement (Headlamp Type A, B) . . . . . . . . . . . . 7-83
• Front fog lamp bulb replacement . . . . . . . . . . . . . . . 7-83
• Side repeater lamp (LED type) bulb replacement . . 7-84
• Rear turn signal lamp bulb replacement . . . . . . . . . 7-84
• Stop and tail lamp bulb replacement . . . . . . . . . . . . 7-85
7
JFa PE USA 7.qxp 5/15/2019 3:12 PM Page 2

Maintenance
78
7
Light bulb position (Front) (1) Front turn signal lamp (bulb type)
(2) Headlamp (Low) (bulb type)
(3) Headlamp (High) (bulb type)
(4) Day time running lamp/
Position lamp (LED type)
(5) Side marker (LED type)
(6) Headlamp (Low) (LED type)
(7) Headlamp (High) (LED type)
(8) Front fog lamp (bulb type)
(9) Front fog lamp (LED type)
OJFA078237
OJFA078238
OJFA078223
■ Head lamp - Type A
■ Front turn signal lamp (Head lamp - Type A)
■Head lamp - Type B
OJFA078239
OJFA078240
■Front fog lamp - Type A
■Front fog lamp - Type B
JFa PE USA 7.qxp 5/15/2019 3:15 PM Page 78

779
Maintenance
Light bulb position (Rear)
(1) Rear turn signal lamp (bulb type)
(2) Back-up lamp (bulb type)
(3) Stop and tail lamp (bulb type)
(4) Tail lamp (bulb type)
(5) Side marker (bulb type)(6) Stop and tail lamp (LED type)
(7) Stop and tail lamp (LED type)
(8) Side marker (LED type)
(9) License plate lamp (bulb type)
(10) High mounted stop lamp (LED
type)
OJFA078092
OJFA078040
OJFA078241
■Rear combination lamp - Type A
■Rear combination lamp - Type B
■Rear combination lamp - Type C
OJFA078131
OJFA078132
■License plate lamp
■High mounted stop lamp
JFa PE USA 7.qxp 5/15/2019 3:15 PM Page 79

Maintenance
82
7
5. Install a new bulb-socket assem-
bly in the headlamp assembly by
aligning the tabs on the bulb-sock-
et with the slots in the headlamp
assembly. Push the bulb-socket
into the headlamp assembly and
turn the bulb-socket clockwise.
6. Install the headlamp bulb cover by turning it clockwise.Front turn signal lamp bulb
replacement (Headlamp Type A)
If the front turn signal lamp (1) does
not operate, have the vehicle
checked by an authorized Kia dealer.
Headlamp (Low/High beam)
(LED type) bulb replacement
(Headlamp Type B)
If the low beam (1) and high beam (2)
do not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamp cannot be replaced
as a single component because it is
an integrated unit. The LED lamp has
to be replaced with the unit.
A skilled technician should check or
repair the head lamp (LED), for it
may damage related parts of the
vehicle.
OJFHP076231N
OJFA078238
JFa PE USA 7.qxp 5/15/2019 3:15 PM Page 82

Maintenance
84
7
Side repeater lamp (LED type)
bulb replacement
If the side repeater lamp (LED) does
not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamp cannot be replaced
as a single component because it is
an integrated unit. The LED lamp has
to be replaced with the unit.
A skilled technician should check or
repair the side repeater lamp (LED),
for it may damage related parts of
the vehicle.
Rear turn signal lamp bulb
replacement
1. Open the trunk lid.
2. Open the service cover. 3. Remove the nuts from the vehicle.
4. Disconnect the rear combination
lamp connector.
OJF075039OJF075041
OJF075042
JFa PE USA 7.qxp 5/15/2019 3:15 PM Page 84

83
Specifications, Consumer information, Reporting safety defects

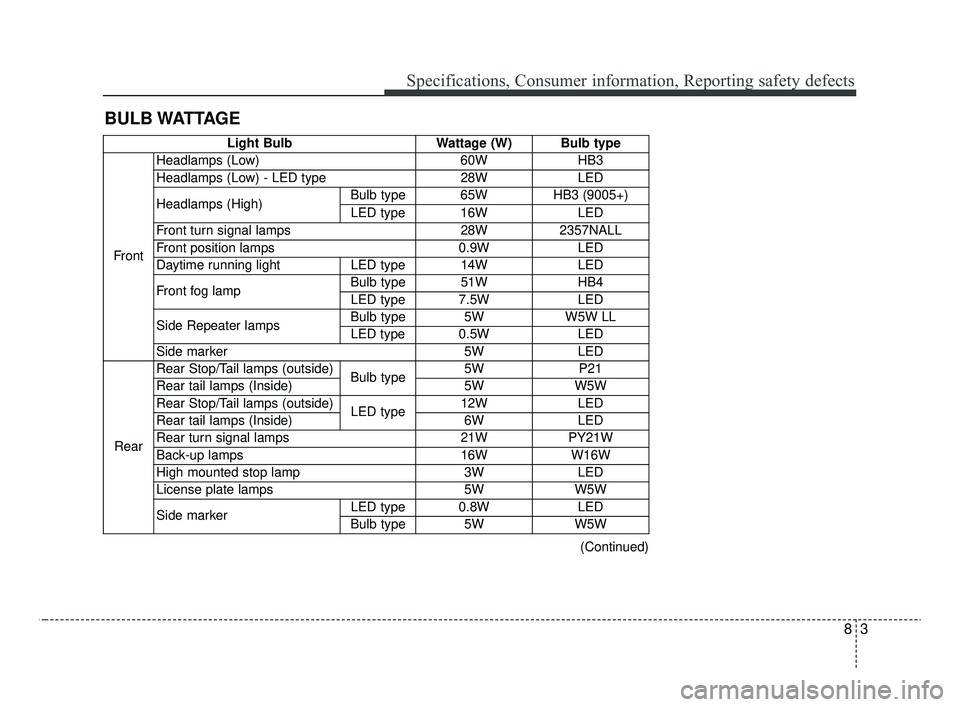

BULB WATTAGE
Light BulbWattage (W) Bulb type
Front Headlamps (Low)
60WHB3
Headlamps (Low) - LED type 28WLED
Headlamps (High) Bulb type 65W HB3 (9005+)
LED type 16W LED
Front turn signal lamps 28W2357NALL
Front position lamps 0.9WLED
Daytime running light LED type 14W LED
Front fog lamp Bulb type 51W
HB4
LED type 7.5W LED
Side Repeater lamps Bulb type 5W
W5W LL
LED type0.5WLED
Side marker5WLED
Rear Rear Stop/Tail lamps (outside)
Bulb type5W P21
Rear tail lamps (Inside) 5W W5W
Rear Stop/Tail lamps (outside) LED type12W LED
Rear tail lamps (Inside) 6W LED
Rear turn signal lamps 21W PY21W
Back-up lamps 16W W16W
High mounted stop lamp 3W LED
License plate lamps 5W W5W
Side marker LED type 0.8W LED
Bulb type 5W W5W
(Continued)
JFa PE USA 8.qxp 5/15/2019 3:10 PM Page 3

I7
Index
Front seat adjustment - power . . . . . . . . . . . . . . . . . . . . 3-9
Front seat adjustment-manual. . . . . . . . . . . . . . . . . . . . . 3-7
Front turn signal lamp bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . . 7-82
Fuel additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-38 Opening the fuel filler lid. . . . . . . . . . . . . . . . . . . . . 4-38
Closing the fuel filler lid . . . . . . . . . . . . . . . . . . . . . 4-38
Emergency fuel filler lid release . . . . . . . . . . . . . . . 4-41
Fuel gauge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
62
Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 Gasoline containing alcohol and methanol . . . . . . . . 1-3
Other fuels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Gasoline containing MMT . . . . . . . . . . . . . . . . . . . . . 1-4
Do not use methanol . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Fuel additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Operation in foreign countries . . . . . . . . . . . . . . . . . . 1-5
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 7-60 Inner panel fuse replacement . . . . . . . . . . . . . . . . . . 7-62
Engine compartment fuse replacement . . . . . . . . . . 7-64
Fuse/Relay panel description . . . . . . . . . . . . . . . . . . 7-66
Gasoline containing alcohol and methanol . . . . . . . . . . 1-3
Gasoline containing MMT . . . . . . . . . . . . . . . . . . . . . . . 1-4
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-61
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14\
8 Glove box lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-118
Glove box lamp bulb replacement . . . . . . . . . . . . . . . . 7-92
Gross vehicle weight . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Hazard warning flasher. . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Hazardous driving conditions . . . . . . . . . . . . . . . . . . . 5-141
Headlamp (High beam) bulb replacement
(Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . . 7-81
Headlamp (Low beam) bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . . 7-80
Headlamp (Low/High beam) (LED type) bulb replacement (Headlamp Type B) . . . . . . . . . . . . . . . . . . . . . . . . . 7-82
Headlight (Headlamp) escort function . . . . . . . . . . . . 4-119
Headlight leveling device . . . . . . . . . . . . . . . . . . . . . . 4-111
Headlight position. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-104
Headrest (front). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Headrest (rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17
Heated steering wheel. . . . . . . . . . . . . . . . . . . . . . . . . . 4-51
High - beam operation . . . . . . . . . . . . . . . . . . . . . . . . 4-105
High beam assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-106
High mounted stop lamp (LED type) bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-90
Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-144
Hill-start Assist Control (HAC) . . . . . . . . . . . . . . . . . . 5-59
H
G
JFa PE USA Index.qxp 5/15/2019 3:10 PM Page 7

I9
Index
LabelTire sidewall labeling . . . . . . . . . . . . . . . . . . . . . . . . 7-50
Vehicle certification label . . . . . . . . . . . . . . . . . . . . . 8-11
Tire specification and pressure label . . . . . . . . . . . . 8-11
Refrigerant label . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12
Lane Keeping Assist (LKA) System . . . . . . . . . . . . . 5-134 LKA system operation . . . . . . . . . . . . . . . . . . . . . . 5-135
Driver's attention . . . . . . . . . . . . . . . . . . . . . . . . . . 5-140
LKA system malfunction . . . . . . . . . . . . . . . . . . . . 5-141
LKA system function change . . . . . . . . . . . . . . . . . 5-142
LCD display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-65 LCD modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-65
Trip computer mode . . . . . . . . . . . . . . . . . . . . . . . . . 4-66
Turn by turn mode . . . . . . . . . . . . . . . . . . . . . . . . . . 4-66
Assist mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-66
Service mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-67
Master warning mode. . . . . . . . . . . . . . . . . . . . . . . . 4-68
User settings mode . . . . . . . . . . . . . . . . . . . . . . . . . . 4-68
LCD modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-65\
License plate lamp bulb replacement . . . . . . . . . . . . . . 7-89
Light bulb position (front) . . . . . . . . . . . . . . . . . . . . . . 7-78
Light bulb position (rear) . . . . . . . . . . . . . . . . . . . . . . . 7-79
Light bulb position (side) . . . . . . . . . . . . . . . . . . . . . . . 7-80
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-76\
Bulb replacement precaution . . . . . . . . . . . . . . . . . . 7-76
Light bulb position (front) . . . . . . . . . . . . . . . . . . . . 7-78 Light bulb position (rear) . . . . . . . . . . . . . . . . . . . . . 7-79
Light bulb position (side) . . . . . . . . . . . . . . . . . . . . . 7-80
Headlamp (Low beam) bulb replacement
(Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . 7-80
Headlamp (High beam) bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . 7-81
Front turn signal lamp bulb replacement (Headlamp Type A) . . . . . . . . . . . . . . . . . . . . . . . . 7-82
Headlamp (Low/High beam) (LED type) bulb replacement (Headlamp Type B) . . . . . . . . . . . . . . 7-82
Position lamp/Day time running lamp (LED type) replacement (Headlamp Type A, B) . . . . . . . . . . . 7-83
Front fog lamp bulb replacement . . . . . . . . . . . . . . . 7-83
Side repeater lamp (LED type) bulb replacement . . 7-84
Rear turn signal lamp bulb replacement . . . . . . . . . 7-84
Stop and tail lamp bulb replacement . . . . . . . . . . . . 7-85
Stop and tail lamp (LED type) bulb replacement . . 7-87
Back-up lamp bulb replacement . . . . . . . . . . . . . . . 7-87
Tail lamp bulb replacement . . . . . . . . . . . . . . . . . . . 7-88
License plate lamp bulb replacement. . . . . . . . . . . . 7-89
High mounted stop lamp (LED type) bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-90
Map lamp bulb replacement. . . . . . . . . . . . . . . . . . . 7-90
Vanity mirror lamp bulb replacement . . . . . . . . . . . 7-91
Room lamp bulb replacement . . . . . . . . . . . . . . . . . 7-91
Personal lamp (LED type) bulb replacement. . . . . . 7-92
Glove box lamp bulb replacement . . . . . . . . . . . . . . 7-92
Trunk lamp bulb replacement . . . . . . . . . . . . . . . . . 7-93
L
JFa PE USA Index.qxp 5/15/2019 3:10 PM Page 9

Index
10I
Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-103Battery saver function . . . . . . . . . . . . . . . . . . . . . . 4-103
Daytime running light . . . . . . . . . . . . . . . . . . . . . . 4-103
Parking & Tail light . . . . . . . . . . . . . . . . . . . . . . . . 4-104
Auto light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-104
Headlight position . . . . . . . . . . . . . . . . . . . . . . . . . 4-104
High - beam operation . . . . . . . . . . . . . . . . . . . . . . 4-105
High Beam Assist . . . . . . . . . . . . . . . . . . . . . . . . . . 4-106
Turn signals and lane change signals . . . . . . . . . . . 4-109
Headlight leveling device . . . . . . . . . . . . . . . . . . . . 4-111
Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-110
Dynamic Bending Light (DBL) . . . . . . . . . . . . . . . 4-111
Loss of the smart key (Smart key) . . . . . . . . . . . . . . . . 4-14
Lubricants and capacities . . . . . . . . . . . . . . . . . . . . . . . . 8-7
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Maintenance Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8
Scheduled maintenance service . . . . . . . . . . . . . . . . 7-10
Explanation of scheduled maintenance items . . . . . 7-22
Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-50 Maintenance schedule. . . . . . . . . . . . . . . . . . . . . . . . . . 7-10
Normal maintenance schedule - Non turbo models . . 7-11
Maintenance under severe usage conditions - Non turbo models . . . . . . . . . . . . . . . . . . . . . . . . 7-14
Normal maintenance schedule - Turbo models . . . . 7-16
Maintenance under severe usage conditions - Turbo models . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-20
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6 Owner’s responsibility . . . . . . . . . . . . . . . . . . . . . . . . 7-6
Owner maintenance precautions . . . . . . . . . . . . . . . . 7-7
Manual climate control system. . . . . . . . . . . . . . . . . . 4-121 Heating and air conditioning . . . . . . . . . . . . . . . . . 4-122
System operation . . . . . . . . . . . . . . . . . . . . . . . . . . 4-127
Climate control air filter. . . . . . . . . . . . . . . . . . . . . 4-129
Air Conditioning refrigerant label . . . . . . . . . . . . . 4-129
Checking the amount of air conditioner refrigerant and compressor lubricant . . . . . . . . . . . . . . . . . . . . . . 4-130
Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-117
Map lamp bulb replacement . . . . . . . . . . . . . . . . . . . . . 7-90
Master warning mode . . . . . . . . . . . . . . . . . . . . . . . . . . 4-68
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-53 Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . 4-53
Day/night rearview mirror . . . . . . . . . . . . . . . . . . . . 4-53
Electric chromatic mirror (ECM) with UVO link . . 4-54
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-55
Adjusting outside rearview mirror . . . . . . . . . . . . . . 4-56
Reverse parking aid function . . . . . . . . . . . . . . . . . . 4-56
Folding the outside rearview mirror . . . . . . . . . . . . 4-57
M
JFa PE USA Index.qxp 5/15/2019 3:10 PM Page 10
