Page 541 of 589

KIA OPTIMA 2020  Owners Manual 775
Maintenance
Light bulb position (Front) (1) Front turn signal lamp (Bulb type)
(2) Headlamp (Low) (Bulb type)
(3) Headlamp (High) (Bulb type)
(4) Daytime running lamp/Positionlamp (LED type)
(5) S

Page 542 of 589

KIA OPTIMA 2020  Owners Manual Maintenance
76
7

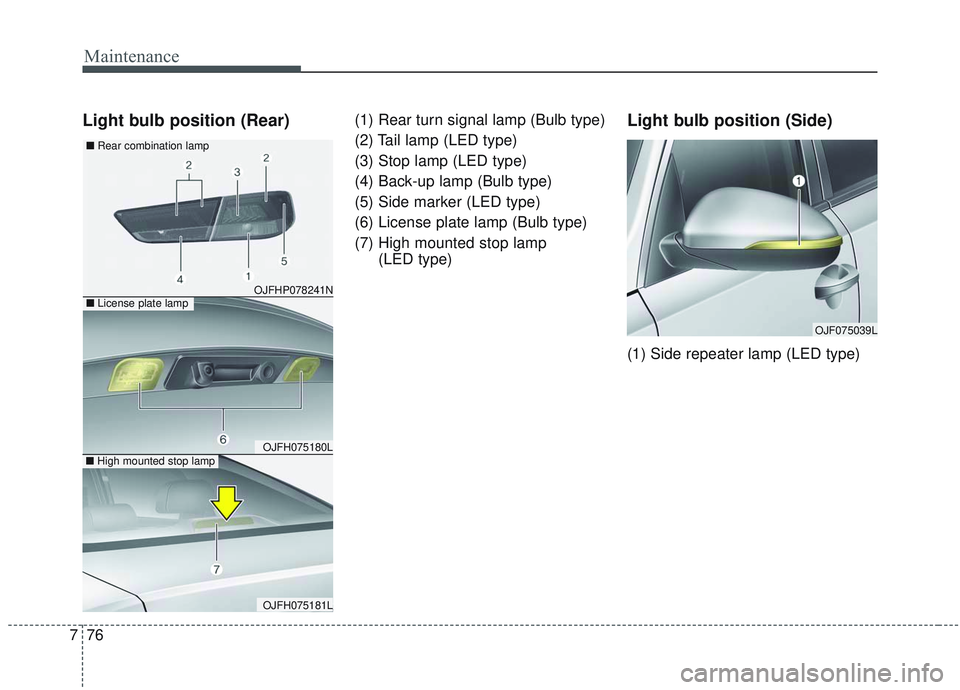

Light bulb position (Rear)(1) Rear turn signal lamp (Bulb type)
(2) Tail lamp (LED type)
(3) Stop lamp (LED type)
(4) Back-up lamp (Bulb type)
(5) Side marker (LED type)
(6) License p

Page 543 of 589

KIA OPTIMA 2020  Owners Manual 777
Maintenance
Headlamp (Low beam) bulb
replacement (Headlamp Type A)
1. Open the hood.
2. Remove the headlamp bulb coverby turning it counterclockwise.
3. Remove the bulb-socket from the headlamp as

Page 544 of 589

KIA OPTIMA 2020  Owners Manual Maintenance
78
7
 Never touch the glass with bare
hands. Residual oil may cause the
bulb to overheat and burst when lit.
A bulb should be operated only
when installed in a headlamp.
 If a bulb becomes

Page 545 of 589

KIA OPTIMA 2020  Owners Manual 779
Maintenance
Headlamp bulb Never touch the glass with barehands. Residual oil may cause the
bulb to overheat and burst when lit.
A bulb should be operated only
when installed in a headlamp.
 If a b

Page 546 of 589

KIA OPTIMA 2020  Owners Manual Maintenance
80
7
Front turn signal lamp (Bulb
type) bulb replacement
(Headlamp Type  B)
1. Open the hood.
2. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwi

Page 547 of 589

KIA OPTIMA 2020  Owners Manual 781
Maintenance

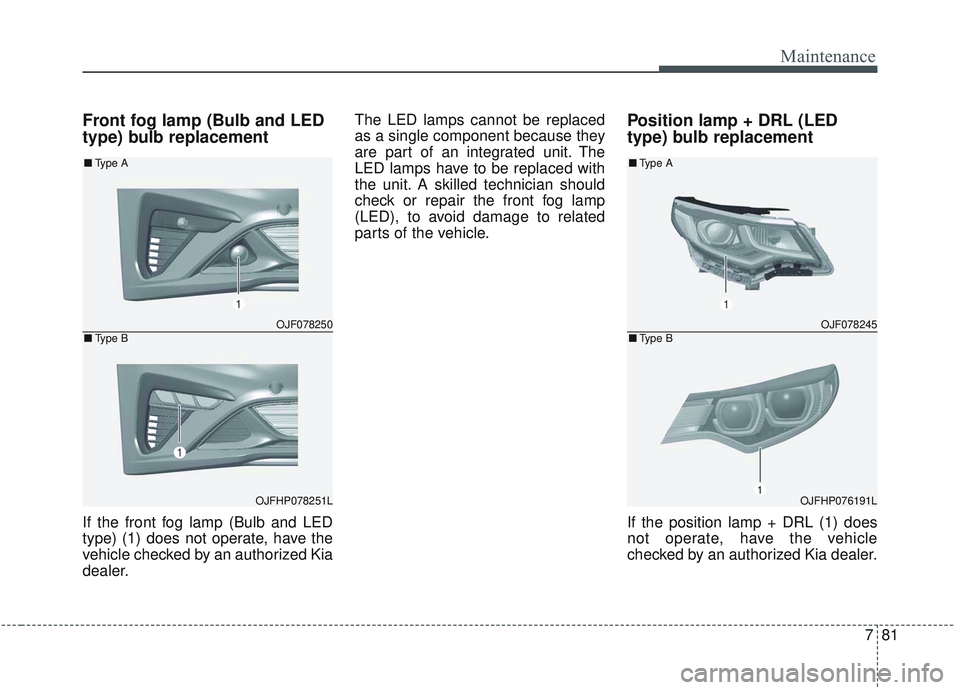

Front fog lamp (Bulb and LED
type) bulb replacement
If the front fog lamp (Bulb and LED
type) (1) does not operate, have the
vehicle checked by an authorized Kia
dealer.The LED lamps c

Page 548 of 589

KIA OPTIMA 2020  Owners Manual Maintenance
82
7

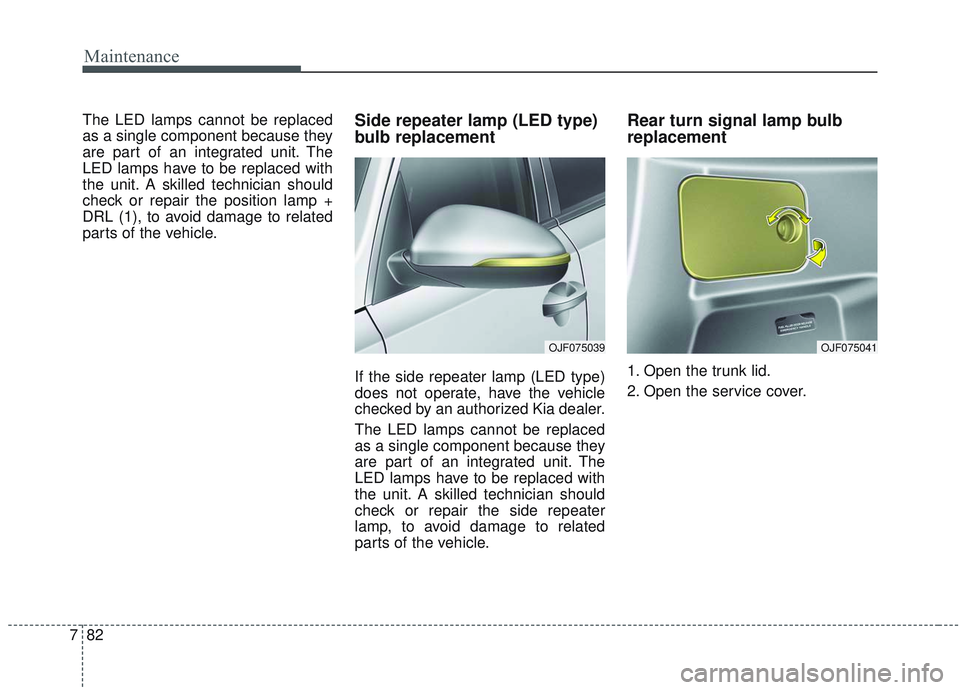

The LED lamps cannot be replaced
as a single component because they
are part of an integrated unit. The
LED lamps have to be replaced with
the unit. A skilled technician should
check

Page 549 of 589

KIA OPTIMA 2020  Owners Manual 783
Maintenance

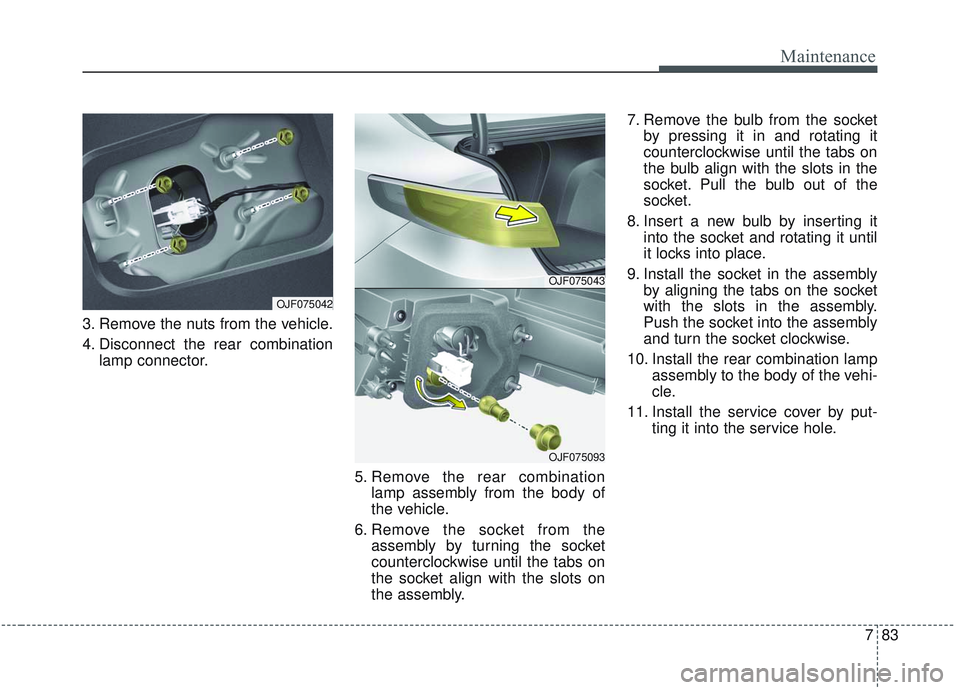

3. Remove the nuts from the vehicle.
4. Disconnect the rear combinationlamp connector.
5. Remove the rear combinationlamp assembly from the body of
the vehicle.
6. Remove the socket fr

Page 550 of 589

KIA OPTIMA 2020  Owners Manual Maintenance
84
7

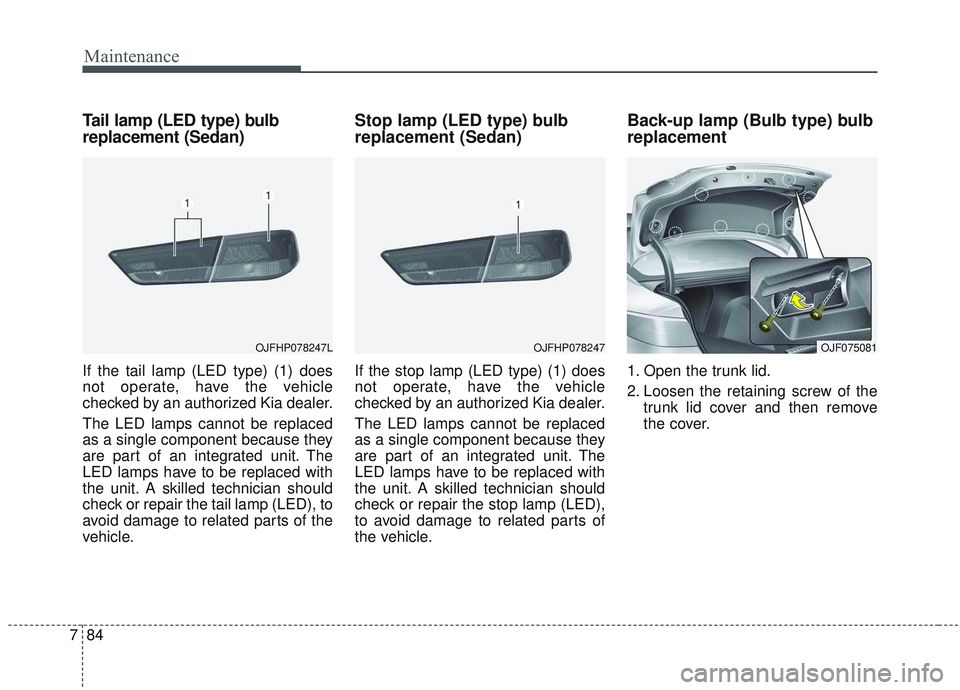

Tail lamp (LED type) bulb
replacement (Sedan)
If the tail lamp (LED type) (1) does
not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamps cannot be replaced
