KIA OPTIMA 2020  Owners Manual 755
Maintenance
Inner panel fuse replacement
1. Turn the engine start/stop buttonto the OFF position and all other
switches off.
2. Open the fuse panel cover.
If the switch is located in the “OFF”

Page 522 of 589

KIA OPTIMA 2020  Owners Manual Maintenance
56
7
If you do not have a spare, use a
fuse of the same rating from a circuityou may not need for operating thevehicle, such as the power outletfuse.
If the head lamp, turn signal lamp,
st

Page 523 of 589

KIA OPTIMA 2020  Owners Manual 757
Maintenance
Engine compartment fuse
replacement
1. Turn the engine start/stop buttonto the OFF position  and all other
switches off.
2. Remove the fuse panel cover by pressing the tab and pulling

Page 524 of 589

KIA OPTIMA 2020  Owners Manual Maintenance
58
7
✽ ✽
NOTICE
Do not disassemble nor assemble the
multi fuse when it is secured with
nuts and bolts. Incorrect or partial
assembly torque may cause a fire.
Have the vehicle checked b

Page 525 of 589

KIA OPTIMA 2020  Owners Manual 759
Maintenance
Fuse/relay panel description
Driver’s side fuse panel
Inside the fuse/relay panel covers,
you can find the fuse/relay label
describing fuse/relay name and
capacity.
✽ ✽NOTICE
No

Page 526 of 589

KIA OPTIMA 2020  Owners Manual Maintenance
60
7
Instrument panel (Driver’s side fuse panel)
Fuse NameFuse ratingCircuit Protected
MODULE 710ASurround View Monitor Unit, Front Air Ventilation Seat Control Module, Front Seat Warmer

Page 527 of 589

KIA OPTIMA 2020  Owners Manual 761
Maintenance
Fuse NameFuse ratingCircuit Protected
MDPS10AMDPS Unit (Column/Rack)
IG125APCB Block (Fuse - OPCU2/ELECTRICAL WATER PUMP/TCU2/ACTIVE HYDRAULIC BOOTER 3/HEV
ECU2/ECU3)
MODULE 910ASmart

Page 528 of 589

KIA OPTIMA 2020  Owners Manual Maintenance
62
7
Fuse NameFuse ratingCircuit Protected
A/BAG IND10AInstrument Cluster (Air Bag IND. Power)
TRUNK10ATrunk Lid Relay, Fuel Filler & Trunk Open Switch, ICM Relay Box (Fuel Filler Open Rel

Page 529 of 589

KIA OPTIMA 2020  Owners Manual 763
Maintenance
Fuse NameFuse ratingCircuit Protected
P/WDW RH25A
Power Window RH Relay, Rear Safety Power Window Module LH, Rear Power Window Switch LH, Power
Window Main Switch,
[LHD] Passenger Safe

Page 530 of 589

KIA OPTIMA 2020  Owners Manual Maintenance
64
7

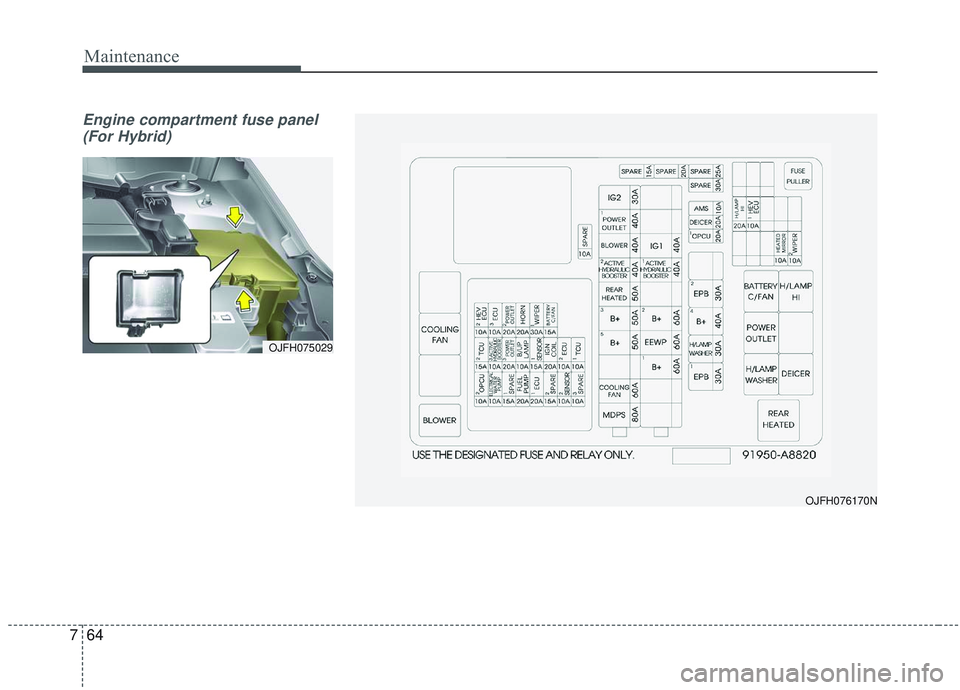

Engine compartment fuse panel
(For Hybrid)
OJFH076170N
OJFH075029
