KIA Optima Hybrid 2016 4.G Owners Manual 771
Maintenance

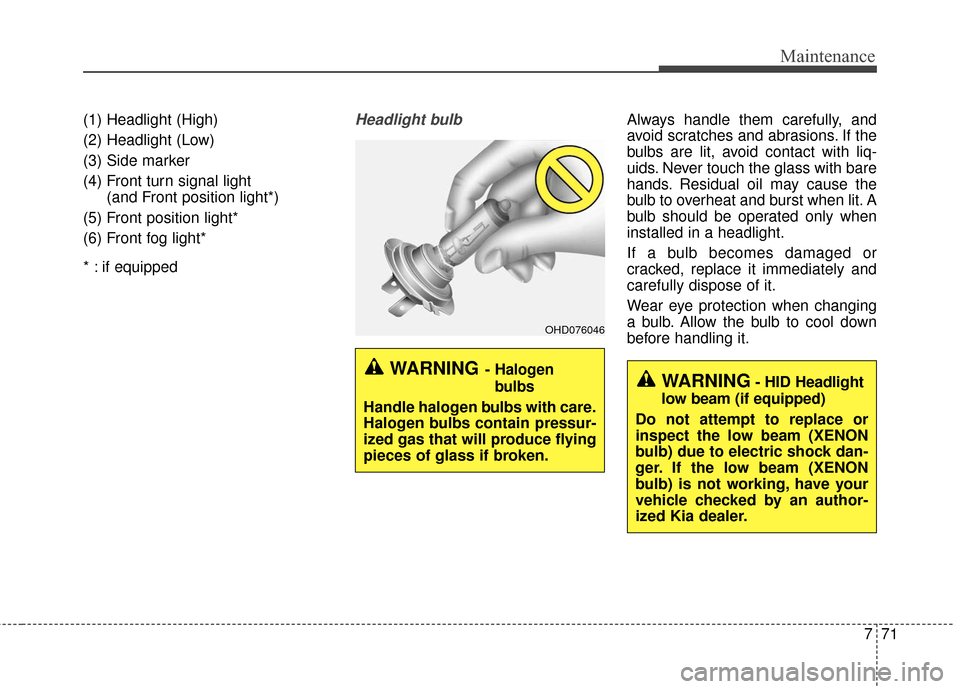

(1) Headlight (High)
(2) Headlight (Low)
(3) Side marker
(4) Front turn signal light (and Front position light*)
(5) Front position light*
(6) Front fog light*
* : if equippedHeadlight

Page 412 of 466

KIA Optima Hybrid 2016 4.G Owners Manual Maintenance
72
7

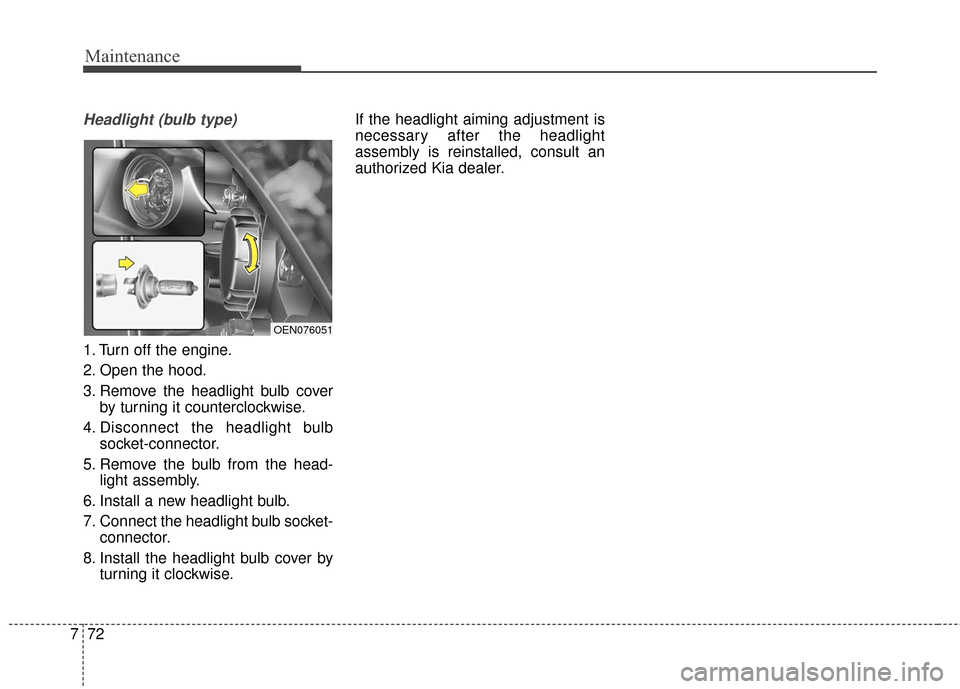

Headlight (bulb type)
1. Turn off the engine.
2. Open the hood.
3. Remove the headlight bulb cover
by turning it counterclockwise.
4. Disconnect the headlight bulb socket-connector.
5

Page 413 of 466

KIA Optima Hybrid 2016 4.G Owners Manual 773
Maintenance

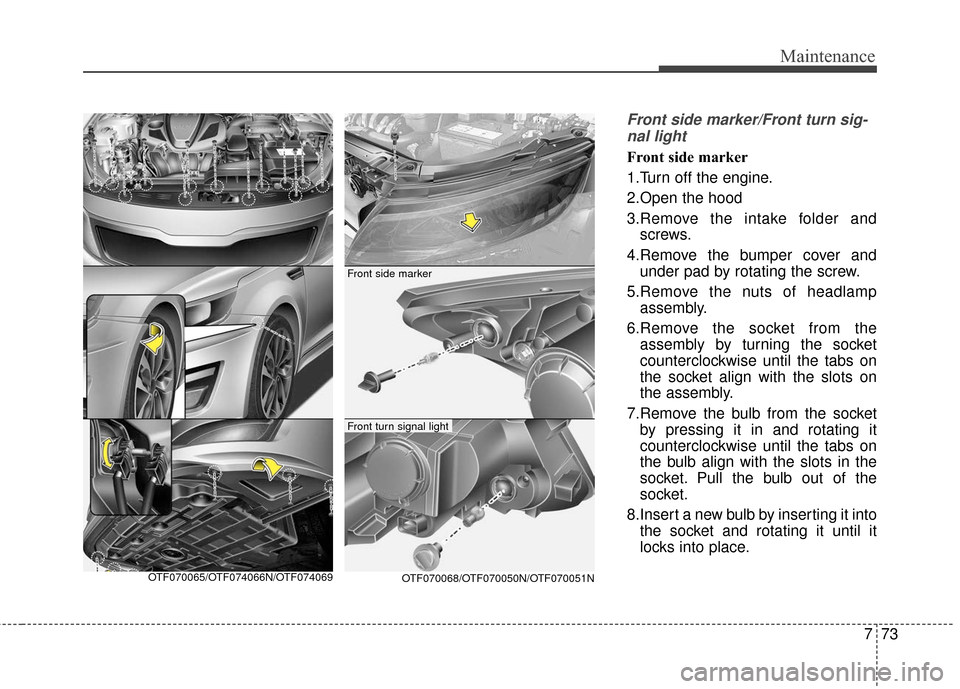

Front side marker/Front turn sig-nal light
Front side marker
1.Turn off the engine.
2.Open the hood
3.Remove the intake folder and screws.
4.Remove the bumper cover and under pad by ro

Page 414 of 466

KIA Optima Hybrid 2016 4.G Owners Manual Maintenance
74
7

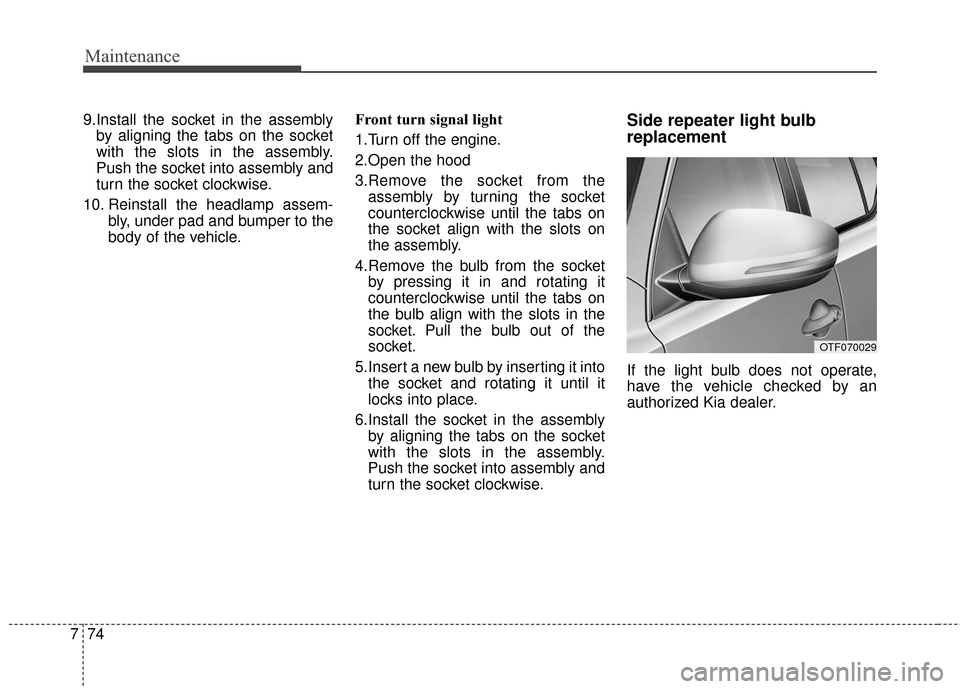

9.Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into assembly and
turn the socket clockwise.
10. Reinstall the

Page 415 of 466

KIA Optima Hybrid 2016 4.G Owners Manual 775
Maintenance

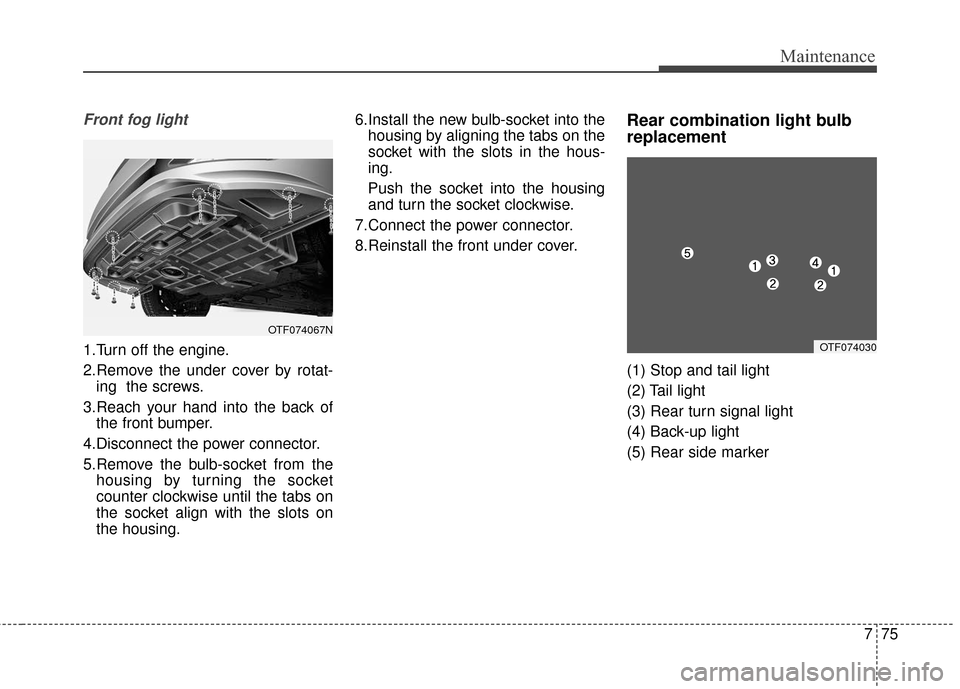

Front fog light
1.Turn off the engine.
2.Remove the under cover by rotat-ing  the screws.
3.Reach your hand into the back of the front bumper.
4.Disconnect the power connector.
5.Remov

Page 416 of 466

KIA Optima Hybrid 2016 4.G Owners Manual Maintenance
76
7
If the light (LED) does not operate,
have the vehicle checked by an

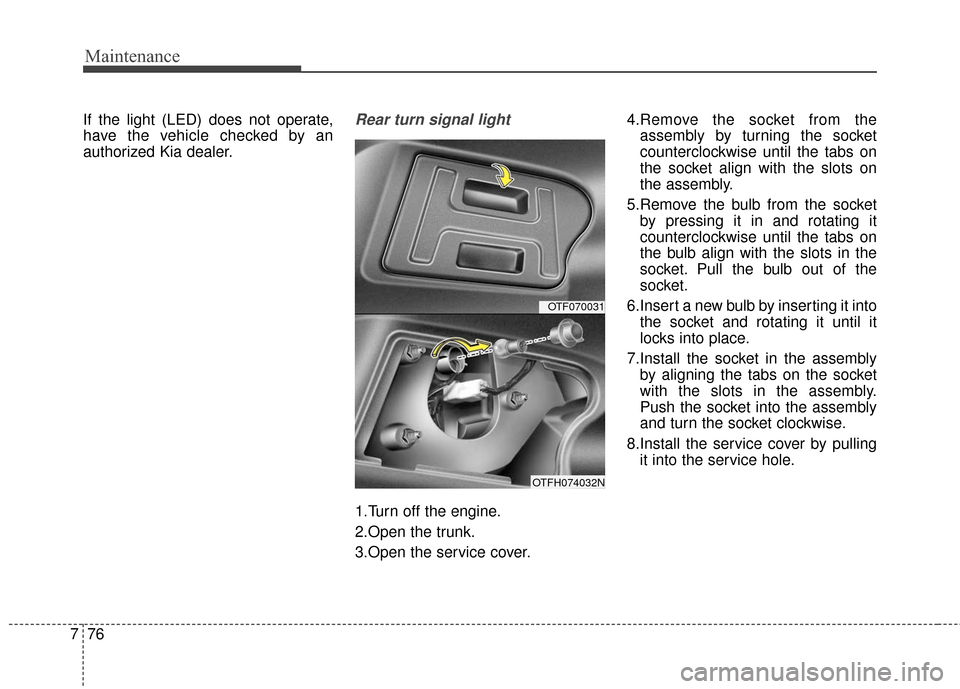

authorized Kia dealer.Rear turn signal light
1.Turn off the engine.
2.Open the trunk.
3.Open the service cover. 4.R

Page 417 of 466

KIA Optima Hybrid 2016 4.G Owners Manual 777
Maintenance

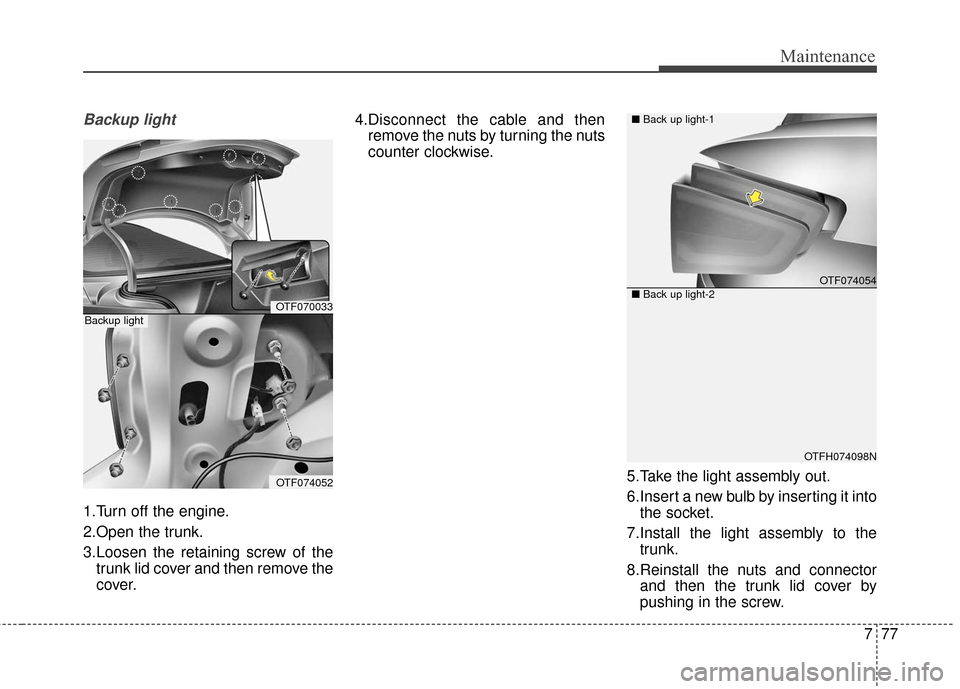

Backup light
1.Turn off the engine.
2.Open the trunk.
3.Loosen the retaining screw of thetrunk lid cover and then remove the
cover. 4.Disconnect the cable and then
remove the nuts by t

Page 418 of 466

KIA Optima Hybrid 2016 4.G Owners Manual Maintenance
78
7

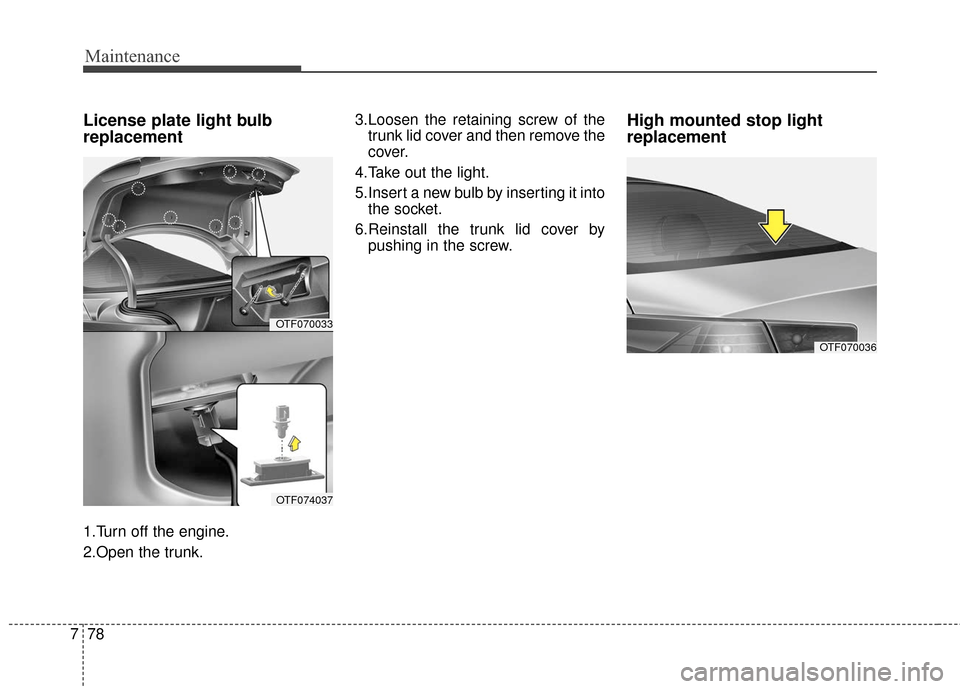

License plate light bulb
replacement
1.Turn off the engine.
2.Open the trunk. 3.Loosen the retaining screw of the
trunk lid cover and then remove the
cover.
4.Take out the light.
5.In

Page 419 of 466

KIA Optima Hybrid 2016 4.G Owners Manual 779
Maintenance

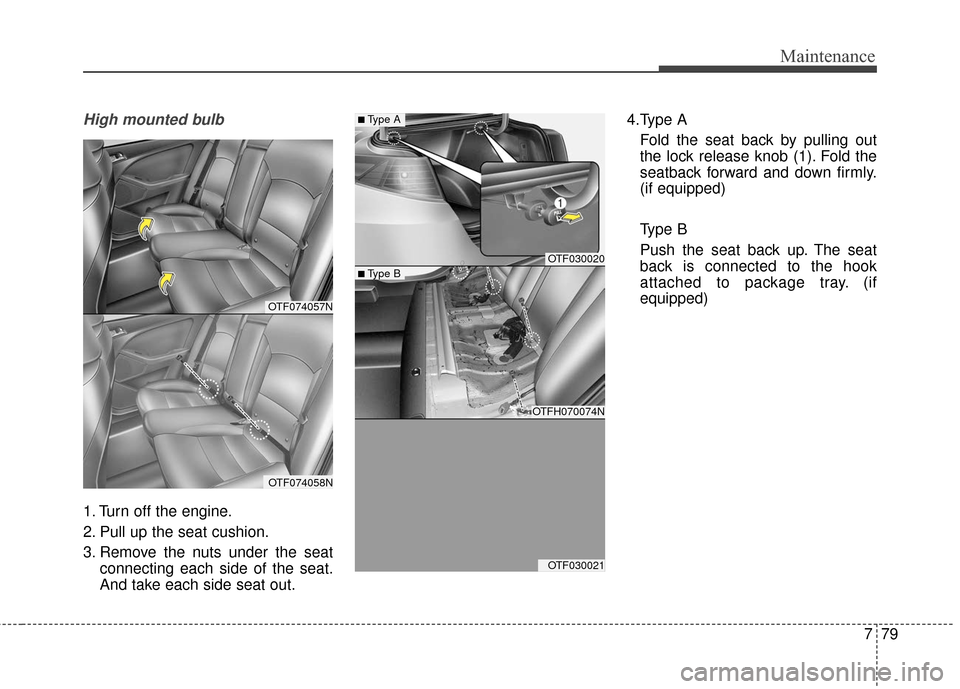

High mounted bulb
1. Turn off the engine.
2. Pull up the seat cushion.
3. Remove the nuts under the seatconnecting each side of the seat.
And take each side seat out. 4.Type A
Fold the

Page 420 of 466

KIA Optima Hybrid 2016 4.G Owners Manual Maintenance
80
7

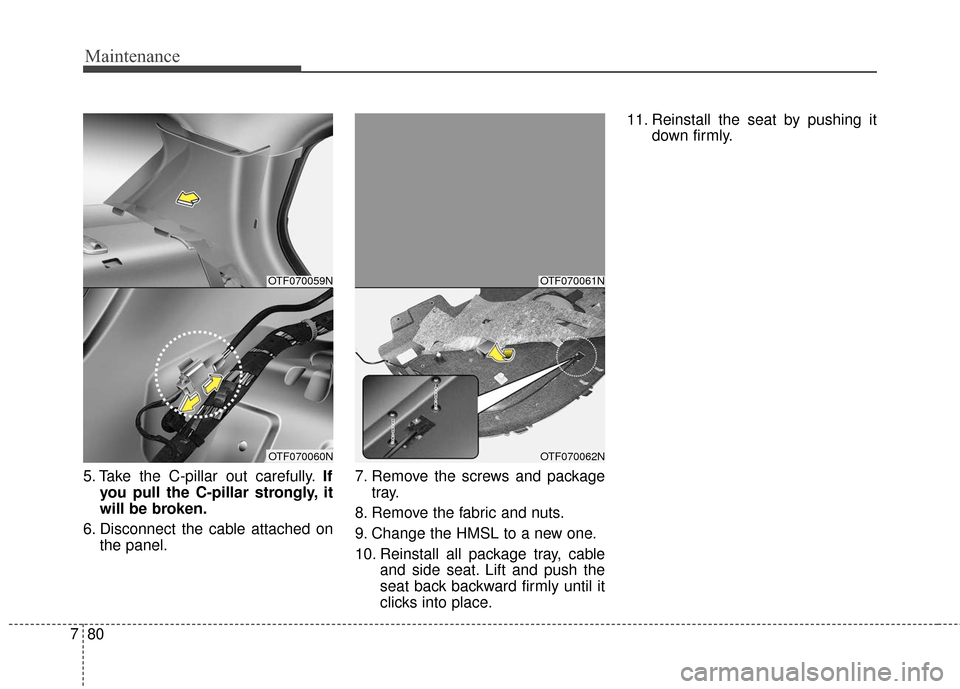

5. Take the C-pillar out carefully. If
you pull the C-pillar strongly, it
will be broken.
6. Disconnect the cable attached on the panel. 7. Remove the screws and package
tray.
8. Remo
