KIA Optima Hybrid 2016 4.G Owner's Manual

H11

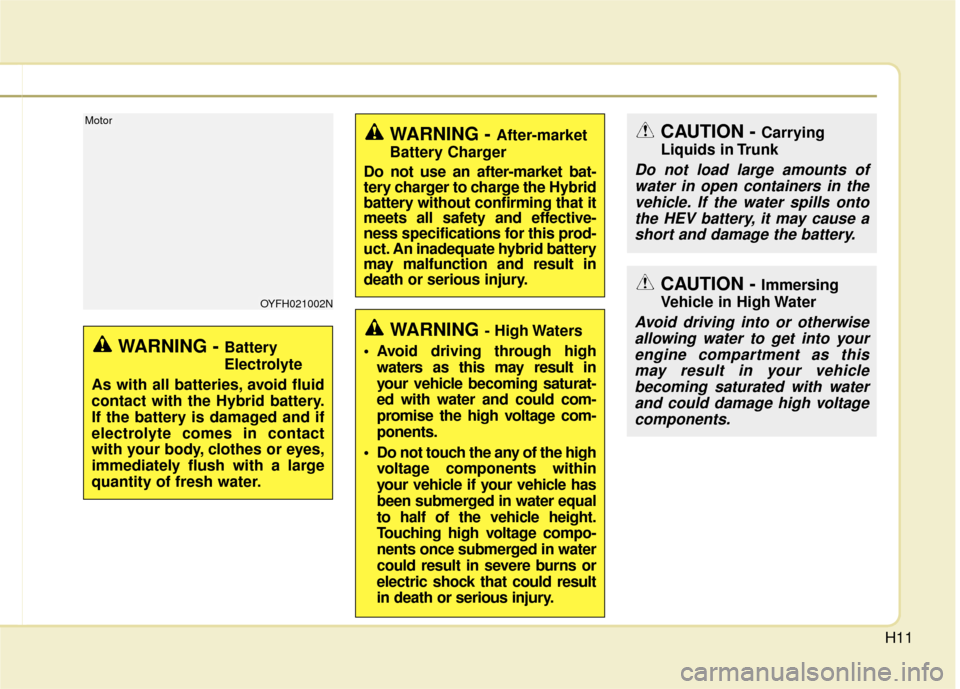

WARNING - Battery
Electrolyte
As with all batteries, avoid fluid
contact with the Hybrid battery.
If the battery is damaged and if
electrolyte comes in contact
with your body, clothes or eyes,
immediately flush with a large
quantity of fresh water.
OYFH021002N
Motor
WARNING - After-market
Battery Charger
Do not use an after-market bat-
tery charger to charge the Hybrid
battery without confirming that it
meets all safety and effective-
ness specifications for this prod-
uct. An inadequate hybrid battery
may malfunction and result in
death or serious injury.
CAUTION - Immersing
Vehicle in High Water
Avoid driving into or otherwise allowing water to get into yourengine compartment as thismay result in your vehiclebecoming saturated with waterand could damage high voltagecomponents.
CAUTION - Carrying
Liquids in Trunk
Do not load large amounts of water in open containers in thevehicle. If the water spills ontothe HEV battery, it may cause ashort and damage the battery.
WARNING - High Waters
• Avoid driving through high waters as this may result in
your vehicle becoming saturat-
ed with water and could com-
promise the high voltage com-
ponents.
Do not touch the any of the high voltage components within
your vehicle if your vehicle has
been submerged in water equal
to half of the vehicle height.
Touching high voltage compo-
nents once submerged in water
could result in severe burns or
electric shock that could result
in death or serious injury.

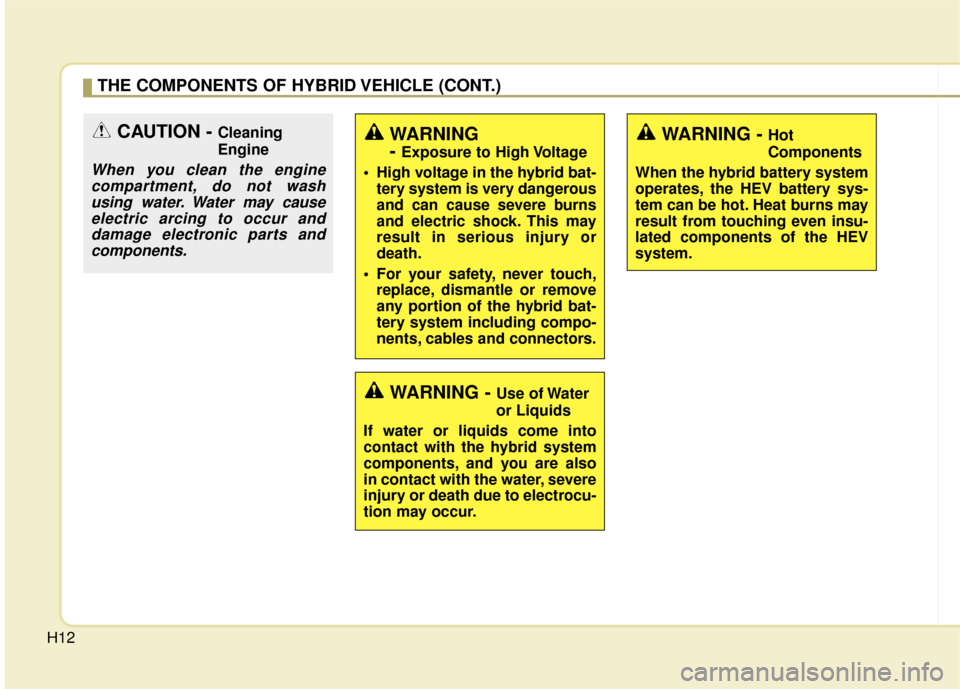

H12
THE COMPONENTS OF HYBRID VEHICLE (CONT.)
CAUTION - Cleaning
Engine
When you clean the enginecompartment, do not washusing water. Water may causeelectric arcing to occur anddamage electronic parts andcomponents.
WARNING
-
Exposure to High Voltage
High voltage in the hybrid bat- tery system is very dangerous
and can cause severe burns
and electric shock. This may
result in serious injury or
death.
For your safety, never touch, replace, dismantle or remove
any portion of the hybrid bat-
tery system including compo-
nents, cables and connectors.
WARNING - Use of Water
or Liquids
If water or liquids come into
contact with the hybrid system
components, and you are also
in contact with the water, severe
injury or death due to electrocu-
tion may occur.
WARNING - Hot
Components
When the hybrid battery system
operates, the HEV battery sys-
tem can be hot. Heat burns may
result from touching even insu-
lated components of the HEV
system.

H13

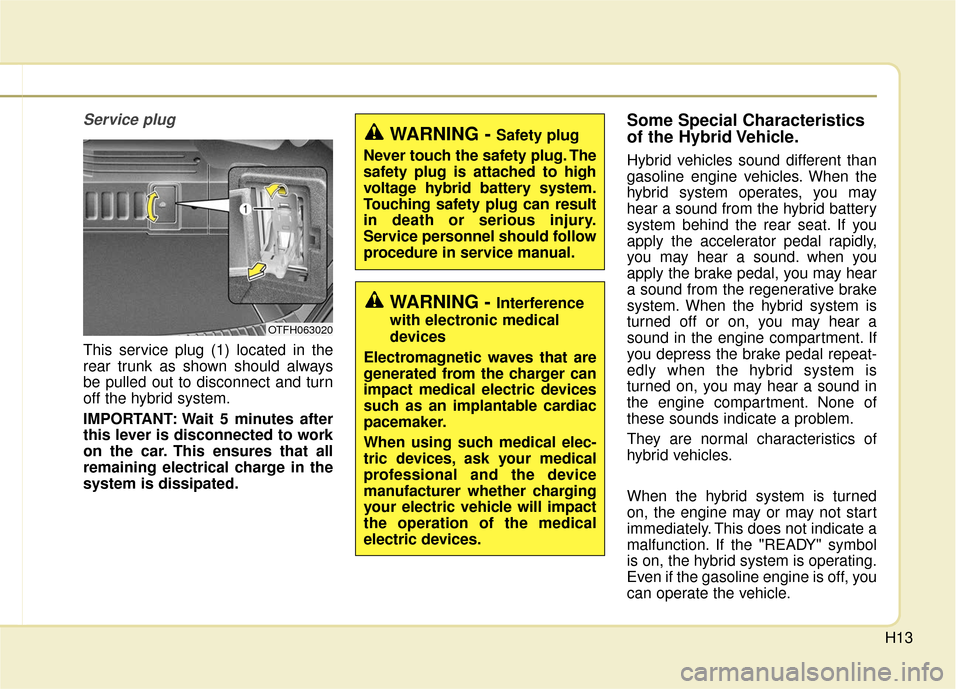

Service plug
This service plug (1) located in the
rear trunk as shown should always
be pulled out to disconnect and turn
off the hybrid system.
IMPORTANT: Wait 5 minutes after
this lever is disconnected to work
on the car. This ensures that all
remaining electrical charge in the
system is dissipated.
Some Special Characteristics
of the Hybrid Vehicle.
Hybrid vehicles sound different than
gasoline engine vehicles. When the
hybrid system operates, you may
hear a sound from the hybrid battery
system behind the rear seat. If you
apply the accelerator pedal rapidly,
you may hear a sound. when you
apply the brake pedal, you may hear
a sound from the regenerative brake
system. When the hybrid system is
turned off or on, you may hear a
sound in the engine compartment. If
you depress the brake pedal repeat-
edly when the hybrid system is
turned on, you may hear a sound in
the engine compartment. None of
these sounds indicate a problem.
They are normal characteristics of
hybrid vehicles.
When the hybrid system is turned
on, the engine may or may not start
immediately. This does not indicate a
malfunction. If the "READY" symbol
is on, the hybrid system is operating.
Even if the gasoline engine is off, you
can operate the vehicle.
OTFH063020
WARNING - Safety plug
Never touch the safety plug. The
safety plug is attached to high
voltage hybrid battery system.
Touching safety plug can result
in death or serious injury.
Service personnel should follow
procedure in service manual.
WARNING - Interference
with electronic medical
devices
Electromagnetic waves that are
generated from the charger can
impact medical electric devices
such as an implantable cardiac
pacemaker.
When using such medical elec-
tric devices, ask your medical
professional and the device
manufacturer whether charging
your electric vehicle will impact
the operation of the medical
electric devices.

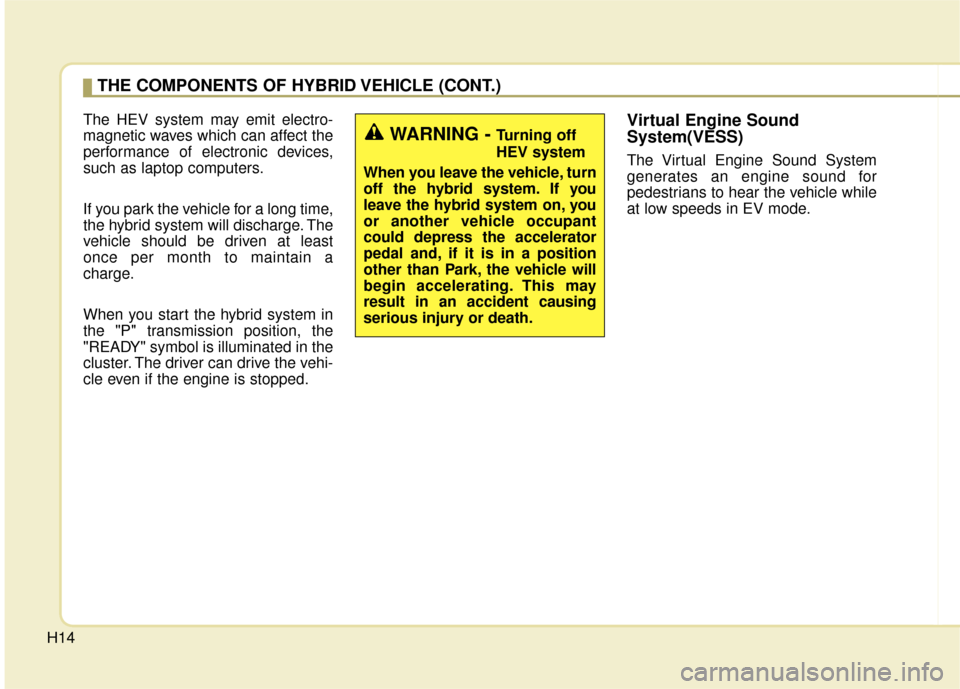

H14The HEV system may emit electro-
magnetic waves which can affect the
performance of electronic devices,
such as laptop computers.
If you park the vehicle for a long time,
the hybrid system will discharge. The
vehicle should be driven at least
once per month to maintain a
charge.
When you start the hybrid system in
the "P" transmission position, the
"READY" symbol is illuminated in the
cluster. The driver can drive the vehi-
cle even if the engine is stopped.
Virtual Engine Sound
System(VESS)
The Virtual Engine Sound System
generates an engine sound for
pedestrians to hear the vehicle while
at low speeds in EV mode.
WARNING - Turning off
HEV system
When you leave the vehicle, turn
off the hybrid system. If you
leave the hybrid system on, you
or another vehicle occupant
could depress the accelerator
pedal and, if it is in a position
other than Park, the vehicle will
begin accelerating. This may
result in an accident causing
serious injury or death.
THE COMPONENTS OF HYBRID VEHICLE (CONT.)

H15

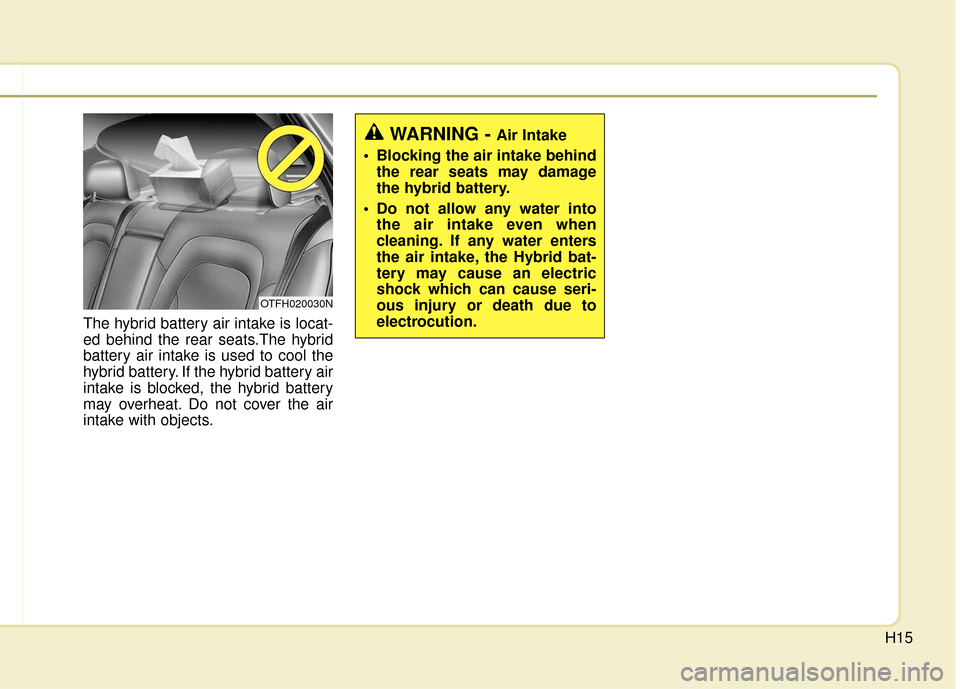

The hybrid battery air intake is locat-
ed behind the rear seats.The hybrid
battery air intake is used to cool the
hybrid battery. If the hybrid battery air
intake is blocked, the hybrid battery
may overheat. Do not cover the air
intake with objects.
WARNING - Air Intake
Blocking the air intake behind the rear seats may damage
the hybrid battery.
Do not allow any water into the air intake even when
cleaning. If any water enters
the air intake, the Hybrid bat-
tery may cause an electric
shock which can cause seri-
ous injury or death due to
electrocution.
OTFH020030N

H16

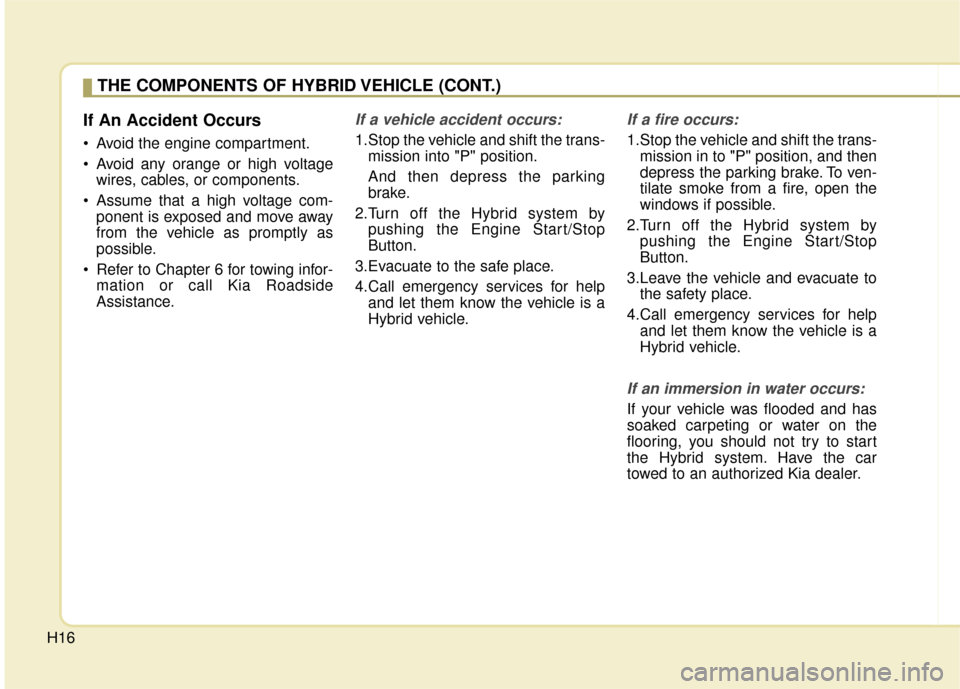

If An Accident Occurs
Avoid the engine compartment.
Avoid any orange or high voltagewires, cables, or components.
Assume that a high voltage com- ponent is exposed and move away
from the vehicle as promptly as
possible.
Refer to Chapter 6 for towing infor- mation or call Kia Roadside
Assistance.
If a vehicle accident occurs:
1.Stop the vehicle and shift the trans-mission into "P" position.
And then depress the parking
brake.
2.Turn off the Hybrid system by pushing the Engine Start/Stop
Button.
3.Evacuate to the safe place.
4.Call emergency services for help and let them know the vehicle is a
Hybrid vehicle.
If a fire occurs:
1.Stop the vehicle and shift the trans-mission in to "P" position, and then
depress the parking brake. To ven-
tilate smoke from a fire, open the
windows if possible.
2.Turn off the Hybrid system by pushing the Engine Start/Stop
Button.
3.Leave the vehicle and evacuate to the safety place.
4.Call emergency services for help and let them know the vehicle is a
Hybrid vehicle.
If an immersion in water occurs:
If your vehicle was flooded and has
soaked carpeting or water on the
flooring, you should not try to start
the Hybrid system. Have the car
towed to an authorized Kia dealer.
THE COMPONENTS OF HYBRID VEHICLE (CONT.)

H17

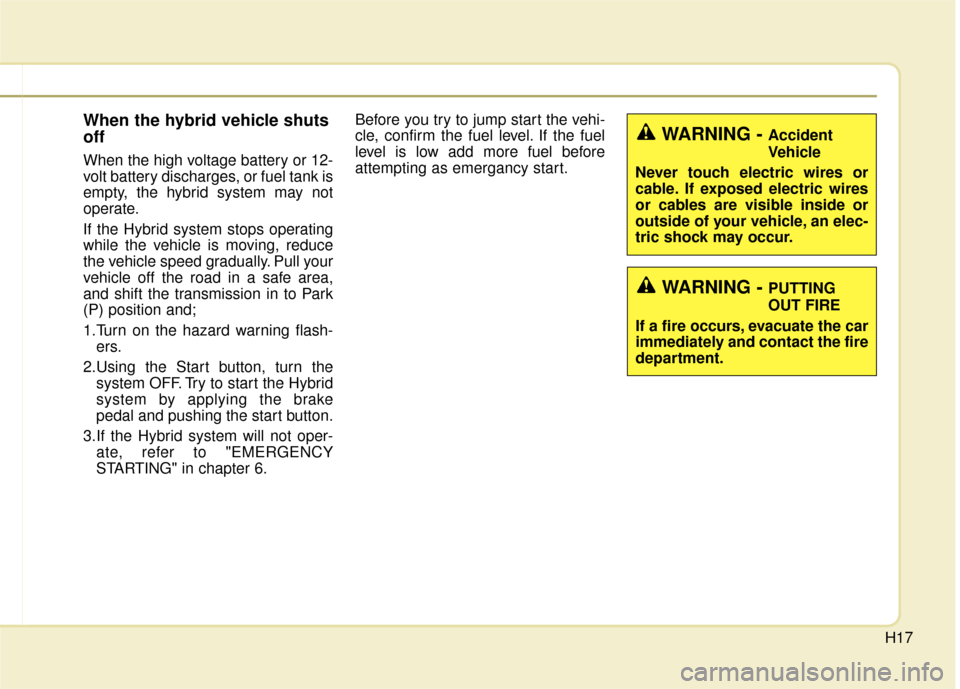

When the hybrid vehicle shuts
off
When the high voltage battery or 12-
volt battery discharges, or fuel tank is
empty, the hybrid system may not
operate.
If the Hybrid system stops operating
while the vehicle is moving, reduce
the vehicle speed gradually. Pull your
vehicle off the road in a safe area,
and shift the transmission in to Park
(P) position and;
1.Turn on the hazard warning flash-ers.
2.Using the Start button, turn the system OFF. Try to start the Hybrid
system by applying the brake
pedal and pushing the start button.
3.If the Hybrid system will not oper- ate, refer to "EMERGENCY
STARTING" in chapter 6. Before you try to jump start the vehi-
cle, confirm the fuel level. If the fuel
level is low add more fuel before
attempting as emergancy start.
WARNING - Accident
Vehicle
Never touch electric wires or
cable. If exposed electric wires
or cables are visible inside or
outside of your vehicle, an elec-
tric shock may occur.
WARNING - PUTTING
OUT FIRE
If a fire occurs, evacuate the car
immediately and contact the fire
department.

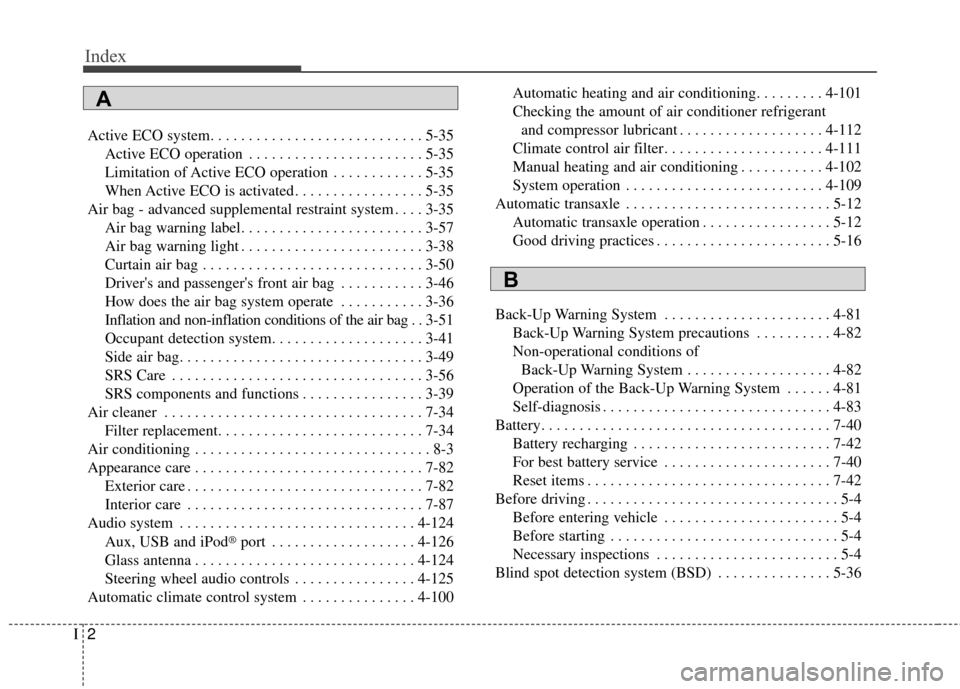

Index
I

Index
2I
Active ECO system. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-35Active ECO operation . . . . . . . . . . . . . . . . . . . . . . . 5-35
Limitation of Active ECO operation . . . . . . . . . . . . 5-35
When Active ECO is activated . . . . . . . . . . . . . . . . . 5-35
Air bag - advanced supplemental restraint system . . . . 3-35 Air bag warning label. . . . . . . . . . . . . . . . . . . . . . . . 3-57
Air bag warning light . . . . . . . . . . . . . . . . . . . . . . . . 3-38
Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-50
Driver's and passenger's front air bag . . . . . . . . . . . 3-46
How does the air bag system operate . . . . . . . . . . . 3-36
Inflation and non-inflation conditions of the air bag . . 3-51
Occupant detection system. . . . . . . . . . . . . . . . . . . . 3-41
Side air bag. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-49
SRS Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-56
SRS components and functions . . . . . . . . . . . . . . . . 3-39
Air cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-34\
Filter replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . 7-34
Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Appearance care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-82 Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-82
Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-87
Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-124
Aux, USB and iPod
®port . . . . . . . . . . . . . . . . . . . 4-126
Glass antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-124
Steering wheel audio controls . . . . . . . . . . . . . . . . 4-125
Automatic climate control system . . . . . . . . . . . . . . . 4-100 Automatic heating and air conditioning. . . . . . . . . 4-101
Checking the amount of air conditioner refrigerant
and compressor lubricant . . . . . . . . . . . . . . . . . . . 4-112
Climate control air filter. . . . . . . . . . . . . . . . . . . . . 4-111
Manual heating and air conditioning . . . . . . . . . . . 4-102
System operation . . . . . . . . . . . . . . . . . . . . . . . . . . 4-109
Automatic transaxle . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12 Automatic transaxle operation . . . . . . . . . . . . . . . . . 5-12
Good driving practices . . . . . . . . . . . . . . . . . . . . . . . 5-16
Back-Up Warning System . . . . . . . . . . . . . . . . . . . . . . 4-81 Back-Up Warning System precautions . . . . . . . . . . 4-82
Non-operational conditions ofBack-Up Warning System . . . . . . . . . . . . . . . . . . . 4-82
Operation of the Back-Up Warning System . . . . . . 4-81
Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-83
Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 7-40 Battery recharging . . . . . . . . . . . . . . . . . . . . . . . . . . 7-42
For best battery service . . . . . . . . . . . . . . . . . . . . . . 7-40
Reset items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-42
Before driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4 Before entering vehicle . . . . . . . . . . . . . . . . . . . . . . . 5-4
Before starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Necessary inspections . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Blind spot detection system (BSD) . . . . . . . . . . . . . . . 5-36
A
B

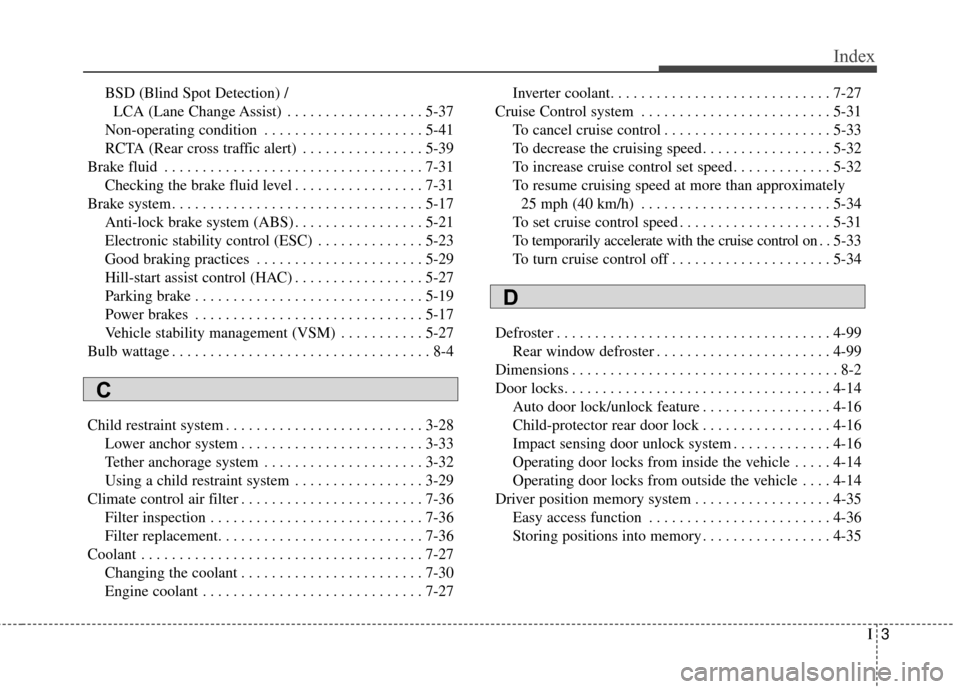

I3
Index
BSD (Blind Spot Detection) /LCA (Lane Change Assist) . . . . . . . . . . . . . . . . . . 5-37
Non-operating condition . . . . . . . . . . . . . . . . . . . . . 5-41
RCTA (Rear cross traffic alert) . . . . . . . . . . . . . . . . 5-39
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-31\
Checking the brake fluid level . . . . . . . . . . . . . . . . . 7-31
Brake system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-17 Anti-lock brake system (ABS) . . . . . . . . . . . . . . . . . 5-21
Electronic stability control (ESC) . . . . . . . . . . . . . . 5-23
Good braking practices . . . . . . . . . . . . . . . . . . . . . . 5-29
Hill-start assist control (HAC) . . . . . . . . . . . . . . . . . 5-27
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-19
Power brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-17
Vehicle stability management (VSM) . . . . . . . . . . . 5-27
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Child restraint system . . . . . . . . . . . . . . . . . . . . . . . . . . 3-28 Lower anchor system . . . . . . . . . . . . . . . . . . . . . . . . 3-33
Tether anchorage system . . . . . . . . . . . . . . . . . . . . . 3-32
Using a child restraint system . . . . . . . . . . . . . . . . . 3-29
Climate control air filter . . . . . . . . . . . . . . . . . . . . . . . . 7-36 Filter inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-36
Filter replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . 7-36
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 7-27 Changing the coolant . . . . . . . . . . . . . . . . . . . . . . . . 7-30
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-27 Inverter coolant. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-27
Cruise Control system . . . . . . . . . . . . . . . . . . . . . . . . . 5-31 To cancel cruise control . . . . . . . . . . . . . . . . . . . . . . 5-33
To decrease the cruising speed . . . . . . . . . . . . . . . . . 5-32
To increase cruise control set speed . . . . . . . . . . . . . 5-32
To resume cruising speed at more than approximately25 mph (40 km/h) . . . . . . . . . . . . . . . . . . . . . . . . . 5-34
To set cruise control speed . . . . . . . . . . . . . . . . . . . . 5-31
To temporarily accelerate with the cruise control on . . 5-33
To turn cruise control off . . . . . . . . . . . . . . . . . . . . . 5-34
Defroster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-99 Rear window defroster . . . . . . . . . . . . . . . . . . . . . . . 4-99
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-\
2
Door locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
14 Auto door lock/unlock feature . . . . . . . . . . . . . . . . . 4-16
Child-protector rear door lock . . . . . . . . . . . . . . . . . 4-16
Impact sensing door unlock system . . . . . . . . . . . . . 4-16
Operating door locks from inside the vehicle . . . . . 4-14
Operating door locks from outside the vehicle . . . . 4-14
Driver position memory system . . . . . . . . . . . . . . . . . . 4-35 Easy access function . . . . . . . . . . . . . . . . . . . . . . . . 4-36
Storing positions into memory . . . . . . . . . . . . . . . . . 4-35
C
D
