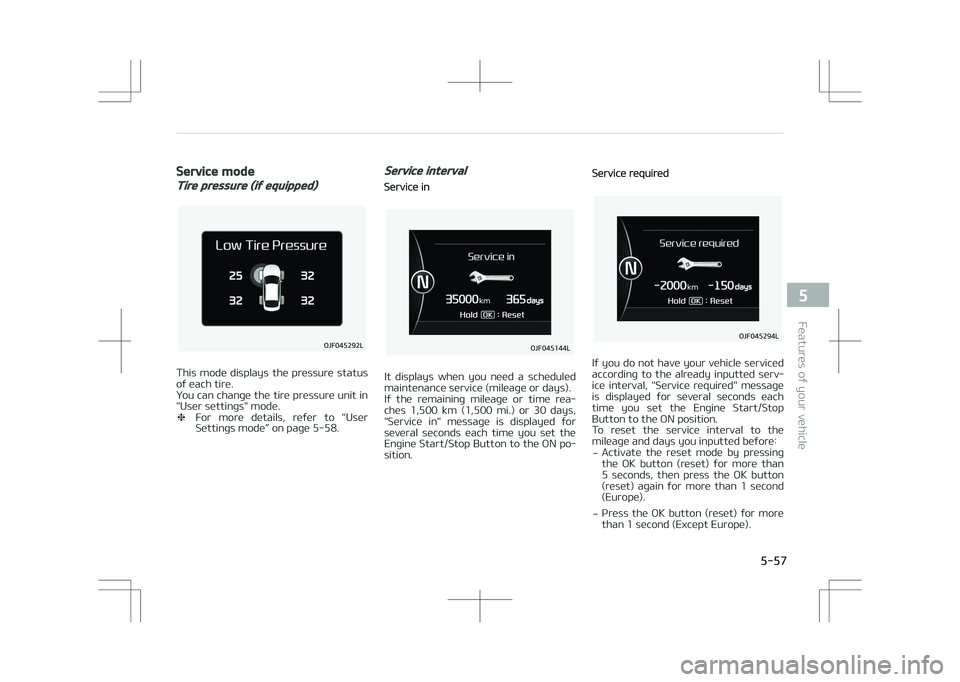

Service mode
Tire pressure (if equipped)
0+'-
This mode displays the pressure status
of each tire.
You can change the tire pressure unit in "User settings" mode. ❈ For more details, refer to L

Service in OFF
0+'-
If the service interval is not set, "Serv‐
ice in OFF" message is displayed on the LCD display.
NOTICE
If any of the following conditions oc‐
curs, the mileage and days may be
incorrect.
(Continued)
(Continued)
-The battery cable is disconnected.
-The fuse switch is turned off.
-The battery is discharged.
Master warning mode (if
equipped)
• This warning light informs the driver of the followingsituations: - Blind Spot Detection (BSD) mal‐ function (if equipped)
- Tire Pressure Monitoring System (TPMS) malfunction (if equipped)
- High Beam Assist (HBA) malfunc‐ tion (if equipped)
- Lamp malfunction
- Service reminder and so on.
The Master Warning Light illuminates if one or more of the above warning sit‐
uations occur. At this time, the LCD
Modes Icon will change from (
) to
().
If the warning situation is solved, the
master warning light will be turned off and the LCD Modes Icon will be changed
back to its previous icon (
).
User settings mode
Description
0+'-
On this mode, you can change setting
of the doors, lamps, and so on.
Features of your vehicle
5-58

Other features
ItemsExplanation
Fuel Economy Auto Reset If this item is checked, the average fuel economy will reset automatically when refu‐ eling.
Fuel Economy Unit Choose the fuel economy unit. (Km/L, L/100)
- Speedometer is km/h type: Km/L or L/100km
- Speedometer is MPH type: US gallon or UK gallon
Temperature Unit Choose the temperature unit. (°C, °F)
Tire Pressure Unit (if equipped) Choose the tire pressure unit. (psi, kPa, Bar)
Language
(if equipped) Choose the language.

Trip modes (Trip computer)
The trip computer is a microcomputer-
controlled driver information system
that displays information related to driving.
NOTICE
Some driving information stored in
the trip computer (for example
Average Vehicle Speed) resets if the
battery is disconnected.

5-63
5
Features of your vehicle

- Distance range: 1 ~ 9,999 km or 1 ~9,999 mi.
NOTICE
•If the vehicle is not on level ground
or the battery power has been in‐
terrupted, the distance to empty
function may not operate correct‐
ly.
•The distance to empty may differ
from the actual driving distance as
it is an estimate of the available
driving distance.
•The trip computer may not regis‐
ter additional fuel if less than
6 liters (1.6 gallons) of fuel are
added to the vehicle.
•The fuel economy and distance to
empty may vary significantly
based on driving conditions, driving
habits, and condition of the vehi‐
cle.
Average Fuel Economy (2)
• The average fuel economy is calcula‐ ted by the total driving distance and
fuel consumption since the last aver‐ age fuel economy reset. - Fuel economy range: 0.0 ~ 99.9
km/L, L/100 km or MPG
• The average fuel economy can be re‐ set both manually and automatically.
Manual reset
To clear the average fuel economy
manually, press the OK button (reset) on the steering wheel for more than 1
second when the average fuel economy
is displayed.
Automatic reset
To make the average fuel economy be reset automatically whenever refueling,
select the L

Trip A/B
0+'-
Tripmeter (1)
• The tripmeter is the total driving dis‐ tance since the last tripmeter reset.- Distance range: 0.0 ~ 9999.9 km or mi.
• To reset the tripmeter, press the OK button (reset) on the steering wheelfor more than 1 second when the
tripmeter is displayed.
Average Vehicle Speed (2)
• The average vehicle speed is calcula‐ ted by the total driving distance and
driving time since the last average
vehicle speed reset. - Speed range: 0 ~ 260 km/h or 0 ~
160 mph
• To reset the average vehicle speed, press the OK button (reset) on the
steering wheel for more than 1 sec‐
ond when the average vehicle speed
is displayed.
NOTICE
•The average vehicle speed is not
displayed if the driving distance
has been less than 50 meters
(0.03 miles) or the driving time
has been less than 10 seconds
since the ignition switch or Engine
Start/Stop button was turned to
ON.
•Even if the vehicle is not in motion,
the average vehicle speed keeps
calculating, as long as while the
engine is running.
Elapsed Time (3)
• The elapsed time is the total driving time since the last elapsed time re‐
set. - Time range (hh:mm): 00:00 ~ 99:59 • To reset the elapsed time, press the
OK button (reset) on the steering
wheel for more than 1 second when
the elapsed time is displayed.
NOTICE
Even if the vehicle is not in motion,
the elapsed time keeps calculating,
as long as the engine is running.
Digital speedometer
This mode displays the current speed
of the vehicle.
Features of your vehicle
5-66

One time driving information mode
0+')1-
This display shows trip distance (1),
average fuel economy (2) and the vehi‐ cle can be driven with the remaining
fuel (3).
This information is displayed for a few
seconds when you turn off the engine and then goes off automatically. The
information provided is calculated ac‐
cording to each trip.
If the estimated distance is below 1 km (1 mi.), the distance to empty (3) will
display as L

Turn by turn mode (if equipped)
0+'-
This mode displays the state of the
navigation.
LDWS/LKAS (if equipped)
-%84
0+')1-
-,"4
0+')1-
This mode displays the state of the
Lane Departure Warning System (LDWS) and Lane Keeping Assist Sys‐
tem (LKAS). For more information, refer to L

You should refill the fuel tank to pre‐
vent hybrid battery damage.
Refill inverter coolant
This warning message illuminates when
the inverter coolant is nearly empty.
You should refill the inverter coolant.
Check brakes
This warning message illuminates when
the brake performance is low or the re‐ generative brake does not work prop‐
erly due to a failure in the brake sys‐
tem.
In this case, it may take longer for the brake pedal to operate and the braking
distance may become longer.
Stop vehicle and check brakes
This warning message is displayed
when a failure occurs in the brake sys‐ tem.
In this case, park the vehicle in a safe
location and we recommend you to tow
your vehicle to the nearest authorized Kia dealer and have the vehicle inspec‐
ted.
Coasting guide (if equipped)
A chime will sound and the coasting
guide indicator will blink four times to inform the driver when to take the foot
off from the accelerator by anticipating
a decelerating event* based on the analysis of driving routes and road con‐
ditions of the navigation. It encourages
the driver to remove foot from the pedal and allow coasting down the road
with EV motor only. This helps prevent
unnecessary fuel consumption and in‐ creases fuel efficiency. ❈ Example of a deceleration event is
going down an extended hill, slow‐ ing down approaching a toll booth,
and approaching reduced speed
zones.
• User settings
Press the Engine Start/Stop button
and put the shift lever in P (Park). In
the User Settings Mode, select Driv‐
ing Assist, Coasting Guide, and then On to turn on the system. Cancel the
selection of coasting guide to turn off
the system. For the explanation of
the system, press and hold the [OK]
button.
• Operation conditions To activate the system, take the fol‐
lowing procedures. Enter your desti‐
nation information on the navigation
and select the driving route. Select the ECO mode in the Integrated Driv‐
ing Control System. Then, satisfy the
following. - The driving speed should be be‐ tween 60 km/h (37 mph) and
160 km/h (99 mph).
❈ The operating speed may vary due
to difference between instrument
cluster and navigation effected by
tire inflation level.
Unplug vehicle to start (Plug-in
Hybrid)
The message is displayed when you
start the engine without unplugging
the charging cable. Unplug the charging
cable, and then start the vehicle.
Remaining charge time (Plug-in
Hybrid)
The message is displayed to notify the
remaining time to fully charge the bat‐ tery.
Shift to P to charge (Plug-in
Hybrid)
The message is displayed when the
charging connector is plugged with the
shift lever in R (Reverse), N (Neutral) or
D (Drive). Move the shift lever to P
(Park) and re-start the charging proc‐ ess.
Features of your vehicle
5-76

EV/HEV/CHG modes (Plug-in
Hybrid)
A corresponding message is displayed
when a mode is selected by pressing the HEV button.
Battery charged. Maintaining
current (Plug-in Hybrid)
This message is displayed when unable
to convert to charging mode even when pressing and holding the HEV button
during EV/HEV mode driving because
the high-voltage (hybrid) battery is al‐ ready fully charged.
Low battery. Maintaining hybrid
(Plug-in Hybrid)
This message is displayed when unable
to convert to EV mode even when
pressing the HEV button during HEV
mode driving due to insufficient high-
voltage (hybrid) battery level.
Low battery temp. Maintaining
current (Plug-in Hybrid)
This message is displayed when unable
to convert to EV mode even when pressing the HEV button during HEV
mode driving due to low battery tem‐
perature.
Charging complete. Switching to
hybrid (Plug-in Hybrid)
This message is displayed automatical‐
ly converting to HEV mode due to com‐
pleted battery charging during charging mode driving.
Charger error! (Plug-in Hybrid)
This message is displayed when the
charging failed by external charger er‐ ror.
The purpose of this message is to let
you know the error has occurred in
charger itself not in vehicle.
Low/high system temp.
Maintaining hybrid (Plug-in Hybrid)
This message is displayed when unable
to convert to EV mode even when pressing the HEV button during HEV
mode driving due to low/high system
temperature.
Switching to hybrid mode to allow
heating (Plug-in Hybrid)
• When the coolant temperature is lower than -14°C (57°F), and you
turn the climate control On for heat‐ ing, the above message will be dis‐
played in the cluster. Then, the vehi‐
cle will automatically switch to HEV
mode. • When the coolant temperature is
higher than -14°C (57°F), or you turnthe climate control Off, the vehicle
will automatically return to EV mode.
Wait until fuel door opens (Plug-in
Hybrid)
The message is displayed when you at‐
tempt to open the fuel filler lid with the fuel tank pressurized. Wait until the
fuel tank is depressurized.
NOTICE
•It may take up to 20 seconds to
open fuel filler lid.
•When the fuel filler lid is frozen
and does not open after 20 sec‐
onds at freezing temperature,
slightly tap the fuel filler lid and
then attempt to open it.
Fuel door open (Plug-in Hybrid)
This message is displayed when the
fuel filler lid is opened.
Also means "Ready to refuel".

5-77
5
Features of your vehicle

Check fuel door (Plug-in Hybrid)
This message is displayed when thefuel filler lid is open or an abnormality
has occurred.
Refuel after stopping (Plug-in
Hybrid)
This message is displayed when the
fuel filler lid open button is pressed when a vehicle equipped with a plugin
hybrid seal-type fuel tank is in motion
(vehicle speed is greater than 0 km/h (mi/h)).
Open fuel door after disconnecting
charging cable (Plug-in Hybrid)
This message is displayed when you
press fuel filler lid open button while charging.
This message explains that refueling is
not allowed to finish charging.
Fuel lid is not opened when charging
cable is connected to vehicle.
Charging door open (Plug-in Hybrid)
This message indicates that the charg‐
ing door is open while in driving-ready state to encourage you to inspect and
close the door.
(Driving with the charging door open
may result in moisture inflow or dam‐ age. This message is used to prevent
such occurrences.)
Features of your vehicle
5-78
