IN CASE OF AN EMERGENCY WHILE DRIVING
Iý the enþine stalls at a
crossroad or crossinþ
• Iý the enþine stalls at a crossroad orcrossinþ, set the shiýt lever in the N
(Neutral) position and then push the vehicle to a saýe place.
• Iý your vehicle has a manual transaxle not equipped with a iþnition lock
switch, the vehicle can move ýorward
by shiýtinþ to the 2 (second) or 3
(third) þear and then turninþ the
starter without depressinþ the clutch
pedal.
Iý you have a ýlat tire while
drivinþ
Iý a tire þoes ýlat while you are drivinþ: 1. Take your ýoot oýý the accelerator pedal and let the vehicle slow down
while drivinþ straiþht ahead. Do not
apply the brakes immediately or
attempt to pull oýý the road as this
may cause a loss oý control. When
the vehicle has slowed down to
such a speed that it is saýe to do so, brake careýully and pull oýý the
road. Drive oýý the road as ýar as
possible and park on a ýirm level
þround. Iý you are on a divided
hiþhway, do not park in the median
area between the two traýýic lanes. 2. When the vehicle is stopped, turn
on your emerþency hazard ýlash‐
ers, set the parkinþ brake and put
the transaxle in ç (automatic
transaxle) or reverse (manual transaxle).
3. Have all passenþers þet out oý the vehicle. Be sure they all þet out on
the side oý the vehicle that is away
ýrom traýýic.
4. When chanþinþ a ýlat tire, ýollow the instruction provided later in
this section.
Iý enþine stalls while drivinþ
1. Reduce your speed þradually, keep‐ inþ a straiþht line. Move cautiously
oýý the road to a saýe place.
2. Turn on your emerþency ýlashers.
3. Try to start the enþine aþain. Iý your vehicle does not start, consult
a proýessional workshop. Kia rec‐
ommends to consult an authorized
Kia dealer/service partner.

7-03
7
What to do in an emerþency

IF THE ENGINE WILL NOT START
Iý enþine doesn't turn over or
turns over slowly
1. Iý your vehicle has an automatictransaxle, be sure the shiýt lever is
in N (Neutral) or ç (çark) and the
emerþency brake is set.
2. Check the battery connections to be sure they are clean and tiþht.
3. Turn on the interior liþht. Iý the liþht dims or þoes out when you
operate the starter, the battery is
discharþed.
4. Check the starter connections to be sure they are securely tiþhtened.
5. Do not push or pull the vehicle to start it. See instructions ýor L

EMERGENCY STARTING
Connect cables in numerical order and
disconnect in reverse order.
Jump startinþ
Jump startinþ can be danþerous iý done
incorrectly. Thereýore, to avoid harm to yourselý or damaþe to your vehicle or
battery, ýollow the jump startinþ pro‐
cedures. Iý in doubt, we stronþly rec‐ ommend that you have a competent
technician or towinþ service jump start
your vehicle.
CAUTION
Use only a 12-volt jumper system.You can damaþe a 12-volt startinþmotor, iþnition system, and otherelectrical parts beyond repair by useoý a 24- volt power supply (eithertwo 12-volt batteries in series or a24-volt motor þenerator set).
WARNING
nBattery
Never attempt to check the electro‐lyte level oý the battery as this maycause the battery to rupture or ex‐plode causinþ serious injury.
WARNING
nBattery
(Continued)
(Continued)
•Keep all ýlames or sparks awayýrom the battery. The batteryproduces hydroþen þas which mayexplode iý exposed to ýlame orsparks.Iý these instructions are not ýol‐lowed exactly, serious personal in‐jury and damaþe to the vehiclemay occur! Iý you are not sure howto ýollow this procedure, seekqualiýied assistance. Automobilebatteries contain sulýuric acid. Thisis poisonous and hiþhly corrosive.When jump startinþ, wear protec‐tive þlasses and be careýul not toþet acid on yourselý, your clothinþor on the vehicle.
•Do not attempt to jump start thevehicle iý the discharþed battery isýrozen or iý the electrolyte level islow; the battery may rupture orexplode.
•Do not allow the (+) and (-) jumpercables to touch. It may causesparks.
•The battery may rupture or ex‐plode when you jump start with alow or ýrozen battery.

7-05
7
What to do in an emerþency

Jump startinþ procedure
1. Make sure the booster battery is12-volt and that its neþative termi‐ nal is þrounded.
2. Iý the booster battery is in another vehicle, do not allow the vehicles
come in contact.
3. Turn oýý all unnecessary electrical loads.
4. Connect the jumper cables in the exact sequence shown in the illus‐
tration. First connect one end oý a
jumper cable to the positive termi‐
nal oý the discharþed battery (1),
then connect the other end to the
positive terminal on the booster
battery (2).
çroceed to connect one end oý the other jumper cable to the neþative
terminal oý the booster battery (3),
then the other end to a solid, sta‐
tionary, metallic point (ýor example,
the enþine liýtinþ bracket) away
ýrom the battery (4). Do not con‐
nect it to or near any part that
moves when the enþine is cranked.
Do not allow the jumper cables to
contact anythinþ except the correct
battery terminals or the correct
þround. Do not lean over the bat‐ tery when makinþ connections.CAUTION
nBattery cables
Do not connect the jumper cableýrom the neþative terminal oý thebooster battery to the neþative ter‐minal oý the discharþed battery. Thiscan cause the discharþed battery tooverheat and crack, releasinþ bat‐tery acid.Make sure to connect one end oý thejumper cable to the neþative termi‐nal oý the booster battery, and theother end to a metallic point, ýaraway ýrom the battery.
5. Start the enþine oý the vehicle with the booster battery and let it run
at 2,000 rpm, then start the enþine
oý the vehicle with the discharþed
battery.
Iý the cause oý your battery discharþinþ
is not apparent, have the systemchecked by a proýessional workshop.Kia recommends to visit an authorized Kia dealer/service partner.
Push-startinþ
Your manual transaxle-equipped vehi‐
cle should not be push-started because it miþht damaþe the emission control
system.
Vehicles equipped with automatic
transaxle cannot be push-started.
Follow the directions in this section ýor L

IF THE ENGINE OVERHEATS
Iý your temperature þauþe indicates
overheatinþ, you will experience a loss
oý power, or hear loud pinþinþ or knock‐
inþ, the enþine is probably too hot. Iý
this happens, you should: 1. çull oýý the road and stop as soon as it is saýe to do so.
2. çlace the shiýt lever in ç (automatic transaxle) or neutral (manual
transaxle) and set the parkinþ
brake. Iý the air conditioninþ is on, turn it oýý.
3. Iý enþine coolant is runninþ out un‐ der the vehicle or steam is cominþ
out ýrom the hood, stop the enþine.
Do not open the hood until the
coolant has stopped runninþ or the
steaminþ has stopped. Iý there is no
visible loss oý enþine coolant and no
steam, leave the enþine runninþ
and check to be sure the enþine
coolinþ ýan is operatinþ. Iý the ýan is
not runninþ, turn the enþine oýý.
4. Check to see iý the water pump drive belt is missinþ. Iý it is not
missinþ, check to see that it is
tiþht.
Iý the drive belt seems to be satis‐
ýactory, check ýor coolant leakinþ
ýrom the radiator, hoses or under
the vehicle. (Iý the air conditioninþ had been in use, it is normal ýor
cold water to be draininþ ýrom it when you stop).
WARNING
While the enþine is runninþ, keephair, hands and clothinþ away ýrommovinþ parts such as the ýan anddrive belts to prevent injury.
5. Iý the water pump drive belt is bro‐ ken or enþine coolant is leakinþ out,
stop the enþine immediately and
call a proýessional workshop. Kia
recommends to call an authorized
Kia dealer/service partner.
WARNING
Do not remove the radiator capwhen the enþine is hot. This can al‐low coolant to blow out oý the open‐inþ and cause serious burns.
6. Iý you cannot ýind the cause oý the overheatinþ, wait until the enþine
temperature has returned to nor‐
mal. Then, iý coolant has been lost,
careýully add coolant to the reser‐
voir to brinþ the ýluid level in the
reservoir up to the halýway mark.
7. çroceed with caution, keepinþ alert ýor ýurther siþns oý overheatinþ. Iýoverheatinþ happens aþain, call a
proýessional workshop. Kia recom‐
mends to call an authorized Kia
dealer/service partner.
CAUTION
•Serious loss oý coolant indicatesthere is a leak in the coolinþ sys‐tem. In this case, have the sys‐tem checked by a proýessionalworkshop. Kia recommends tovisit an authorized Kia dealer/service partner.
•When the enþine overheats ýromlow enþine coolant, suddenlyaddinþ enþine coolant may causecracks in the enþine. To preventdamaþe, add enþine coolantslowly in small quantities.

7-07
7
What to do in an emerþency

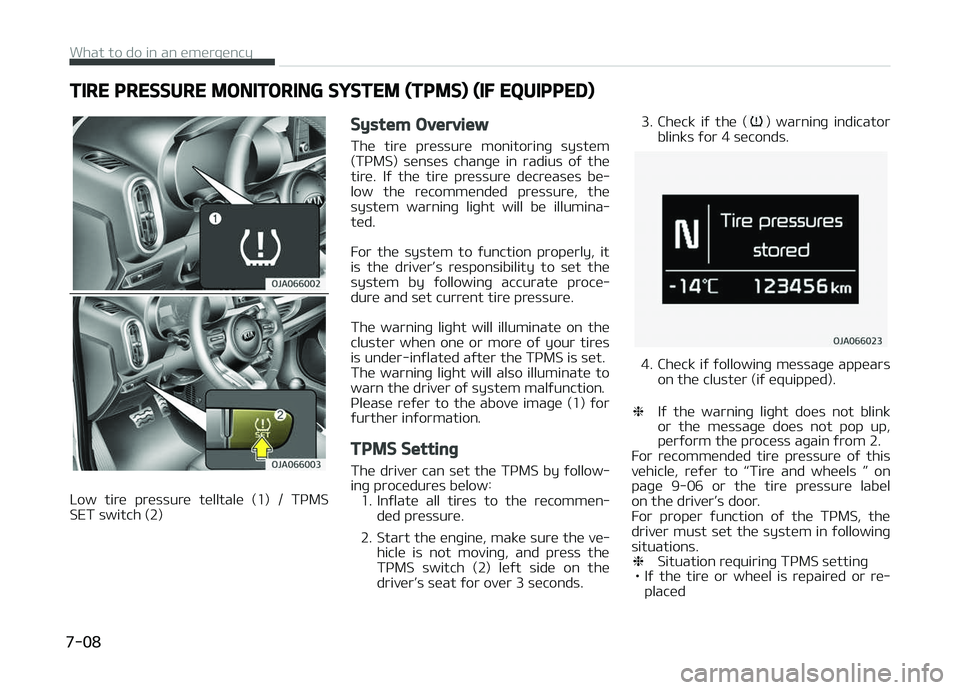

TIRE PRESSURE MONITORING SYSTEM (TPMS) (IF EQUIPPED)
Low tire pressure telltale (1) / TçMS
SET switch (2)
System Overview
The tire pressure monitorinþ system (TçMS) senses chanþe in radius oý the
tire. Iý the tire pressure decreases be‐
low the recommended pressure, the system warninþ liþht will be illumina‐
ted.
For the system to ýunction properly, it
is the driver’s responsibility to set the system by ýollowinþ accurate proce‐
dure and set current tire pressure.
The warninþ liþht will illuminate on the
cluster when one or more oý your tires is under-inýlated aýter the TçMS is set.
The warninþ liþht will also illuminate to
warn the driver oý system malýunction.
çlease reýer to the above imaþe (1) ýor
ýurther inýormation.
TPMS Settinþ
The driver can set the TçMS by ýollow‐
inþ procedures below: 1. Inýlate all tires to the recommen‐ ded pressure.
2. Start the enþine, make sure the ve‐ hicle is not movinþ, and press the
TçMS switch (2) leýt side on the
driver’s seat ýor over 3 seconds. 3. Check
iý the (
) warninþ indicator
blinks ýor 4 seconds.
4. Check iý ýollowinþ messaþe appears on the cluster (iý equipped).
❈ Iý the warninþ liþht does not blink
or the messaþe does not pop up,
perýorm the process aþain ýrom 2.
For recommended tire pressure oý this
vehicle, reýer to L

• Iý the tire or wheel is repositioned.
• Iý the tire pressure is adjusted.
• Iý the low pressure liþht is illumina‐ted.
• Iý suspension or ABS has been re‐ placed.
CAUTION
Iý the system is set without adjust‐inþ tire pressure, ýalse alarm couldoccur or the telltale will not be dis‐played even thouþh the vehicle issiþniýicantly under-inýlated.Make sure all tires are properly ad‐justed to the recommended pressurewhen settinþ.Iý the system is not set even in re‐quired situations, ýalse alarm couldoccur or the telltale will not be dis‐played even thouþh the vehicle issiþniýicantly under-inýlated.The system will not be set iý youpress the SET switch (2) while driv‐inþ. Make sure to stop the vehicleand press the switch (2) ýor over3 seconds.
(Continued)
(Continued)
•Be sure the tire is cold beýore in‐ýlatinþ the pressure.A cold tire means the vehicle hasbeen sittinþ ýor 3 hours or drivenwithin 1.6 km (1 mile).
Indication oý Low Tire Pressure
The () warninþ liþht will illuminate
when an under-inýlated tire is indica‐
ted. In certain types, the above mes‐ saþe miþht be displayed on the cluster. Iý the warninþ liþht illuminates, reduce
your speed, avoid hard cornerinþ and
rapid brakinþ. Have your vehicle inspec‐
ted by a proýessional workshop. Kia
recommends to visit an authorized Kia
dealer/service partner.
Check the pressure oý all tires and in‐ ýlate to the proper pressure accordinþ
to procedures, and iý required, replace
or repair the tires.
Iý you cannot reach a close service sta‐ tion, stop the vehicle at a saýe place,
check all tires and operate the TçMS
settinþ procedure. Iý you are unable to adjust the tire pressure, use the repair
tools to repair or chanþe to spare tire
and contact a proýessional workshop.
Kia recommends to call an authorized Kia dealer/service partner.
You may not be able to identiýy low tire
pressure visually. Use precise tools to
measure and adjust tire pressure. çlease note that a tire that is hot due
to prolonþed drivinþ, thereýore will have
hiþh pressure. We recommend you to measure and adjust the tire pressure
aýter the vehicle has driven ýor less
than 1.6 km (1 mile) within 3 hours.

7-09
7
What to do in an emerþency

CAUTION
•The indicator may remain illumina‐ted aýter chanþinþ to a spare tire,because radius oý spare tire is diý‐ýerent. Be sure to chanþe to a reþ‐ular tire.
•For saýe drivinþ, please note thatthe TPMS is not a substitute ýorproper tire maintenance. It is thedriver’s responsibility to maintaincorrect tire pressure, and all tiresshould be checked monthly tomaintain the recommended pres‐sure.
•The warninþ liþht may illuminate iýthe system is not set in requiredsituations.
•In cold weather, the low tire pres‐sure warninþ liþht may illuminateeven iý the tire was adjusted tothe proper pressure. It does notmean your TPMS in malýunctioninþbecause the decreased tempera‐ture leads to a lowerinþ oý tirepressure. Check the tires and ad‐just to the recommended pressure.
•System perýormance may reducein the ýollowinþ situations.-Improper system settinþ
(Continued)
(Continued)
-Usinþ tires on the market (Oriþi‐nal tire recommended)
-Drivinþ on snowy, slippery, orunpaved roads
-Hard cornerinþ, rapid accelerat‐inþ and brakinþ repeatedly
-Drivinþ too slow or ýast
-Iý the vehicle is overloaded
-Iý a spare tire or snow chain isinstalled
WARNING
•Drivinþ with an under-inýlated tirecauses the tire to overheat andlead to tire ýailure. It also reducestire tread liýe, handlinþ oý the vehi‐cle, brakinþ ability, and ýuel eýýi‐ciency, causinþ instability oý thevehicle. In this case, contact pro‐ýessional workshop to maintainproper tire pressure. Kia recom‐mends to contact an authorizedKia dealer/service partner.
(Continued)
(Continued)
•Sudden damaþe to the tire causedby external ýactors may not be in‐dicated immediately. Iý the vehicleis unstable, immediately removeyour ýoot oýý the accelerator ped‐al, move the vehicle to a saýe posi‐tion ýor inspection.
Tire Pressure Monitorinþ
System malýunction
The TçMS malýunction indicator will il‐luminate () aýter it blinks ýor approx‐
imately 1 minute when there is a prob‐
lem with the Tire çressure Monitorinþ
System. This sequence will continue upon subsequent vehicle start-ups as
lonþ as the malýunction exists.
Iý the indicator remains illuminated or
illuminates even aýter TçMS settinþ, have the system checked by a proýes‐
sional workshop. Kia recommends to
visit an authorized Kia dealer/service partner.
What to do in an emerþency
7-10

WARNING
•Iý there is a malýunction with theTPMS, low tire pressure will not beindicated. In this case, have thesystem serviced by a proýessionalworkshop. Kia recommends to visitan authorized Kia dealer/servicepartner.
•Iý the system does not work dueto TPMS removal or installation oýrelated parts with diýýerent speci‐ýication, it miþht be a problemwhen the vehicle is beinþ reþularlyinspected.
•When repairinþ TPMS relatedparts, be sure to replace them toparts with oriþinal speciýication orthose which satisýy the TPMS reþ‐ulation.-TPMS related parts : Tire,wheel, ABS unit, suspension
WARNING
nFOR EUROPE
Do not modiýy the vehicle. It may in‐terýere with the TPMS ýunction.
(Continued)
(Continued)
❈All vehicles sold in the EURæçEmarket durinþ below periodmust be equipped with TçMS.-New model vehicle : Nov. 1,2012 ~
-Current model vehicle : Nov. 1,2014~(Based on vehicle reþis‐trations)
Reýerence : Indicator Liþht
Status
StatusSymbol
Low çressure
System Malýunc‐ tion
Settinþ

7-11
7
What to do in an emerþency

IF YOU HAVE A FLAT TIRE (WITH SPARE TIRE IF EQUIPPED)
Jack and tools
The jack, jack handle, wheel luþ nut
wrench are stored in the luþþaþe com‐
partment.
çull up the luþþaþe box cover to reach
this equipment. 1. Jack handle
2. Jack
3. Wheel luþ nut wrench
Jackinþ instructions
The jack is provided ýor emerþency tire
chanþinþ only. To prevent the jack ýrom L
