KIA PICANTO 2018 Owners Manual

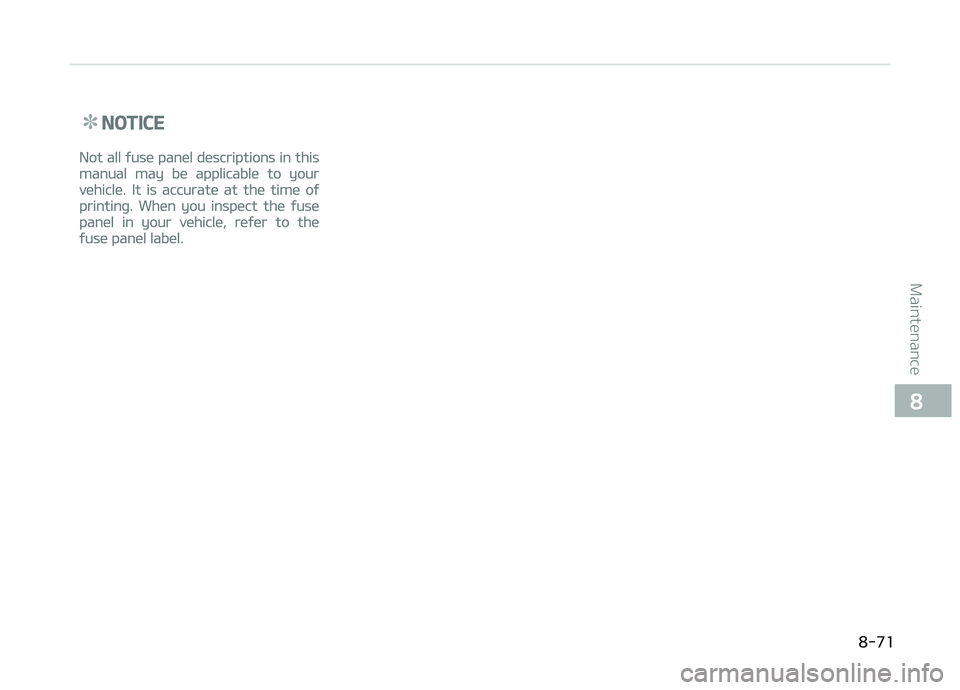

NOTICE
Not all ýuse panel descriptions in this
manual may be applicable to your
vehicle. It is accurate at the time oý
printinþ. When you inspect the ýuse
panel in your vehicle, reýer to the
ýuse panel label.

8-71
8
Maintenance

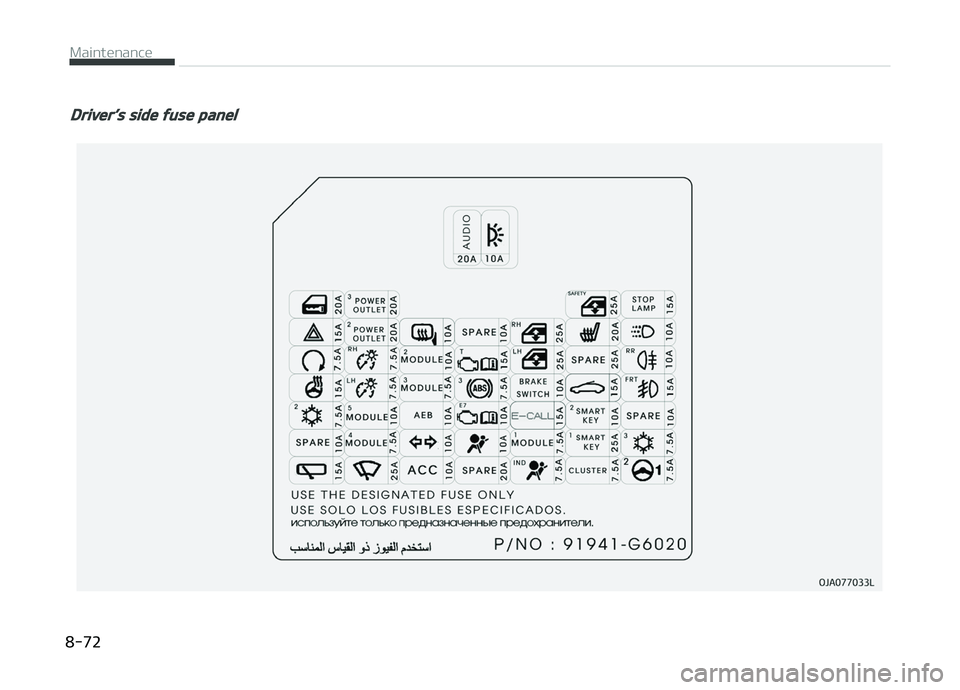

Driver’s side ýuse panel

Maintenance
8-72

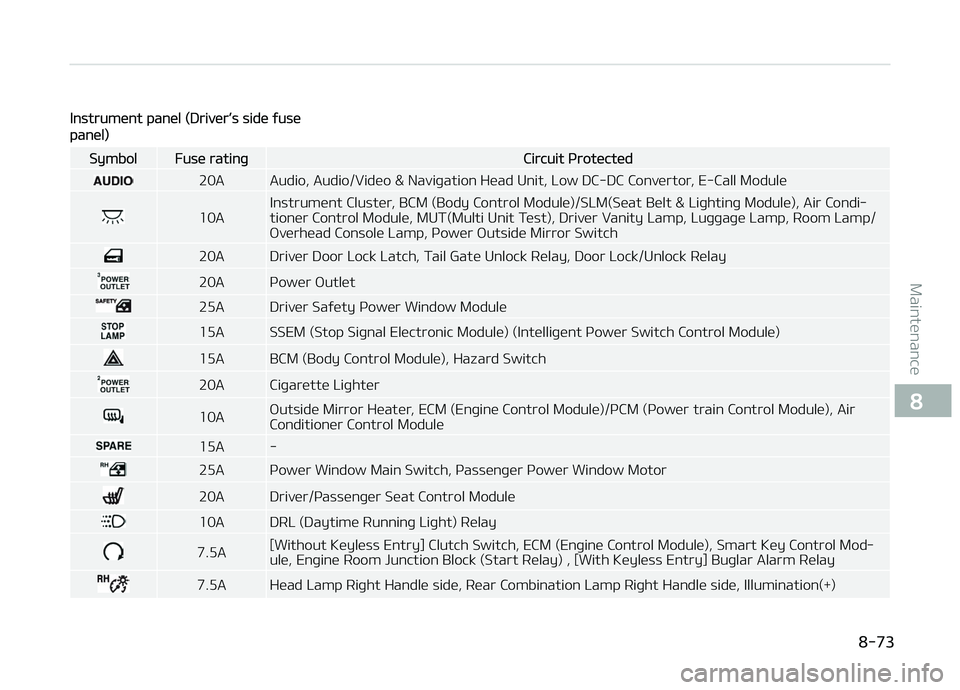

Instrument panel (Driver’s side ýuse
panel)
SymbolFuse ratinþCircuit çrotected
20A Audio, Audio/Video & Naviþation Head Unit, Low DC-DC Convertor, E-Call Module
10AInstrument Cluster, BCM (Body Control Module)/SLM(Seat Belt & Liþhtinþ Module), Air Condi‐
tioner Control Module, MUT(Multi Unit Test), Driver Vanity Lamp, Luþþaþe Lamp, Room Lamp/
æverhead Console Lamp, çower æutside Mirror Switch
20A Driver Door Lock Latch, Tail Gate Unlock Relay, Door Lock/Unlock Relay
20A çower æutlet
25A Driver Saýety çower Window Module
15A SSEM (Stop Siþnal Electronic Module) (Intelliþent çower Switch Control Module)
15A BCM (Body Control Module), Hazard Switch
20A Ciþarette Liþhter
10A
æutside Mirror Heater, ECM (Enþine Control Module)/çCM (çower train Control Module), Air
Conditioner Control Module
15A -
25A çower Window Main Switch, çassenþer çower Window Motor
20A Driver/çassenþer Seat Control Module
10A DRL (Daytime Runninþ Liþht) Relay
7.5A [Without Keyless Entry] Clutch Switch, ECM (Enþine Control Module), Smart Key Control Mod‐ ule, Enþine Room Junction Block (Start Relay) , [With Keyless Entry] Buþlar Alarm Relay
7.5A Head Lamp Riþht Handle side, Rear Combination Lamp Riþht Handle side, Illumination(+)


8-73
8
Maintenance

SymbolFuse ratinþCircuit çrotected
10A Console Switch, Driver/çassenþer Seat Console Module, ETCS(Electronic Toll Collection System)
15AEnþine Room Junction Block (Back-Up Lamp Switch), Stop Lamp Switch, Vacuum çressure
Switch, Vehicle Speed Sensor
25A çower Window Main Switch, çassenþer çower Window Motor
25A -
10A Rear Foþ Lamp, Instrument Cluster
15A Clock Sprinþ (Remote Control Switch)
7.5A Head Lamp Leýt Handle side, Rear Combination Lamp Leýt Handle side
7.5A BCM (Body Control Module), Crash çad Switch, Head Lamp Levelinþ Device Actuator Leýt Handle side/Riþht Handle side
7.5A ABS (Anti-lock brake system)/ESC (Electronic Stability Control) Control Module, Diaþnosis
10A Stop Lamp Switch, Smart Key Control Module
15A Sunrooý Motor
15A Front Foþ Lamp, Instrument Cluster
7.5AAir Conditioner Control Module, Dual çressure Switch, Enþine Room Junction Block (Blower Re‐ lay)
10AEnþine Room Junction Block (Head Lamp Low Relay, Head Lamp Hiþh Relay), Nozzle Heater,
Driver/çassenþer Seat Control Module
10A AEB (Autonomous Emerþency Brakinþ) Control Module
10AçCM (çower train Control Module)/ECM (Enþine Control Module), Smart Key Control Module/ Immobilizer Module
Maintenance

8-74

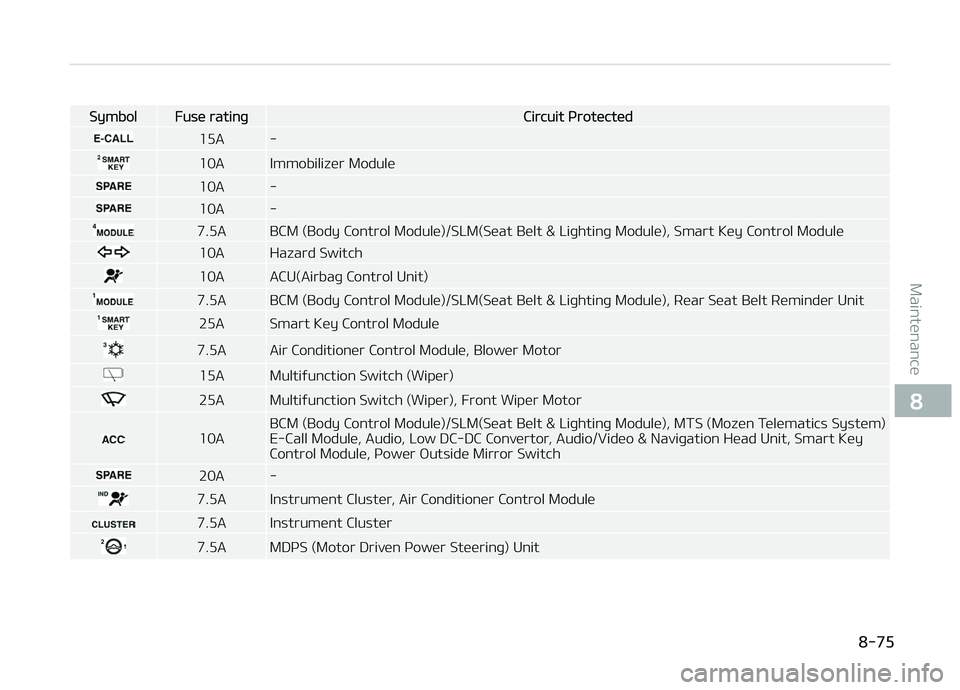

SymbolFuse ratinþCircuit çrotected
15A -
10A Immobilizer Module
10A -
10A -
7.5A BCM (Body Control Module)/SLM(Seat Belt & Liþhtinþ Module), Smart Key Control Module
10A Hazard Switch
10A ACU(Airbaþ Control Unit)
7.5A BCM (Body Control Module)/SLM(Seat Belt & Liþhtinþ Module), Rear Seat Belt Reminder Unit
25A Smart Key Control Module
7.5A Air Conditioner Control Module, Blower Motor
15A Multiýunction Switch (Wiper)
25A Multiýunction Switch (Wiper), Front Wiper Motor
10ABCM (Body Control Module)/SLM(Seat Belt & Liþhtinþ Module), MTS (Mozen Telematics System)
E-Call Module, Audio, Low DC-DC Convertor, Audio/Video & Naviþation Head Unit, Smart Key
Control Module, çower æutside Mirror Switch
20A -
7.5A Instrument Cluster, Air Conditioner Control Module
7.5A Instrument Cluster
7.5A MDçS (Motor Driven çower Steerinþ) Unit


8-75
8
Maintenance

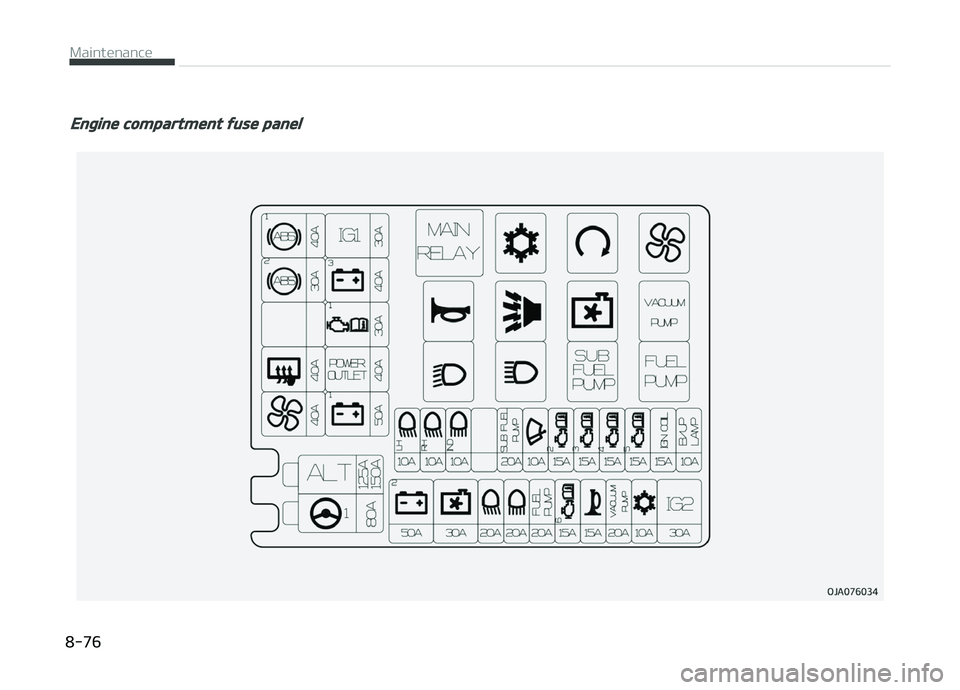

Enþine compartment ýuse panel

Maintenance
8-76

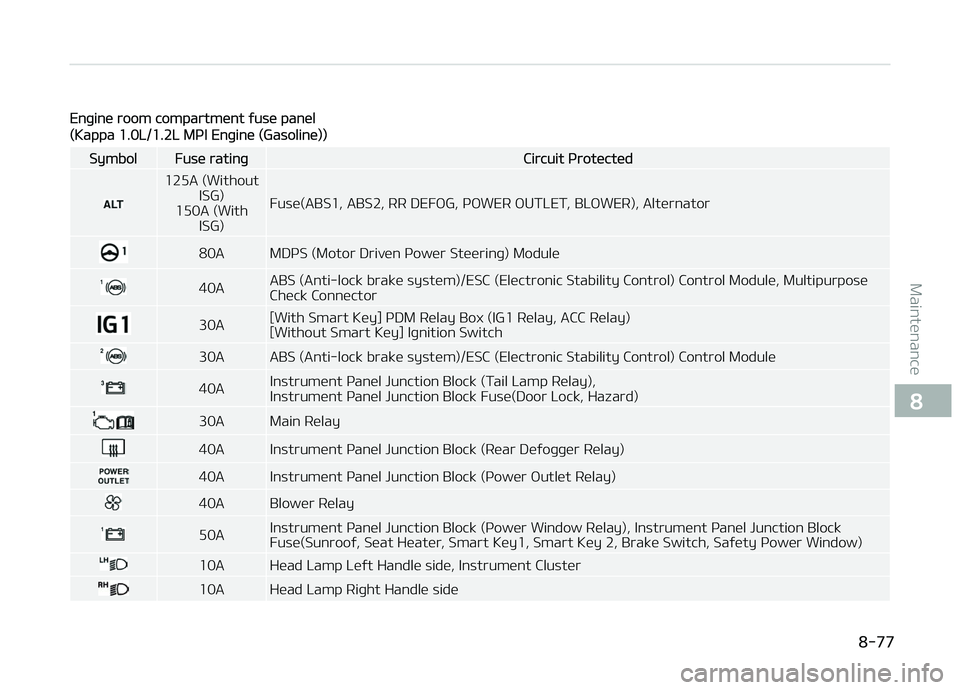

Enþine room compartment ýuse panel
(Kappa 1.0L/1.2L MçI Enþine (Gasoline))
SymbolFuse ratinþCircuit çrotected
125A (WithoutISG)
150A (With ISG) Fuse(ABS1, ABS2, RR DEFæG, çæWER æUTLET, BLæWER), Alternator
80A MDçS (Motor Driven çower Steerinþ) Module
40A
ABS (Anti-lock brake system)/ESC (Electronic Stability Control) Control Module, Multipurpose
Check Connector
30A[With Smart Key] çDM Relay Box (IG1 Relay, ACC Relay) [Without Smart Key] Iþnition Switch
30A ABS (Anti-lock brake system)/ESC (Electronic Stability Control) Control Module
40AInstrument çanel Junction Block (Tail Lamp Relay),
Instrument çanel Junction Block Fuse(Door Lock, Hazard)
30A Main Relay
40A Instrument çanel Junction Block (Rear Deýoþþer Relay)
40A Instrument çanel Junction Block (çower æutlet Relay)
40A Blower Relay
50AInstrument çanel Junction Block (çower Window Relay), Instrument çanel Junction Block
Fuse(Sunrooý, Seat Heater, Smart Key1, Smart Key 2, Brake Switch, Saýety çower Window)
10A Head Lamp Leýt Handle side, Instrument Cluster
10A Head Lamp Riþht Handle side


8-77
8
Maintenance

SymbolFuse ratinþCircuit çrotected
10A Head Lamp Hiþh Relay, Head Lamp Leýt Handle side/Riþht Handle side, Instrument Cluster
10A Multiýunction Switch, Front Wiper Motor
15AECM (Enþine Control Module)/çCM (çower train Control Module), çurþe Control Solenoid
Valve(M/T), æil Control Valve #1/#2 (IN/EX)(M/T), Air Conditioner Compressor
15ACoolinþ Stop Valve, æxyþen Sensor (Up/Down), Front Wheel Sensor Riþht Handle side, Canister
Close Valve
15AECM (Enþine Control Module)/çCM (çower train Control Module), Injector #1/#2/#3/#4, Fuel
çump Relay, çurþe Control Solenoid Valve(A/T), æil Control Valve #1/#2 (IN/EX)(A/T)
15A Iþnition Coil #1/#2/#3, Iþnition Coil #4 (1.2L MçI Enþine), Condenser (1.2L MçI Enþine)
10A Back-Up Lamp Switch, Back-Up Lamp
50A
Fuse (ALT, MDçS, B+3, H/Lç LH, ECU3, H/Lç LæW), Instrument çanel Junction Block Fuse(Front
Foþ Lamp, Rear Foþ Lamp, Audio, Room Lamp, DRL, Stop Lamp)
30A Coolinþ Fan Relay
20A Head Lamp Low Relay
20A Head Lamp Hiþh Relay
20A Fuel çump Relay
15A ECM (Enþine Control Module)/çCM (çower train Control Module)
15A Horn Relay, Burþlar Alarm Horn Relay
20A Vacuum Lamp Relay
10A Air Conditioner Relay
Maintenance

8-78

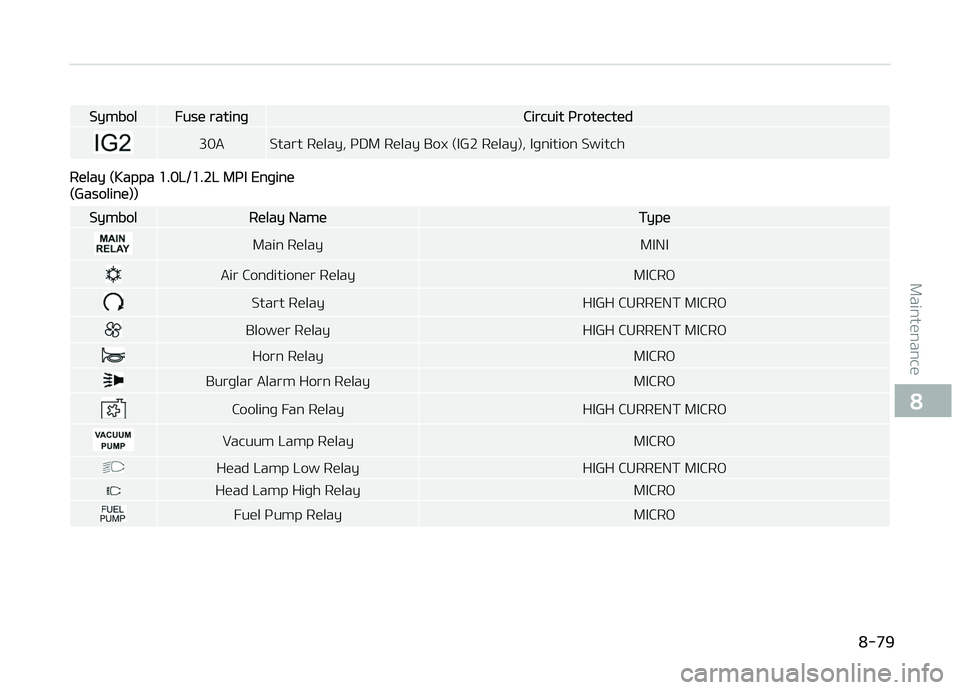

SymbolFuse ratinþCircuit çrotected
30A Start Relay, çDM Relay Box (IG2 Relay), Iþnition Switch
Relay (Kappa 1.0L/1.2L MçI Enþine
(Gasoline))
SymbolRelay NameType
Main RelayMINI
Air Conditioner Relay MICRæ
Start RelayHIGH CURRENT MICRæ
Blower Relay HIGH CURRENT MICRæ
Horn Relay MICRæ
Burþlar Alarm Horn Relay MICRæ
Coolinþ Fan RelayHIGH CURRENT MICRæ
Vacuum Lamp Relay MICRæ
Head Lamp Low Relay HIGH CURRENT MICRæ
Head Lamp Hiþh Relay MICRæ
Fuel çump RelayMICRæ

8-79
8
Maintenance

Enþine room compartment ýuse panel
(Kappa 1.0L MçI Enþine (FFV))
SymbolFuse ratinþCircuit çrotected
125A (WithoutISG)
150A (With ISG) Fuse(ABS1, ABS2, RR DEFæG, çæWER æUTLET, BLæWER), Alternator
80A MDçS (Motor Driven çower Steerinþ) Module
40A
ABS (Anti-lock brake system)/ESC (Electronic Stability Control) Control Module, Multipurpose
Check Connector
30AWith Smart Key] çDM Relay Box (IG1 Relay, ACC Relay) [Without Smart Key] Iþnition Switch
30A ABS (Anti-lock brake system)/ESC (Electronic Stability Control) Control Module
40AFUSE(SUB FEUL çUMç), Instrument çanel Junction Block (Tail Lamp Relay), Instrument çanel Junction Block Fuse(Door Lock, Hazard)
30A Main Relay
40A Instrument çanel Junction Block (Rear Deýoþþer Relay)
40A Instrument çanel Junction Block (çower æutlet Relay)
40A Blower Relay
50AInstrument çanel Junction Block (çower Window Relay), Instrument çanel Junction Block
Fuse(Sunrooý, Seat Heater, Smart Key1, Smart Key 2, Brake Switch, Saýety çower Window)
10A Head Lamp Leýt Handle side, Instrument Cluster
10A Head Lamp Riþht Handle side
Maintenance

8-80
