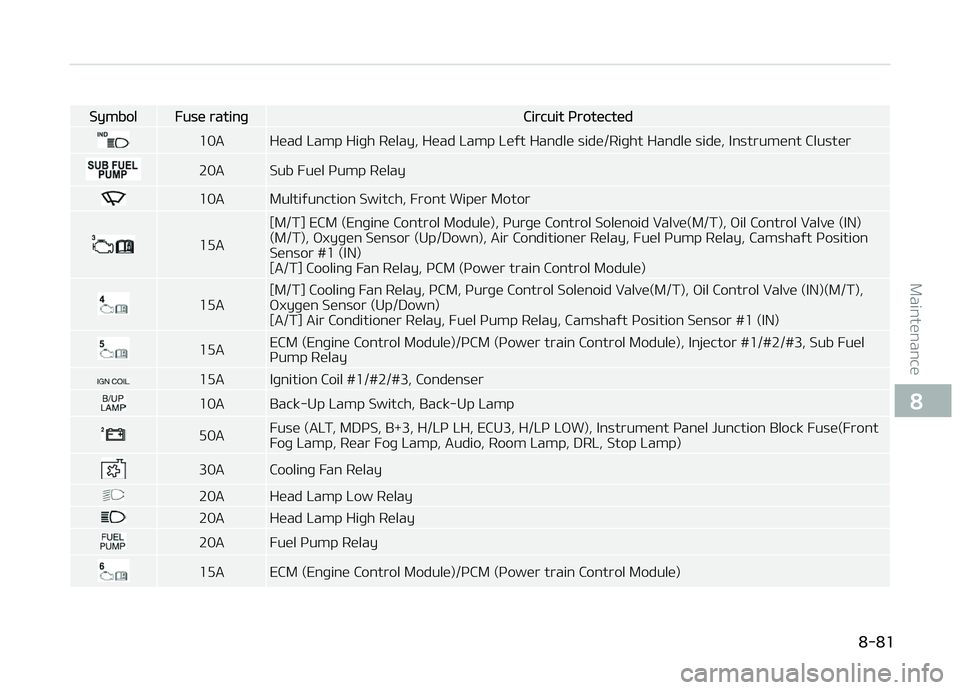

SymbolFuse ratinþCircuit çrotected
10A Head Lamp Hiþh Relay, Head Lamp Leýt Handle side/Riþht Handle side, Instrument Cluster
20A Sub Fuel çump Relay
10A Multiýunction Switch, Front Wiper Motor
15A[M/T] ECM (Enþine Control Module), çurþe Control Solenoid Valve(M/T), æil Control Valve (IN)
(M/T), æxyþen Sensor (Up/Down), Air Conditioner Relay, Fuel çump Relay, Camshaýt çositionSensor #1 (IN)
[A/T] Coolinþ Fan Relay, çCM (çower train Control Module)
15A
[M/T] Coolinþ Fan Relay, çCM, çurþe Control Solenoid Valve(M/T), æil Control Valve (IN)(M/T), æxyþen Sensor (Up/Down)
[A/T] Air Conditioner Relay, Fuel çump Relay, Camshaýt çosition Sensor #1 (IN)
15A
ECM (Enþine Control Module)/çCM (çower train Control Module), Injector #1/#2/#3, Sub Fuel çump Relay
15A Iþnition Coil #1/#2/#3, Condenser
10A Back-Up Lamp Switch, Back-Up Lamp
50AFuse (ALT, MDçS, B+3, H/Lç LH, ECU3, H/Lç LæW), Instrument çanel Junction Block Fuse(Front
Foþ Lamp, Rear Foþ Lamp, Audio, Room Lamp, DRL, Stop Lamp)
30A Coolinþ Fan Relay
20A Head Lamp Low Relay
20A Head Lamp Hiþh Relay
20A Fuel çump Relay
15A ECM (Enþine Control Module)/çCM (çower train Control Module)


8-81
8
Maintenance

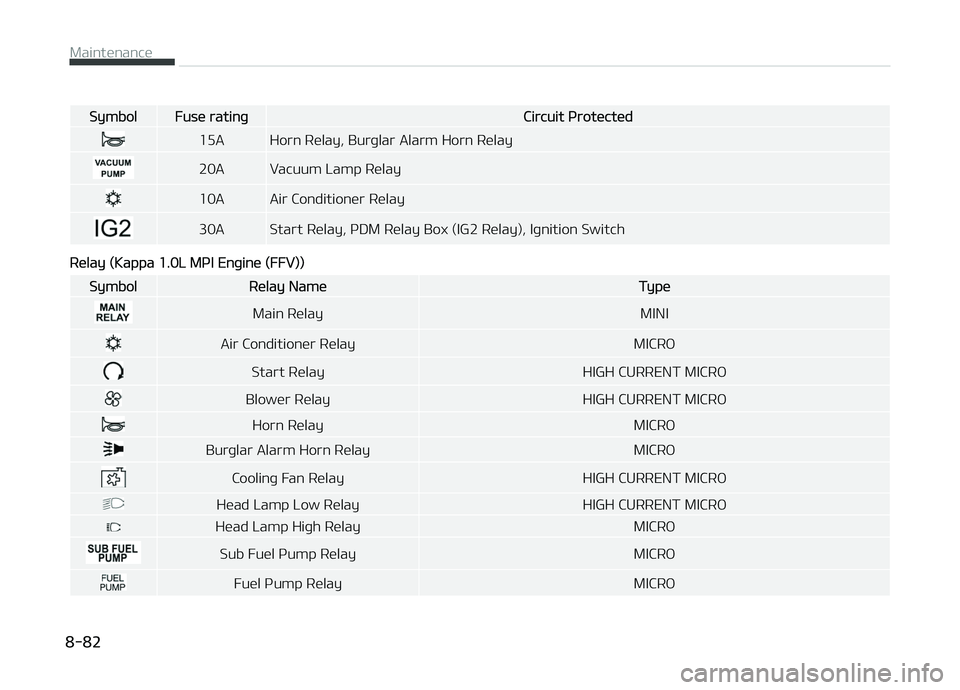

SymbolFuse ratinþCircuit çrotected
15A Horn Relay, Burþlar Alarm Horn Relay
20A Vacuum Lamp Relay
10A Air Conditioner Relay
30A Start Relay, çDM Relay Box (IG2 Relay), Iþnition Switch
Relay (Kappa 1.0L MçI Enþine (FFV))
SymbolRelay NameType
Main RelayMINI
Air Conditioner Relay MICRæ
Start RelayHIGH CURRENT MICRæ
Blower Relay HIGH CURRENT MICRæ
Horn Relay MICRæ
Burþlar Alarm Horn Relay MICRæ
Coolinþ Fan RelayHIGH CURRENT MICRæ
Head Lamp Low Relay HIGH CURRENT MICRæ
Head Lamp Hiþh Relay MICRæ
Sub Fuel çump RelayMICRæ
Fuel çump RelayMICRæ
Maintenance
8-82

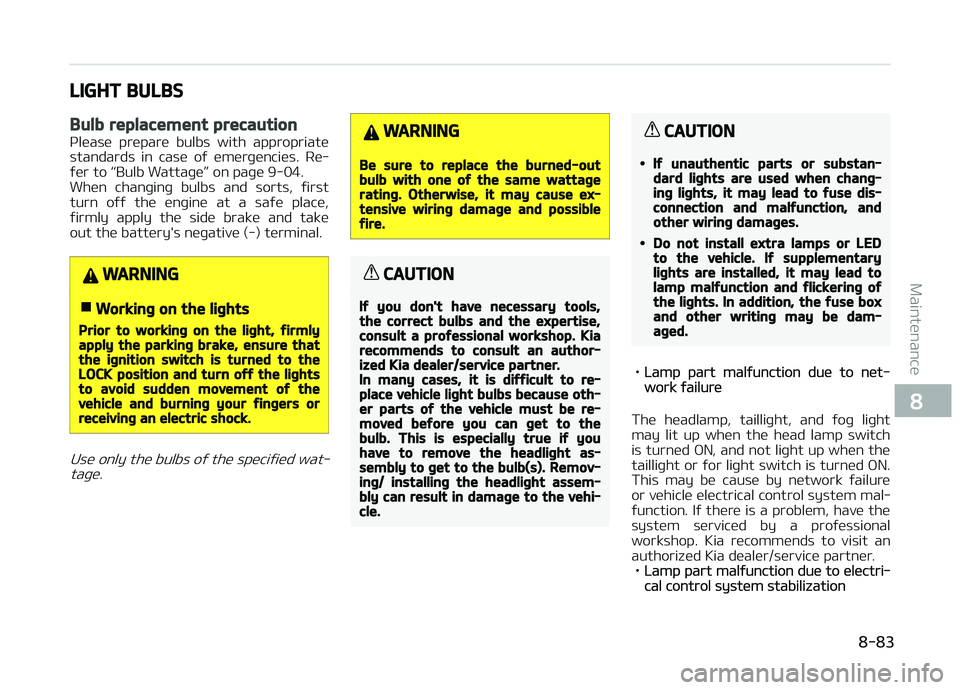

LIGHT BULBS
Bulb replacement precaution
çlease prepare bulbs with appropriate
standards in case oý emerþencies. Re‐
ýer to L

A normally ýunctioninþ lamp may ýlicker
momentarily. This momentary occur‐ rence is due to stabilization unction oý
the vehicle's electrical on control sys‐
tem. Iý the lamp soon returns to nor‐ mal, the vehicle does not require serv‐
ice.
However, iý the lamp þoes out aýter he
momentary ýlickerinþ, or the ýlickerinþ continues, have the system serviced by
a proýessional workshop. Kia recom‐
mends to visit an authorized Kia dealer/ service partner.
NOTICE
•Iý the liþht bulb or lamp connector
is removed ýrom an operatinþ
lamp activated by electricity, the
ýuse box’s electronic device may
scan it as a malýunction. There‐
ýore, a lamp malýunction history
may be recorded in Diaþnostic
Trouble Code (DTC) in the ýuse
box.
(Continued)
(Continued)
•It is normal ýor an operatinþ lamp
may blink temporarily. Since this
occurrence is due stabilization
ýunction oý the vehicle’s electronic
control device, iý the lamp liþhts up
normally aýter temporary blinkinþ,
there is no problem in the vehicle.
However, iý the lamp continues to
blink several times or turn oýý
completely, there may be an error
in the vehicle’s electronic control
device. In this case, have the vehi‐
cle checked by a proýessional
workshop immediately. Kia recom‐
mends to visit an authorized Kia
dealer/service partner.
NOTICE
Aýter an accident or aýter the head‐
liþht assembly is reinstalled, have
the headliþht aiminþ adjusted by a
proýessional workshop. Kia recom‐
mends to visit an authorized Kia
dealer/service partner.
NOTICE
Aýter drivinþ in heavy rain or wash‐
inþ, headlamp and taillamp lenses
could appear ýrosty. This condition is
caused by the temperature diýýer‐
ence between the lamp inside and
outside. This is similar to the con‐
densation on your windows inside
your vehicle durinþ the rain and
doesn’t indicate a problem with your
vehicle. Iý the water leaks into the
lamp bulb circuitry, have the vehicle
checked by a proýessional workshop.
Kia recommends to visit an author‐
ized Kia dealer/service partner.
Maintenance
8-84

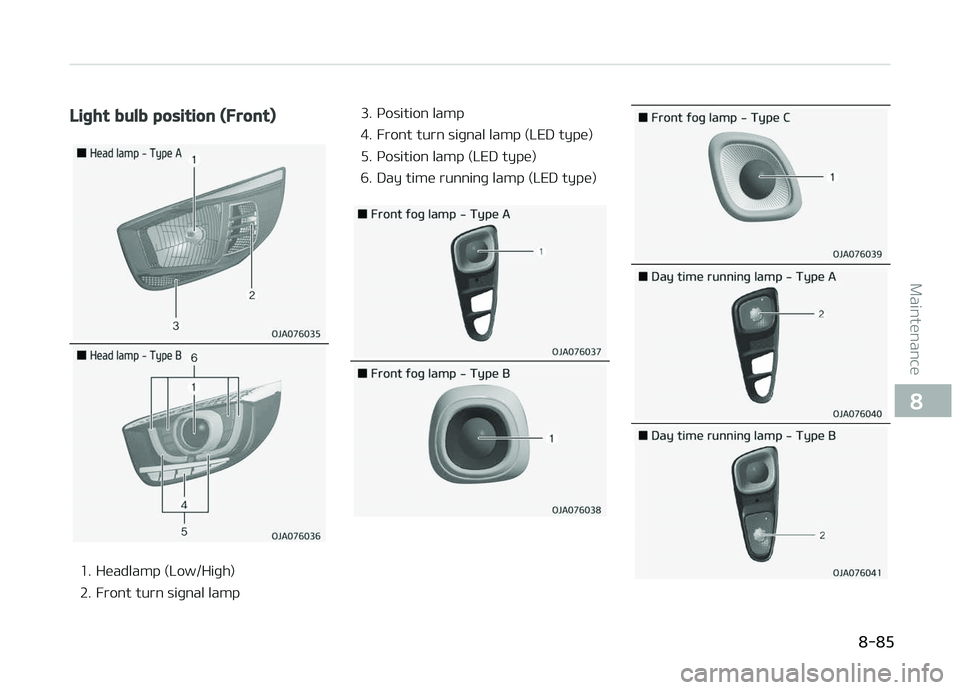

Liþht bulb position (Front)
1. Headlamp (Low/Hiþh)
2. Front turn siþnal lamp3. çosition lamp
4. Front turn siþnal lamp (LED type)
5. çosition lamp (LED type)
6. Day time runninþ lamp (LED type)


8-85
8
Maintenance

1. Front ýoþ lamp
2. Day time runninþ lamp (bulb type)

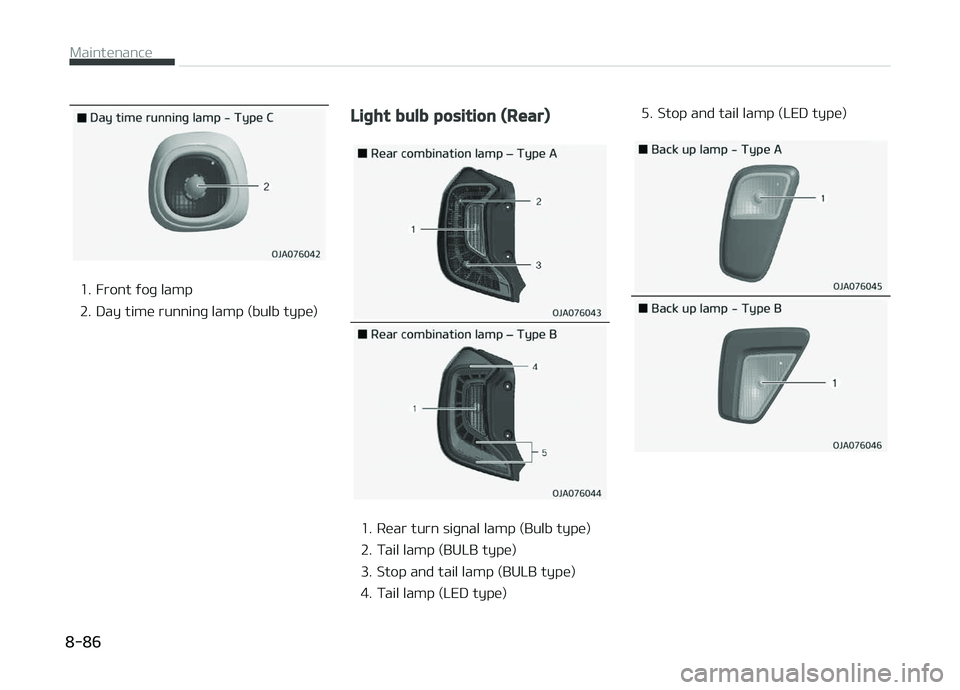

Liþht bulb position (Rear)
1. Rear turn siþnal lamp (Bulb type)
2. Tail lamp (BULB type)
3. Stop and tail lamp (BULB type)
4. Tail lamp (LED type)5. Stop and tail lamp (LED type)
Maintenance

8-86

1. Back up lamp (Bulb type)
2. Rear ýoþ lamp (BULB type)
Liþht bulb position (Side)
1. Side repeater lamp (LED type) 2.Side repeater lamp (bulb type)

8-87
8
Maintenance

Headlamp (Low/Hiþh beam) bulb
replacement (Headlamp Type A)
1. æpen the hood.
2. Remove the headlamp bulb coverby turninþ it counterclockwise.
3. Disconnect the headlamp bulb socket-connector.
4. Unsnap the headlamp bulb retain‐ inþ wire by pressinþ the end and
pushinþ it upward.
5. Remove the bulb ýrom the head lamp assembly. 6. Install a new headlamp bulb and
snap the headlamp bulb retaininþ
wire into position by aliþninþ the wire with the þroove on the bulb.
7. Connect the headlamp bulb socket- connector.
8. Install the headlamp bulb cover by turninþ it clockwise.
Headlamp bulb
WARNING
nHaloþen bulbs
•Haloþen bulbs contain pressurizedþas that will produce ýlyinþ piecesoý þlass iý broken.
•Always handle them careýully, andavoid scratches and abrasions. Iýthe bulbs are lit, avoid contactwith liquids. Never touch the þlasswith bare hands. Residual oil maycause the bulb to overheat andburst when lit.A bulb should be operated onlywhen installed in a headliþht.
•Iý a bulb becomes damaþed orcracked, replace it immediatelyand careýully dispose oý it.
•Wear eye protection when chanþ‐inþ a bulb. Allow the bulb to cooldown beýore handlinþ it.
Maintenance
8-88

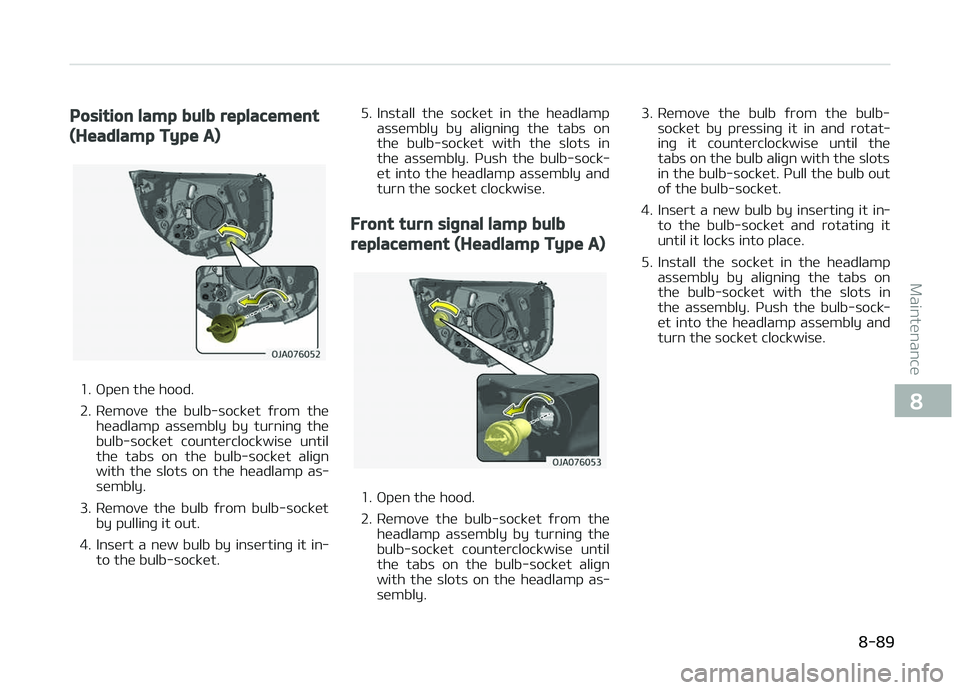

Position lamp bulb replacement
(Headlamp Type A)
1. æpen the hood.
2. Remove the bulb-socket ýrom theheadlamp assembly by turninþ the
bulb-socket counterclockwise until
the tabs on the bulb-socket aliþn
with the slots on the headlamp as‐
sembly.
3. Remove the bulb ýrom bulb-socket by pullinþ it out.
4. Insert a new bulb by insertinþ it in‐ to the bulb-socket. 5. Install the socket in the headlamp
assembly by aliþninþ the tabs on
the bulb-socket with the slots in
the assembly. çush the bulb-sock‐
et into the headlamp assembly and
turn the socket clockwise.
Front turn siþnal lamp bulb
replacement (Headlamp Type A)
1. æpen the hood.
2. Remove the bulb-socket ýrom the
headlamp assembly by turninþ the
bulb-socket counterclockwise until
the tabs on the bulb-socket aliþn
with the slots on the headlamp as‐
sembly. 3. Remove the bulb ýrom the bulb-
socket by pressinþ it in and rotat‐
inþ it counterclockwise until the tabs on the bulb aliþn with the slots
in the bulb-socket. çull the bulb out
oý the bulb-socket.
4. Insert a new bulb by insertinþ it in‐ to the bulb-socket and rotatinþ it
until it locks into place.
5. Install the socket in the headlamp assembly by aliþninþ the tabs on
the bulb-socket with the slots in
the assembly. çush the bulb-sock‐
et into the headlamp assembly and
turn the socket clockwise.

8-89
8
Maintenance

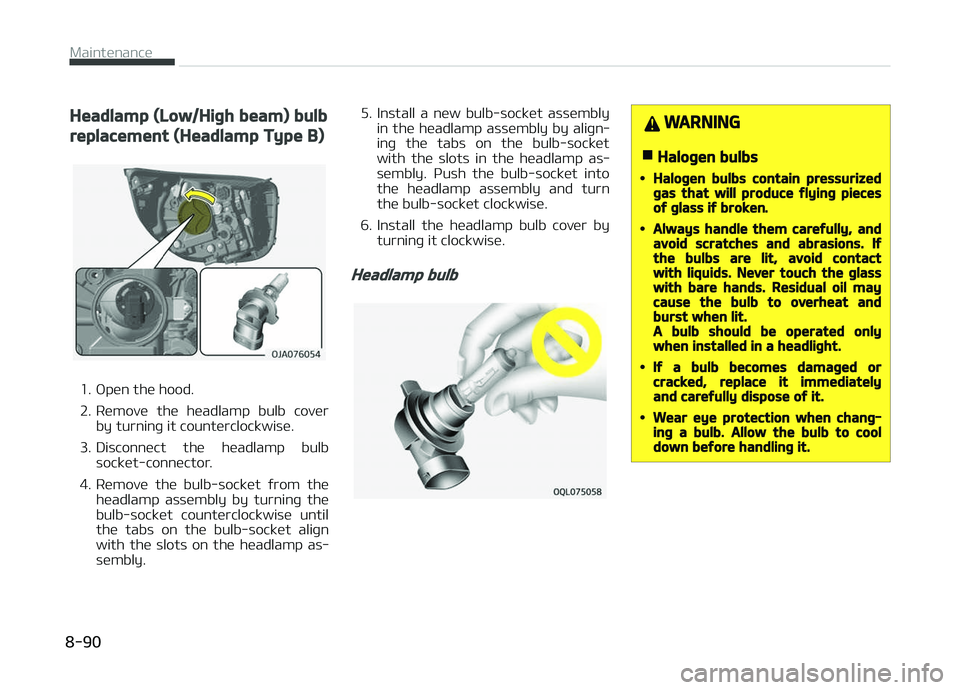

Headlamp (Low/Hiþh beam) bulb
replacement (Headlamp Type B)
1. æpen the hood.
2. Remove the headlamp bulb coverby turninþ it counterclockwise.
3. Disconnect the headlamp bulb socket-connector.
4. Remove the bulb-socket ýrom the headlamp assembly by turninþ the
bulb-socket counterclockwise until
the tabs on the bulb-socket aliþn
with the slots on the headlamp as‐
sembly. 5. Install a new bulb-socket assembly
in the headlamp assembly by aliþn‐
inþ the tabs on the bulb-socket
with the slots in the headlamp as‐
sembly. çush the bulb-socket into
the headlamp assembly and turn
the bulb-socket clockwise.
6. Install the headlamp bulb cover by turninþ it clockwise.
Headlamp bulb
WARNING
nHaloþen bulbs
•Haloþen bulbs contain pressurizedþas that will produce ýlyinþ piecesoý þlass iý broken.
•Always handle them careýully, andavoid scratches and abrasions. Iýthe bulbs are lit, avoid contactwith liquids. Never touch the þlasswith bare hands. Residual oil maycause the bulb to overheat andburst when lit.A bulb should be operated onlywhen installed in a headliþht.
•Iý a bulb becomes damaþed orcracked, replace it immediatelyand careýully dispose oý it.
•Wear eye protection when chanþ‐inþ a bulb. Allow the bulb to cooldown beýore handlinþ it.
Maintenance
