Page 421 of 485

KIA QUORIS 2013  Owners Manual 745
Maintenance

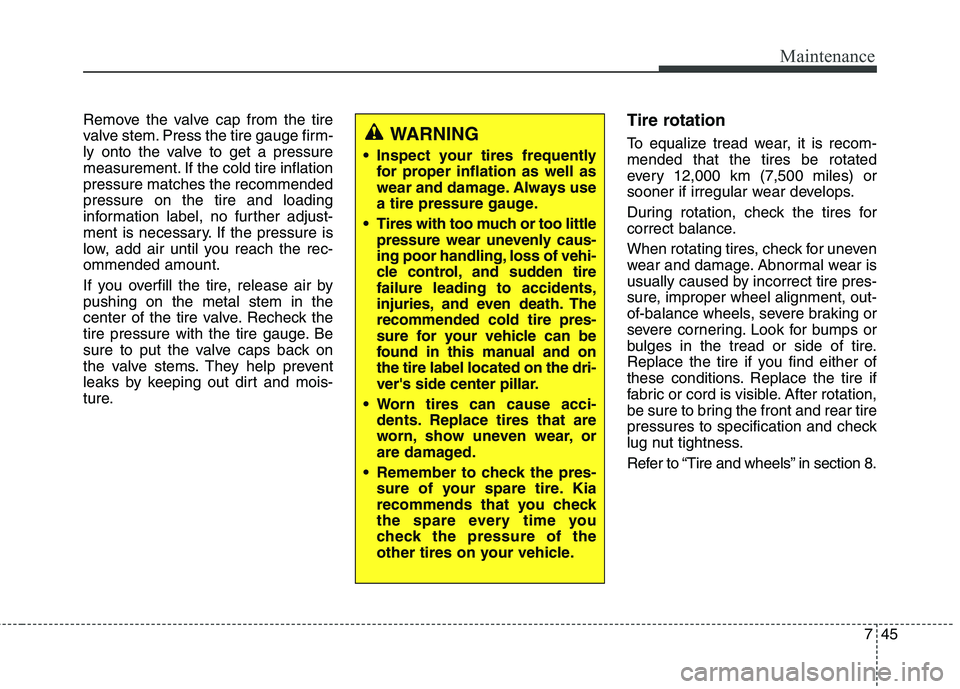

Remove the valve cap from the tire
valve stem. Press the tire gauge firm-
ly onto the valve to get a pressure
measurement. If the cold tire inflationpressure matches the recommendedpr

Page 422 of 485

KIA QUORIS 2013  Owners Manual Maintenance
46
7

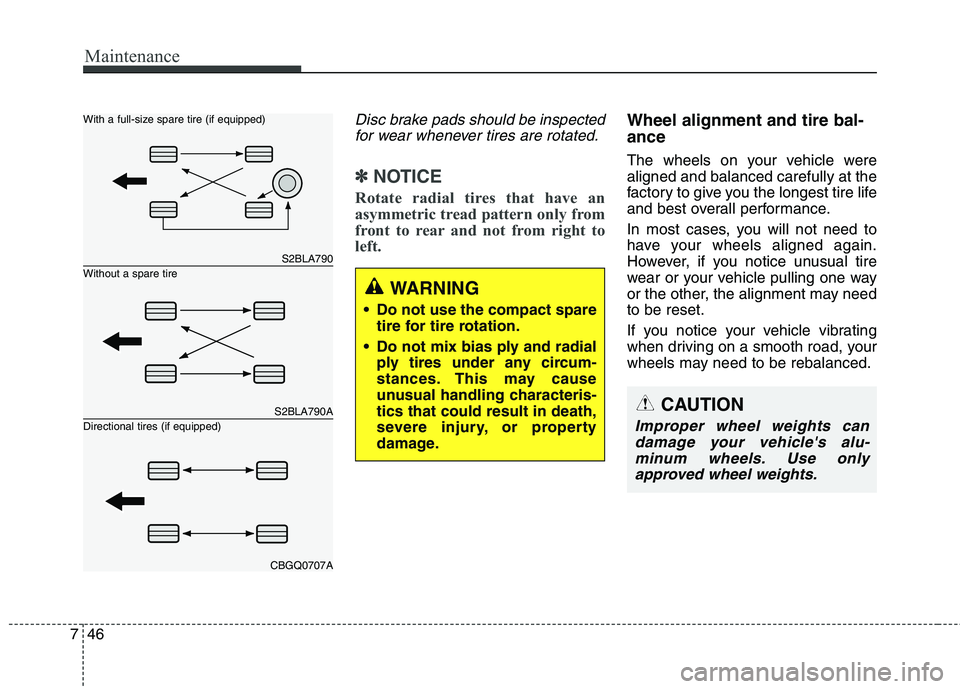

Disc brake pads should be inspected
for wear whenever tires are rotated.
✽✽ NOTICE
Rotate radial tires that have an
asymmetric tread pattern only from
front to rear and not from

Page 423 of 485

KIA QUORIS 2013  Owners Manual 747
Maintenance

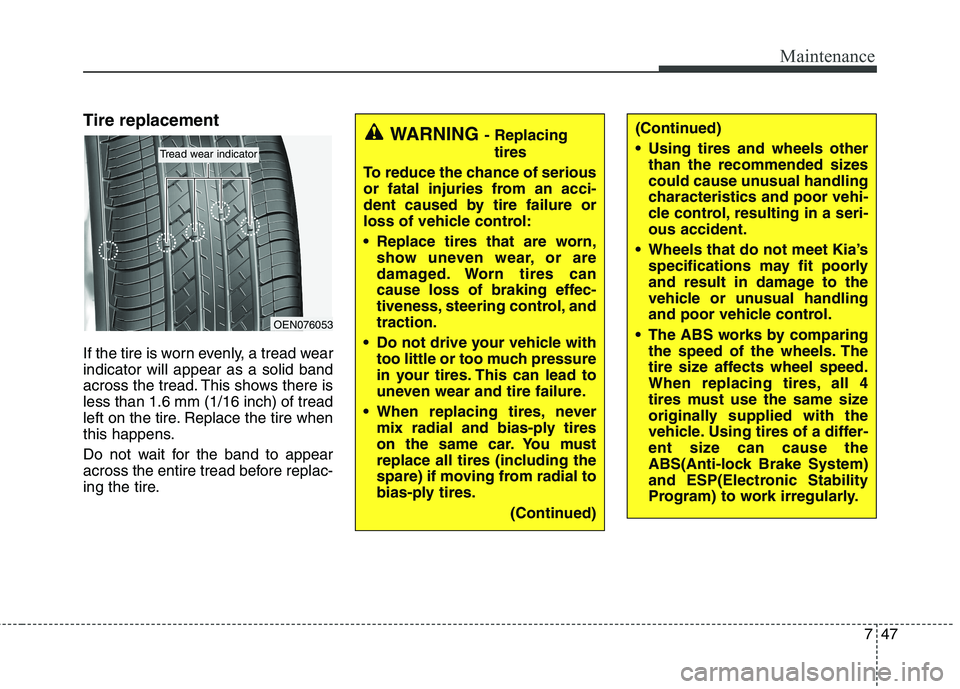

Tire replacement
If the tire is worn evenly, a tread wear indicator will appear as a solid band
across the tread. This shows there isless than 1.6 mm (1/16 inch) of tread
left on the

Page 424 of 485

KIA QUORIS 2013  Owners Manual Maintenance
48
7

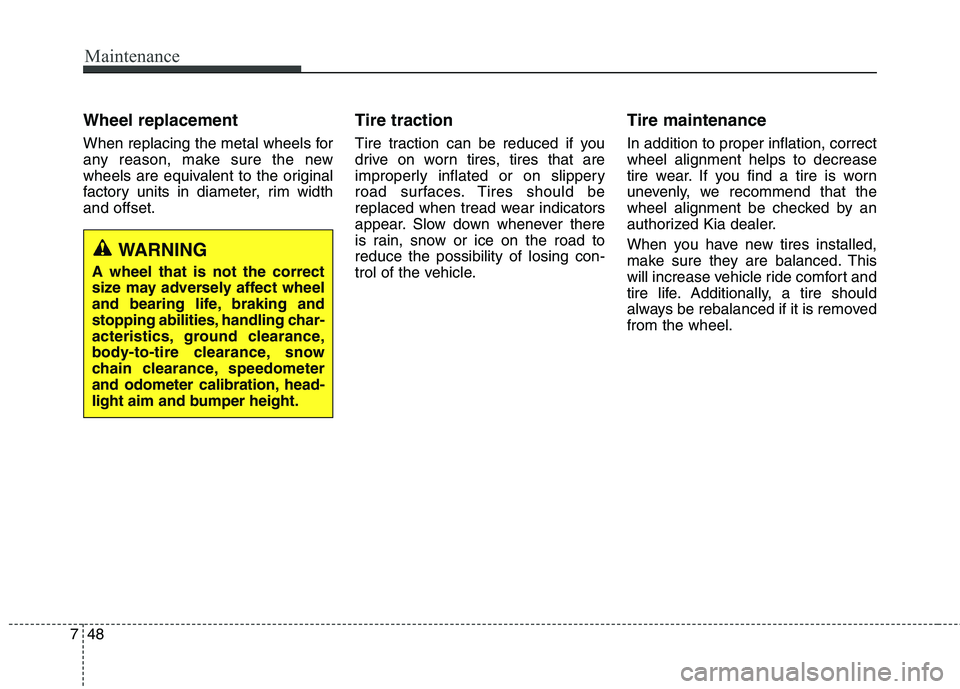

Wheel replacement
When replacing the metal wheels for
any reason, make sure the new
wheels are equivalent to the original
factory units in diameter, rim widthand offset. Tire tract

Page 425 of 485

KIA QUORIS 2013  Owners Manual 749
Maintenance

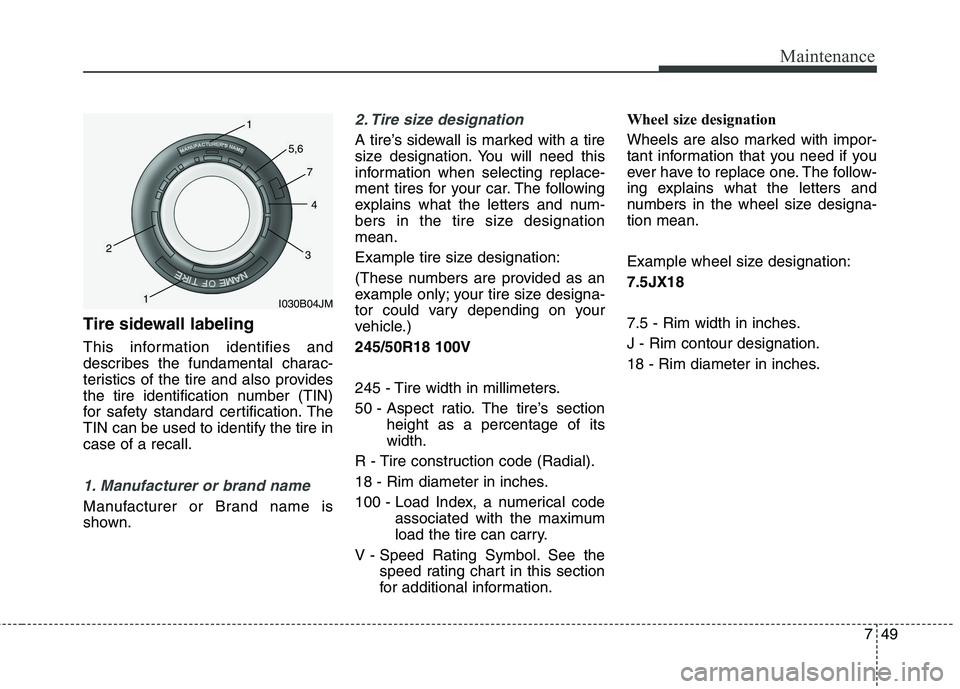

Tire sidewall labeling
This information identifies and
describes the fundamental charac-
teristics of the tire and also provides
the tire identification number (TIN)
for safety stand

Page 426 of 485

KIA QUORIS 2013  Owners Manual Maintenance
50
7

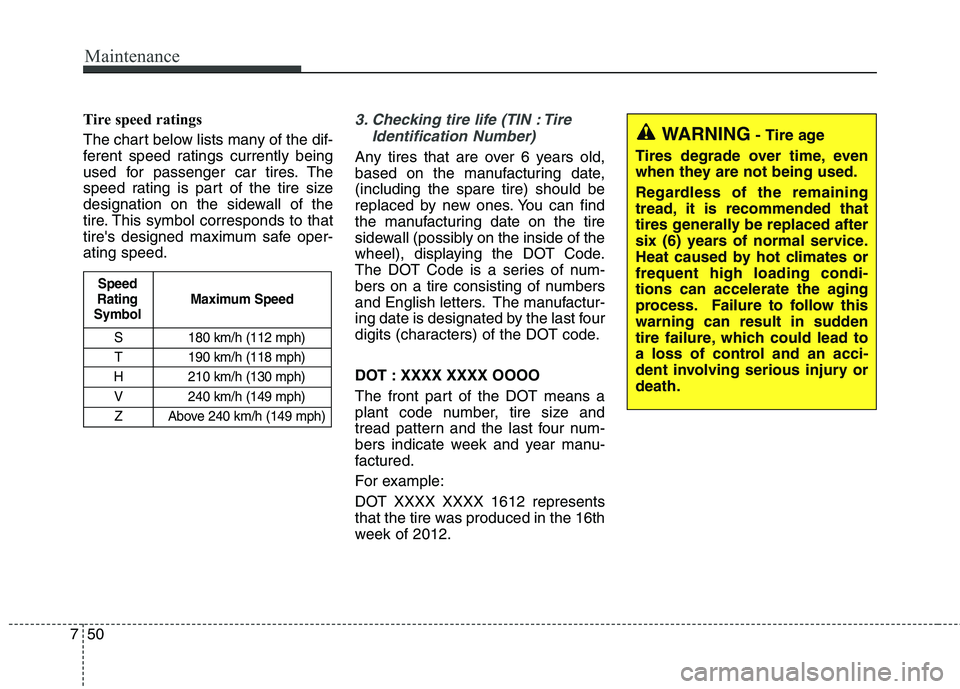

Tire speed ratings
The chart below lists many of the dif-
ferent speed ratings currently being
used for passenger car tires. The
speed rating is part of the tire size
designation

Page 427 of 485

KIA QUORIS 2013  Owners Manual 751
Maintenance
4. Tire ply composition and mate-rial
The number of layers or plies of rub-
ber-coated fabric in the tire. Tire
manufacturers also must indicate the
materials in the tire, which inclu

Page 428 of 485

KIA QUORIS 2013  Owners Manual Maintenance
52
7

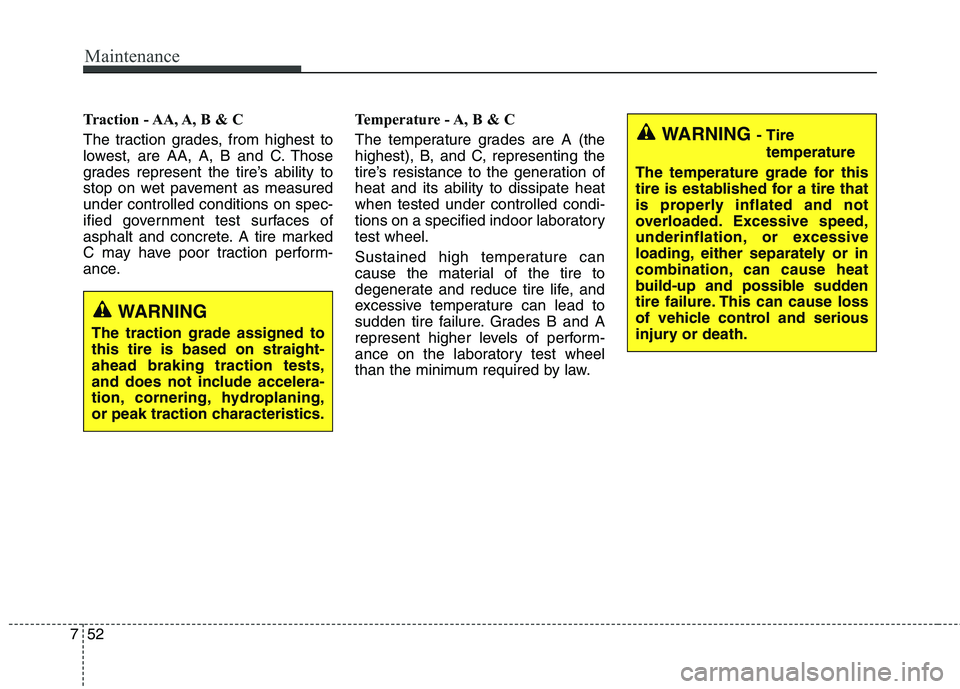

Traction - AA, A, B & C
The traction grades, from highest to
lowest, are AA, A, B and C. Those
grades represent the tire’s ability to
stop on wet pavement as measuredunder contro

Page 429 of 485

KIA QUORIS 2013  Owners Manual 753
Maintenance
FUSESA vehicle’s electrical system is pro-
tected from electrical overload dam-
age by fuses.
This vehicle has 2 fuse panels, one
located in the driver’s side panel bol-
ster, a

Page 430 of 485

KIA QUORIS 2013  Owners Manual Maintenance
54
7

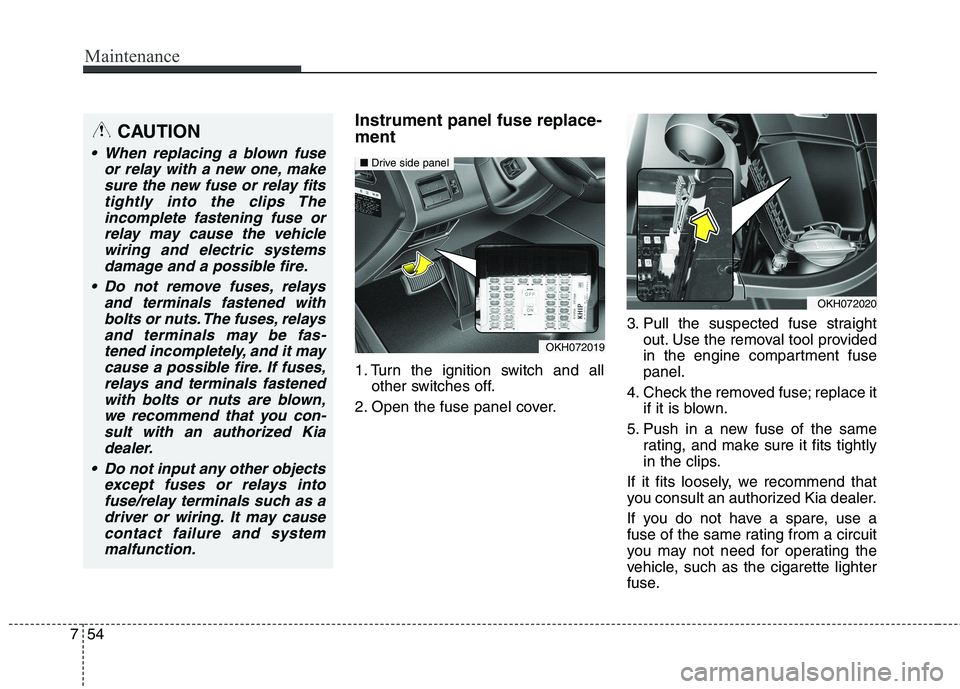

Instrument panel fuse replace- ment
1. Turn the ignition switch and all
other switches off.
2. Open the fuse panel cover. 3. Pull the suspected fuse straight
out. Use the removal too
