KIA QUORIS 2016 Owners Manual

Features of your vehicle
74
4
Warning Messages (if equipped)
Shift to P
This warning message illuminates if
you try to turn off the engine without
the shift lever in P (Park) position.
At this time, the Engine Start/Stop Button turns to the ACC position (If
you press the Engine Start/Stop
Button once more, it will turn to theON position).
Low Key Battery
This warning message illuminatesif the battery of the smart key is discharged when the Engine
Start/Stop Button changes to theOFF position.
Press START button while turn
steering
This warning message illuminates if the steering wheel does not
unlock normally when the Engine
Start/Stop button is pressed.
It means that you should press the Engine Start/Stop button while
turning the steering wheel rightand left.
OKH043416L
■Type A■Type B
OKH045418L
■Type A■Type B
OKH045564L
■Type A■Type B

475
Features of your vehicle
Steering wheel unlocked
This warning message illuminatesif the steering wheel does not lock
when the Engine Start/Stop buttonchanges to the OFF position.
Check Steering wheel lock system
This warning message illuminatesif the steering wheel does not lock
normally when the Engine
Start/Stop button changes to theOFF position.
Press brake pedal to start engine
This warning message illuminatesif the Engine Start/Stop button
changes to the ACC position twice
by pressing the button repeatedly
without depressing the brake pedal.
It means that you should depress the brake pedal to start the engine.
OKH045565L
■Type A■Type B
OKH045566L
■Type A■Type B
OKH045422L
■Type A■Type B

Features of your vehicle
76
4
Key not in vehicle
This warning message illuminates
if the smart key is not in the vehicle
when you press the Engine
Start/Stop button.
It means that you should always have the smart key with you.
Key not detected
This warning message illuminatesif the smart key is not detected
when you press the Engine
Start/Stop Button.
Press START button again
This warning message illuminatesif you can not operate the Engine
Start/Stop Button when there is a
problem with the Engine Start/StopButton system.
It means that you could start the engine by pressing the Engine
Start/ Stop Button once more.
If the warning illuminates each time you press the Engine Start/Stop
Button, we recommend that you
have the vehicle inspected by an
authorized Kia dealer.
OKH045423L
■Type A■Type B
OKH045417L
■Type A■Type B
OKH043425L
■ Type A■Type B

477
Features of your vehicle
Press START button with key
This warning message illuminatesif you press the Engine Start/Stop
Button while the warning message
“Key not detected” is illuminating.
At this time, the immobilizer indica- tor light blinks.
Check headlamp LED (if equipped)
This warning message illuminatesif the headlamp does not turned on
normally when you turn the head
lamp on. In this case, have your
vehicle inspected by an authorized
Kia dealer.
Check headlamp FAN (if equipped)
This warning message illuminates ifthe headlamp is overheated.It
means, the headlamp fan does not
work normally. In this case, have
your vehicle inspected by an author-
ized Kia dealer as soon as possible.
OKH045424L
■Type A■Type B
OKH045513L
■Type A■Type B
OKH045514L
■Type A■Type B

Features of your vehicle
78
4
Check battery voltage
This warning message illuminates if
the battery voltage is abnormally
low, or the battery has poor per-
formance. In the case, have your
vehicle inspected by an authorized
Kia dealer.
Check BRAKE SWITCH fuse
This warning message illuminatesif the brake switch fuse is discon- nected.
It means that you should replace the fuse with a new one. If that is
not possible, you can start the
engine by pressing the Engine
Start/Stop Button for 10 seconds in
the ACC position.
Shift to P or N to start engine
This warning message illuminatesif you try to start the engine with
the shift lever not in the P (Park) or
N (Neutral) position.
✽✽ NOTICE
You can start the engine with the
shift lever in the N (Neutral) position.
But, for your safety, we recommend
that you start the engine with the
shift lever in the P (Park) position.
OKH045442L
■ Type A■Type B
OKH045426L
■Type A■Type B
OKH043427L
■Type A■Type B

479
Features of your vehicle
Press START button and Shift to P
This warning message illuminatesif you try to turn off the engine with-
out the shift lever in P (Park) posi-tion.
At this time, the Engine Start/Stop Button turns to the ACC position (If
you press the Engine Start/Stop
Button once more, it will turn to theON position).
Set the Engine Start/Stop Button to the ON position, then shift to P
(Park) by pressing the P button on
the top of the shift lever.
Door / Hood / Trunk Open
It means that any door, hood, ortrunk is open.
Sunroof Open (if equipped)
The warning message illuminatesif you turn off the engine when the sunroof is open.
OKH045428L
■Type A■Type B
OKH043429OKH043402L
■ Type A■Type B

Features of your vehicle
80
4

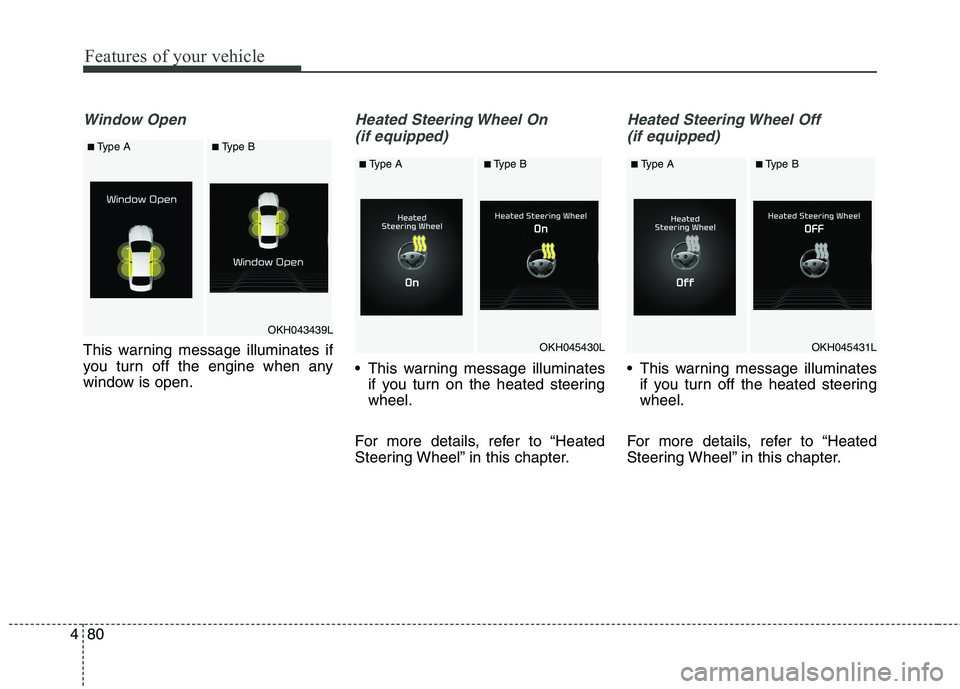

Window Open
This warning message illuminates if
you turn off the engine when any
window is open.
Heated Steering Wheel On
(if equipped)
This warning message illuminates if you turn on the heated steering wheel.
For more details, refer to “Heated
Steering Wheel” in this chapter.
Heated Steering Wheel Off (if equipped)
This warning message illuminates if you turn off the heated steering wheel.
For more details, refer to “Heated
Steering Wheel” in this chapter.
OKH043439L
■ Type A■Type B
OKH045430L
■ Type A■Type B
OKH045431L
■Type A■Type B

481
Features of your vehicle
Turn on FUSE SWITCH
This warning message illuminatesif the fuse switch on the fuse box is
OFF.
It means that you should turn the fuse switch on.
For more details, refer to “Fuses” inchapter 7.
Low Tire Pressure (if equipped)
This warning message illuminates if the tire pressure is low with the
Engine Start/Stop button in ONposition.
For more details, refer to "Tire
Pressure Monitoring System (TPMS)"in chapter 6.
Align steering wheel
This warning message illuminates if you start the engine when the
steering wheel is turned to more
than 90 degrees to the left or right.
It means that you should turn the steering wheel and make the angle
of the steering wheel be less than
30 degrees.
OKH043433L
■Type A■Type B
OKH043415L
■Type A■Type B
OKH045435L
■Type A■Type B

Features of your vehicle
82
4

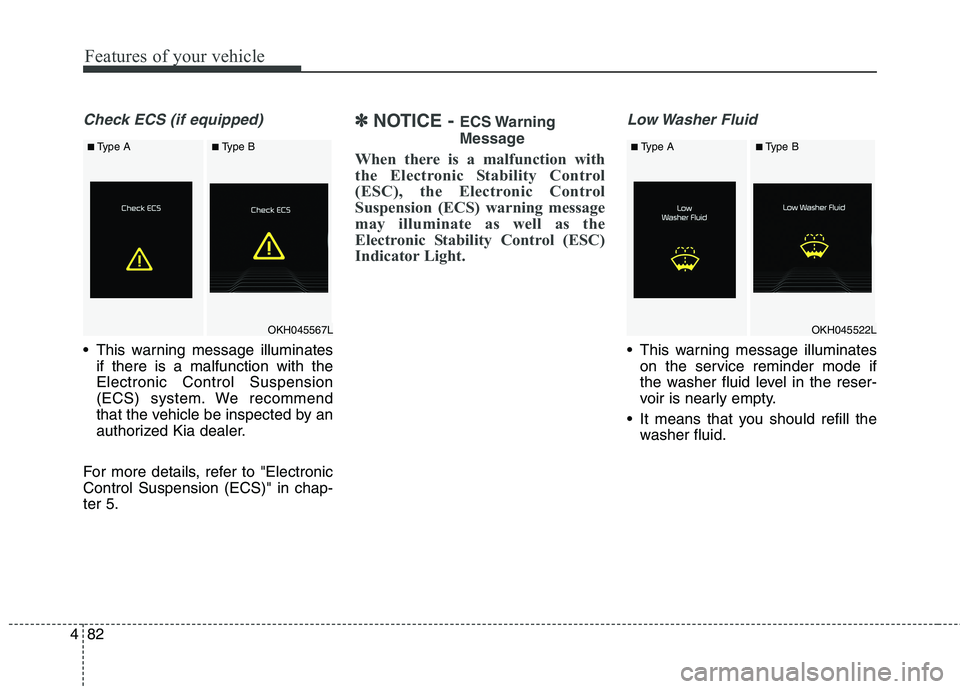

Check ECS (if equipped)
This warning message illuminates
if there is a malfunction with the Electronic Control Suspension
(ECS) system. We recommend
that the vehicle be inspected by an
authorized Kia dealer.
For more details, refer to "ElectronicControl Suspension (ECS)" in chap-ter 5.
✽✽ NOTICE - ECS Warning
Message
When there is a malfunction with
the Electronic Stability Control
(ESC), the Electronic Control
Suspension (ECS) warning message
may illuminate as well as the
Electronic Stability Control (ESC)
Indicator Light.Low Washer Fluid
This warning message illuminates on the service reminder mode if
the washer fluid level in the reser-
voir is nearly empty.
It means that you should refill the washer fluid.
OKH045567L
■Type A■Type B
OKH045522L
■ Type A■Type B

483
Features of your vehicle

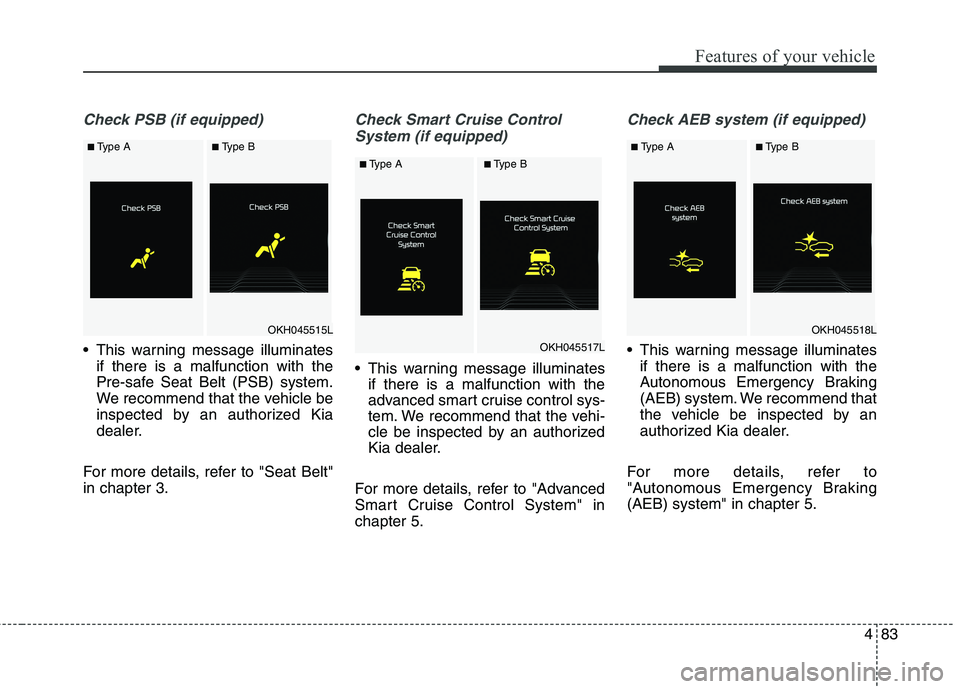

Check PSB (if equipped)
This warning message illuminatesif there is a malfunction with the
Pre-safe Seat Belt (PSB) system.
We recommend that the vehicle be
inspected by an authorized Kia
dealer.
For more details, refer to "Seat Belt"in chapter 3.
Check Smart Cruise Control System (if equipped)
This warning message illuminates if there is a malfunction with the
advanced smart cruise control sys-
tem. We recommend that the vehi-
cle be inspected by an authorized
Kia dealer.
For more details, refer to "Advanced
Smart Cruise Control System" inchapter 5.
Check AEB system (if equipped)
This warning message illuminates if there is a malfunction with the
Autonomous Emergency Braking
(AEB) system. We recommend that
the vehicle be inspected by an
authorized Kia dealer.
For more details, refer to
"Autonomous Emergency Braking(AEB) system" in chapter 5.
OKH045515L
■ Type A■Type B
OKH045517L
■ Type A■Type B
OKH045518L
■Type A■Type B
