fold seats KIA RIO 2016 Features and Functions Guide

28
•It may be necessary to adjust the front seatbacks to fully lower rear seats •Ensure Seat is locked by pressing down on Seatback and red line is visible on bottom of Folder Lever
QUICK TIPS
(5-door model)(4-door model)
A
B
CD

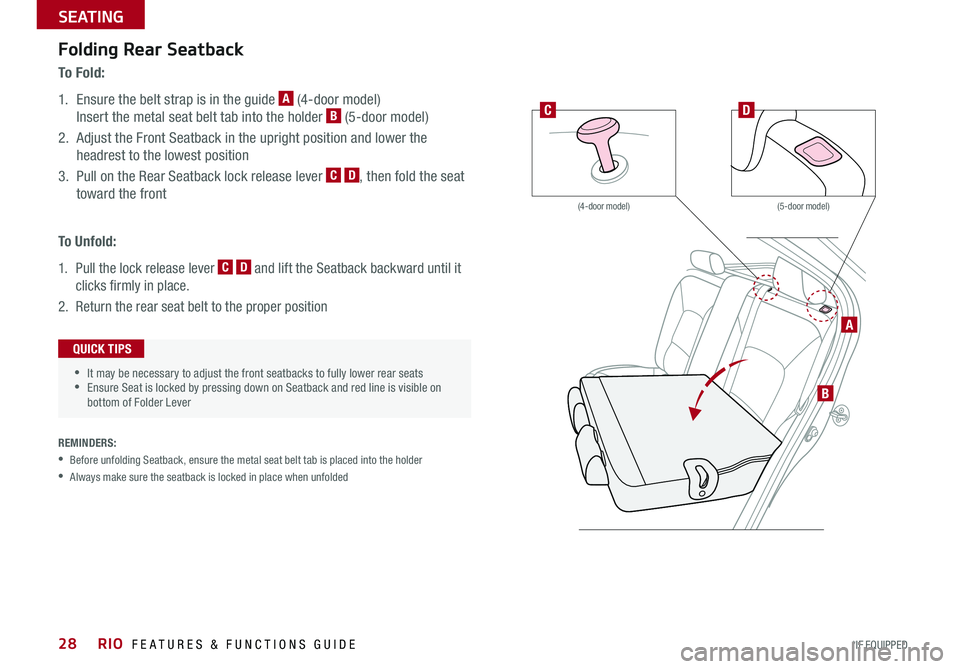

Folding Rear Seatback
To F o l d :
1 . Ensure the belt strap is in the guide A (4-door model)
Insert the metal seat belt tab into the holder B (5-door model)
2 . Adjust the Front Seatback in the upright position and lower the
headrest to the lowest position
3 . Pull on the Rear Seatback lock release lever C D, then fold the seat
toward the front
To U n f o l d :
1 . Pull the lock release lever C D and lift the Seatback backward until it
clicks firmly in place .
2 . Return the rear seat belt to the proper position
REMINDERS:
• Before unfolding Seatback, ensure the metal seat belt tab is placed into the holder
•Always make sure the seatback is locked in place when unfolded
RIO FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
SEATING
