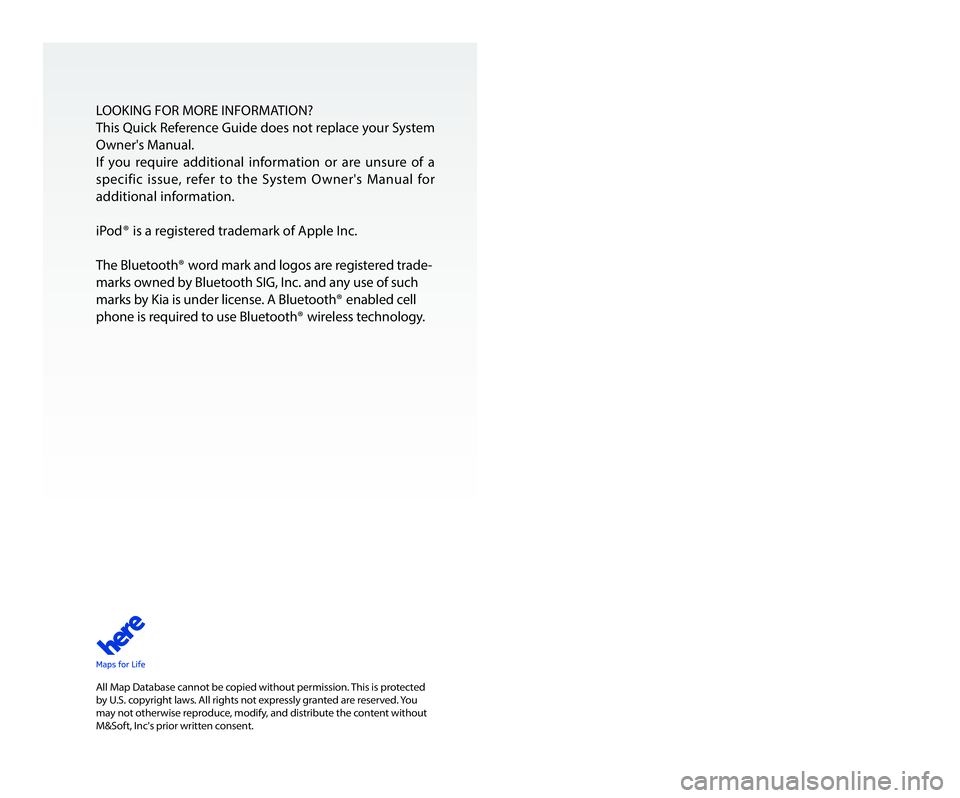

LOOKING FOR MORE INFORMATION?
This Quick Reference Guide does not replace your System
Owner's Manual.
If you require additional information or are unsure of a
specific issue, refer to the System Owner's Manual for
additional information.
iPod ® is a registered trademark of Apple Inc.
The Bluetooth® word mark and logos are registered trade-
marks owned by Bluetooth SIG, Inc. and any use of such
marks by Kia is under license. A Bluetooth® enabled cell
phone is required to use Bluetooth® wireless technology.
All Map Database cannot be copied without permission. This is protected
by U.S. copyright laws. All rights not expressly granted are reserved. You
may not otherwise reproduce, modify, and distribute the content without
M&Soft, Inc's prior written consent.
, @ 6 # < & / > 2 3 ( @ ´
Ñ J O E E , @ 6 # < & / > 2 3 ( @ ´
Ñ J O E E
Page 3 of 67
![KIA RIO 2016 Navigation System Quick Reference Guide TABLE OF CONTENTS
Controls and functions ………………………………………………\
… 2
Audio sound setting ………………………………………………\
…… 6
Display s](/img/2/54909/w960_54909-2.png "KIA RIO 2016 Navigation System Quick Reference Guide TABLE OF CONTENTS
Controls and functions ………………………………………………\
… 2
Audio sound setting ………………………………………………\
…… 6
Display s")

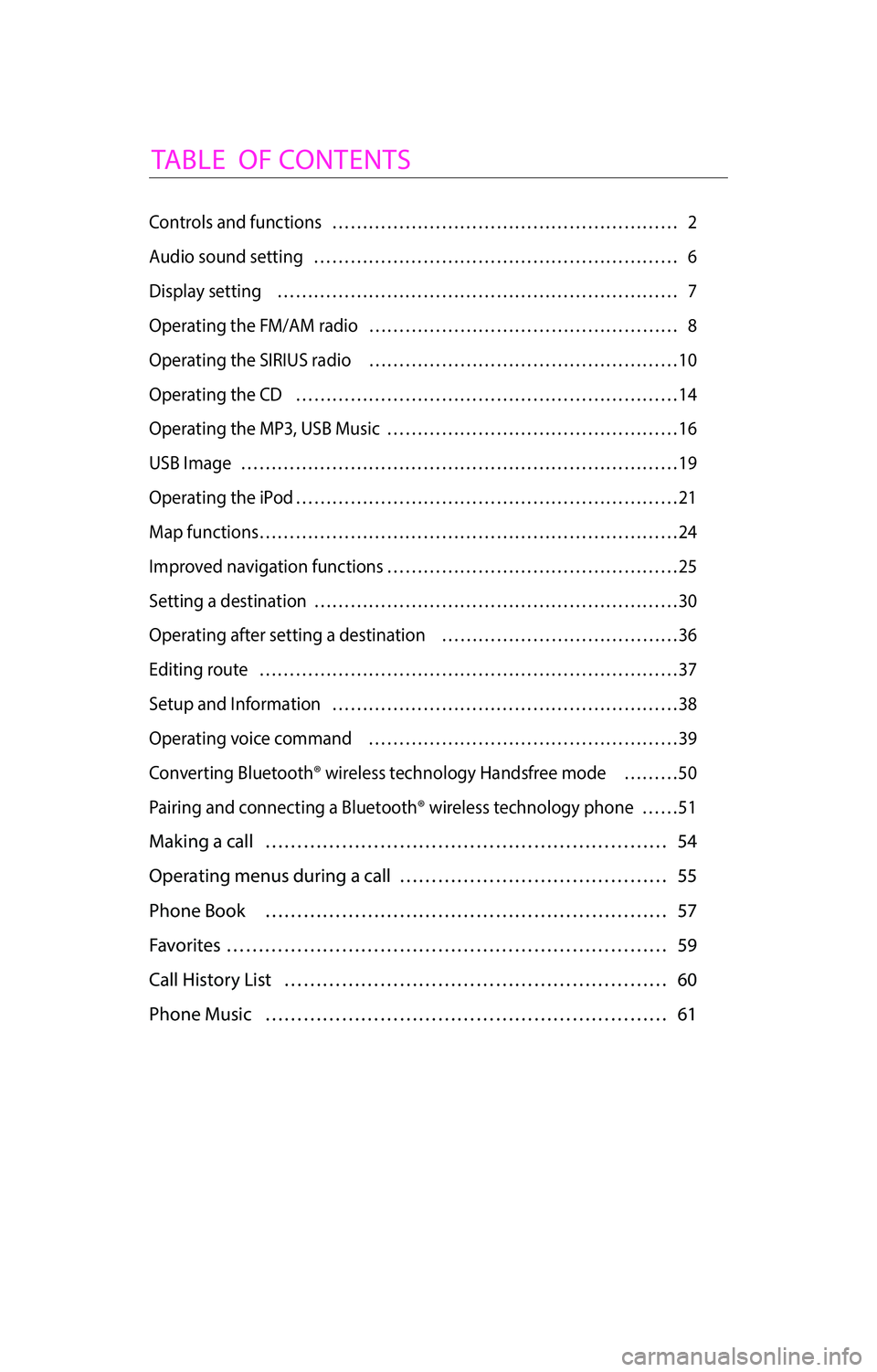

TABLE OF CONTENTS
Controls and functions ………………………………………………\
… 2
Audio sound setting ………………………………………………\
…… 6
Display setting ………………………………………………\
………… 7
Operating the FM/AM radio …………………………………………… 8
Operating the SIRIUS radio ……………………………………………10
Operating the CD ………………………………………………\
………14
Operating the MP3, USB Music …………………………………………16
USB Image ………………………………………………\
………………19
Operating the iPod ………………………………………………\
………21
Map functions ………………………………………………\
……………24
Improved navigation functions …………………………………………25
Setting a destination ………………………………………………\
……30
Operating after setting a destination …………………………………36
Editing route ………………………………………………\
……………37
Setup and Information ………………………………………………\
…38
Operating voice command ……………………………………………39
Converting Bluetooth® wireless technology Handsfree mode ………50
Pairing and connecting a Bluetooth® wireless technology phone ……51
Making a call ………………………………………………\
……… 54
Operating menus during a call …………………………………… 55
Phone Book ………………………………………………\
……… 57
Favorites ………………………………………………\
…………… 59
Call History List ………………………………………………\
…… 60
Phone Music ………………………………………………\
……… 61
, @ 6 # @ ( < & / > @ 2 3 ( J O E E , @ 6 # @ ( < & / > @ 2 3 ( J O E E ß
y
Page 4 of 67

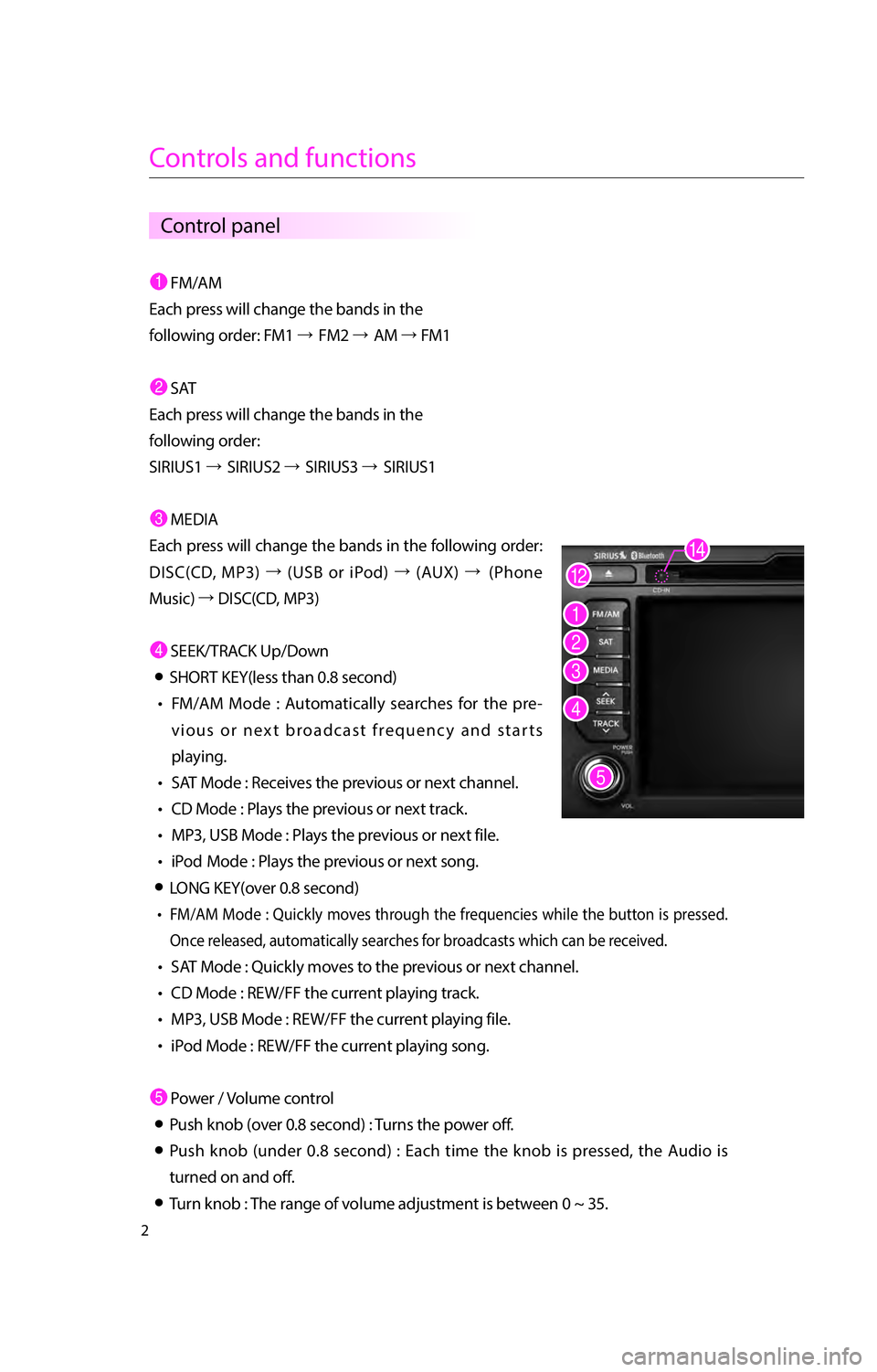

2
Controls and functions
1FM/AM
Each press will change the bands in the
following order: FM1
→ FM2 → AM → FM1
2SAT
Each press will change the bands in the
following order:
SIRIUS1
→ SIRIUS2 → SIRIUS3 → SIRIUS1
3MEDIA
Each press will change the bands in the following order:
DISC(CD, MP3)
→ (USB or iPod) → (AUX) → (Phone
Music)
→ DISC(CD, MP3)
4SEEK/TRACK Up/Down
SHORT KEY(less than 0.8 second)
• FM/AM Mode : Automatically searches for the pre-
vious or next broadcast frequency and starts
playing.
• SAT Mode : Receives the previous or next channel.
• CD Mode : Plays the previous or next track.
• MP3, USB Mode : Plays the previous or next file.
• iPod Mode : Plays the previous or next song.
LONG KEY(over 0.8 second)
• FM/AM Mode : Quickly moves through the frequencies while the button is pressed.
Once released, automatically searches for broadcasts which can be received.
• SAT Mode : Quickly moves to the previous or next channel.
• CD Mode : REW/FF the current playing track.
• MP3, USB Mode : REW/FF the current playing file.
• iPod Mode : REW/FF the current playing song.
5Power / Volume control
Push knob (over 0.8 second) : Turns the power off.
Push knob (under 0.8 second) : Each time the knob is pressed, the Audio is
turned on and off.
Turn knob : The range of volume adjustment is between 0 ~ 35.
Control panel
1
2
3
4
5
12
14
, @ 6 # @ ( < & / > @ 2 3 ( J O E E , @ 6 # @ ( < & / > @ 2 3 ( J O E E ß
y
Page 5 of 67

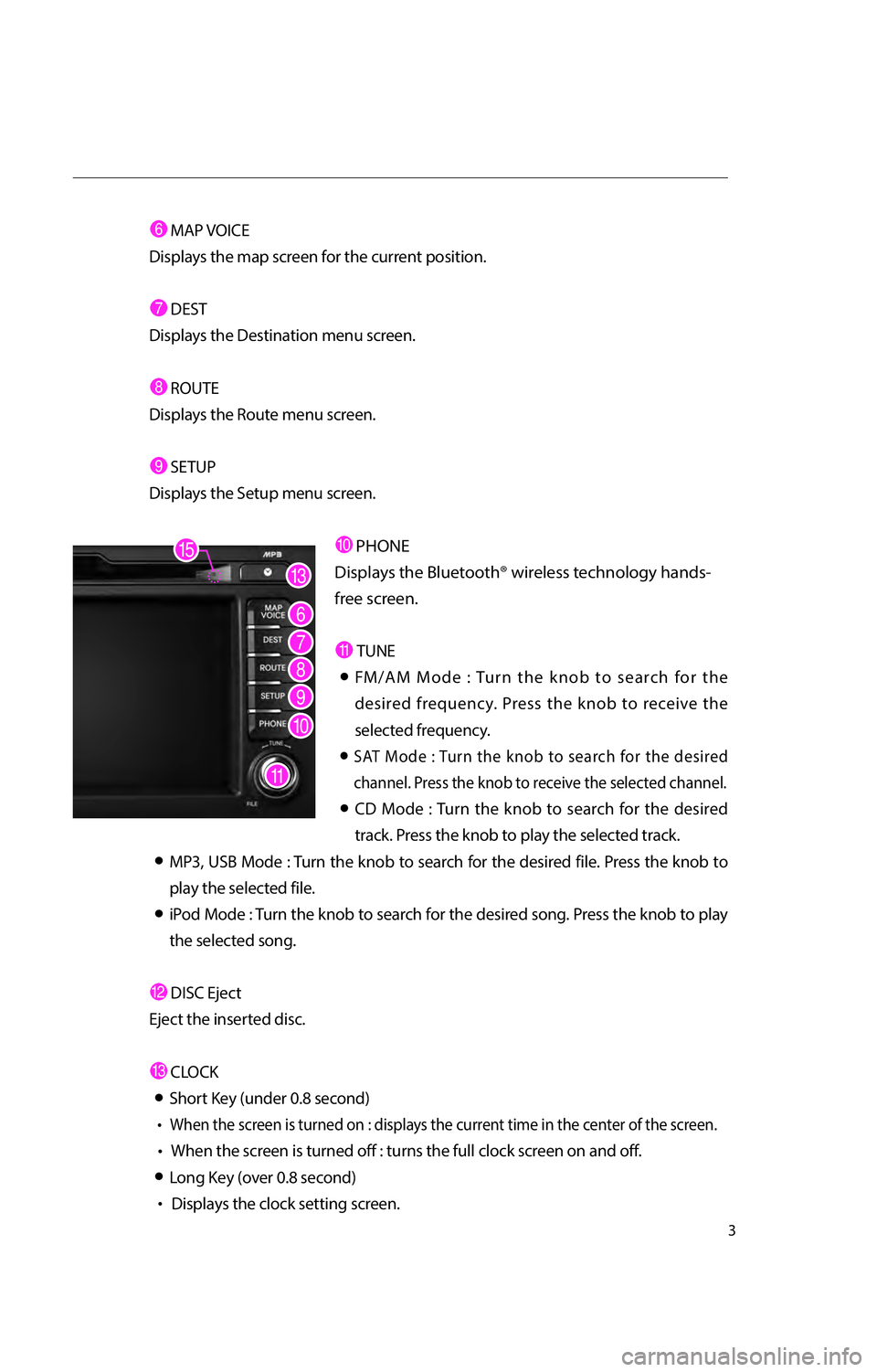

3
6MAP VOICE
Displays the map screen for the current position.
7DEST
Displays the Destination menu screen.
8ROUTE
Displays the Route menu screen.
9SETUP
Displays the Setup menu screen.
10PHONE
Displays the Bluetooth® wireless technology hands-
free screen.
11 TUNE
FM/AM Mode : Turn the knob to search for the
desired frequency. Press the knob to receive the
selected frequency.
SAT Mode : Turn the knob to search for the desired
channel. Press the knob to receive the selected channel.
CD Mode : Turn the knob to search for the desired
track. Press the knob to play the selected track.
MP3, USB Mode : Turn the knob to search for the desired file. Press the knob to
play the selected file.
iPod Mode : Turn the knob to search for the desired song. Press the knob to play
the selected song.
12DISC Eject
Eject the inserted disc.
13CLOCK
Short Key (under 0.8 second)
• When the screen is turned on : displays the current time in the center of the screen.
• When the screen is turned off : turns the full clock screen on and off.
Long Key (over 0.8 second)
• Displays the clock setting screen.
6
7
8
9
10
11
13
15
, @ 6 # @ ( < & / > @ 2 3 ( J O E E , @ 6 # @ ( < & / > @ 2 3 ( J O E E ß
y
Page 6 of 67
4
Controls and functions
14DISC insert indicator LED
Displays that a DISC has been inserted.
15RESET
Resets the system - if software locks-up.
iINFORMATION
If pressing the 00330032003A00280035206B
646F
7269676874204449534320696E6469636174
72
WARNING
Always give your full attention to driving. Avoid operating your system in such a
way that you can be distracted driving vehicle operation.
1Volume Up/Down
Increases or decreases the speaker
volume within a range between 0 ~ 35.
2Seek Up/ Down
SHORT KEY(less than 0.8 second)
• FM/AM : Receives the previous or
next preset frequency.
• SIRIUS Mode : Receives the previous
or next preset channel.
• CD Mode : Plays the previous or
next track.
• MP3, USB Mode : Plays the previous
or next file.
• iPod Mode : Plays the previous or
next song.
LONG KEY(Over 0.8 second)
• FM/AM Mode : Quickly moves
through the frequencies while the
button is pressed. Once released, it
automatically searches for broad-
casts which can be received.
• SIRIUS Mode : Quickly moves to the
previous or next channel.
• CD Mode : REW/FF the current
playing track.
• MP3, USB Mode : REW/FF the
current playing file.
• iPod Mode : REW/FF the current
playing song.
Steering wheel remote controller
, @ 6 # @ ( < & / > @ 2 3 ( J O E E , @ 6 # @ ( < & / > @ 2 3 ( J O E E ß
y
Page 7 of 67

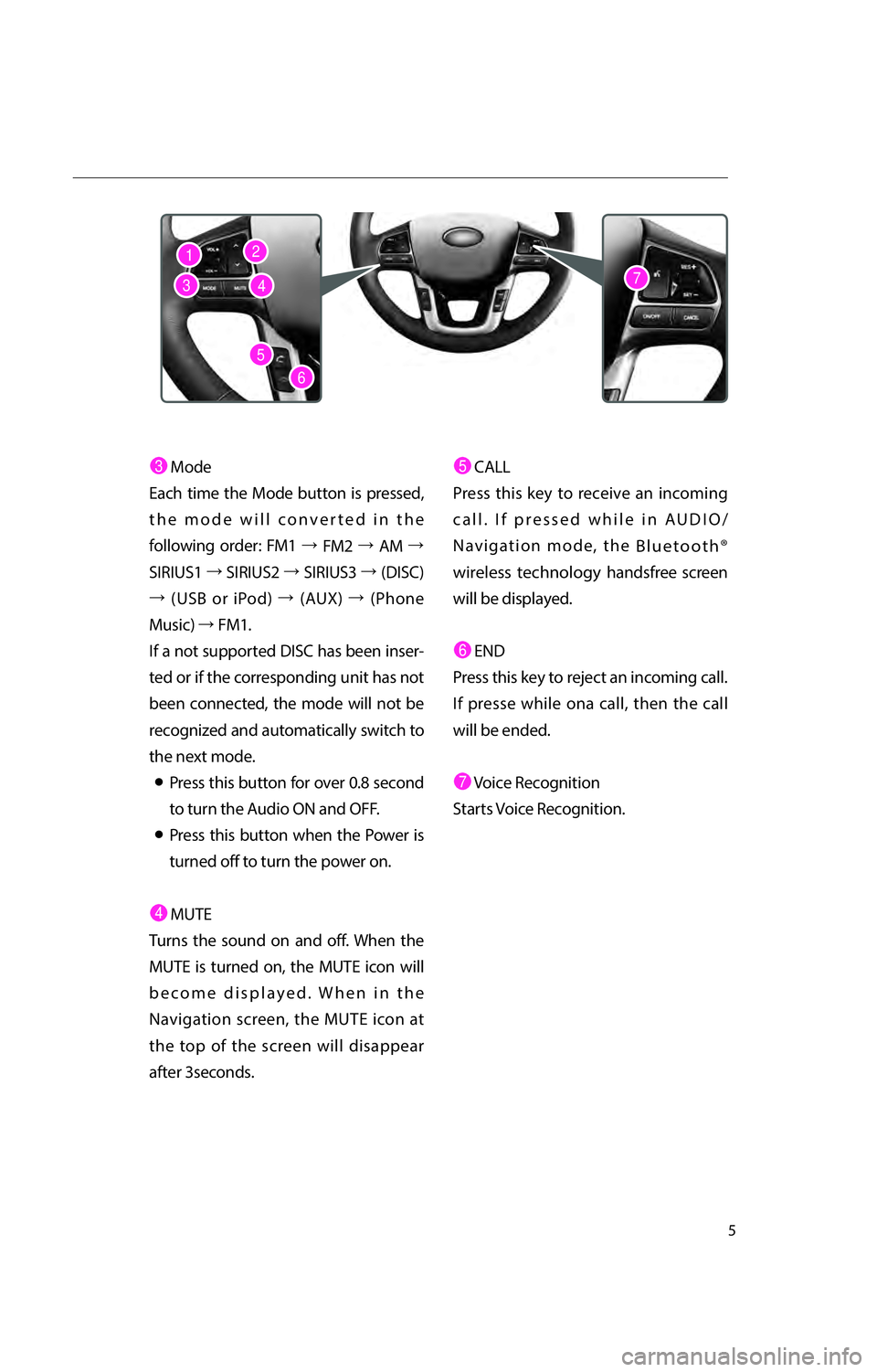

5
3Mode
Each time the Mode button is pressed,
the mode will converted in the
following order: FM1
→ FM2 → AM →
SIRIUS1
→ SIRIUS2 → SIRIUS3 → (DISC)
→ (USB or iPod) → (AUX) → (Phone
Music)
→ FM1.
If a not supported DISC has been inser-
ted or if the corresponding unit has not
been connected, the mode will not be
recognized and automatically switch to
the next mode.
Press this button for over 0.8 second
to turn the Audio ON and OFF.
Press this button when the Power is
turned off to turn the power on.
4MUTE
Turns the sound on and off. When the
MUTE is turned on, the MUTE icon will
become displayed. When in the
Navigation screen, the MUTE icon at
the top of the screen will disappear
after 3seconds.
5CALL
Press this key to receive an incoming
call. If pressed while in AUDIO/
Navigation mode, the
Bluetooth®
wireless technology
handsfree screen
will be displayed.
6END
Press this key to reject an incoming call.
If presse while ona call, then the call
will be ended.
7Voice Recognition
Starts Voice Recognition.
1
5
6
74
2
3
, @ 6 # @ ( < & / > @ 2 3 ( J O E E , @ 6 # @ ( < & / > @ 2 3 ( J O E E ß
y
Page 8 of 67
6
Audio sound setting
Displays the Audio sound
setup screen
Press 003600520058005100472062757474
6D61696E
2846
6950
41
FAD/BAL
The position of the sound can be
adjusted by using the up-down
and left-right
(, , , )
buttons on the left side of the
screen.
Press the
00270048004900440058004F0057 button to posi-
tion the sound in the center of the
vehicle.
BASS/MID/TREB
The BASS/MID/TREB can be adjus-
ted by using the left/right (
, )
buttons of each control.
Auto volume control ON/
OFF
Each time the 0024005800570052000300590052004F0058005000480003004600520051005700550052004F20
62757474
76
6F6E20616E64206F6666
Touch screen beep ON/OFF
Each time the 0037005200580046004B000300560046005500480048005100030045004800480053
button is pressed, the beeping
sound that follows each press on
the screen will turn on and off.
, @ 6 # @ ( < & / > @ 2 3 ( J O E E , @ 6 # @ ( < & / > @ 2 3 ( J O E E ß
y
Page 9 of 67
7

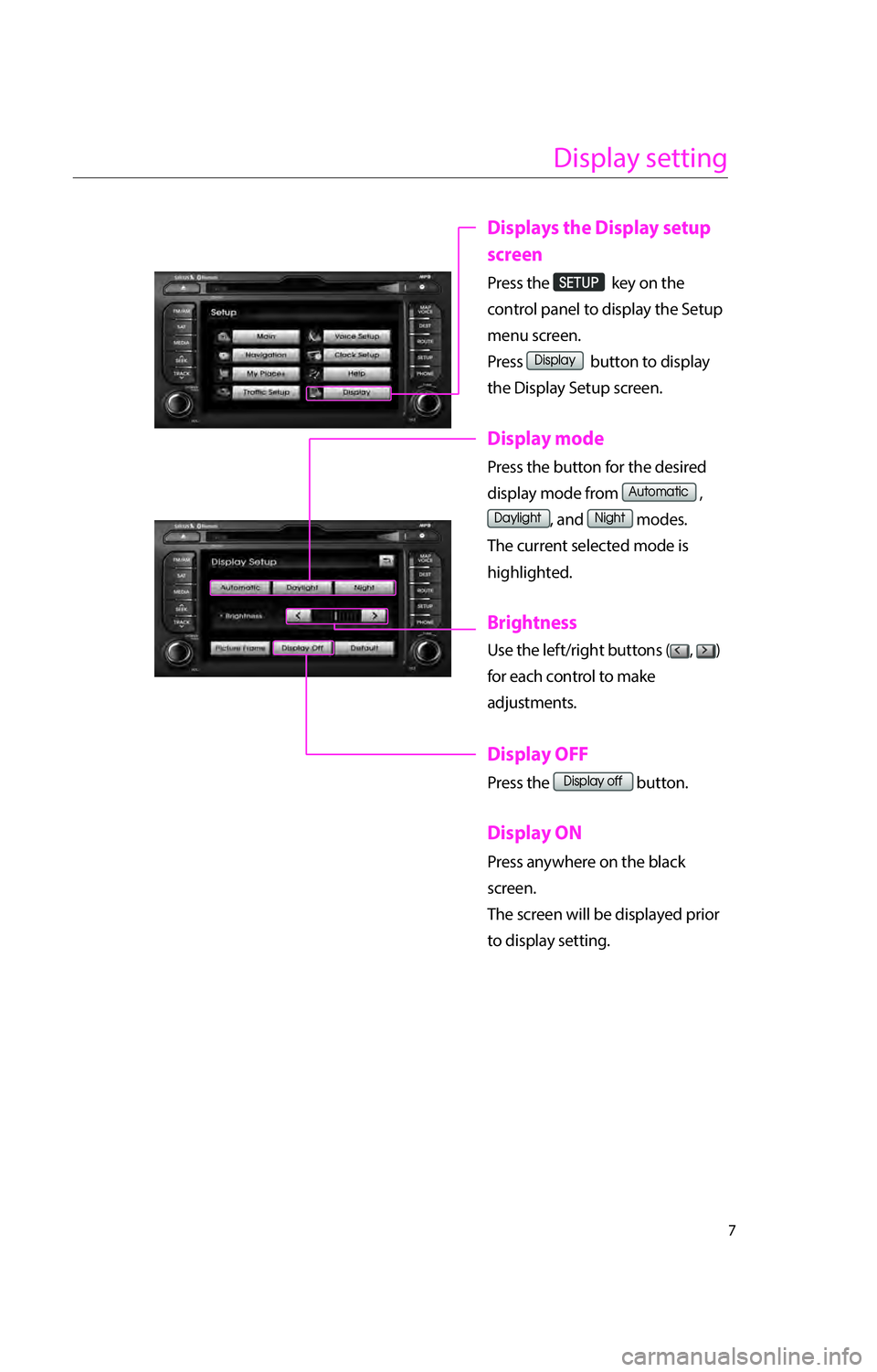

Display setting
Displays the Display setup
screen
Press the 0036002800370038003320206B6579206F6E2074686520
63
6D656E7520736372
50
0027004C00560053004F0044005C button to display
the Display Setup screen.
Display mode
Press the button for the desired
display mode from
0024005800570052005000440057004C0046 ,
00270044005C004F004C004A004B0057, and 0031004C004A004B0057 modes.
The current selected mode is
highlighted.
Brightness
Use the left/right buttons (, )
for each control to make
adjustments.
Display OFF
Press the 0027004C00560053004F0044005C0003005200490049 button.
Display ON
Press anywhere on the black
screen.
The screen will be displayed prior
to display setting.
, @ 6 # @ ( < & / > @ 2 3 ( J O E E , @ 6 # @ ( < & / > @ 2 3 ( J O E E ß
y
Page 10 of 67
8
Operating the FM/AM radio
Listening to the FM/AM
radio
1. Press the 00290030001200240030206B6579
63
62616E64206F6620746865206D6F73742072
73656C6563
32
00290030001200240030206B6579
6368616E676520746865206465736972
45616368
62616E6473
46
→ FM2 → AM → FM1
3. Select the desired broadcast frequency.
Selecting FM/AM broadcast
frequency
Selecting a frequency
thr
ough presets
Press the preset button of the
desired broadcast frequency.
Selecting a Broadcast fre-
quency through SEEK
Press the 0466003600280028002E or 00370035002400260467
keys on the control panel or the
or button on FM1, FM2,
and AM mode screens for less
than 0.8 second. Once the SEEK
function is operating (SEEK indica-
tor blinking), the next or previous
broadcast frequency with superior
reception will be searched auto-
matically.
, @ 6 # @ ( < & / > @ 2 3 ( J O E E , @ 6 # @ ( < & / > @ 2 3 ( J O E E ß
y
