KIA RIO 2019 Features and Functions Guide

19
AUDIO SYSTEMS
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Standard Audio System (DA2.0) Video To view these videos on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
Audio System Setup Options – Press the SETUP key, then using the touchscreen, press the menu item to enter (Display, Sound, Clock /Calendar, Phone, System) . Adjust the available settings for each equipped audio system setup option by pressing the onscreen buttons/arrows . Audio system setup options may include the following:
•Display settings – Adjusting the Brightness, Mode Popup, MP3 Information Display
•Sound settings – Sound Settings, Speed Dependent Volume Control, Voice Recognition Volume, Touchscreen Beep
•Clock/Calendar settings – Clock Settings, Time Format, Calendar Settings, Clock Display
•System settings – Memory Information, Prompt Feedback, Language
Custom Key : A programmable key to provide quick access to one of several available system features .
To Program the Custom Key: Press the SETUP key, then press the Custom button . Select one of the available features you would like the Custom button to open .
Your vehicle’s audio system may differ from that in the illustration. For further audio system operations, refer to pages 17-20 or see your Owner’s Manual.
Sound Settings – To adjust the Standard Audio Systems sound settings:
1 . Press the SETUP key on the audio control unit or the onscreen MENU button when in MEDIA mode
2 . Select the onscreen SOUND button
3 . Select the menu item (Position, Tone, Speed Dependent Volume, Beep)
4 . Using the touchscreen, press arrows to adjust the settings
Standard Audio System* (Type DA2.0 - 7" screen)
FM/AM/Media (USB, iPod® †11, AUX, Bluetooth® Audio, My Music)*
RADIO
CD-INMAP
MEDIA
SEEK
TRACK
PWR VOL FILETUNE
PHONEHOME
SETUP
APPS
Press to enter HOME mode
Press to enter PHONE mode
Press to enter SETUP mode
Press to enter CUSTOM mode
Rotate to change Radio Station/ Media tracks/songs/files
. Press to select
Press to select previous/next Radio stations/Media tracks/songs/files . Press and hold to move quickly through stations/tracks/songs/files
Press to Power On/Off . Rotate to adjust volume
Press to select FM/AM modes
Press to select MEDIA modes
REMINDER: To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park .

•When connected to Android Auto™ or Apple CarPlay® on your smartphone, the smartphone’s navigation† 12 system may also be available . •A warning screen may appear periodically to remind users that the audio system should be operated when the engine is running to prevent battery discharge •Prolonged use of the audio control unit in ACC mode may drain the vehicle’s battery
QUICK TIPS

RIO FEATURES & FUNCTIONS GUIDE20
AUDIO SYSTEMS
*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
UVO eServices*†1
– FM/AM/SiriusXM®†17/Media (USB, iPod® †11 , My Music, AUX, Bluetooth® Au d io)
Sound Settings: To adjust the audio control unit’s sound settings:
1 . Press the SETUP key on the audio control unit or the onscreen MENU button when in MEDIA mode
2 . Select the onscreen SOUND button, or SOUND SET TINGS
3 . Select the menu item (Position, Tone, Advanced, Default)
4 . Use the onscreen buttons to adjust settings
Radio Presets: You can listen to FM, AM and SiriusXM® radio and save frequently used stations .
How to Save a Preset: Press and hold the desired slot . This saves the current station in the selected slot SiriusXM® .
Smart Favorites: For the first ten favorite SiriusXM® channels, you may play live or repeat from the beginning of a song or a program segment .
In Radio mode, choose SiriusXM®, then select any of the first six favorites . During song or program play, tap the Skip Backward icon to start from the beginning of the song or program . Tap the Play Live icon to return to the live broadcast .
Custom Button : A programmable button to provide quick access to one of several available
system features .
To Program the Custom Button: Press the SETUP button, then press the Custom button . Select one of the available features you would like the Custom button to open .

•Using Android Auto™ or Apple CarPlay® and a supported smartphone, the phone’s Navigation App may be displayed on the head unit •A warning screen may appear periodically to remind users that the navigation† 12 system should be operated when the engine is running to prevent battery discharge •At any time, you can interrupt UVO eServices Command Feedback by pressing the TALK button on the steering wheel •Prolonged use of the audio control unit in ACC mode may drain the vehicle’s battery
QUICK TIPS
Your vehicle’s audio system may differ from that in the illustration. For more information, refer to the Car Multimedia System User's Manual. See your Owner’s Manual for other details. For other audio system information, see pages 17-19.
REMINDER: To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park .
UVO eServices Video
To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
QR CODE
www.youtube.com/KiaFeatureVideos
RADIO
CD-INMAP
MEDIA
SEEK
TRACK
PWR VOL FILETUNE
PHONEHOME
SETUP
APPS
Press to enter HOME mode
Press to enter PHONE mode
Press to enter SETUP mode
Press to enter CUSTOM mode
Rotate to change Radio Station/ Media tracks/songs/files
. Press to select
Press to select previous/next Radio stations/Media tracks/songs/files . Press and hold to move quickly through stations/tracks/songs/files
Press to Power On/Off . Rotate to adjust volume
Press to select FM/AM modes
Press to select MEDIA modes

21
CENTER PANEL
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
RADIO
CD-INMAP
MEDIA
SEEK
TRACK
PWR VOLFILETUNE
PHONEHOME
SETUP
APPS
USB Charger*:
The USB charger is located at the
rear of the Center Console
.
Digital Clock
Standard Audio System* Clock Setup:
1 . With audio system on, press the SETUP button
until the clock adjustment mode displays
2 . Press the onscreen scroll buttons to adjust time
Standard Audio System (Type DA2.0) /
UVO eServices* Clock Setup:
Press the SETUP A button, then press the on screen
Clock icon to enter clock settings .
Aux/USB/iPod®†11 Ports, Power Outlets & USB Charger*
Use the Aux port B to connect audio devices and the USB port C to connect USB
audio devices, smartphones and iPod® devices .
Use the power outlets D for mobile phones and other devices designed to operate on
a 12V (180W max) power outlet .
REMINDERS: •
Using the power outlets and AUX /USB/iPod® ports for prolonged periods of time with the ignition ON (engine OFF ) could cause the battery to discharge
•
The ignition in ACC mode could cause the battery to discharge
For more information on the Aux/USB/iPod® Port, AC Inverter* and Power Outlets, refer to the Owner's Manual.
The power outlets are inactive when ignition is in the OFF position .
QUICK TIP
12V180W
12V180WUSB
AUX
12 V180W
12V180W
USB
AUX
D
BC
(Located at rear of Center Console)
(UVO eServices audio control unit shown)
A

RIO FEATURES & FUNCTIONS GUIDE22*IF EQUIPPED

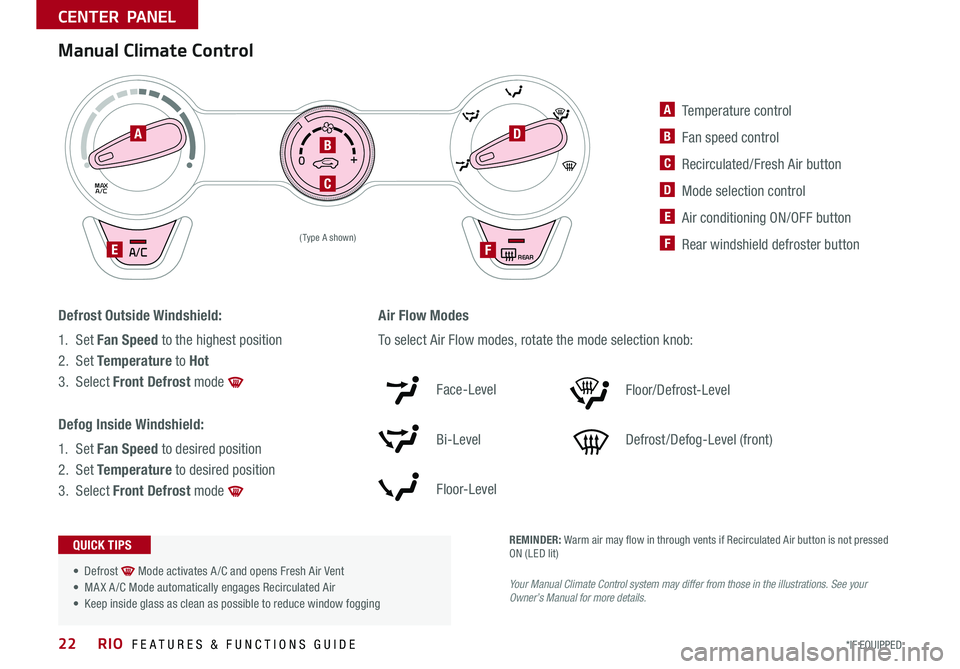

CENTER PANEL
A Temperature control
B Fan speed control
C Recirculated/Fresh Air button
D Mode selection control
E Air conditioning ON/OFF button
F Rear windshield defroster button
Manual Climate Control
Defrost Outside Windshield:
1 . Set Fan Speed to the highest position
2 . Set Temperature to Hot
3 . Select Front Defrost mode
Defog Inside Windshield:
1 . Set Fan Speed to desired position
2 . Set Temperature to desired position
3 . Select Front Defrost mode
Air Flow Modes
To select Air Flow modes, rotate the mode selection knob:
Face-Level
Bi-Level
F lo o r- L evel
Floor/Defrost-Level
Defrost/Defog-Level (front)
REMINDER: Warm air may flow in through vents if Recirculated Air button is not pressed ON (LED lit)
Your Manual Climate Control system may differ from those in the illustrations. See your Owner’s Manual for more details.
• Defrost Mode activates A /C and opens Fresh Air Vent
• MA X A /C Mode automatically engages Recirculated Air
• Keep inside glass as clean as possible to reduce window fogging
QUICK TIPS
REARA/C
MAX
A/C
DAB
C
EF(Type A shown)

23
CENTER PANEL
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Sportmatic® Shifting Video To view these videos on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODES
Automatic Gear Shift with Sportmatic®†1 8 Shifting*
P: Park
R: Reverse
N: Neutral
D: Drive
[+]: Manual Mode Upshift
[–]: Manual Mode Downshift
Manual Mode:
To enter Manual mode, move shift lever from D
to left gate A
To shift while in Manual mode, move shift lever up [+]
to upshift or down [–] to downshift .
• Press brake pedal and depress release button to move gear shift from N to P, N to R or from P to any gear
• Manual mode downshifts are made automatically when the vehicle slows down . When the vehicle stops, 1st gear is automatically selected
QUICK TIPS
SPORT
A
A

RIO FEATURES & FUNCTIONS GUIDE24
SEATING
*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
ABC
Front Seat Headrest Adjustment†96-Way Adjustable Driver’s Seat†15
Pull lever A to slide Seat forward/backward .
Pull/press lever B up/down one or more times to adjust Seat height .
Pull lever C to adjust Seatback Recline .
To raise headrest: Pull headrest up .
To lower headrest: Press lock, then press the headrest down .
When adjusting seat forward or backward, ensure seat clicks or locks into place before driving the vehicle .
QUICK TIP
REMINDER: Do not operate the vehicle with the headrests removed . Headrests can provide critical neck and head support in an accident .
Do not attempt to adjust the seat while the vehicle is moving. This could result in loss of control of the vehicle.

25
SEATING
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
(4-door model)
A
B
C
Folding Rear Seatback†15
To F o l d :
1 . Ensure the belt strap is out of way of the Seatback folding A
(4-door model)
Insert the metal seat belt tab into the holder B (5-door model)
2 . Adjust the Front Seatback to the upright position and lower the
rear headrest to the lowest position
3 . Pull on the Rear Seatback lock release lever C, then fold the seat
toward the front
To U n f o l d :
1 . Pull the lock release lever C and lift the Seatback backward until it
clicks firmly in place
2 . Return the rear seat belt to the proper position
REMINDERS:
•
Before unfolding Seatback, ensure the metal seat belt tab is placed into the holder (5-door model)
•Always make sure the seatback is locked in place when unfolded
• It may be necessary to adjust the front seatbacks to fully lower rear seats
• Ensure seat is locked by pressing down on Seatback and ensuring red line is NOT visible on bottom of Folder Lever
QUICK TIPS

RIO FEATURES & FUNCTIONS GUIDE26*IF EQUIPPED
OTHER KEY FEATURES
HOLD
Lock
Unlock
( With folding key shown)
( Type A )
HOLD
One Click Fuel Cap Video To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
www.youtube.com/KiaFeatureVideos
QR CODE
A
B
C
D
E
Remote Keyless Entry (Folding Key)*
A Press the release button to unfold the key
B Press to lock all Doors
C Press to unlock Driver’s Door .
Press twice in 4 seconds to unlock
all Doors and Trunk / Tailgate*
D Press momentarily to unlock
Trunk / Tailgate* . Hold for more
than 1 second to automatically
open Trunk / Tailgate*
E Press and hold more than 1 second
for Panic Alarm . To turn OFF Alarm,
press any button
REMINDER: Remote button configuration may vary depending on vehicle options .
Double-Turn Lock/Unlock All*
(Only available with Power Door Locks)
•Turn counterclockwise once to unlock Driver’s Door
•Turn counterclockwise again within 4 seconds to
unlock all Doors
•Turn clockwise once to lock all Doors
Fuel Cap / Malfunction Indicator
(Check Engine Light)
Tighten for ONE CLICK to prevent Malfunction
Indicator from illuminating .
REMINDERS:
• The Fuel Filler Door Release lever is located on the lower part of the driver’s door sill
• It is normal operation when tightening to hear one click and then, when Fuel Cap is released, it clicks

27
OTHER KEY FEATURES
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
(Lever located on the driver’s floor near door sill; Image shown is 4-door model)
B
A
D
C
(Lever located under Driver’s Panel buttons)
(Latch located inside hood)
REMINDERS:
•Sunvisor may not shield all direct light
•
The Sunvisor may impair visibility if not adjusted properly . Do not operate the vehicle if Sunvisor is impairing your visibility
•
Be aware of seating position when adjusting or swinging Sunvisor around to or from the front or side windows .
Hood Release Lever and Latch
Opening the Hood:
1 . Pull the Hood Release Lever A
to unlatch the Hood
2 . In the front of the vehicle, lift the
Hood slightly, push the secondary
Latch B to the left inside of the
hood’s center and lift the Hood
3 . Pull out the support rod from the
Hood and set into place to hold
the Hood open
Fuel Door Release Lever
Pull the lever C upwards to release the
fuel door .
REMINDER: Open the Hood only after turning the engine off, on a flat surface, with the gear shift in P (Park) position and setting the parking brake .
Closing the Hood:
Lower the Hood about halfway and then press down to securely lock
in place .
REMINDER: While lowering and closing, keep hands away from under the Hood .
Tr u n k* Release Lever
(4-door model)
Pull the lever D upwards to open the
trunk lid .
Sunvisor†2 0
Use the Sunvisor to shield direct light through the front or side
windows . Slide the Sunvisor out and adjust as needed .

RIO FEATURES & FUNCTIONS GUIDE28*IF EQUIPPED
OTHER KEY FEATURES
E
B
DC
Map/Room Lamps*
Map Lamp*
Push the lens A to turn the Map Lamp ON/OFF . This light produces a spot beam
for convenient use as a map or personal lamp for the driver or front passenger .
When the Door switch B is in the middle position, the lamp turns ON when any
door is opened .
Room Lamp
•C On: In the ON position , the lamp stays on continuously
•D Door: In the DOOR position , the lamp turns ON when any door is opened
•E Off: In the OFF position , the lamp is OFF even if the door is opened
REMINDER: Using interior lights for an extended period of time may cause battery discharge
If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 1 second after doors are locked .
QUICK TIP
AA
(Type A shown)
Map/Room Lamp
Room Lamp
