KIA RIO 2022 Owners Manual

557
Driving your vehicle

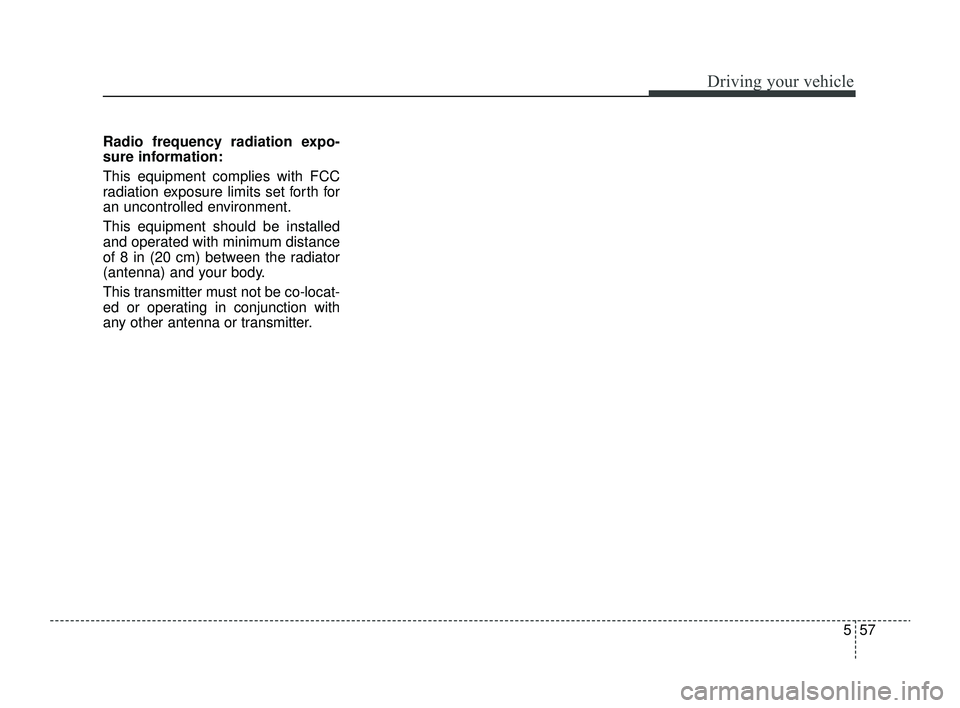

Radio frequency radiation expo-
sure information:
This equipment complies with FCC
radiation exposure limits set forth for
an uncontrolled environment.
This equipment should be installed
and operated with minimum distance
of 8 in (20 cm) between the radiator
(antenna) and your body.
This transmitter must not be co-locat-
ed or operating in conjunction with
any other antenna or transmitter.
SC PE USA 5.QXP 9/9/2021 6:19 PM Page 57

Driving your vehicle
58
5

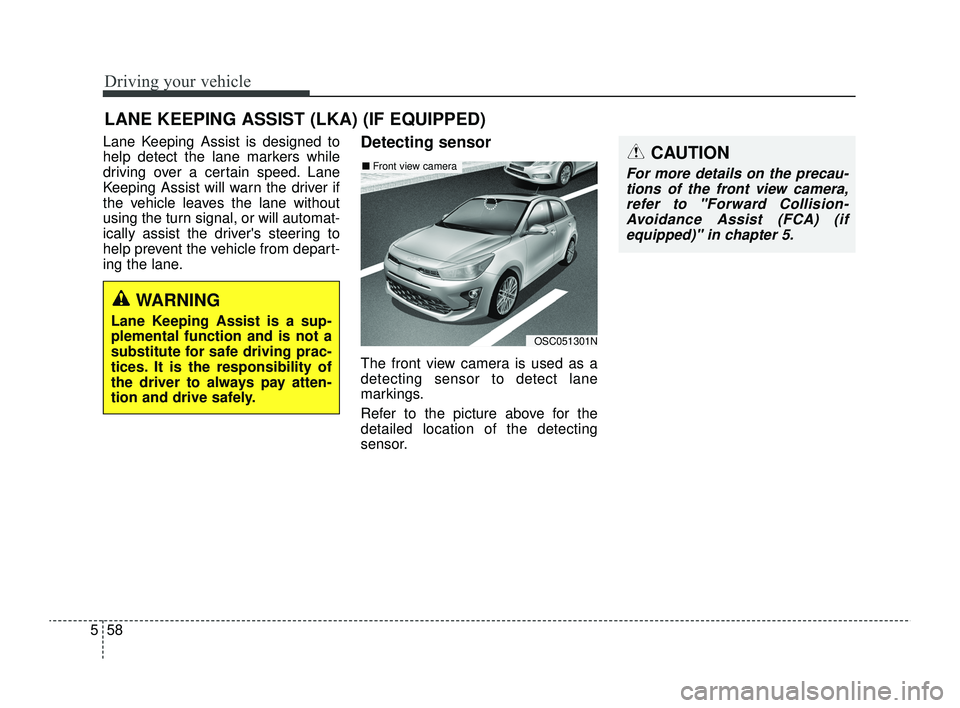

Lane Keeping Assist is designed to
help detect the lane markers while
driving over a certain speed. Lane
Keeping Assist will warn the driver if
the vehicle leaves the lane without
using the turn signal, or will automat-
ically assist the driver's steering to
help prevent the vehicle from depart-
ing the lane.Detecting sensor
The front view camera is used as a
detecting sensor to detect lane
markings.
Refer to the picture above for the
detailed location of the detecting
sensor.
LANE KEEPING ASSIST (LKA) (IF EQUIPPED)
OSC051301N
■ Front view cameraCAUTION
For more details on the precau-
tions of the front view camera,refer to "Forward Collision-Avoidance Assist (FCA) (ifequipped)" in chapter 5.
WARNING
Lane Keeping Assist is a sup-
plemental function and is not a
substitute for safe driving prac-
tices. It is the responsibility of
the driver to always pay atten-
tion and drive safely.
SC PE USA 5.QXP 9/9/2021 6:19 PM Page 58

559
Driving your vehicle

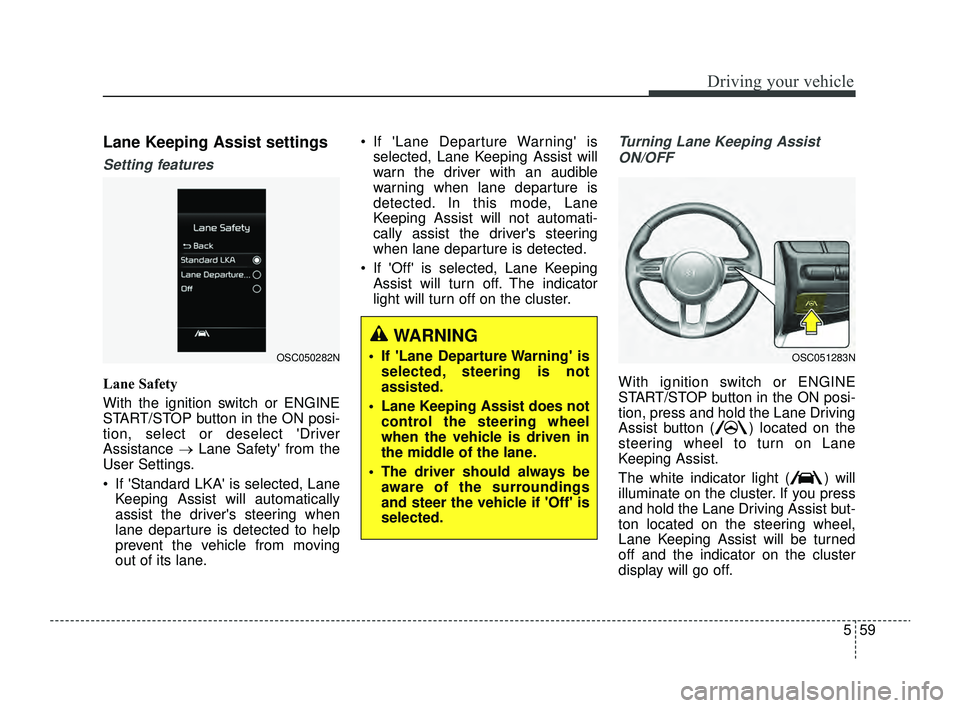

Lane Keeping Assist settings
Setting features
Lane Safety
With the ignition switch or ENGINE
START/STOP button in the ON posi-
tion, select or deselect 'Driver
Assistance →Lane Safety' from the
User Settings.
 If 'Standard LKA' is selected, Lane Keeping Assist will automatically
assist the driver's steering when
lane departure is detected to help
prevent the vehicle from moving
out of its lane.  If 'Lane Departure Warning' is
selected, Lane Keeping Assist will
warn the driver with an audible
warning when lane departure is
detected. In this mode, Lane
Keeping Assist will not automati-
cally assist the driver's steering
when lane departure is detected.
 If 'Off' is selected, Lane Keeping Assist will turn off. The indicator
light will turn off on the cluster.
Turning Lane Keeping Assist
ON/OFF
With ignition switch or ENGINE
START/STOP button in the ON posi-
tion, press and hold the Lane Driving
Assist button ( ) located on the
steering wheel to turn on Lane
Keeping Assist.
The white indicator light ( ) will
illuminate on the cluster. If you press
and hold the Lane Driving Assist but-
ton located on the steering wheel,
Lane Keeping Assist will be turned
off and the indicator on the cluster
display will go off.
OSC050282NOSC051283N
WARNING
 If 'Lane Departure Warning' is selected, steering is not
assisted.
 Lane Keeping Assist does not control the steering wheel
when the vehicle is driven in
the middle of the lane.
 The driver should always be aware of the surroundings
and steer the vehicle if 'Off' is
selected.
SC PE USA 5.QXP 9/9/2021 6:19 PM Page 59

Driving your vehicle
60
5
✽ ✽

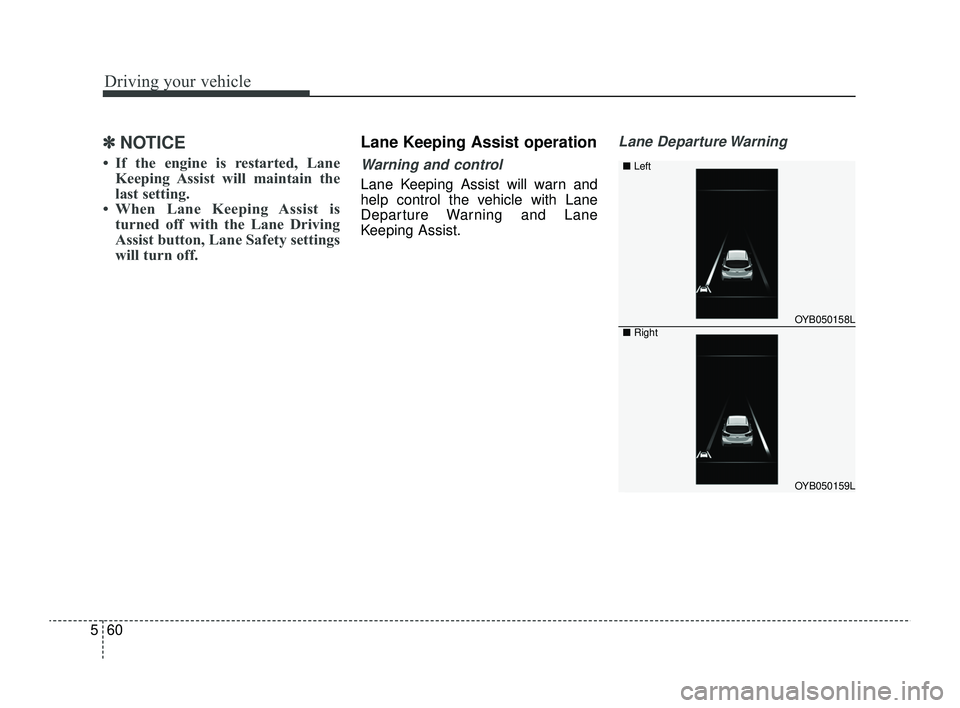

NOTICE
• If the engine is restarted, Lane
Keeping Assist will maintain the
last setting.
• When Lane Keeping Assist is turned off with the Lane Driving
Assist button, Lane Safety settings
will turn off.
Lane Keeping Assist operation
Warning and control
Lane Keeping Assist will warn and
help control the vehicle with Lane
Departure Warning and Lane
Keeping Assist.
Lane Departure Warning
OYB050158L
OYB050159L
■ Left
■Right
SC PE USA 5.QXP 9/9/2021 6:19 PM Page 60

561
Driving your vehicle

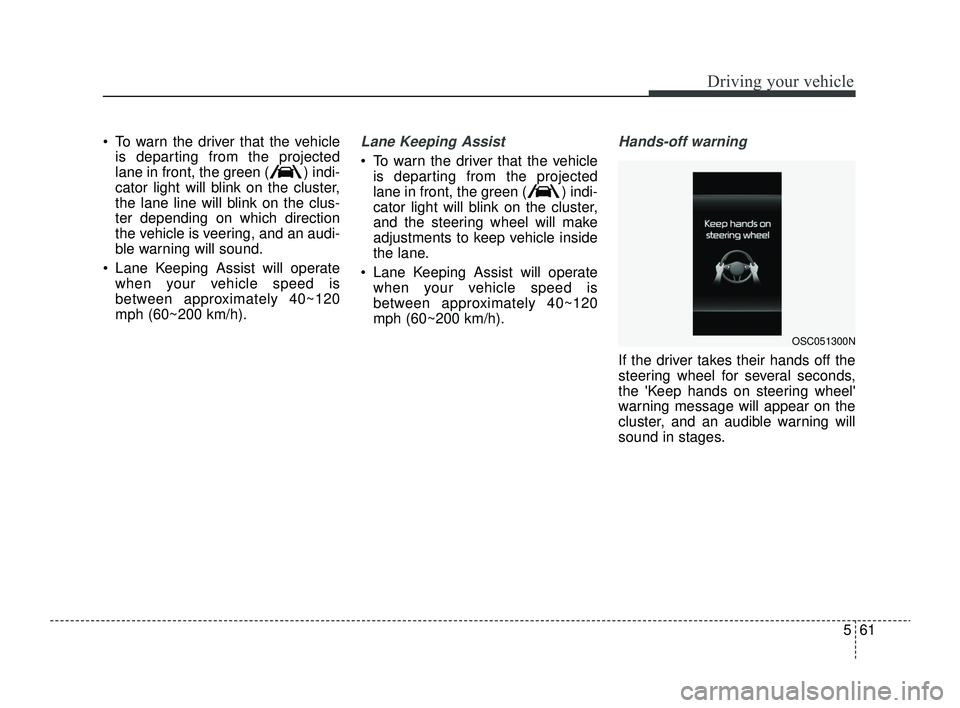

 To warn the driver that the vehicleis departing from the projected
lane in front, the green ( ) indi-
cator light will blink on the cluster,
the lane line will blink on the clus-
ter depending on which direction
the vehicle is veering, and an audi-
ble warning will sound.
 Lane Keeping Assist will operate when your vehicle speed is
between approximately 40~120
mph (60~200 km/h).Lane Keeping Assist
 To warn the driver that the vehicleis departing from the projected
lane in front, the green ( ) indi-
cator light will blink on the cluster,
and the steering wheel will make
adjustments to keep vehicle inside
the lane.
 Lane Keeping Assist will operate when your vehicle speed is
between approximately 40~120
mph (60~200 km/h).
Hands-off warning
If the driver takes their hands off the
steering wheel for several seconds,
the 'Keep hands on steering wheel'
warning message will appear on the
cluster, and an audible warning will
sound in stages.
OSC051300N
SC PE USA 5.QXP 9/9/2021 6:19 PM Page 61

Driving your vehicle
62
5
✽ ✽

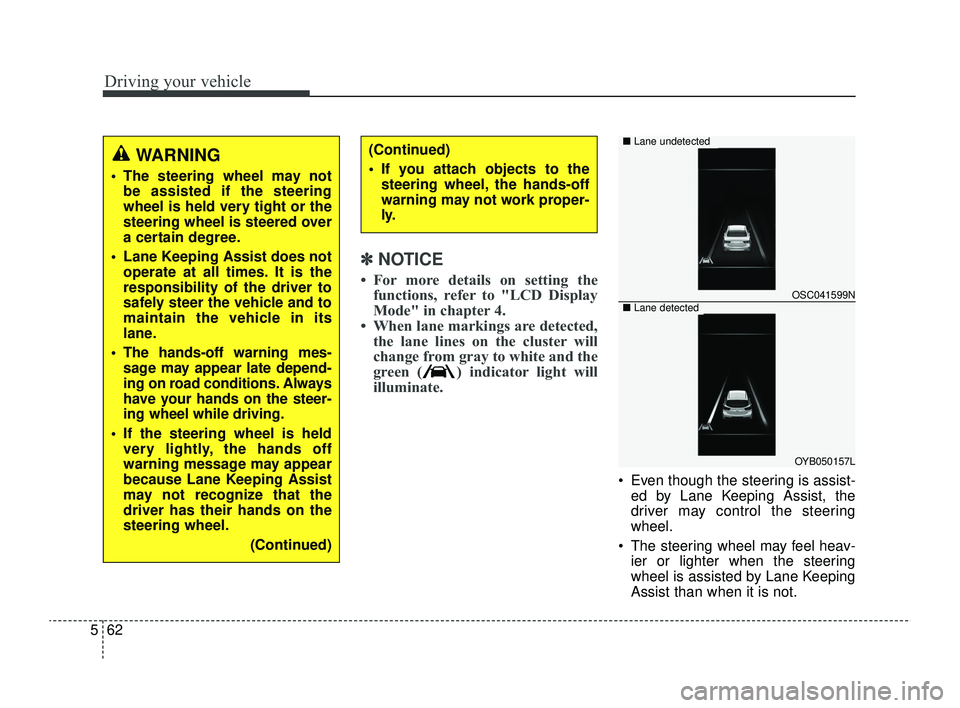

NOTICE
• For more details on setting the
functions, refer to "LCD Display
Mode" in chapter 4.
• When lane markings are detected, the lane lines on the cluster will
change from gray to white and the
green ( ) indicator light will
illuminate.
 Even though the steering is assist-
ed by Lane Keeping Assist, the
driver may control the steering
wheel.
 The steering wheel may feel heav- ier or lighter when the steering
wheel is assisted by Lane Keeping
Assist than when it is not.
WARNING
 The steering wheel may notbe assisted if the steering
wheel is held very tight or the
steering wheel is steered over
a certain degree.
 Lane Keeping Assist does not operate at all times. It is the
responsibility of the driver to
safely steer the vehicle and to
maintain the vehicle in its
lane.
 The hands-off warning mes- sage may appear late depend-
ing on road conditions. Always
have your hands on the steer-
ing wheel while driving.
 If the steering wheel is held very lightly, the hands off
warning message may appear
because Lane Keeping Assist
may not recognize that the
driver has their hands on the
steering wheel.
(Continued)
(Continued)
 If you attach objects to thesteering wheel, the hands-off
warning may not work proper-
ly.
OSC041599N
OYB050157L
■ Lane undetected
■Lane detected
SC PE USA 5.QXP 9/9/2021 6:19 PM Page 62

563
Driving your vehicle

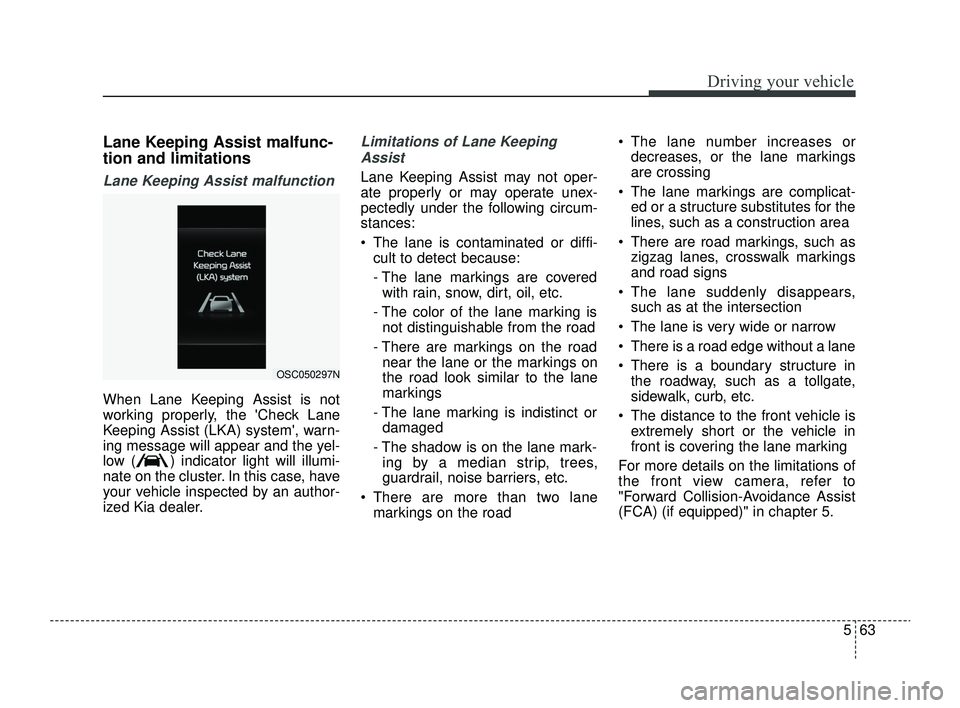

Lane Keeping Assist malfunc-
tion and limitations
Lane Keeping Assist malfunction
When Lane Keeping Assist is not
working properly, the 'Check Lane
Keeping Assist (LKA) system', warn-
ing message will appear and the yel-
low ( ) indicator light will illumi-
nate on the cluster. In this case, have
your vehicle inspected by an author-
ized Kia dealer.
Limitations of Lane KeepingAssist
Lane Keeping Assist may not oper-
ate properly or may operate unex-
pectedly under the following circum-
stances:
 The lane is contaminated or diffi- cult to detect because:
- The lane markings are coveredwith rain, snow, dirt, oil, etc.
- The color of the lane marking is not distinguishable from the road
- There are markings on the road near the lane or the markings on
the road look similar to the lane
markings
- The lane marking is indistinct or damaged
- The shadow is on the lane mark- ing by a median strip, trees,
guardrail, noise barriers, etc.
 There are more than two lane markings on the road  The lane number increases or
decreases, or the lane markings
are crossing
 The lane markings are complicat- ed or a structure substitutes for the
lines, such as a construction area
 There are road markings, such as zigzag lanes, crosswalk markings
and road signs
 The lane suddenly disappears, such as at the intersection
 The lane is very wide or narrow
 There is a road edge without a lane
 There is a boundary structure in the roadway, such as a tollgate,
sidewalk, curb, etc.
 The distance to the front vehicle is extremely short or the vehicle in
front is covering the lane marking
For more details on the limitations of
the front view camera, refer to
"Forward Collision-Avoidance Assist
(FCA) (if equipped)" in chapter 5.
OSC050297N
SC PE USA 5.QXP 9/9/2021 6:19 PM Page 63

Driving your vehicle
64
5

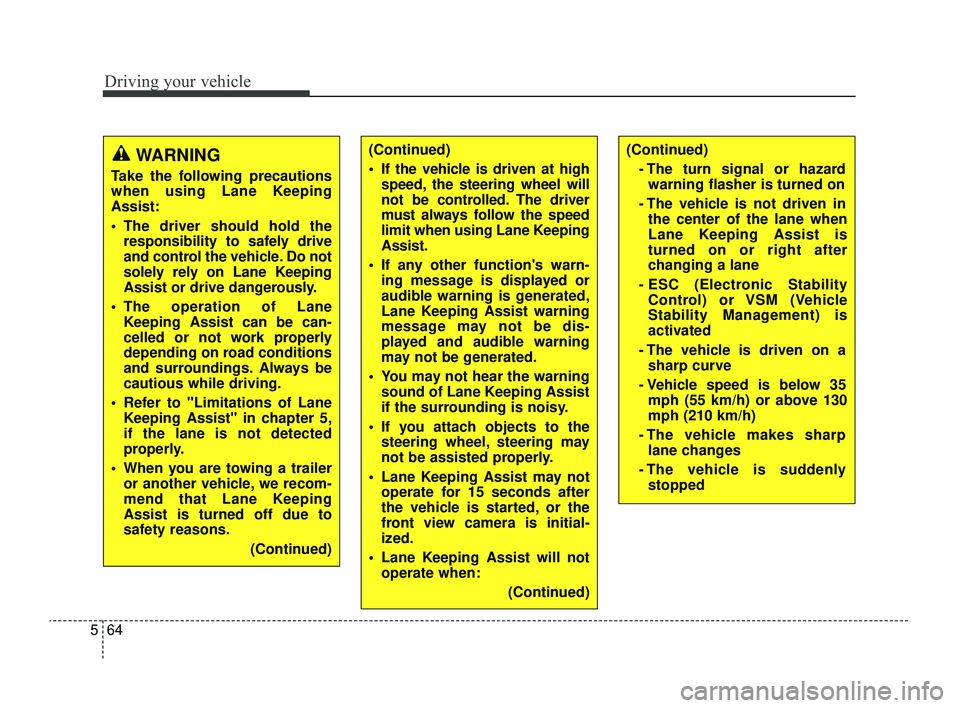

WARNING
Take the following precautions
when using Lane Keeping
Assist:
 The driver should hold the
responsibility to safely drive
and control the vehicle. Do not
solely rely on Lane Keeping
Assist or drive dangerously.
 The operation of Lane Keeping Assist can be can-
celled or not work properly
depending on road conditions
and surroundings. Always be
cautious while driving.
 Refer to "Limitations of Lane Keeping Assist" in chapter 5,
if the lane is not detected
properly.
 When you are towing a trailer or another vehicle, we recom-
mend that Lane Keeping
Assist is turned off due to
safety reasons.
(Continued)
(Continued)
 If the vehicle is driven at highspeed, the steering wheel will
not be controlled. The driver
must always follow the speed
limit when using Lane Keeping
Assist.
 If any other function's warn- ing message is displayed or
audible warning is generated,
Lane Keeping Assist warning
message may not be dis-
played and audible warning
may not be generated.
 You may not hear the warning sound of Lane Keeping Assist
if the surrounding is noisy.
 If you attach objects to the steering wheel, steering may
not be assisted properly.
 Lane Keeping Assist may not operate for 15 seconds after
the vehicle is started, or the
front view camera is initial-
ized.
 Lane Keeping Assist will not operate when:
(Continued)(Continued)- The turn signal or hazardwarning flasher is turned on
- The vehicle is not driven in the center of the lane when
Lane Keeping Assist is
turned on or right after
changing a lane
- ESC (Electronic Stability Control) or VSM (Vehicle
Stability Management) is
activated
- The vehicle is driven on a sharp curve
- Vehicle speed is below 35 mph (55 km/h) or above 130
mph (210 km/h)
- The vehicle makes sharp lane changes
- The vehicle is suddenly stopped
SC PE USA 5.QXP 9/9/2021 6:19 PM Page 64

565
Driving your vehicle

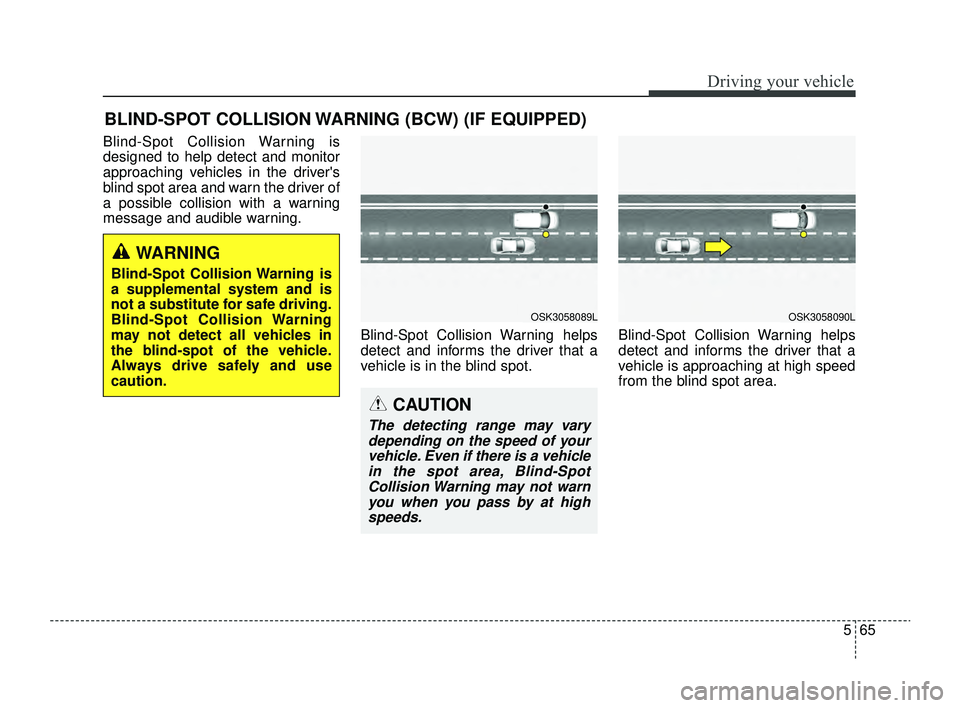

Blind-Spot Collision Warning is
designed to help detect and monitor
approaching vehicles in the driver's
blind spot area and warn the driver of
a possible collision with a warning
message and audible warning.Blind-Spot Collision Warning helps
detect and informs the driver that a
vehicle is in the blind spot.Blind-Spot Collision Warning helps
detect and informs the driver that a
vehicle is approaching at high speed
from the blind spot area.
BLIND-SPOT COLLISION WARNING (BCW) (IF EQUIPPED)
OSK3058089LOSK3058090L
CAUTION
The detecting range may vary
depending on the speed of yourvehicle. Even if there is a vehiclein the spot area, Blind-SpotCollision Warning may not warnyou when you pass by at highspeeds.
WARNING
Blind-Spot Collision Warning is
a supplemental system and is
not a substitute for safe driving.
Blind-Spot Collision Warning
may not detect all vehicles in
the blind-spot of the vehicle.
Always drive safely and use
caution.
SC PE USA 5.QXP 9/9/2021 6:19 PM Page 65

Driving your vehicle
66
5

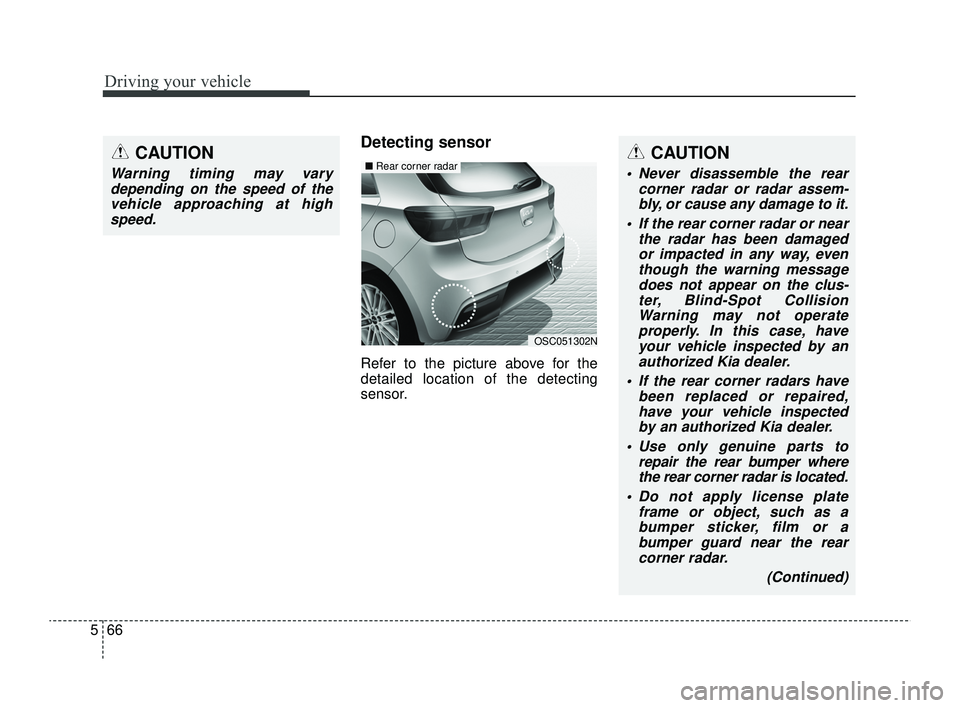

Detecting sensor
Refer to the picture above for the
detailed location of the detecting
sensor.
CAUTION
Warning timing may vary
depending on the speed of thevehicle approaching at highspeed.
CAUTION
 Never disassemble the rear corner radar or radar assem-bly, or cause any damage to it.
 If the rear corner radar or near the radar has been damagedor impacted in any way, eventhough the warning messagedoes not appear on the clus-ter, Blind-Spot CollisionWarning may not operateproperly. In this case, haveyour vehicle inspected by anauthorized Kia dealer.
 If the rear corner radars have been replaced or repaired,have your vehicle inspectedby an authorized Kia dealer.
 Use only genuine parts to repair the rear bumper wherethe rear corner radar is located.
 Do not apply license plate frame or object, such as abumper sticker, film or abumper guard near the rearcorner radar.
(Continued)
OSC051302N
■Rear corner radar
SC PE USA 5.QXP 9/9/2021 6:19 PM Page 66
