Driving your vehicle

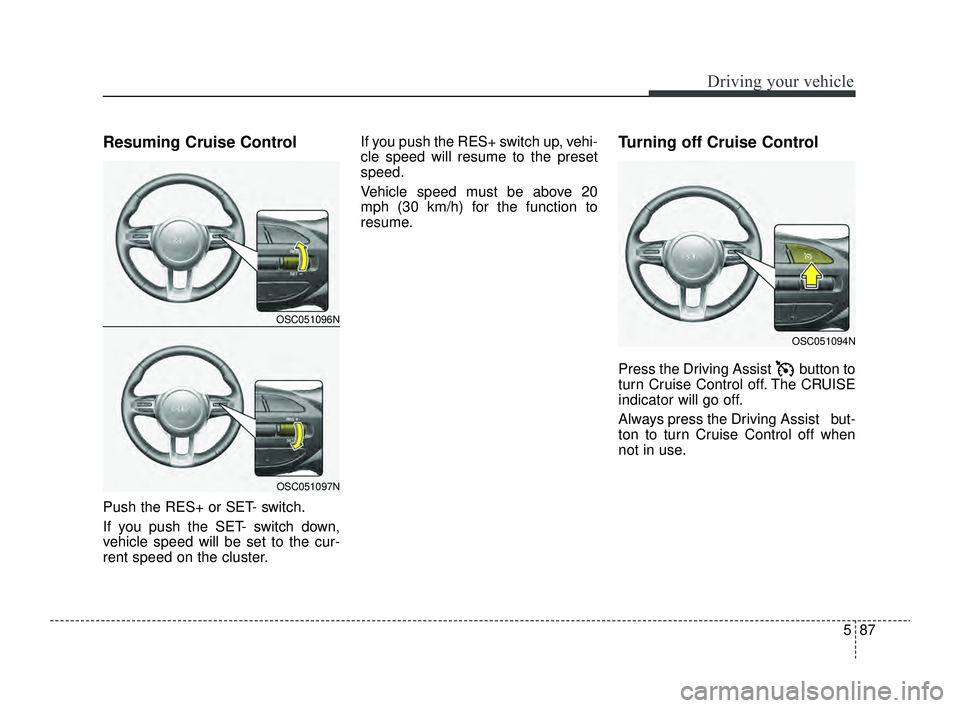

Resuming Cruise Control
Push the RES+ or SET- switch.
If you push the SET- switch down,
vehicle speed will be set to the cur-
rent speed on the cluster.If you push the RES+ switch up, vehi-
cle speed will resume to the preset
speed.
Vehicle speed must be above 20
mph (30 km/h) for the function to
resume.
Turning off Cruise Control
Press the Driving Assist button to
turn Cruise Control off. The CRUISE
indicator will go off.
Always press the Driving Assist but-
ton to turn Cruise Control off when
not in use.
OSC051094N
OSC051096N
OSC051097N
SC PE USA 5.QXP 9/9/2021 6:21 PM Page 87

Driving your vehicle
88
5

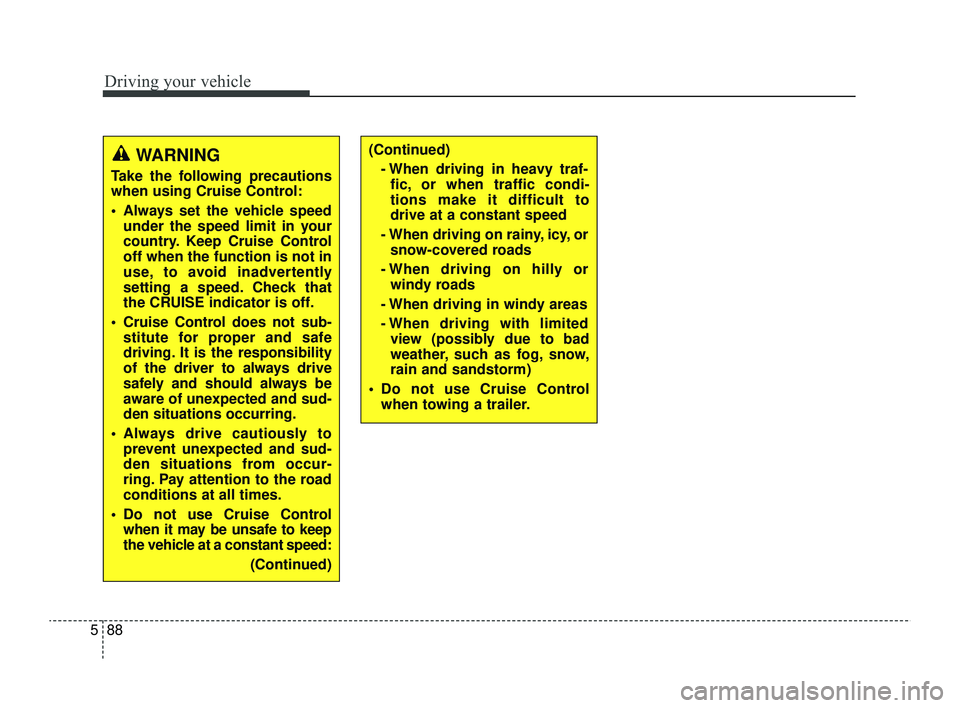

WARNING
Take the following precautions
when using Cruise Control:
 Always set the vehicle speed
under the speed limit in your
country. Keep Cruise Control
off when the function is not in
use, to avoid inadvertently
setting a speed. Check that
the CRUISE indicator is off.
 Cruise Control does not sub- stitute for proper and safe
driving. It is the responsibility
of the driver to always drive
safely and should always be
aware of unexpected and sud-
den situations occurring.
 Always drive cautiously to prevent unexpected and sud-
den situations from occur-
ring. Pay attention to the road
conditions at all times.
 Do not use Cruise Control when it may be unsafe to keep
the vehicle at a constant speed:
(Continued)
(Continued)- When driving in heavy traf-fic, or when traffic condi-
tions make it difficult to
drive at a constant speed
- When driving on rainy, icy, or snow-covered roads
- When driving on hilly or windy roads
- When driving in windy areas
- When driving with limited view (possibly due to bad
weather, such as fog, snow,
rain and sandstorm)
 Do not use Cruise Control when towing a trailer.
SC PE USA 5.QXP 9/9/2021 6:21 PM Page 88

589
Driving your vehicle

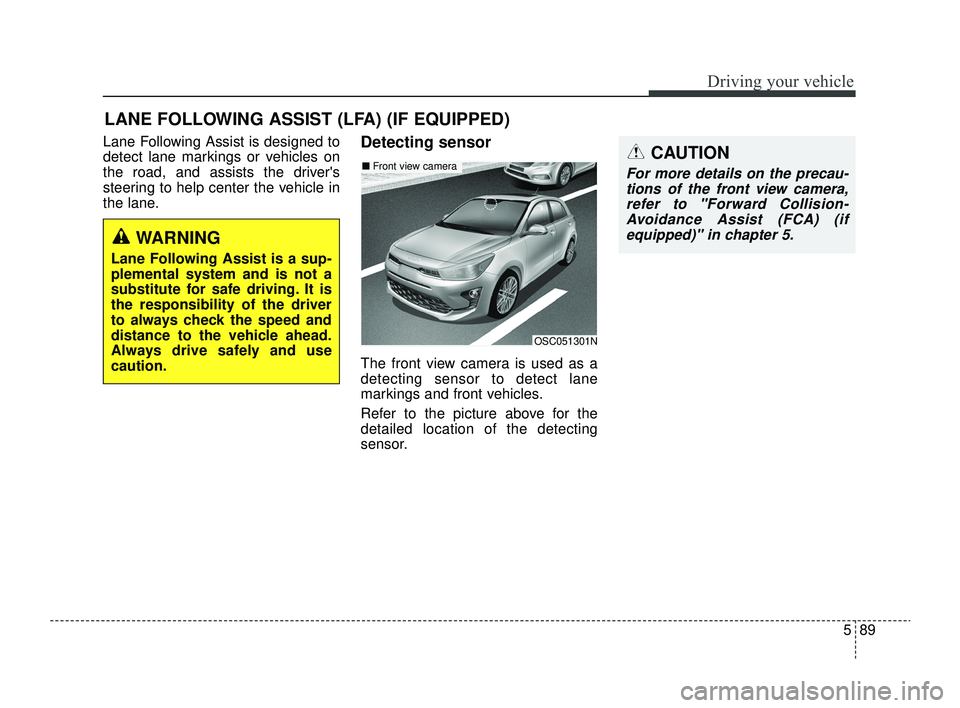

Lane Following Assist is designed to
detect lane markings or vehicles on
the road, and assists the driver's
steering to help center the vehicle in
the lane.Detecting sensor
The front view camera is used as a
detecting sensor to detect lane
markings and front vehicles.
Refer to the picture above for the
detailed location of the detecting
sensor.
LANE FOLLOWING ASSIST (LFA) (IF EQUIPPED)
OSC051301N
■Front view cameraCAUTION
For more details on the precau-
tions of the front view camera,refer to "Forward Collision-Avoidance Assist (FCA) (ifequipped)" in chapter 5.
WARNING
Lane Following Assist is a sup-
plemental system and is not a
substitute for safe driving. It is
the responsibility of the driver
to always check the speed and
distance to the vehicle ahead.
Always drive safely and use
caution.
SC PE USA 5.QXP 9/9/2021 6:21 PM Page 89

Driving your vehicle
90
5
CAUTION
When the steering wheel is not
controlled, the green ( ) indi-cator light will blink and changeto white.

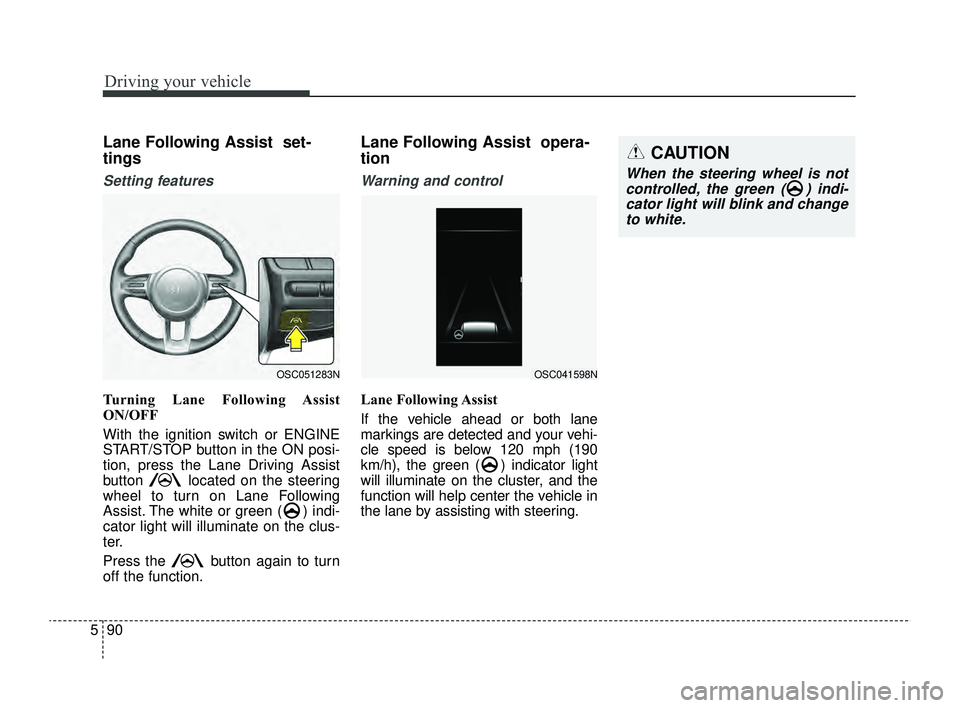

Lane Following Assist set-
tings
Setting features
Turning Lane Following Assist
ON/OFF
With the ignition switch or ENGINE
START/STOP button in the ON posi-
tion, press the Lane Driving Assist
button located on the steering
wheel to turn on Lane Following
Assist. The white or green ( ) indi-
cator light will illuminate on the clus-
ter.
Press the button again to turn
off the function.
Lane Following Assist opera-
tion
Warning and control
Lane Following Assist
If the vehicle ahead or both lane
markings are detected and your vehi-
cle speed is below 120 mph (190
km/h), the green ( ) indicator light
will illuminate on the cluster, and the
function will help center the vehicle in
the lane by assisting with steering.
OSC051283NOSC041598N
SC PE USA 5.QXP 9/9/2021 6:21 PM Page 90

591
Driving your vehicle

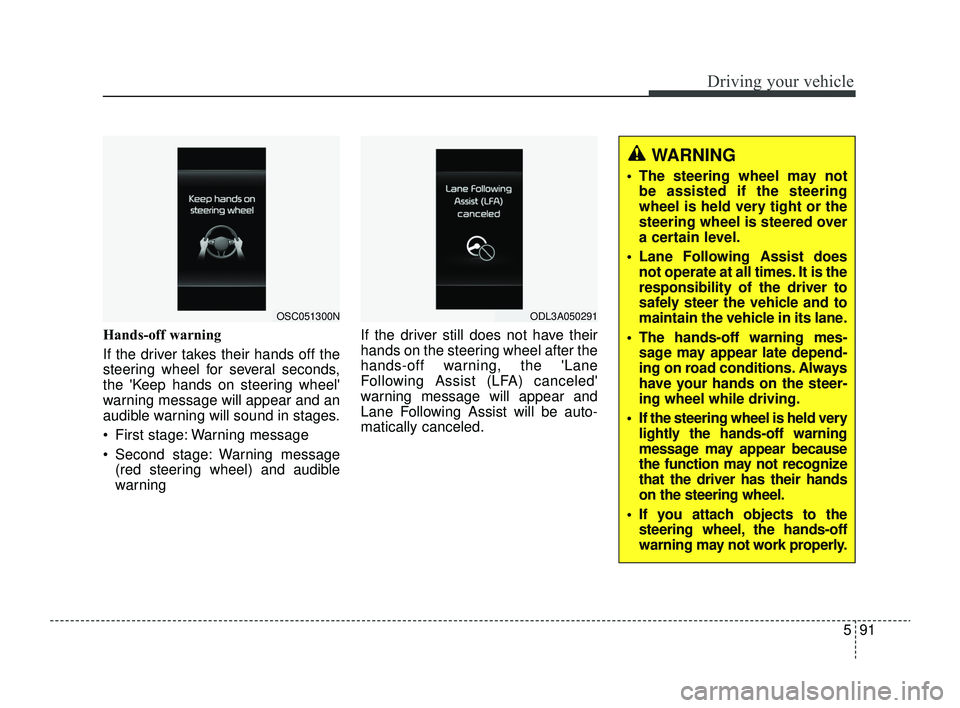

Hands-off warning
If the driver takes their hands off the
steering wheel for several seconds,
the 'Keep hands on steering wheel'
warning message will appear and an
audible warning will sound in stages.
 First stage: Warning message
 Second stage: Warning message(red steering wheel) and audible
warning If the driver still does not have their
hands on the steering wheel after the
hands-off warning, the 'Lane
Following Assist (LFA) canceled'
warning message will appear and
Lane Following Assist will be auto-
matically canceled.
OSC051300NODL3A050291
WARNING
 The steering wheel may not
be assisted if the steering
wheel is held very tight or the
steering wheel is steered over
a certain level.
 Lane Following Assist does not operate at all times. It is the
responsibility of the driver to
safely steer the vehicle and to
maintain the vehicle in its lane.
 The hands-off warning mes- sage may appear late depend-
ing on road conditions. Always
have your hands on the steer-
ing wheel while driving.
 If the steering wheel is held very lightly the hands-off warning
message may appear because
the function may not recognize
that the driver has their hands
on the steering wheel.
 If you attach objects to the steering wheel, the hands-off
warning may not work properly.
SC PE USA 5.QXP 9/9/2021 6:21 PM Page 91

Driving your vehicle
92
5
✽ ✽

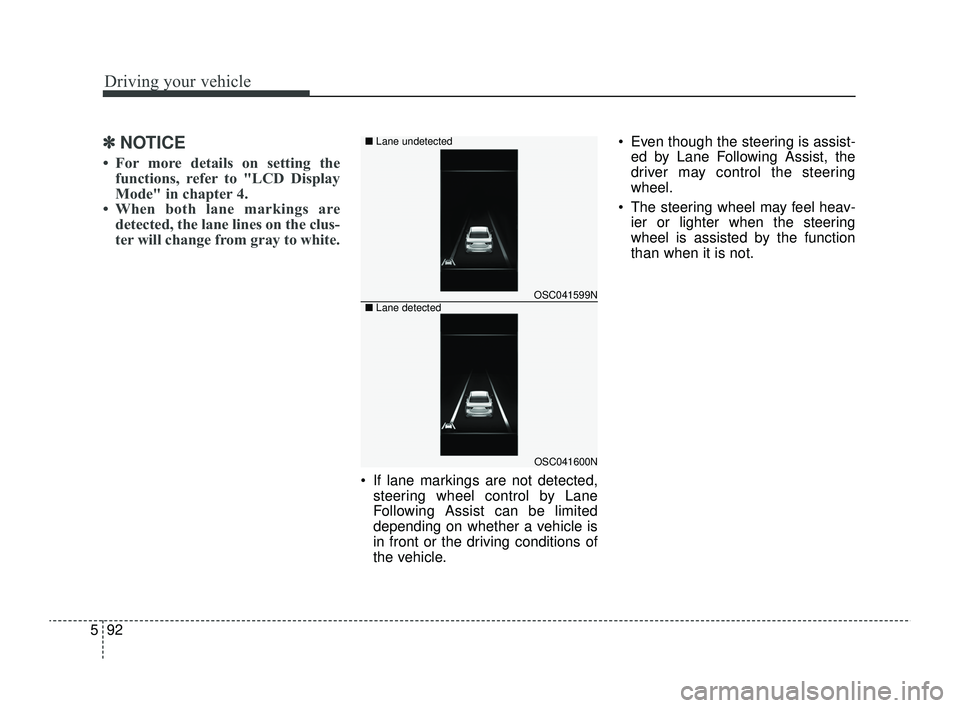

NOTICE
• For more details on setting the
functions, refer to "LCD Display
Mode" in chapter 4.
• When both lane markings are detected, the lane lines on the clus-
ter will change from gray to white.
 If lane markings are not detected,
steering wheel control by Lane
Following Assist can be limited
depending on whether a vehicle is
in front or the driving conditions of
the vehicle.  Even though the steering is assist-
ed by Lane Following Assist, the
driver may control the steering
wheel.
 The steering wheel may feel heav- ier or lighter when the steering
wheel is assisted by the function
than when it is not.
OSC041599N
OSC041600N
■
Lane undetected
■ Lane detected
SC PE USA 5.QXP 9/9/2021 6:21 PM Page 92

593
Driving your vehicle

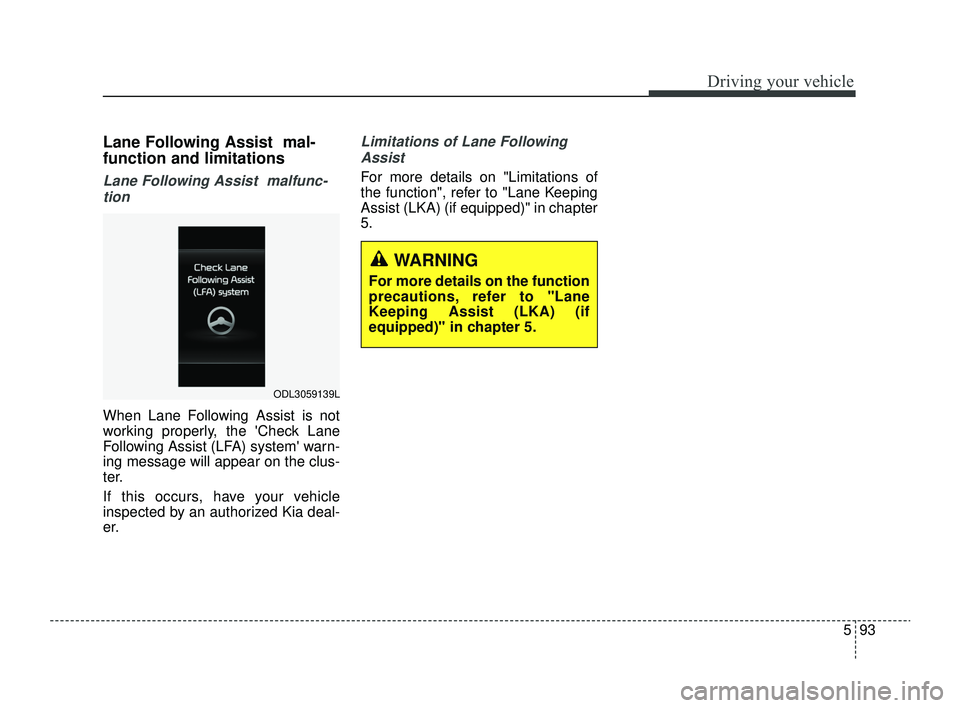

Lane Following Assist mal-
function and limitations
Lane Following Assist malfunc-tion
When Lane Following Assist is not
working properly, the 'Check Lane
Following Assist (LFA) system' warn-
ing message will appear on the clus-
ter.
If this occurs, have your vehicle
inspected by an authorized Kia deal-
er.
Limitations of Lane FollowingAssist
For more details on "Limitations of
the function", refer to "Lane Keeping
Assist (LKA) (if equipped)" in chapter
5.
ODL3059139L
WARNING
For more details on the function
precautions, refer to "Lane
Keeping Assist (LKA) (if
equipped)" in chapter 5.
SC PE USA 5.QXP 9/9/2021 6:21 PM Page 93

Driving your vehicle
94
5

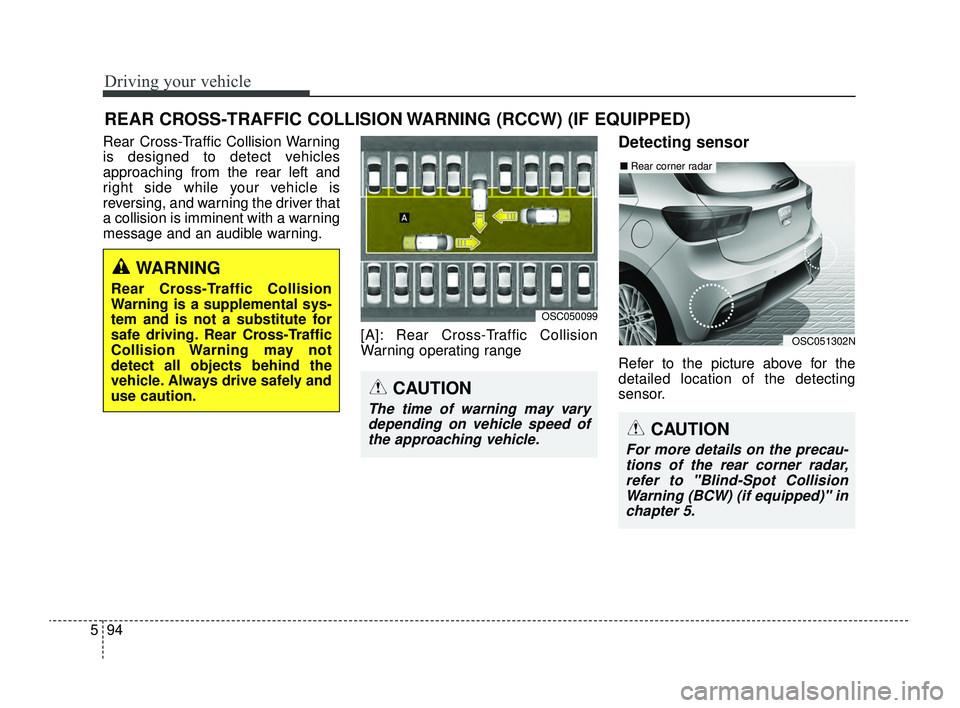

Rear Cross-Traffic Collision Warning
is designed to detect vehicles
approaching from the rear left and
right side while your vehicle is
reversing, and warning the driver that
a collision is imminent with a warning
message and an audible warning.
[A]: Rear Cross-Traffic Collision
Warning operating rangeDetecting sensor
Refer to the picture above for the
detailed location of the detecting
sensor.
REAR CROSS-TRAFFIC COLLISION WARNING (RCCW) (IF EQUIPPED)
OSC050099
CAUTION
The time of warning may varydepending on vehicle speed ofthe approaching vehicle.
OSC051302N
■ Rear corner radar
CAUTION
For more details on the precau-
tions of the rear corner radar,refer to "Blind-Spot CollisionWarning (BCW) (if equipped)" inchapter 5.
WARNING
Rear Cross-Traffic Collision
Warning is a supplemental sys-
tem and is not a substitute for
safe driving. Rear Cross-Traffic
Collision Warning may not
detect all objects behind the
vehicle. Always drive safely and
use caution.
SC PE USA 5.QXP 9/9/2021 6:21 PM Page 94

595
Driving your vehicle

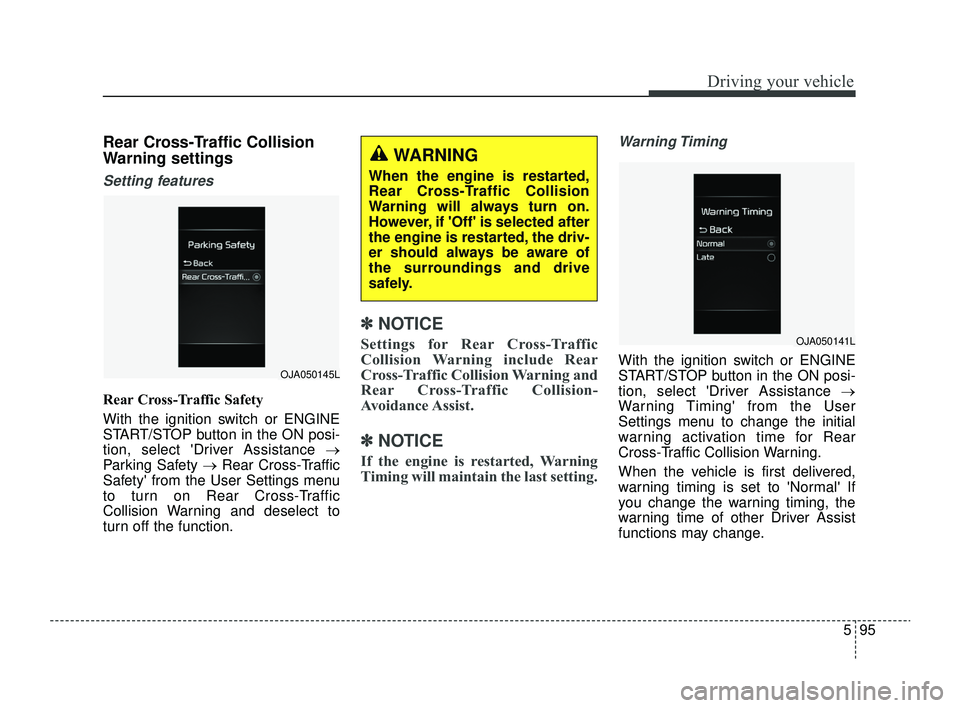

Rear Cross-Traffic Collision
Warning settings
Setting features
Rear Cross-Traffic Safety
With the ignition switch or ENGINE
START/STOP button in the ON posi-
tion, select 'Driver Assistance →
Parking Safety →Rear Cross-Traffic
Safety' from the User Settings menu
to turn on Rear Cross-Traffic
Collision Warning and deselect to
turn off the function.
✽ ✽
NOTICE
Settings for Rear Cross-Traffic
Collision Warning include Rear
Cross-Traffic Collision Warning and
Rear Cross-Traffic Collision-
Avoidance Assist.
✽ ✽
NOTICE
If the engine is restarted, Warning
Timing will maintain the last setting.
Warning Timing
With the ignition switch or ENGINE
START/STOP button in the ON posi-
tion, select 'Driver Assistance →
Warning Timing' from the User
Settings menu to change the initial
warning activation time for Rear
Cross-Traffic Collision Warning.
When the vehicle is first delivered,
warning timing is set to 'Normal' If
you change the warning timing, the
warning time of other Driver Assist
functions may change.
WARNING
When the engine is restarted,
Rear Cross-Traffic Collision
Warning will always turn on.
However, if 'Off' is selected after
the engine is restarted, the driv-
er should always be aware of
the surroundings and drive
safely.
OJA050145L
OJA050141L
SC PE USA 5.QXP 9/9/2021 6:22 PM Page 95

Driving your vehicle
96
5

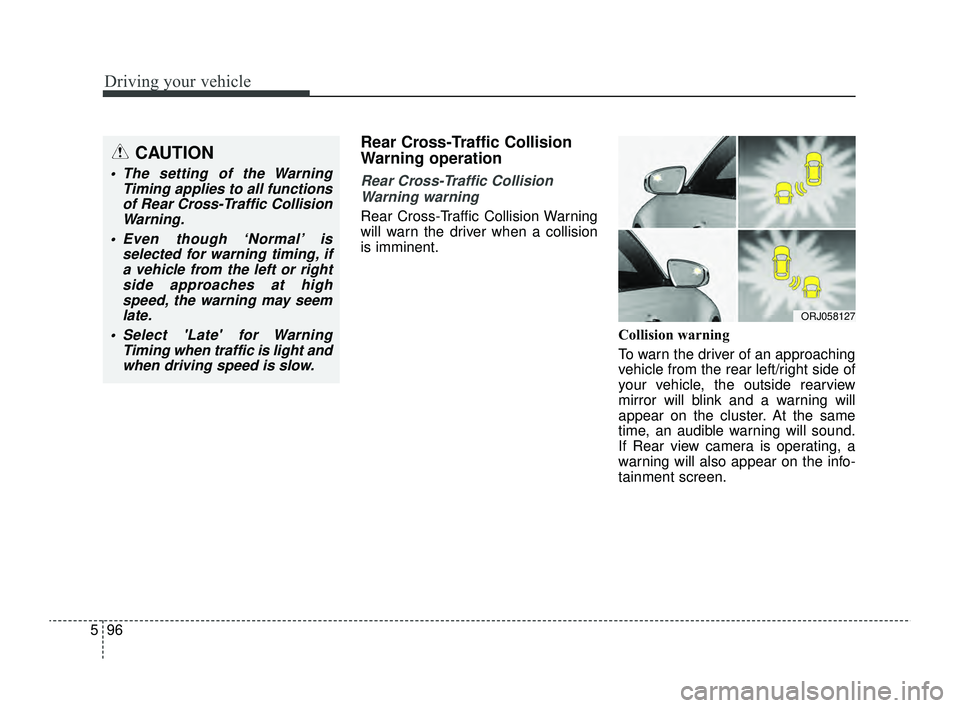

Rear Cross-Traffic Collision
Warning operation
Rear Cross-Traffic Collision
Warning warning
Rear Cross-Traffic Collision Warning
will warn the driver when a collision
is imminent.
Collision warning
To warn the driver of an approaching
vehicle from the rear left/right side of
your vehicle, the outside rearview
mirror will blink and a warning will
appear on the cluster. At the same
time, an audible warning will sound.
If Rear view camera is operating, a
warning will also appear on the info-
tainment screen.
CAUTION
 The setting of the WarningTiming applies to all functionsof Rear Cross-Traffic CollisionWarning.
 Even though ‘Normal’ is selected for warning timing, ifa vehicle from the left or rightside approaches at highspeed, the warning may seemlate.
 Select 'Late' for Warning Timing when traffic is light andwhen driving speed is slow.
ORJ058127
