Features of your vehicle
4273

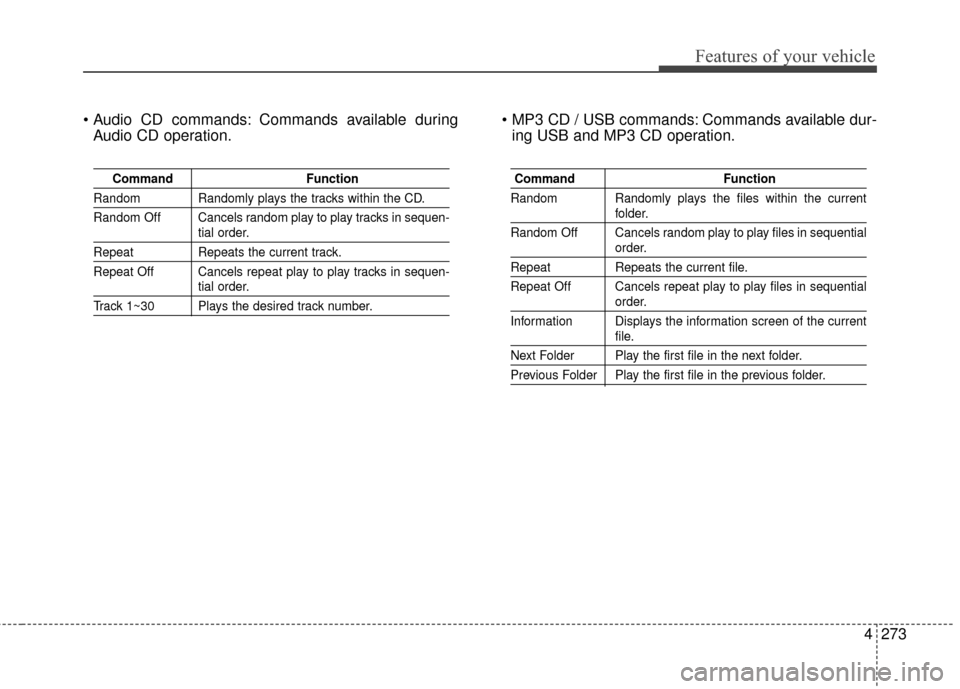

Commands available duringAudio CD operation. Commands available dur-
ing USB and MP3 CD operation.
Command Function
Random Randomly plays the tracks within the CD.
Random Off Cancels random play to play tracks in sequen-
tial order.
RepeatRepeats the current track.
Repeat Off Cancels repeat play to play tracks in sequen-
tial order.
Track 1~30 Plays the desired track number.
Command Function
Random Randomly plays the files within the current
folder.
Random Off Cancels random play to play files in sequential
order.
Repeat Repeats the current file.
Repeat Off Cancels repeat play to play files in sequential
order.
Information Displays the information screen of the current
file.
Next Folder Play the first file in the next folder.
Previous Folder Play the first file in the previous folder.

511
Driving your vehicle
Starting the engine with a
smart key (if equipped)
1.Carry the smart key or leave itinside the vehicle.
2.Make sure the parking brake is firmly applied
3. Manual Transaxle - Depress the
clutch pedal fully and shift the
transaxle into Neutral. Keep the
clutch pedal and brake pedal
depressed while starting the engine.
Automatic transaxle - Place the
transaxle shift lever in P (Park).
Depress the brake pedal fully.
You can also start the engine when the shift lever is in the N (Neutral)position.
4.Press the ENGINE START/STOP button while depressing the brake
pedal.
5.Do not wait for the engine to warm up while the vehicle remains sta-
tionary.
Start driving at moderate engine
speeds. (Steep accelerating and
decelerating should be avoided.) It should be started without depress-
ing the accelerator.
Even if the smart key is in the vehi-
cle, if it is far away from you, the
engine may not start.
When the ENGINE START/STOP button is in the ACC position or
above, if any door is opened, the
system checks for the smart key. If
the smart key is not in the vehicle,
a message "key is not in the vehi-
cle" will appear on the LCD display.
And if all doors are closed, the
chime will sound for 5 seconds.
The indicator or warning will turn
off while the vehicle is moving.
Always have the smart key with
you.
WARNING
The engine will start, only when
the smart key is in the vehicle.
Never allow children or any per-
son who is unfamiliar with the
vehicle to touch the ENGINE
START/STOP button or related
parts.
CAUTION
If the engine stalls while thevehicle is in motion, do notattempt to move the shift leverto the P (Park) position. If thetraffic and road conditions per-mit, you may put the shift leverin the N (Neutral) position whilethe vehicle is still moving andpress the ENGINE START/STOPbutton in an attempt to restartthe engine.

519
Driving your vehicle
For smooth operation, depress thebrake pedal and the lock release but-ton when shifting from N (Neutral) toa forward or reverse gear. Transaxle ranges
The indicator in the instrument clus-
ter displays the shift lever position
when the ignition switch is in the ON
position.
P (Park)
Always come to a complete stop
before shifting into P (Park). This
position locks the transaxle and pre-
vents the drive wheels from rotating.
WARNING- Automatic
transaxle
Always check the surrounding
areas near your vehicle for
people, especially children,
before shifting the shift lever
into D (Drive) or R (Reverse).
Before leaving the driver’s seat, always make sure the
shift lever is in the P (Park)
position; then set the parking
brake fully and shut the
engine off. Unexpected and
sudden vehicle movement
can occur if these precautions
are not followed in the order
identified.
CAUTION
To avoid damage to your transaxle, do not acceleratethe engine in R (Reverse) orany forward gear position withthe brakes on.
When stopped on an incline, do not hold the vehicle withthe engine power. Use theservice brake or the parkingbrake.
Do not shift from N (Neutral) or P (Park) into D (Drive), or R(Reverse) when the engine isabove idle speed.
WARNING
Shifting into P (Park) while the vehicle is in motion will cause
the drive wheels to lock which
will cause you to lose control
of the vehicle.
Do not use the P (Park) posi- tion in place of the parking
brake. Always make sure the
shift lever is latched in the P
(Park) position and set the
parking brake fully.
Never leave a child unattend- ed in a vehicle.

753
Maintenance

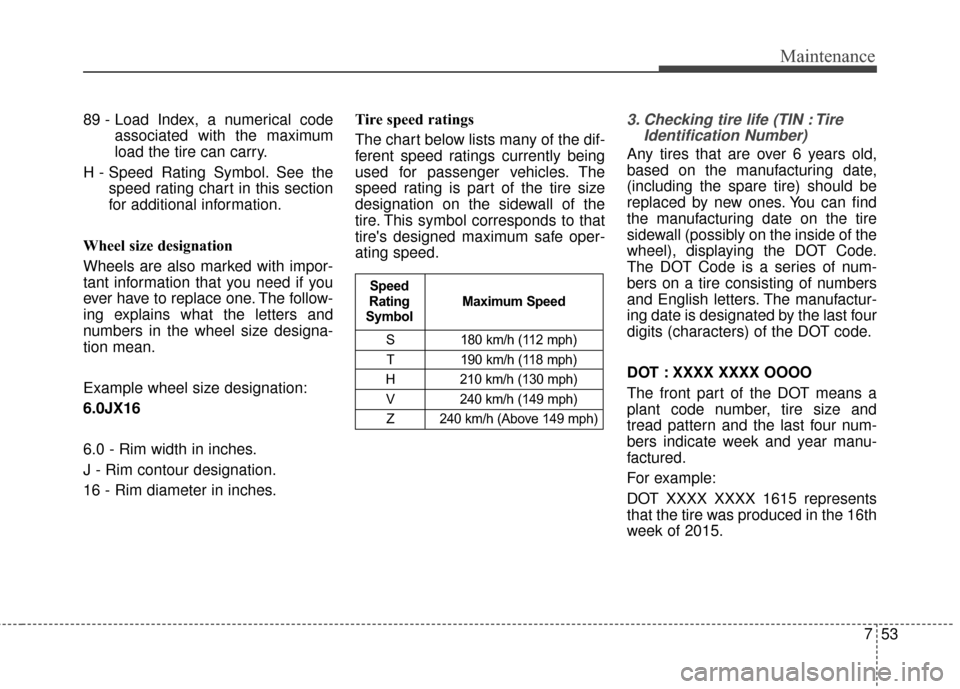

89 - Load Index, a numerical codeassociated with the maximum
load the tire can carry.
H - Speed Rating Symbol. See the speed rating chart in this section
for additional information.
Wheel size designation
Wheels are also marked with impor-
tant information that you need if you
ever have to replace one. The follow-
ing explains what the letters and
numbers in the wheel size designa-
tion mean.
Example wheel size designation:
6.0JX16
6.0 - Rim width in inches.
J - Rim contour designation.
16 - Rim diameter in inches. Tire speed ratings
The chart below lists many of the dif-
ferent speed ratings currently being
used for passenger vehicles. The
speed rating is part of the tire size
designation on the sidewall of the
tire. This symbol corresponds to that
tire's designed maximum safe oper-
ating speed.3. Checking tire life (TIN : Tire
Identification Number)
Any tires that are over 6 years old,
based on the manufacturing date,
(including the spare tire) should be
replaced by new ones. You can find
the manufacturing date on the tire
sidewall (possibly on the inside of the
wheel), displaying the DOT Code.
The DOT Code is a series of num-
bers on a tire consisting of numbers
and English letters. The manufactur-
ing date is designated by the last four
digits (characters) of the DOT code.
DOT : XXXX XXXX OOOO
The front part of the DOT means a
plant code number, tire size and
tread pattern and the last four num-
bers indicate week and year manu-
factured.
For example:
DOT XXXX XXXX 1615 represents
that the tire was produced in the 16th
week of 2015.
S 180 km/h (112 mph)
T 190 km/h (118 mph)
H 210 km/h (130 mph) V 240 km/h (149 mph)Z 240 km/h (Above 149 mph)
Maximum Speed
Speed
Rating
Symbol

I3
Index
Brakes/clutch fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-35
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Button start/stop, see engine start/stop button . . . . . . . . 5-8
Camera (Rear view) . . . . . . . . . . . . . . . . . . . . . . . . . . 4-102
Capacities (Lubricants) . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
CareExterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-76
Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-81
Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-46\
Cargo security screen . . . . . . . . . . . . . . . . . . . . . . . . . 4-167
Center console storage . . . . . . . . . . . . . . . . . . . . . . . . 4-152
Central door lock switch. . . . . . . . . . . . . . . . . . . . . . . . 4-23
Checking the parking brake . . . . . . . . . . . . . . . . . . . . . 7-37
Checking tire inflation pressure . . . . . . . . . . . . . . . . . . 7-48
Child restraint system . . . . . . . . . . . . . . . . . . . . . . . . . . 3-41 Lower anchor system . . . . . . . . . . . . . . . . . . . . . . . . 3-47
Seat belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-42\
Tether anchor system . . . . . . . . . . . . . . . . . . . . . . . . 3-46
Child-protector rear door lock . . . . . . . . . . . . . . . . . . . 4-26
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-156
Clean air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
151
Climate control air filter . . . . . . . . . . . . . . . . . . . . . . . . 7-39
Clothes hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-165
Combined instrument, see instrument cluster . . . . . . . 4-58
Compact spare tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-22 Compact spare tire replacement . . . . . . . . . . . . . . . . . . 7-51
Cool box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
153
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 7-31
Cooling fluid, see engine coolant . . . . . . . . . . . . . . . . . 7-31
Crankcase emission control system . . . . . . . . . . . . . . . 7-83
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . . . 5-47
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-157
Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-71
Dashboard illumination, see instrument
panel illumination. . . . . . . . . . . . . . . . . . . . . . . . . . . 4-58
Dashboard, see instrument cluster . . . . . . . . . . . . . . . . 4-58
Day/night rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-53
Daytime running light (DRL) . . . . . . . . . . . . . . . . . . . 4-105
Defogging (Windshield) . . . . . . . . . . . . . . . . . . . . . . . 4-147 Auto defogging system . . . . . . . . . . . . . . . . . . . . . 4-149
Defroster (Rear window) . . . . . . . . . . . . . . . . . . . . . . 4-122
Defrosting (Windshield) . . . . . . . . . . . . . . . . . . . . . . . 4-147
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-\
2
Display illumination, see instrument panel illumination. . . . . . . . . . . . . . . . . . . . . . . . . . . 4-58
Displays, see instrument cluster . . . . . . . . . . . . . . . . . . 4-58
Door locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
21 Central door lock switch . . . . . . . . . . . . . . . . . . . . . 4-23
Child-protector rear door lock . . . . . . . . . . . . . . . . . 4-26
Drinks holders, see cup holders . . . . . . . . . . . . . . . . . 4-157
C
D

Index
6I

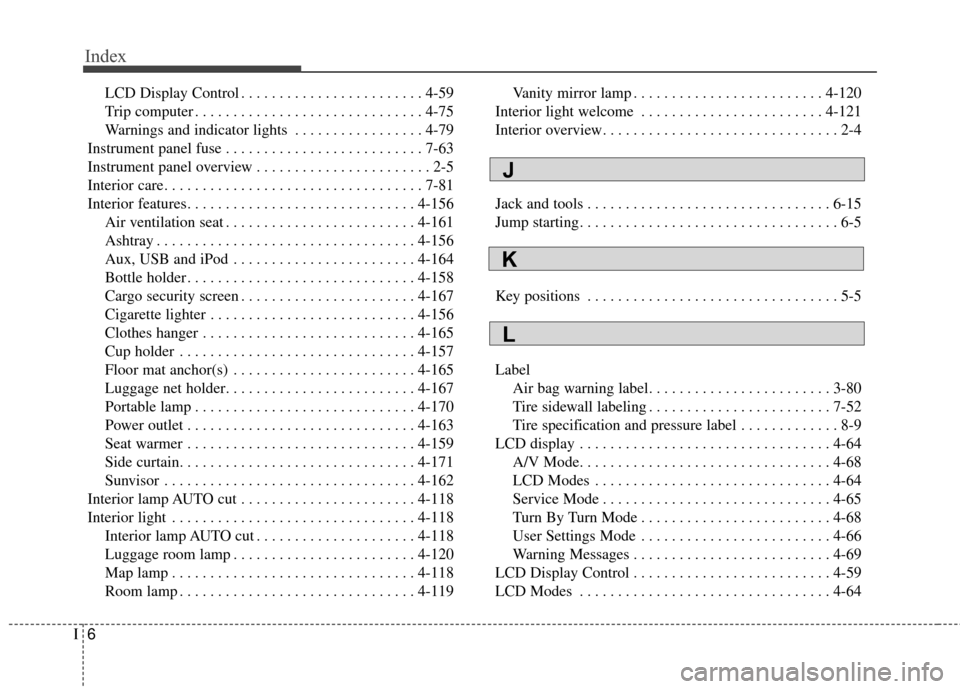

LCD Display Control . . . . . . . . . . . . . . . . . . . . . . . . 4-59
Trip computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-75
Warnings and indicator lights . . . . . . . . . . . . . . . . . 4-79
Instrument panel fuse . . . . . . . . . . . . . . . . . . . . . . . . . . 7-63
Instrument panel overview . . . . . . . . . . . . . . . . . . . . . . . 2-5
Interior care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-81\
Interior features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-156 Air ventilation seat . . . . . . . . . . . . . . . . . . . . . . . . . 4-161
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15\
6
Aux, USB and iPod . . . . . . . . . . . . . . . . . . . . . . . . 4-164
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-158
Cargo security screen . . . . . . . . . . . . . . . . . . . . . . . 4-167
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-156
Clothes hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-165
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-157
Floor mat anchor(s) . . . . . . . . . . . . . . . . . . . . . . . . 4-165
Luggage net holder. . . . . . . . . . . . . . . . . . . . . . . . . 4-167
Portable lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-170
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-163
Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-159
Side curtain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-171
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-162
Interior lamp AUTO cut . . . . . . . . . . . . . . . . . . . . . . . 4-118
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-118 Interior lamp AUTO cut . . . . . . . . . . . . . . . . . . . . . 4-118
Luggage room lamp . . . . . . . . . . . . . . . . . . . . . . . . 4-120
Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-118
Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-119 Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . 4-120
Interior light welcome . . . . . . . . . . . . . . . . . . . . . . . . 4-121
Interior overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Jack and tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15
Jump starting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Key positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Label Air bag warning label. . . . . . . . . . . . . . . . . . . . . . . . 3-80
Tire sidewall labeling . . . . . . . . . . . . . . . . . . . . . . . . 7-52
Tire specification and pressure label . . . . . . . . . . . . . 8-9
LCD display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-64 A/V Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-68
LCD Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-64
Service Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-65
Turn By Turn Mode . . . . . . . . . . . . . . . . . . . . . . . . . 4-68
User Settings Mode . . . . . . . . . . . . . . . . . . . . . . . . . 4-66
Warning Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 4-69
LCD Display Control . . . . . . . . . . . . . . . . . . . . . . . . . . 4-59
LCD Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-64
J
K
L
