KIA Sedona 2010 2.G Owner's Manual

k
ki
ia
a ,
, t
t h
h e
e c
c o
o m
m p
pa
a n
n y
y

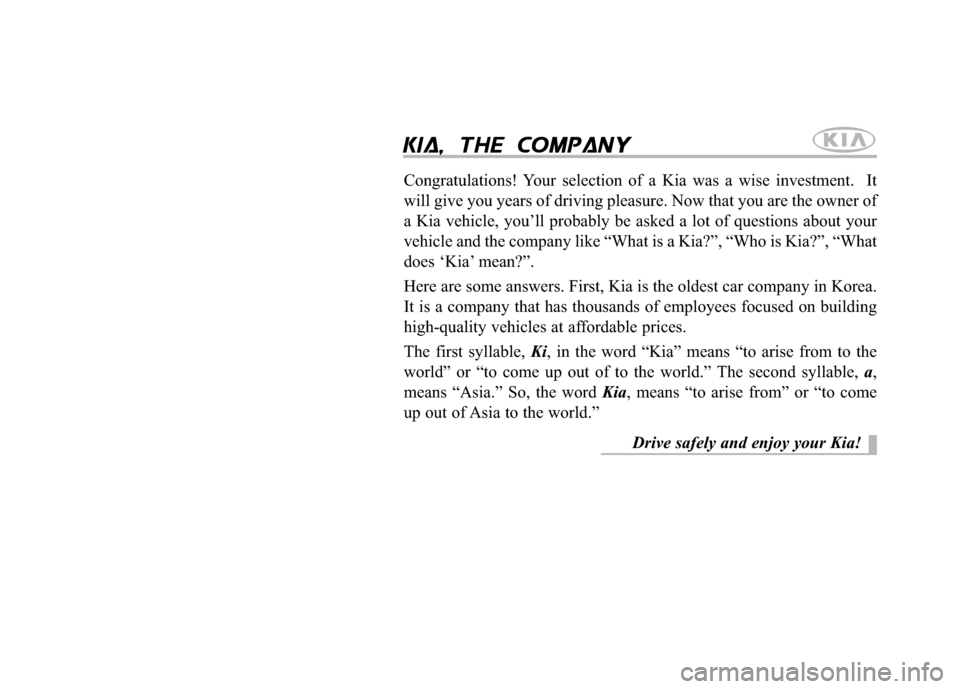

Congratulations! Your selection of a Kia was a wise investment. It
will give you years of driving pleasure. Now that you are the owner of
a Kia vehicle, you’ll probably be asked a lot of questions about your\
vehicle and the company like “What is a Kia?”, “Who is Kia?”\
, “What
does ‘Kia’ mean?”.
Here are some answers. First, Kia is the oldest car company in Korea.
It is a company that has thousands of employees focused on building
high-quality vehicles at affordable prices.
The first syllable, Ki, in the word “Kia” means “to arise from to the
world” or “to come up out of to the world.” The second syllable, a,
means “Asia.” So, the word Kia, means “to arise from” or “to come
up out of Asia to the world.”
Drive safely and enjoy your Kia!

i
Thank you for choosing a Kia vehicle.
When you require service, remember that your dealer knows
your vehicle best. Your dealer has factory-trained technicians,
recommended special tools, genuine Kia replacement parts and
is dedicated to your complete satisfaction.
Because subsequent owners require this important information
as well, this publication should remain with the vehicle if it is
sold.
This manual will familiarize you with operational, mainte-
nance and safety information about your new vehicle. It is sup-
plemented by a Warranty and Consumer Information manual
that provides important information on all warranties regarding
your vehicle.
We urge you to read these publications carefully and follow the
recommendations to help assure enjoyable and safe operation
of your new vehicle.
Kia offers a great variety of options, components and features
for its various models.
Therefore, the equipment described in this manual, along with
the various illustrations, may not all be applicable to your par-
ticular vehicle.
The information and specifications provided in this manual
were accurate at the time of printing. Kia reserves the right to
discontinue or change specifications or design at any time
without notice and without incurring any obligation. If you
have questions, always check with your Kia Dealer.
We assure you of our continuing interest in your motoring
pleasure and satisfaction in your Kia vehicle.
© 2009 Kia Canada Inc.
All rights reserved. Reproduction by any means, electronic or
mechanical, including photocopying, recording, or by any
information storage and retrieval system or translation in
whole or part is not permitted without written authorization
from Kia Canada Inc..
Printed in Korea
Foreword

ii
1
2
3
4
5
6
7
8Introduction
Your vehicle at a glance
Features of your vehicle
Driving your vehicle
What to do in an emergency
Maintenance
Specifications
Index
table of contents

1
How to use this manual / 1-2
Fuel requirements / 1-2
Vehicle break-in process / 1-3
Introduction

Introduction
21
We want to help you get the greatest
possible driving pleasure from your vehi-
cle. Your Owner’s Manual can assist you
in many ways. We strongly recommend
that you read the entire manual. In order
to minimize the chance of death or injury,
you must read the WARNING and CAU-
TION sections spread throughout the
manual.
Illustrations complement the words in this
manual to best explain how to enjoy your
vehicle. By reading your manual, you
learn about features, important safety
information, and driving tips under vari-
ous road conditions.
The general layout of the manual is pro-
vided in the Table of Contents. A good
place to start is the index; it has an alpha-
betical listing of all information in your
manual.
Sections: This manual has seven sec-
tions plus an index. Each section begins
with a brief list of contents so you can tell
at a glance if that section has the infor-
mation you want.You’ll find various WARNING’s,
CAUTION’s, and NOTICE’s in this manu-
al. These were prepared to enhance your
personal safety. You should carefully read
and follow ALL procedures and recom-
mendations provided in these
WARNING’s, CAUTION’s and NOTICE’s.
✽ ✽


NOTICE
A NOTICE indicates interesting or help-
ful information is being provided.
Your new Kia vehicle is designed to use
only unleaded fuel with a minimum
Octane Rating of 87 Anti-Knock Index
(AKI).
HOW TO USE THIS MANUAL
WARNING
A WARNING indicates a situation in
which harm, serious bodily injury or
death could result if the warning is
ignored.
CAUTION
A CAUTION indicates a situation in
which damage to your vehicle couldresult if the caution is ignored.
CAUTION
NEVER USE LEADED FUEL. Theuse of leaded fuel is detrimental tothe catalytic converter and willdamage the engine control sys- tem’s oxygen sensor and affectemission control.
Never add any fuel system cleaningagents to the fuel tank other than what Kia has specified. (Consult anAuthorized Kia Dealer for details.)
FUEL REQUIREMENTS

13
Introduction
Gasoline containing alcohol and
methanol
Gasohol, a mixture of gasoline and
ethanol (also known as grain alcohol),
and gasoline or gasohol containing
methanol (also known as wood alcohol)
are being marketed along with or instead
of leaded or unleaded gasoline.
Do not use gasohol containing more than
10% ethanol, and do not use gasoline or
gasohol containing any methanol. Either
of these fuels may cause drivability prob-
lems and damage to the fuel system.
Discontinue using gasohol of any kind if
drivability problems occur.Vehicle damage or driveability problems
may not be covered by the manufactur-
er’s warranty if they result from the use
of:
1. Gasohol containing more than 10%
ethanol.
2. Gasoline or gasohol containing methanol.
3. Leaded fuel or leaded gasohol. No special break-in period is needed. By
following a few simple precautions for the
first 1,000 km (600 miles) you may add to
the performance, economy and life of
your vehicle.
Do not race the engine.
Do not maintain a single speed for long
periods of time, either fast or slow.
Varying engine speed is needed to
properly break-in the engine.
Avoid hard stops, except in emergen- cies, to allow the brakes to seat prop-
erly.
Avoid full-throttle starts.
CAUTION
Never use gasohol which contains methanol. Discontinue use of any gasohol product which impairs dri-vability.
VEHICLE BREAK-IN PROCESS

2
Interior overview / 2-2
Instrument panel overview / 2-3
Your vehicle at a glance

Your vehicle at a glance
22
INTERIOR OVERVIEW
OVQ029001N
1. Door lock/unlock button ....................3-13
2. Driver position memory system* .......3-59
3. Seat adjust knob*..............................3-40
4. Outside rearview mirror control switch .............................................3-106
5. Power rear quarter window switches* ...........................................3-26
6. Power window switches ....................3-26
7. Central door lock switch....................3-13
8. Power window lock switch.................3-28
9. Fuel filler lid release button...............3-30
10. Instrument panel illumination* ......3-113
11. Room light main control switch .....3-125
12. Power adjustable pedal control switch*.............................................3-60
13. Steering wheel tilt .........................3-104
14. Parking brake release lever* ...........4-16
15. Fuse box .........................................6-21
16. Hood release lever .........................3-29
17. Parking brake pedal ........................4-16
18. Brake pedal .....................................4-14
19. Accelerator pedal ..............................4-7
20. Seat.................................................3-37
* : if equipped

23
Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
1. Driver’s airbag ................................3-90
2. Light control / Turn signals ...........3-128
3. Instrument cluster.........................3-110
4. Wiper/Washer ...............................3-132
5. Auto cruise control* ........................4-11
6. Audio controls* .............................3-182
7. Steering wheel .............................3-103
8. Ignition switch ...................................4-3
9. Digital clock ..................................3-180
10. Climate control system* .............3-138
11. Hazard warning flasher switch ...3-137
12. Seat warmer* ...............................3-45
13. Shift lever .......................................4-5
14. Cigar lighter or Power outlet* .....3-176
15. Power outlet................................3-179
16. Ashtray* ......................................3-176
17. Passenger’s airbag .......................3-91
18. Vent controls ...............................3-141
19. Glove box ...................................3-174
20. Sunglass holder* ........................3-174
21. Sunvisor .....................................3-179
22. Power sliding door and power tailgate controls* ...........................3-17
23. Sunroof* .......................................3-33
24. Conversation mirror ....................3-109
25. Trip computer* ............................3-114
26. Day/night rearview mirror ...........3-108
* : if equipped
OVQ029002N

3
Keys / 3-3
Remote keyless entry / 3-4
Theft-alarm system / 3-7
Immobilizer system / 3-9
Door locks / 3-11
Power sliding door and power tailgate / 3-17
Window / 3-26
Hood / 3-29
Fuel filler lid / 3-30
Sunroof / 3-33
Seat / 3-37
Driver position memory system / 3-59
Power adjustable pedals / 3-60
Safety belts / 3-61
Child restraint system / 3-73
Air bags-advanced restraint system / 3-80
Steering wheel / 3-103
Mirrors / 3-105
Instrument cluster / 3-110
Gauges / 3-111
Trip computer / 3-114
Features of your vehicle
