I7
Index
Rear seat adjustment ··················\
··················\
··················\
·3-46
Rear seat entertainment system ··················\
··················\
3-227
Rear parking assist system ··················\
··················\
·········4-21
Rearview camera ··················\
··················\
··················\
······4-24
Recommended cold tire inflation pressures ··················\
6-32
Recommended lubricants ··················\
··················\
···········6-44
Recommended SAE viscosity number ··················\
········6-45
Remote keyless entry ··················\
··················\
··················\
·3-4
Road warning ··················\
··················\
··················\
·············5-2
Rocking the vehicle ··················\
··················\
··················\
·4-26
Roof antena ··················\
··················\
··················\
·············3-191
Roof rack ··················\
··················\
··················\
···············3-174
Safety belts ··················\
··················\
··················\
···············3-62Pre-tensioner safety belt ··················\
··················\
·······3-72
Lap/shoulder belt ··················\
··················\
··················\
3-65
Safety belt warning light and chime ··················\
·············3-64
Scheduled maintenance service Maintenance schedule ··················\
··················\
·············6-3
Seat warmer ··················\
··················\
··················\
·············3-45
Seatback pocket ··················\
··················\
··················\
·······3-44
Seat ·················\
··················\
··················\
··················\
··········3-37 Armrest ················\
··················\
··················\
·······3-44, 3-47
Headrest ················\
··················\
··················\
······3-42, 3-48
Folding the rear seatback ··················\
··················\
······3-50 Front seat adjustment - manual ··················\
··············3-39
Front seat adjustment - power ··················\
················3-40
Lumbar support ··················\
··················\
··················\
··3-46
Rear seat adjustment ··················\
··················\
·············3-46
Seatback pocket ··················\
··················\
··················\
··3-44
Seat warmer ··················\
··················\
··················\
········3-45
Shift lock system ··················\
··················\
··················\
·······4-9
Shopping bag holder ··················\
··················\
·················3-18\
7
Side air bag ··················\
··················\
··················\
··············3-92
Sirius satellite radio information ··················\
···············3-211
Snow tires ··················\
··················\
··················\
················4-28
Spare tire Compact spare tire replacement ··················\
·············6-36
Removing the spare tire ··················\
··················\
·········5-6
Storing the spare tire ··················\
··················\
··············5-7
Special driving conditions ··················\
··················\
·········4-26 Driving at night ··················\
··················\
··················\
··4-27
Driving in flooded areas ··················\
··················\
·······4-27
Driving in the rain ··················\
··················\
················4-27
Hazardous driving conditions ··················\
················4-26
Rocking the vehicle ··················\
··················\
··············4-26
Speedometer ···············\
··················\
··················\
··············3-115
Sports mode ··················\
··················\
··················\
···············4-8
Starting the engine ··················\
··················\
··················\
·····4-4
Steering wheel ··················\
··················\
··················\
·······3-104 Power steering ··················\
··················\
··················\
··3-104
Tilt steering ··················\
··················\
··················\
······3-105
Storage compartment ··················\
··················\
···············3-183 Glove box ··················\
··················\
··················\
·········3-184
R
S

3231
Features of your vehicle

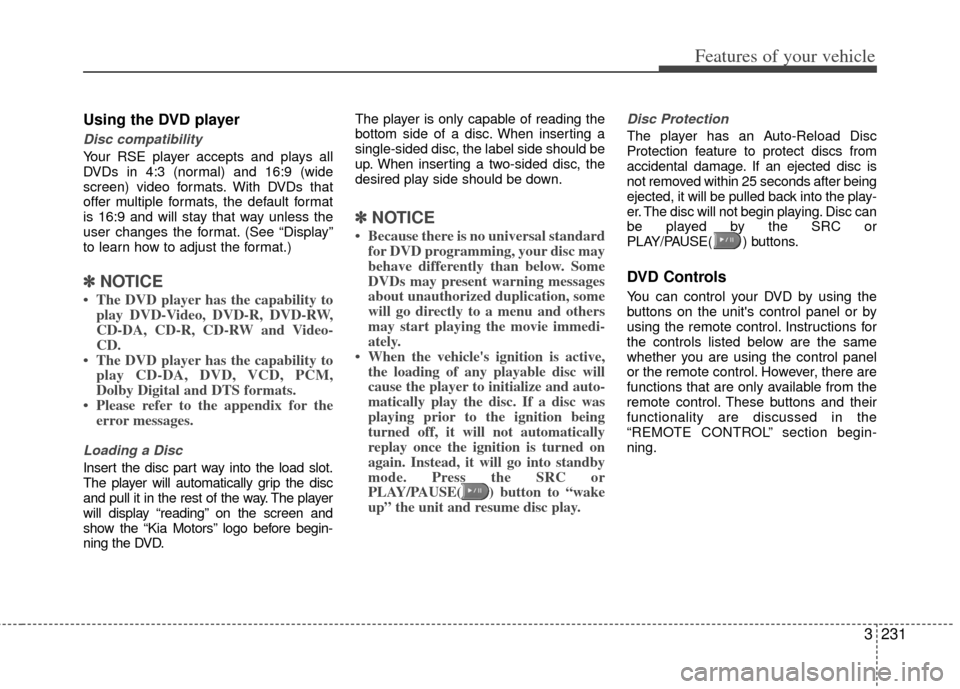

Using the DVD player
Disc compatibility
Your RSE player accepts and plays all
DVDs in 4:3 (normal) and 16:9 (wide
screen) video formats. With DVDs that
offer multiple formats, the default format
is 16:9 and will stay that way unless the
user changes the format. (See “Display”
to learn how to adjust the format.)
✽ ✽NOTICE
• The DVD player has the capability to
play DVD-Video, DVD-R, DVD-RW,
CD-DA, CD-R, CD-RW and Video-
CD.
• The DVD player has the capability to play CD-DA, DVD, VCD, PCM,
Dolby Digital and DTS formats.
• Please refer to the appendix for the error messages.
Loading a Disc
Insert the disc part way into the load slot.
The player will automatically grip the disc
and pull it in the rest of the way. The player
will display “reading” on the screen and
show the “Kia Motors” logo before begin-
ning the DVD. The player is only capable of reading the
bottom side of a disc. When inserting a
single-sided disc, the label side should be
up. When inserting a two-sided disc, the
desired play side should be down.
✽ ✽
NOTICE
• Because there is no universal standard
for DVD programming, your disc may
behave differently than below. Some
DVDs may present warning messages
about unauthorized duplication, some
will go directly to a menu and others
may start playing the movie immedi-
ately.
• When the vehicle's ignition is active, the loading of any playable disc will
cause the player to initialize and auto-
matically play the disc. If a disc was
playing prior to the ignition being
turned off, it will not automatically
replay once the ignition is turned on
again. Instead, it will go into standby
mode. Press the SRC or
PLAY/PAUSE( ) button to “wake
up” the unit and resume disc play.
Disc Protection
The player has an Auto-Reload Disc
Protection feature to protect discs from
accidental damage. If an ejected disc is
not removed within 25 seconds after being
ejected, it will be pulled back into the play-
er. The disc will not begin playing. Disc can
be played by the SRC or
PLAY/PAUSE( ) buttons.
DVD Controls
You can control your DVD by using the
buttons on the unit's control panel or by
using the remote control. Instructions for
the controls listed below are the same
whether you are using the control panel
or the remote control. However, there are
functions that are only available from the
remote control. These buttons and their
functionality are discussed in the
“REMOTE CONTROL” section begin-
ning.

3233
Features of your vehicle
✽

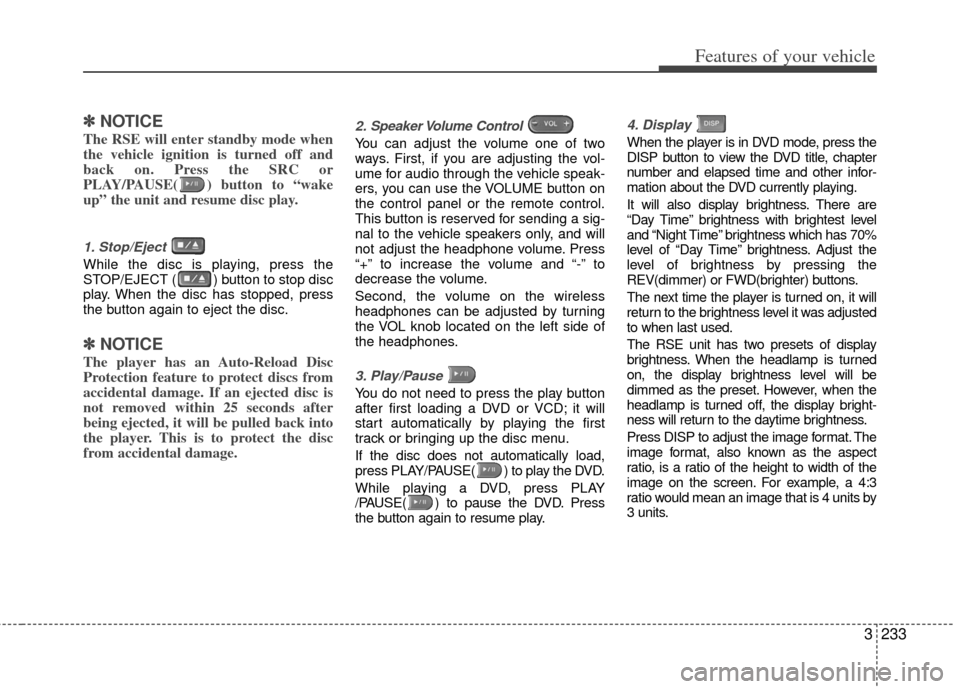

✽NOTICE
The RSE will enter standby mode when
the vehicle ignition is turned off and
back on. Press the SRC or
PLAY/PAUSE( ) button to “wake
up” the unit and resume disc play.
1. Stop/Eject
While the disc is playing, press the
STOP/EJECT ( ) button to stop disc
play. When the disc has stopped, press
the button again to eject the disc.
✽ ✽NOTICE
The player has an Auto-Reload Disc
Protection feature to protect discs from
accidental damage. If an ejected disc is
not removed within 25 seconds after
being ejected, it will be pulled back into
the player. This is to protect the disc
from accidental damage.
2. Speaker Volume Control
You can adjust the volume one of two
ways. First, if you are adjusting the vol-
ume for audio through the vehicle speak-
ers, you can use the VOLUME button on
the control panel or the remote control.
This button is reserved for sending a sig-
nal to the vehicle speakers only, and will
not adjust the headphone volume. Press
“+” to increase the volume and “-” to
decrease the volume.
Second, the volume on the wireless
headphones can be adjusted by turning
the VOL knob located on the left side of
the headphones.
3. Play/Pause
You do not need to press the play button
after first loading a DVD or VCD; it will
start automatically by playing the first
track or bringing up the disc menu.
If the disc does not automatically load,
press PLAY/PAUSE( ) to play the DVD.
While playing a DVD, press PLAY
/PAUSE( ) to pause the DVD. Press
the button again to resume play.
4. Display
When the player is in DVD mode, press the
DISP button to view the DVD title, chapter
number and elapsed time and other infor-
mation about the DVD currently playing.
It will also display brightness. There are
“Day Time” brightness with brightest level
and “Night Time” brightness which has 70%
level of “Day Time” brightness. Adjust the
level of brightness by pressing the
REV(dimmer) or FWD(brighter) buttons.
The next time the player is turned on, it will
return to the brightness level it was adjusted
to when last used.
The RSE unit has two presets of display
brightness. When the headlamp is turned
on, the display brightness level will be
dimmed as the preset. However, when the
headlamp is turned off, the display bright-
ness will return to the daytime brightness.
Press DISP to adjust the image format. The
image format, also known as the aspect
ratio, is a ratio of the height to width of the
image on the screen. For example, a 4:3
ratio would mean an image that is 4 units by
3 units.
