KIA SEDONA 2017 Navigation System Quick Reference Guide
Manufacturer: KIA, Model Year: 2017, Model line: SEDONA, Model: KIA SEDONA 2017Pages: 92, PDF Size: 2.16 MB
Page 11 of 92
8
00360048005700580053
Setup is the screen to control system
settings of the Multimedia System.
To enter the screen, select the
00360028003700380033 key of the device or the
00360048005700580053 button in All menus.
Features Description
NavigationProvides Normal/
Screen/Guidance/
Route/Safety Setting.
SoundProvides the sound
control options for
Position, Bass, Mid,
Treble, Volume and
Advanced settings.
Display
Provides the Mode/
Brightness/Adjust set-
tings.
BluetoothProvides the Bluetooth
Connection/Auto
Connection Priority/
Ringtone/Bluetooth
System Info settings.
UVO
eServices Provides the 911
Connect/Parking
Minder/My Car Zone/
Scheduled Diagnostics/
Trip Info Sync Reminder
Settings.
Features Description
Voice
Recognition Provides the
Guidance and Priority
settings.
Clock
Provides the time and
date settings.
Wi-FiProvides the Wi-Fi
On and Network
Connection settings.
Language
Provides the Change
Language settings.
KeyboardProvides settings to
switch keyboard lay-
outs.
UVO AppsProvides the removal
settings for down-
loaded and installed
apps.
Screen
Saver Provides the Clock/
None settings.
Connectivity
For more details, refer
to Connectivity guide.
System Info Provides software and
storage space informa-
tion.
Display Off Provides the Display
Off (touch activation)
function.
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
. : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 12 of 92
9
002B0052005000480003003600460055004800480051
Controls Menu Confi guration for the Home Screen
Information Display on the Status Bar
Displays the date and time, along with the system status shown by the various
icons to the right of the clock.
The icons in the following table indicate the various types of system status
details and events.
FeaturesDescription
Navigation
Widget Provides a brief view of the navigation map and the route screen.
Touch any area on the screen to move to the navigation screen.
AV Widget
Shows brief information on the radio media currently playing.
Touch the area to move to the mode for what you are listening to.
All Menus
Shows all of the items in the system menu.
PlacesDirectly moves to the screen where you can search for your destination.
My Menu You can add and save up to eight menu items.
Add your favorite menu items to have quick and easy access to them.
AV-Mute
Navigation-
Mute Making a call and Bluetooth connection Wi-Fi
ICON
Description Mute AV
sound Mute
Navigation sound Bluetooth
phone
remaining battery Handsfree
connection Making a
call using
BT phone Bluetooth phone
reception
sensitivity Wi-Fi is connected
ICON
Description Connecting to
music stream Connecting to Wi-Fi
ICON
Description Handsfree+
streaming
connection Mute
Bluetooth phone
microphone Displays when 911
connect is available.
ICON
Description Downloading
contacts/
recent calls
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 13 of 92
10

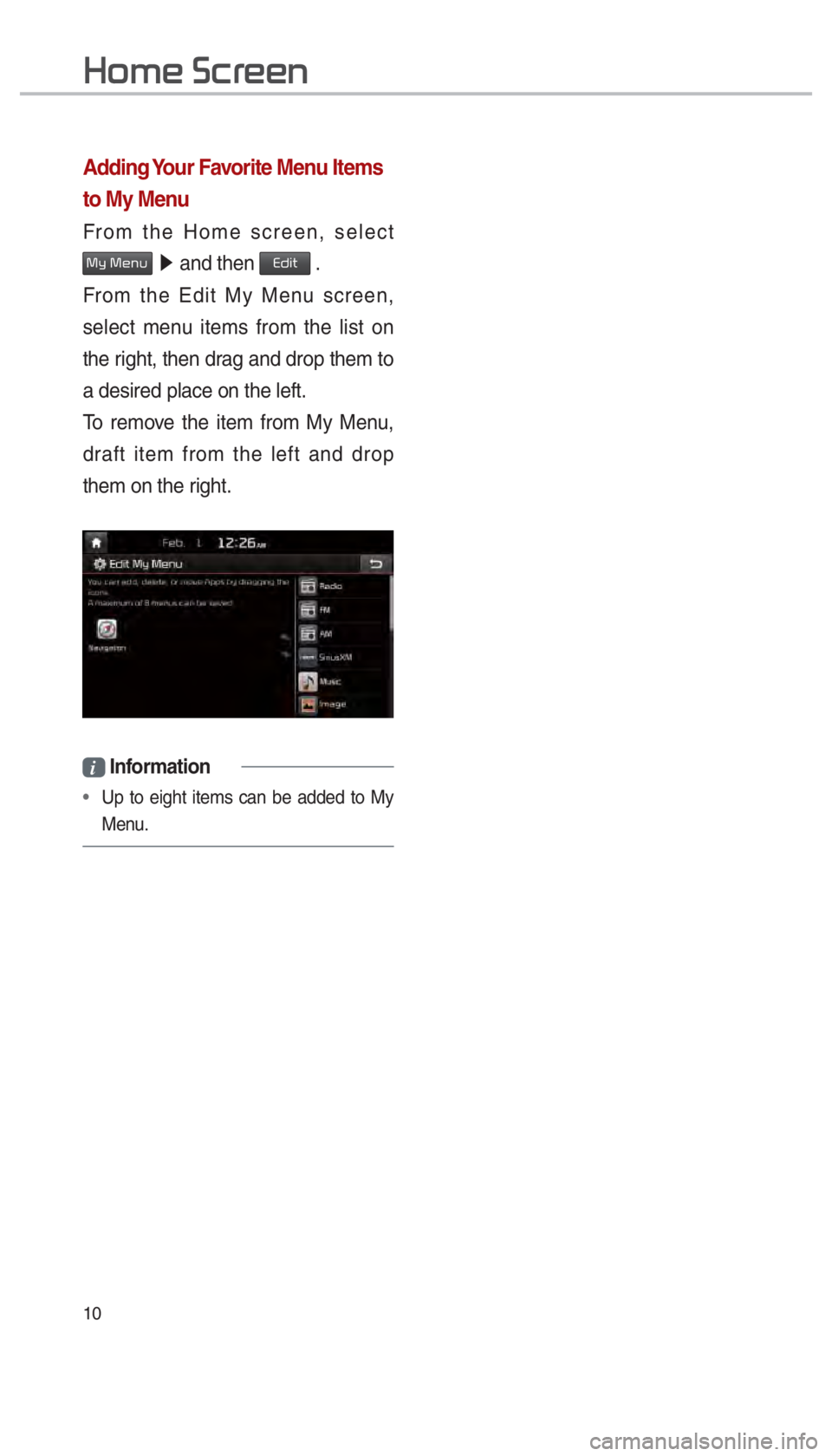

Adding Your Favorite Menu Items
to My Menu
From the Home screen, select
0030005C00030030004800510058 05210003
and then 00280047004C0057 .
From the Edit My Menu screen,
select menu items from the list on
the right, then drag and drop them to
a desired place on the left.
To remove the item from My Menu,
draft item from the left and drop
them on the right.
i Information
Up to eight items can be added to My
Menu.
002B0052005000480003003600460055004800480051
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 14 of 92
11
00290030001200240030
You can access the radio player either by pressing the 003500240027002C0032 key or by
selecting the Radio menu option from All Menus on the Home screen.
FM/AM Mode Display Controls
i Information
If you press the 003500240027002C0032 key when the power is off, then the power will turn on and a
radio broadcast will be tuned from the current mode.
If you are in the FM/AM mode, select the FM/AM radio widget from the Home screen to
access the r adio pla
yer.
Features Description
Mode Display Displays the current operating mode
If you tap on FM, AM, or SiriusXM in the Mode Display, the
corresponding mode will be selected.
Preset Shows saved presets for user selection
After selecting frequency
044F
press and hold (more than 0.8
seconds) the preset button. A 'beep' will sound and the fre-
quency is saved to the selected preset button.
A total of 24 frequencies with 12 preset frequencies each
for FM/AM modes can be saved.
Frequency Bar Flick the frequency bar left/right to search for available radio
channels to the left or right of the current channel.
Dragging: Drag the frequency bar to the left/right to find the radio channel that you want.
Frequency Displays the current frequency
Broadcast
station Displays the current broadcast station name.
Scan
Plays frequencies with superior reception for 5 seconds each
HD RadioWhen the HD Radio soft button is ON (the red indicator on
the HD Radio button is illuminated), HD Radio signals will be
received.
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
. : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 15 of 92
12
FeaturesDescription
InfoTurns the Radio Text information on and off
If the Info soft button is OFF (the blue indicator on the Info
button is not illuminated), information will not be displayed
even if there is information being transmitted from the broad-
cast station.
If the Info soft button is ON (the blue indicator on the Info button is illuminated), then broadcast information will be dis-
played. Information may not be displayed if there is no infor-
mation being transmitted from the broadcast station.
Menu
Saves frequencies with superior reception to Preset buttons
While Auto Store is operating, pressing the Auto Store button
again will cancel the function and play the previous
frequency.
Plays preset frequencies for 5 or 10 seconds each
HD on: 10 seconds
HD off: 5 seconds
Scan/
Auto Scan/
Preset Scan Displays an activated mode from the Scan/Auto Scan/Preset
Scan modes.
00290030001200240030
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
. : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 16 of 92
13

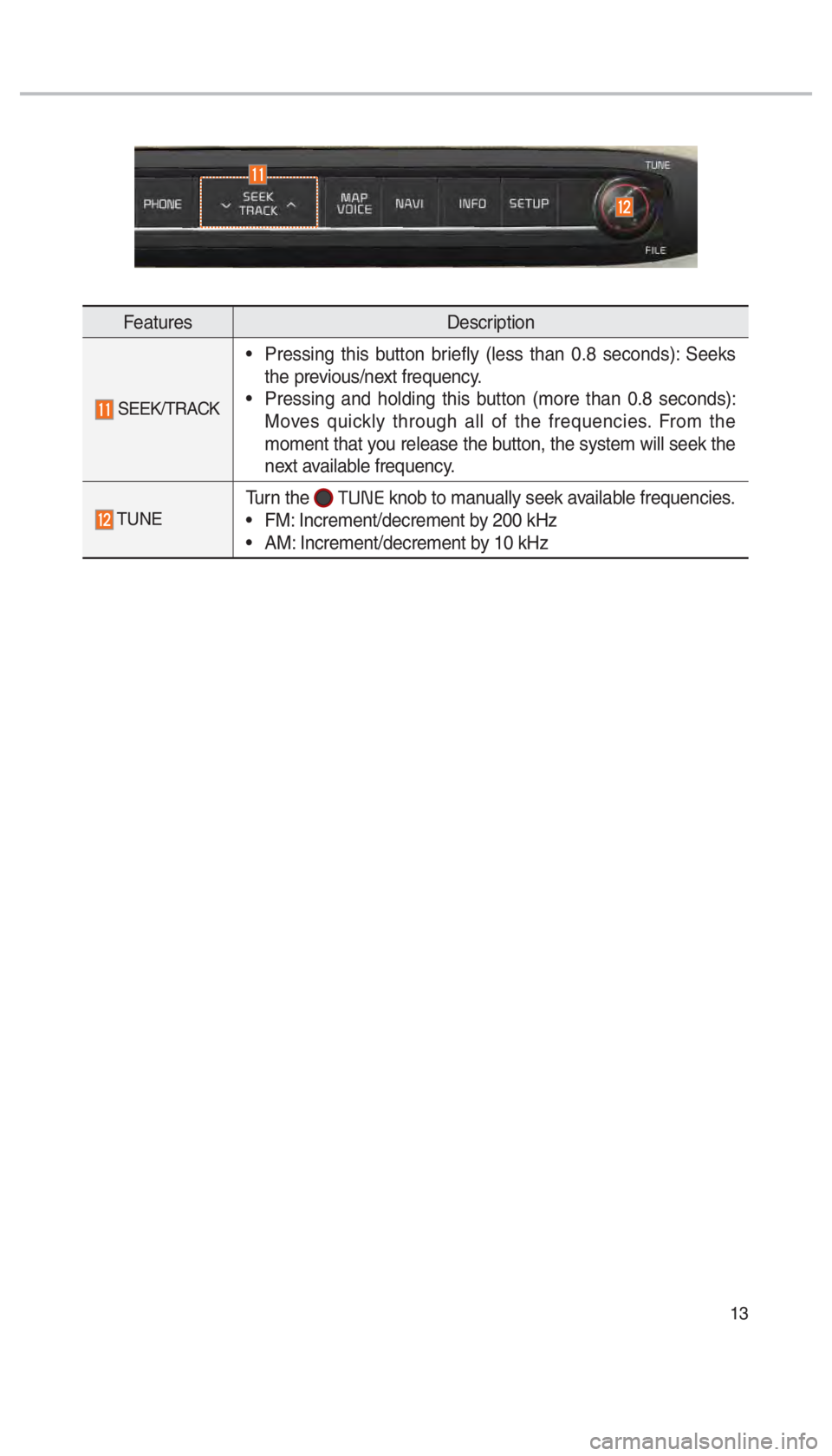

FeaturesDescription
SEEK/TRACK
Pressing this button briefly (less than 0.8 seconds): Seeks
the previous/next frequency.
Pressing and holding this button (more than 0.8 seconds): Moves quickly through all of the frequencies. From the
moment that you release the button, the system will seek the
next available frequency.
TUNETurn the 00030037003800310028 knob to manually seek available frequencies.
FM: Increment/decrement by 200 kHz
AM: Increment/decrement by 10 kHz
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 17 of 92
14

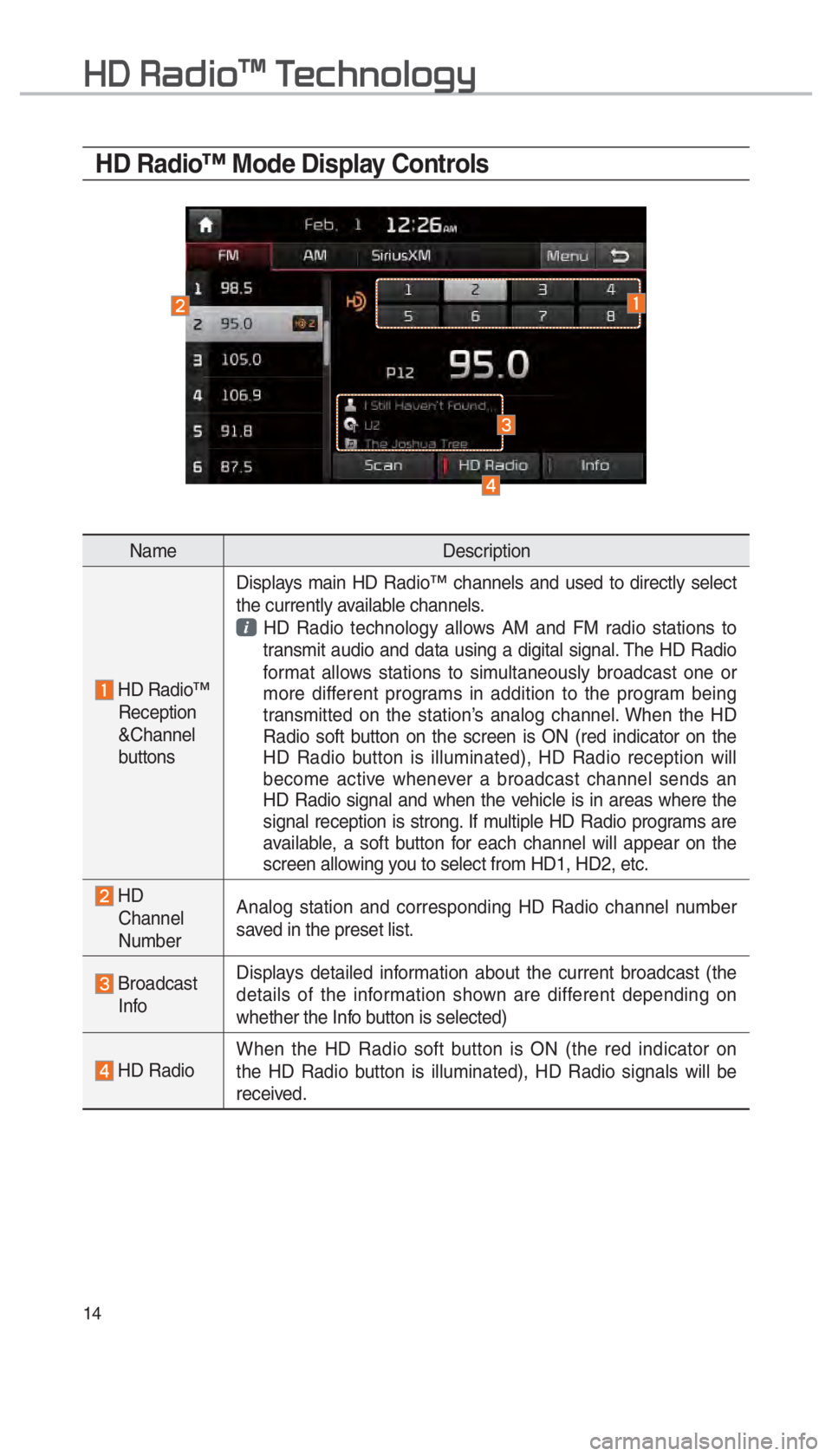

HD Radio™ Mode Display Controls
NameDescription
HD Radio™
Reception
&Channel
buttons Displays main HD Radio™ channels and used to directly select
the currently available channels.
HD Radio technology allows AM and FM radio stations to
transmit audio and data using a digital signal. The HD Radio
format allows stations to simultaneously broadcast one or
more different programs in addition to the program being
transmitted on the station’s analog channel. When the HD
Radio soft button on the screen is ON (red indicator on the
HD Radio button is illuminated), HD Radio reception will
become active whenever a broadcast channel sends an
HD Radio signal and when the vehicle is in areas where the
signal reception is strong. If multiple HD Radio programs are
available, a soft button for each channel will appear on the
screen allowing you to select from HD1, HD2, etc.
HD Channel
Number Analog station and corresponding HD Radio channel number
saved in the preset list.
Broadcast
Info Displays detailed information about the current broadcast (the
details of the information shown are different depending on
whether the Info button is selected)
HD Radio
When the HD Radio soft button is ON (the red indicator on
the HD Radio button is illuminated), HD Radio signals will be
received.
002B00270003003500440047004C0052043000030037
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
. : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 18 of 92
15
You can access the radio player either by pressing the 003500240027002C0032 key or by select-
ing the Radio menu option from All Menus on the Home screen. Select the
SiriusXM™ tab from the radio player.
SiriusXM™ Mode Display Controls
i Information
If you press the 003500240027002C0032 key when the power is off, the power will turn on and a radio
broadcast will be tuned from the current mode.
If you are in the SiriusXM™ mode, select the SiriusXM™ radio widget from the Home
screen to access the r adio pla
yer.
When the power is off, pressing the
003500240027002C0032 key will turn the power on and play a
SiriusXM™ Radio broadcast.
Features Description
Mode Display Displays the current operating mode
If you tap on FM, AM, or SiriusXM in the Mode Display, the
corresponding mode will be selected.
Preset Shows saved presets for user selection.
After selecting frequency press and hold (more than 0.8 sec-
onds) the preset button. A ‘beep’ will sound and the frequency
is saved to the selected preset button.
A total of 18 frequencies for SiriusXM™ modes can be saved.
Channel Logo
Displays the current channel logo.
Channel InfoDisplays the current channel number and name.
Contents InfoDisplays the artist, title and other information about the current
playing song.
Category Info
Displays the current playing category.
0036004C0055004C00580056003B00300430
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 19 of 92
16

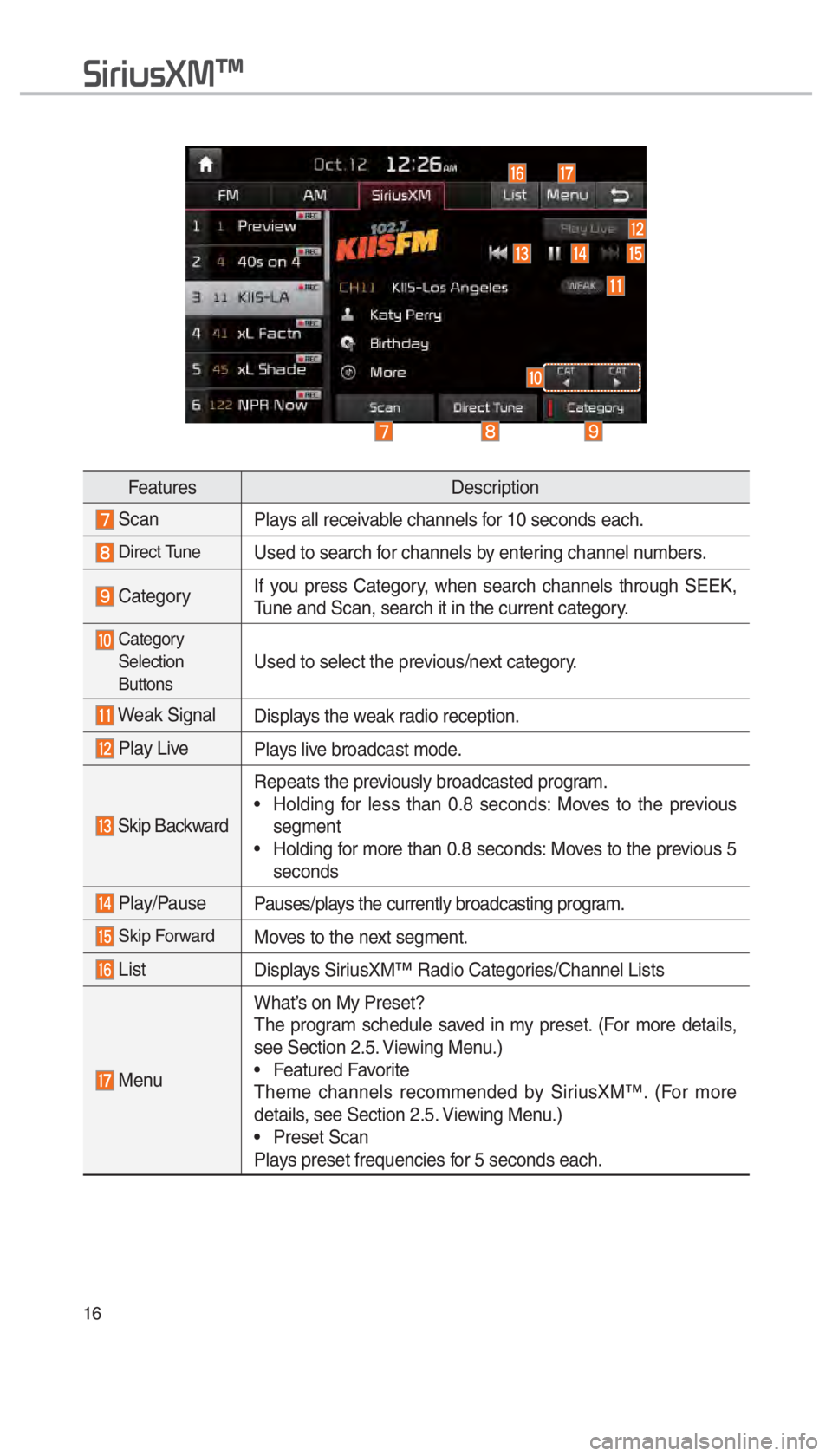

FeaturesDescription
Scan
Plays all receivable channels for 10 seconds each.
Direct TuneUsed to search for channels by entering channel numbers.
CategoryIf you press Category, when search channels through SEEK,
Tune and Scan, search it in the current category.
Category
Selection
Buttons
Used to select the previous/next category.
Weak Signal Displays the weak radio reception.
Play LivePlays live broadcast mode.
Skip Backward Repeats the previously broadcasted program.
Holding for less than 0.8 seconds: Moves to the previous
segment
Holding for more than 0.8 seconds: Moves to the previous 5 seconds
Play/Pause Pauses/plays the currently broadcasting program.
Skip ForwardMoves to the next segment.
ListDisplays SiriusXM™ Radio Categories/Channel Lists
MenuWhat’s on My Preset?
The program schedule saved in my preset. (For more details,
see Section 2.5. Viewing Menu.)
Theme channels recommended by SiriusXM™. (For more
details, see Section 2.5. Viewing Menu.)
Plays preset frequencies for 5 seconds each.
0036004C0055004C00580056003B00300430
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
. : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 20 of 92
17

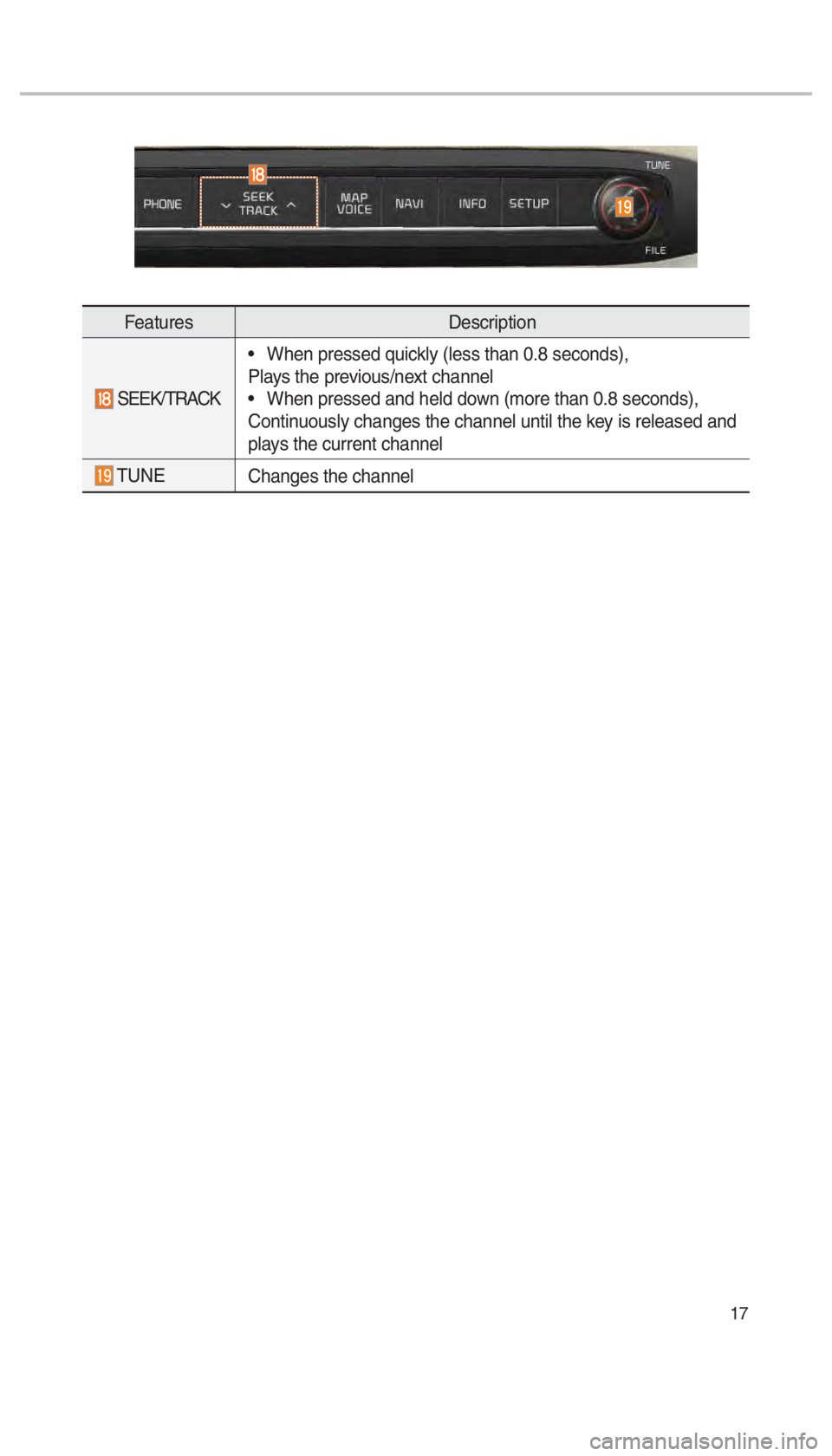

FeaturesDescription
SEEK/TRACK When pressed quickly (less than 0.8 seconds),
Plays the previous/next channel
When pressed and held down (more than 0.8 seconds),
Continuously changes the channel until the key is released and
plays the current channel
TUNE
Changes the channel
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
