KIA SEDONA 2017 Navigation System Quick Reference Guide
Manufacturer: KIA, Model Year: 2017, Model line: SEDONA, Model: KIA SEDONA 2017Pages: 92, PDF Size: 2.16 MB
Page 21 of 92
18

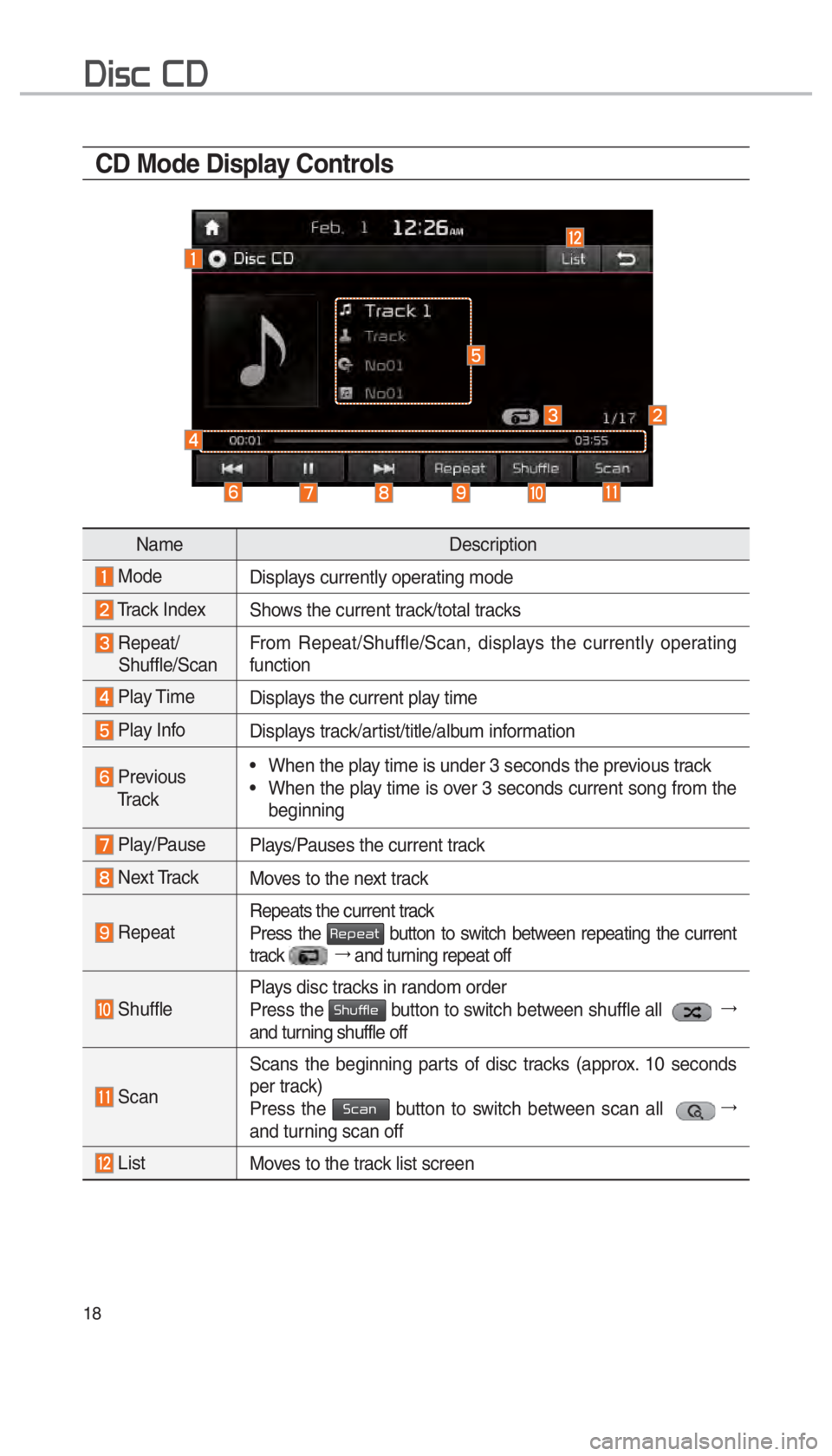

CD Mode Display Controls
0027004C00560046000300260027
NameDescription
Mode
Displays currently operating mode
Track IndexShows the current track/total tracks
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the currently operating
function
Play Time
Displays the current play time
Play InfoDisplays track/artist/title/album information
Previous
Tr a c k When the play time is under 3 seconds the previous track
When the play time is over 3 seconds current song from the
beginning
Play/Pause Plays/Pauses the current track
Next Track Moves to the next track
RepeatRepeats the current track
Press the 003500480053004800440057 button to switch between repeating the current
track 044F
and turning repeat off
Shuffle Plays disc tracks in random order
Press the 0036004B005800490049004F0048 button to switch between shuffle all
044F
and turning shuffle off
Scan Scans the beginning parts of disc tracks (approx. 10 seconds
per track)
Press the 0036004600440051 button to switch between scan all
044F
and turning scan off
List Moves to the track list screen
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 22 of 92
19
NameDescription
SEEK/TRACK If button pressed for less than 0.8 seconds: moves to previ-
ous or next track
If button pressed for greater than 0.8 seconds: it rewinds or fast-forward the track When button pressed for 5 seconds, it will rewind or
fast-forward the track at 4x speed. After that, it will rewind
or fast-forward at 20x speed. Once released, the track will
begin playing at normal speed.
TUNE
Turn the 0003 knob and search a desired track. When the
track name is displayed, press the
0003 knob to play the
track.
If the 0003 knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is
restored.
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 23 of 92
20

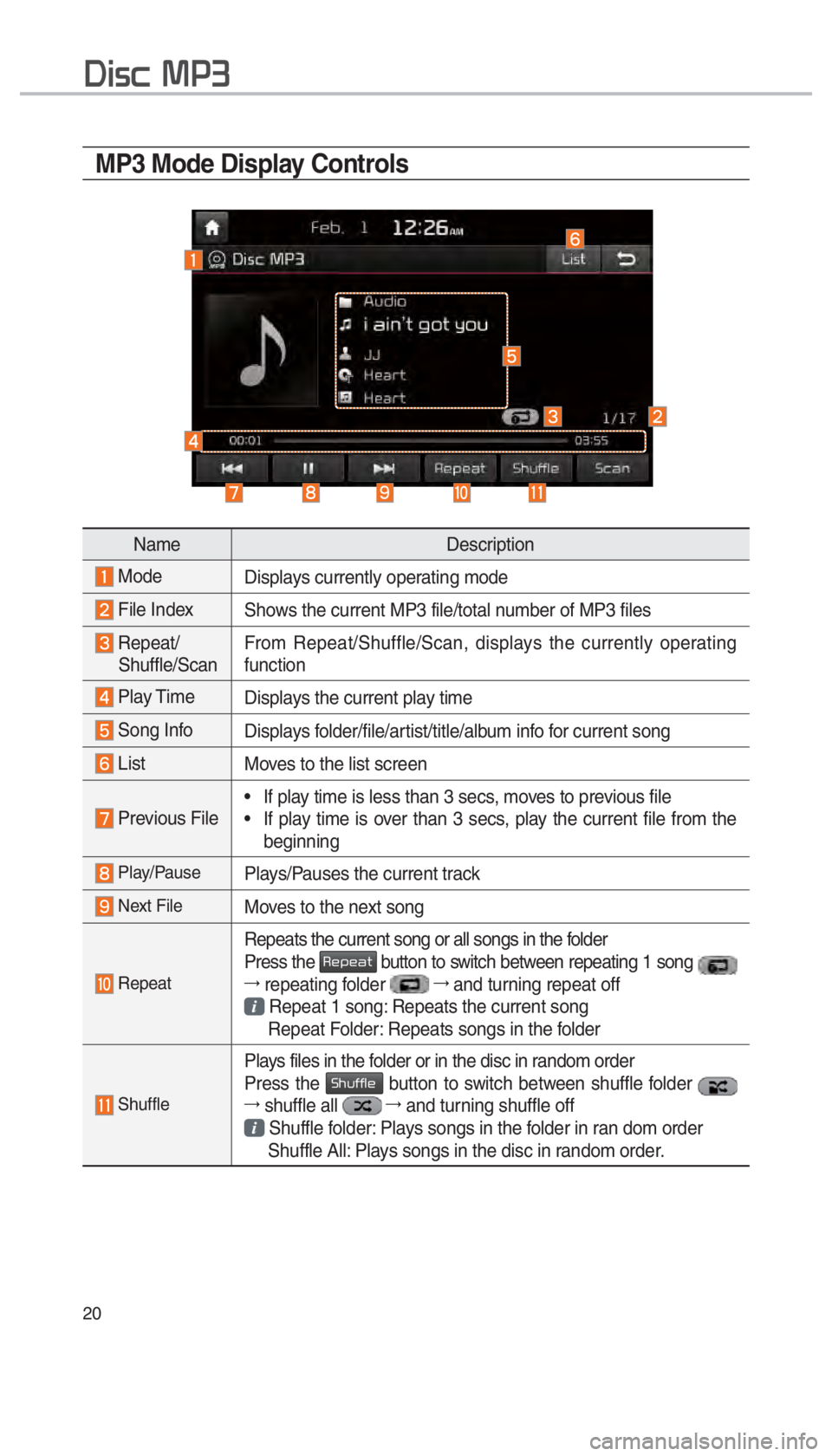

MP3 Mode Display Controls
0027004C005600460003003000330016
NameDescription
Mode
Displays currently operating mode
File IndexShows the current MP3 file/total number of MP3 files
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the currently operating
function
Play Time
Displays the current play time
Song InfoDisplays folder/file/artist/title/album info for current song
ListMoves to the list screen
Previous File If play time is less than 3 secs, moves to previous file
If play time is over than 3 secs, play the current file from the
beginning
Play/PausePlays/Pauses the current track
Next FileMoves to the next song
Repeat
Repeats the current song or all songs in the folder
Press the 003500480053004800440057 button to switch between repeating 1 song
044F repeating folder 044F
and turning repeat off Repeat 1 song: Repeats the current song
Repeat Folder: Repeats songs in the folder
Shuffle
Plays files in the folder or in the disc in random order
Press the 0036004B005800490049004F0048 button to switch between shuffle folder
044F shuffle all 044F
and turning shuffle off Shuffle folder: Plays songs in the folder in ran dom order
Shuffle All: Plays songs in the disc in random order.
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1

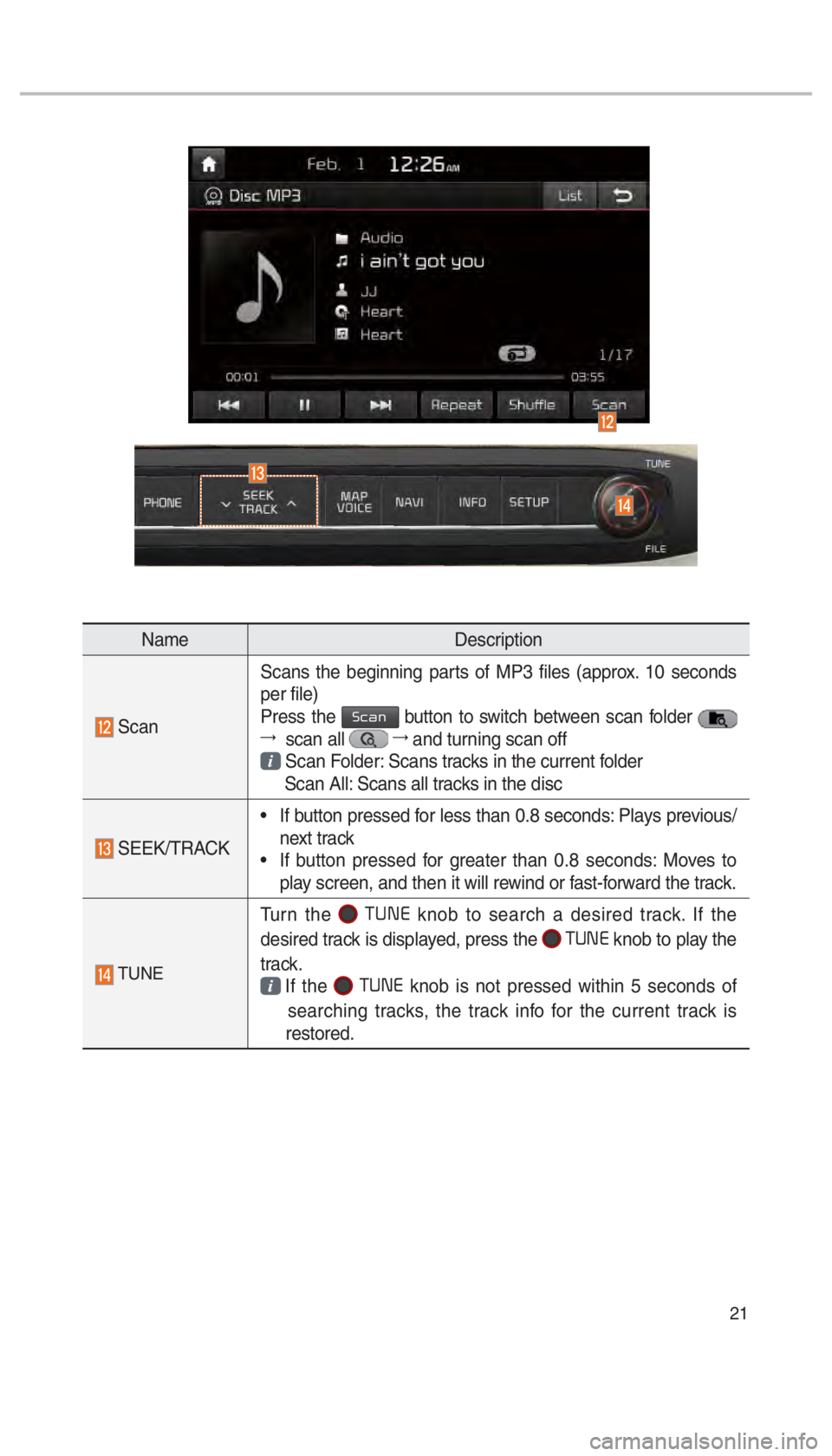

Page 24 of 92
21
NameDescription
Scan Scans the beginning parts of MP3 files (approx. 10 seconds
per file)
Press the 0036004600440051 button to switch between scan folder
044F scan all 044F
and turning scan off Scan Folder: Scans tracks in the current folder
Scan All: Scans all tracks in the disc
SEEK/TRACK If button pressed for less than 0.8 seconds: Plays previous/
next track
If button pressed for greater than 0.8 seconds: Moves to play screen, and then it will rewind or fast-forward the track.
TUNE
Turn the 0003 knob to search a desired track. If the
desired track is displayed, press the
0003 knob to play the
track.
If the 0003 knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is
restored.
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 25 of 92
22
003800360025
USB Mode Display Controls
FeaturesDescription
Mode
Displays the current operating mode
File IndexShows the current file/total files within the USB
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the currently operating
function
Play Time
Displays the current play time/total play time
Song InfoDisplays the information of the current track
When a track in the file tab on the list screen is selected:
Displays folder, file, title, artist, album info
When a track in the other tabs on the list screen is selected: Displays artist, title, album info
List Moves to the list screen
Previous
File If press button short (less than 0.8 seconds): Moves to the previous file
or play the current file from the beginning (Depends on the play time)
If play time is less than 3 seconds, moves to previous file
If play time is more than 3 seconds, plays the current file from
the beginning
If button is pressed (more than 0.8 seconds): It rewinds the track
Play/Pause Plays/Pauses the current file
Next File If button is pressed (less than 0.8 seconds): Moves to the next file
If button is pressed (more than 0.8 seconds): It fast-forwards the track
Repeat
Repeats the current file Select the song in the file tab on the list screen: Press the 003500480053004800440057 button to switch between repeating one song ,
repeating folder , and turning repeat off
Select the song in the other tabs (Playlist, Artist, Song, Album, Genre) on the list screen: Press the
003500480053004800440057 button to switch
between repeating one song and turning repeat off
Back Button Converts to basic mode screen
Menu Add to Playlist: Add the current track to the Playlist: Playlist is
placed on the left tab in the list
Save to My Music: You can save the current track to My Music. You can play saved track from My Music without USB.
Access to My Music in the Media mode.
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 26 of 92
23
FeaturesDescription
ShufflePlays files in random order
Select the song in the file tab on the list screen: Press the
0036004B005800490049004F0048
button to switch between Shuffle Folder , Shuffle All ,
and turning shuffle off
Select the song in the other tabs (Playlist, Artist, Song, Album, Genre) on the list screen: Press the
0036004B005800490049004F0048 button to switch
between Shuffle Category and turning shuffle off
Scan Scans the beginning parts of USB files (approx. 10 seconds per file)
Select the song in the file tab on the list screen: Press the
0036004600440051
button to switch between Scan Folder , Scan All , and
turning scan off
Select the song in the other tabs (Playlist, Artist, Song, Album, Genre) on the list screen: Press the
0036004600440051 button to switch
between Scan category and turning scan off
SEEK/ TRACK If button pressed for less than 0.8 seconds: Moves to previous/next
file or play the current track from the beginning
If play time is less than 3 seconds, moves to previous/next file
If play time is more than 3 seconds, play the current file from the
beginning
If button is pressed (more than 0.8 seconds): It will rewind/fast-for-
ward the track
TUNE Turn the 0003
knob to search a desired track. If the desired
track is displayed, press the 00030037003800310028 0003 knob to play the track.
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
. : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 27 of 92
24
003800360025
USB Image
FeaturesDescription
Mode
Displays the current operating mode
Folder/File
Name Displays folder name where image is located
File Index
Shows the current file/total files within the USB
Slideshow Images as slideshow in 5, 10, 20, 30 second intervals
Rotate Rotate image in clockwise direction
InfoShows the file name, resolution and file type of current image
Adjust Image
Size Enlarge/reduce (zoom-in/zoom-out) image size
List
Moves to the list screen
Previous/
Next Image Swipe image left or right to see previous/next image
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
. : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 28 of 92
25
iPod® Mode Display Controls
FeaturesDescription
Mode
Displays the current operating mode
Song IndexShows the current song/total songs
Repeat/
Shuffle From Repeat/Shuffle, displays the currently operating function
Play Time
Displays the current play time/total play time
Song InfoDisplays the artist/song title/album info
ListMoves to the list screen
Previous File If button pressed for less than 0.8 seconds: Moves to the previ-
ous file or play the current file from the beginning (Depends on
the play time)
If play time is less than 3 seconds, moves to previous file
If play time is more than 3 seconds, play the current file from
the beginning
If button is pressed (more than 0.8 seconds): It rewinds the track.
Play/Pause Plays/Pauses the current file
Next File If button is pressed (less than 0.8 seconds): Moves to the
next file
If button is pressed (more than 0.8 seconds): It does fast-for- ward the track.
Repeat Repeats the current file
Press the 003500480053004800440057 button to switch between repeating 1 track , and turning repeat off
ShufflePlays files in random order
When pressing 0036004B005800490049004F0048 button, it changes to shuffle category
044F
deactivate shuffle then repeat Shuffle Category: Shuffle song in the current category
Back Button Move to home/previous mode screen
004C0033005200470071
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1

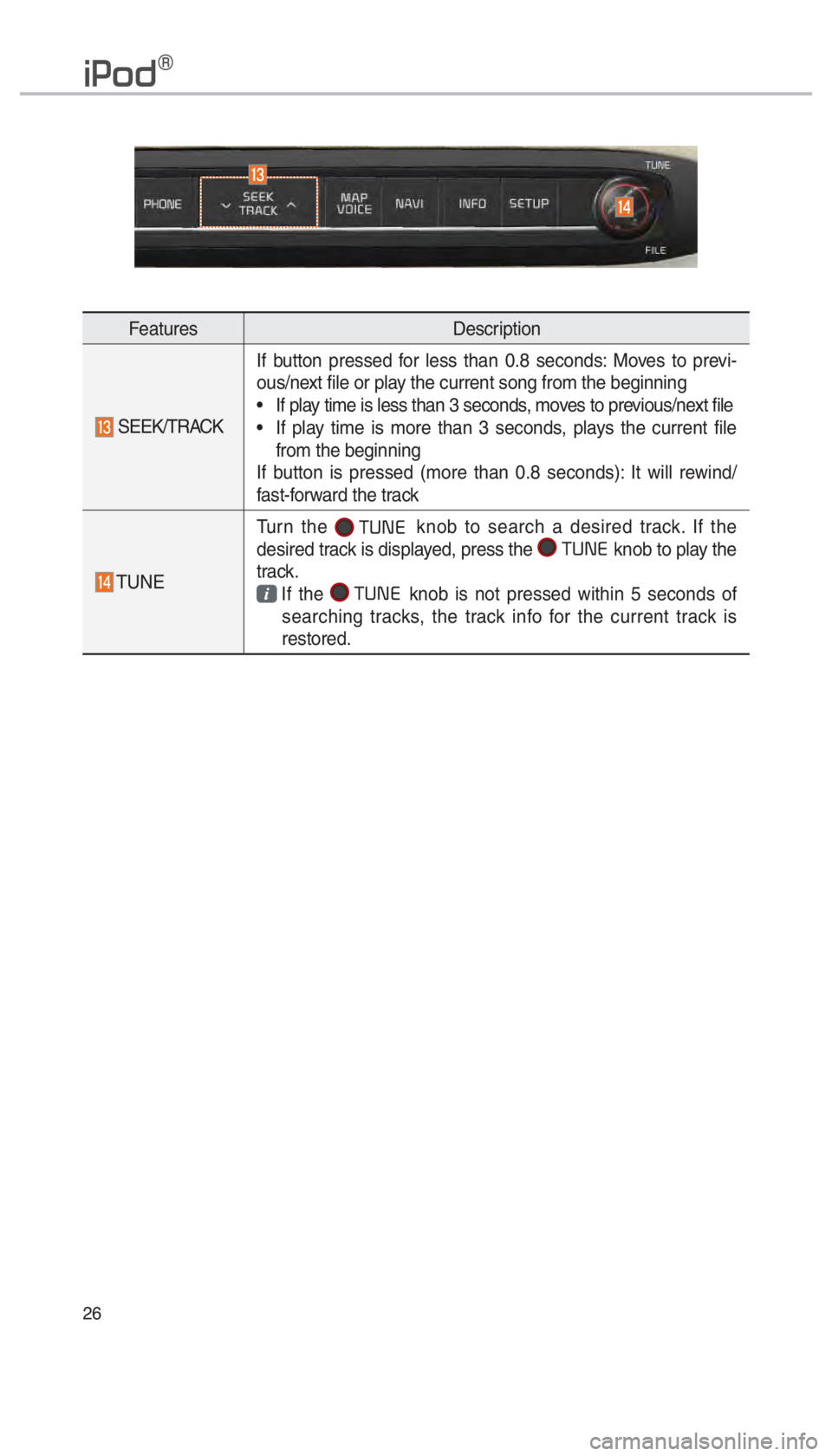

Page 29 of 92
26
FeaturesDescription
SEEK/TRACKIf button pressed for less than 0.8 seconds: Moves to previ-
ous/next file or play the current song from the beginning
If play time is less than 3 seconds, moves to previous/next file
If play time is more than 3 seconds, plays the current file
from the beginning
If button is pressed (more than 0.8 seconds): It will rewind/
fast-forward the track
TUNE Turn the
00030037003800310028
knob to search a desired track. If the
desired track is displayed, press the 00030037003800310028
knob to play the
track.
If the 000300370038003100280003
knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is
restored.
004C0033005200470071
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 30 of 92
27
Features Description
Back Button Move to home/previous
mode screen
i
Information
key, 0037003800310028
is not supported.
NOTICE
If only cable connected to the AUX
without an exter
nal device, the mode
changed to AUX, but noise may occur.
When an external device is not being
used, remove the connector jack.
When the external device power is
connected to the po w
er jack, playing
the external device may output noise.
In such cases, disconnect the power
connection before use.
0424 The actual feature in the vehicle
may differ from the illustration.
00240038003B
Connecting an
External Device
If an external device connector is
connected with the AUX terminal,
then AUX mode will automatically
operate. Once the connector is dis-
connected, the previous mode will
be restored.
AUX mode can be used only when
an external audio player (cam-
corder, car VCR, etc.) has been
connected.
The AUX volume can also be controlled separately through the
connected device.
, @ : 1 . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E . : @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
