29ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED
Your Automatic Climate Control
system may differ from those in the
illustrations.
Refer to section 4 in the Owner’s
Manual for more information.
Automatic Climate Control * (Continued)
Climate Control Auto Function
1 Press AUTO
B to select Full Auto Operation
The Auto setting
automatically controls the airflow modes, fan speeds, air intake and
air conditioning according to the temperature setting selected
2 Set desired Temperature
A
3 Press SYNC E to select Sync Temperature Control operation, which
synchronizes the passenger’s temperature to the driver’s setting
Defrost Outside Windshield:
1 Set Fan Speed
F to the highest position
2 Set Temperature
A to Hot
3 Press the Front Defrost button
L
Defog Inside Windshield:
1 Set Front Fan Speed
F to the highest position
2 Set Temperature
A to the highest position
3 Press the Front Defrost button
L
•Defrost Mode activates A /C and opens Fresh Air Vent to help
dehumidify the air and improve Defroster performance
•During Auto Operation, the A /C indicator will NOT illuminate The fan
speed, air intake, air flow and air conditioning may automatically be
engaged at any time to reach the desired temperature and reduce
humidity
•Keep the inside glass as clean as possible to reduce window fogging
QUICK TIPS
Face-Level
Bi-Level F lo o r- L evel
Floor/Defrost-Level
REMINDERS:
•
Pressing any button during AUTO operation will deactivate
the AUTO function and switch to manual mode, except for
Temperature Control
•
When in AUTO mode, Air Flow Mode and Fan Speed do not
display on the Climate Control Display
•
Cold or warm ambient air may flow in through vents if
Recirculated Air button is not pressed ON (LED lit)
Auto Defogging System
Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website
Refer to page 2 for more
information QR CODE
www.youtube.com/KiaFeatureVideos
Auto Defogging System
Auto defogging is designed to reduce the fogging
up of the inside of the windshield by automatically
sensing the moisture of the inside of the
windshield The system will automatically
change to defrost mode when needed
Auto Defogging is set ON by default To cancel
Auto Defogging, press the Front Defrost button
for three seconds when the ignition is in on (ADS
OFF icon will illuminate) To turn Auto Defogging
on again, press the Front Defrost button
for
three seconds
Air Flow Modes
To select Air Flow Modes, press the MODE button
H to cycle through to desired mode:
CENTER PANEL
Page 32 of 58
SEDONA FEATURES & FUNCTIONS GUIDE30*IF EQUIPPED
L Rear air conditioning OFF button
M Rear fan speed control buttons
N Rear mode selection buttons
O Rear temperature control buttons
REMINDER: Warm air may flow in
through vents if Recirculated Air
button is not pressed ON (LED lit)
• Defrost Mode activates A /C and opens Fresh Air Vent
• MA X A /C Mode automatically engages Recirculated Air
• Keep the inside glass as clean as possible to reduce window fogging
QUICK TIPS

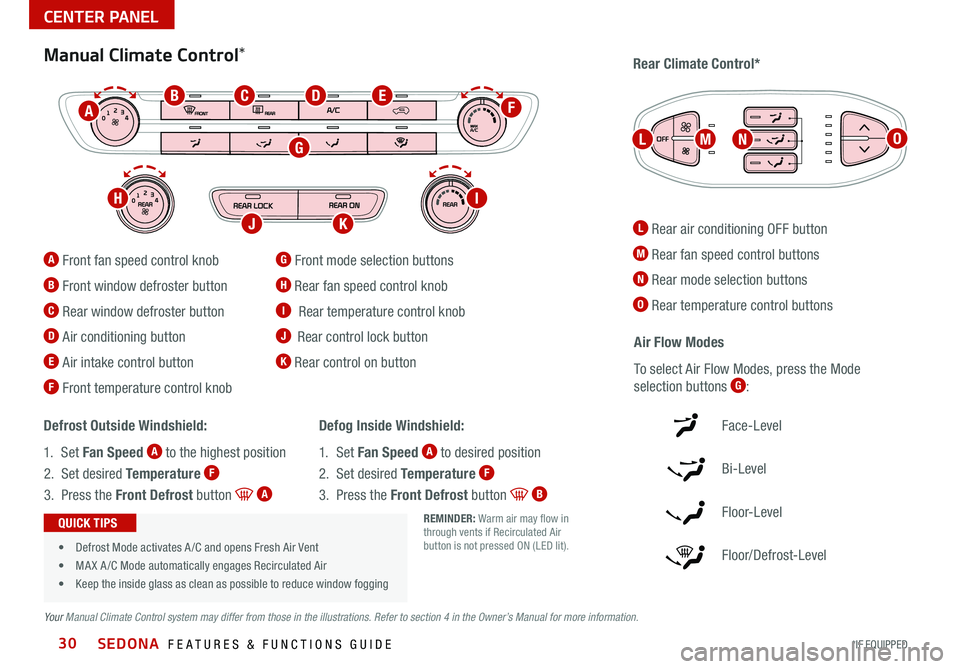

Manual Climate Control *Rear Climate Control*
A Front fan speed control knob
B Front window defroster button
C Rear window defroster button
D Air conditioning button
E Air intake control button
F Front temperature control knob
G Front mode selection buttons
H Rear fan speed control knob
I Rear temperature control knob
J Rear control lock button
K Rear control on button Air Flow Modes
To select Air Flow Modes, press the Mode
selection buttons
G:
Defrost Outside Windshield:
1 Set Fan Speed
A to the highest position
2 Set desired Temperature
F
3 Press the Front Defrost button A
Defog Inside Windshield:
1 Set Fan Speed
A to desired position
2 Set desired Temperature
F
3 Press the Front Defrost button B
Your Manual Climate Control system may differ from those in the illustrations. Refer to section 4 in the Owner’s Manual for more information.
Face-Level
Bi-Level
F lo o r- L evel
Floor/Defrost-Level
A
LMNO
BF
G
C
HI
JK
ED
CENTER PANEL
Page 33 of 58
31ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED
Audio Head Unit:
Press the SETUP key then the DATE / TIME button to
display the Time and Date setting screen Then use the
on-screen buttons to adjust time and date
• Press the RETURN button on the navigation screen to
ensure changes are saved
• When needed, Daylight Savings must be enabled in the
Settings screen
• To access manual date and time setting, turn GPS time
OFF in the Clock Settings (UVO eServices with Premium
Navigation System*)
QUICK TIPS
Aux/Multimedia USB Port, Power Outlets,
USB Charger Ports & AC Inverter
AUX/Multimedia USB Port A – Use the AUX port to connect audio devices and the
Multimedia USB port to connect USB audio devices and smartphones
AC Inverter*
B – 115V/100 watt power inverters are located in the back of the center
console and in the luggage zone* (See page 8 for ON/OFF button information)
USB Charger Ports*
C are located in the center panel and in the back of the center console
Power outlets
D are located on the center panel, in front of the gear shift
The power outlets are inactive when the Engine Start /Stop* button is OFF QUICK TIP
REMINDERS:
• Using the power outlets (accessory plugs) and AC Inverter for prolonged periods of time with the ENGINE START/
STOP button in the ACC position (Engine OFF ) may cause the battery to discharge
• Use only the charging cables that your device manufacturer supplied Third party cables may cause damage to your
device
• The USB data port (Multimedia USB port) is located next to the Power Outlets The USB Charger ports do not support
data transfer
For more information, refer to the Car Multimedia System User’s Manual.
Digital Clock *
USB
AUX
12 V180W
(Located in the center console in front of gear shift) (Located in Luggage Zone* behind gear shift)
AB
CC
D
For more information, refer to the Car Multimedia System User’s Manual.
CENTER PANEL
Page 34 of 58
SEDONA FEATURES & FUNCTIONS GUIDE32*IF EQUIPPED
REMINDERS:
•
Avoid placing other metal items in the bin while charging as to not impede
the charging area
•
This vehicle is equipped with wireless charging technology which
allows for a device to be charged using inductive charging; however,
device compatibility varies See your Owner’s Manual for more detailed
information and the back page for legal disclaimers
•
Inductive charging systems are less ef ficient than conventional charging
through cable As a result, higher device operating temperatures may be
experienced during use
•
Charging Performance – Device position on the wireless charging system
can affect charging performance Other factors that may affect the
charging rate includes foreign objects, such as coins or pens, and phone
case thickness
•If the driver door is opened, charging will be disabled
Wireless Charging Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website
Refer to page 2 for more
information QR CODEWireless Smartphone Charging System *
1 Enable Wireless Smartphone Charging System in the User Settings Mode on the Instrument Cluster’s LCD
2 Place a compatible smartphone on the center of the charging pad
A
3 The indicator light B may change to amber once the wireless charging begins
4 Once charging is complete, the amber light may change to green
AUX
USB
Requires QI enabled device or QI enabled case
• The smartphone must be a compatible phone with QI function
available
• Wireless charging must be enabled in user settings
• If wireless charging does not work, move the smartphone
around the pad until the charging indicator turns amber Avoid
placing other metal items in the bin while charging as to not
impede the charging area
•
For wireless charging to occur, all doors (excluding rear hatch)
must be closed & the Smart Key Fob must be detected inside
the vehicleQUICK TIPS
www.youtube.com/KiaFeatureVideos
A
B
Refer to section 4 in the Owner’s Manual for more information.
CENTER PANEL
Page 35 of 58
33ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED
REMINDERS:
•
To reduce the risk of an accident, do not
activate Auto Hold while driving downhill,
backing up or parking your vehicle
•
Do not solely rely on the Auto Hold system
to keep the vehicle stopped Always pay
attention to traf fic and road conditions, and
be prepared to depress the brakes
•Auto Hold turns off when ignition is cycled
Electronic Parking Brake (EPB) *
The Electronic Parking Brake (EPB) system utilizes an electric motor to
engage the parking brake
Applying the Parking Brake
Depress the brake pedal and pull up the EPB switch
A Ensure that the
indicator light is illuminated on the instrument cluster
Releasing the Parking Brake
The EPB will automatically release when the shifter is placed in Reverse
or Drive
To release EPB manually, depress the brake pedal and then press the
EPB switch
A with the ignition switch in the ON position Ensure that
the indicator light
i s O F F
REMINDERS:
•
As a bulb check, the EPB malfunction indicator will illuminate for approximately
3 seconds when the ignition switch is turned ON
•
If the warning light does not illuminate temporarily, or continues to remain lit, take your
vehicle to an authorized Kia dealer and have the system checked
•The EPB should not be operated while the vehicle is moving
•
A click or electric brake motor sound may be heard while operating or releasing the EPB,
but these conditions are normal and indicate that the EPB is functioning properly
P
R
N D
+
_
DRIVE
MODE
AUTO
HOLD
Auto Hold *
Auto Hold temporarily maintains the vehicle at
a standstill even if the brake pedal is released
Auto Hold can be turned ON/OFF using the
AUTO HOLD switch
B on the center panel
Before Auto Hold will operate, the driver’s door,
engine hood and trunk must be closed, and the
driver’s seat belt must be fastened
The Auto Hold indicator has four states:
White: Standby - With vehicle in Park and at
a standstill, and AUTO HOLD switch
B turned
ON, the indicator will illuminate white While
driving the vehicle (vehicle is not at a standstill),
the Auto Hold indicator will remain white
Green: Engaged - When coming to a complete
stop and depressing the brake pedal, the Auto
Hold indicator changes from white to green
OFF (not illuminated) - The indicator will turn
OFF when the AUTO HOLD switch
B is turned OFF or when the EPB is
manually turned ON
Yellow: Malfunction - When the indicator is illuminated yellow, there may
be a system malfunction Take your vehicle to a local Kia dealer
•When leaving your keys with parking lot attendants or valet, make sure to
inform them how to operate the EPB
•If parked on a steep incline/decline, pull up the EPB switch for more than 3
seconds for a firmer EPB application
•Pull up and hold the EPB switch a second time to increase brake pressure if
parked on a decline or incline
QUICK TIPS
Electric Parking Brake
Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website
Refer to page 2 for more
information QR CODE
www.youtube.com/KiaFeatureVideos
A
B
Refer to section 5 in the Owner’s Manual for more information.
Refer to section 5 in the Owner’s Manual for more information.
CENTER PANEL
Page 36 of 58
SEDONA FEATURES & FUNCTIONS GUIDE34*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Automatic Gear Shift with Sportmatic®*†2 2 Shifting
P: Park
R: Reverse
N: Neutral
D: Drive
[+]: Manual Mode Upshift
[–]: Manual Mode Downshift
Manual Mode: To enter Manual mode, move shift lever from D to left gate
A
To shift while in Manual mode, move shift lever up [+] to upshift or down [–] to
downshift
A
P
R
N D
DRIVE
MODE
AUTO
HOLD
+ _
•Press brake pedal and depress release button to move the
gearshift from N to P, N to R or from P to any gear
•Manual mode downshifts are made automatically when the
vehicle slows down When the vehicle stops, 1st gear is
automatically selected
QUICK TIPS
Sportmatic
® Shifting Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website
Refer to page 2 for more
information
QR CODE
www.youtube.com/KiaFeatureVideos
A
Refer to section 5 in the Owner’s Manual for more information.
CENTER PANEL
Page 37 of 58
35ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Seat Warmers / Ventilated Seats *†19
Seat Warmers button B - Press the button once for high setting
(3 LEDs lit) Press the button twice for medium setting (2 LEDs lit)
Press the button a third time for low setting (1 LED lit) and again to
turn OFF Hold the button to turn off Seat Warmer
P
R
N D
+
_
(Buttons located below Gear Shift)
Heated and Ventilated
Seats Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website
Refer to page 2 for more
information QR CODE
www.youtube.com/KiaFeatureVideos
P
R
N D
+
_
P
R
N D
+
_
(Buttons located below Gear Shift)
(Type A shown)
(Buttons located below Gear Shift)
(Type A shown)
Warming ( Yellow LED)
Warming
( Yellow LED)
Ventilating (Blue LED)
•If the ignition is turned OFF and then ON again
within 30 minutes of the Steering Wheel Heater
being turned ON, the system will remain in the
ON position
•The system does NOT turn off when the
ignition is cycled To turn off the system, press
the Heated Steering Wheel button
QUICK TIPS
Heated Steering Wheel *
Press the Heated Steering Wheel button A
to turn the Steering Wheel Heater on/off while
the ENGINE START/STOP button is in the ON
position The Steering Wheel Heater will turn
off automatically in 30 minutes, or when the
button is pressed again to deactivate
•With the Seat Warmer
switch in the ON position,
the heating system in
the seat turns OFF or ON
automatically depending
on the seat temperature
•System is OFF by default
To turn the system ON,
press the button to
turn ON
QUICK TIPS
REMINDER: If the steering wheel becomes too warm,
turn the system off The heated steering wheel may cause
burns even at low temperatures, especially if used for long
periods of time REMINDER:
Use extreme caution when using the
seat warmers to avoid burns Refer to the Owner’s
Manual for more information These illustrations are for
demonstration purposes
only. Actual features on
vehicle may vary.
Seat Warmers / Ventilated Seats* button C - Press top/
bottom of the button once for high setting (3 LEDs lit) Press the
button twice for medium setting (2 LEDs lit) Press a third time
for low setting (1 LED lit) and again to turn OFF Hold the button
to turn off the Seat Warmers / Ventilated Seats
A
B
B
C
C
Refer to section 4 in the Owner’s Manual for more information. Refer to section 4 in the Owner’s Manual for more information.
CENTER PANEL
Page 38 of 58
SEDONA FEATURES & FUNCTIONS GUIDE36*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
These illustrations are for demonstration purposes only. Actual features on vehicle
may vary. These illustrations are for demonstration purposes only. Actual
features on vehicle may vary.
Front Seat Headrest Adjustment†1 0
To raise headrest: Pull headrest up
To lower headrest: Press lock
A and then press the headrest down
Driver Position Memory System *
The integrated system stores into memory the position of the Driver’s Seat and
the Outside Rearview Mirrors
To store positions into memory, first place the Gear Shift into P (Park) while the
Engine Start /Stop button* is in the ON position Then:
1 Adjust the Driver’s Seat and the Outside Rearview Mirrors
2 Press the SET button
B on the control panel System will beep once
3 Press one of the memory buttons
C within 5 seconds The system will beep
twice when memory has been stored
Easy Access Function*
• The system will automatically move the driver's seat forward when the
ignition or the Engine Start /Stop button is pressed to ON or the ACC position
• The system will automatically move the driver's seat rearward when
the ignition or the Engine Start /Stop button is pressed to OFF
• To activate or deactivate the Easy Access Function, go to User
Settings in the LCD Instrument Cluster modes
(Buttons located on Driver's Door Panel)
REMINDER: Do not operate the vehicle with the headrests removed Headrests can
provide critical neck and head support in an accident
REMINDER: Do not attempt to operate the driver
position memory system while the vehicle is moving
This could result in loss of control of the vehicle
SEATING
For easy adjustments, hold a headrest post with one hand while using
the other hand to pull the headrest from underneath QUICK TIP
A
B
C
C
Refer to section 3 in the Owner’s Manual for more information.
Refer to section 3 in the Owner’s
Manual for more information.
Page 39 of 58
37ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
When adjusting the seat forward or backward, ensure the seat clicks or
locks into place before driving the vehicle QUICK TIP

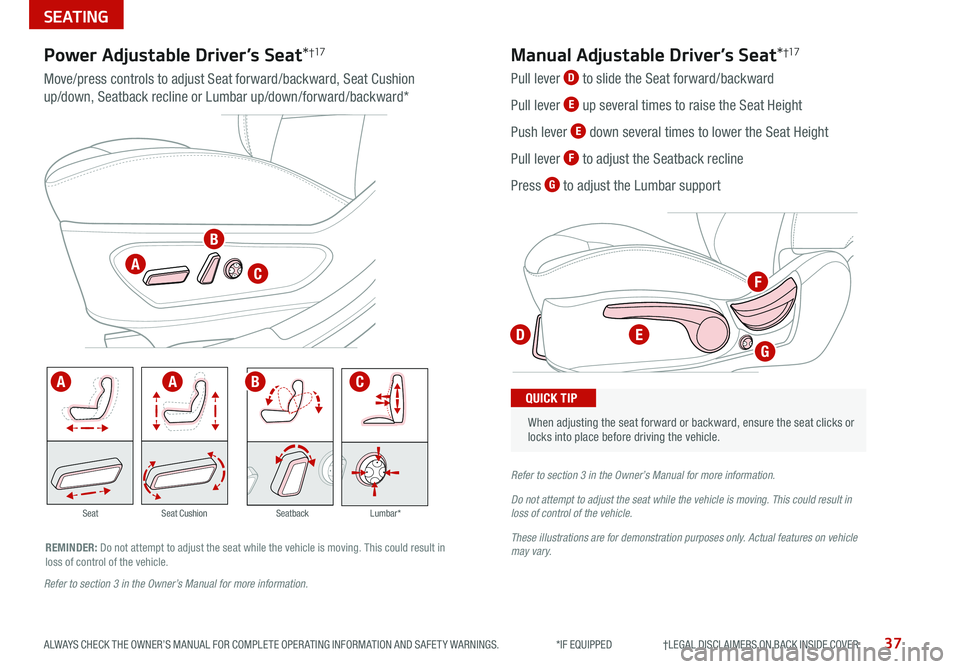

Manual Adjustable Driver’s Seat*†17
Pull lever D to slide the Seat forward/backward
Pull lever
E up several times to raise the Seat Height
Push lever
E down several times to lower the Seat Height
Pull lever
F to adjust the Seatback recline
Press
G to adjust the Lumbar support
Power Adjustable Driver’s Seat *†17
Move/press controls to adjust Seat forward/backward, Seat Cushion
up/down, Seatback recline or Lumbar up/down/forward/backward*
Refer to section 3 in the Owner’s Manual for more information. REMINDER:
Do not attempt to adjust the seat while the vehicle is moving This could result in
loss of control of the vehicle Refer to section 3 in the Owner’s Manual for more information.
Do not attempt to adjust the seat while the vehicle is moving. This could result in
loss of control of the vehicle.
These illustrations are for demonstration purposes only. Actual features on vehicle
may vary.
A
B
F
G
C
ED
Seatback Lumbar*
Seat Seat Cushion
AABC
SEATING
Page 40 of 58
SEATING
SEDONA FEATURES & FUNCTIONS GUIDE38*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
•For specific information on how to use the 2nd- and 3rd-
Row Center Seat Belts, please refer to your Owner's Manual
QUICK TIP
Sedona 2nd and 3rd Row
Seats Video
To view a video on your
mobile device, snap this
QR Code or visit the listed
website
Refer to page 2 for more
information QR CODE
www.youtube.com/KiaFeatureVideos
REMINDER: The lever must return to its original position for the
Seatback to lock
2nd-Row Seat†17
Folding 2nd-Row Seat
1 Lower the 2nd-Row Seat Headrest to the lowest
position
2 Pull up on the Seatback folding lever
A or strap*
and fold the Seatback down
Unfolding 2nd-Row Seat
1 Lift the folding Seatback lever
A and move the
Seatback backward
2 Then lift the lever
A again or return Seatback
to an
upright usable position
•When you return the
Seatback to its original
position, ensure it locks
(clicks) into place
•It may be necessary
to slide the front Seat
forward and adjust the
front Seatbacks to fully
lower the rear seats
•Lower Rear Headrests
to the lowest position
QUICK TIPS
These illustrations are for demonstration purposes only. Actual features
on vehicle may vary. Refer to section 3 in the Owner’s Manual for more
information.
2nd-Row Walk-In Seat *†17
To get in and out of the 3rd-Row Seat, adjust the 2nd-Row Walk-
In Seat as follows:
1 Lift the 2nd-Row Seat armrest
2 Adjust the headrest to the lowest position
3 Accessing from outside of the vehicle: Pull up the Walk-In
Lever
A – the seat will stand up and the headrest will fold
automatically C
4 Accessing from the 3rd-Row seat: Pull the release strap
B –
the seat will stand up and the headrest will fold automatically C
5 Return the 2nd-Row Seat to its original position and push until
it locks (clicks) into place and the headrest unfolds
Walk-In Seat Adjustment*
To adjust the 2nd Row Walk-In Seat, press button
D for desired
seatback angle, forward/backward
Press button
E to adjust seat cushion forward/backward
REMINDER: Do not use the button while front passenger seat is occupied Refer to section 3 in the Owner’s
Manual for more information.
(Buttons located on the side of the
passenger’s seatback)
A
A
B
C
E
D
