KIA SEDONA 2021 Features and Functions Guide

SEATING
39ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Unfastening Center
Seat Belt
1 If the Seat Belt is buckled, press
the release button on the buckle
To retract the center seatbelt webbing
G in the 2nd and/or 3rd
rows, use the lap belt tongue
plate
H to push the “release
button” in the small slot on the
center belt buckle
J


Unfastening Center
Seat Belt Video

To view a video on your
mobile device, snap this
QR Code or visit the listed
website Refer to page 2 for
more information QR CODE
www.youtube.com/KiaFeatureVideos
These illustrations are for
demonstration purposes only.
Actual features on vehicle may vary.
Refer to section 3 in the Owner’s
Manual for more information.
Refer to section 3 in the
Owner’s Manual for more
information.

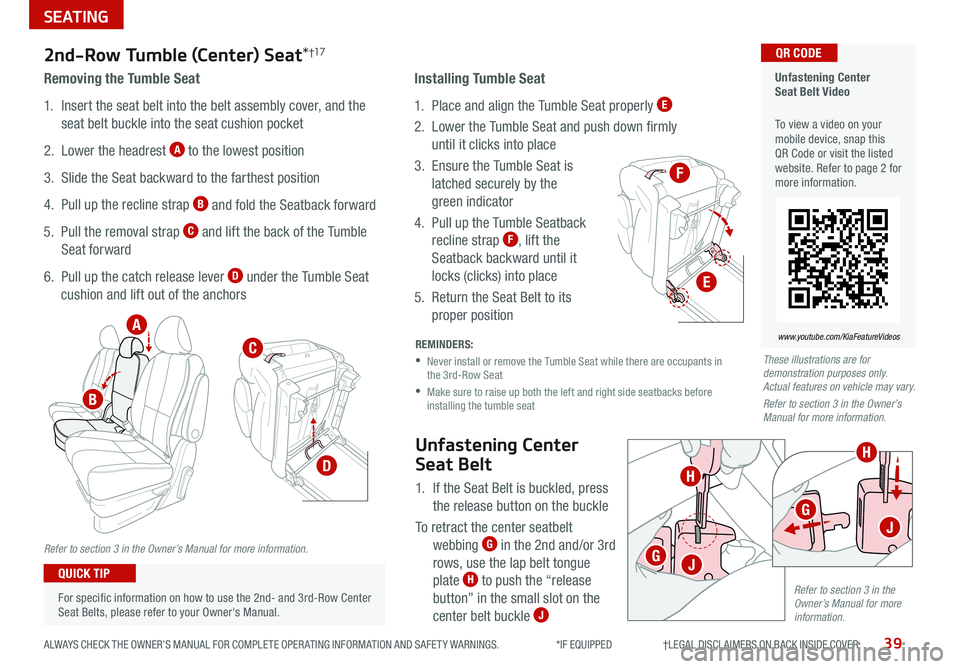

2nd-Row Tumble (Center) Seat *†17
Removing the Tumble Seat
1 Insert the seat belt into the belt assembly cover, and the
seat belt buckle into the seat cushion pocket
2 Lower the headrest
A to the lowest position
3 Slide the Seat backward to the farthest position
4 Pull up the recline strap
B and fold the Seatback forward
5
Pull the removal strap
C and lift the back of the Tumble
Seat forward
6
Pull up the catch release lever
D under the Tumble Seat
cushion and lift out of the anchors

For specific information on how to use the 2nd- and 3rd-Row Center
Seat Belts, please refer to your Owner's Manual QUICK TIP
Installing Tumble Seat
1 Place and align the Tumble Seat properly
E
2 Lower the Tumble Seat and push down firmly
until it clicks into place
3 Ensure the Tumble Seat is
latched securely by the
green indicator
4 Pull up the Tumble Seatback
recline strap
F, lift the
Seatback backward until it
locks (clicks) into place
5 Return the Seat Belt to its
proper position
REMINDERS:

•
Never install or remove the Tumble Seat while there are occupants in
the 3rd-Row Seat

•
Make sure to raise up both the left and right side seatbacks before
installing the tumble seat
Refer to section 3 in the Owner’s Manual for more information.
A
B
F
G
G
C
H
H
J
J
E
D

SEATING
SEDONA FEATURES & FUNCTIONS GUIDE40*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
3rd-Row Seat - Folding and Stowing *†17
Folding 3rd-Row Seat
1 Fully lower headrest
A
2 Pull Seat folding strap located in the back of the Seatback B
3 Fold Seat down C
Stowing 3rd-Row Seats*
The rear seats can be folded and stowed in the
luggage compartment for additional cargo space
1 Fully lower headrests
D
2 Pull release lever E and push Seat firmly in place
3 Press seat down firmly in stowing area
REMINDERS:
• The seat straps on the front and back of the 3rd-Row Seat are for
folding only
• Do not stow the seat while the Seatback is folded down as this
may cause damage to the mechanism
Refer to section 3 in the Owner’s Manual for more information.
These illustrations are for demonstration purposes only. Actual features on
vehicle may vary.


Sedona 2nd and 3rd Row
Seat Video

To view a video on your
mobile device, snap this
QR Code or visit the listed
website
Refer to page 2 for more
information QR CODE
www.youtube.com/KiaFeatureVideos

For specific information on how to use the 2nd- and 3rd-Row Center
Seat Belts, please refer to your Owner's Manual QUICK TIP
A
B
C
E
D

ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED41
OTHER KEY FEATURES
UnlockLock
(Type B shown)
(Type B shown)
REMINDERS:

•
The Manual Liftgate does not automatically open when the E button is pressed

•
The Liftgate unlocks when the Smart Key fob is within close proximity of the rear liftgate
Remote button configuration may vary depending on vehicle options.
Refer to section 4 in the Owner’s Manual for more information.
Refer to section 4 in the Owner’s Manual for more information.
Remote Keyless Entry (Folding Key) *
A Press the release button to unfold the key
B Press to lock All Doors
C Press to unlock Driver’s Door: Press twice in 4 seconds to unlock All Doors and
Liftgate, and manually open
D
Press and hold left /right button to automatically open/close the Power Sliding Doors*
E Manual Liftgate*: Press and hold for more than 1 second to unlock the Liftgate and
manually open
E Power Liftgate*: Press and hold for more than 1 second for the Power Liftgate to
automatically open/close
F Press and hold more than a half second for the Panic Alarm To turn OFF the Alarm,
press any button
Double-Turn Lock/Unlock All

• Turn counterclockwise once to unlock the Driver’s Door

• Turn counterclockwise again within 4 seconds to unlock All Doors

• Turn clockwise once to lock All Doors


Kia Key Fob
Video

To view a video on your
mobile device, snap this
QR Code or visit the listed
website
Refer to page 2 for more
information QR CODE
www.youtube.com/KiaFeatureVideos
A
B
F
C
E
DD

SEDONA FEATURES & FUNCTIONS GUIDE42
OTHER KEY FEATURES
*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Smart Key *†9
A Press to lock All Doors
B
Press to unlock the Driver’s Door Press twice within 4 seconds to unlock All Doors
C Power Sliding Doors:
Option 1 - Press and hold the left /right button to automatically open/close the Power Sliding Doors*
Option 2 - With the Smart Key fob on your person, pull the Power Sliding Door handle once and
the door will open/close automatically
D Manual Liftgate*: Press and hold for more than 1 second to unlock the Liftgate
Then lift by the handle to manually open the Liftgate
REMINDERS:
•
The Liftgate does not automatically open when the D button is pressed

•
The Liftgate unlocks when the Smart Key fob is within close proximity of the vehicle
Power Liftgate*: Press and hold for the Power Liftgate to open automatically
Press again at any time to stop Press again to automatically close
Smart Power Liftgate*: When enabled, the liftgate will open automatically as you approach the
rear of the vehicle with the Smart Key fob with you (For more details, see page 44)
E Press and hold for more than a half second for the Panic Alarm To turn off the Alarm, press any button
Driver’s Door Lock/Unlock button
G:

• Press the button once to unlock the Driver’s Door

• Press again within 4 seconds to unlock All Doors

•
Press again to lock All Doors
Mechanical Key
F:

• Press the button on the back of the key fob to release the Mechanical Key

• Use to unlock the Driver’s Door

• Use to enable/disable the Child-Protector Rear Door Lock

• Use to lock the glove box
REMINDER: When reinserting the mechanical key, make sure it is pushed all the way in until there is a cl ick sound Refer to section 4 in the Owner’s
Manual for more information.
(Type B shown)
• The Smart Key’s signal can be
blocked by the normal operation of
a cellular phone or smartphone To
help prevent this, store each device
separately
• If the Smart Key battery is weak
or not working properly, hold the
Smart Key fob up to the Engine
Start /Stop button (Lock button side
closest) and press to start engine
QUICK TIPS
Remote button configuration may
vary depending on vehicle options.


To view these videos on
your mobile device, snap
these QR Codes or visit the
listed website
Refer to page 2 for more
information
Engine Start/Stop Button
& Smart Key Video
Kia Key Fob
Video
QR CODES
www.youtube.com/KiaFeatureVideos
A
B
F
G
CC
ED

43
OTHER KEY FEATURES
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Refer to section 4 in the Owner’s Manual for more information.
Refer to section 4 in the Owner’s Manual for more information.
(Lamp controls located in the overhead consoles) Type A shown
Rear
Front
AA
BC
DD
Map/Room Lamps
Automatic turn off function*
The interior lights automatically turn off approximately 30 seconds after
the Engine Start /Stop button is OFF
Map/Room Lamp Operation
Press the lens
A to turn the Map Lamp ON/OFF This light produces a
spot beam for convenient use as a map lamp or as a personal lamp for
the driver or the front passenger
When the
button B is pressed, the following occurs:

• When any door or the liftgate is opened, the Map and Room Lamps turn ON

• When doors are unlocked from the Smart Key or key removed from
ignition, the Map and Room Lamps turn ON for approximately 30
seconds or until a door is opened

• When doors are closed, the lamps will gradually turn OFF after
approximately 30 seconds

• When all doors are locked or the ignition is turned ON, the Map Lamp
will turn OFF immediately
When the
button C is pressed, the lamps stay ON continuously
Room Lamp – Press the lens
D to turn the Room Lamp ON/OFF


•When the doors are unlocked by the Smart Key*, the lamp turns ON for
approximately 30 seconds

•If your vehicle is equipped with the theft alarm system, the interior lights
automatically turn off approximately 3 seconds after the system is in the
armed stage

•Using interior lights for an extended period of time may cause battery discharge
QUICK TIPS
Sunvisor†24
Use the Sunvisor to shield direct light through the front or side windows
Slide the Sunvisor out and adjust as needed
REMINDERS:

•The Sunvisor may not shield all direct light

•The Sunvisor may impair visibility if not adjusted properly

•
Be aware of the seating position when adjusting or swinging Sunvisor around to
or from the front or side windows

•Do not operate the vehicle if the Sunvisor is impairing your visibility
REMINDER: When the Room Lamp lens is pressed ON it will remain ON, even when the Map
Lamp switch is in the OFF position

SEDONA FEATURES & FUNCTIONS GUIDE44*IF EQUIPPED
(Front overhead console for
Front Sunroof controls)
(Front overhead console for Rear Sunroof controls)
Sunroof Operation *
The Sunroof and Sunshade operation is controlled through a multidirectional switch/
lever The ignition needs to be in the ON position to operate the Sunroof/Sunshade
The front and rear Sunroof/Sunshade are operated from separate controls
Front Sunshade and Sunroof Controls:
• Auto Open: Slide lever
A backward to the farthest position and release

• Auto Close (Sunroof only): Slide the lever
A forward to the farthest position
and release
Slide the Sunroof (with Sunshade open):
• Open: Press the Sunroof lever
A backward and press again forward/backward
until you reach the desired detent position (manual slide feature)

• Close: Press the Sunroof lever
A forward and press again forward/backward until
you reach the desired detent position (manual slide feature)
Tilt the Sunroof:
• To raise, push the lever
A upward; to lower, push the lever A forward
REMINDER: The Front Sunroof will automatically open all the way The Rear Sunroof will only
partially open To open all the way, slide the Rear Sunroof lever again
Rear Sunshade and Sunroof Controls:

• Auto Open: Slide lever
B backward to the farthest position and release

• Auto Close (Sunroof only): Slide the lever
B forward to the farthest
position and release
Slide the Sunroof (with Sunshade open):
• Open: Press the Sunroof lever
B backward and press again forward/
backward until you reach the desired detent position (manual slide feature)

• Close: Press the Sunroof lever
B forward and press again forward/backward
until you reach the desired detent position (manual slide feature)
Tilt the Sunroof:
• To raise, push the lever
B upward; to lower, push the lever B forward


To stop the Sunroof/Sunshade at any position, push or
pull the Sunroof control lever in any direction QUICK TIP


Sunroof Operation
Video

To view a video on your
mobile device, snap this
QR Code or visit the listed
website
Refer to page 2 for more
information QR CODE
www.youtube.com/KiaFeatureVideos
REMINDERS:

•
When the Power Window Lock is depressed, the Rear Sunroof
controls cannot operate the Rear Sunroof

•
The Sunshade needs to remain OPEN while the Sunroof is open
and the vehicle is moving

•
Do not adjust the Sunroof or Sunshade while driving This could
result in loss of control of the vehicle
A
B
Refer to section 4 in the Owner’s Manual for more information.
OTHER KEY FEATURES

45ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
(Navigation screen display shown)
P
R
N
DSHIFTL OCK
RELEASE
Parking Distance Warning–Forward*
and Reverse *†6
The Parking Distance Warning–Forward* and Reverse* is a supplemental
system that is designed to assist the driver by chiming if any object is
detected within the sensing area to the front, rear and side of the vehicle
when moving forward or backing up
To activate, press button
A (LED
illuminated) The system is also activated
when the ignition is ON and the gear shift
is moved into R (Reverse) To deactivate the
system, press the Parking Distance Warning
–Forward* and Reverse* button
A (LED not
illuminated)
REMINDERS:

•
If the vehicle is moving at speeds over 3 mph, the system may not activate correctly

•
When more than two objects are sensed at the same time, the closest one will be
recognized first
The Parking Distance Warning– Forward* and Reverse* is not a substitute for proper and safe
backing-up procedures. Always drive safely and use caution when backing up. The Parking Distance
Warning– Forward* and Reverse* may not detect every object in front of or behind the vehicle.
These illustrations are for demonstration purposes only. Actual features on vehicle may vary.
Refer to section 4 in the Owner’s Manual for more information.
P
R
N D
ECO
+ _
(Button located below Gear shift)
Rear View Monitor†6
The Rear View Monitor system is a supplemental system that displays the
view behind the vehicle through the audio control head unit screens while
the vehicle is in Reverse
The Rear View Monitor activates when the:
• Ignition or the Engine Start /Stop button* is in the ON position
(Green Light)

• Gear Shift Lever is in the R (Reverse) position
REMINDERS:

•The Rear View Monitor is ON by default when the ignition is cycled

•
The screen image above is for illustration purposes only The actual image or graphics may
differ in your vehicle

The Rear View Monitor is not a substitute for proper and safe backing-up procedures. The Rear
View Monitor may not display every object behind the vehicle. Always drive safely and use
caution when backing up.
Refer to section 4 in the Owner’s Manual for more information.
A
OTHER KEY FEATURES

SEDONA FEATURES & FUNCTIONS GUIDE46*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
(Button located on
inside edge of liftgate)
(Buttons located on overhead console)
Opening from Outside the Vehicle:
To open the Smart Power Liftgate* automatically, press
the Liftgate Release button
F on the exterior of the
Liftgate
Automatically close by pressing the Smart Power Liftgate
Close button*
G
Smart Power Liftgate Height Adjustment:
For your convenience, the liftgate opening height
is adjustable To program the opening height,
perform the following:
1 Open the liftgate and manually position liftgate to
your preferred opening height
2 Depress and hold the close button on the liftgate
for 3 seconds or more
3 The system will beep 3 times when the programming is complete
Smart Power Liftgate *†21
Opening from Inside the Vehicle:
Press the Smart Power Liftgate Open/Close button*
D to automatically
open/close the Liftgate Depress the POWER DOOR OFF button* E
to disable
REMINDER: If POWER DOOR OFF button is
pressed, the Smart Power Liftgate button on
the Smart Key will be disabled
(Buttons located in overhead controls)
(Buttons located on center pillars)
Power Sliding Doors *
Using the overhead controls, press the left /right Power Sliding
Door button A on the overhead controls, on the Center Pillars B
or on the key fob C to automatically open/close the sliding doors
REMINDER: If the POWER DOOR OFF button is depressed, the Smart Power
Liftgate* will not operate
Power Door OFF Button - When button D is ON (not depressed),
the power sliding door and power liftgate can be controlled with
the buttons on the center pillar trim
B or liftgate Also, the doors
will open/close automatically when pulling the handles from the
inside or outside
Refer to section 4 in the Owner’s Manual for more information.
(Type B shown)
AA
B
F
G
CC
ED
D
Refer to section 4 in the Owner’s Manual for more information.
OTHER KEY FEATURES

47ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Smart Power Liftgate *†21 (continued)
HOLDHOLD
HOLD


To view a video on your
mobile device, snap this
QR Code or visit the listed
website
Refer to page 2 for more
information
Smart Power Liftgate
Video
Power Liftgate Opening
Height Adjustment VideoQR CODE
www.youtube.com/KiaFeatureVideos
• During the Smart Power Liftgate alert, the Smart Power Liftgate can be
deactivated with the Smart Key by pressing any button on the key fob
• The open height can be adjusted For information on how to set the open
height, see page 43 or your Owner’s Manual
QUICK TIP
REMINDERS:

•All doors are closed and locked after about 15 seconds

•If the POWER DOOR OFF button is depressed, the Smart Power Liftgate will not operate

•
The Smart Power Liftgate feature will not operate when the doors are recently closed and
locked, and the Smart Key is still detected after 15 seconds near the vehicle or within 60
inches of the door handles, a door is not locked or closed or the Smart Key is in the vehicle

•
Press any button on the Smart Key fob during the Detect and Alert stage to deactivate the
Smart Power Liftgate function

•Ensure obstacles and people are out of the way of the Liftgate
Smart Key:
To open the Smart Power Liftgate*, press and hold the Smart key Liftgate
button
A until the Liftgate begins opening Press again to close
REMINDER: Pulling the Liftgate upward by the handle or pressing the button a second time
will interrupt the automatic opening of the Smart Power Liftgate
Smart Power Liftgate*
When the Smart Key fob is on your person and you are near the back of
the vehicle, within close proximity, the hazard lights will blink and a chime
will sound for about 3 seconds as an alert that the Smart Power Liftgate*
is about to open
Then the alert system will blink and chime two additional times before
opening the Smart Power Liftgate*
B
The Smart Power Liftgate* feature is OFF by default To enable the Smart
Power Liftgate*, go to User Settings in the LCD Instrument Cluster modes
Refer to section 4 in the Owner’s Manual for more information.
A
B
OTHER KEY FEATURES

SEDONA FEATURES & FUNCTIONS GUIDE48*IF EQUIPPED
Refer to section 4 in the
Owner’s Manual for more
information.
Refer to section 4 in the Owner’s Manual for
more information.
OTHER KEY FEATURES


One-Click Fuel Cap Video

To view a video on your
mobile device, snap this
QR Code or visit the listed
website
Refer to page 2 for more
information QR CODE
www.youtube.com/KiaFeatureVideos
(Lever located near floor below
Driver's Panel) (Secondary latch located inside lip of Hood)
(Located on the front edge
of the rear passenger doors)
Closing the Hood:
Lower the Hood by pressing the front center of the Hood Then, press
down to securely lock in place
REMINDERS:
• While lowering and closing, keep hands away from under the Hood
• Open the Hood only after turning the engine off, on a flat surface, with the gear shift in
P (Park) position and setting the parking brake
Refer to section 4 in the Owner’s Manual for more information.
Hood Release Lever and Latch
Opening the Hood:
1 Pull the Hood Release Lever
A to unlatch the Hood
2 In the front of the vehicle, lift the Hood slightly, push the secondary
Latch
B to the left inside of the Hood’s center and lift the Hood
3 Pull out the support rod from the Hood and set into place to hold
the Hood open
REMINDER: Open the Hood only after turning the engine off, on a flat surface, with the
gear shift in P (Park) position and setting the parking brake
Fuel Cap / Malfunction
Indicator (Check Engine Light)
Tighten for ONE CLICK to prevent the
Malfunction Indicator
from illuminating
REMINDERS:
• The Fuel Filler Door Release button is located on the
driver’s button panel, left of the Steering Wheel
• It is normal operation when tightening to hear one click
and then when Fuel Cap is released, it clicks back
Child-Protector Rear
Door Lock
Located on the front edge of the rear
passenger doors, move the Child-
protector rear door lock to the lock
position
to disable the inner door
handles from opening the rear
passenger doors
B
A
