KIA SEDONA 2021 Features and Functions Guide

49ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
OTHER KEY FEATURES
Driver Attention Warning (DAW) *†7
The DAW system is designed to detect certain inattentive driving practices and, in certain situations, can give a
warning signal to the driver to take a break from driving
The DAW system is set to OFF by default To turn the DAW System ON, turn the ignition on and then select User
Settings in the LCD Display on the Instrument Cluster Then go to Driving Assist and select Driver Attention Warning
Set the DAW System to Normal or Early
Driver Attention Warning (DAW) System modes:
OFF: The Driver Attention Warning system is deactivated
A
Normal: The Driver Attention Warning system alerts the driver of inattentive driving practices
High Sensitivity*/ Early*: The Driver Attention Warning system alerts the driver of inattentive driving practices faster
than Normal mode
If the DAW System is activated, the DAW information will appear on the LCD Display
B when you select the ASSIST
mode

A message, “Consider taking a break,” appears on the LCD display and a warning sounds to suggest the driver to take
a break when the driver’s attention level is below 1
C
REMINDERS:

•The setup of the DAW system will be maintained, as selected, when the ignition is cycled

•
When activated, the DAW system does not display the “Consider taking a break” message when the total trip
driving time is less than 10 minutes

•
The DAW system will enter a standby mode if the camera does not detect the lanes and/or the driving speed
remains under 40 mph
These illustrations are for demonstration purposes only. Actual features on vehicle may vary.
Refer to section 5 in the Owner’s Manual for more information.
Attention Alert System Off
Level Time ——:——Attention Level
LOW HIGH
Level Time 05:27 Attention Level
LOW
HIGH
Level Time 05:27
Consider taking a break
22.4
°C4025km
Attention Alert System Off
Level Time ——:——Attention Level
LOW HIGH
Level Time 05:27
Attention Level
LOWHIGH
Level Time 05:27
Consider taking a break
22.4
°C4025km
Attention Alert System Off
Level Time ——:—— Attention Level
LOW
HIGH
Level Time 05:27
Attention Level
LOWHIGH
Level Time 05:27
Consider taking a break
22.4 °C4025km
ABC

SEDONA FEATURES & FUNCTIONS GUIDE50*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
HomeLink® with Auto-Dimming Rearview Mirror *†12
A HomeLink® button
B HomeLink® button
C Indicator light
D HomeLink® button
E Glare detection sensor
F Automatic dimming ON
G Automati c dimming OFF
HomeLink
® with Auto-Dimming Rearview Mirror* is designed
to reduce glare from a vehicle’s headlights located in the rear
and also to connect up to three electronic transmitters into
one location

•
To turn automatic dimming ON, press
button F

•
To turn automatic dimming OFF, press
button G
REMINDER: Mirror indicator light C will illuminate when automatic dimming
is ON

•

•You can reprogram a single HomeLink® button by repeating
Step 2

•Erasing programmed buttons will delete all trained transmitters
QUICK TIPS
How to Sync Transmitter with HomeLink®*
If programming for the first time, begin with Step 1
(repeating this step will delete all information)
To program non-rolling and rolling code garage door
openers and other devices:
1 Press and hold the left
A and center E buttons
simultaneously until the indicator light C begins to
flash (to reprogram buttons, skip this step)
2 Press and hold the desired button
A, B or D
and hold the button on the transmitter while it is
approximately 1 to 3 inches away from the mirror The
HomeLink
® Indicator light C will flash rapidly once the
frequency signal has been successfully programmed
To finish programming rolling code garage door openers,
complete these steps:
3 Locate the “learn” or “smart” button on the garage door’s motor head unit Press and
release the button and complete Step 4 within 30 seconds
4 Firmly press and release the programmed HomeLink
® button up to three times
Operating HomeLink
®:
Press one of the programmed HomeLink
® buttons
Erasing programmed buttons:
Press and hold the left
A and center D buttons simultaneously for approximately
20 seconds, and then release both buttons within 30 seconds
If your garage door opener was manufactured in 2011 or later, and you’re unable to program your vehicle’s
HomeLink® system, you may need to purchase a HomeLink® Repeater Kit. For more information, go to
www.HomeLink.com or call (800) 355-3515, or refer to section 4 in the Owner’s Manual.


HomeLink Video

To view a video on your
mobile device, snap this
QR Code or visit the listed
website
Refer to page 2 for more
information QR CODE
www.youtube.com/KiaFeatureVideos
OTHER KEY FEATURES
ABFGCED

51ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
AUTO
AUTO
FRONT
CLIMA
TE
Cluster ionizer
A/C REAR
LOCK REAR
ON
OFF
MODE REAR
LOCK SYNC
MODE OFF
REA R
FRON TREA R
PU SH
SY NCPU SH
AU TO
PRESS
(Type B shown)


The seat belt warning chime
operates for driver’s seat
only QUICK TIP
Occupant Detection System (ODS)†15 /
Passenger Airbag Off Indicator†2
ODS is designed to detect the presence and position of the
front passenger and adjusts or turns off airbag deployment
accordingly
Depending on the situation and type of accident, the
system may:

• Deploy airbag (Adult)

• Not deploy the airbag (Unoccupied)
If the system determines
that the airbag should
not be deployed, the
“PASSENGER AIRBAG OFF”
light will illuminate
Seat Belts†1 8
To properly fasten your seat belts:
1
Insert the belt tongue plate
A into the buckle B until it clicks
2
Position the lap portion of the belt across your lap as LOW ON THE HIPS as possible
C
Adjust the belt to a SNUG FIT by pulling up on the shoulder portion D
Seat Belt Retractor Locks†18
Retractor locks allow lap/shoulder seat belts to remain unlocked during normal vehicle
operation for freedom of movement and increased comfort
During a STRONG STOP, SUDDEN TURN OR CERTAIN COLLISIONS, seat belt retractors will
automatically lock the belts to reduce the risk of injury
Refer to section 3 in the Owner’s Manual for more information.
Refer to section 3 in the Owner’s
Manual for more information.
SAFETY FEATURES
A
B
C
D

SEDONA FEATURES & FUNCTIONS GUIDE52

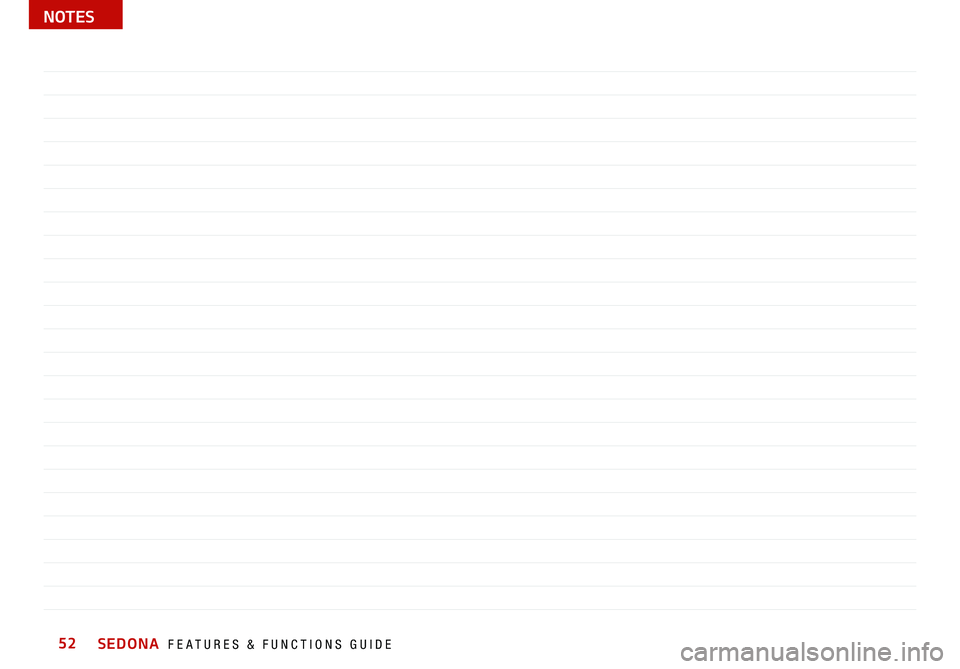

NOTES

LEGAL DISCLAIMERSSales Consultant: ______________________________________________________________ Date: ____________________
Sales Manager: ________________________________________________________________ Date: ____________________
Customer: _____________________________________________________________________ Date: ____________________
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while dri\
ving.
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and any handheld
devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
Safety Features: No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive safely.
1. UVO eServices: Purchase of certain new Kia vehicles includes complimentary access to UVO eServices (length of access period varies by vehicle model, trim and model year) starting from new vehicle retail sale/lease date as recorded by the
dealer. After your complimentary term of UVO eServices expires, your access to UVO eServices may immediately terminate. Use of UVO eServices is subject to agreement to the UVO Privacy Policy (available at https://owners.kia.com/us/en/
privacy-policy.html.html ) and Terms of Service (available at https://owners.kia.com/us/en/terms-of-service.html.html ). UVO eServices transferrable to subsequent owner during the original UVO eServices service term. Only use UVO eServices
when safe to do so. UVO eServices App is available from the App Store
® or Google Play™ Store. Kia Motors America, Inc. reserves the right to change or discontinue UVO eServices at any time without prior notification or incurring any future
obligation. Message and data rates may apply. Cellular and GPS coverage is required to use most features. UVO eServices features may vary by make, model year and trim level. Features and specifications are subject to change. For more on
details and limitations, visit https://owners.kia.com or your authorized Kia dealer. Google and logos are trademarks of Google, Inc. App Store is a service mark of Apple, Inc.
2. Airbags: For maximum protection, always wear your seat belt.
3. Android Auto
™: Android Auto is a trademark of Google, Inc. Android™ is a registered trademark of Google, Inc.
Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes
your focus away from safe vehicle operation.
4. Apple CarPlay
®: Apple® and Apple CarPlay® are trademarks of Apple, Inc., registered in the U.S. and other countries.
Apple CarPlay® runs on your smartphone cellular data service. Normal data rates will apply.
5. Bluetooth® Wireless Technology: The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG Inc., and any use of such marks by Kia is pursuant to license. A Bluetooth® enabled cell phone is
required to use Bluetooth® wireless technology.
6. Driver Assist Features - Blind-Spot Collision Warning (BCW), Rear Cross-Traffic Collision Warning (RCCW),
Smart Cruise Control (SCC) with Stop & Go, Lane Departure Warning (LDW), Rear View Monitor, Parking
Distance Warning-Forward* and Reverse, Forward Collision-Avoidance Assist (FCA)* / Forward Collision
Warning (FCW)*: These features are not substitutes for safe driving, and may not detect all objects surrounding
vehicle. Always drive safely and use caution.
7. Driver Attention Warning (DAW): Driver Attention Warning is not a substitute for safe driving and may not detect
all instances of inattentive driving practices. Failure to pay attention to travel conditions and vehicle operation could
result in loss of vehicle control. Always drive safely and use caution.
8. Electronic Stability Control (ESC)/ Traction Control System (TCS)/Hill-start Assist Control (HAC): No system, no
matter how advanced, can compensate for all driver error and/or driving conditions. Always drive safely.
9. Engine Start/Stop Button with Smart Key: Always come to a complete stop before turning the engine on or off.
However, if you have an emergency while the vehicle is in motion and must turn the engine off, you can turn the
engine off to the ACC position by pressing the Start/Stop button for more than 3 seconds o\
r 3 times in succession. If
the vehicle is still moving, you can restart the engine by pressing the Start/Stop button with the s\
hift lever in Neutral
(N). With the engine off, hydraulic power assist for steering and braking will be disabled and the vehicle will be more
difficult to control.
10. Front Seat Headrest Adjustment: Never attempt to adjust headrests when vehicle is in motion.
11. Google Play
™ Store is a trademark of Google, Inc. © 2020 Google Inc. All rights reserved. Google and the Google
Logo are registered trademarks of Google Inc.
12. HomeLink
®: Homelink® is a registered trademark of Gentex Corporation
13. iPhone®: iPhone is a registered trademark of Apple Inc. Distracted driving can result in a loss of vehicle control.
Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation.
14. Navigation: Distracted driving can result in a loss of vehicle control. When operating a vehicle, never use a vehicle
system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia
does not make any warranties about the accuracy of the information.
15. Occupant Detection System (ODS): Kia vehicles use a number of different ODS types that vary by model.
16. Roadside Assist: 24-hour Enhanced Roadside Assistance is a service plan provided by Kia Motors America, Inc.
Certain limitations apply. Coverage details are available in the Kia Warranty and Consumer Information Manual.
For access to Enhanced Roadside Assistance, a connected mobile phone via Bluetooth
® within the cellular service
coverage area is required.
17. Seat adjustments: Reclining the passenger seats can reduce the effectiveness of the safety restraint system and
may lead to additional injury in an accident.
18. Seat belts: For maximum protection, always wear your seatbelt.
19. Seat warmers: Use extreme caution when using the seat warmers to avoid burns. Refer to the Owner’s Manual for
more information.
20. SiriusXM
®: SiriusXM Satellite Radio, SiriusXM Traffic and SiriusXM Travel Link each require a subscription sold
separately, or as a package, by SiriusXM Radio Inc. If you decide to continue your service at the end of your
trial subscription, the plan you choose will automatically renew and bill at then-current r\
ates until you
call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at www.siriusxm.
com. Other fees and taxes will apply. All fees and programming are subject to change. Not all vehicles or devices
are capable of receiving all services offered by SiriusXM. Data displays and individual product availability vary by
vehicle hardware. Current information and features may not be available in all locations, or on all receivers. Weather
Forecast, Current Conditions may not be available in all locations. Images above are for representative purposes only
and are not real products. For actual features and images of real products, consult the vehicle manufacturer. SiriusXM
is not responsible for any errors or inaccuracies in the data services or their use in the vehicle. Travel Link Stocks
displays current price and daily delta of around 7,000 actively reported\
securities traded on the NYSE
®, NASDAQ®
and AMEX®. The service is delayed approximately 20 minutes. SiriusXM satellite service is available only to those at
least 18 years of age in the 48 contiguous USA, DC, and Puerto Rico (with coverage limitations). SiriusXM Internet
Radio service is available throughout our satellite service area and in AK and HI. © 2020 SiriusXM Radio Inc. Sirius,
XM and all related marks and logos are trademarks of SiriusXM Radio Inc.
21. Smart Power Liftgate*: Driving with the liftgate open may be unlawful and can draw dangerous exhaust fumes into
your vehicle; if you choose to do so, keep air vents and all windows open for proper ventilation.
22. Sportmatic
® is a registered trademark of Kia Motors America.
23. Steering-wheel-mounted controls: Driving while distracted is dangerous and should be avoided. Remain attentive
to driving and be cautious when using steering-wheel-mounted controls wh\
ile driving.
24. Sunvisors: Sunvisor may not shield all direct light. Do not operate the vehicle if sunvisor is impairing your visibility.
25. Tilt/Telescoping Steering Wheel: Never attempt to adjust steering wheel position when vehicle is in motion.
26. Tire Pressure Monitoring System (TPMS): Even with Tire Pressure Monitoring System, check tire pressure on a
regular basis.

SEDONA CUSTOMER DELIVERY CHECKLIST
KEY FEATURE WALKTHROUGHDURING DELIVERY Tire Pressure Monitoring System ( TPMS) – page 5 Blind-Spot Collision Warning (BCW )* – page 10 Lane Departure Warning (LDW )* – page 11 Engine Start /Stop Button – page 14 Clock Setup – page 31 Aux /Multilmedia USB Ports, Power Outlets,
USB Charger Ports & AC Inverter* – page 31 Seat Warmers / Ventilated Seats* – page 35
Smart Key* – page 42 HomeLink
® with Auto-Dimming Rearview Mirror* – page 50
Sunroof Operation* – page 44 Parking Distance Warning– Forward* and Reverse – page 47 Sunvisor – page 43 Rear View Monitor – page 47 Passenger Airbag Off Indicator – page 51
Demonstrate the following with the customer:
*if equipped
Explain first service process and schedule first service appointment Tour Parts & Service departments, introduce staff and explain value of Kia Parts and Service Review recommended maintenance schedule and maintenance requirements to validate warranty Review business hours Review the Kia 10-year/100,000-mile warranty program Ensure 100% satisfaction with sales and delivery process and no problems with the vehicle Confirm time and best contact number for initial dealer follow-up SCC w/S&G / Cruise Control
– page 18 Demonstrate operation Android Auto
™ / Apple CarPlay
® Setup*
– page 22
UVO eServices Activation* – page 24 Standard Audio System* – page 23
UVO eServices System *– page 25 For further operational information,
refer to the Car Multimedia System
User’s Manual
UVO eServices with Premium Navigation* – page 26 For further operational information,
refer to the Car Multimedia System
User’s Manual
Bluetooth
® Wireless Technology
– page 20
Demonstrate operation
Smart Power Liftgate*
– page 45
Sales Consultant: ______________________________________________________________ Date: ____________________
Sales Manager: ________________________________________________________________ Date: ____________________
Customer: _____________________________________________________________________ Date: ____________________
HOLD HOLDHOLD
POWER
VOLPUSH
APPS
RADIO
MEDIA
SEEK
TRACK
ENTER
FILE TUNEHOME
PHONE
SETUP
POWER
VOLPUSH
APPS
RADIO
MEDIA
SEEK
TRACK
ENTER
FILE TUNEHOME
PHONE
SETUP
VOL FILE
TUNE
APPS
RADIO
MEDIA SEEKMAPN AVSETUP
TRACKMEDIA
SEEK
TRACK
ENTER
FILE TUNEMAP
N AV
SETUP
POWERPUSH

Air Conditioning: Automatic/Manual/Rear Climate Control – pages 28-30 – Demonstrate Air Flow Modes,
Defog and Defrosting Windshield Fan Speed
Windshield / Rear Wipers & Washers – page 16
*IF EQUIPPED
Front Seat Headrest
Adjustment – page 36
Automatic* Manual*

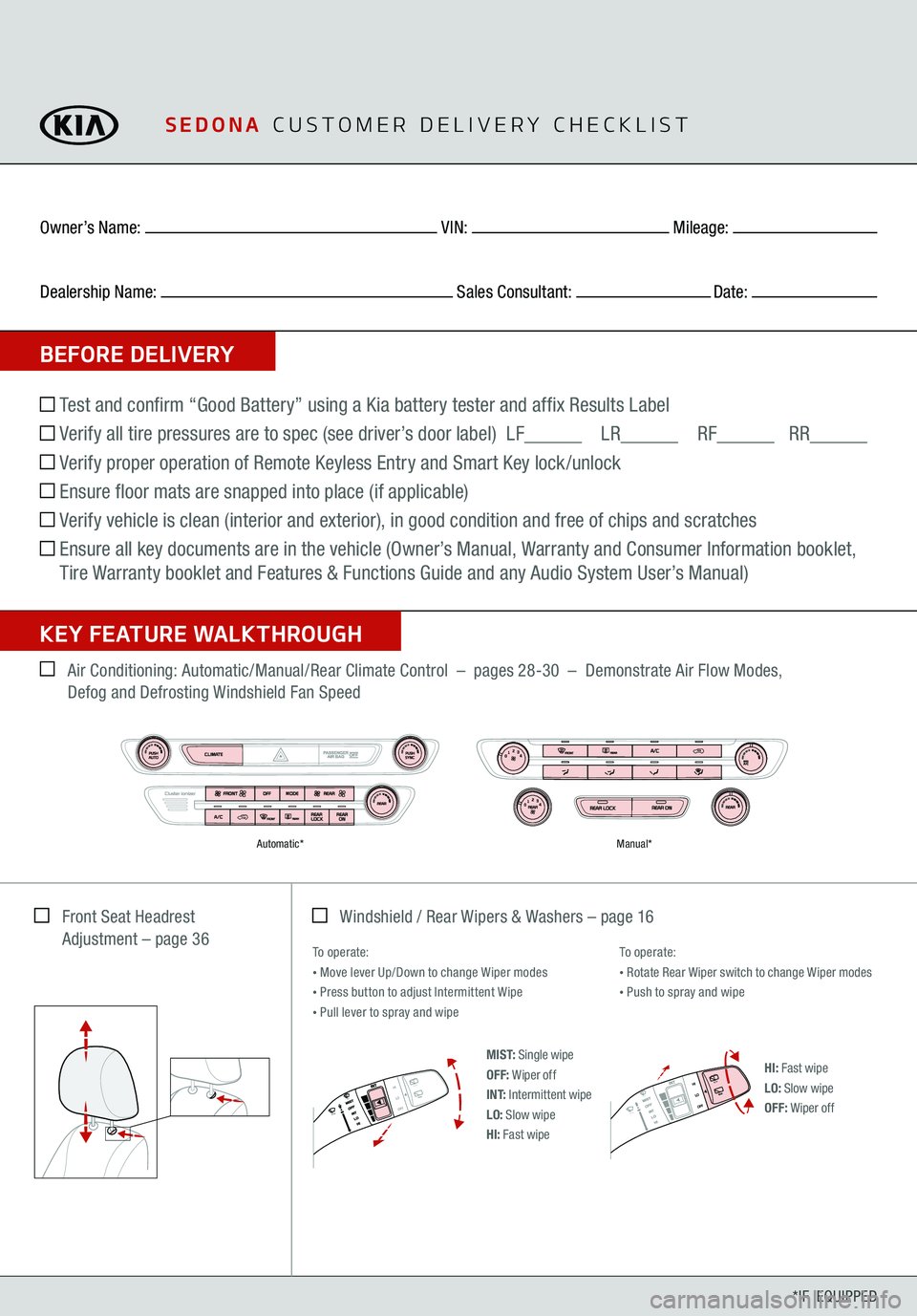

SEDONA CUSTOMER DELIVERY CHECKLIST
Owner

*IF EQUIPPED
(up to 60,000 miles)*MAINTENANCE INTERVALS (MILES)
MAINTENANCE ITEMS 7, 5 0 015,000 22,500 30,000 3 7, 5 0 045,000 52,50060,000
Rotate tires (Every 6,500 miles)
PPPPPPPP
Add fuel additive1P PPPPPPP
Engine Oil & Filter RRRRRRRR
Climate control air filter RRRRRRRR
Air cleaner filter IIIR IIIR
Battery condition IIIIIIII
Brake lines, hoses and connections IIIIIIII
Brake discs and pads IIIIIIII
Vacuum hose IIIIIIII
Power steering fluid* IIIIIIII
Power steering pump, belt and hoses* IIIIIIII
Steering gear rack, linkage & boots IIIIIIII
Driveshaft and boots IIIIIIII
Suspension ball joints IIIIIIII
Air conditioner compressor/refrigerant IIIIIIII
Exhaust system IIIIIIII
Brake fluid IIIR IIIR
Fuel tank air filter
‡ 2I III
Parking brake (foot type) IIII
Vapor hose and fuel filler cap IIII
Cooling System III
Fuel lines, hoses and connections II
Valve clearance
3I
Drive belts (First 60,000 miles, then every 15,000 miles)4I
SEDONA NORMAL MAINTENANCE SCHEDULE
P=Perform • R =Replace • I=Inspect**
* See the Owner’s Manual for complete maintenance schedule. These are approximate estimated intervals.
Refer to vehicle mileage for maintenance item schedule
* * And, if necessary, adjust, correct, clean or replace
‡ If equipped
1. If TOP TIER detergent gasoline is not available, one bottle of additive is recommended. Additives are available from
your authorized Kia dealer along with information on how to use them. Do not mix other additives 2.
Both the fuel filter & fuel tank air filter are generally considered to be maintenance free, depending on fuel quality
being used. However, periodic inspection is recommended. If your vehicle is having issues like fuel flow restriction,
power surging, loss of power, difficulty starting, etc., replace the fuel filter immediately and consult an authorized Kia
dealer for service.
3. Inspect for excessive tappet noise and/or engine vibration and adjust if necessary
4. The drive belt should be replaced when cracks occur or tension is reduced excessively
See your Owner’s Manual for more details and complete maintenance information, including severe maintenance
schedule. Warranty may be voided if maintenance schedule is not followed.
© 2020 Kia Motors America, Inc. All rights reserved. Part Number: YP210-PS-004
Consumer - Roadside Assistance†16: 1-800-333-4KIA (4542)
Check your Maintenance Schedule or schedule an appointment with a dealer using your UVO eServices account
by logging into your Kia eServices app or your account on https://owners.kia.com ( Vehicles equipped with UVO
eServices only – See page 24 for setup information)
QUICK TIP
†LEG AL DISCL AIMERS ON BACK INSIDE COVER
