KIA Sorento 2006 1.G User Guide

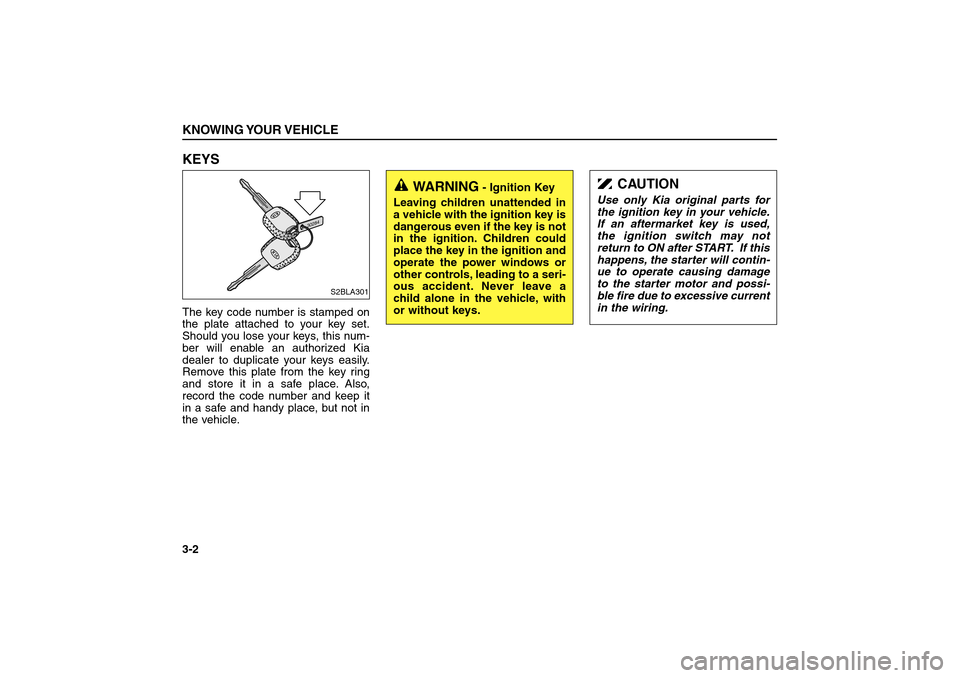

KEYSThe key code number is stamped on
the plate attached to your key set.
Should you lose your keys, this num-
ber will enable an authorized Kia
dealer to duplicate your keys easily.
Remove this plate from the key ring
and store it in a safe place. Also,
record the code number and keep it
in a safe and handy place, but not in
the vehicle.KNOWING YOUR VEHICLE3-2
30284
S2BLA301
WARNING
- Ignition Key
Leaving children unattended in
a vehicle with the ignition key is
dangerous even if the key is not
in the ignition. Children could
place the key in the ignition and
operate the power windows or
other controls, leading to a seri-
ous accident. Never leave a
child alone in the vehicle, with
or without keys.
CAUTION
Use only Kia original parts for
the ignition key in your vehicle.
If an aftermarket key is used,
the ignition switch may not
return to ON after START. If this
happens, the starter will contin-
ue to operate causing damage
to the starter motor and possi-
ble fire due to excessive current
in the wiring.
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 2

IMMOBILIZER SYSTEM -
FOR GASOLINE ENGINE
(IF EQUIPPED)The immobilizer system is an anti-
theft device, designed to deter auto-
mobile theft.1) ID key
This key must be used first to reg-
ister a unique ID code in the ICM.
2) Master key
This key is for general use. It will
open all locks on your vehicle. One
side of the key has the Kia logo
and the other side has the “M”
symbol.
If you need additional keys or lose
your keys, your Authorized Kia
Dealer can make new keys if you can
supply the key number and ID key.
KNOWING YOUR VEHICLE
3-3
M
M
CAUTION
Don’t lose your ID key or forget
the password.
Always keep your ID key in a
place where you remember and
record your password. If you
don’t have both the password
and ID key, consult your
Authorized Kia Dealer.
CAUTION
A transponder equipped in your
ignition key is very important
part to deactivate the immobiliz-
er system. So you must not give
any shock on it. It could cause
the failure of your immobilizer
system and your vehicle’s start-
ing.
S2BLD3027
✽ ✽
NOTICEIf you make your own duplicate
key, you will not be able to cancel
the system or start the engine.✽ ✽
NOTICEWhen starting the engine, do not
use the key with other immobilizer
keys around. Otherwise the engine
may not start or may stop soon
after it starts. Keep each key sepa-
rately not to have any malfunction
after you receive your new vehicle.
ID Key
Master Key
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 3

Limp home (override) procedure
When you turn the ignition key to the
ON position, if the IMMO indicator
remains on continuously after blink-
ing 6 times, the transponder installed
in the ignition key is out of order. You
cannot start the engine without using
the limp home procedure. To start the
engine, you have to input your pass-
word using the ignition switch.The following procedure shows how
to input a sample password of “2345.”
1. Turn the ignition key to the ON
position. The IMMO indicator will
blink 6 times and remain on indi-
cating the beginning of the limp
home procedure.
2. Turn the ignition key to the ACC
position.
3. To enter the first digit (in this exam-
ple “2”), turn the ignition key to the
ON and ACC position twice. Wait 3
seconds but not more than 10 sec-
onds, and perform the same pro-
cedure for the next digits (for
example, for “3”, turn the ignition to
ON and ACC 3 times).
4. If all of the digits have been input
successfully, you have to start the
engine within 10 seconds. If you
attempt to start the engine after 10
seconds, the engine will not start
and you will have to input your
password again.After performing the limp home pro-
cedure, you have to see an author-
ized Kia dealer immediately to
inspect and repair your ignition key or
immobilizer system.KNOWING YOUR VEHICLE3-4
CAUTION
If you cannot start your engine
in spite of the limp home proce-
dure, have your vehicle towed
by an authorized Kia dealer for
inspection and necessary
repairs.
CAUTION
Do not change, alter or adjust
the immobilizer system at your
discretion. It could cause the
malfunction of your immobilizer
system. A malfunction resulting
from the changing, altering
and/or adjusting by persons
other than an authorized Kia
dealer will not be covered by
the Kia Warranty.
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 4

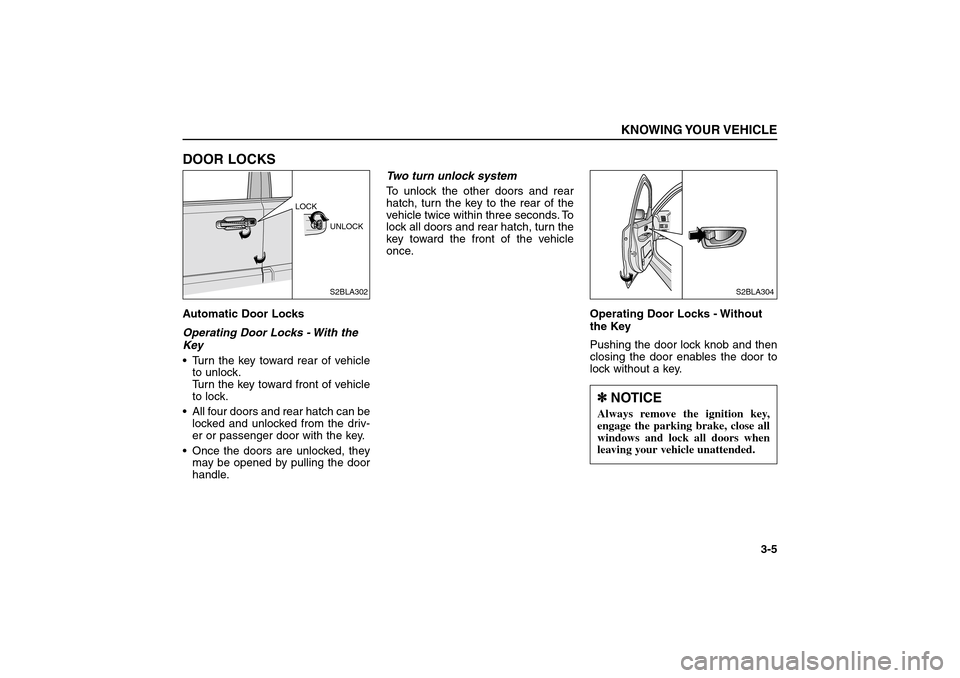

DOOR LOCKSAutomatic Door Locks
Operating Door Locks - With the
Key
Turn the key toward rear of vehicle
to unlock.
Turn the key toward front of vehicle
to lock.
All four doors and rear hatch can be
locked and unlocked from the driv-
er or passenger door with the key.
Once the doors are unlocked, they
may be opened by pulling the door
handle.Two turn unlock system
To unlock the other doors and rear
hatch, turn the key to the rear of the
vehicle twice within three seconds. To
lock all doors and rear hatch, turn the
key toward the front of the vehicle
once.
Operating Door Locks - Without
the Key
Pushing the door lock knob and then
closing the door enables the door to
lock without a key.
KNOWING YOUR VEHICLE
3-5
S2BLA302 LOCK
UNLOCK
S2BLA304
✽ ✽
NOTICEAlways remove the ignition key,
engage the parking brake, close all
windows and lock all doors when
leaving your vehicle unattended.
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 5

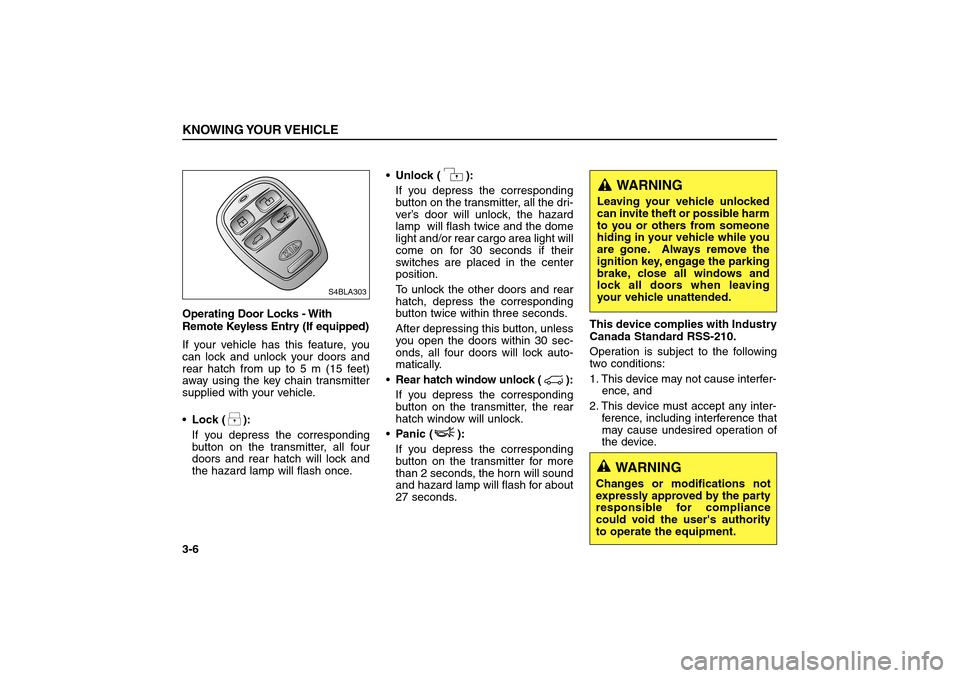

Operating Door Locks - With
Remote Keyless Entry (If equipped)
If your vehicle has this feature, you
can lock and unlock your doors and
rear hatch from up to 5 m (15 feet)
away using the key chain transmitter
supplied with your vehicle.
Lock ( ):
If you depress the corresponding
button on the transmitter, all four
doors and rear hatch will lock and
the hazard lamp will flash once.Unlock ( ):
If you depress the corresponding
button on the transmitter, all the dri-
ver’s door will unlock, the hazard
lamp will flash twice and the dome
light and/or rear cargo area light will
come on for 30 seconds if their
switches are placed in the center
position.
To unlock the other doors and rear
hatch, depress the corresponding
button twice within three seconds.
After depressing this button, unless
you open the doors within 30 sec-
onds, all four doors will lock auto-
matically.
Rear hatch window unlock ( ):
If you depress the corresponding
button on the transmitter, the rear
hatch window will unlock.
Panic ( ):
If you depress the corresponding
button on the transmitter for more
than 2 seconds, the horn will sound
and hazard lamp will flash for about
27 seconds.This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following
two conditions:
1. This device may not cause interfer-
ence, and
2. This device must accept any inter-
ference, including interference that
may cause undesired operation of
the device.KNOWING YOUR VEHICLE3-6
WARNING
Leaving your vehicle unlocked
can invite theft or possible harm
to you or others from someone
hiding in your vehicle while you
are gone. Always remove the
ignition key, engage the parking
brake, close all windows and
lock all doors when leaving
your vehicle unattended.
S4BLA303
WARNING
Changes or modifications not
expressly approved by the party
responsible for compliance
could void the user's authority
to operate the equipment.
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 6

Battery Replacement
1. Insert a slim tool into the slot and
gently pry open the transmitter.
2. Remove and replace the 3-volt bat-
tery with the (+) facing up.
3. Reassemble the transmitter.
4. Check the transmitter operation.
KNOWING YOUR VEHICLE
3-7
S2BLA3068
✽ ✽
NOTICE• The keyless entry system may not
operate when;
- the ignition key is in the ignition
switch.
- you exceed the operating dis-
tance limit (5m).
- the battery in the transmitter is
weak.
- other vehicles or objects may be
blocking the signal. Check the
location.
- the weather is very cold.
- the transmitter is close to a
radio transmitter such as a
radio station or an airport
which can interfere with normal
operation of the transmitter.
 If you have a problem with the
keyless entry system, contact an
authorized Kia dealer as soon as
possible.
CAUTION
 Using the wrong battery can
cause the transmitter to mal-
function. Be sure to use the
correct battery.
 To avoid damaging the trans-
mitter, don’t drop it, get it wet,
or expose it to heat or sun-
light.
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 7

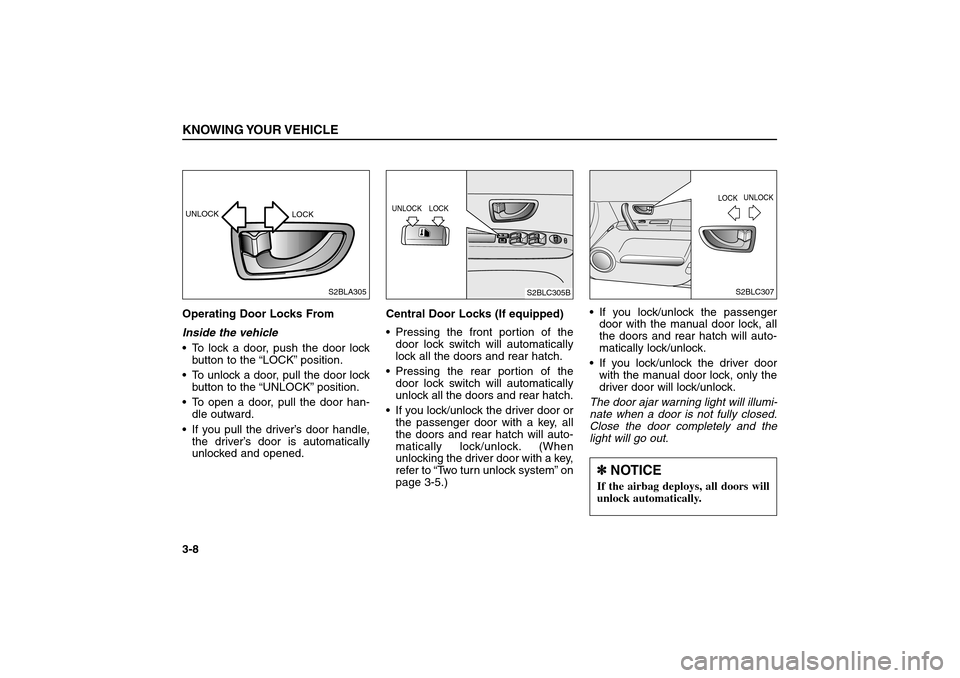

Operating Door Locks From
Inside the vehicle
To lock a door, push the door lock
button to the “LOCK”position.
To unlock a door, pull the door lock
button to the “UNLOCK”position.
To open a door, pull the door han-
dle outward.
If you pull the driver’s door handle,
the driver’s door is automatically
unlocked and opened.Central Door Locks (If equipped)
Pressing the front portion of the
door lock switch will automatically
lock all the doors and rear hatch.
Pressing the rear portion of the
door lock switch will automatically
unlock all the doors and rear hatch.
If you lock/unlock the driver door or
the passenger door with a key, all
the doors and rear hatch will auto-
matically lock/unlock. (When
unlocking the driver door with a key,
refer to “Two turn unlock system”on
page 3-5.)If you lock/unlock the passenger
door with the manual door lock, all
the doors and rear hatch will auto-
matically lock/unlock.
If you lock/unlock the driver door
with the manual door lock, only the
driver door will lock/unlock.
The door ajar warning light will illumi-
nate when a door is not fully closed.
Close the door completely and the
light will go out.KNOWING YOUR VEHICLE3-8
S2BLA305 LOCK UNLOCK
S2BLC305B
S2BLC307
LOCK UNLOCK
✽ ✽
NOTICEIf the airbag deploys, all doors will
unlock automatically.
LOCKUNLOCK
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 8

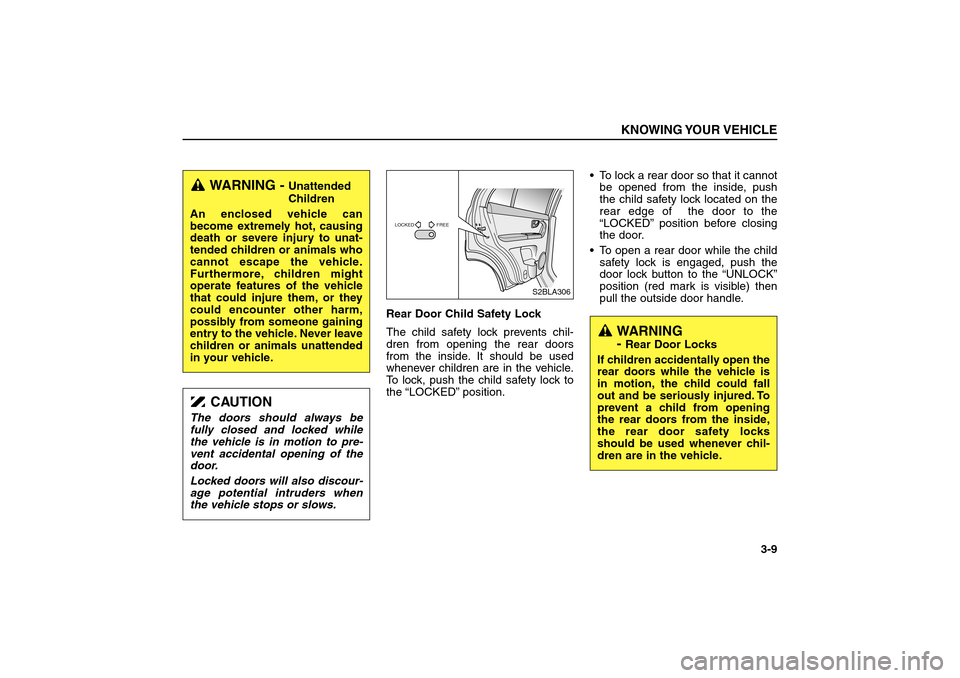

Rear Door Child Safety Lock
The child safety lock prevents chil-
dren from opening the rear doors
from the inside. It should be used
whenever children are in the vehicle.
To lock, push the child safety lock to
the “LOCKED”position.To lock a rear door so that it cannot
be opened from the inside, push
the child safety lock located on the
rear edge of the door to the
“LOCKED”position before closing
the door.
To open a rear door while the child
safety lock is engaged, push the
door lock button to the “UNLOCK”
position (red mark is visible) then
pull the outside door handle.
KNOWING YOUR VEHICLE
3-9
LOCKED FREE
S2BLA306
WARNING -
Unattended
Children
An enclosed vehicle can
become extremely hot, causing
death or severe injury to unat-
tended children or animals who
cannot escape the vehicle.
Furthermore, children might
operate features of the vehicle
that could injure them, or they
could encounter other harm,
possibly from someone gaining
entry to the vehicle. Never leave
children or animals unattended
in your vehicle.
CAUTION
The doors should always be
fully closed and locked while
the vehicle is in motion to pre-
vent accidental opening of the
door.
Locked doors will also discour-
age potential intruders when
the vehicle stops or slows.
WARNING
- Rear Door Locks
If children accidentally open the
rear doors while the vehicle is
in motion, the child could fall
out and be seriously injured. To
prevent a child from opening
the rear doors from the inside,
the rear door safety locks
should be used whenever chil-
dren are in the vehicle.
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 9

WINDOWSPower Windows
The ignition switch must be in the ON
position for power windows to operate.
Each door has a power window switch
that controls that door’s window.
However, the driver has a power win-
dow switch which can block the opera-
tion of the passenger windows.
Driver’s Door Power Window
Controls
The driver’s door has a master power
window switch that controls all the
windows in the vehicle. The ignition
switch must be in the ON position for
power windows to operate. To open a
window, press down on the front por-
tion of the corresponding switch. To
close a window, pull up on the front
portion of the corresponding power
window switch.Driver’s Window Automatic-down
Window Switch
The driver’s window has an
“Automatic-Down”feature. To activate
the express-down feature, momen-
tarily depress the front of the switch
to the second detent position. To can-
cel this feature, pull up on the front of
the switch and then release it or
momentarily depress the front of the
switch to the first detent position.
Power Window Timer (If equipped)
The power windows can be operated
for approximately 30 seconds after
the ignition key is removed or turned
to the ACC or LOCK position.
However, if the front doors are
opened, the power windows cannot
be operated even within 30 seconds
after the ignition key removal.KNOWING YOUR VEHICLE3-10
S2BLA305C
✽ ✽
NOTICETo prevent the possibility of damage
to the power window system, do not
open or close more than two win-
dows at the same time. This will also
ensure the longevity of the fuse.
WARNING -
Windows
 Do not allow children to play
with the power windows. They
may seriously injure them-
selves or others.
 Always double check to make
sure all arms, hands, and other
obstructions are safely out of
the way before closing a win-
dow.
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 10

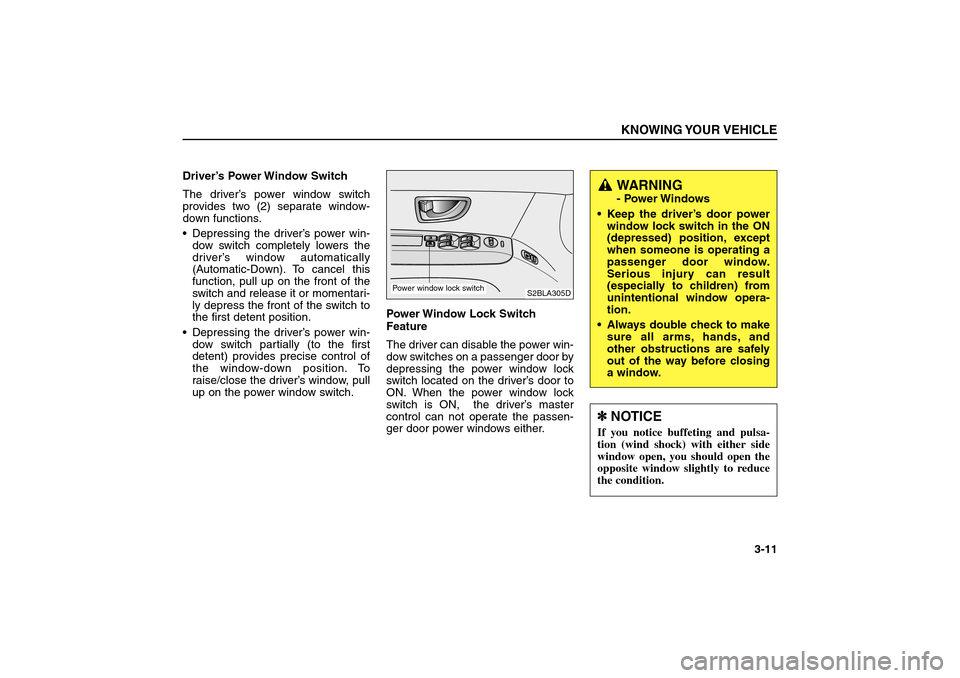

Driver’s Power Window Switch
The driver’s power window switch
provides two (2) separate window-
down functions.
Depressing the driver’s power win-
dow switch completely lowers the
driver’s window automatically
(Automatic-Down). To cancel this
function, pull up on the front of the
switch and release it or momentari-
ly depress the front of the switch to
the first detent position.
Depressing the driver’s power win-
dow switch partially (to the first
detent) provides precise control of
the window-down position. To
raise/close the driver’s window, pull
up on the power window switch.Power Window Lock Switch
Feature
The driver can disable the power win-
dow switches on a passenger door by
depressing the power window lock
switch located on the driver’s door to
ON. When the power window lock
switch is ON, the driver’s master
control can not operate the passen-
ger door power windows either.
KNOWING YOUR VEHICLE
3-11
S2BLA305D
Power window lock switch
WARNING- Power Windows
 Keep the driver’s door power
window lock switch in the ON
(depressed) position, except
when someone is operating a
passenger door window.
Serious injury can result
(especially to children) from
unintentional window opera-
tion.
 Always double check to make
sure all arms, hands, and
other obstructions are safely
out of the way before closing
a window.
✽ ✽
NOTICEIf you notice buffeting and pulsa-
tion (wind shock) with either side
window open, you should open the
opposite window slightly to reduce
the condition.
BL-ENG (CAN)-3.qxd 7/28/05 5:52 PM Page 11
