KIA Sorento 2006 1.G Owner's Manual

TRAILER TOWINGYour vehicle can tow a trailer. To iden-
tify what the vehicle trailering capaci-
ty is for your vehicle, you should read
the information in “Weight of the
Trailer’’ that appears later in this sec-
tion. Remember that trailering is dif-
ferent than just driving your vehicle
by itself. Trailering means changes in
handling, durability, and fuel econo-
my. Successful, safe trailering takes
correct equipment, and it has to be
used properly.This section contains many time-test-
ed, important trailering tips and safe-
ty rules. Many of these are important
for your safety and that of your pas-
sengers. Please read this section
carefully before you pull a trailer.
Load-pulling components such as the
engine, transmission, wheel assem-
blies, and tires are forced to work
harder against the load of the added
weight. The engine is required to
operate at relatively higher speeds
and under greater loads. This addi-
tional burden generates extra heat.
The trailer also adds considerably to
wind resistance, further increasing
the pulling requirements.If You Do Decide to Pull a Trailer
Here are some important points if you
decide to pull a trailer:
 State, provincial, county and
municipal government have varying
trailering laws. Make sure your
hitch, mirrors, lights and wiring
arrangements are legal, not only
where you live, but also where
you’ll be driving. A good source for
this information is provincial or local
law enforcement agencies.
 Consider using a sway control. You
can ask a hitch dealer about sway
control.
 After your odometer indicates 800
km or more, you can tow a trailer.
For the first 800 km that you tow a
trailer, don’t drive over 80 km/h and
don’t make starts at full throttle.
This helps your engine and other
parts of your vehicle “wear” in at the
heavier loads.
 Always drive at a safe speed (less
than 100 km/h) commensurate with
road conditions.
 Three important considerations
have to do with weight:DRIVING TIPS5-34✽ ✽
NOTICEPulling a trailer improperly can
damage your vehicle and result in
costly repairs not covered by your
warranty. To pull a trailer correct-
ly, follow the advice in this section.
BL-ENG (CAN)-5.qxd 7/28/05 5:56 PM Page 34

Weight of the Trailer
How heavy can a trailer safely be? It
should never weigh more than 1,590
kg (3,500 lbs.) with trailer brakes. But
even that can be too heavy depend-
ing on the number of passengers.
It depends on how you plan to use
your trailer. For example, speed, alti-
tude, road grades, outside tempera-
ture and how much your vehicle is
used to pull a trailer are all important.
The ideal trailer weight can also
depend on any special equipment
that you have on your vehicle.
DRIVING TIPS
5-35
ItemFour Wheel Drive Two Wheel Drive
A/T M/T A/T M/T
Maximum GCWR3,681 kg 3,662 kg 3,592 kg 3,573 kg
(8,115 lbs) (8,074 lbs) (7,919 lbs) (7,877 lbs)
Maximum
Trailer Weight
✽ ✽
NOTICE For definitions of terms used in this table and instructions on how to calcu-
late your vehicle load, refer to Weight of the Vehicle in this chapter.
 The combined weight of the completed towing vehicle and the loaded trail-
er must not exceed the GCWR.
 When towing maximum loads under high outside temperatures and/or on
steep grades, the A/C system may cycle on and off to protect the engine from
overheating. This may result in a temporary increase of interior tempera-
ture.
Without brake system : 750 kg (1,650 lbs)
With brake system : 1,590 kg (3,500 lbs)
BL-ENG (CAN)-5.qxd 7/28/05 5:56 PM Page 35

Weight of the Trailer Tongue
The tongue load of any trailer is an
important weight to measure
because it affects the total gross
vehicle weight (GVW) of your vehicle.
This weight includes the curb weight
of the vehicle, any cargo you may
carry in it, and the people who will be
riding in the vehicle. And if you tow a
trailer, you must add the tongue load
to the GVW because your vehicle will
also be carrying that weight.
The trailer tongue should weigh a
maximum of 10% of the total loaded
trailer weight. After you’ve loaded
your trailer, weigh the trailer and then
the tongue, separately, to see if the
weights are proper. If they aren’t, you
may be able to correct them simply
by moving some items around in the
trailer.Too little tongue load can make the
trailer unstable and cause it to sway.
Too much tongue load reduces front-
tire traction and steering control.DRIVING TIPS5-36
WARNING
 An improperly loaded trailer
can cause loss of control of
your vehicle.
 Never load a trailer with more
weight in the rear than in the
front. The front should be
loaded with approximately
60% of the total trailer load;
the rear should be loaded with
approximately 40% of the total
trailer load.
 Never exceed the maximum
weight limits of the trailer or
trailer towing equipment.
Improper loading can result in
damage to your vehicle and/or
personal injury. Check
weights and loading at a com-
mercial scale or highway
patrol office equipped with
scales.
BL-ENG (CAN)-5.qxd 7/28/05 5:56 PM Page 36

Total Weight on Your Vehicle’s
Tires
Be sure your vehicle’s tires are inflat-
ed to the limit for cold tires. You’ll find
these numbers on the Tire Pressure
label (or see “Label Information’’ in
the Index). Be sure not to exceed the
GVW limit for your vehicle.Hitches
It’s important to have the correct hitch
equipment. Crosswinds, large trucks
going by, and rough roads are a few
reasons why you’ll need the right
hitch. Here are some rules to follow:
 Will you have to make any holes in
the body of your vehicle when you
install a trailer hitch?
If you do, then be sure to seal the
holes later when you remove the
hitch. If you don’t seal them, deadly
carbon monoxide (CO) from your
exhaust can get into your vehicle,
as well as dirt and water.
 The bumpers on your vehicle are
not intended for hitches. Do not
attach rental hitches or other
bumper-type hitches to them. Use
only a frame-mounted hitch that
does not attach to the bumper.Safety chains
You should always attach chains
between your vehicle and your trailer.
Cross the safety chains under the
tongue of the trailer so that the
tongue will not drop to the road if it
becomes separated from the hitch.
Instructions about safety chains may
be provided by the hitch manufactur-
er or by the trailer manufacturer.
Follow the manufacturer’s recom-
mendation for attaching safety
chains. Always leave just enough
slack so you can turn with your trailer.
And, never allow safety chains to
drag on the ground.
DRIVING TIPS
5-37
S2BLD502A
BL-ENG (CAN)-5.qxd 7/28/05 5:56 PM Page 37

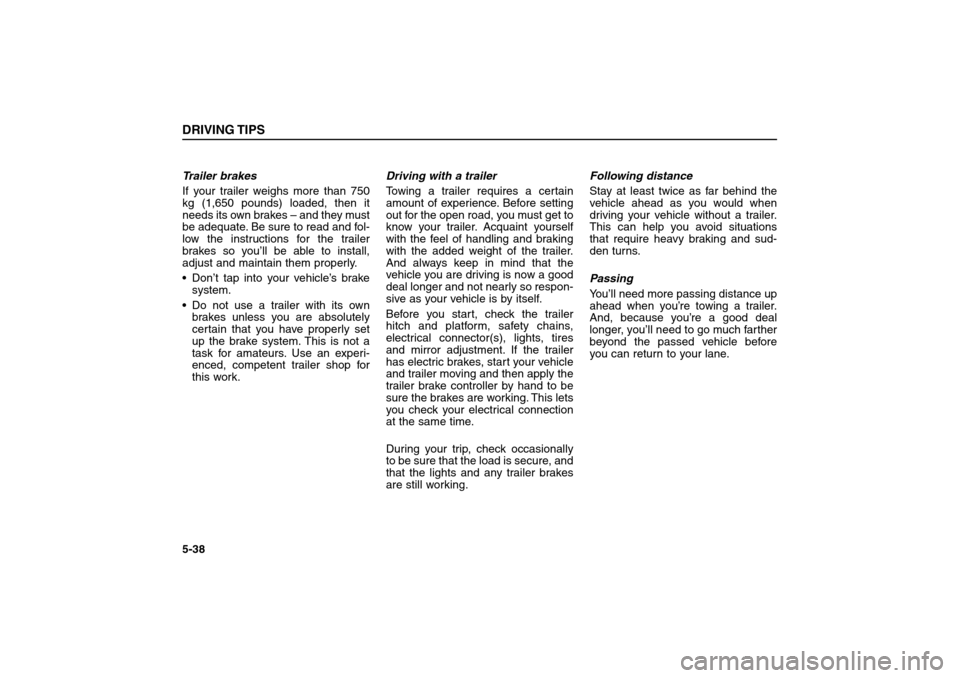

Trailer brakes
If your trailer weighs more than 750
kg (1,650 pounds) loaded, then it
needs its own brakes – and they must
be adequate. Be sure to read and fol-
low the instructions for the trailer
brakes so you’ll be able to install,
adjust and maintain them properly.
 Don’t tap into your vehicle’s brake
system.
 Do not use a trailer with its own
brakes unless you are absolutely
certain that you have properly set
up the brake system. This is not a
task for amateurs. Use an experi-
enced, competent trailer shop for
this work.Driving with a trailer
Towing a trailer requires a certain
amount of experience. Before setting
out for the open road, you must get to
know your trailer. Acquaint yourself
with the feel of handling and braking
with the added weight of the trailer.
And always keep in mind that the
vehicle you are driving is now a good
deal longer and not nearly so respon-
sive as your vehicle is by itself.
Before you start, check the trailer
hitch and platform, safety chains,
electrical connector(s), lights, tires
and mirror adjustment. If the trailer
has electric brakes, start your vehicle
and trailer moving and then apply the
trailer brake controller by hand to be
sure the brakes are working. This lets
you check your electrical connection
at the same time.
During your trip, check occasionally
to be sure that the load is secure, and
that the lights and any trailer brakes
are still working.Following distance
Stay at least twice as far behind the
vehicle ahead as you would when
driving your vehicle without a trailer.
This can help you avoid situations
that require heavy braking and sud-
den turns.
Passing
You’ll need more passing distance up
ahead when you’re towing a trailer.
And, because you’re a good deal
longer, you’ll need to go much farther
beyond the passed vehicle before
you can return to your lane.DRIVING TIPS5-38
BL-ENG (CAN)-5.qxd 7/28/05 5:56 PM Page 38

Backing up
Hold the bottom of the steering wheel
with one hand. Then, to move the
trailer to the left, just move your hand
to the left. To move the trailer to the
right, move your hand to the right.
Always back up slowly and, if possi-
ble, have someone guide you.
Making turns
When you’re turning with a trailer,
make wider turns than normal. Do
this so your trailer won’t strike soft
shoulders, curbs, road signs, trees,
or other objects. Avoid jerky or sud-
den maneuvers. Signal well in
advance.Turn signals when towing a trailer
When you tow a trailer, your vehicle
has to have a different turn signal
flasher and extra wiring.
The green arrows on your instrument
panel will flash whenever you signal a
turn or lane change. Properly con-
nected, the trailer lights will also flash
to alert other drivers that you’re about
to turn, change lanes, or stop.
When towing a trailer, the green
arrows on your instrument panel will
flash for turns even if the bulbs on the
trailer are burned out. Thus, you may
think drivers behind you are seeing
your signals when, in fact, they are
not. It’s important to check occasion-
ally to be sure the trailer bulbs are still
working. You must also check the
lights every time you disconnect and
then reconnect the wires.Do not connect a trailer lighting sys-
tem directly to your vehicle’s lighting
system.
Use only an approved trailer wiring
harness. Your authorized Kia dealer
can assist you in installing the wiring
harness.
DRIVING TIPS
5-39
WARNING
Using an improper trailer wiring
harness could lead to malfunc-
tioning of your vehicles electri-
cal system and a possible acci-
dent.
BL-ENG (CAN)-5.qxd 7/28/05 5:56 PM Page 39

You must check the capacity of the
lighting system and electrical equip-
ment for a trailer before connecting
the wires.
 Trailer accessory : 120W and below
 Turn signal lamp : 27W × 2EA and
below (Total : 4.2 A and below)
 Stop lamp : 27W × 2EA and below
(Total : 4.2 A and below)
 Position lamp : 5W × 8EA and
below (Total : 3.65 A and below)Driving on grades
Reduce speed and shift to a lower
gear before you start down a long or
steep downgrade. If you don’t shift
down, you might have to use your
brakes so much that they would get
hot and no longer operate efficiently.
On a long uphill grade, shift down
and reduce your speed to around 45
mph (70 km/h) to reduce the possibil-
ity of engine and transmission over-
heating.
If your trailer weighs more than 1650
lbs (750 kg) and you have an auto-
matic transmission, you should drive
in D (Drive) when towing a trailer.
Operating your vehicle in D (Drive)
when towing a trailer will minimize
heat buildup and extend the life of
your transmission. If you have a man-
ual transmission, drive in fourth gear
(or, as you need to, a lower gear).
DRIVING TIPS5-40
4
3
2
1
7
6
5
Trailer Connector Back up lamp
 Position lamp
 Trailer accessory
 Turn signal lamp (LH)
 Turn siganl lamp (RH)
 Stop lamp
EarthTrailer Connector
S2BLA550
BL-ENG (CAN)-5.qxd 7/28/05 5:56 PM Page 40

Parking on hills
Generally, you should not park your
vehicle, with a trailer attached, on a
hill. People can be seriously or fatally
injured, and both your vehicle and the
trailer can be damaged if they begin a
downhill trajectory.However, if you ever have to park
your trailer on a hill, here’s how to do
it:
1. Apply your brakes, but don’t shift
into gear.
2. Have someone place chocks
under the trailer wheels.
3. When the wheel chocks are in
place, release the brakes until the
chocks absorb the load.
4. Reapply the brakes. Apply your
parking brake, and then shift to R
(Reverse) for a manual transmis-
sion or P (Park) for an automatic
transmission.
5. Be sure the transfer case (if
equipped) is fully engaged in a
drive gear – not in N (Neutral).
6. Release the brakes.
DRIVING TIPS
5-41
WARNING- Parking on a Hill
Parking your vehicle on a hill
with an attached trailer could
cause serious injury or fatal
injury. If the brakes fail, the
vehicle and trailer could roll
down hill and strike people or
property.
WARNING- Parking Brake
Not setting the parking brake
when leaving the vehicle could
lead to a serious accident.
If you have left the engine run-
ning, the vehicle can move sud-
denly. Always set the parking
brake and take the key with you
to be sure your vehicle is
securely parked.
BL-ENG (CAN)-5.qxd 7/28/05 5:56 PM Page 41

When You Are Ready to Leave
After Parking on a Hill
1. With the manual transmission in
Neutral or automatic transmission
in P (Park), apply your brakes and
hold the brake pedal down while
you:
Start your engine;
Shift into gear; and
Release the parking brake.
2. Slowly remove your foot from the
brake pedal.
3. Drive slowly until the trailer is clear
of the chocks.
4. Stop and have someone pick up
and store the chocks.Maintenance When Trailer Towing
Your vehicle will need service more
often when you regularly pull a trailer.
Important items to pay particular
attention to include engine oil, auto-
matic transmission fluid, axle lubri-
cant and cooling system fluid. Brake
condition is another important item to
frequently check. Each item is cov-
ered in this manual, and the Index will
help you find them quickly. If you’re
trailering, it’s a good idea to review
these sections before you start your
trip.
Don’t forget to also maintain your
trailer and hitch. Follow the mainte-
nance schedule that accompanied
your trailer and check it periodically.
Preferably, conduct the check at the
start of each day’s driving. Most
importantly, all hitch nuts and bolts
should be tight.DRIVING TIPS5-42
✽ ✽
NOTICEDue to higher load during trailer
usage, overheating might occur in
hot days or during uphill driving. If
the coolant gauge indicates over-
heating, switch off the A/C and stop
the vehicle in a safe area to cool
down the engine.
BL-ENG (CAN)-5.qxd 7/28/05 5:56 PM Page 42

OVERLOADING LABEL INFORMATION
There are several important labels
and identification numbers located on
your vehicle. The label locations are
identified in the illustrations on the fol-
lowing three pages.
Vehicle Identification Number
(VIN)
This is the legal identifier for your
vehicle. It appears on a plate
attached to the left side of the forward
portion of the dashboard. The VIN
plate can be easily seen from the out-
side of the vehicle through the wind-
shield on the driver’s side.
DRIVING TIPS
5-43
S2BLD304
WARNING- Weight Rating
The gross axle weight rating
(GAWR) and the gross vehicle
weight rating (GVWR) for your
vehicle are on the manufactur-
er’s label attached to the dri-
ver’s door. Exceeding these rat-
ings can cause an accident or
vehicle damage. You can calcu-
late the weight of your load by
weighing the items (or people)
before putting them in the vehi-
cle. Be careful not to overload
your vehicle.
BL-ENG (CAN)-5.qxd 7/28/05 5:56 PM Page 43
